Horizontal Transformer Bobbin EER28 2+2 Pins Bobbin

EER28 2+2 pins horizontal bobbin. EER28 single slot coil former. Bobbin Size=26.4mmX19.3mmX19.5mm. Pin Pitch=23mm. Parallel Distance=14.4mm. PBT material EER28 transformer bobbin. UL REC:94V-0.











2018 latest transformer bobbin, EER28 horizontal coil former, accept custom design, factory price and best quality, if you have any requests, welcome to contact us.


Quick Details

Part Number: MCT-2834

Brand Name: MCT

Material: PBT

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: Horizontal Transformer Bobbin EER28 2+2 Pins Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

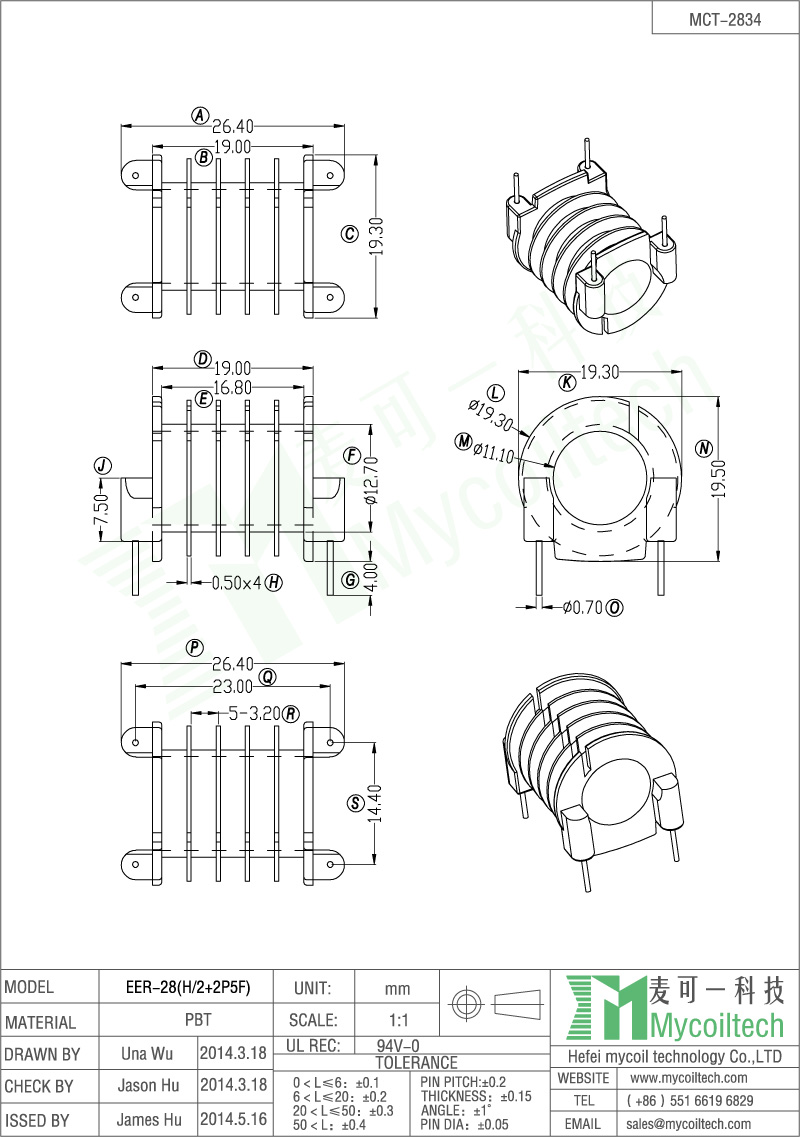

Product Specification

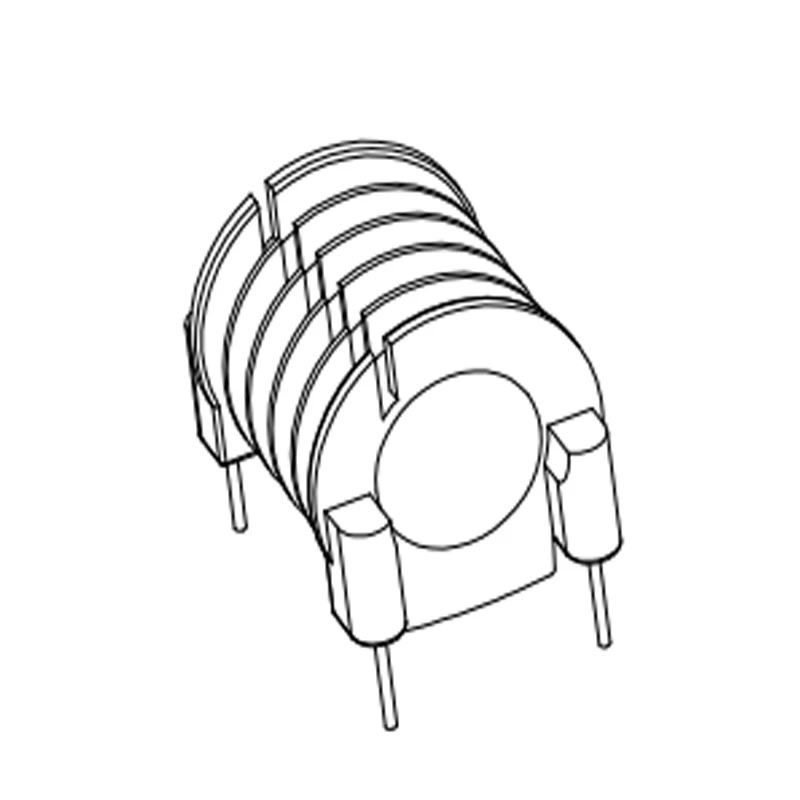

EER bobbin 2+2 pin horizontal bobbin
