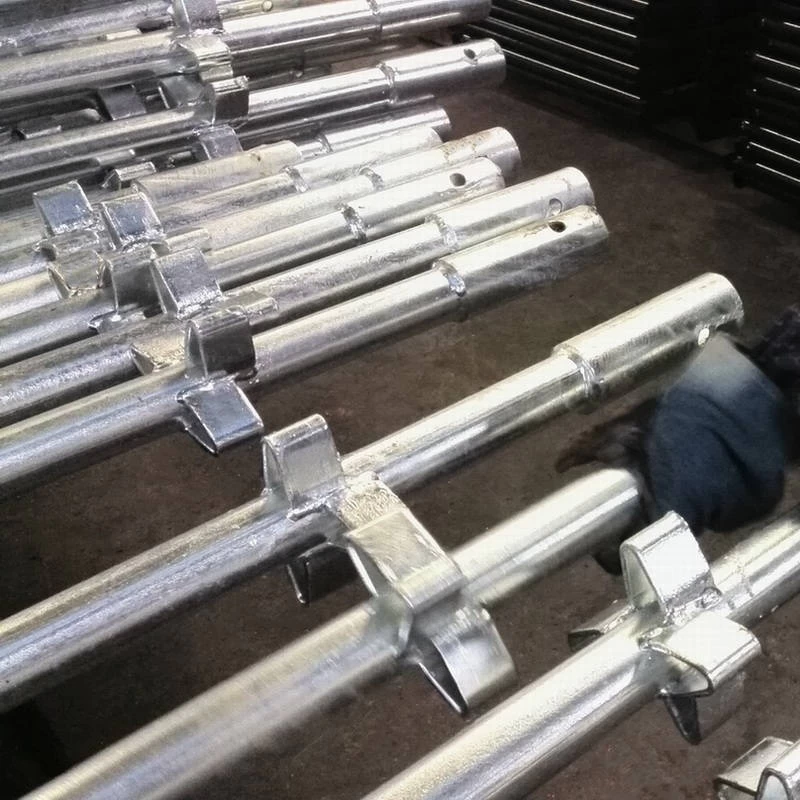

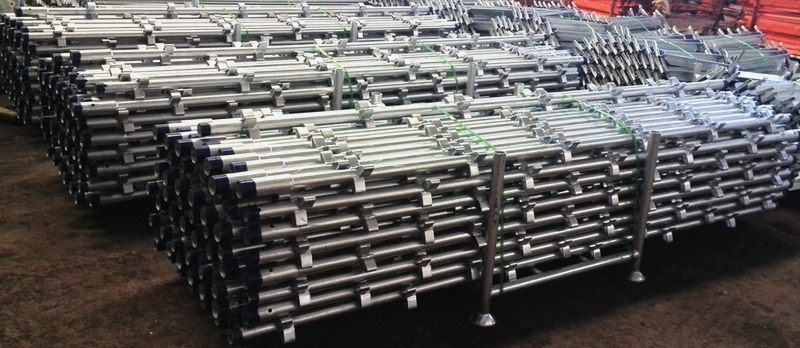

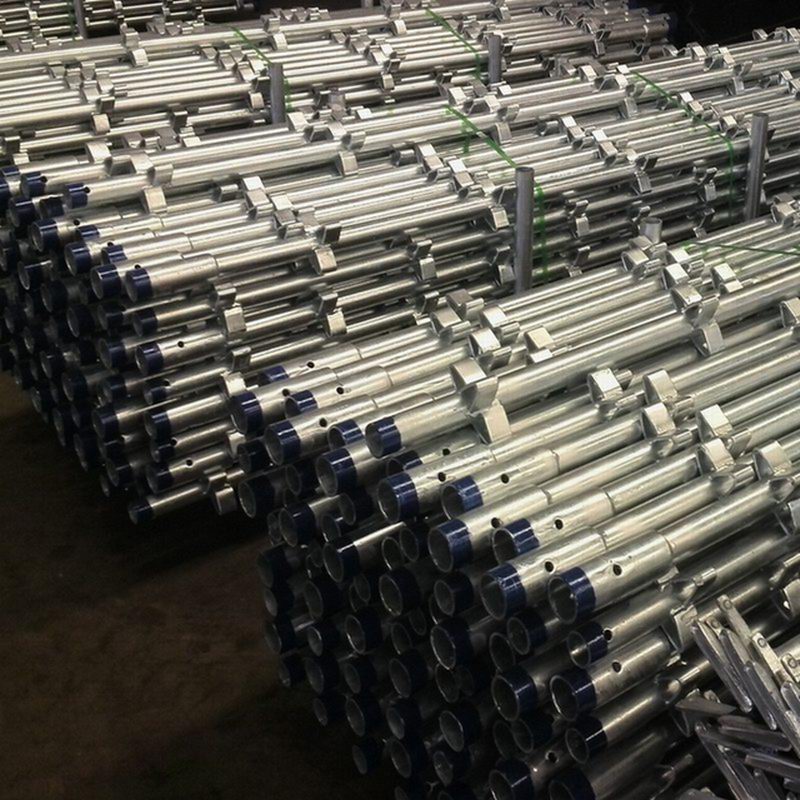

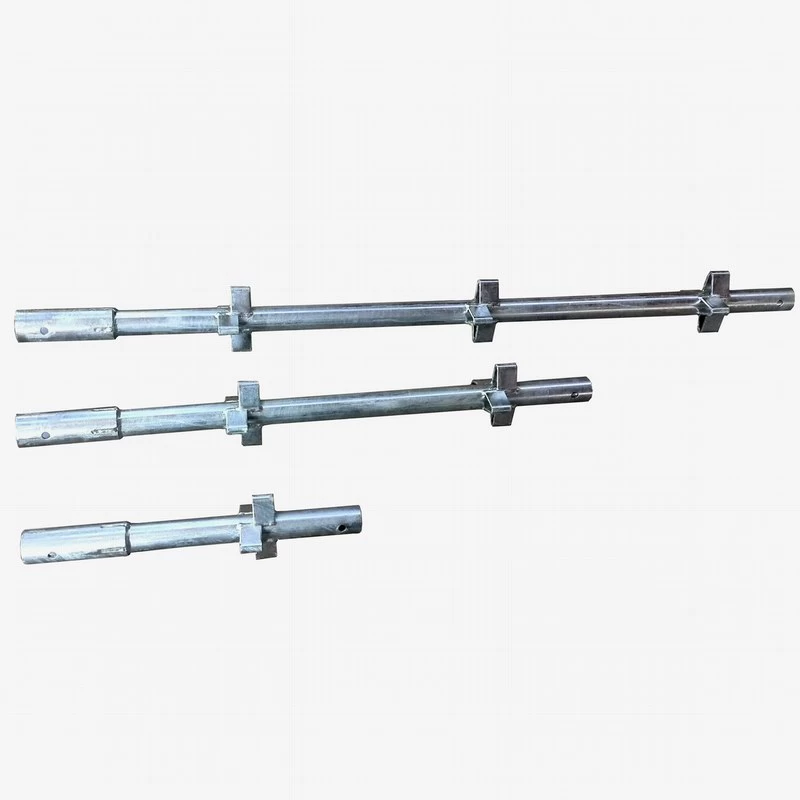

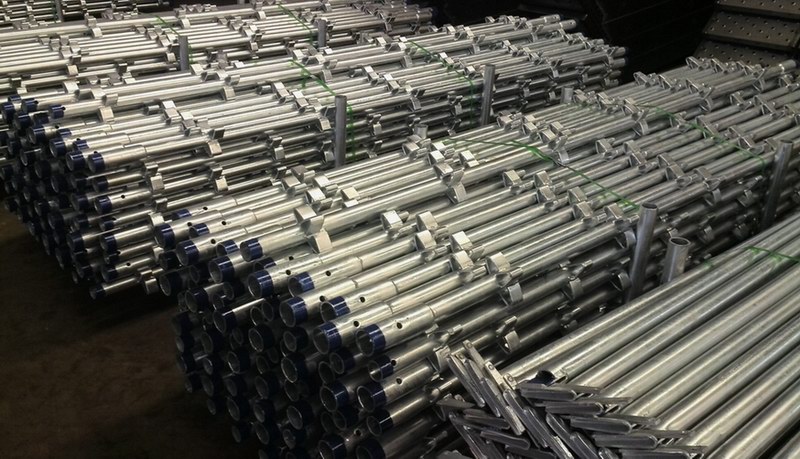

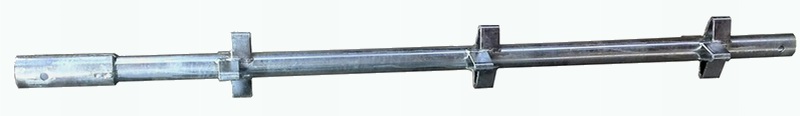

Speed Shore Kwikstage Scaffolding Standard / Vertical (with Socket)
|
Code
|
Description
|
Material
|
Size
|
Weight (kg)
|
Weight (lbs)
|
|
KS.S.400S
|
4.0M Standard
|
Ø48.3x4.0mm; Q235-Q355
|
3960mm (13')
|
23.29
|
51.35
|
|
KS.S.350S
|
3.5M Standard
|
3465mm (11'4")
|
20.50
|
45.20
|
|
KS.S.300S
|
3.0M Standard
|
2970mm (9'9")
|
17.71
|
39.05
|
|
KS.S.250S
|
2.5M Standard
|
2475mm (8'1")
|
14.92
|
32.90
|
|
KS.S.200S
|
2.0M Standard
|
1980mm (6'6")
|
12.13
|
26.75
|
|
KS.S.150S
|
1.5M Standard
|
1485mm (4'10")
|
9.34
|
20.59
|
|
KS.S.100S
|
1.0M Standard
|
990mm (3'3")
|
6.55
|
14.44
|
|
KS.S.050S
|
0.5M Standard
|
495mm (1'8")
|
3.76
|
8.29
|
|
KS.S.038S
|
0.38M Top Standard
|
381mm (1'3")
|
2.31
|
5.09
|
Features:
Tube Dimension: O.D 48.3x4.0mm. Other tube thickness 3.5mm/3.25mm/3.0mm is also available by request.
Socket Size: O.D 60.3x4.0x170mm
Steel Tube Grade: Q235-Q355
V-lug Distance: 495mm
Surface Finishing: Hot dip Galvanized; Powder Coated, Painted
Quality Standard: AS/NZS 1576

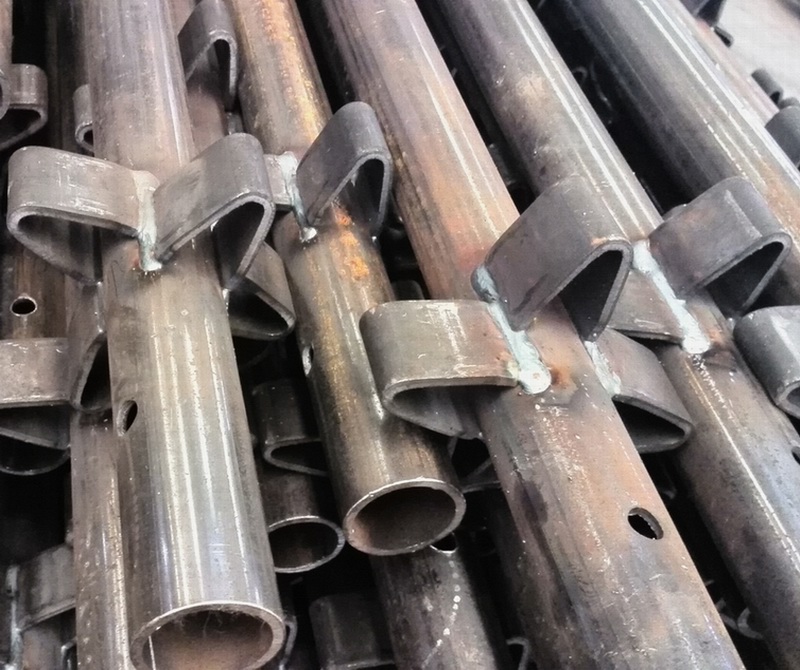

Welding Process: CO2/Mixture Gas Shielding Welding
