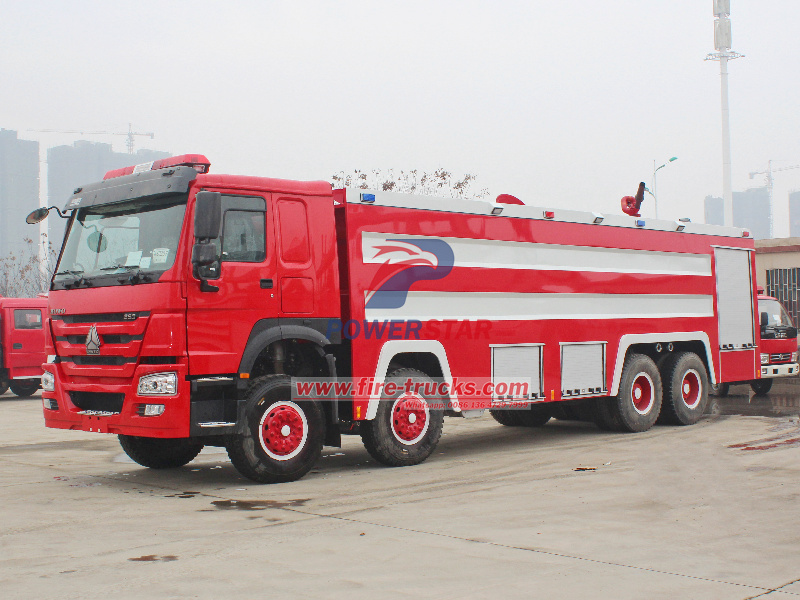

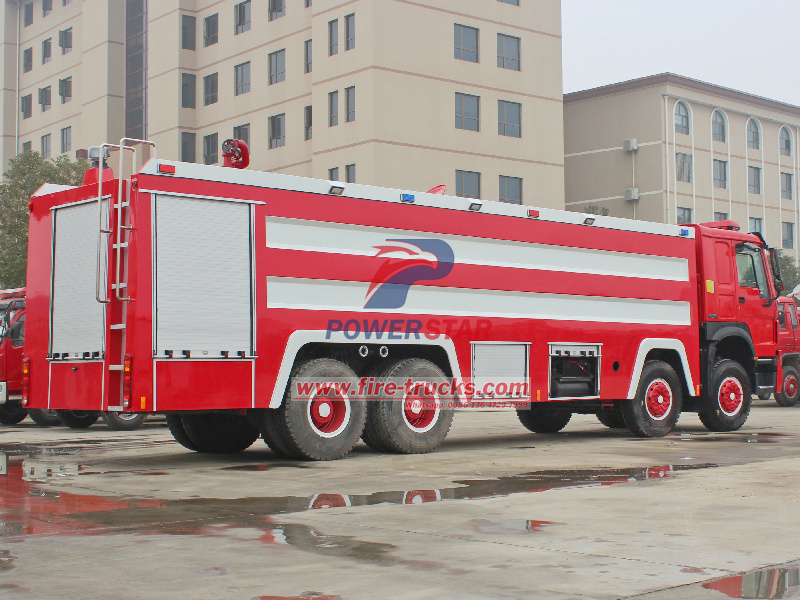

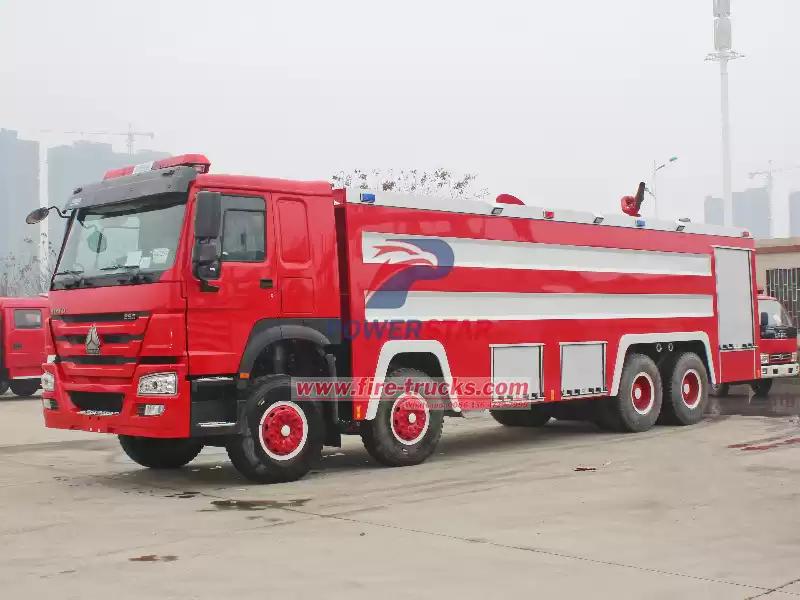

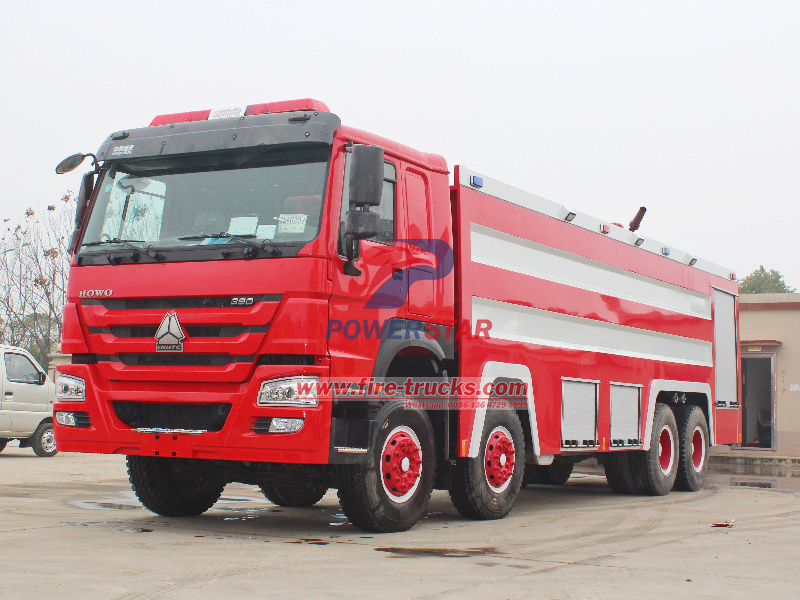

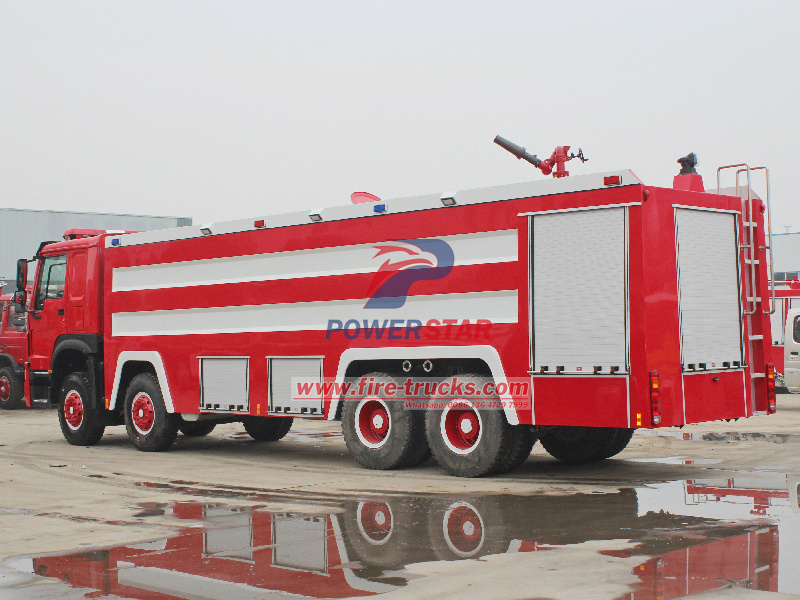

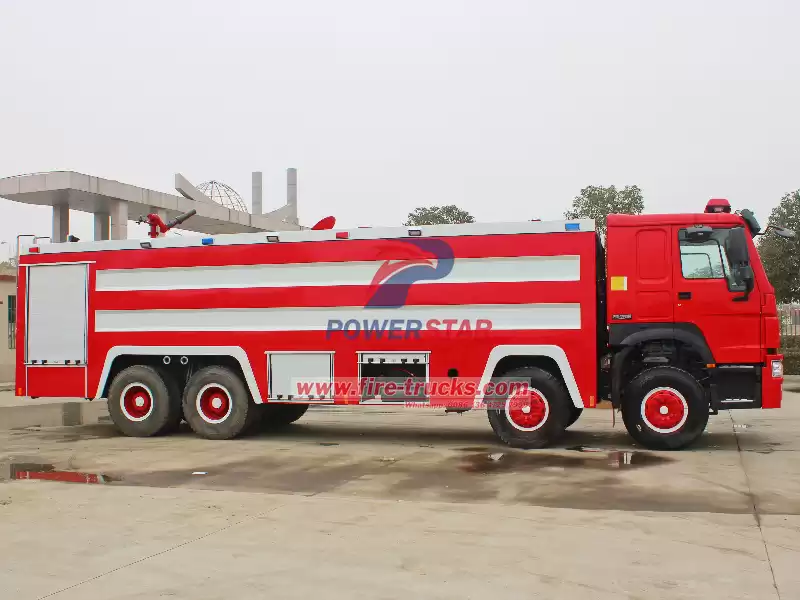

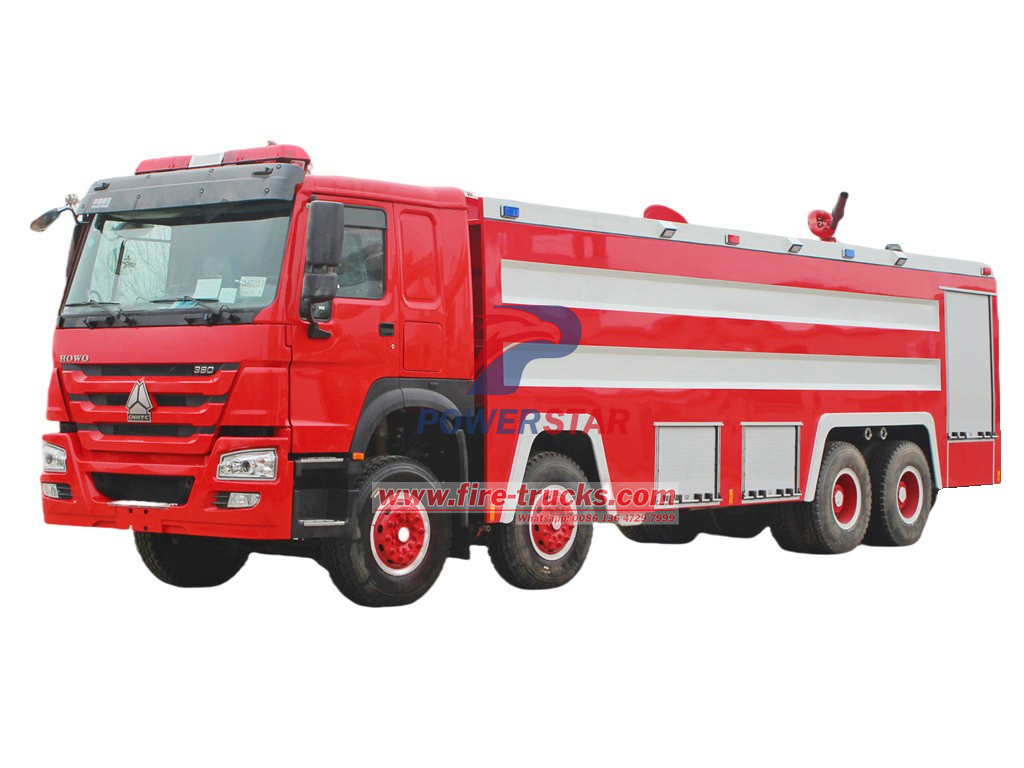

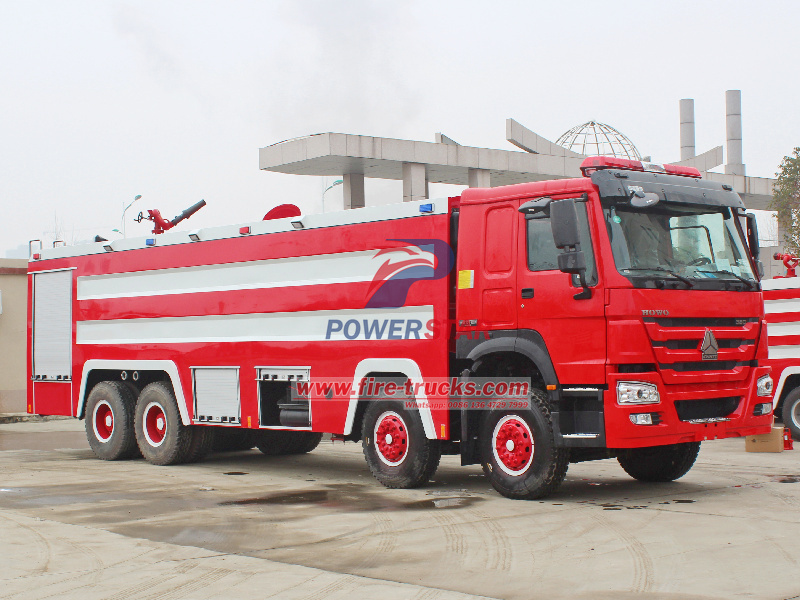

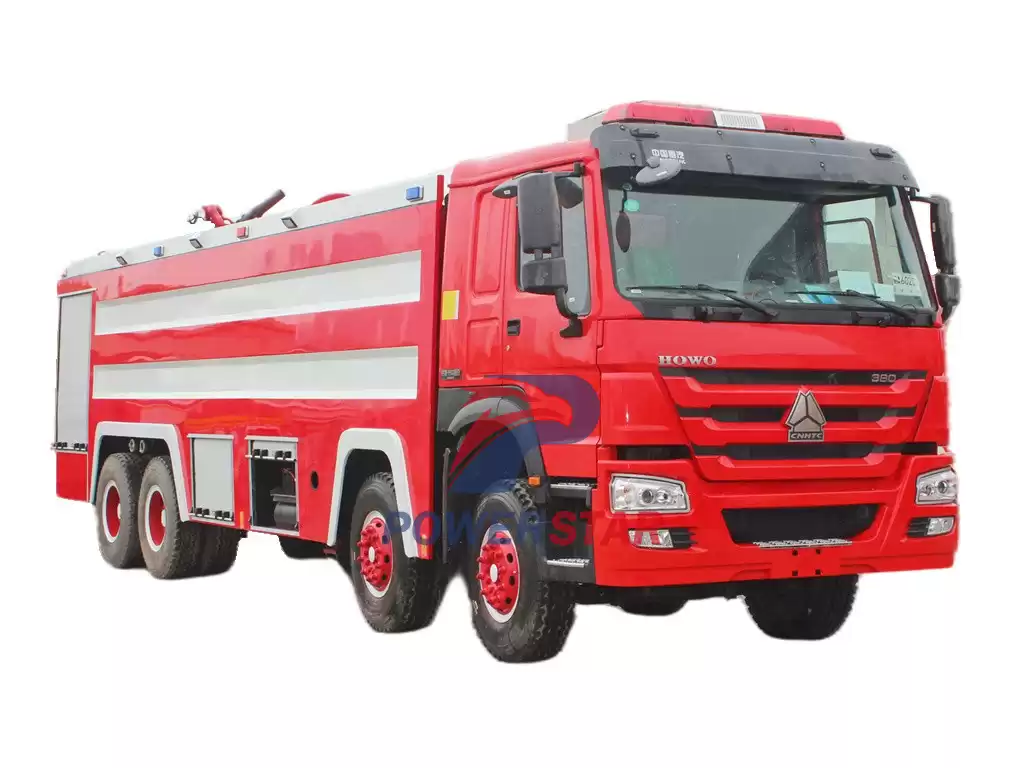

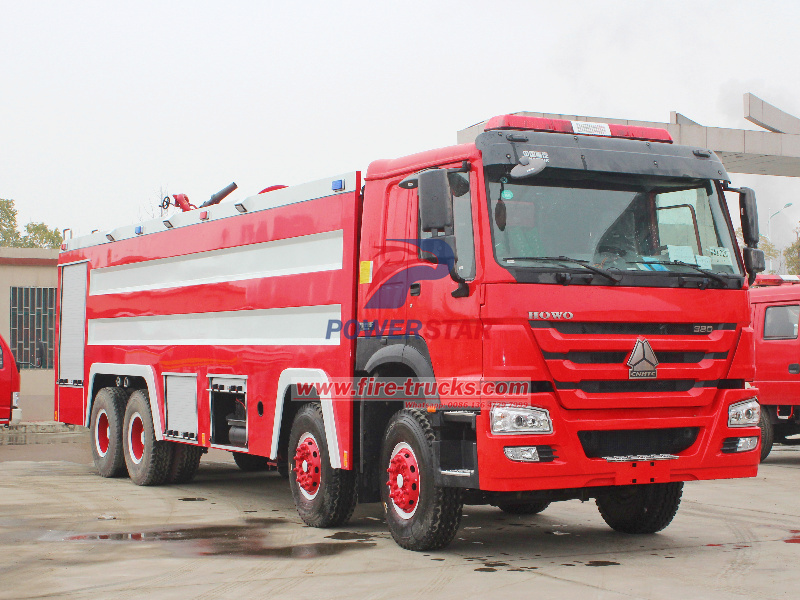

HOWO heavy duty fire truck is usually a specially-designed or modified pumper fire truck, which also can be called HOWO firefighting apparatus, HOWO tanker fire engine, HOWO rescue fire tender. The primary purposes of HOWO foam tanker pumper fire truck include transporting firefighters and water foam liquid to an incident as well as carrying full sets fire rescue tools and equipment for firefighting operations in a fire situation. The brand newly designed 26 ton China SINOTRUK HOWO heavy duty foam tender fire truck produced by POWERSTAR TRUCKS is a formidable firefighting apparatus, boasting the robust Howo 8x4 truck chassis as its foundation. Equipped with WEICHAI WP10.380E22 diesel engine with power 280KW/380HP, emission can be 9726cc and EURO 3 standard to be suitable for Africa market. HW19710 model manual transmission with 10 forward and 2 reverse. HOWO pumper fire truck with high load capacity over 26tons, including 22000Liters water tank and 4000L foam tanker, full stainless steel 304 material suitable for durable and long life service, incorporating American Darley brand PSD1500 model fire pump with flow rate 90Liter per second and AKRON PSKD10/80WB water foam model fire monitors with flow rate can be 80L/s. Some fire engines have specialized functions, such as wildfire suppression and aircraft rescue and firefighting, and may also carry equipment for technical rescue. Fire engine tanks vary in size. These tanks can empty very quickly, depending on the type of hose and nozzles used.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
Designed as a comprehensive firefighting solution, the Sinotruk HOWO 8x4 water foam tanker fire truck is a multifunctional firefighting vehicle modified based on the HOWO heavy duty series truck chassis. It integrates a water tank and a foam tank, CAFS mixing liquid supply and fire extinguishing functions seamlessly, and has both water and foam fire extinguishing functions. HOWO industrial firefighting trucks are widely used in petrochemical, factory and mining enterprises, forest firefighting and urban fire rescue. integrates water supply, foam supply. Moreover, HOWO foam tanker fire truck can be build as HOWO ladder fire truck or HOWO aerial platform fire truck to adaptability extends to high-rise firefighting operations, where it can be coupled with high-rise fire trucks to address the unique challenges effectively posed by tall structures.
| HOWO 380HP foam pump tanker fire truck |
| Model |
Howo heavy duty foam tanker fire fighting truck |
| Cab |
SINOTRUK HW76 cab, double row, new type seat, adjustable steering wheel ,EURO new type heating & ventilating system, German VIDEO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, air conditioner |
| Engine(Hp) |
380 |
| Power(Kw) |
280 |
| Wheelbase |
1800+4625+1350 |
| GVW(kg) |
31000 |
| Front/Rear Suspension |
1500/2305 |
| Steering |
Power steering |
| Approach/departure angle |
14/11 |
| Wheels & tire |
12.00R20 |
| Tire number |
12+1 |
| Driving model |
8x4 |
| Tank Dimensions(mm) |
Customized |
| Cubage (m3) |
22000Liters Water and 4000Liters Foam |
| RHD or LHD |
Optional |

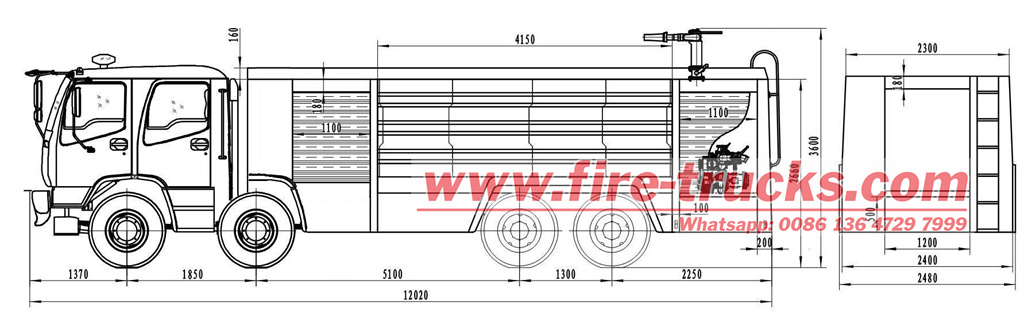

| Overall Dimensions(mm) |
11000×2500×3650 |
| Curb weight (Kg) |
16850 |
| Engine |
Model |
WP10.380E22 |
| Horsepower |
380 |
| Maximum output Kw |
280 |
| Maximum torque N.m |
1600 |
| Type |
6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine |
| Displacement |
9.726L |
| Sinotruk brand, Euro 2 |
| Driving passenger |
2+1 based on single cabin |
| Transmission |
HW19710,10 forwards,2 reverse |
| Front Axle |
HF 7T + 7T |
| Rear Axle |
ST 16T + 16T |
| Brake System |
Air brake
Exhaust brake |
| Color and LOGO |
customized |
| Electric system |
24V |
| Fire equipment part |
Fire pump |
American Darley, rated pressure 1.0MPa, flow 90L/s |
| Fire gun |
PSKD, flow 80L/s, jet distance ≥85m |
| Standard configuration |
National standard equipment box, full units national standard fire-fighting equipment, fire pump, fire gun,fire power take off, sliding gate, row type lights, reel, common tools ,rear climbing ladder, water tank. |
| Optional configuration |
Foam type, dry powder type, stainless tank, other requirements. |
| Delivery date |
Within 50 days after receipt advance |
| Packing |
Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. |
The Sinotruk HOWO foam pumper fire truck has achieved rapid response and multi-scenario adaptation through modular design, efficient fire extinguishing system and intelligent configuration. It is a benchmark product for the localization of Chinese firefighting equipment. Its high liquid load, long range and customized service make it the core rescue equipment for fire departments and industrial enterprises. And for the detailed component of the HOWO fire tender, fire pump and fire monitor offer best support for fire extinguishing and people rescue, details as below:

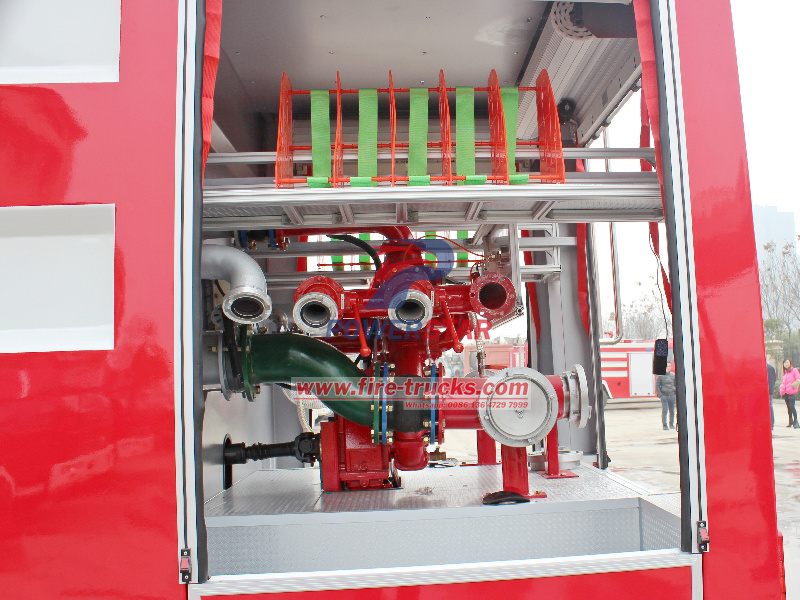

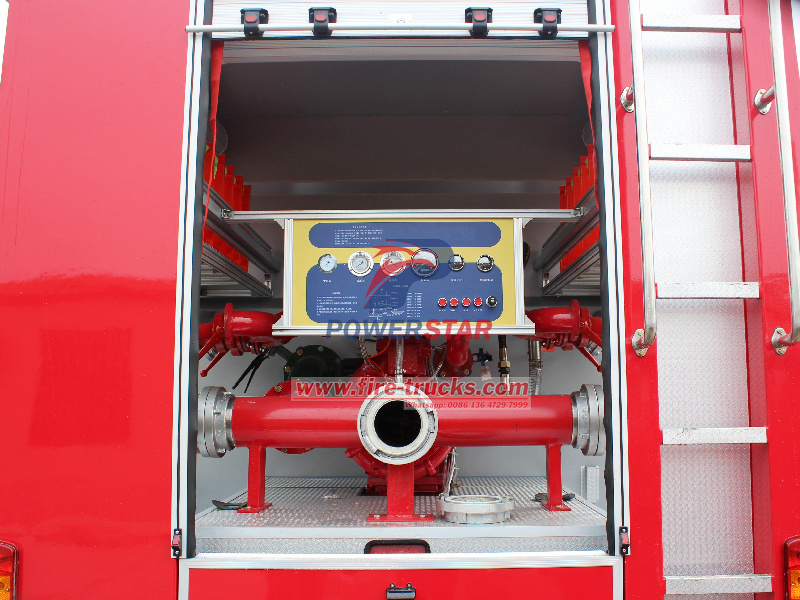

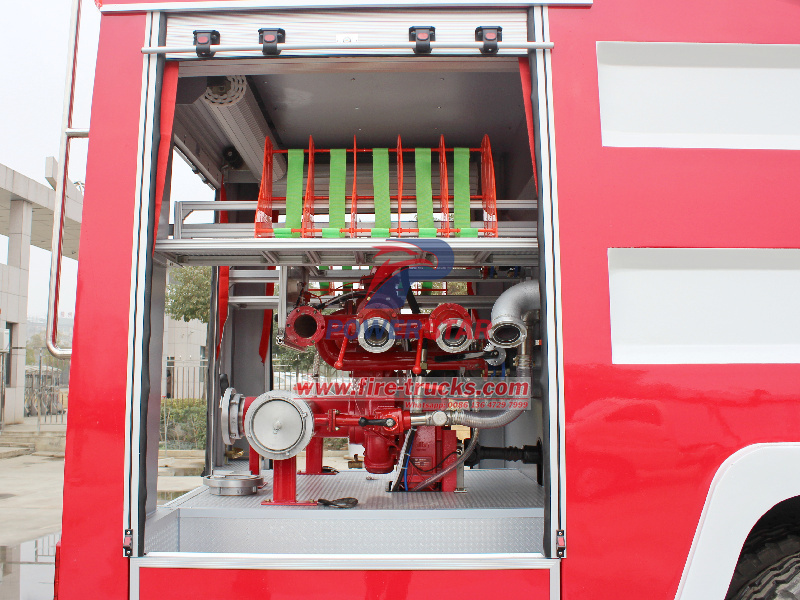

1. Mounted with American brand Darley PSD1500 fire pump system, which is rear mounted ESP electric sliding van vacuum pump model, with flow rate 90L/s @1.0Mpa, maximum suction height 7m, and priming time less than 80 seconds. Inlet dimension DN150mm and outlet dimension DN125mm.

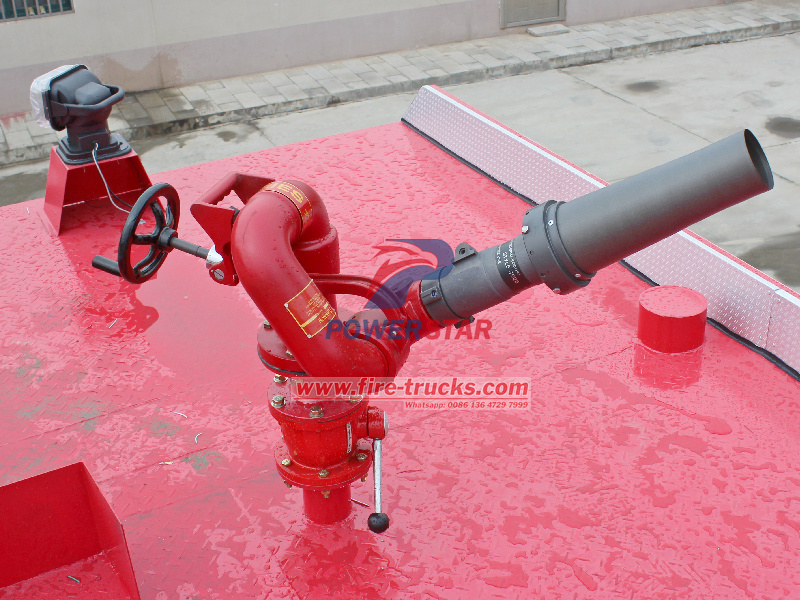

2. Mounted with American brand AKRON PSKD10/80WB water foam fire monitor, with flow rate 80L/s and maximum jetting distance over 85m, rated pressure 1.0Mpa, the fire monitor is remote control model with horizontal 360° degree and vertical -30° to 90° degree.

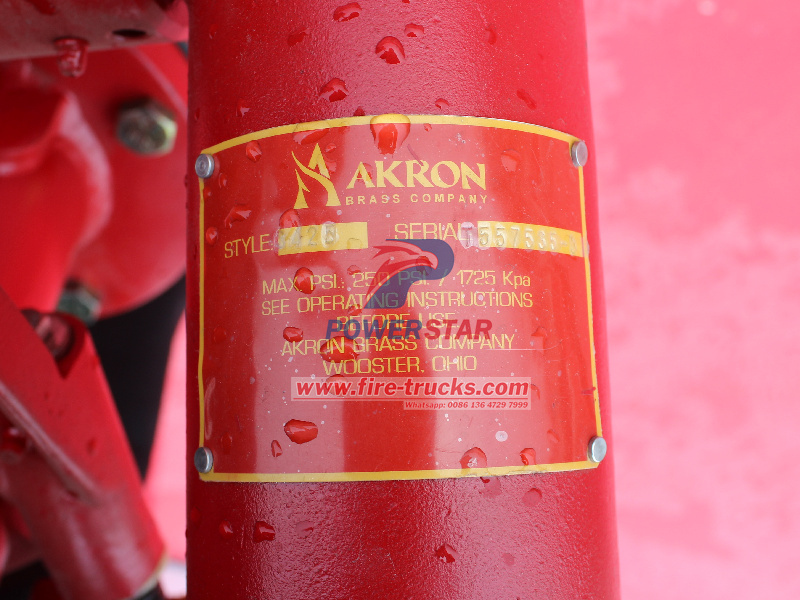

AKRON PSKD10/80WB fire monitor is an electronically controlled multifunctional firefighting equipment produced by AKRON in the United States. It is designed for high-risk places and has large flow, long range and intelligent control characteristics. This model of fire monitor supports water and foam mixed spraying, with a flow rate of up to 80L/s, a working pressure range of usually 0.8-1.2MPa, and a range of more than 85 meters. It is suitable for oil depots, chemical plants, airports and other scenes48. Its core features include 360° horizontal rotation, -30° to +70° pitch angle adjustment, and wired/wireless remote control functions, which can ensure that firefighters can extinguish fires efficiently at a safe distance. In addition, the equipment is made of stainless steel and has a modular design, which is both corrosion-resistant and easy to maintain, and complies with international fire standards. In many government procurement projects, similar models PSKD10/80WB-SX have been widely equipped by fire rescue teams through public bidding to improve emergency firefighting capabilities.
Sinotruk HOWO 8x4 heavy duty Foam Pumper Fire Truck is used to fight fire or for other emergency rescuing specially. For functions, it is divided into several kinds, including Pump fire truck, CAFS fire truck, Ladder fire truck, and other rescue fire trucks with some special equipment. The customized pumper fire truck is usually kept in fire bureau, and is driven to the accident location by the fire fighter. All tanker fire trucks are painted with customized color also matched with customer logos, but still some rare places that is painted in yellow. The siren is usually taken as the standard device for the truck and mounted on the top of truck cabin, which can be used as warning during driving also as loud speaker for people rescue. Fire truck is the common name for the truck that is equipped with various fire fighting devices and tools, it is the main equipment in fire fighting area and is the basic mobile fire fighting equipments.
