Fire truck, also known as fire engine, fire tender, fire fighting truck, mainly include all kinds of heavy water tank fire trucks, foam fire trucks, dry powder fire trucks, carbon dioxide fire trucks, CAFS fire truck, foam dry powder combined fire trucks, climbing platform fire trucks, ladder fire trucks, etc. Which refers to the vehicle designed and manufactured to be suitable for fire fighters to use and equip with all kinds of fire fighting equipment or extinguishing agent, and used for fire fighting, auxiliary fire fighting or fire rescue by fire fighting forces. Fire departments in most countries, including China, will also use HOWO 4x4 offroad wildland firefighting truck for other emergency rescue purposes. HOWO all terrain fire engines can transport firefighters to disaster sites and provide them with a variety of tools to perform disaster relief tasks.
Standard configuration of fire-fighting equipment on HOWO 4x4 all terrain fire truck:
Fire water suction pipe, water filter, water separator, fire hose, hose hook, hose cloth, reducing interface, same type interface, DC water gun, fire hydrant transition joint, flowering water gun, DC switch water gun, air foam gun (special for foam fire truck), sheep pick, ground wrench, water suction pipe wrench, belt bridge, mixer suction pipe, waist ax, fire axe, shovel, pry and carry.
HOWO 4x4 offroad Rescue fire engine fire protection equipment:
Fire helmets, fire fighting suits, fire gloves and boots, fire safety belts and safety hooks, respiratory protective equipment, built-in heavy-duty chemical protection suits, enclosed chemical protection suits, fire and chemical protection suits, militar chemical and nuclear protection suits, simple chemical protection suits, fire avoidance suits, mobile gas supply sources, dual cylinder respirators, multi-purpose gas filters, chemical protection gloves, electrically insulated gloves, cutting resistant gloves, high-temperature resistant gloves, and chemical safety boots.s mainly include all kinds of heavy water tank fire trucks, foam fire trucks, dry powder fire trucks, carbon dioxide fire trucks, foam dry powder combined fire trucks, climbing platform fire trucks, ladder fire trucks, etc.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
POWERSTAR produced HOWO All Terrain Fire Apparatus have a minimum of a 3000Liters water tank with material stainless steel #304 and thickness 4mm, also matched with XIONGZHEN CB10/30 fire pump with water flow rate 30L per second, the top mounted with PS30 fire monitor and water jetting distance can be 50m. Sinotruk HOWO 4WD all terrain fire engines also feature an auxiliary pump in addition to the main water pump configured on a truck. The auxiliary pump can be powered by a separate diesel engine or generator that is connected to the customized fire pump, or a hydraulic auxiliary pump can be powered by an additional PTO hydraulic circuit with its own pressure governor. This is critically important to allow firefighters to follow along as forest fires and brush fires move with the weather, and to create fire lines, wetting down areas ahead of an advancing wildfire.

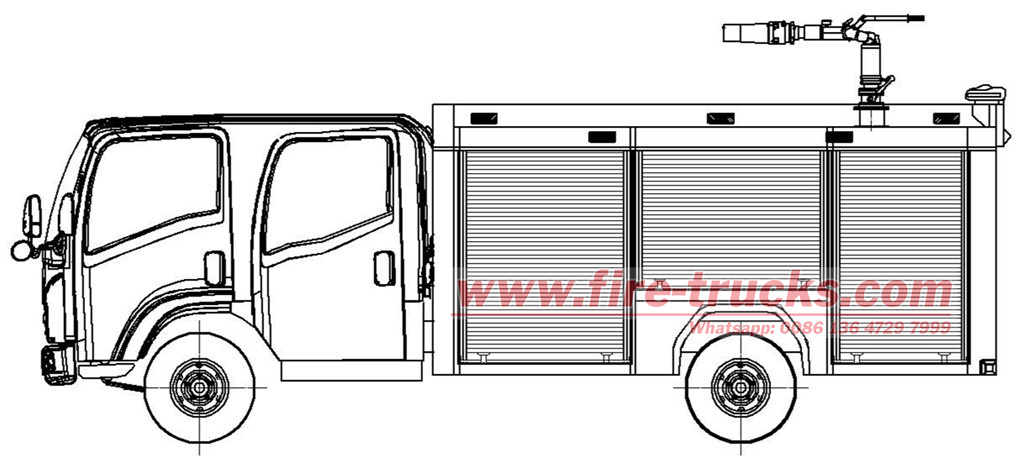

| HOWO 4x4 offroad wildland firefighting truck TECHNICAL SPECIFICATION |
| Main specification |
Chassis brand |
HOWO |
|
| Chassis model |
ZZ1100 |
|
| Overall dimension(L*W*H) |
6500×2300×2890mm |
|
| Water tank volume |
3,000L |
|
| The total quality |
10000 (Kg) |
|
| Chassis |
Drive modle |
4x4 offroad LHD |
|
| Axle (front/rear)loading |
2.4Tons / 7.2Tons |
|
| Front/rear suspension |
1500/2100mm |
|
| Wheel Base |
3500mm |
|
| Approach/departure angle |
16/11(°) |
|
| Tyre size & number |
9.00R20 with 6 pcs |
|
| Transmission |
Manual type, FAST 8JS85E |
|
| Max speed |
100km/h |
|
| Color |
Red and white including tanker , standard . |
|
| Engine |
Model |
WP4.1Q150E50 |
|
| Engine Type |
In-line four cylinder, water cooled |
|
| Horse power |
110KW / 150HP |
|
| Displacement |
4.1 L |
|
| Emission |
Euro 5 |
|
| HOWO All Terrain Fire Engine Tank Body |
|
| Tanker Capacity (L) |
Water tank 3,000L |
|
| Tanker Size: |
1100*2200*1240mm |
|
| Tank material |
High quality Stainless Steel SS#304 |
|
| Tank Equipped with |
One set of manholes with locking and opening device |
|
| Overflow safety device |
|
| Liquid level indicator |
|
| 2 sets of sewage outfall by manual valve control. |
|
| Fire pump model |
CB10/30 |
|
| Fire pump pressure |
≥1.0 Mpa |
|
| Fire pump max suction height |
7 m |
|
| Fire pump flux |
30 (L/S) |
|
| Fire pump rated speed |
1800 (r/min) |
|
| Fire pump time of drawing water |
≤35 (s) |
|
| High Pressure Water pump Model |
PS30 |
|
| High Pressure Water pump Rate of flow |
30L/S |
|
| High Pressure Water pump Range |
≥50m |
|
| High Pressure Water pump pressure |
1 Mpa |
|
| High Pressure Water pump rotation angle |
Level≥270degree, |
|
| Other configuration |
Power extractor control indicator light, 100W alarm, warning light, sign light, indicator light switch and optional reversing system display screen,operating panel,rear the ladder,toolbox,water belt rack,equipment box,Truck body with aluminum alloy rolling door;PTO control indicator installed in cab, also with 100W siren, LED alarm lamp, sign light, lighting switch, rear lighting and etc. |
Advanced features structures for Sinotruk HOWO 4x4 wildland fire truck:

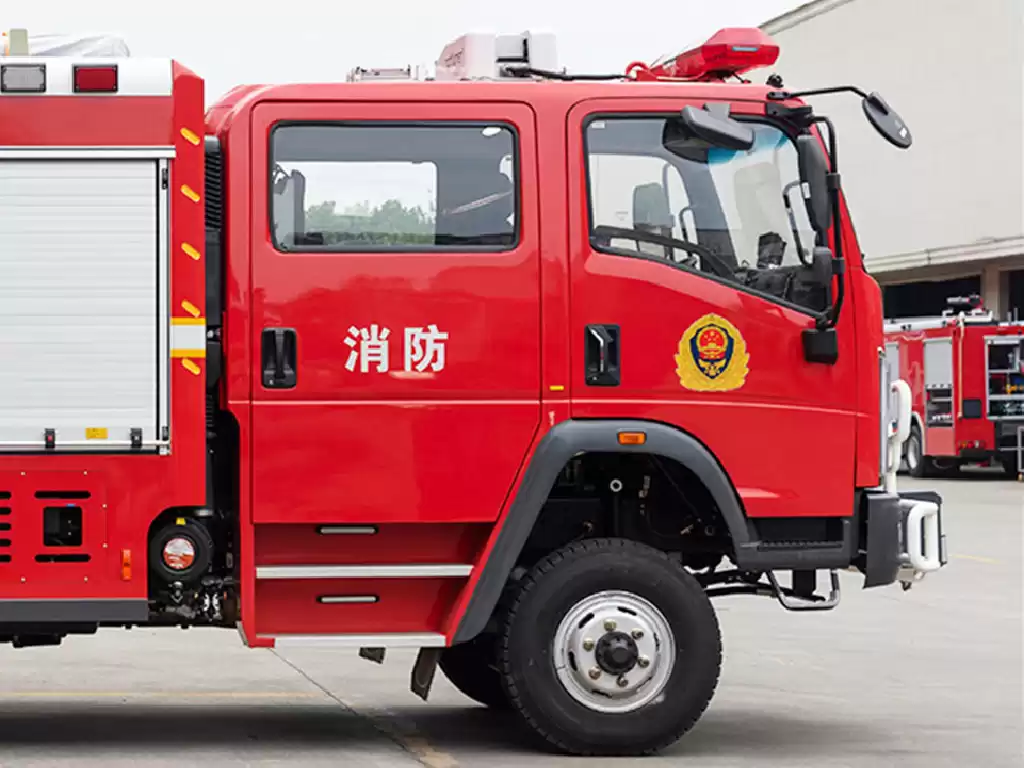

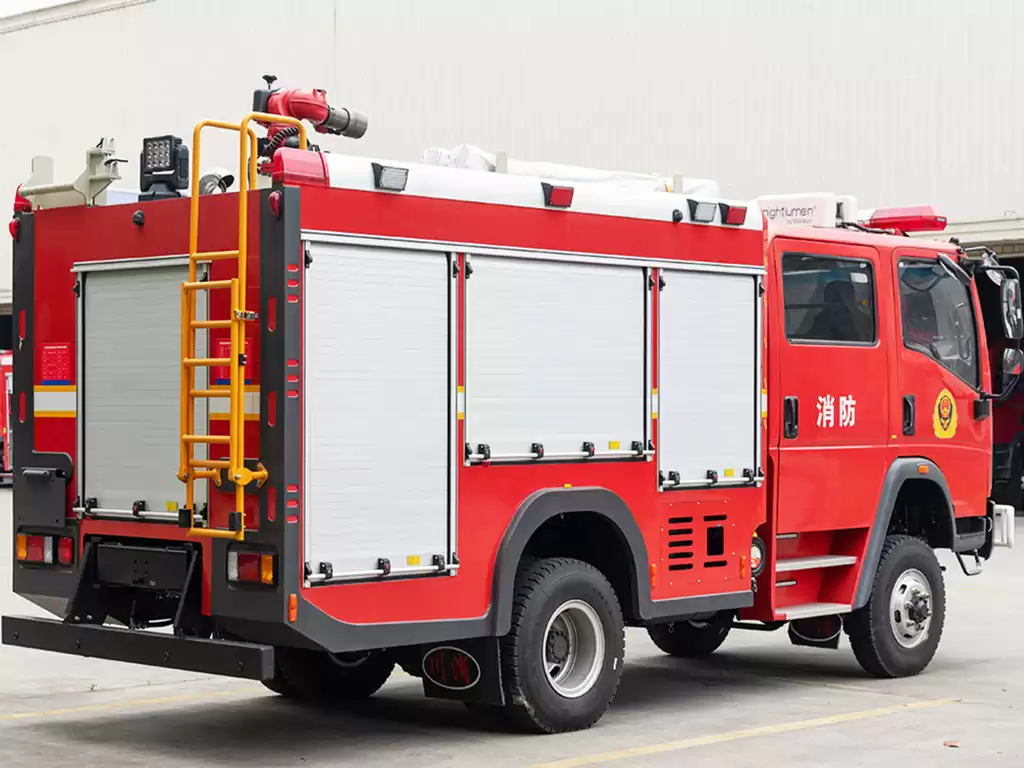

Cabin: HOWO classical model, double row four-door cabinet, double row seats 1+1+4, with rear mounted SCBA seats for air apparatus.
All terrain function: HOWO 4x4 offroad truck chassis suitable for all terrain fire fighting work.
Standardized Sub-frame: High-strength rectangular tube made of special stainless steel material #304.

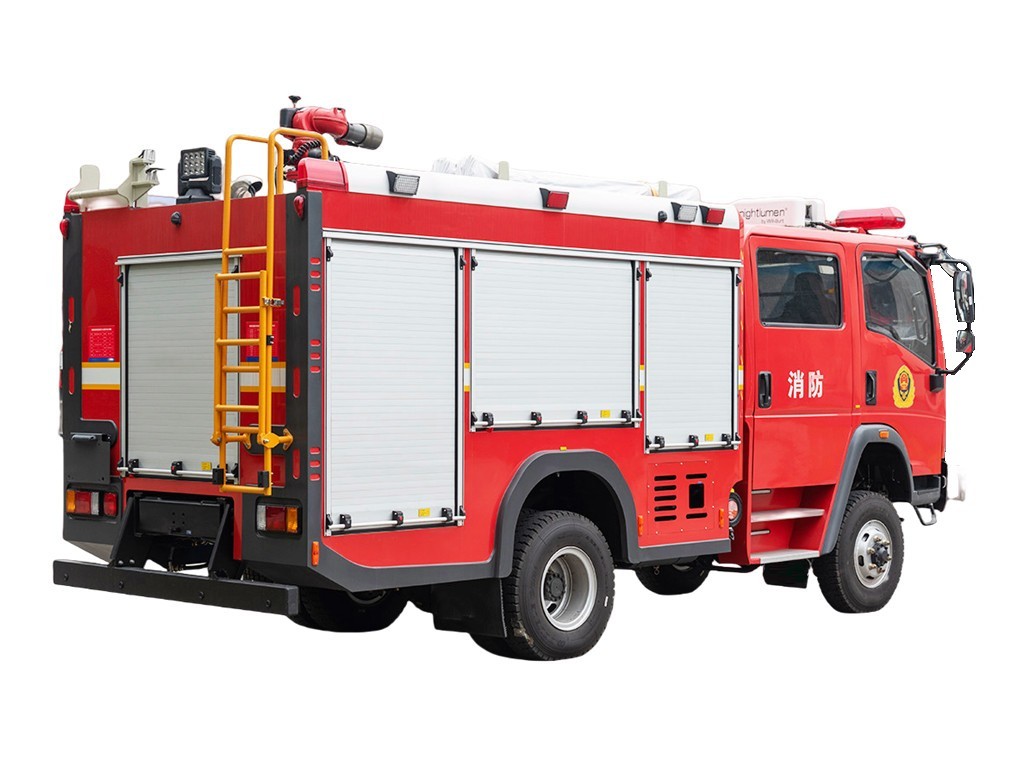

Compartment and Structure: High-strength aluminum alloy structure can never rust. Roof railing with LED light. With aluminum alloy ladder at rear.

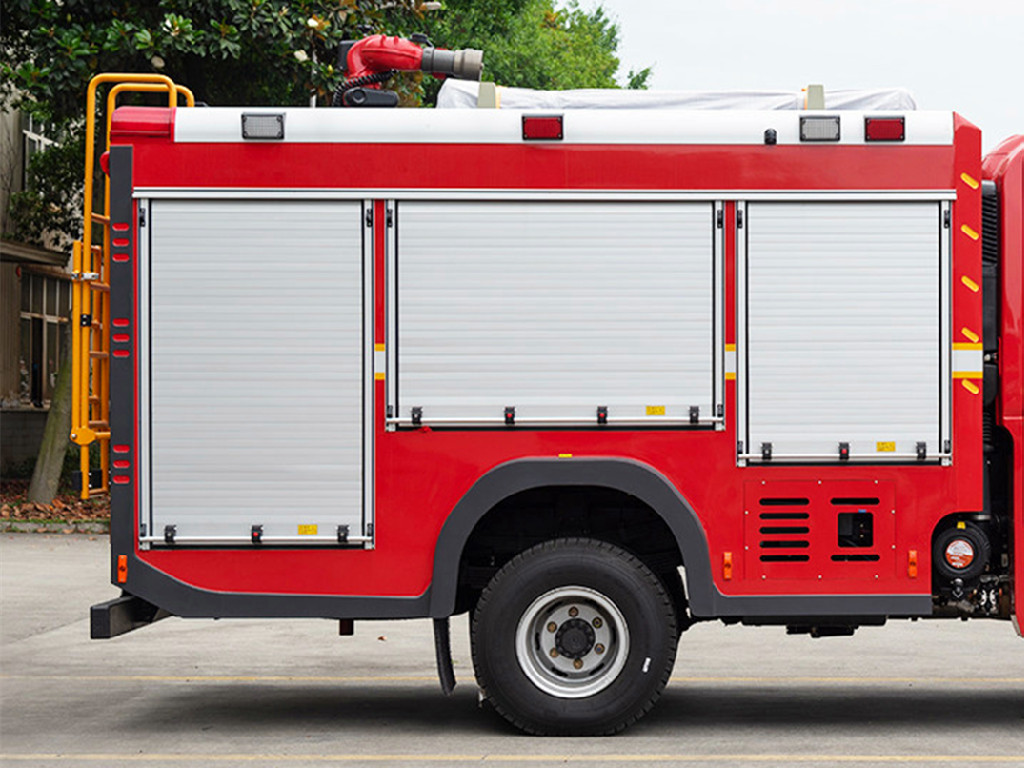

Roller Shutter Door: Aluminum alloy profiles with anodized surface, also matched with key.
Top Design Structure: With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.
Superstructure Electric Appliance: Warning light and siren are mounted on the top of HOWO cabin, the controller is installed in the driver's cabin.

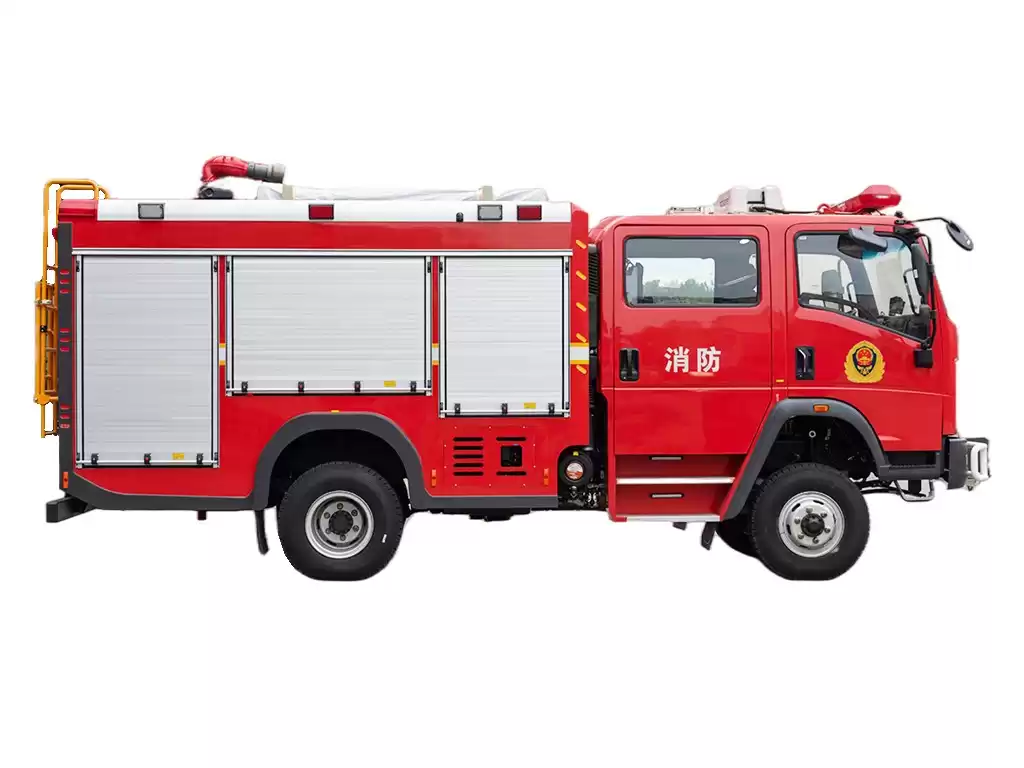

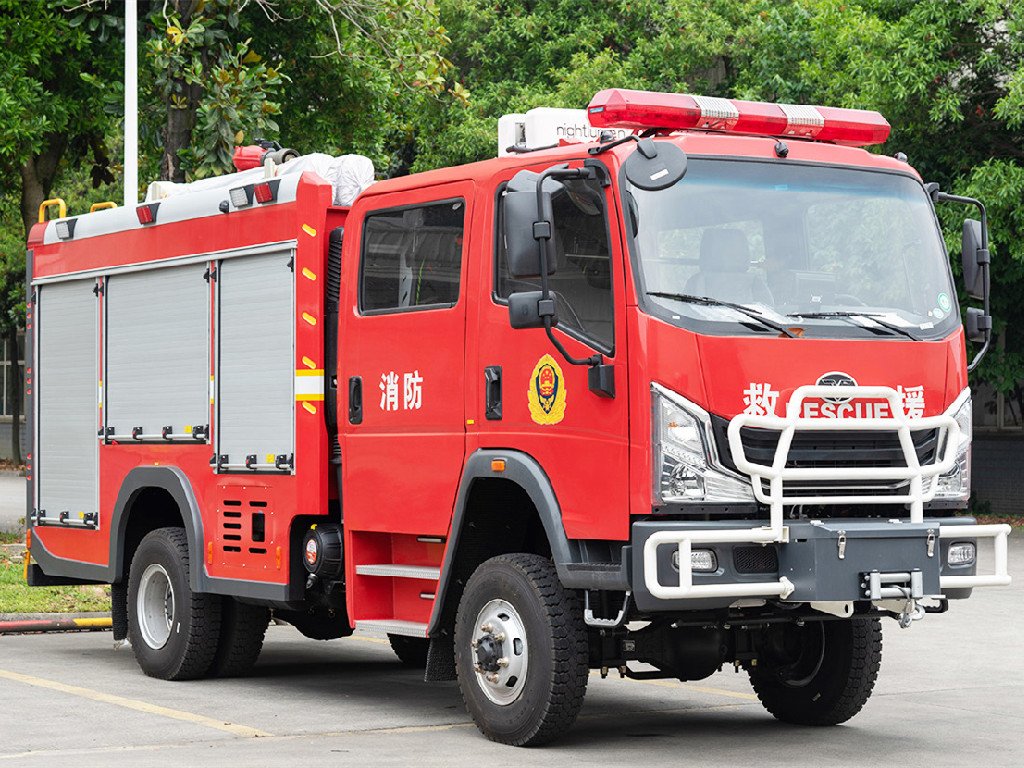

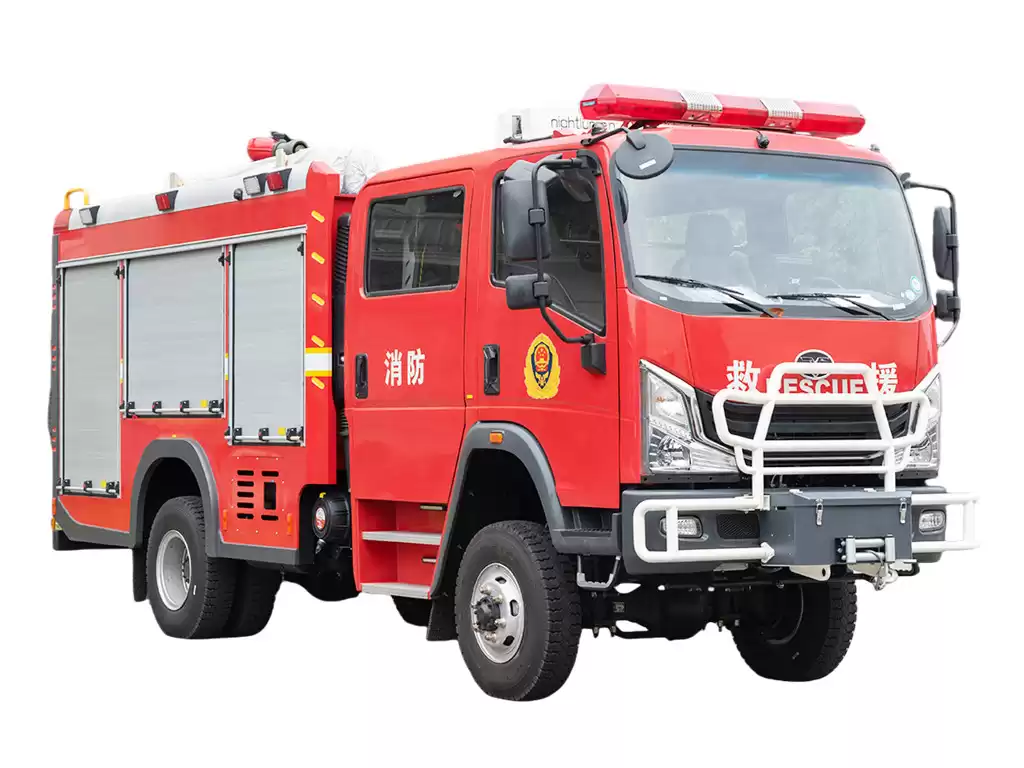

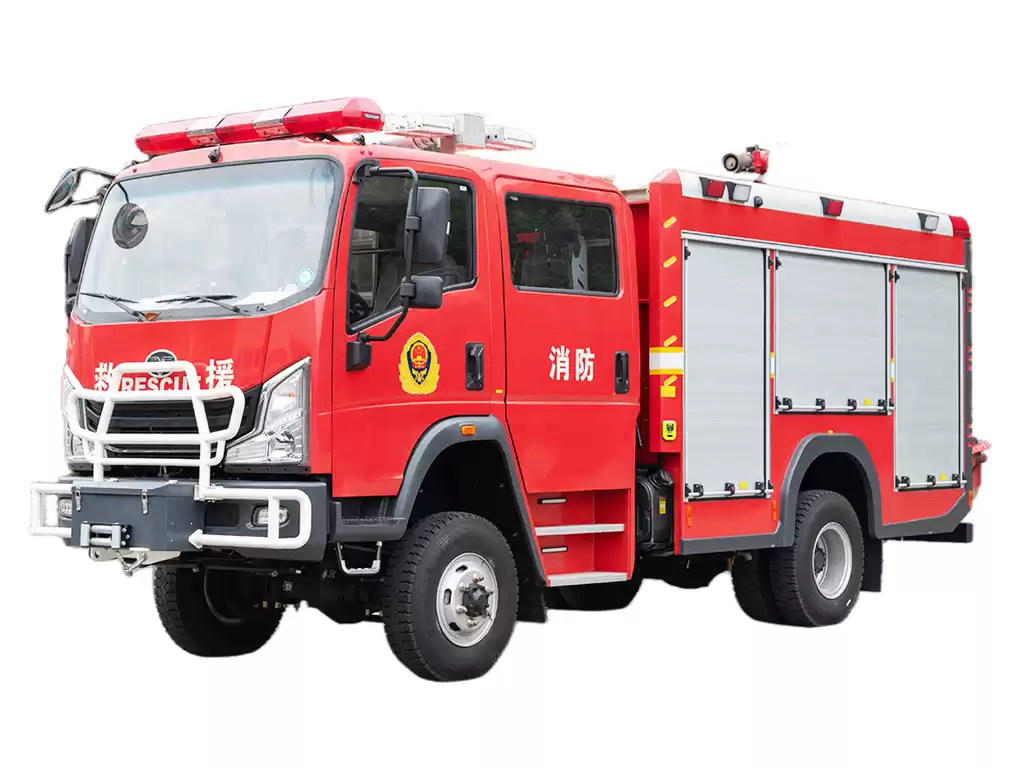

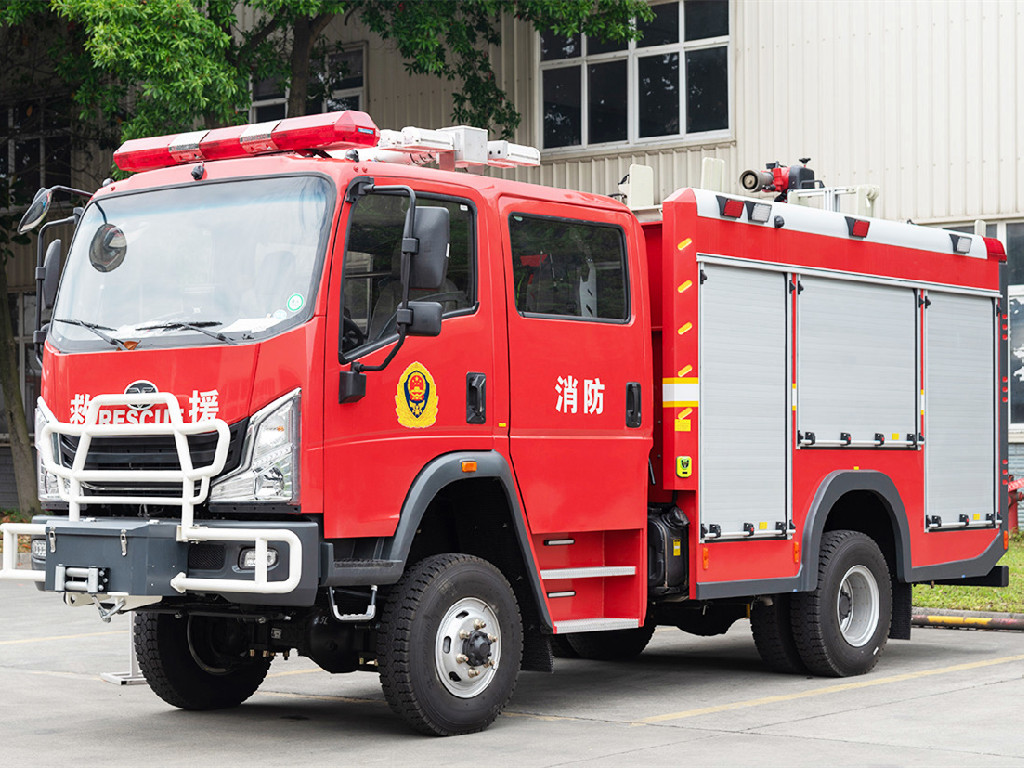

Sinotruk HOWO 4x4 offroad all terrain Deep Forest Fire Truck is a powerful and efficient fire emergency vehicle designed for quick response to fire emergencies. It is an essential component of any fire rescue truck and is equipped with advanced firefighting equipment to effectively combat fires. HOWO all terrain wildland fire trucks are suitable for forest fire fighting. Can independently carry out water and foam fire fighting, and can also provide water support for other fire trucks. Equipped with all wheel drive system, with differential lock to ensure traction in mud, gravel and other road conditions. Ground clearance usually more than 300mm, some models adopt portal axle design to further enhance passability. The Special all-terrain tires equipped and tire pressure can be adjusted to adapt to snow/desert and other scenes.
