The HOWO Emergency Rescue Fire Truck is a multifunctional professional firefighting apparatus combining towing, lifting, lighting, and other capabilities. Built on a HOWO 4×2 heavy-duty chassis, it is specifically designed to handle various emergencies. With overall dimensions of 8940×2500×3740 mm and a wheelbase of 4500 mm, the vehicle offers an 18-ton gross mass and an 8-ton rated load capacity, ensuring both high payload capacity and road mobility. Powered by a WP10.310 diesel engine delivering 310 horsepower and a peak torque of 1500 N·m, paired with a 10-speed transmission, it achieves a top speed of 90 km/h, enabling rapid deployment to rescue scenes. The factory-fitted double-row cab, equipped with air conditioning and an ABS system, accommodates six personnel, providing a comfortable environment for prolonged rescue operations.

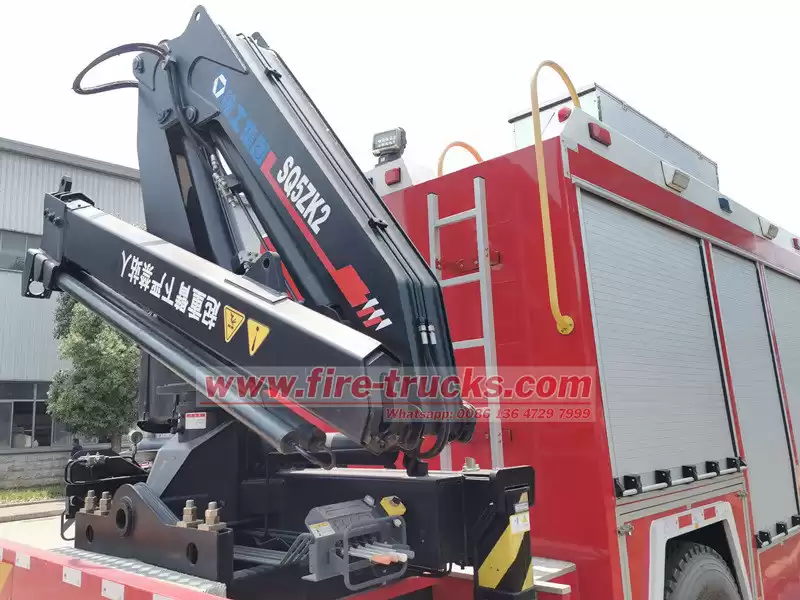

The superstructure is the core strength of this HOWO heavy fire rescue vehicle. The rear-mounted XCMG SQ5ZK2 hydraulic crane boasts a maximum lifting capacity of 5 tons, a working radius of 8.3 meters, a maximum lifting height of 8 meters, and 420° full rotation capability, making it ideal for tasks such as vehicle righting and obstacle removal. The front-mounted N16800XF electric winch provides a 70 kN towing force with a 10 mm diameter steel cable and a 35.2-meter working length, particularly suited for vehicle recovery and heavy object towing. The 4 kW pneumatic lifting lighting system can extend to a height of 8.49 meters, with four 1000 W halogen lamps offering 360° horizontal rotation and 406° vertical tilt adjustment, ensuring comprehensive illumination for nighttime rescues. The 12 kW onboard generator ensures continuous power supply for various electric rescue tools, with 220V/380V dual-voltage output to meet different equipment requirements.
The HOWO Emergency Rescue Fire Engine features lifting, self-rescue/towing, obstacle clearance, power generation, and lighting functions, and can be equipped with a wide range of firefighting tools and equipment, including demolition, detection, leak sealing, and protective gear. The vehicle’s equipment compartments adopt an adjustable modular aluminum alloy frame, ensuring rational space utilization and safe, convenient tool access. As a special-duty fire truck, it is widely used by firefighting units for natural disasters, emergencies, rescue operations, and other critical scenarios.
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
Product Specifications
| Chassis Specifications |
|
Chassis brand
|
HOWO
|
|
Cab
|
HOWO double row cab, with power steering, A/C, ABS
|
|
Driving Type
|
4×2 Left hand driving
|
|
Max Speed (km/h)
|
90
|
|
Overall dimension(mm)
|
8940×2500×3740 mm
|
|
GVW( kg)
|
18000
|
|
Curb weight ( kg)
|
12600
|
|
Rated payload
|
8000kg
|
|
Wheelbase(mm)
|
4500
|
|
Tire
|
295/80R22.5 (6+1)
|
|
Clutch
|
Single-plate dry diaphragm spring clutch
|
|
Steering
|
Hydraulic steering with power assistance
|
|
Transmission
|
10-speed manual gearbox
|
|
Axle
|
Front axle
|
7T
|
|
Rear axle
|
11T
|
|
Engine
|
Model
|
WP10.310
|
|
Fuel Type
|
Diesel fuel
|
|
Type
|
6 cylinders, water-cooled four-stroke, direct injection, turbocharged
|
|
Power(HP/KW)
|
310HP/228kW
|
|
Exhaust(ml)
|
9726
|
|
Rated speed (rpm )
|
2200
|
|
Max. torque (N.m)
|
1500
|
|
Braking system
|
Service Brake
|
Compressed air brake
|
|
Park Brake
|
Spring energy
|
|
Auxiliary brake
|
engine exhaust brake
|
|
Electric system
|
24v
|
|
Upper Body Specifications
|
|

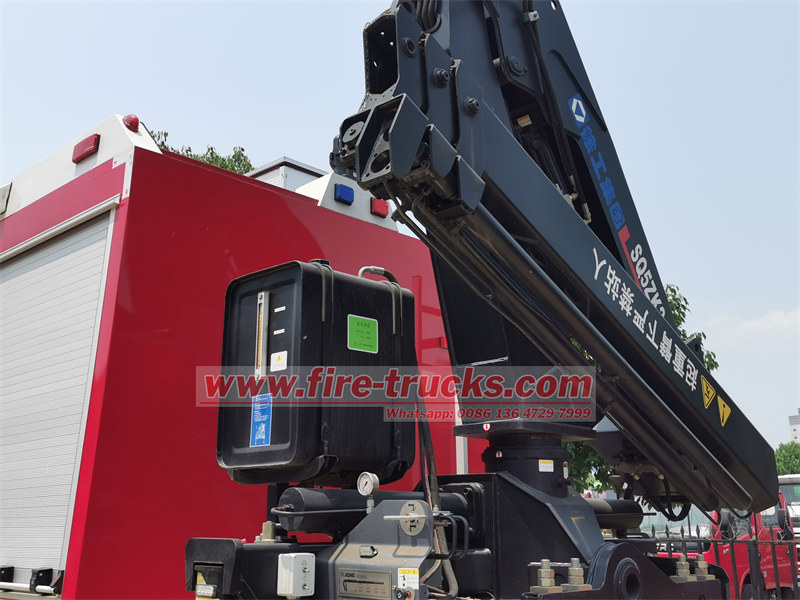

Crane
|
Brand
|
XCMG
|
|
Model
|
SQ5ZK2
|
|
Lifting capacity
|
5000kg
|
|
Max. lifting moment
|
10.5 T.M
|
|
Max. working range
|
8.3 m
|
|
Max. lifting height
|
8 m
|
|
Rotation angle
|
420°
|
|
Winch
|
Model
|
N16800XF
|
|
Max. towing capacity
|
70KN
|
|
Drive mode
|
Electric
|
|
Steel cable diameter
|
10 mm
|
|
Max. towing length
|
35.2 m
|
|
Lighting system
|
Installation mode
|
Top-mounted, pneumatic lifting type
|
|
Lighting power
|
4×1000W (4KW)
|
|
Lighting
|
Halogen lamp
|
|
Height from the ground
|
8.49
|
|
Swivel angle
|
Horizontal 360°, pitch angle total 406°, can be controlled manually and remotely, with automatic reset function
|
|
Generator
|
Rated output power
|
12 kW
|
|
Rated frequency
|
50 HZ
|
|
Rated voltage
|
220V/380V
|

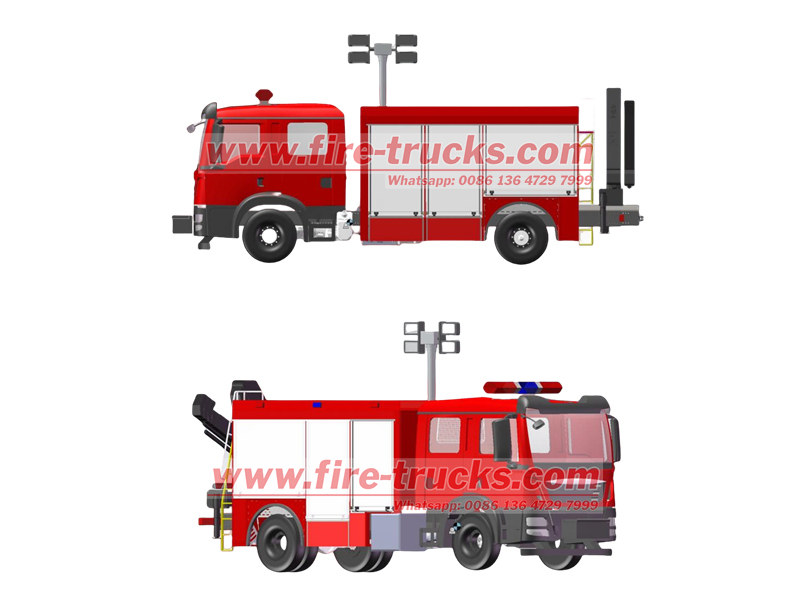

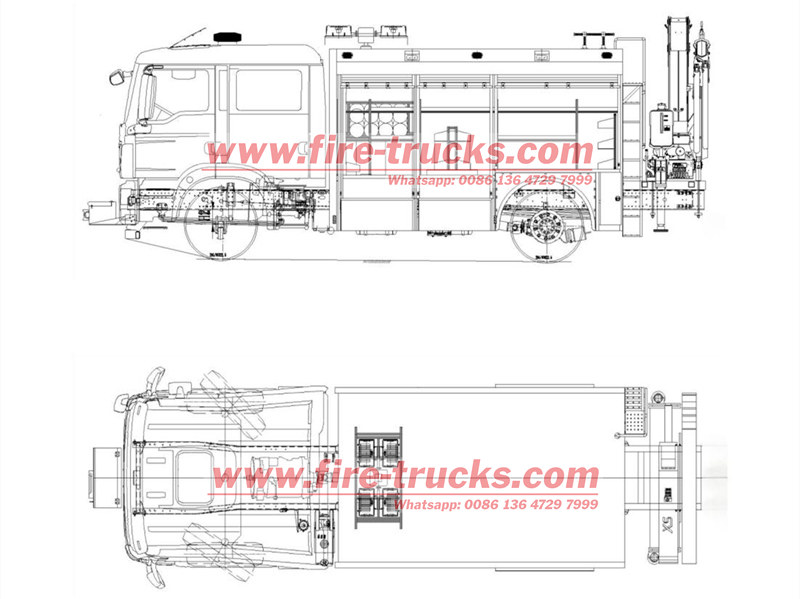

Product Drawing
Product Features
1. Powerful Powertrain System: HOWO rescue firefighting truck is equipped with a 310HP turbocharged diesel engine, paired with a 10-speed manual transmission and 1500N·m maximum torque, ensuring reliable power delivery in challenging terrains.
2. Versatile Rescue Capabilities: Integrates multiple functions including 5-ton lifting capacity, 70KN towing force, and 4KW lighting system, making it a comprehensive solution for various emergency scenarios.
3. Outstanding Mobility: Features HOWO original 4×2 special chassis with 295/80R22.5 large-size tires and 4500mm optimized wheelbase, balancing urban maneuverability with off-road performance.
4. All-Weather Operation Support: Includes a 12KW silent generator (dual-voltage output) and 8.49-meter elevating lighting system, enabling continuous operation during night-time or power outage conditions.
5. User-Friendly Control Design: The cabin incorporates mechanical instrument clusters and intuitive control panels with clearly defined functional zones. Ergonomically arranged controls ensure quick and accurate operation during emergencies.

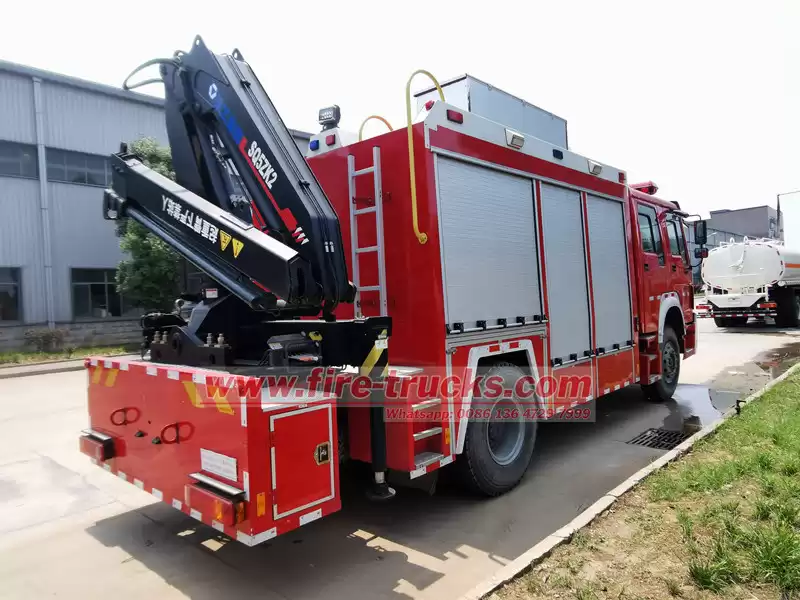

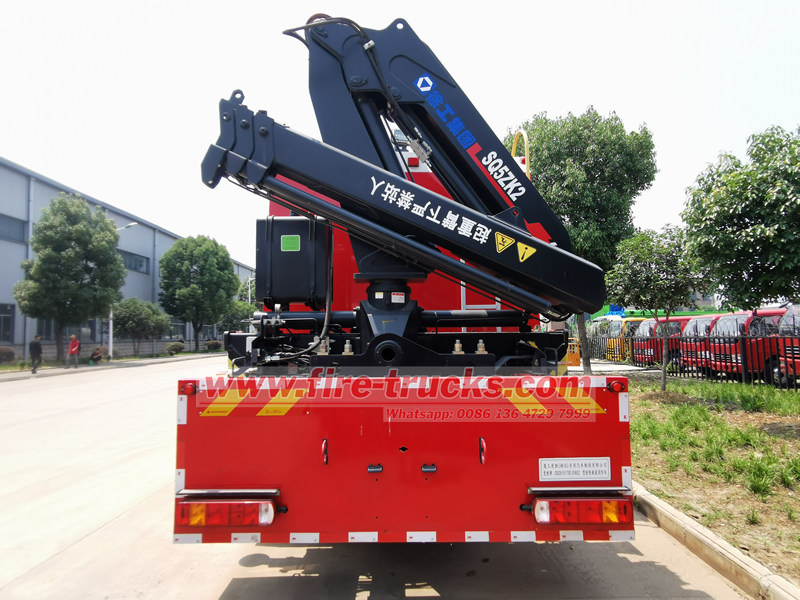

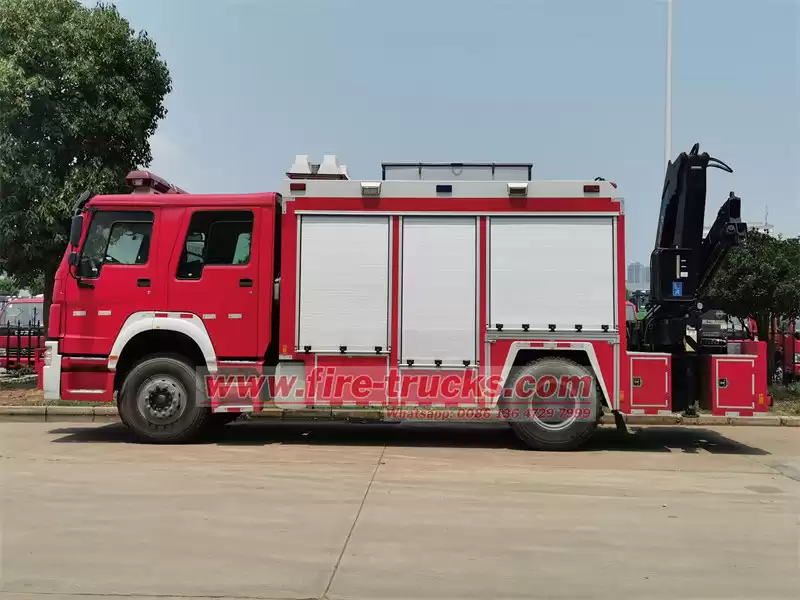

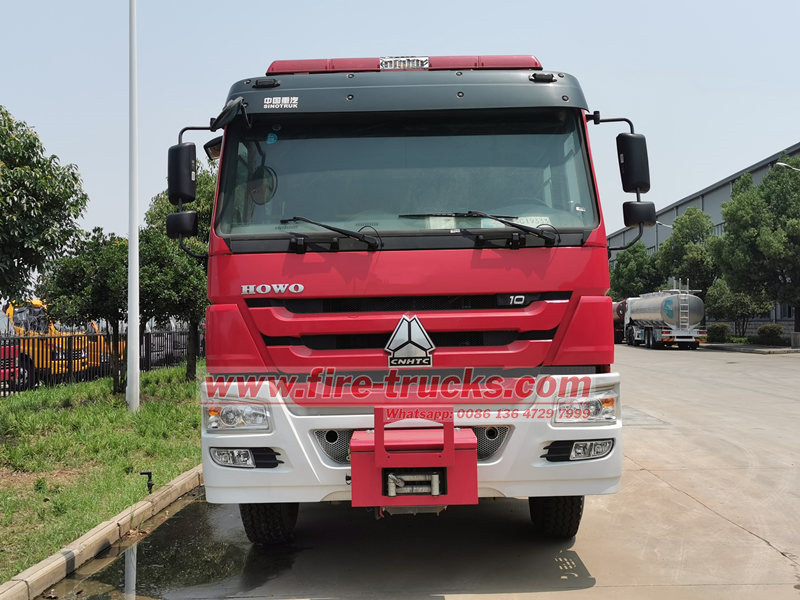

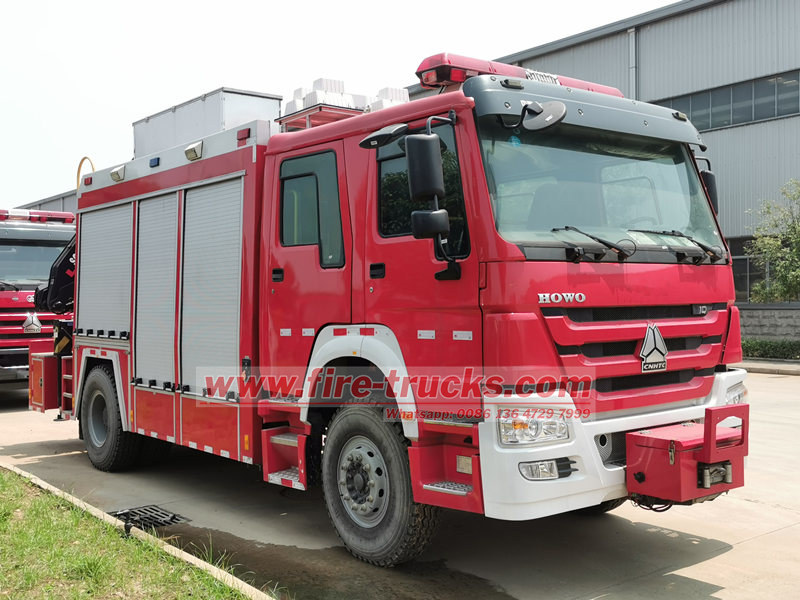

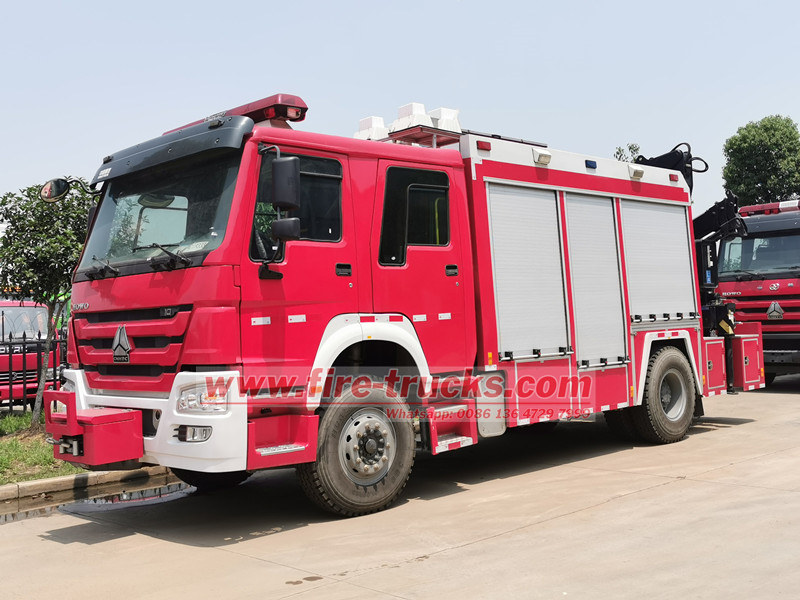

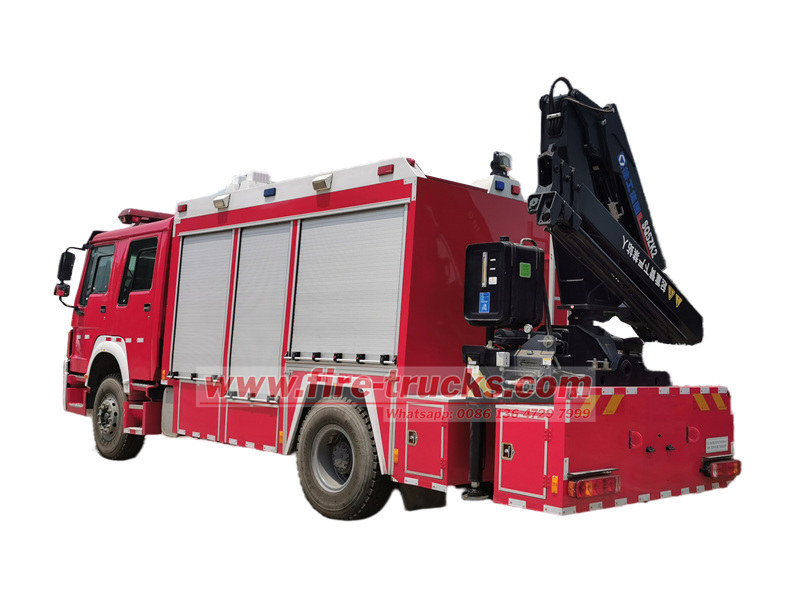

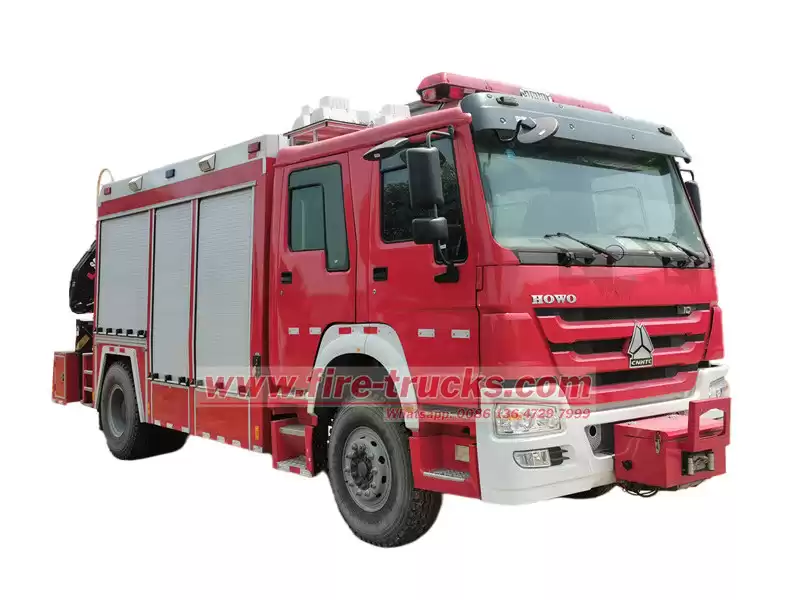

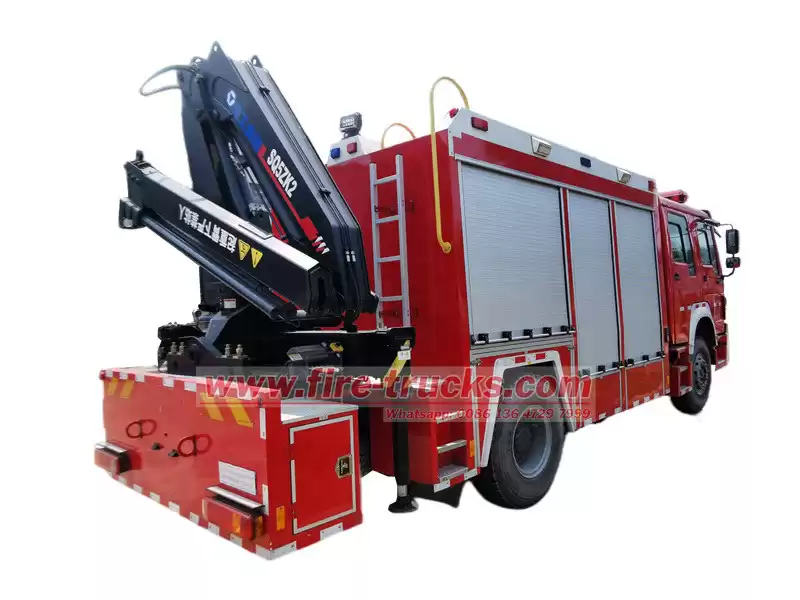

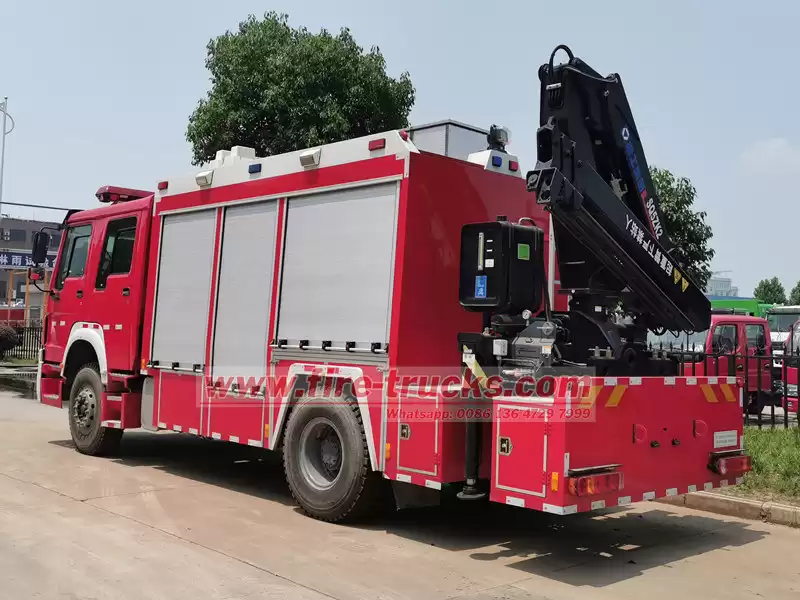

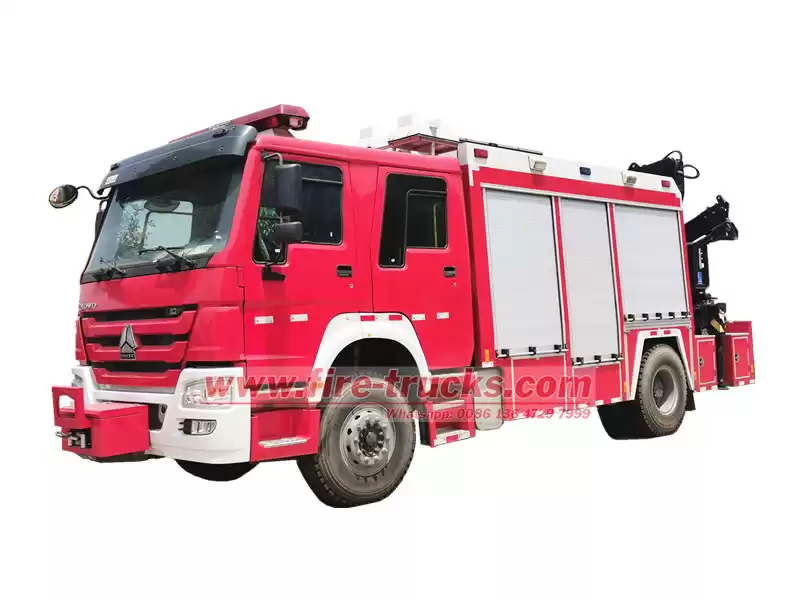

Product Pictures
