The most notable feature of the HOWO Foam Tender Fire Truck is its high-capacity firefighting agent storage system. The 6000L water tank is constructed from Q235 carbon steel, internally coated with epoxy primer and epoxy asphalt paint for dual anti-corrosion protection, ensuring long-term rust resistance. The 2000L foam tank is made of high-quality stainless steel, specifically designed for storing various foam fire suppressants. This 8000L total liquid capacity makes the vehicle an optimal choice for combating large-scale fires, particularly oil and chemical fires.
The tank layout of HOWO tanker fire truck is meticulously designed, with the water and foam tanks centrally positioned to lower the vehicle’s center of gravity and optimize weight distribution. The front section houses an equipment compartment, while the rear contains the pump room—a classic layout that ensures clear functional zoning and smooth operational workflows. The tank top features large filling ports for water and foam, allowing quick replenishment of firefighting agents. Additionally, anti-sloshing baffles inside the tank minimize liquid movement during transit, enhancing driving stability.
The core firefighting system of this HOWO tender fire truck consists of a CB10/60 centrifugal fire pump, a PL8/48 fire monitor, and a proportioning system. The CB10/60 fire pump delivers a rated flow of 60L/s, an operating pressure of 1.0 MPa, a maximum suction depth exceeding 7 meters, and a priming time under 45 seconds, meeting industry-leading performance standards. The pump room is ergonomically designed, with all control valves and gauges positioned for easy access, enabling firefighters to adjust parameters swiftly and accurately.
Mounted on the roof, the PL8/48 fire monitor serves as the vehicle’s primary "firepower output," with a water jet range exceeding 60 meters and a foam range of over 55 meters. It allows 360° horizontal rotation and -15° to 70° vertical adjustment. The proportioning system employs an advanced design to precisely control foam mixing ratios, ensuring optimal fire suppression. This setup enables the HOWO fire tanker truck to deliver powerful water jets for direct firefighting, foam sprays for oil fires, and water curtains for protection, achieving versatile firefighting capabilities in a single vehicle.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best fire rescue truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
Product Specifications
|
HOWO water foam fire truck specifications
|
|
Chassis
|
Brand
|
SINOTRUK
|
|
Model
|
HOWO
|
|
Gross vehicle weight(kg)
|
19450
|
|
Wheelbase(mm)
|
4700 mm
|
|
Dimensions(mm)
|
8600*2540*3600 mm
|
|
Overhang (front/rear) (mm)
|
1430/2420 mm
|
|
Wheel track (front/rear) (mm)
|
1950/1848 mm
|
|
Approach/Departure angle(°)
|
19/11°
|
|
Axle Load(kg)
|
6450/13000
|
|
Max. driving speed(km/h)
|
100 km/h
|
|
Clutch
|
Reinforced diaphragm clutch
|
|
Brakes
|
Service brake: dual circuit compressed air brake
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
|
|
Steering Gear
|
Power steering, hydraulic steering with power assistance
|
|
Tire
|
Number
|
6pcs with one spare tire
|
|
Specifications
|
12.00R20
|
|
Gear box
|
HW13710, Manual type, 10 Forwards & 2 Reverses
|
|
Cabin
|
Four doors and it can hold 8 fire fighter and 1 driver. With Air conditioner
|
|
Engine
|
Brand
|
SINOTRUK
|
|
Model
|
WD615.99
|
|
Fuel type
|
Diesel
|
|
Type
|
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
|
|
Displacement(ml)
|
9726 ml
|
|
Power(kw)
|
247kw
|
|
Horsepower(HP)
|
336 HP
|
|
Emission standard
|
Euro 2
|
|
Torque(N.m)
|
1500 N.m
|
|
Upper-body
|
|
Water tank
|
Volume(CBM)
|
6000 liters
|
|
Tank Material
|
Q235 Carbon steel
|
|
Foam tank
|
Volume(CBM)
|
2000 liters
|
|
Tank Material
|
Stainless steel
|
|
Proportion control system
|
Foam vessel, proportioned equipment, water - entering pipe and liquid - out pipe etc
|
|
Fire pump
|
Type
|
Centrifugal pump
|
|
Model
|
CB10/60
|
|
Flow(L/s)
|
60
|
|
Pressure(Mpa)
|
1
|
|
Fire fighting pump Suction depth
|
≥ 7 m
|
|
Fire fighting pump Suction Time
|
≤45 s
|
|
Fire monitor
|
Model
|
PL8/48
|
|
Flow(L/s)
|
48 L/s
|
|
Water Range(m)
|
≥60 m
|
|
Foam Range(m)
|
≥55 m
|
|
Rotation angle
|
Horizontal
|
360 °
|
|
Pitch angle
|
-15°~70°
|
Product Pictures

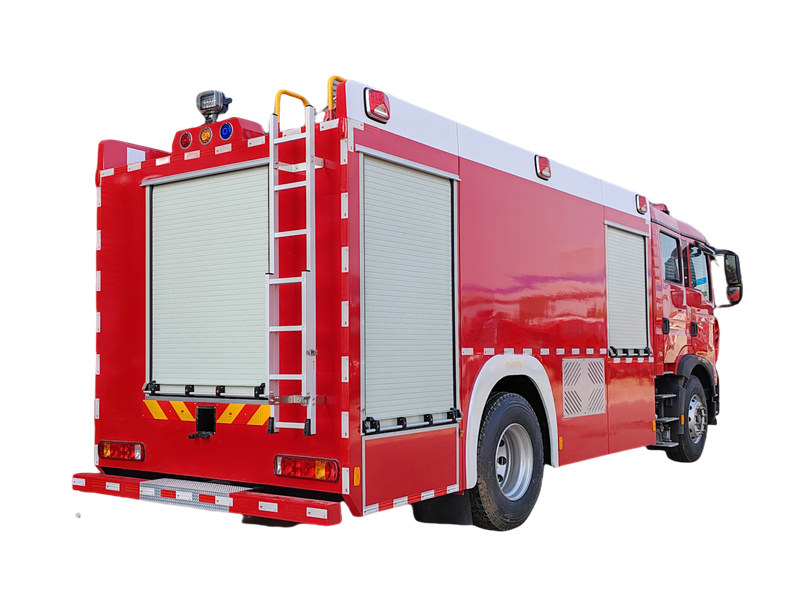

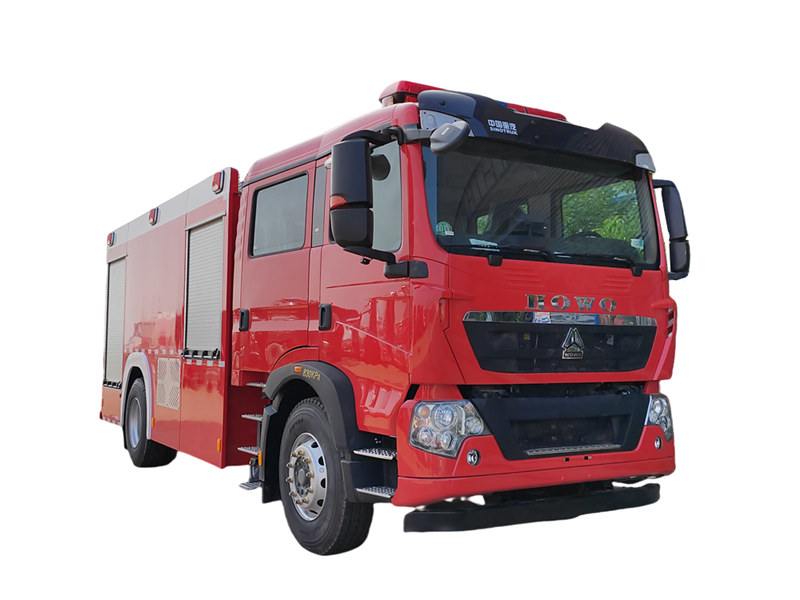

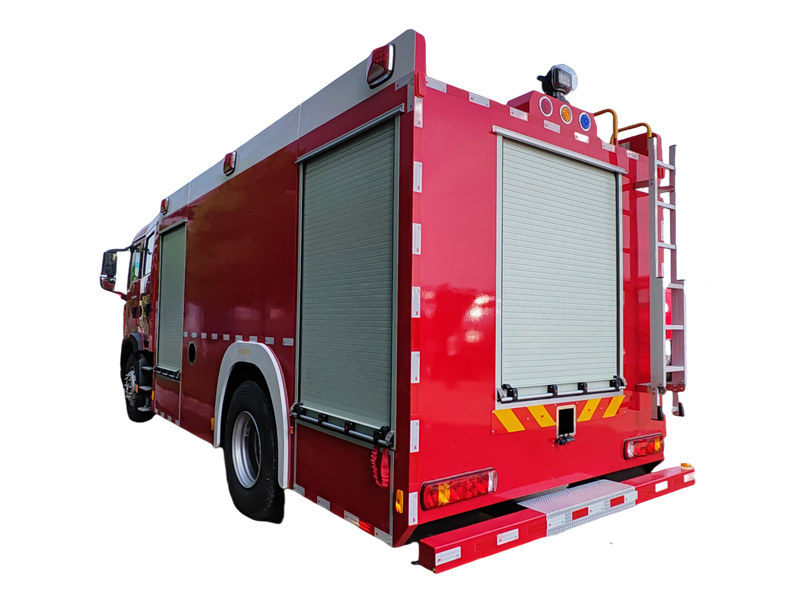

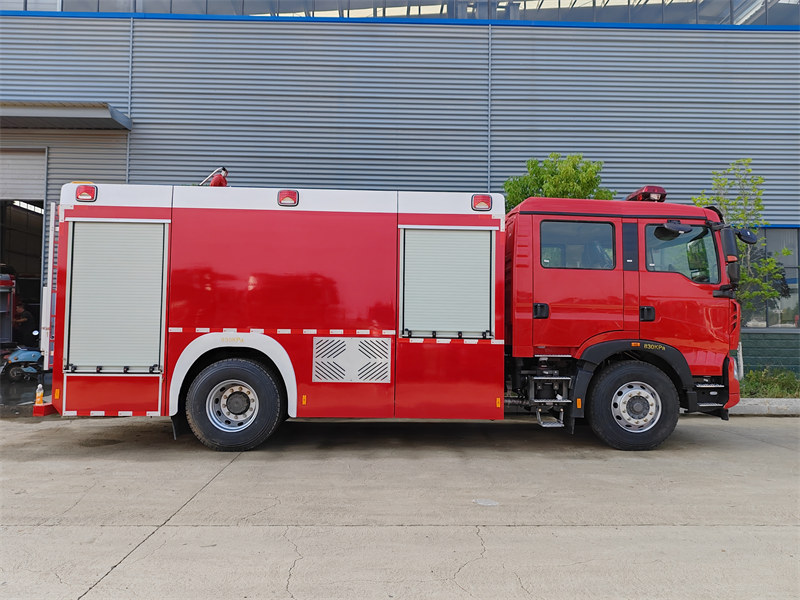

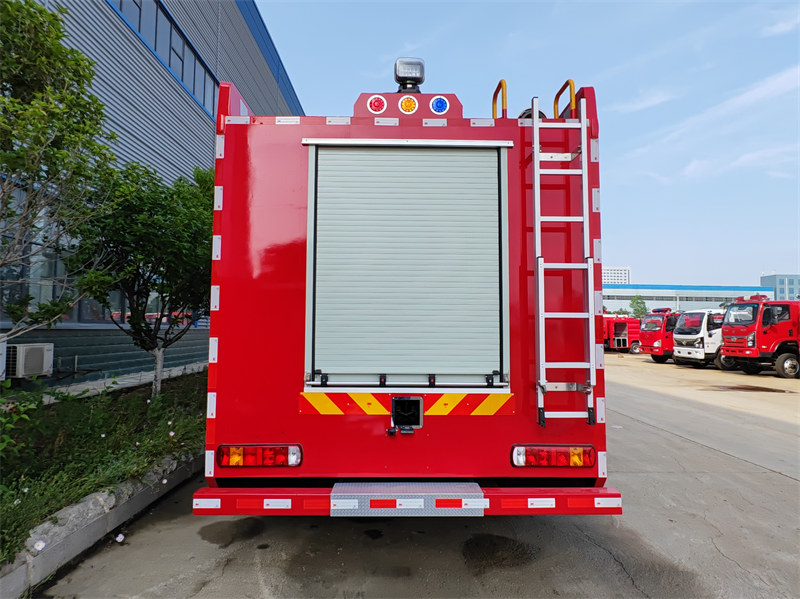

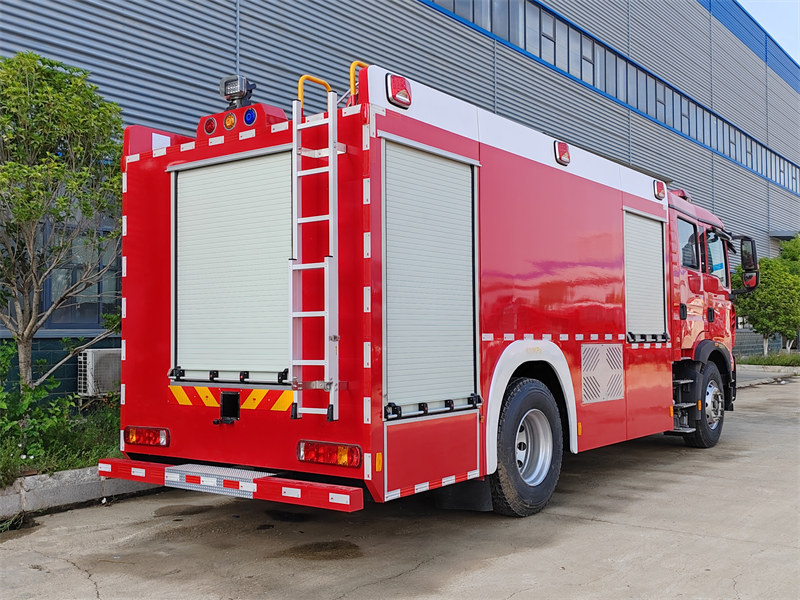

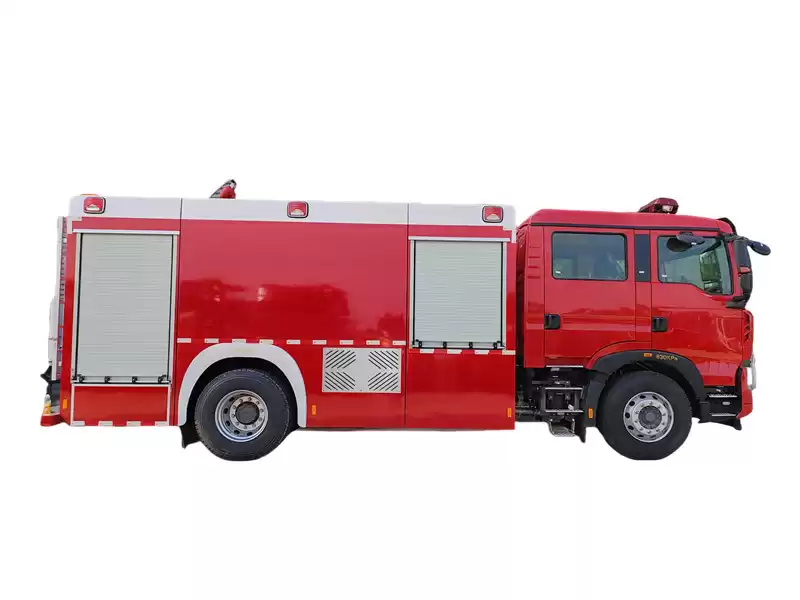

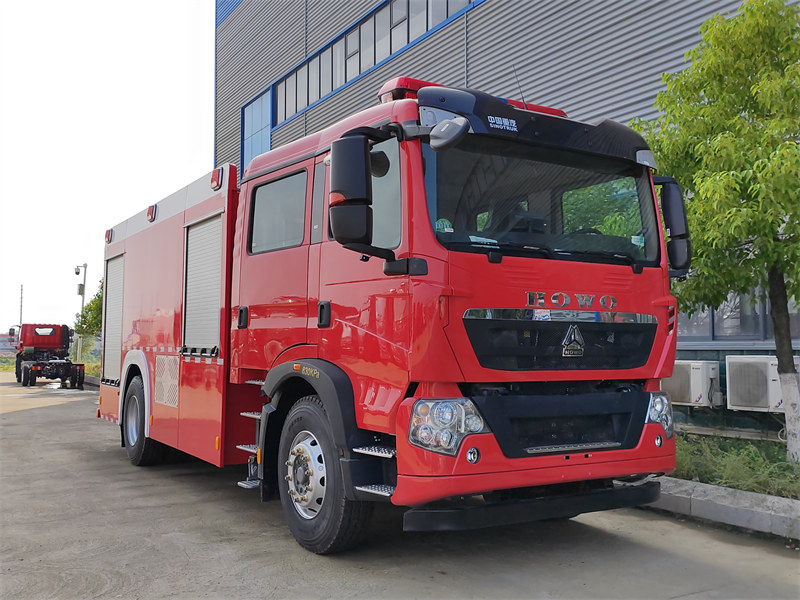

HOWO firefighting truck with double row cabin

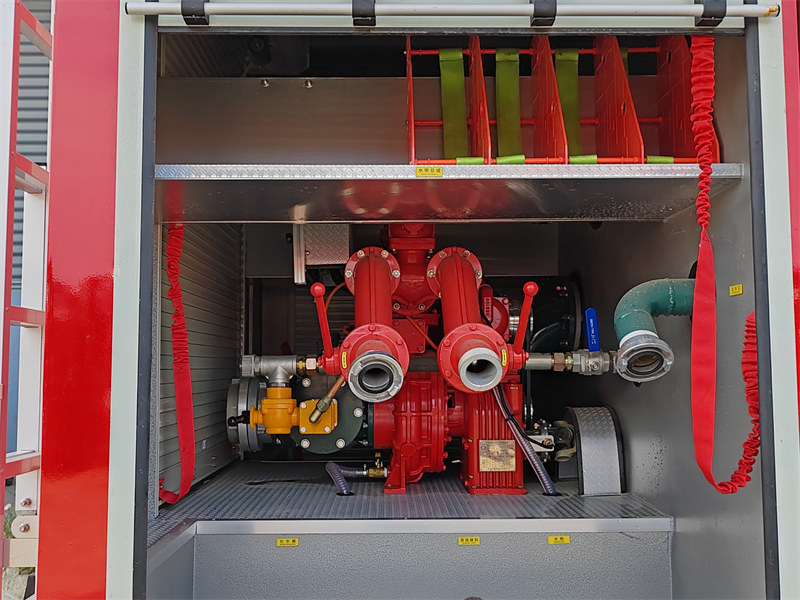

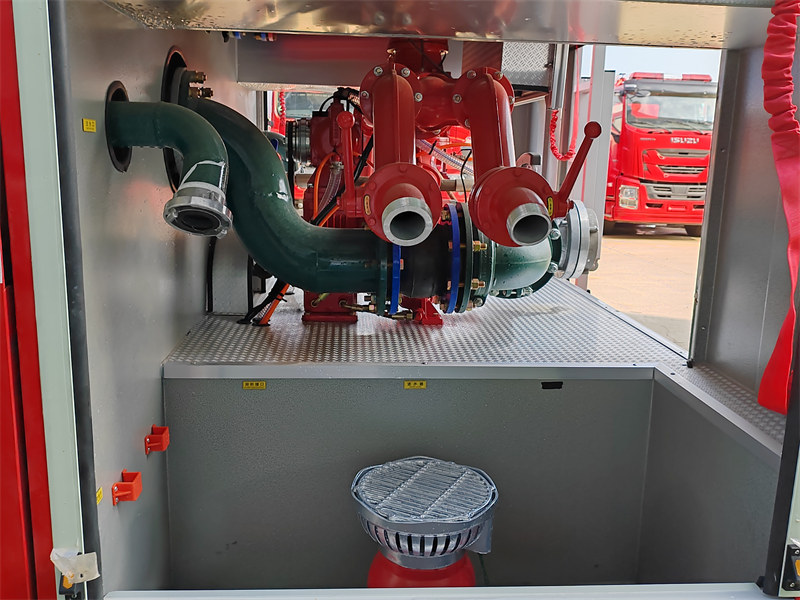

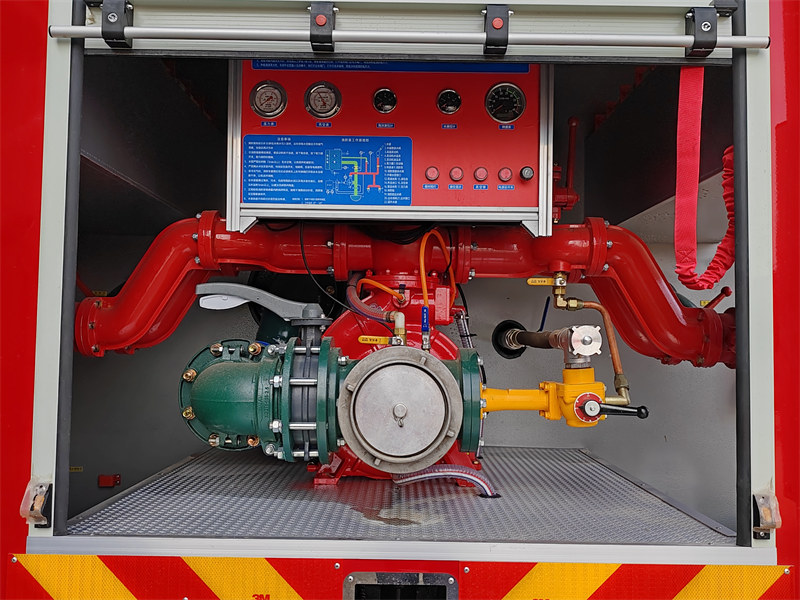

China famous brand fire pump

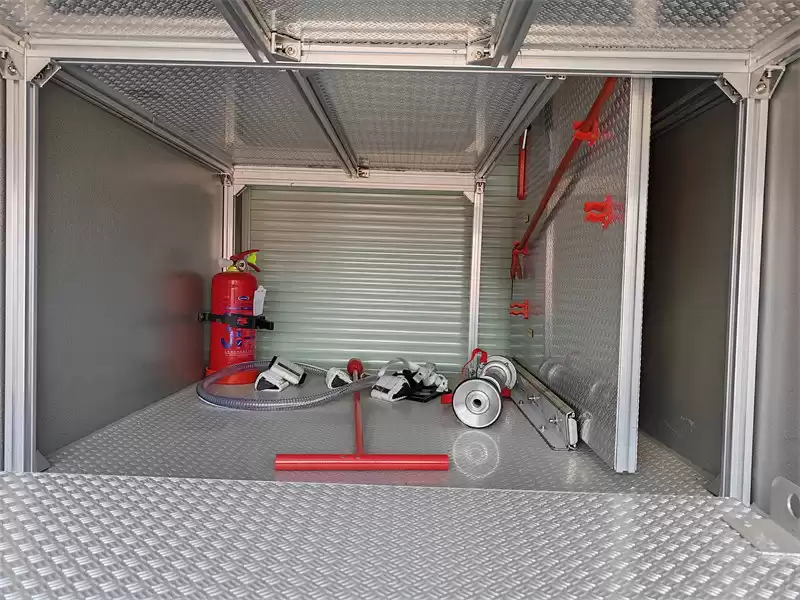

Firefighting equipment compartment
The main frame is constructed with high-strength aluminum alloy profiles
