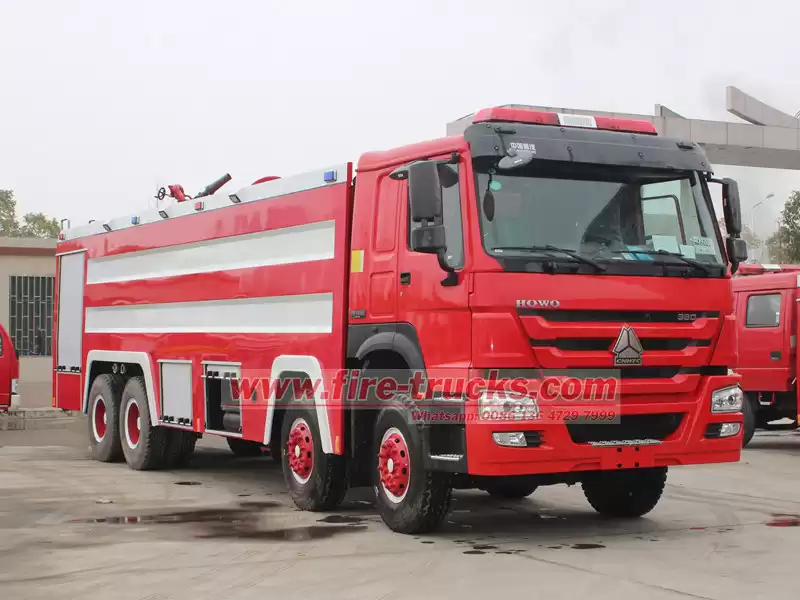

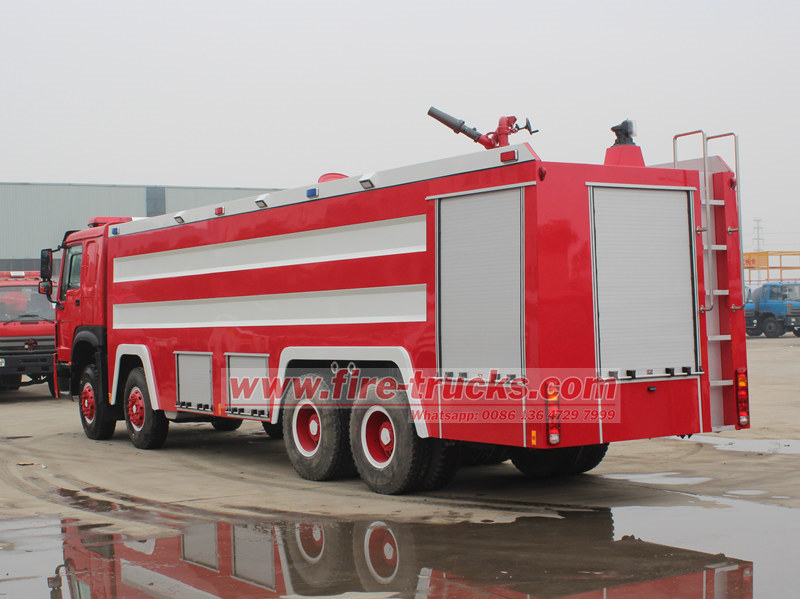

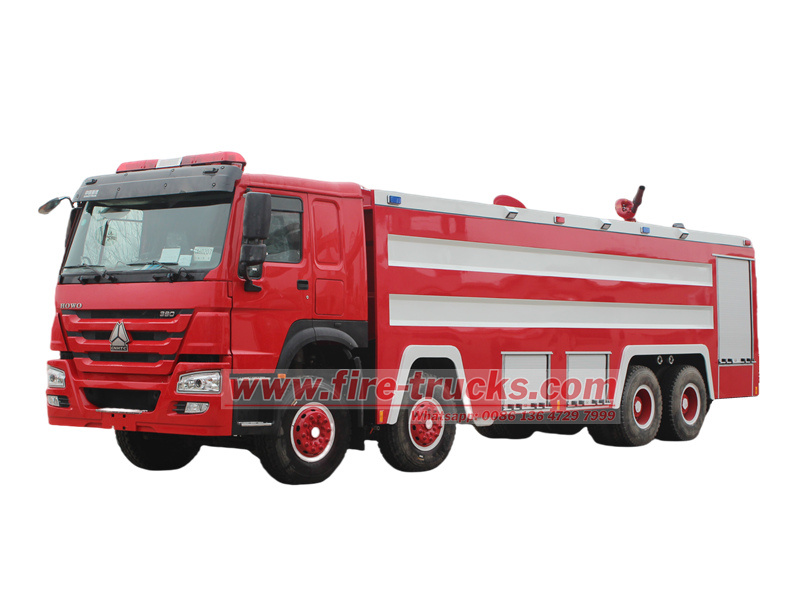

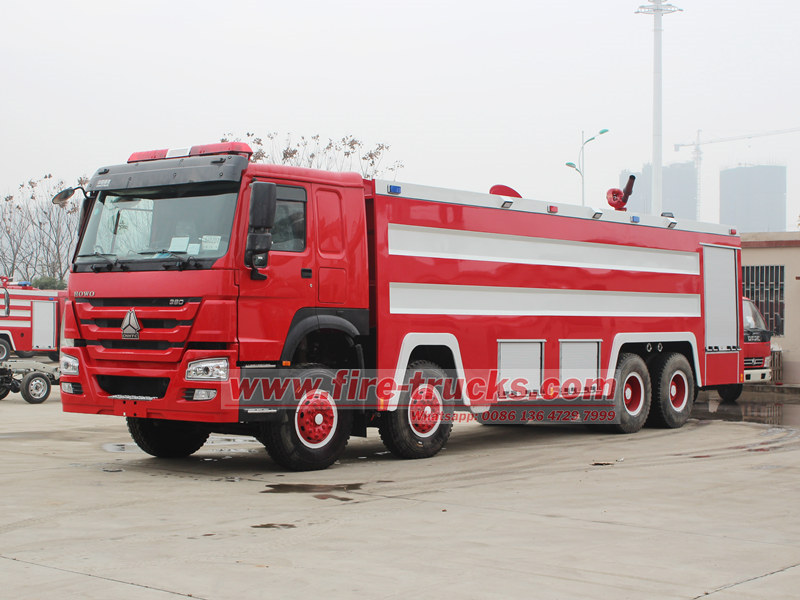

The HOWO 8×4 Heavy-duty Fire Truck is a specialized firefighting apparatus designed for large-scale fire suppression, integrating high-capacity firefighting agent storage with an efficient discharge system. Built on the SINOTRUK HOWO special chassis, the vehicle measures 11,850 × 2,550 × 3,630 mm and adopts an 8×4 drivetrain configuration. Powered by a 380 HP Weichai WP10 engine paired with a 10-speed transmission, it achieves a maximum speed of 90 km/h. The front axle (7.5-ton capacity) and rear axle (13-ton capacity) load distribution, combined with 12.00R20 large tires, ensures stable operation under heavy loads. The single-row cab is equipped with air conditioning, providing a comfortable working environment for firefighters.
The HOWO heavy-duty fire tender truck boasts a total tank capacity of 24 cubic meters, including a 20m³ water tank and a 4m³ foam tank. The water tank is constructed from high-quality Q235 carbon steel plate with advanced anti-corrosion treatment, ensuring durability and extended service life. The foam tank is made of 304 stainless steel plate, also treated with anti-corrosion technology to maintain foam stability. The tank adopts a welded frame structure with internal longitudinal and transverse anti-slosh baffles, minimizing liquid impact during movement and enhancing driving safety. The front and rear walls feature trapezoidal reinforcement ribs for added strength and rigidity. A quick-opening manhole on the tank roof facilitates maintenance and inspection. Inside, a vortex prevention device and filter screen optimize pump efficiency, while a stainless-steel float-type level indicator allows real-time monitoring of firefighting agent volume via the dashboard. A ball-valve-equipped drain port at the bottom enables periodic cleaning.

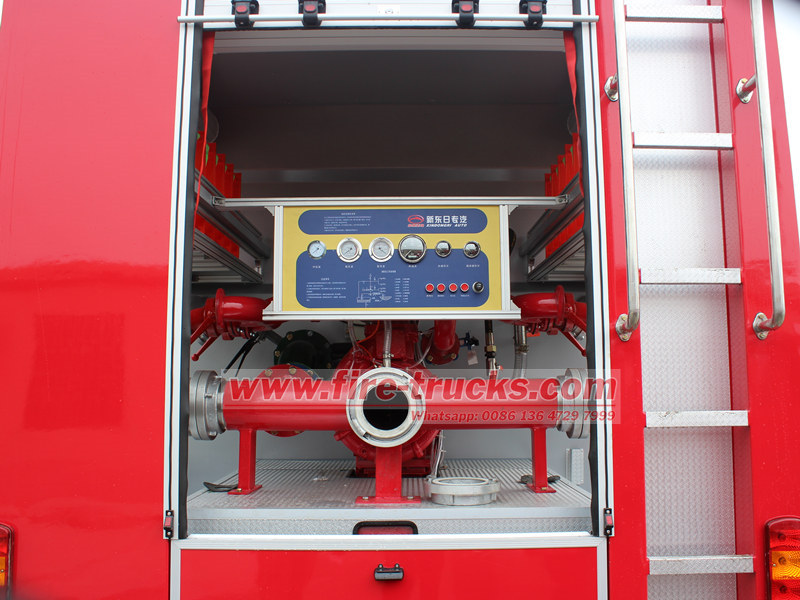

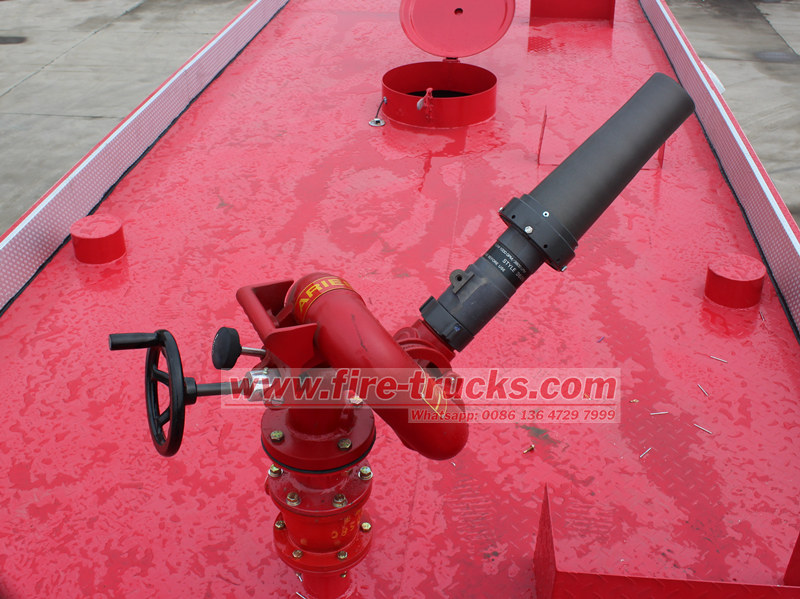

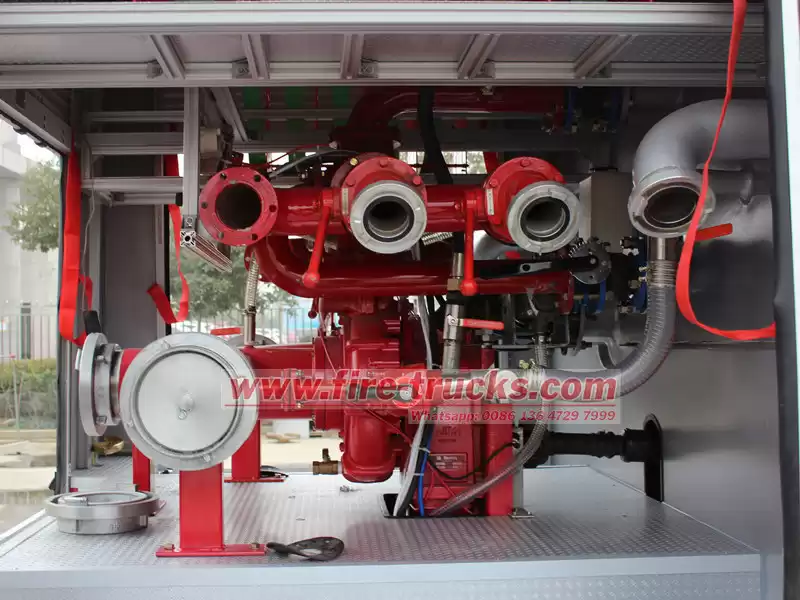

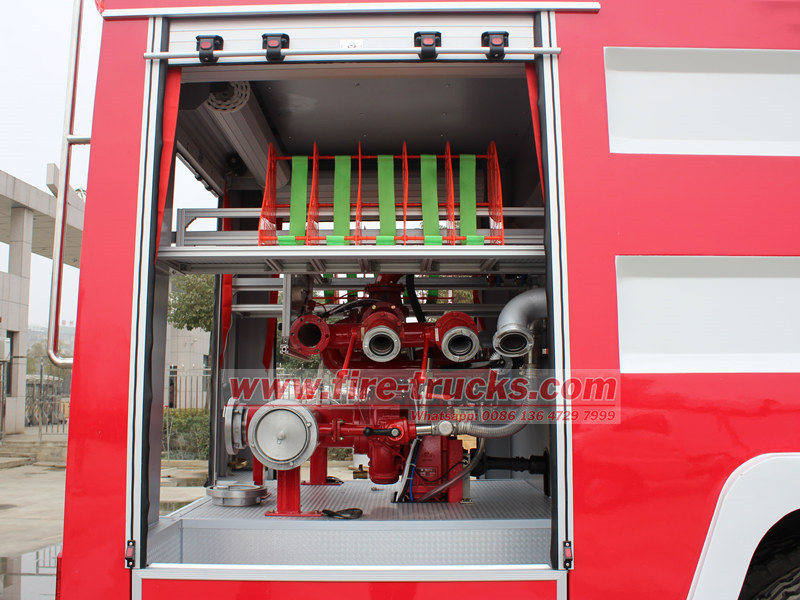

The fire pump and monitor are critical components of the firefighting system. This HOWO 8×4 foam fire engine is equipped with an American Darley KSP1000 fire pump, a single-stage centrifugal pump driven by PTO, delivering outstanding performance. It achieves a flow rate of 65L/S at 1.0MPa and 32.5L/S at 2.0MPa, providing robust water supply for firefighting operations. The AKRON Model 3626 fire monitor delivers a flow rate of up to 3,800 LPM, with a water jet range exceeding 75 meters and a foam jet range of over 70 meters. Its 360° horizontal rotation and -30° to 80° vertical elevation allow flexible firefighting coverage from various angles and distances, ensuring effective suppression of large-scale fires.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
Product Specifications
| Product name |
HOWO 8×4 heavy tanker fire truck
|
|
Chassis
|
Brand
|
SINOTRUK
|
|
Model
|
HOWO
|
|
Curb weight(kg)
|
17750
|
|
Wheelbase(mm)
|
1950+4600+1350 mm
|
|
Dimensions(mm)
|
11850*2550*3630 mm
|
|
Overhang (front/rear) (mm)
|
1500/2420 mm
|
|
Wheel track (front/rear) (mm)
|
2110/2110; 1830/1830 mm
|
|
Approach/Departure angle(°)
|
19/11°
|
|
Axle Load(kg)
|
7500/7500;13000/13000
|
|
Max. driving speed(km/h)
|
90 km/h
|
|
Clutch
|
Reinforced diaphragm clutch
|
|
Brakes
|
Service brake: dual circuit compressed air brake;
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels;
Auxiliary brake: engine exhaust valve brake
|
|
Steering Gear
|
Power steering, hydraulic steering with power assistance
|
|
Tire
|
Number
|
10pcs with one spare tire
|
|
Specifications
|
12.00R20
|
|
Gear box
|
HW13710, Manual type, 10 Forwards & 2 Reverses
|
|
Cabin
|
Single row, with Air conditioner
|
|
Engine
|
Brand
|
WEICHAI
|
|
Model
|
WP10.380E32
|
|
Fuel type
|
Diesel
|
|
Type
|
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
|
|
Displacement(ml)
|
9726 ml
|
|
Power(kw)
|
280kw
|
|
Horsepower(HP)
|
380 HP
|
|
Emission standard
|
Euro 3
|
|
Rated speed (rpm)
|
2200
|
|
Max. torque (N.m)
|
1600 N.m
|
|
Superstructure
|
|
Water tank
|
Volume
|
20000 liters
|
|
Tank Material
|
Q235 Carbon steel
|
|
Foam tank
|
Volume
|
4000 liters
|
|
Tank Material
|
Stainless steel
|
|
Proportion control system
|
Foam vessel, proportioned equipment, water - entering pipe and liquid - out pipe etc
|
|
Fire pump
|
Type
|
Single stage, Centrifugal pump, PTO driven
|
|
Brand
|
Darley (American imported)
|
|
Model
|
KSP1000
|
|
Flow(L/s)
|
65L/S @1.0 MPa
32.5L/S@2.0 Mpa
|
|
Fire monitor
|
Brand
|
AKRON
|
|
Model
|
3626
|
|
Flow
|
3800 LPM
|
|
Water Range(m)
|
≥75 m
|
|
Foam Range(m)
|
≥70 m
|
|
Swing angle
|
Horizontal
|
360 °
|
|
Tilt angle
|
-30°~80°
|
Product Advantages
Compared with similar products, the HOWO 8×4 tanker fire truck has the following advantages:
1. Based on HOWO Special Chassis - Superior load capacity and off-road performance
2. Internationally Renowned Firefighting Components - Darley pumps and AKRON monitors ensure reliable performance
3. Optimized Tank Structure - Durable construction with extended service life
4. Ergonomic Control Interface - Designed based on firefighters' operational habits
5. Efficient Maintenance Design - Reduced upkeep costs with user-friendly service points

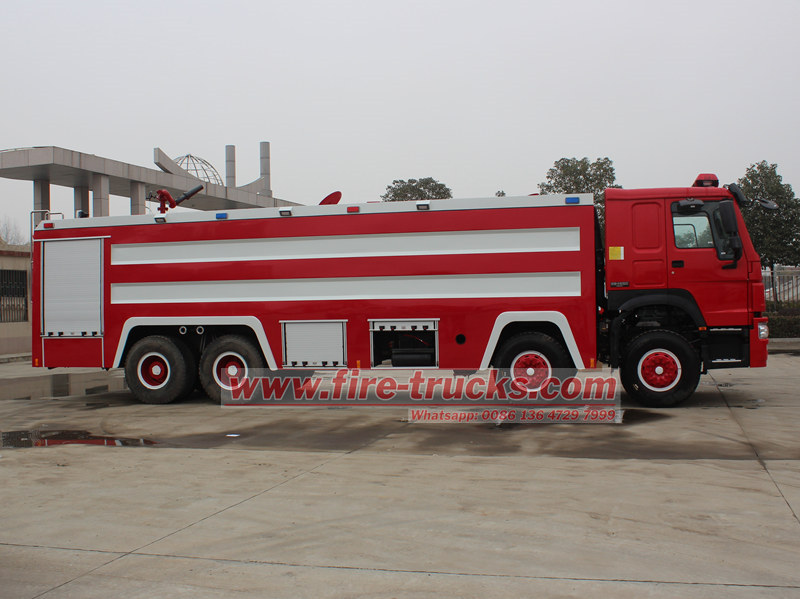

Product Pictures
