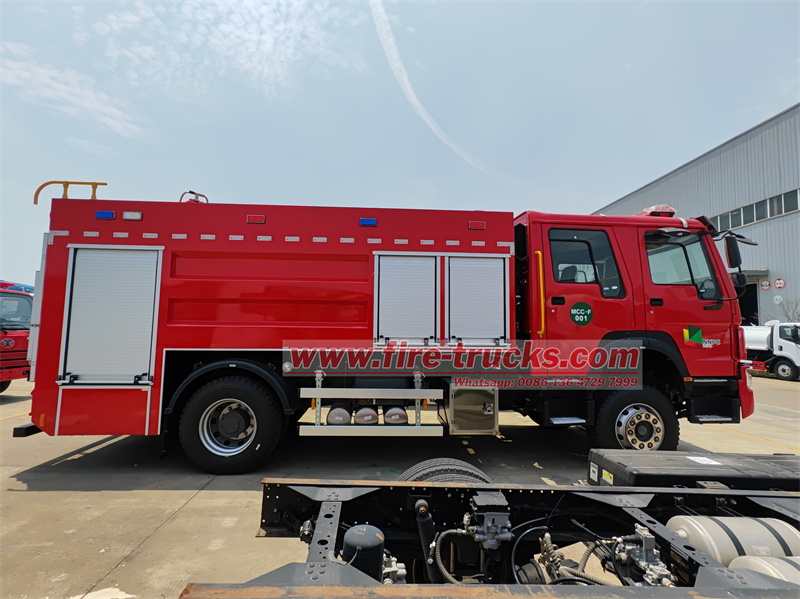

In urban firefighting, industrial park and highway rescue scenarios, foam fire trucks have become key equipment for special fire situations such as oil fires and chemical fires because of their ability to extinguish fires with both water and foam. The Nigeria howo crew cabin fire rescue truck is built on the HW76 double-row cab chassis, equipped with a WP10.300E40 engine and HW19710 10-speed gearbox, equipped with 6 cubic water tanks + 2 cubic foam tanks, and integrated with CB10/40-XZ fire pumps and PL8/32 fire monitors. It is a professional fire truck with mobility, large liquid load and efficient fire extinguishing capabilities.
● China best SINOTRUK HOWO foam fire truck factory
● 30 years experience on dry powder fire fighting truck designing
● Build strict QC team to guarantee the quality
● OEM customized service, print your company logo
● Promptly delivery. any order is welcome.
|
HOWO 4X2 8cbm water fire truck
|
|
Chassis
|
Chassis brand
|
SINOTRUK HOWO
|
|
Drive type
|
4x2 left hand drive
|
|
Cabin
|
HOWO HW76 chassis,one row and a sleeper,with A/C,USB,direction assistance
|
|
Overall dimension(L*W*H)
|
8350*2540*3500mm
|
|
GVW
|
19200kg
|
|
Rated Loading capacity
|
8tons
|
|
Wheel Base
|
4600mm
|
|
Tyre No.
|
6, (front 2, rear 4)
|
|
Type & Size of Tyre
|
12.00R20
|
|
Axle No.
|
2
|
|
Gear box
|
HW19710 10 Forward and 2 Rearward,manual
|
|
Engine
|
Engine model
|
WP10.300E40
|
|
Engine brand
|
WEICHAI
|
|
Engine type
|
6 cylinders in line
|
|
Maximum power
|
300HP/ 221kW
|
|
Fuel type
|
Diesel
|
|
Displacement
|
9.726L
|
|
Rated speed
|
1900rpm
|
|
Max torque
|
1390N.m
|
|
Max torque speed
|
1200-1500rpm
|
|
Emission Standard
|
Euro VI
|
|
Tanker
|
Water tanker
|
6000 liters, carbon steel
|
|
Foam tanker
|
2000 liters,304 stainless steel
|
|
Fire pump
|
Model
|
CB10/40-XZ
|
|
Pressure
|
≥1.0MPa
|
|
Max suction height
|
7m
|
|
Flux
|
40L/s
|
|
Rated speed
|
3135±50r/min
|
|
Time of drawing water
|
≤50 s
|
|
Input diameter
|
125mm
|
|
Outlet diameter
|
2xΦ75mm
|
|
Fire monitor
|
Model
|
PL8/32
|
|
Flux
|
32L/s
|
|
Rated Working pressure
|
0.8MPa
|
|
Pitch rotation
|
-45°～+70°
|
|
Horizontal rotation
|
0～360°
|
|
|
Range
|
Water≥60m, foam≥48m
|
Powerful Performance & Reliable Chassis: Rapid Response, Stable Handling

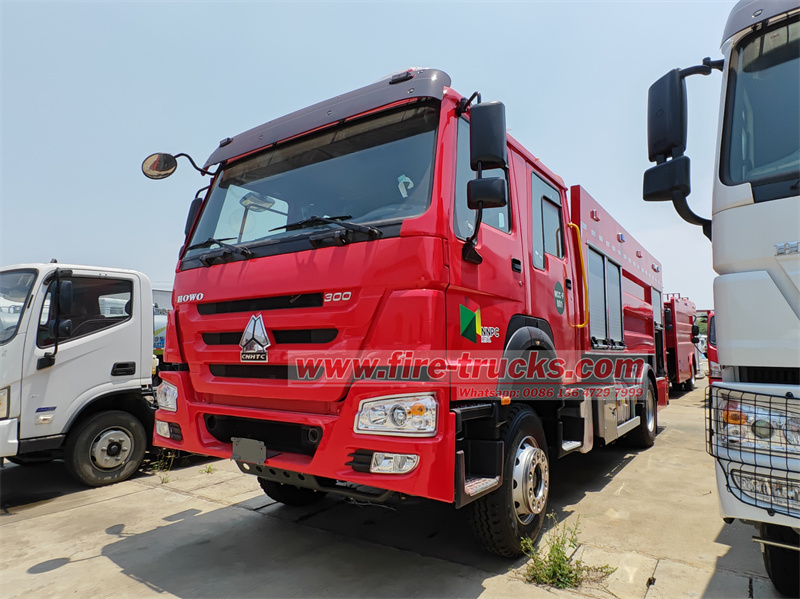

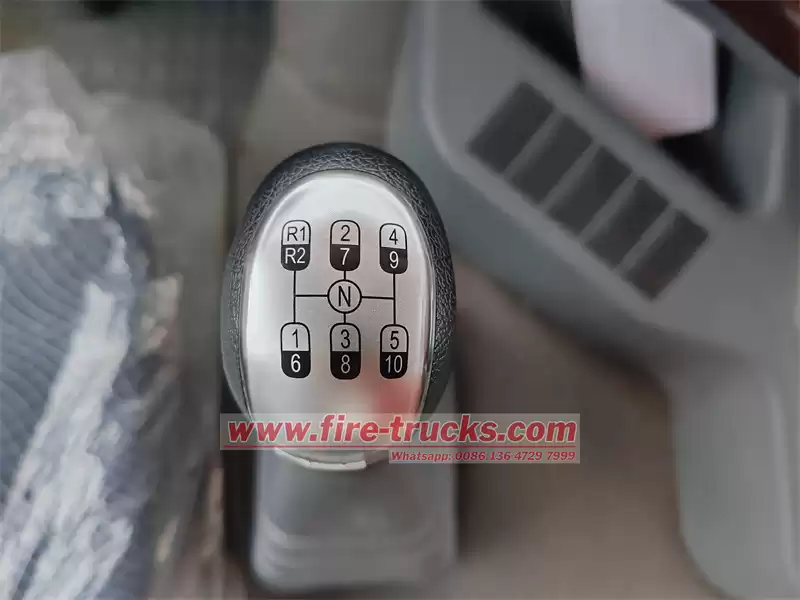

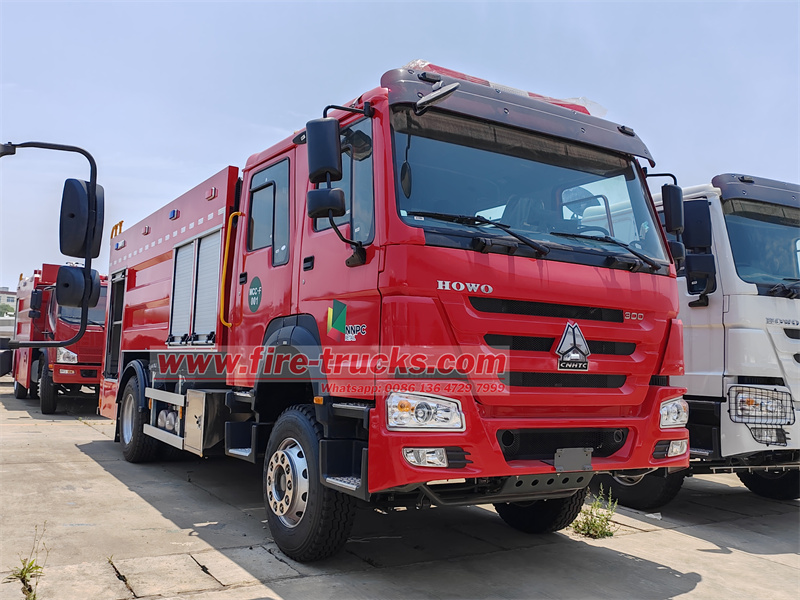

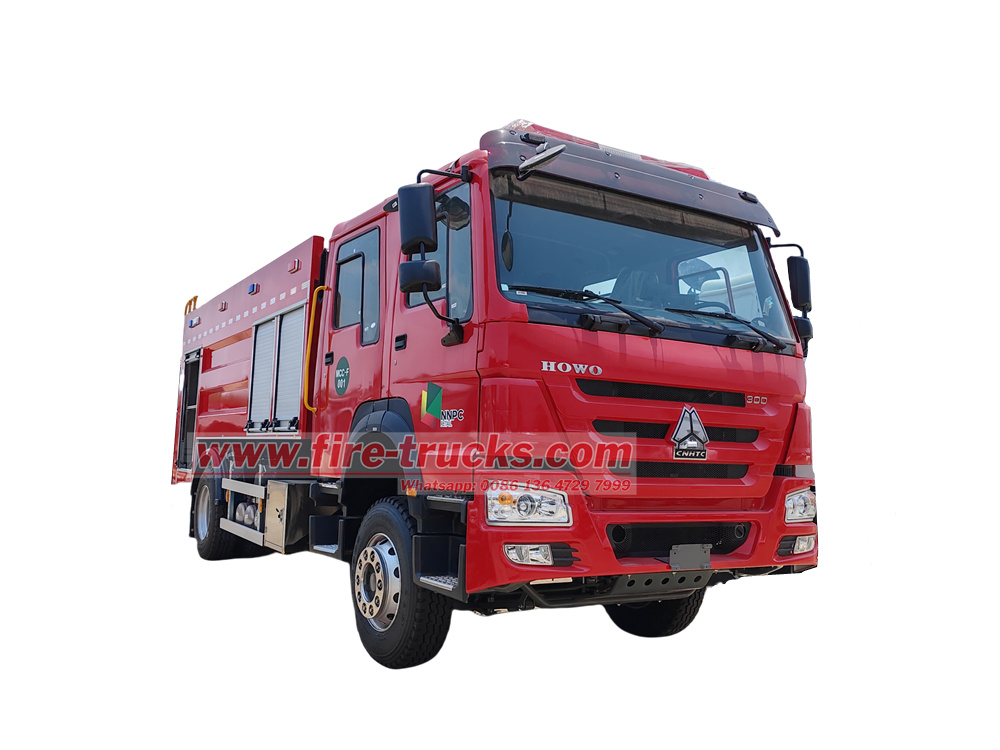

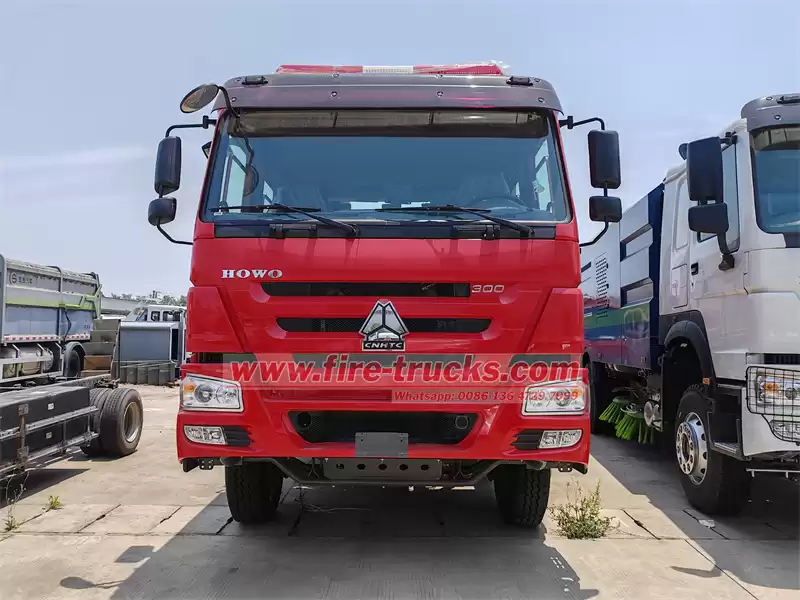

The vehicle adopts the HOWO HW76 dual-cab chassis with a 4600mm wheelbase, ensuring excellent maneuverability while providing ample space for firefighting equipment. Powered by a WP10.300E40 diesel engine (300 HP, Euro IV compliant), it delivers strong torque at low RPM for reliable performance in complex terrains. Paired with an HW19710 10-speed transmission, gear shifts are smooth, adapting to urban roads, highways, and off-road rescue scenarios to ensure rapid arrival at fire scenes.

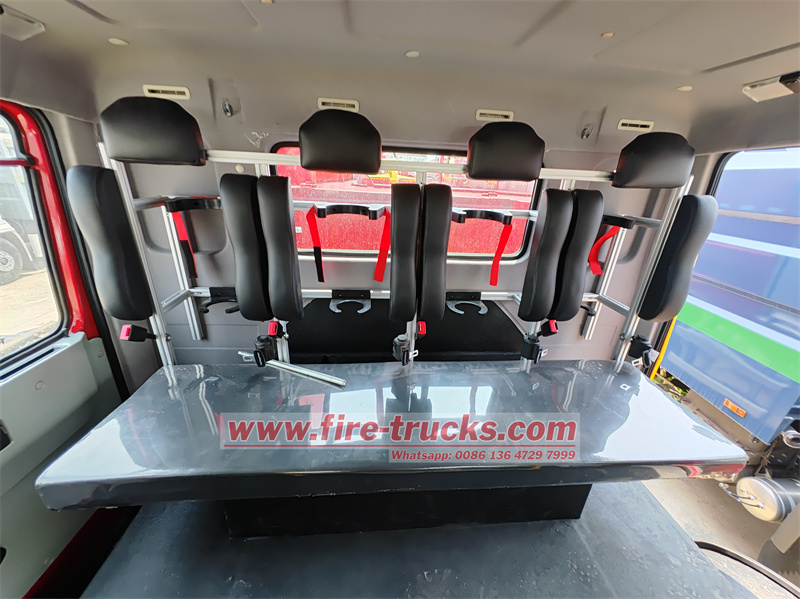

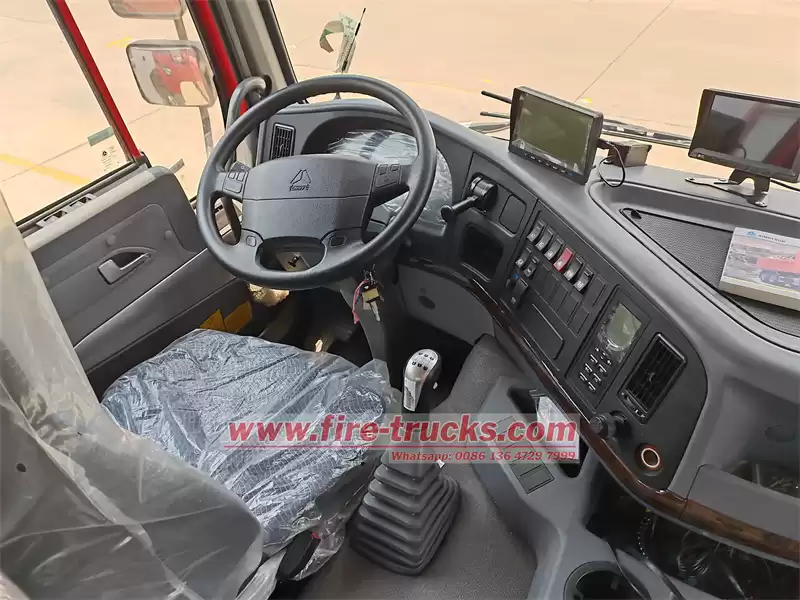

The 2+4 seating dual-cab design accommodates six firefighters—front seats for the driver and commander, rear seats for combat personnel—enabling quick deployment of firefighting forces.

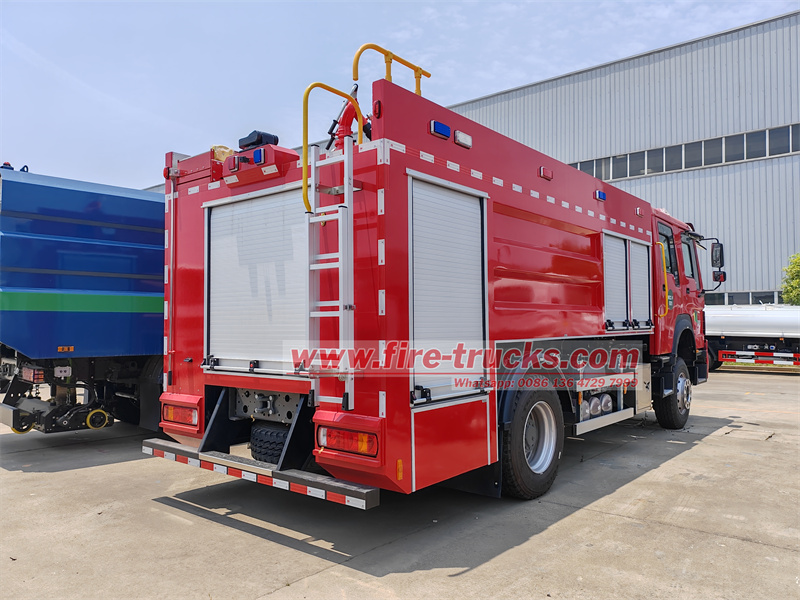

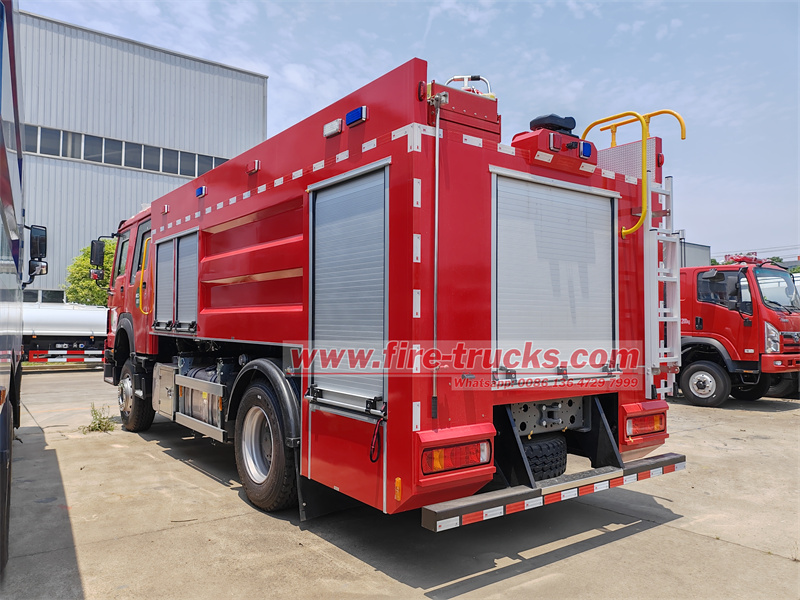

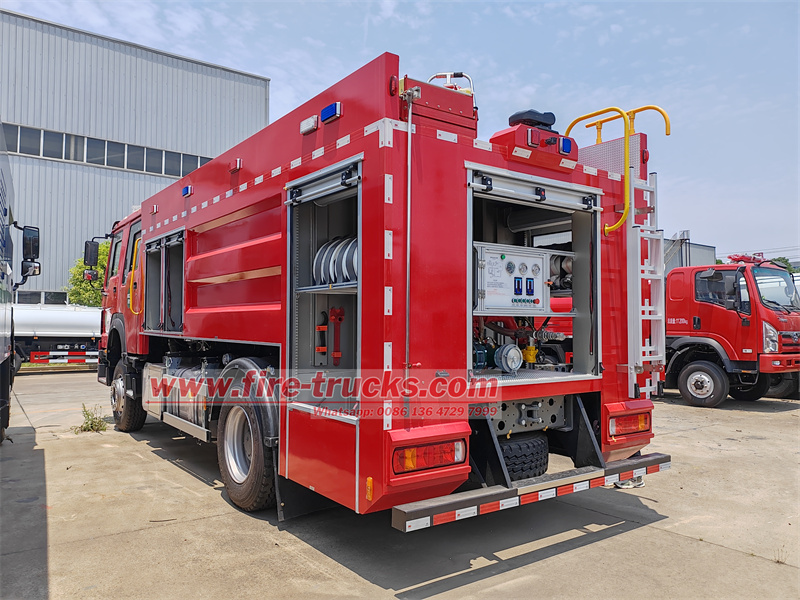

Professional Superstructure Layout: Scientific Zoning, Efficient Firefighting

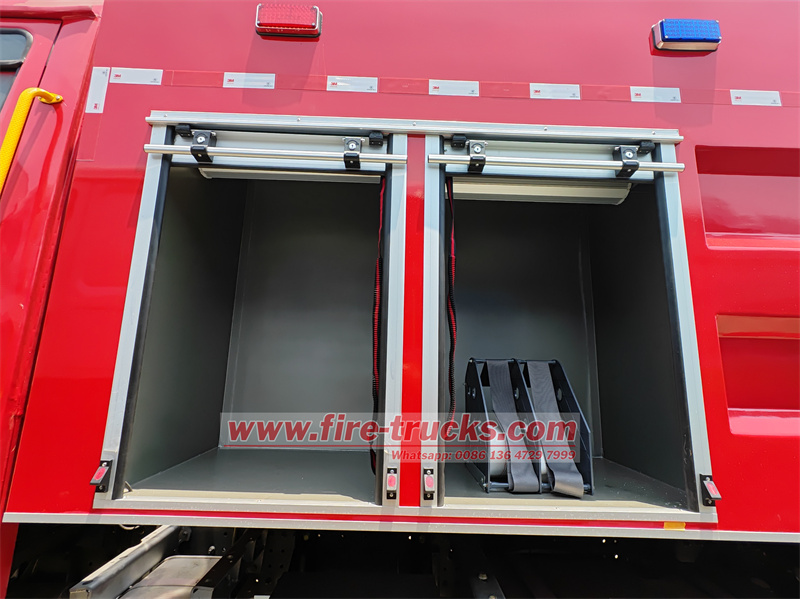

★ Front Equipment Compartment: Quick Access, Fully Equipped
Made of corrosion-resistant aluminum with roll-up doors, it stores essential gear including fire hoses, axes, shovels, picks, cutters, and firefighting suits for rapid deployment in emergencies.
★ Mid-Section Tank System: High-Capacity Fluid Storage, Sustained Operations

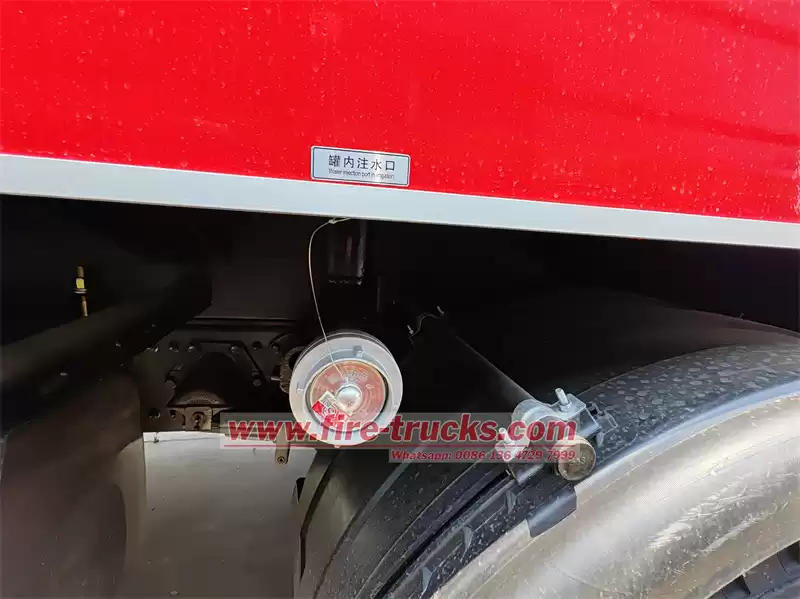

● 6m³ carbon steel water tank: Features anti-corrosion coating, a top manhole with quick-lock, a manual drain valve, and internal baffles to minimize sloshing. Connected to the pump via a Φ150mm intake pipe, it supports direct filling from hydrants or pumps for prolonged firefighting.
● 2m³ stainless steel foam tank: Constructed with 304 stainless steel, compatible with Class A (general fires) and Class B (oil/chemical fires) foam. Equipped with an automatic proportioning system for optimal foam discharge.
● Piping system: Includes a Φ150mm external intake for quick hose connection, two Φ80mm low-pressure ball valves, two Φ65mm medium-pressure ball valves, and a Φ89mm cannon pipe to supply multiple hoses or distributors simultaneously.

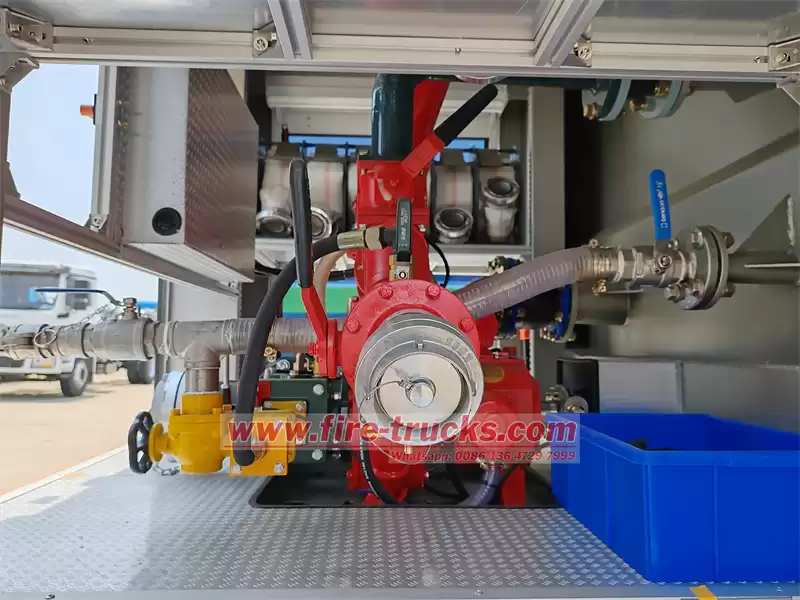

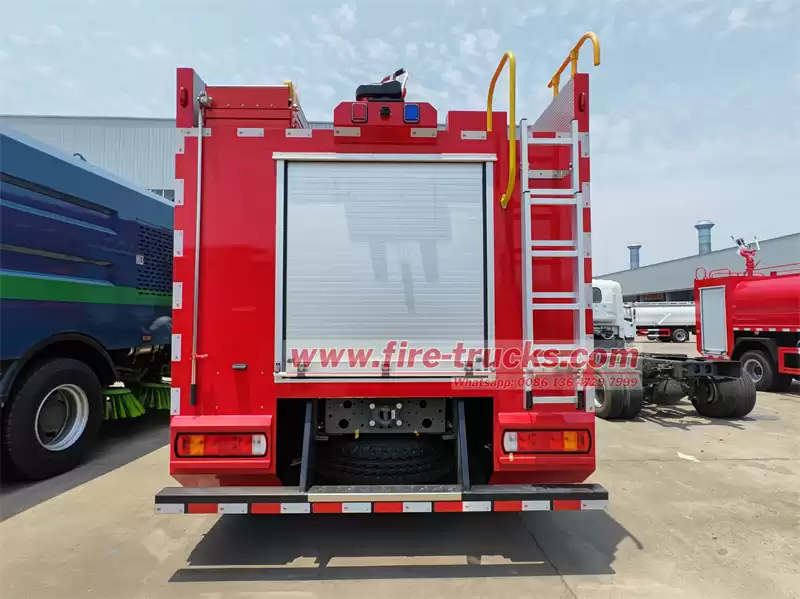

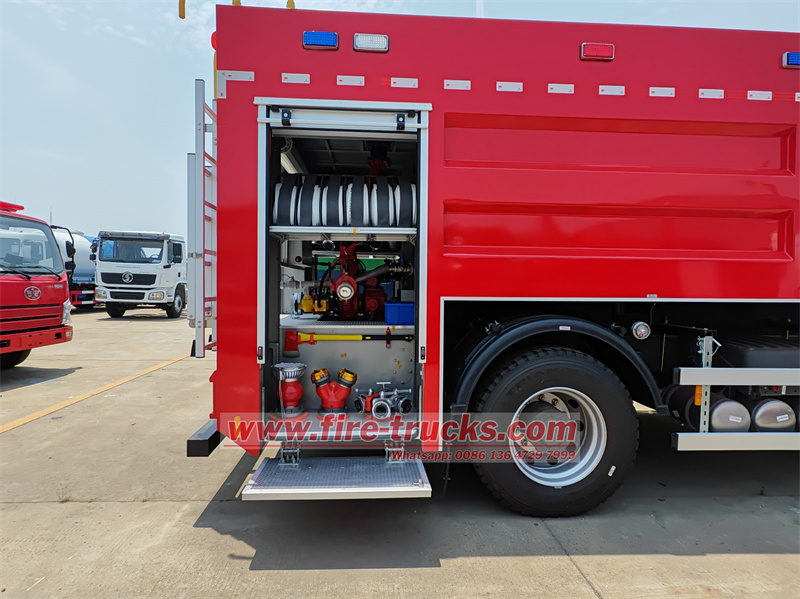

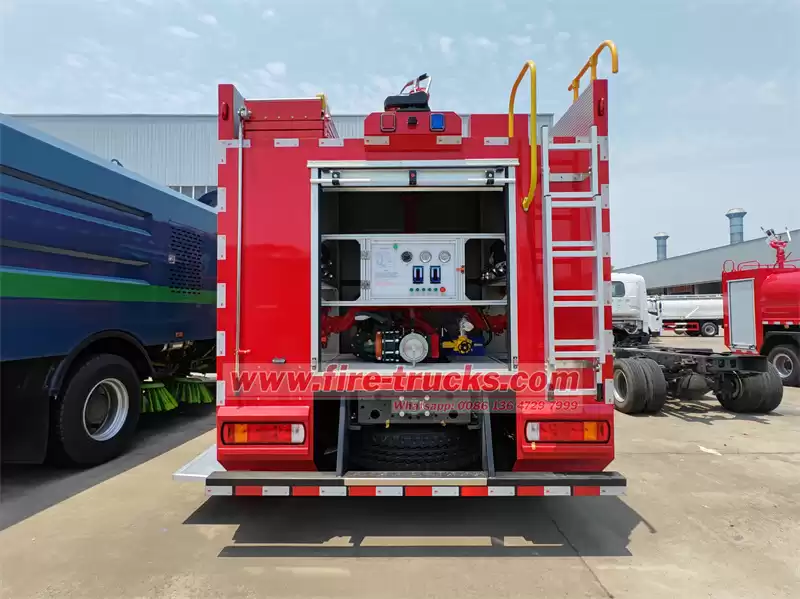

★ Rear Pump House: High-Pressure Water Supply, Intelligent Control

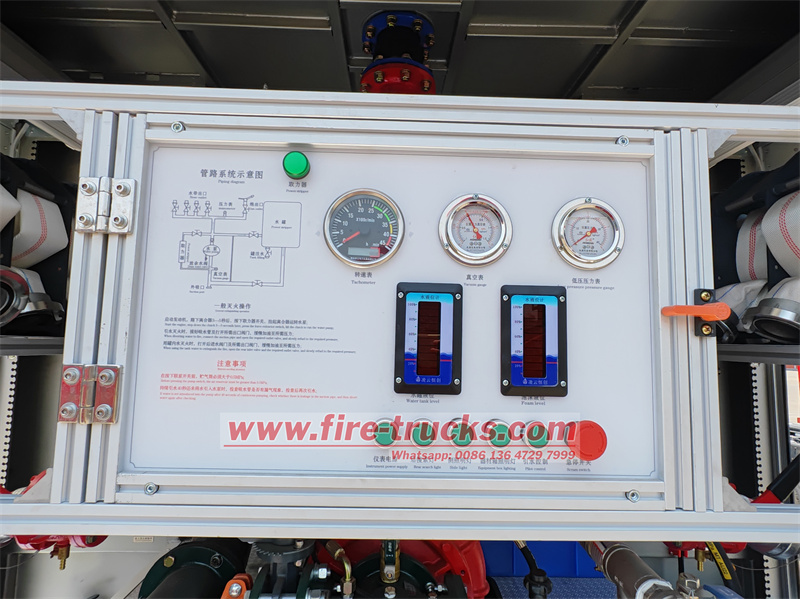

The core CB10/40-XZ fire pump delivers a rated flow of 40L/s (1.0MPa) with a 7m max suction depth, supporting onboard water, hydrants, and natural water sources. The integrated control panel monitors real-time data (RPM, vacuum, pressure, tank levels) and includes controls for the power take-off (PTO), lighting (rear/search/side), priming system, emergency stop, and operational diagrams.

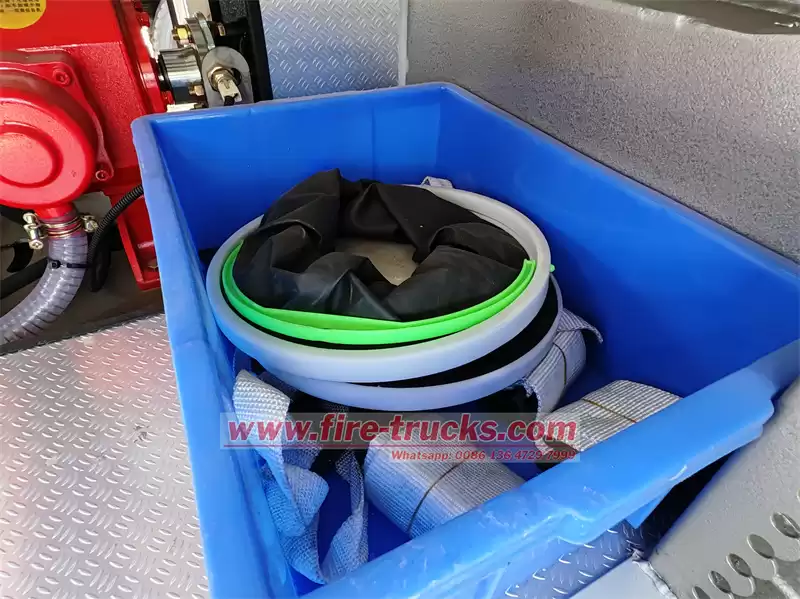

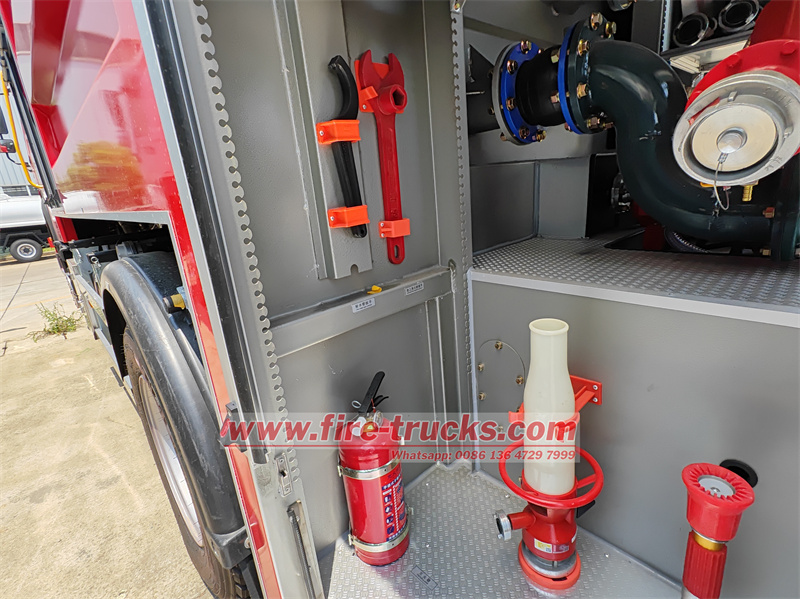

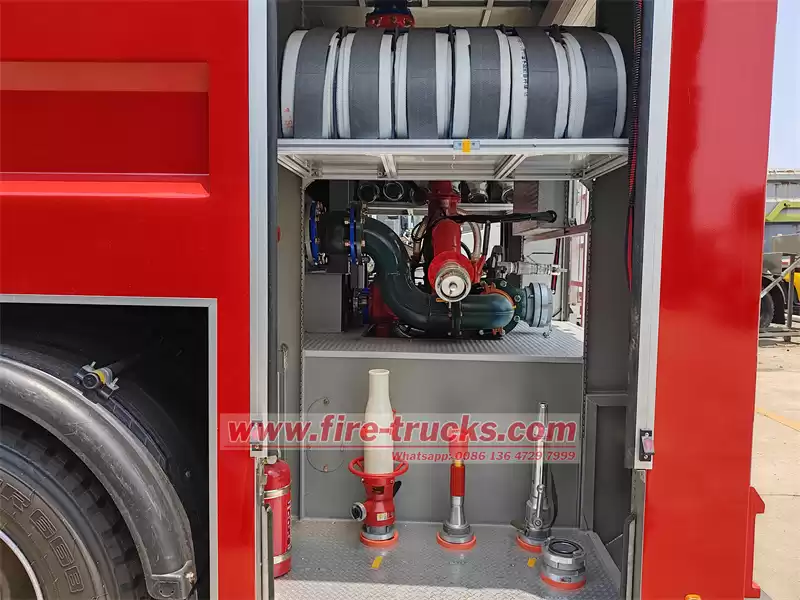

Additional firefighting tools in the pump house:
• Extinguishers (dry powder/CO₂)
• Collectors/dividers (for hydrant/natural water sources)
• Strainers (to prevent pump clogging)
• Hoses, hose jackets, and hooks (ensuring unimpeded water supply)
• Fire/foam nozzles (close-range firefighting)
• Axes, hydrant wrenches, and suction pipe wrenches (for forcible entry)
Comprehensive Firefighting Capabilities: Long-Range Suppression, Close-Quarters Combat

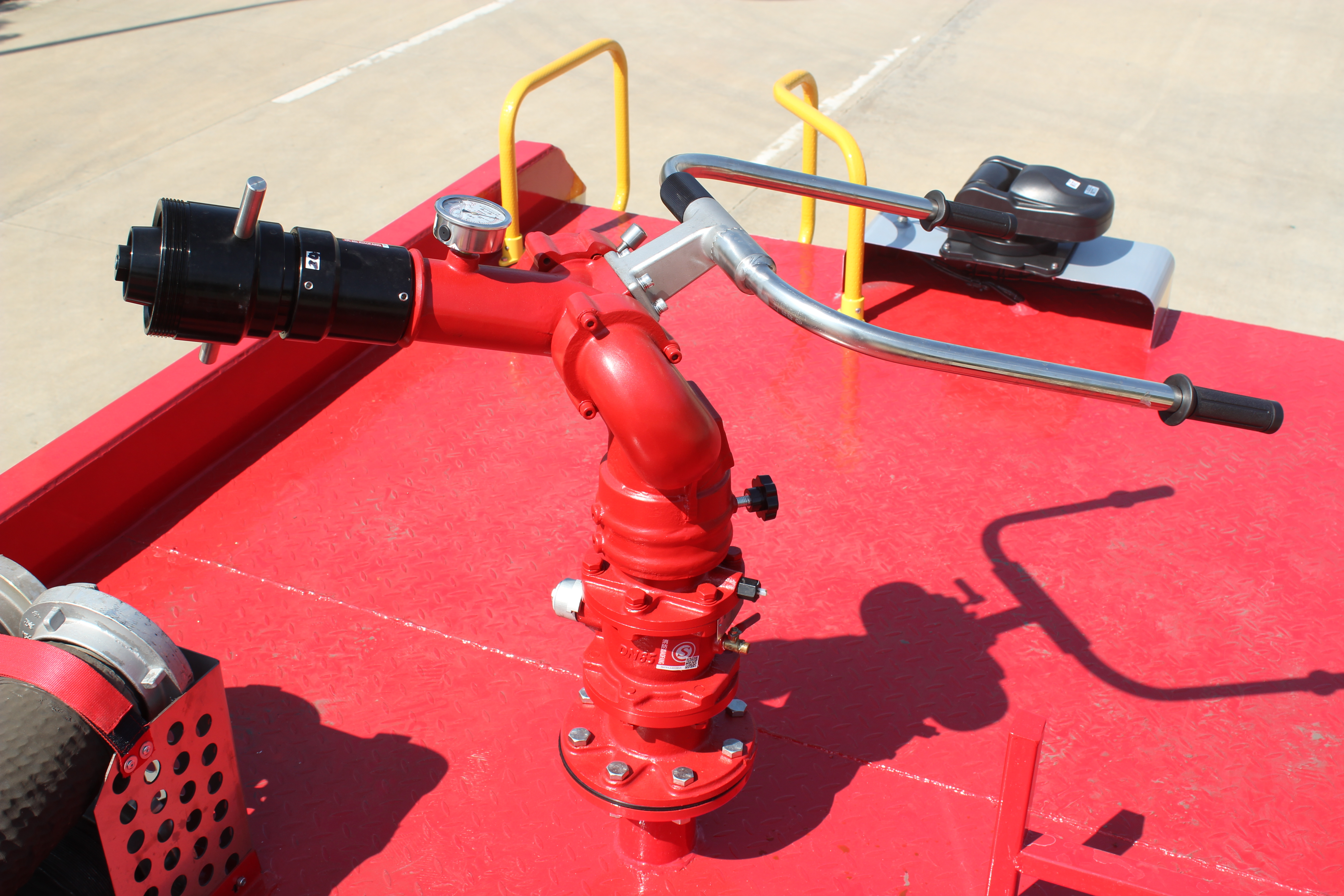

★ Roof-Mounted PL8/32 Fire Cannon: Long-Range Fire Control
• Range: Water ≥60m, foam ≥48m
• Elevation: -45° to +70° (adjustable)
• Modes: Removable foam tube switches to water mode, offering straight (precision) and spray (wide coverage) streams.
• Safety: Auto-drain valve and tilt/lock mechanisms prevent accidental operation.
★ Portable Firefighting Gear: Close-Range Assault
• Adjustable Φ19mm fire nozzles
• PQ8 foam nozzles (for oil fires)
• High-strength 65mm/80mm hoses
• Hose bridges (protecting hoses on rough terrain)
