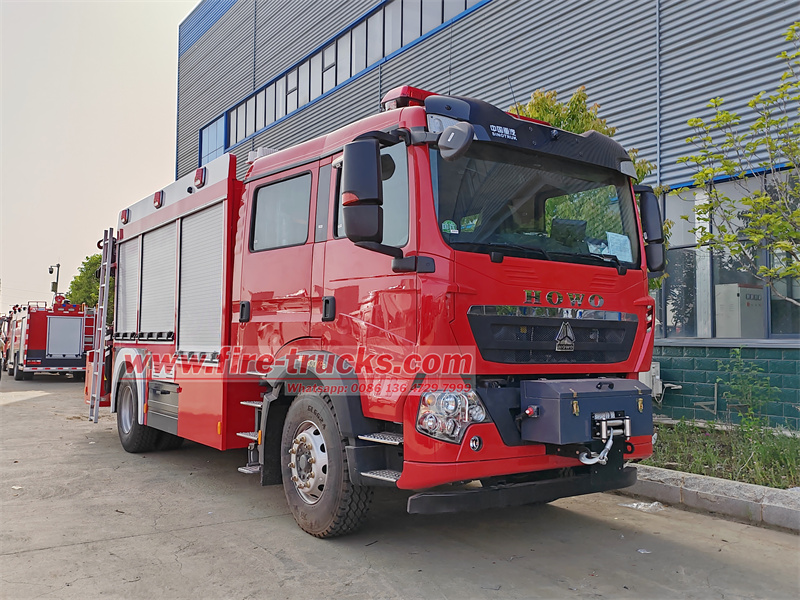

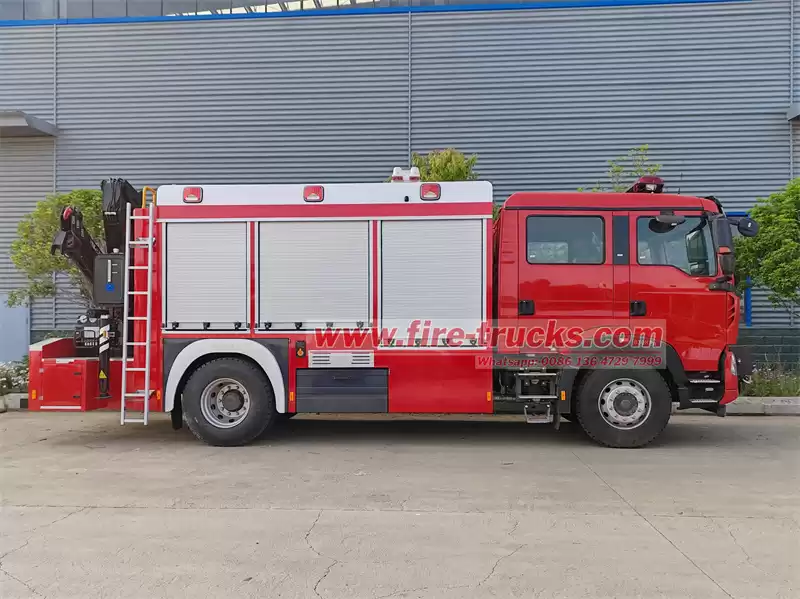

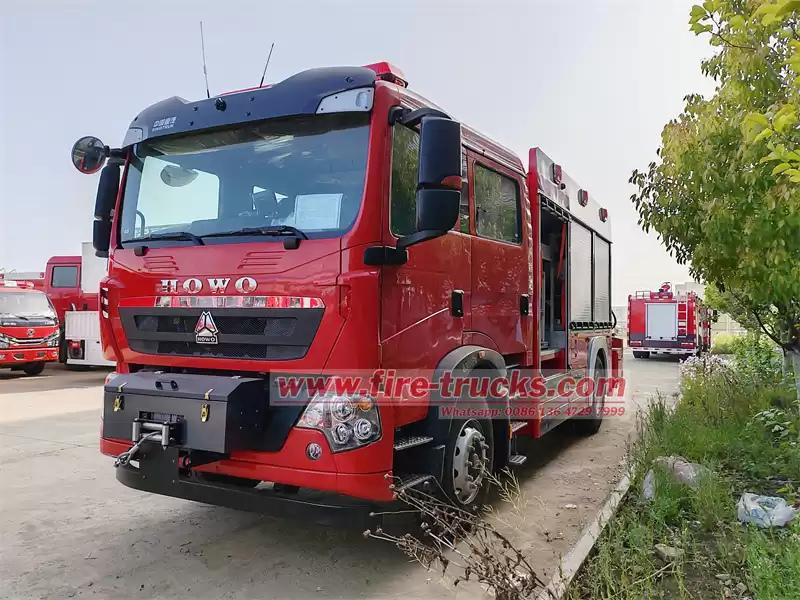

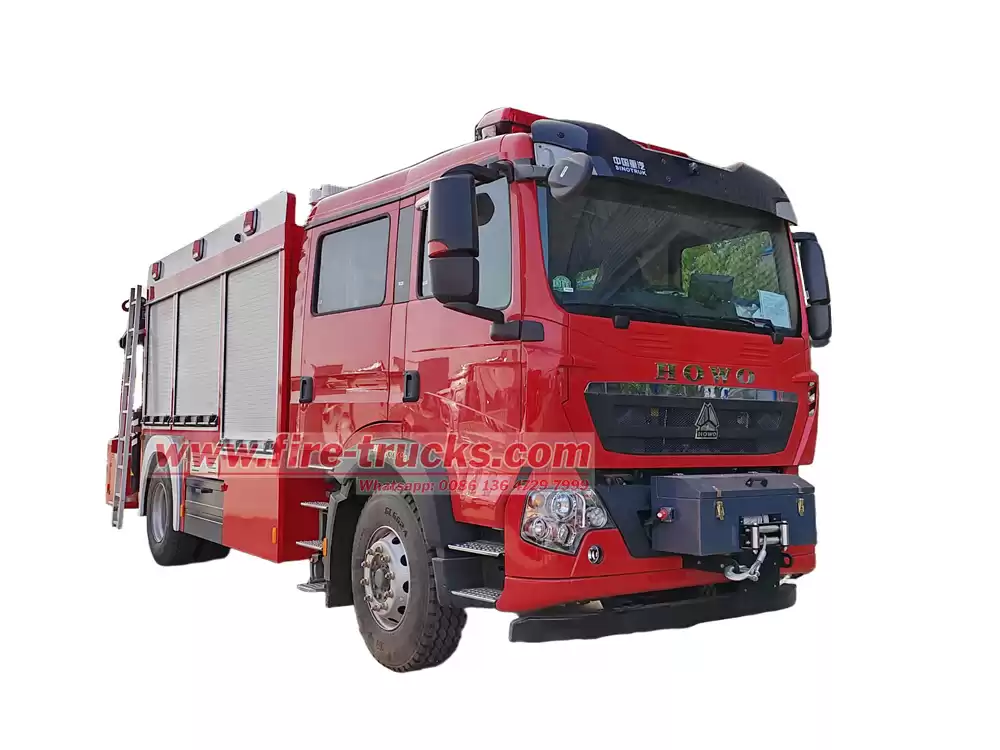

Howo multipurpose fire truck with hydraulic crane is a multi-purpose special vehicle, built on the Sinotruk HOWO TX350 chassis, equipped with a 350-horsepower Euro VI engine and an 8-speed gearbox, a wheelbase of 4600mm, and a 2+4-seat cab. The vehicle integrates fire lighting, emergency power supply and rescue hoisting functions. The front box is equipped with an intelligent lighting control system, lifting lighting and SmartGen generator set, supports three-phase/single-phase power output, and is equipped with a ZFDQ02 automatic inflation and charging device. The tail is equipped with a T-CHENG SQ5ZA2 five-ton folding arm crane with hydraulic outriggers and double operating levers to meet the needs of heavy lifting. The vehicle is compact and efficient in design, suitable for fire rescue, night rescue, power repair and other scenes, and has both power, safety and versatility. It is a professional equipment in the field of emergency rescue.
● 30 years experience on fire rescue truck designing
● Professional sales team which will help you to choose suitable truck.
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
Product Parameters
|
Howo multipurpose fire truck with hydraulic crane
|
|
Main specification
|
Truck brand
|
POWERSTAR
|
|
Overall dimension(L*W*H)
|
9055×2500×3450mm
|
|
Cabin
|
SINOTRUK TX350 cab, crew cabin, 2+4 seat, adjustable steering wheel ,EURO new type heating & ventilating system, German VDO instruments, safety belts, external mud guard, stereo radio/cassette recorder, air conditioner
|
|
GVW/Curb weight
|
19200 / 11580kg
|
|
Drive model
|
4X2,left hand drive
|
|
Wheel Base
|
4600mm
|
|
Tyre size & number
|
315/80R22.5,6+1wheel
|
|
Transmission
|
SINOTRUK 8-speed gearbox, manual
|
|
Color
|
Red, standard.
|
|
Max speed
|
95km/h
|
|
Engine
|
Type
|
Inline six-cylinder, water-cooled, four-stroke, supercharged, intercooled, high-pressure common rail,diesel
|
|
Engine model
|
SINOTRUK MC07H.35-60
|
|
Horse power
|
350HP/ 257Kw
|
|
Displacement
|
7.36L
|
|
Rated speed
|
2200rpm
|
|
Max torque
|
1400N.m
|
|
Max torque speed
|
1200-1600rpm
|
|
Emission
|
EURO 6
|
|
Upper-Body specification
|
|
Winch
|
Winch qty
|
1
|
|
Max Pullinh power of winch
|
3000KG
|
|
Drive type:
|
Electric
|
|
Speed of winch
|
8 m/min
|
|
Diesel Generator Set
|
Model
|
GF-50
|
|
Generator Power
|
50KW
|
|
Bulbs
|
4pcs * 500W
|
|
Max wind velocity
|
<6 grade
|
|
Rated frequency
|
50HZ
|
|
Rated voltage
|
400V
|
|
SmartGen genset controller
|
Type
|
CANBUS+RS485+USB
|
|
Working PowerRange
|
DC(8-35)V
|
|
Working Temperatur
|
(-25~+70)℃
|
|
Display
|
Multilingual LCD
|
|
Comm. Ports
|
USB/RS232/RS485/CAN
|
|
Engine Type
|
MPU/CAN
|
|
AC System
|
3P4W 15V-360V (ph-N)
3P3W 30V-620V (ph-ph)
1P2W 15V-360V (ph-N)
2P3W 15V-360V (ph-N)
|
|
Working Mode
|
Auto/Stop/Manual
|
|
Alarm Protection
|
Warning/Shutdown
|
|
Lifting lighting system
|
Lifting rod
|
Aluminum alloy
|
|
Type
|
Pneumatic
|
|
Maximum height above ground
|
8m
|
|
Air supply pressure
|
≥0.3MPa
|
|
Lifting speed
|
≤8 seconds
|
|
Lifting weight: 45kg
|
45kg
|
|
Installation location
|
At the front of the box
|
|
Gimbal: aluminum alloy
|
Aluminum alloy
|
|
Pitch: ≥±90°
|
Pitch: ≥±90°
|
|
Left and right rotation
|
±150°
|
|
Voltage
|
220V/24V
|
|
Power distribution box
|
It is equipped with function control keys, instruments, and various operations are all concentrated on the control box, and can accurately and quickly control all running actions, and configure wireless keys.
|
|
Gimbal: aluminum alloy
|
Gimbal: aluminum alloy
|
|

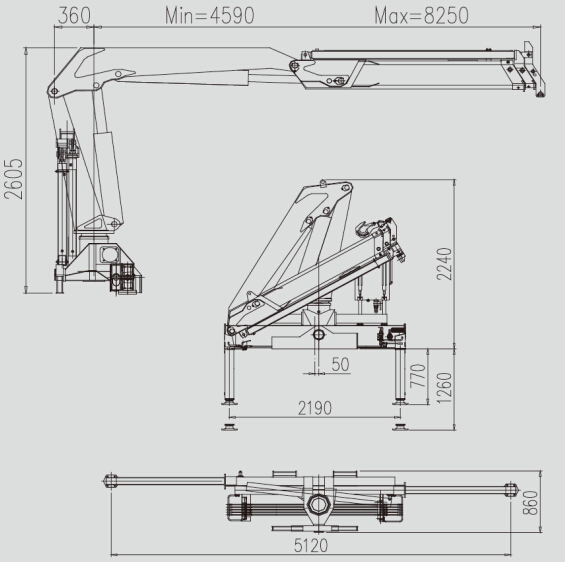

Folded boom crane
|
Model
|
SQ5ZA2
|
|
Max lifting capacity
|
5000KG
|
|
Max lifting height
|
12.5 m
|
|
Max working radius
|
10 m
|
|
Crane weight
|
1800KG
|
|
Max lifting moment
|
10T.m
|
|
Recommended power
|
30KW
|
|
Recommended hydraulic flow
|
40L/min
|
|
Rated hydraulic pressure
|
28Mpa
|
|
Oil tank capacity
|
80L
|
|
Slewing angle
|
400°
|
|
Assembling size
|
1070mm
|
|

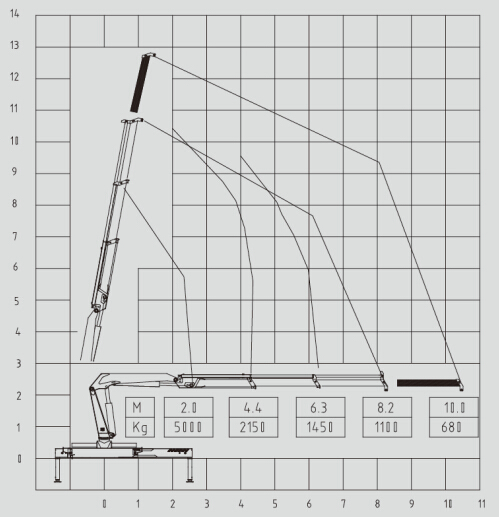

Working Radius(m)
|
2.0
|
4.45
|
6.35
|
8.25
|
10
|
|
Rated loading(kgs)
|
5000
|
2150
|
1450
|
1100
|
680
|
Product Applications
★ Chassis configuration
Drive and wheelbase: 4×2 drive form, wheelbase 4600mm, taking into account both mobility and carrying capacity, adapting to the emergency needs of cities and complex terrain.
Power system: Equipped with Sinotruk MC07H.35-60 diesel engine, displacement 7.36L, maximum output power 257kW (350 horsepower), matched with 8-speed manual transmission, powerful and in line with the National VI emission standards.
Body structure: total mass 19.2 tons, double-row cab design, taking into account operating space and passability.
Chassis load: equipped with 6 315/80R22.5 tires, 4/5 spring leaves, front wheel track 1950mm, rear wheel track 1848mm, to ensure vehicle stability and load capacity.
Safety and control: adopt dual-circuit braking system and equipped with ABS, power steering to improve control flexibility, support high-intensity rescue operations.
★ Upper functional module: lighting, power generation, and hoisting "three swords combined"

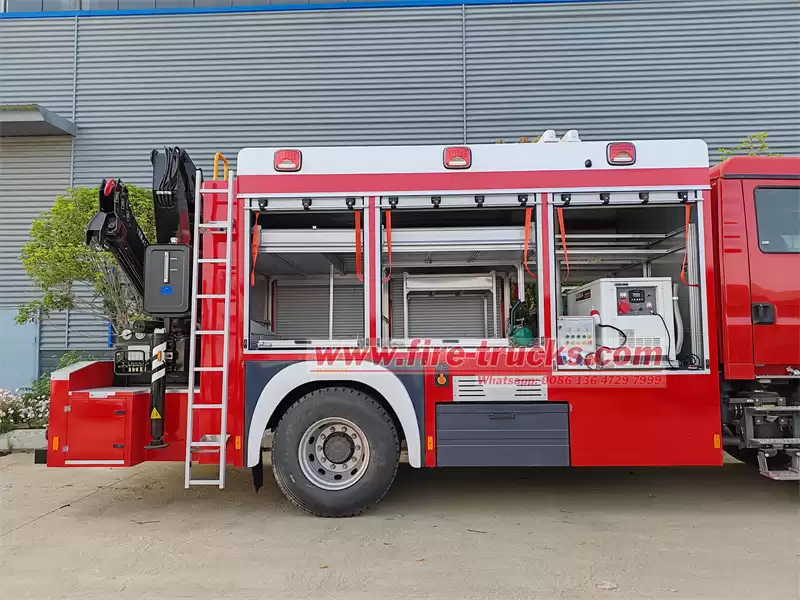

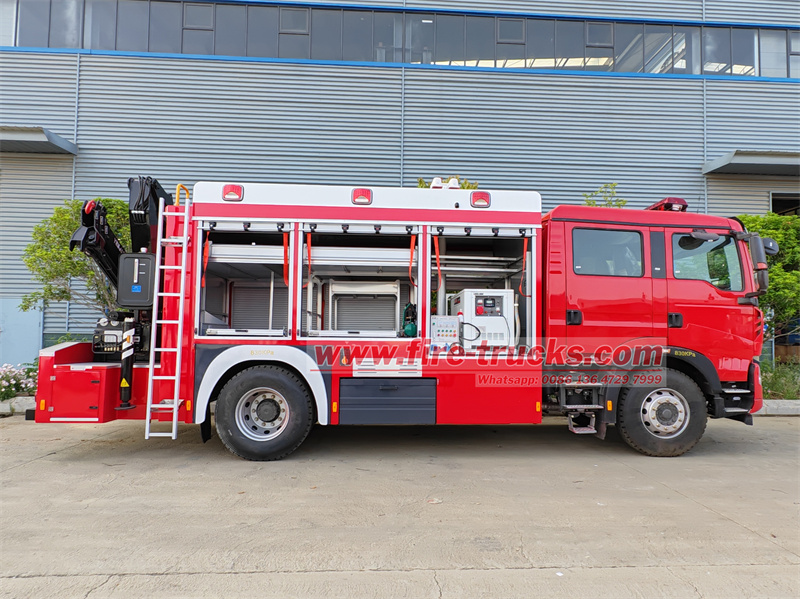

1. Front box: intelligent lighting and power center
• Fire mobile lighting system
Roof lifting lighting: LED light source, brightness ≥ 30,000 lumens, support 0-8 meters height adjustment, 360° horizontal rotation, coverage radius over 50 meters, suitable for night fire fighting, underground space search and rescue and other scenes.

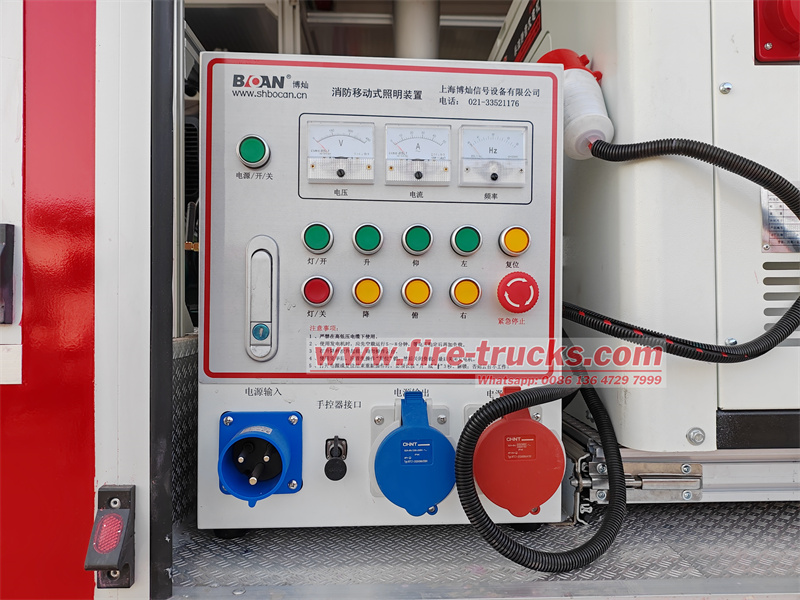

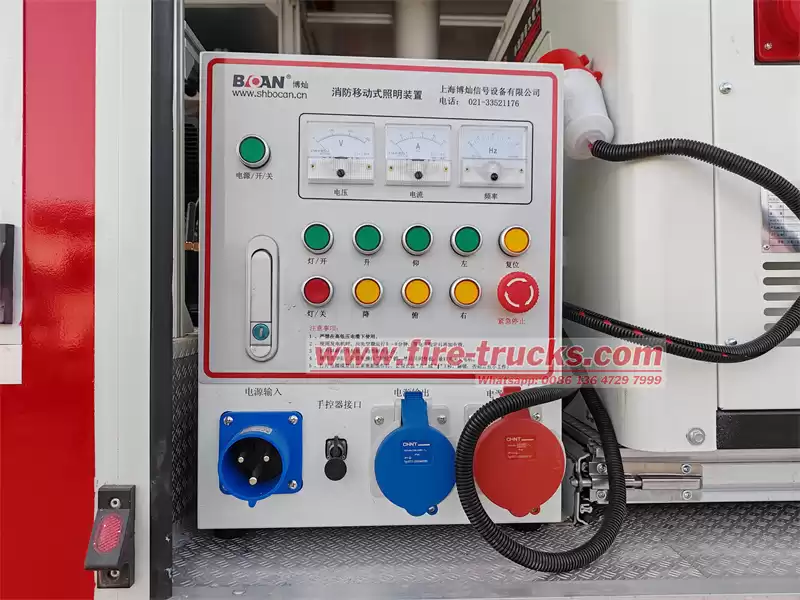

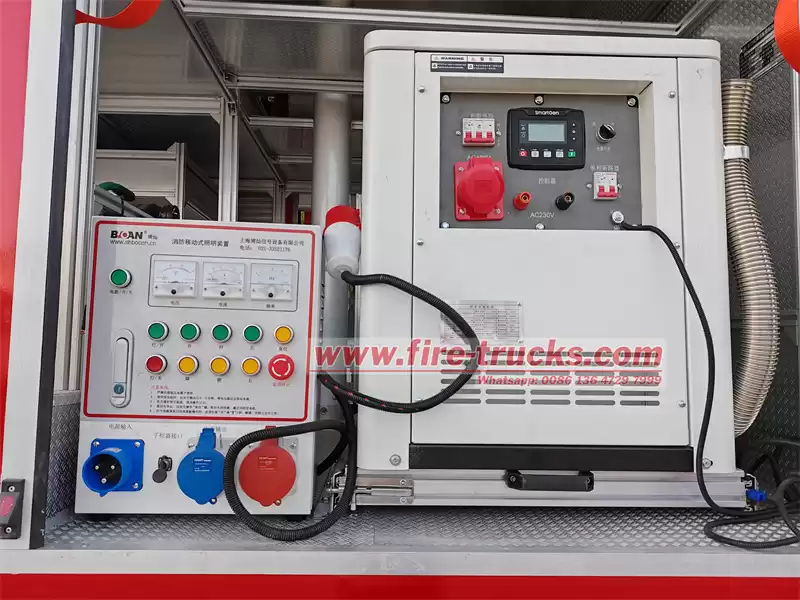

Intelligent console: integrated generator voltage, current, frequency real-time monitoring, one-button switching lighting mode (strong light/strobe/SOS), and reserved hand controller interface, support remote wireless control.

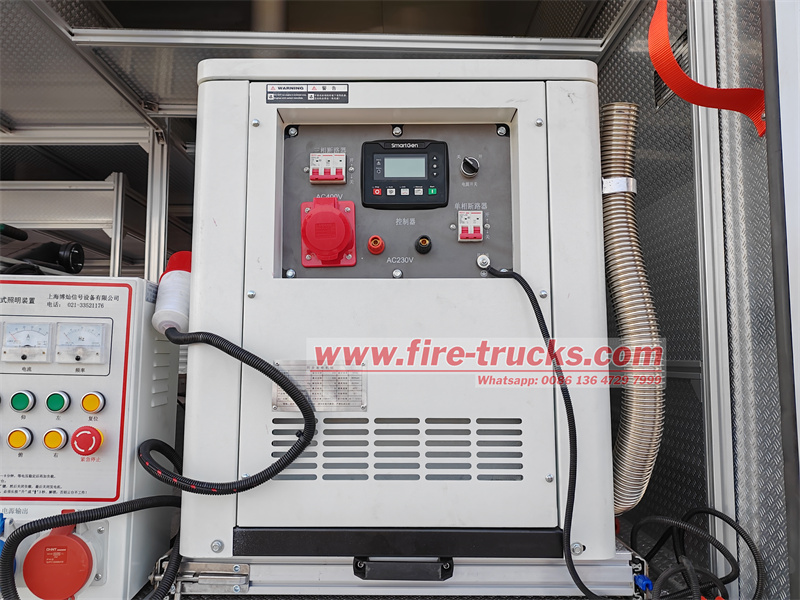

• Power guarantee system
Synchronous generator set: rated power 50kW, meet the power supply needs of cutting machines, water pumps, communication base stations and other equipment.

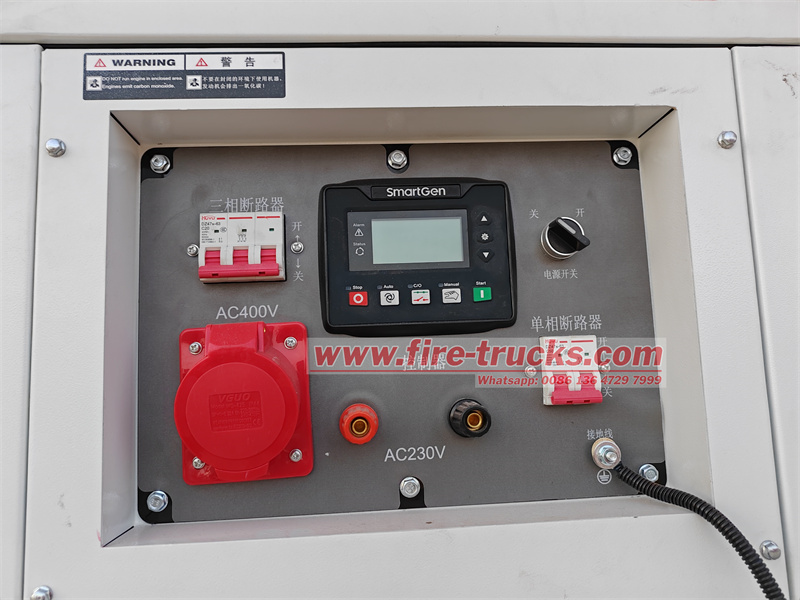

SmartGen controller: automatically adjusts the output voltage (230V/400V), built-in overload, short circuit, reverse phase protection to ensure power safety.
Circuit breaker matrix: three-phase/single-phase independent control switch, support multi-device hierarchical power supply, avoid power outage of the whole vehicle due to local fault.
• Integrated charging and inflating device

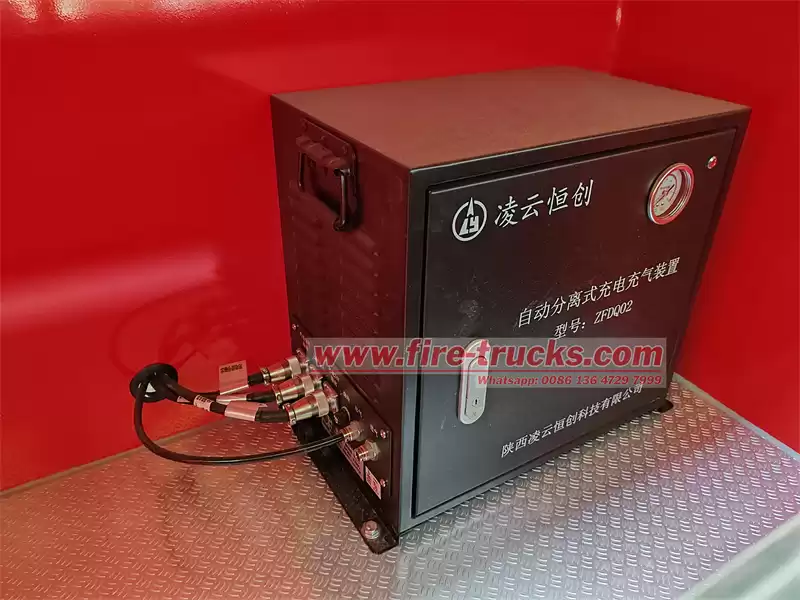

ZFDQ02 automatic separation system: quickly fill life-saving air cushion and inflatable tent (pressure ≥ 0.8kPa) within 10 minutes, charge multiple devices in parallel, automatically identify battery type, and prevent overcharging.

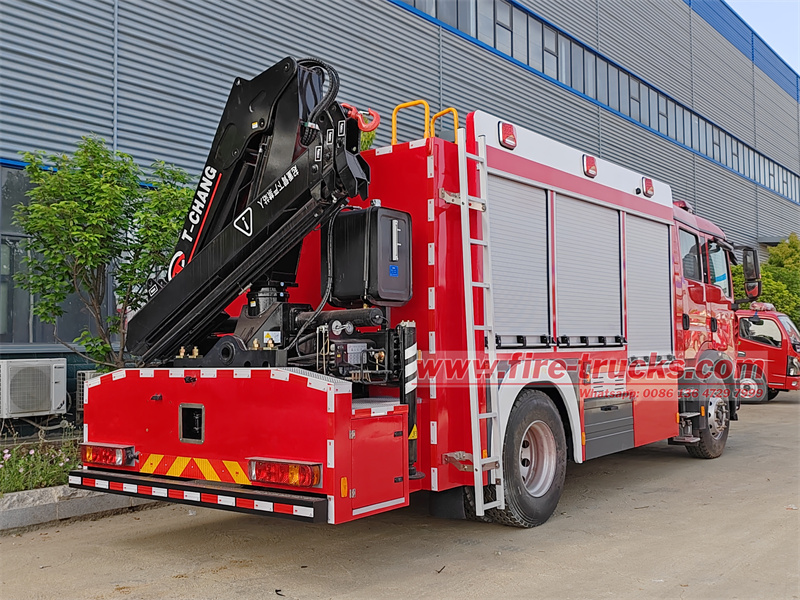

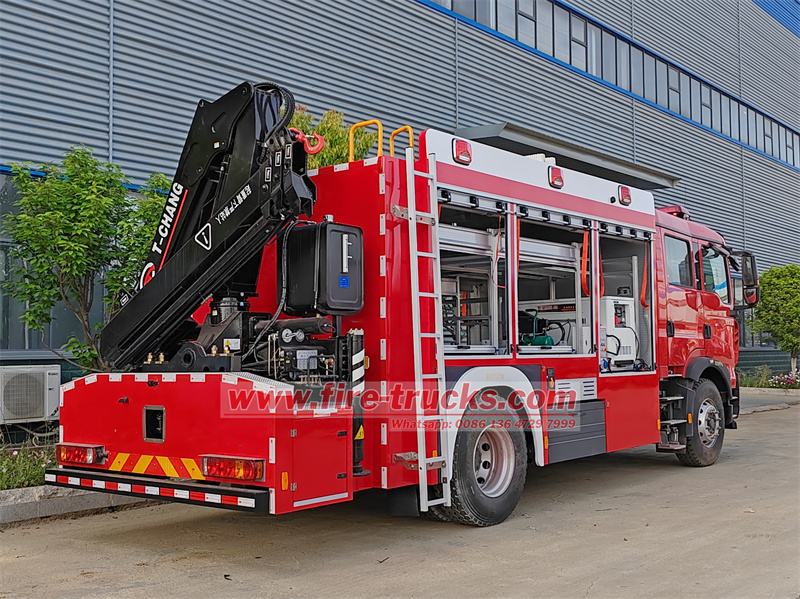

2. Tail equipment: 5-ton folding arm crane-"mechanical arm" for heavy rescue

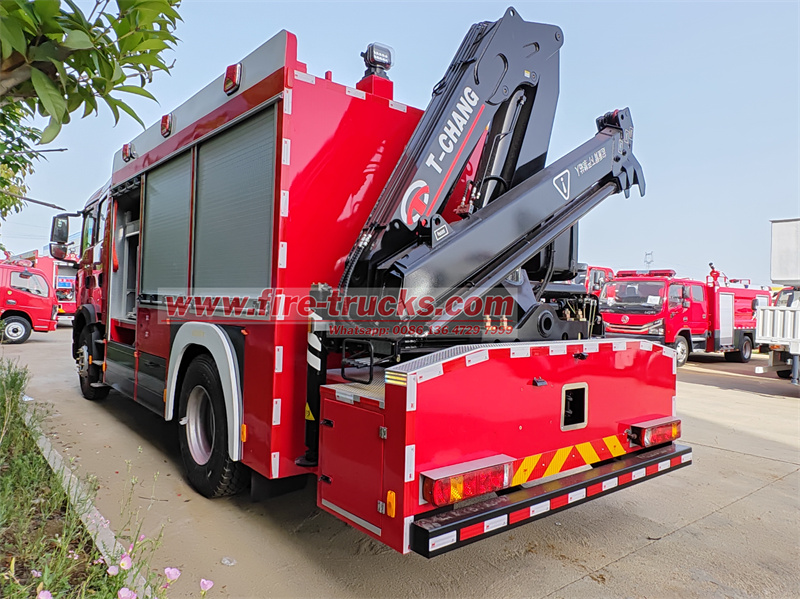

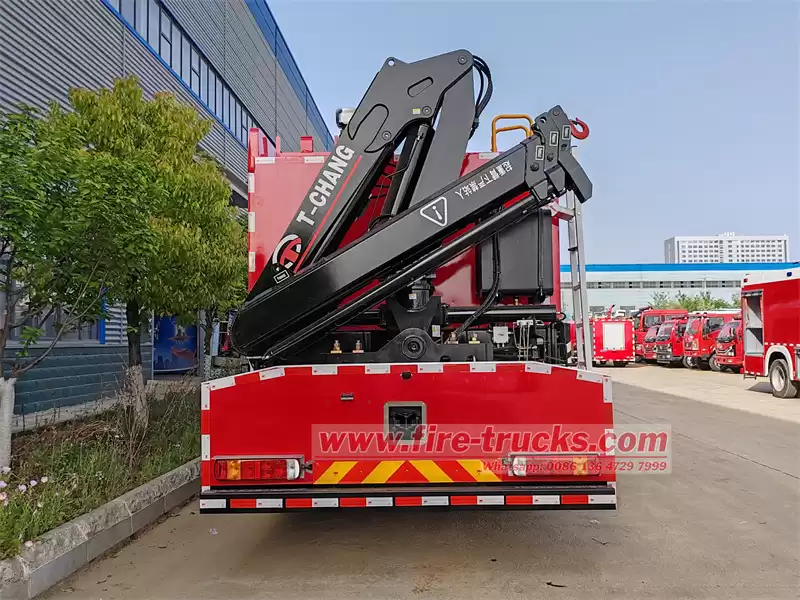

• T-CHENG SQ5ZA2 folding arm crane
Lifting capacity: maximum 5 tons (short arm distance), suitable for accident vehicle lifting, heavy equipment transfer, obstacle clearing and other tasks.
Folding arm design: maximum lifting height 12.5m, maximum working radius 10 meters, Max lifting moment 10T.m.

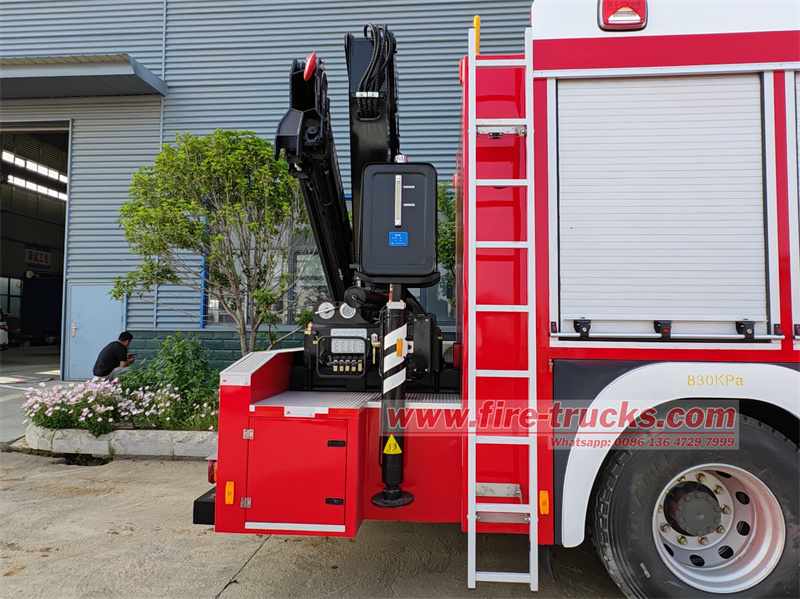

Hydraulic outrigger system: 2 outriggers at the tail are independently leveled, support ±5° slope operation, and the lifting stability is better than traditional straight arm crane.

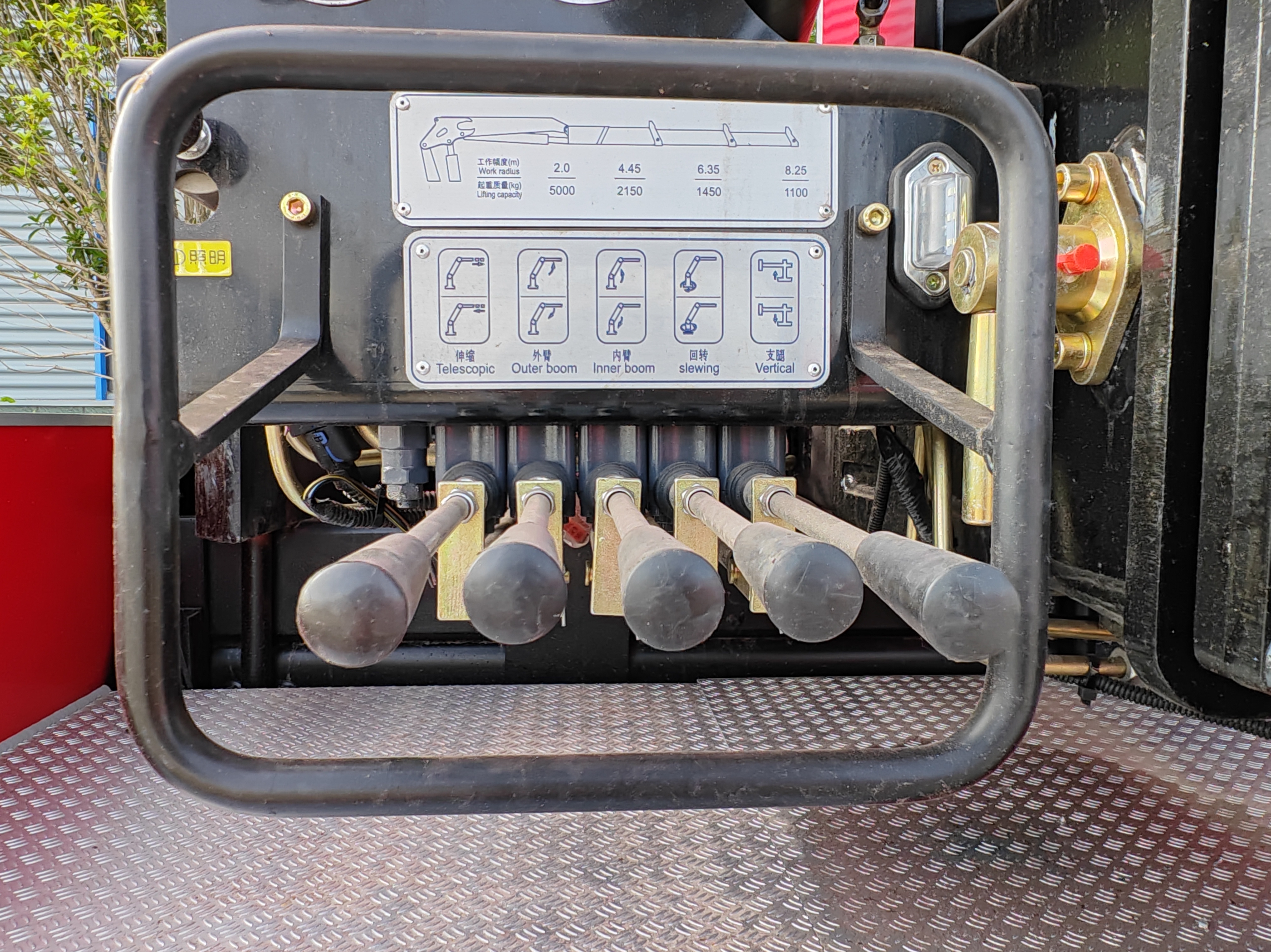

• Convenient operation

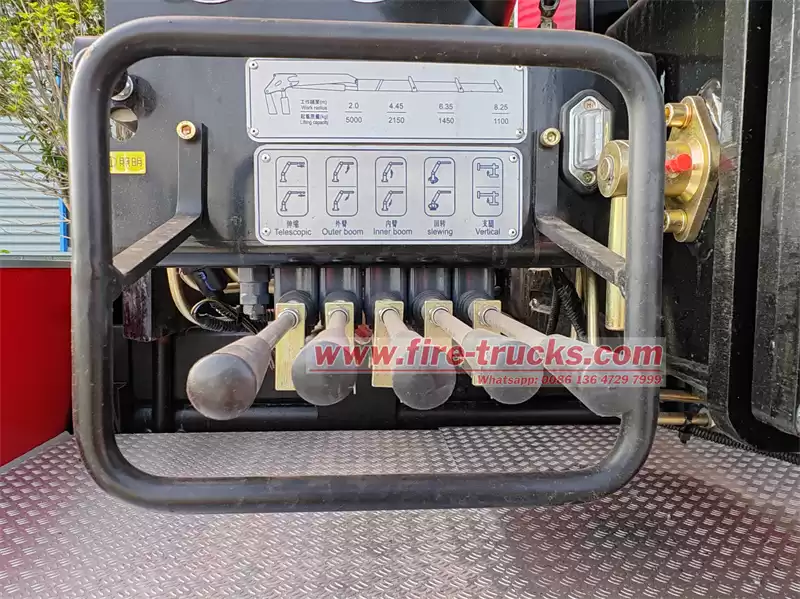

Left and right dual joysticks: Both the main console and the end of the boom are equipped with joysticks, which support remote and on-site synchronous control to reduce the risk of blind spots.
Emergency brake button: One-click locks the boom action to prevent secondary accidents caused by overload or misoperation.
★ Application scenarios: Covering all disaster rescue needs
1. Night fire fighting
The roof lighting provides a clear view for firefighters, the generator set powers the ladder truck and demolition tools, and the folding arm crane quickly transfers collapsed objects and opens up rescue channels.
2. Post-earthquake/flood reconstruction
The inflatable device quickly builds a temporary shelter, the lighting ensures the safety of night construction, and the crane hoists prefabricated panels and rescue materials to improve reconstruction efficiency.
3. Traffic accident rescue
The folding arm crane hoists the overturned vehicle, the lighting provides lighting for the transfer of the wounded, and the generator set powers the life detector and cutting machine to shorten the rescue time.
4. Security for large events
As a mobile power station and lighting tower, it provides emergency support for concerts, sports events, etc., and responds to sudden power outages or equipment failures.
