The fire extinguishing system of Howo sitrak 4x4 articulated fire truck is equipped with advanced configuration and powerful functions. It is equipped with 6-cubic-meter carbon steel water tanks and 2-cubic-meter foam tanks. The water tanks can deal with ordinary solid fires, and the foam tanks are specially used to deal with special fires such as oils. The two can be switched flexibly. The CB10/60-RS fire pump has excellent performance and can quickly pressurize and transport liquids. The PL8/48 foam water dual-purpose fire cannon has a long range, large flow, and wide coverage. It can be flexibly rotated to accurately strike the source of fire. It has high fire extinguishing efficiency and can quickly control the fire; it has strong spraying ability and can extinguish fires over long distances and over large areas; it can also adapt to multiple scenarios and can deal with all kinds of fires in cities and villages. Firefighters can also flexibly adjust according to the fire situation. With this fire extinguishing system, it can play a key role in fire rescue in different scenarios in cities and villages, provide strong support for fire fighting and rescue, and is a trustworthy fire extinguishing equipment in the fire brigade.
● China best HOWO foam fire truck factory
● 30 years experience on foam pumper fire truck designing
● Build strict QC team to guarantee the quality
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo

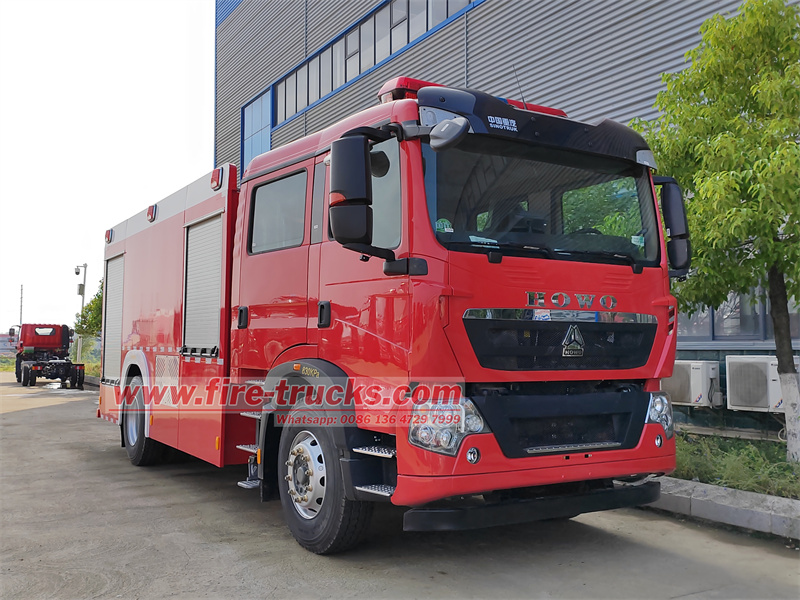

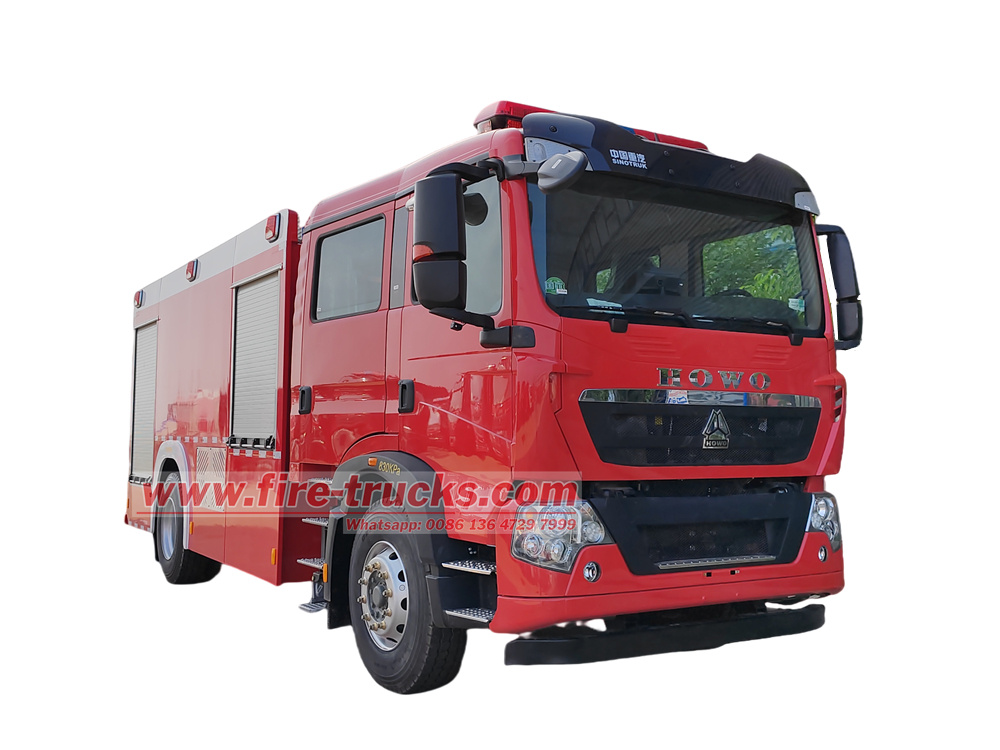

| Howo sitrak 4x4 articulated fire truck |
|
Main specification
|
Truck brand
|
POWERSTAR
|
|
Overall dimension(L*W*H)
|
8720*2540*3640mm
|
|
Cabin
|
SINOTRUK cab, double cabin, new type seat, with A/C,USB, air conditioner
|
|
GVW/Curb weight
|
19200/ 10550kg
|
|
Drive model
|
4X4,left hand drive
|
|
Wheel Base
|
4200mm
|
|
Tyre size & number
|
315/80R22.5,6+1wheel
|
|
Transmission
|
Sinotruk 8- gearbox, manual
|
|
Color
|
Red, standard.
|
|
Max speed
|
100km/h
|
|
Engine
|
Engine model
|
Sinotruk MC07H.35-60
|
|
Type
|
Inline 6-cylinder 4-stroke, supercharged, intercooled, water-cooled
|
|
Horse power
|
350HP/ 257Kw
|
|
Displacement
|
7.36L
|
|
Max torque
|
1400N.m
|
|
Rated speed
|
2200rpm
|
|
Max torque speed
|
1200-1600rpm
|
|
Emission
|
EURO 6
|
|
WATER TANK AND FOAM TANK SPECIFICATION
|
|
Tank
|
Capacity
|
6,000L water tank and 2,000L foam tank
|
|
Material
|
Water tank carbon steel,foam tank stainless steel
|
|
Fire pump
|
Model
|
CB10/60-RS
|
|
Pressure
|
1.0MPa
|
|
Max working pressure
|
1.082MPa
|
|
Max allowable inlet pressure
|
0.4MPa
|
|
Flux
|
60L/s
|
|
Max suction height
|
7m
|
|
Rated speed
|
3200±50r/min@1.0MPa
|
|
Fire monitor
|
Model
|
PL8/48
|
|
Flow
|
48L/s
|
|
Rated working pressure
|
0.8MPa
|
|
Range
|
Water
|
≥70m
|
|
Foam
|
≥60
|
|
Standard configuration
|

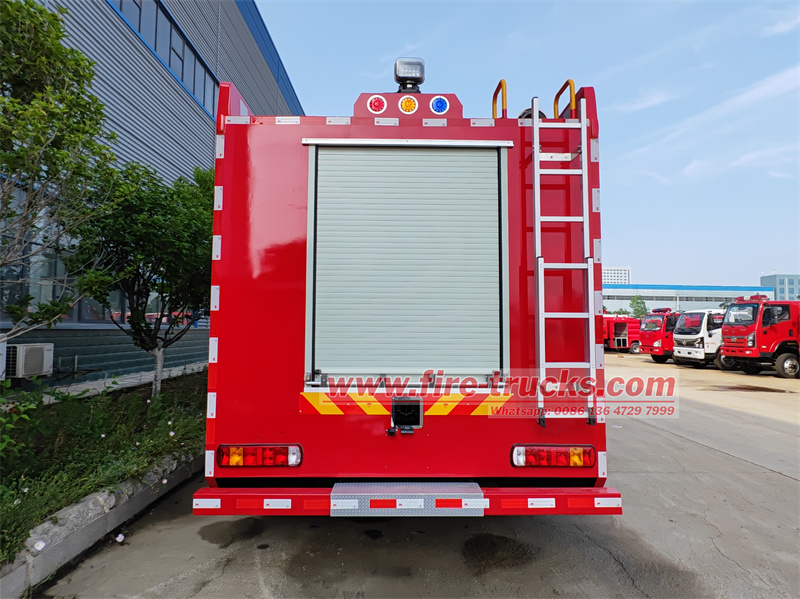

An alarm rotating light installed on the top of the cab, have ladder, have manhole
|

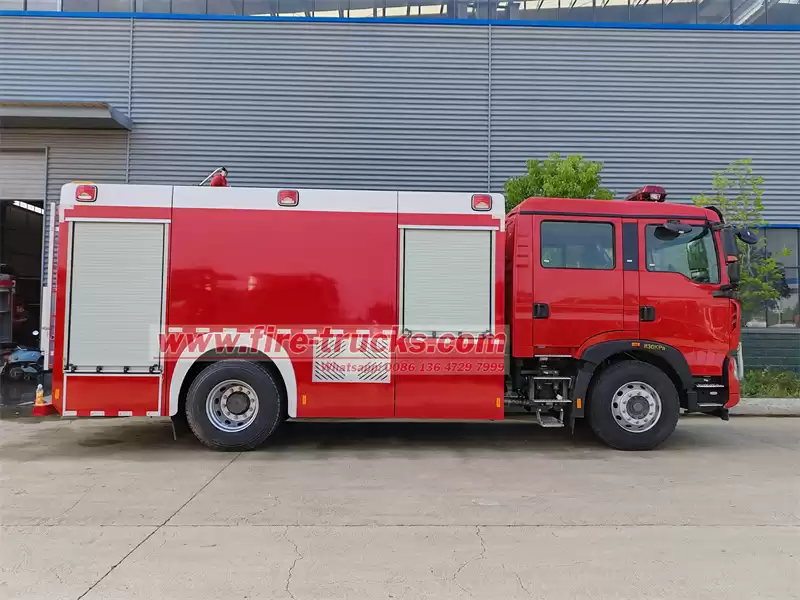

Chassis
• Double-row cab: It adopts a double-row design and provides a 2 + 4 seat layout. This design not only ensures sufficient riding space, allowing firefighters to quickly assemble in an emergency, but also makes reasonable use of vehicle space to meet the rescue needs of multiple people.
• Reasonable wheelbase: The wheelbase of 4200mm brings excellent driving stability and handling to the vehicle.
• All-wheel drive: The all-wheel drive design allows all four wheels of the vehicle to obtain driving force, greatly enhancing the vehicle's passability. When facing the complex street layout in the city or the rugged road conditions in the wild, it can respond flexibly and arrive at the fire scene quickly and smoothly.
• Euro VI engine: Equipped with Sinotruk MC07H.35-60 350HP Euro VI engine, it has strong power and excellent environmental performance. The large output of 350 horsepower provides sufficient power support for the vehicle under various complex working conditions.
• Eight-speed gearbox: Equipped with Sinotruk 8-speed gearbox, it has smooth shifting and convenient operation. It can accurately adjust the power output according to different road conditions and driving needs, improve the driving efficiency of the vehicle, and also help reduce fuel consumption and improve the economy of the vehicle.

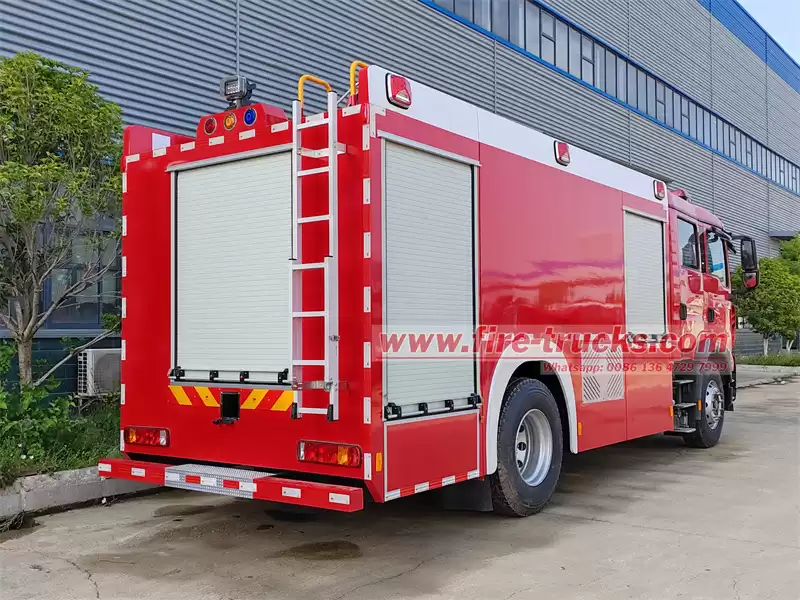

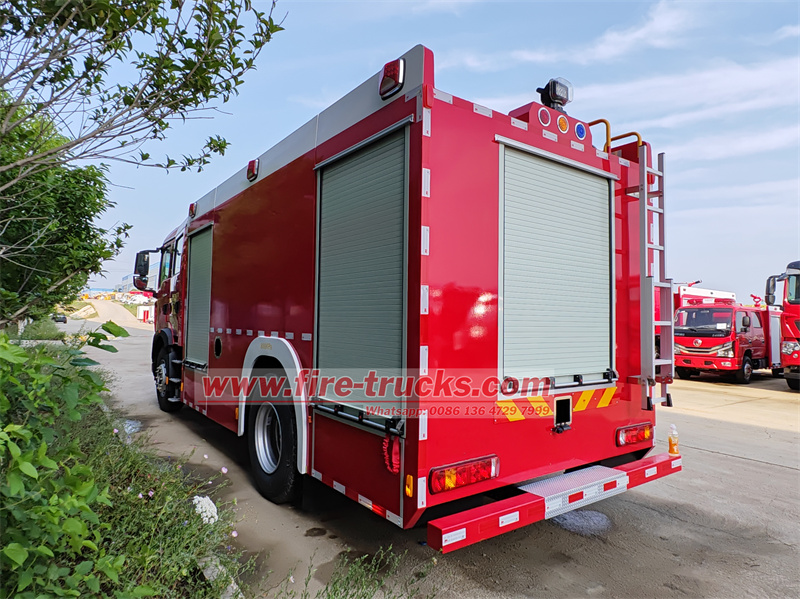

Upper equipment layout

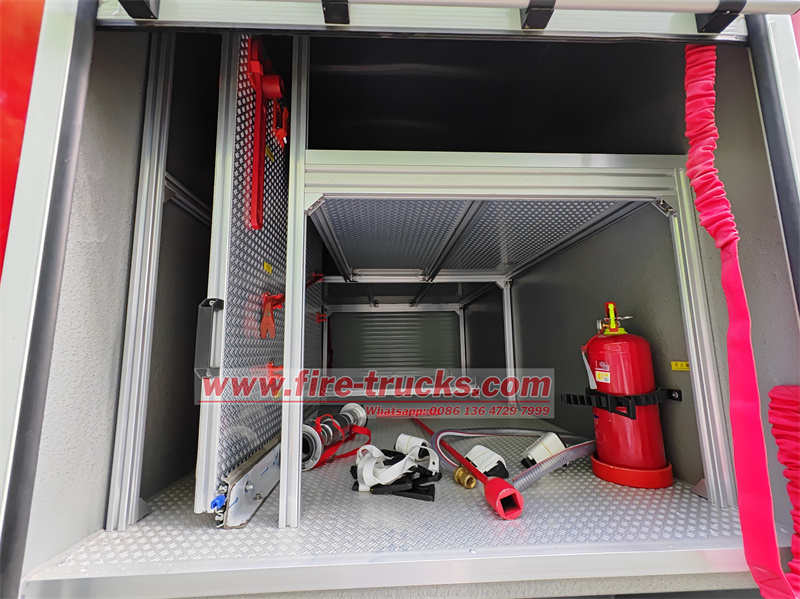

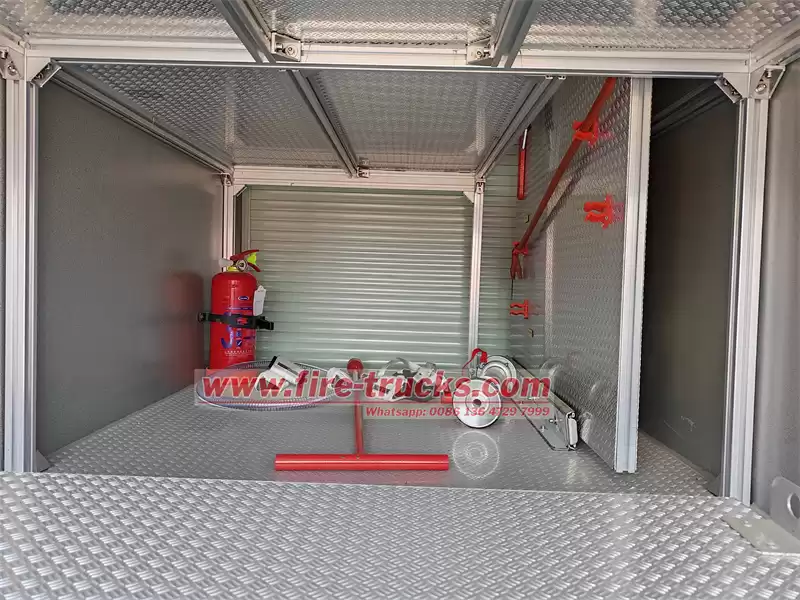

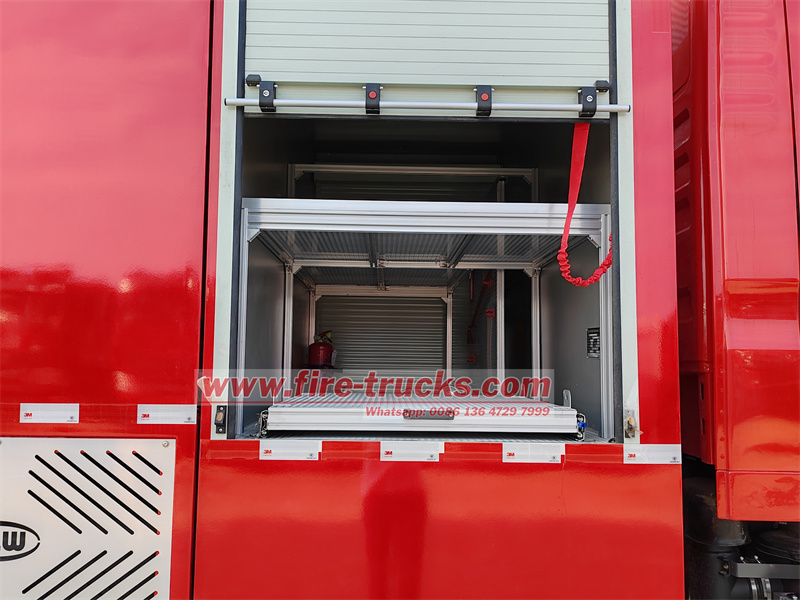

(I) Aluminum alloy non-slip equipment box
• Material advantage: Made of aluminum alloy, it is light and strong. While reducing the weight of the vehicle, it ensures the durability of the equipment box, can withstand certain external impacts, and protect the internal equipment from damage.
• Equipment equipment: The equipment box is scientifically divided and laid out, and various firefighting equipment such as fire hoses, fire extinguishers, hose wraps, fire hose guns, fire wrenches, axes, shovels, pickaxes, etc. are neatly stored inside. These equipment are complete in variety and can meet the rescue needs of different types of fires. Firefighters can quickly use them according to actual conditions.
(II) 6 cubic carbon steel water tanks and 2 cubic stainless steel foam tanks
• Capacity and material: The 6 cubic water storage capacity provides sufficient water source guarantee for firefighting work. The carbon steel water tank is strong and reliable, and can withstand high water pressure, ensuring that there will be no leakage and other problems during long-term, high-intensity firefighting operations, and ensuring the continuity of firefighting.
The 2-cubic-meter stainless steel foam tank provides an effective firefighting method for special situations such as oil fires. The foam can quickly cover the surface of the burning object, isolate the air, and reduce the temperature of the burning object, thereby achieving the purpose of rapid firefighting. The two work together to quickly switch the firefighting medium according to the type of fire and improve the efficiency of firefighting.

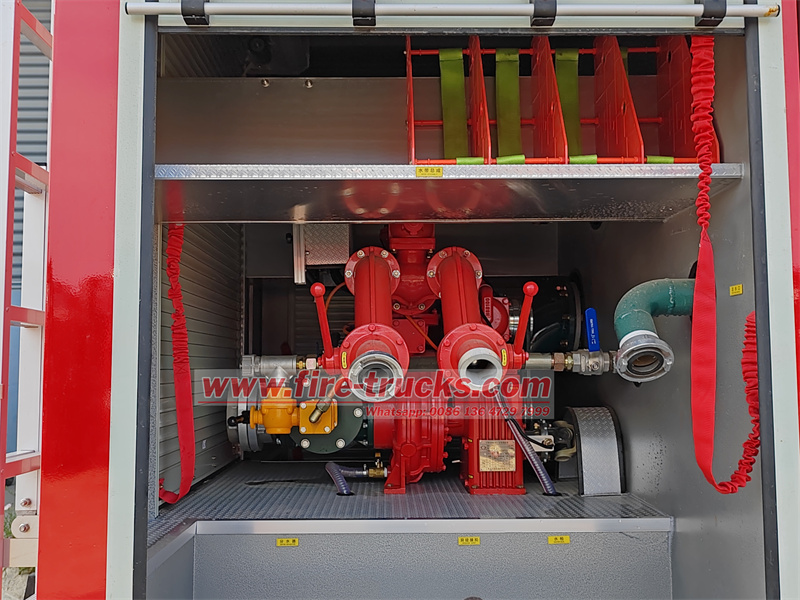

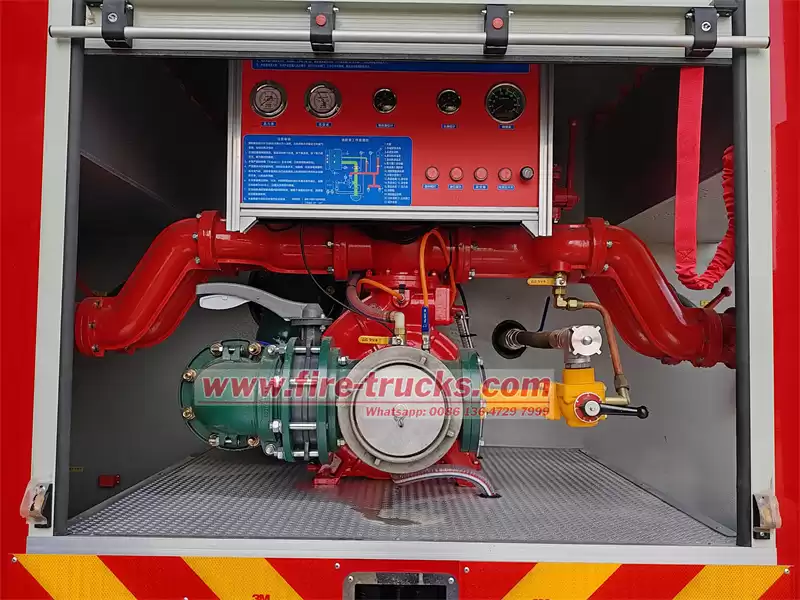

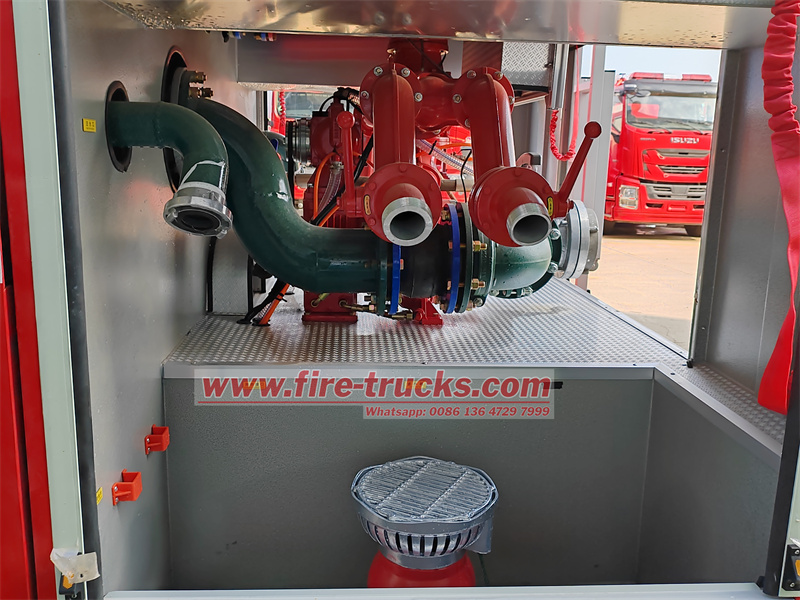

(III) Pump room and core equipment
• Fire pump: The CB10/60-RS fire pump (60L/s) installed in the pump room has excellent performance and can quickly pressurize and transport the water in the water tank in a short time. The strong water flow pressure and flow provide strong support for firefighting work and can quickly control the fire.

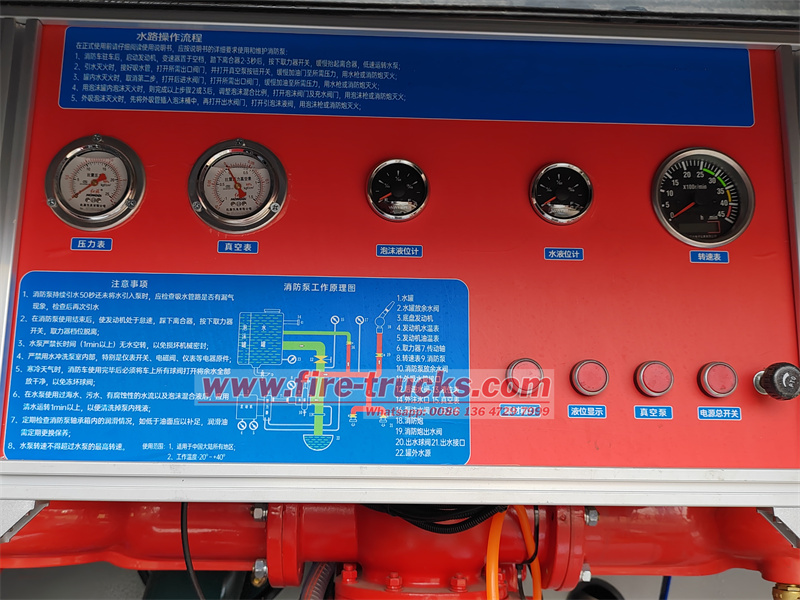

• Control panel: The control panel is simple and intuitive. Firefighters can intuitively monitor the pressure gauge, vacuum gauge, foam level gauge, water level gauge, and tachometer. It is also equipped with equipment box lights, liquid level display, vacuum pump, main power switch, PTO and other control buttons, which are convenient for relevant operations according to the actual situation of the fire scene to achieve accurate fire extinguishing.

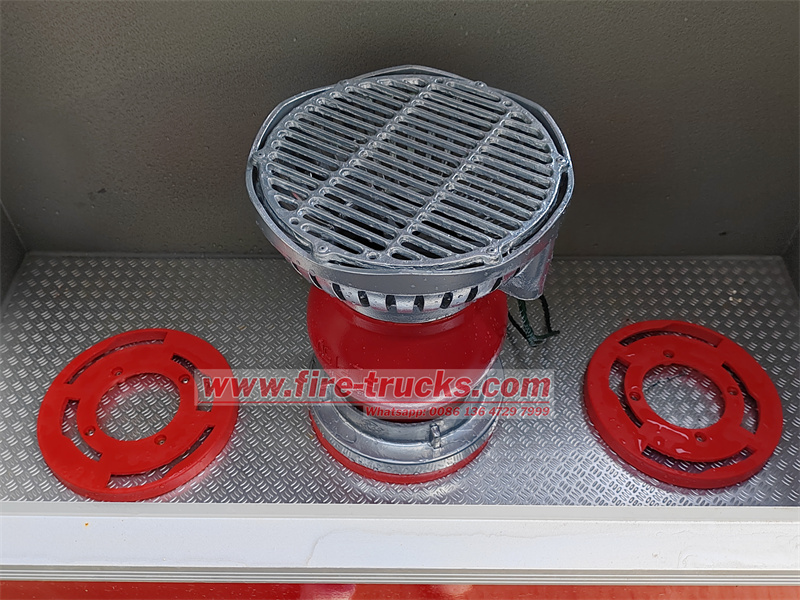

• Auxiliary equipment: The pump room is also equipped with firefighting equipment such as water collectors, water filters, water distributors, and reducers. These equipments cooperate with each other to further improve the firefighting efficiency and rescue capabilities of fire trucks and meet the rescue needs in different scenarios.

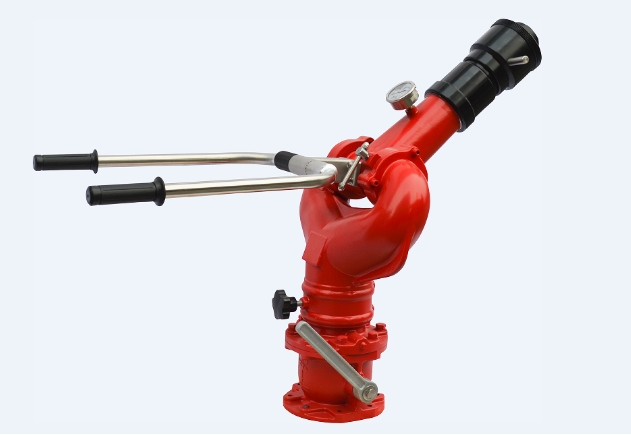

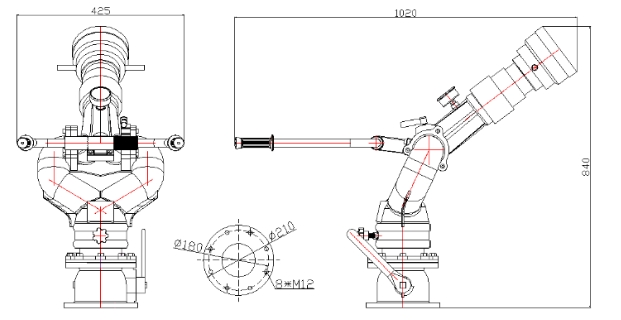

Dual-purpose fire cannon with foam water on the top
The PL8/48 fire cannon (48L/s@0.8MPa) equipped on the top of the car is a highlight of this fire truck. It has the characteristics of long range, large flow rate, and wide coverage. It can realize flexible rotation in horizontal and vertical directions, and can accurately strike high-rise building fires and large-area fires. When facing high-rise building fires or large-scale fires, fire monitors can play a huge role. They can spray water or foam, flexibly switch horizontally and vertically according to the type of fire, and effectively control the spread of fire by adjusting the angle and spraying method of the fire monitor, thus buying more rescue time and space for firefighters.
