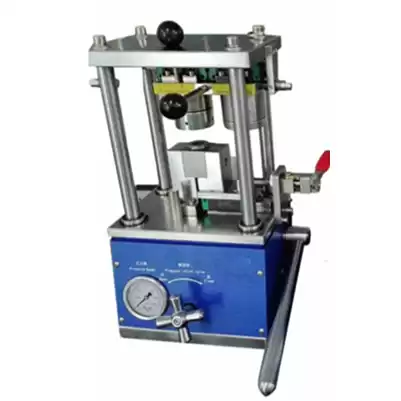

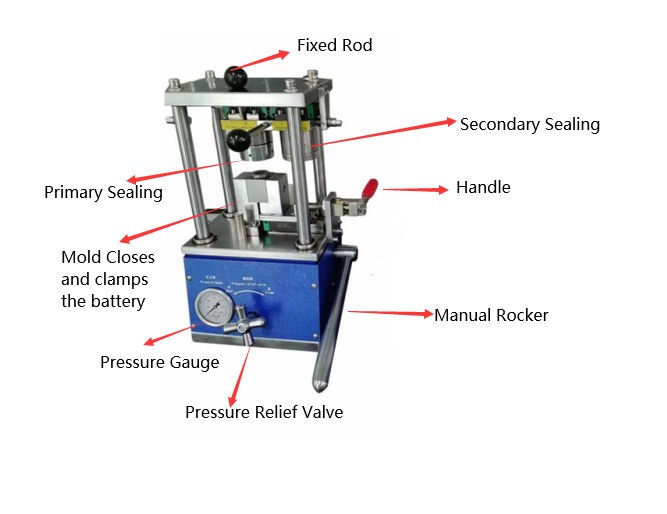

Hydraulic Battery Sealing Machine for Cylinder Cell and Coin Cell
TMAX-CP-18F is a compact hydraulic crimper for sealing all types of cylinder cases in lab R&D. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly.
Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.
|
Model
|
TMAX-CP-18F
|
|
Driving Force
|
Manual hydraulic pressing up to 5T
|
|
Pressure Gauge
|
0-3500 psi (0-250 kg/cm2)
|
|
Body
|
Stainless Steel
|
|
Crimping Dies
|
Six standard die selectable: CR123 /18650 / 26650 / 32650 / AA /AAA
|
|
Warranty
|
One year limited with lifetime support
|
|
Dimensions
|
220mm(L) x 170mm(W) x 360mm(H)
|
|
Application Notes
|
1 Customized die for other cylindrical cell types is available upon request.
2 It is necessary to groove the opening end of the cylindrical case by using TOB-GC650 grooving machine before sealing the cap.
3 Each type of cylinder cell can only be sealed specifically by certain model.
|
|
Net Weight
|
32 kg
|
