INFORMATION
|
Art.No.: JM - 102041
|
|
|
Tooling system
|
JM - System Amada
|
|

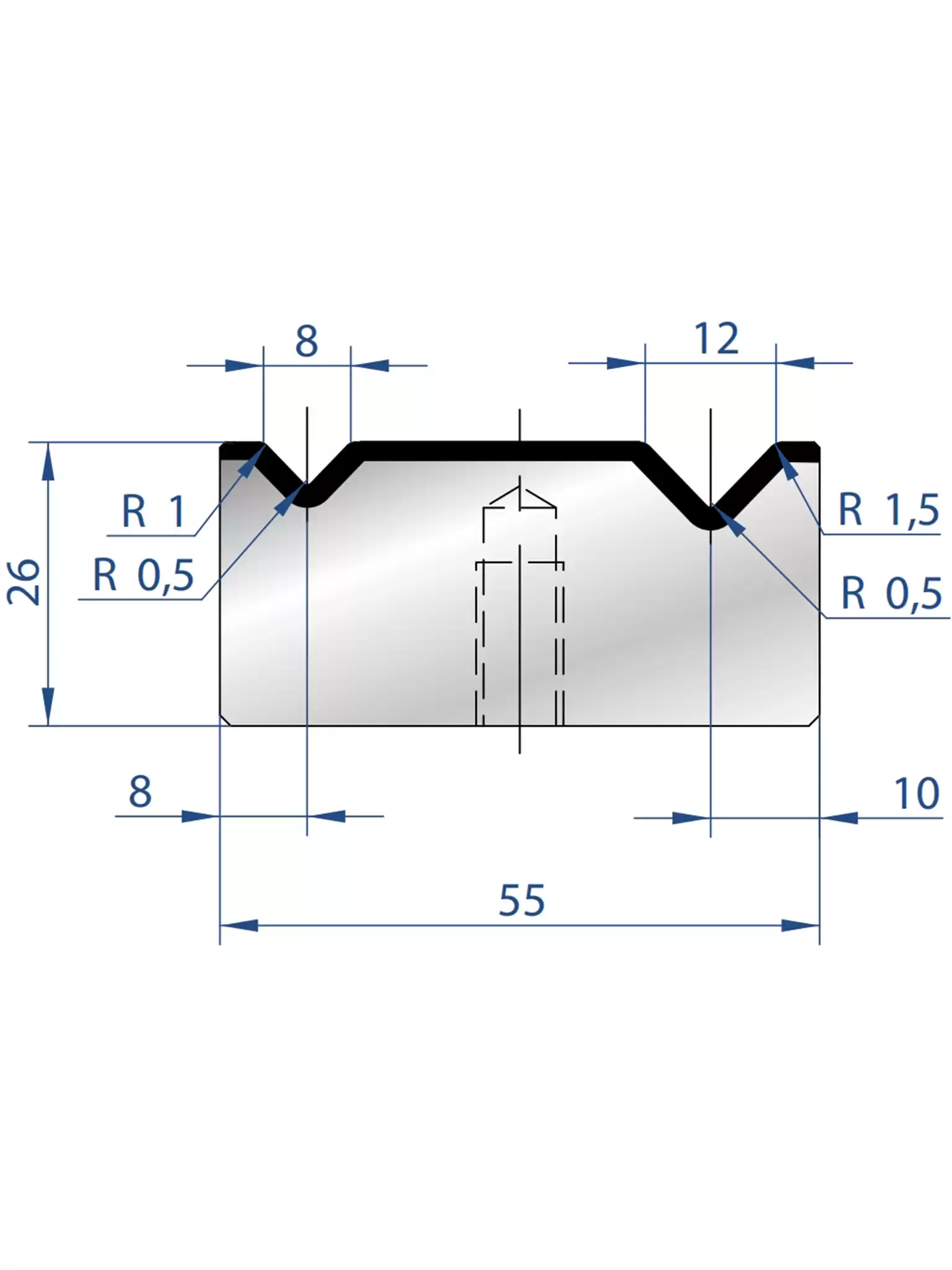

Angle
|
88°
|
|
Die opening
|
V1 = 8mm, V2 = 12mm
|
|
Radius
|
R1 = mm, R2 = 1.5mm
|
|
Height
|
46 mm
|
|
Max load
|
1000 kN/m max.
|
|
Material
|
42CrMo, 650 - 800 N/mm²
|
|
Length and weight
|
835mm/9kg、415mm/4kg
|
Quality And Precision
▶Optimum materials
▶42CrMo4, tempered to 1100- 1200 N/mm²
▶Bending Radius/Intake Radius Hardens to 54 – 60 HRC
▶Precision ground
▶Guaranteed exchangeability and parallelism
▶Tool marking with all technical information
TOOL LENGTHS
DIES/LOWER-TOOLS

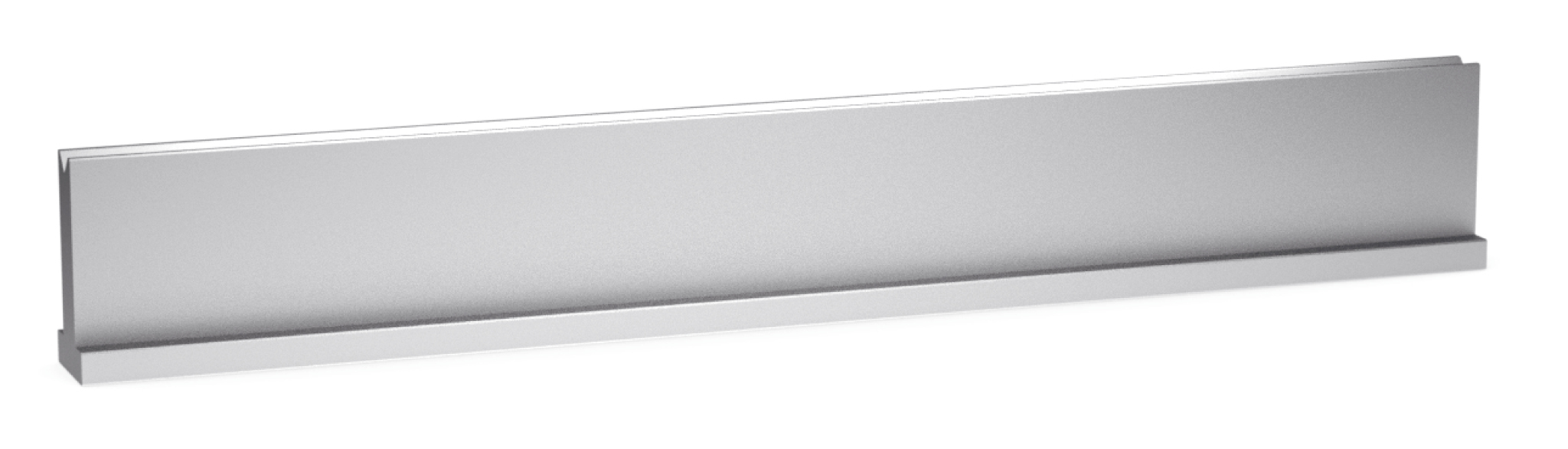

835 mm

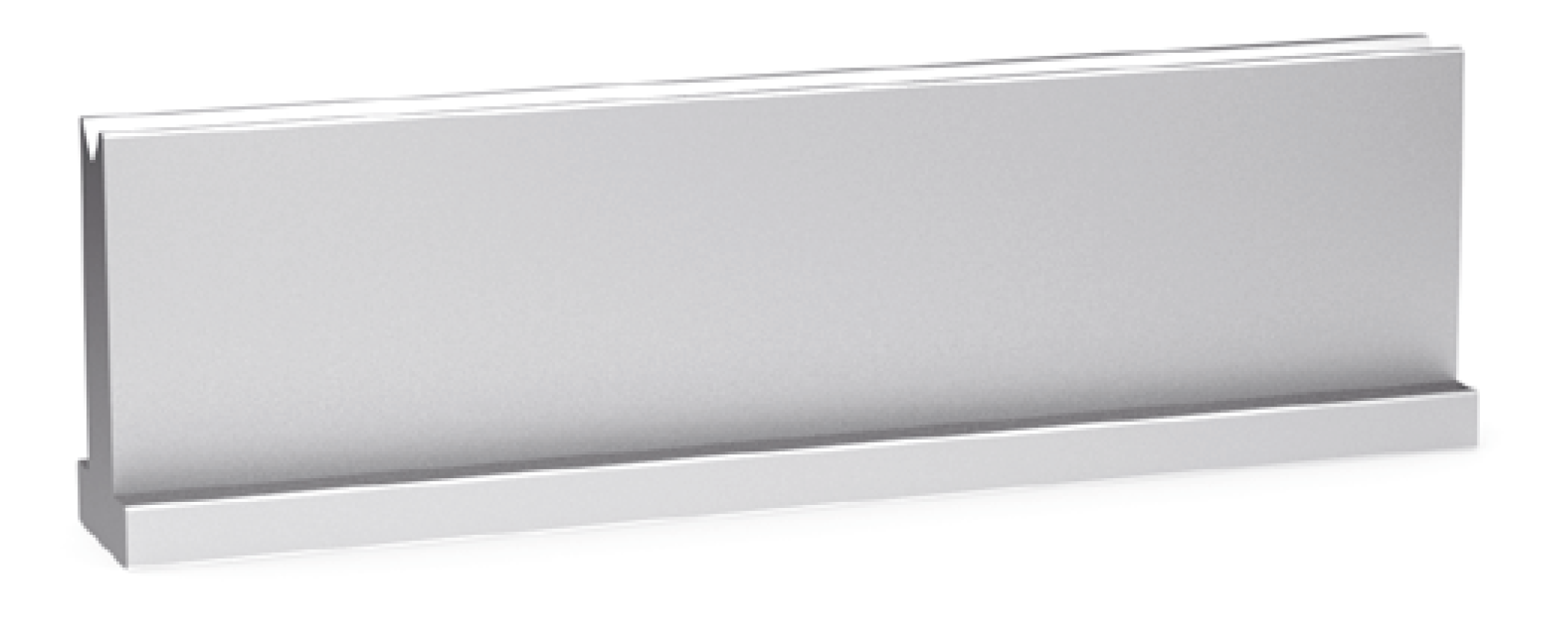

415 mm
835 mm sectionalized
▶9 Segments
▶Sectionalized dies are delivered as a complete set
▶Lower die: 10, 15, 20, 40, 50, 100, 200, 400 = 835mm (set)
■ In addition to the above standard length, if you need to customize a special length, please explain.
FAQ
1. Q: Are you a factory or trading company? How is you factory production experience?
A: We are a factory. 24years Manufacturing experience. Leading supplier in Maanshan city.
2. Q: Can you put my brand logo on these products?
A: Yes, we can.
3. Q: What is the Minimum Order Quantity (MOQ) for your OEM service?
A: MOQ is 1pcs. Purchase amount not less than $50.
4. Q: When can you ship the products after we make payment?
A: Production time is normally 15-25 days.
5. Q: What materials and processing techniques are used for press brake tooling?
A: Material: 42CrMo4; Full body heat treatment HRC 44-50, CNC laser quenching HRC: 54-60; Surface treatment: silver, black coating or sandblasting
6. Q: How long is the warranty period for your products?
A: Under normal use, the warranty period is 1 year.
7. Q: What payment methods do you support?
A: T/T, Western Union, WeChat etc.
