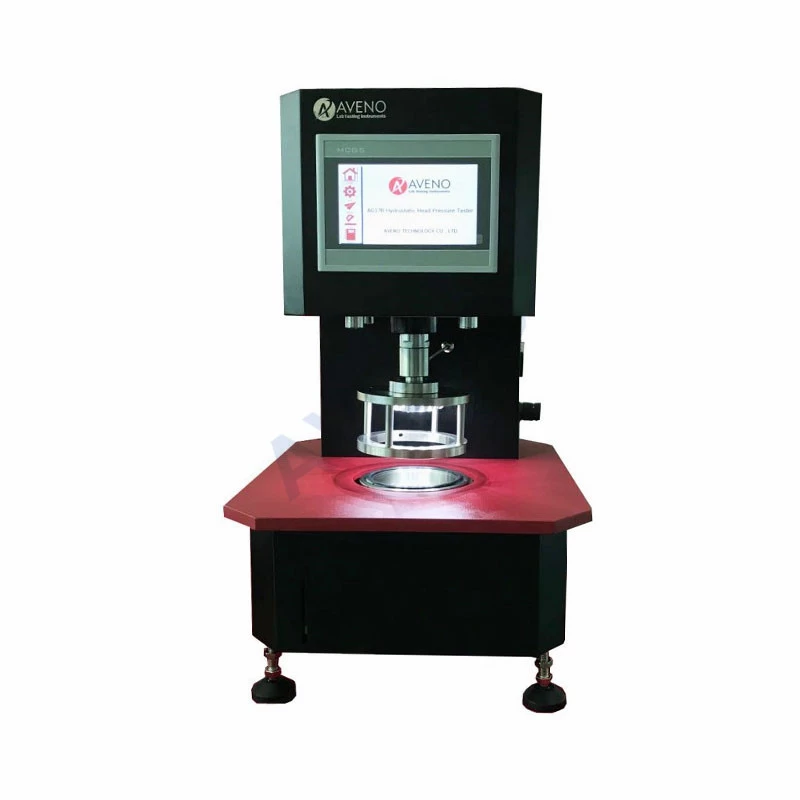

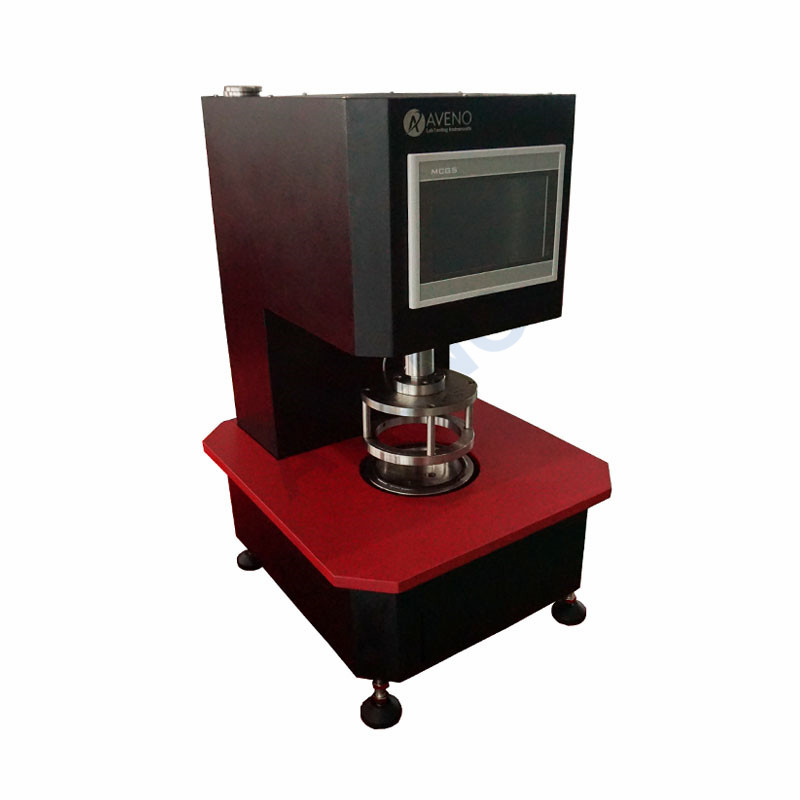

AG17B-Hydrostatic Head Pressure Tester
Application Of Hydrostatic Head Pressure Tester
Hydrostatic Head Pressure Tester is used to determine the water penetration resistance of all kinds of fabrics used for waterproofing, such as canvas, coating cloth, tent cloth, tarpaulin, rainproof clothing and geotextile materials, etc..
Feature Of Hydrostatic Head Pressure Tester
-
Servo motor drive system, the microcomputer controls the water flow, the pressure rate range is wide and can be steplessly adjustable, and the pressurization speed is accurate.
-

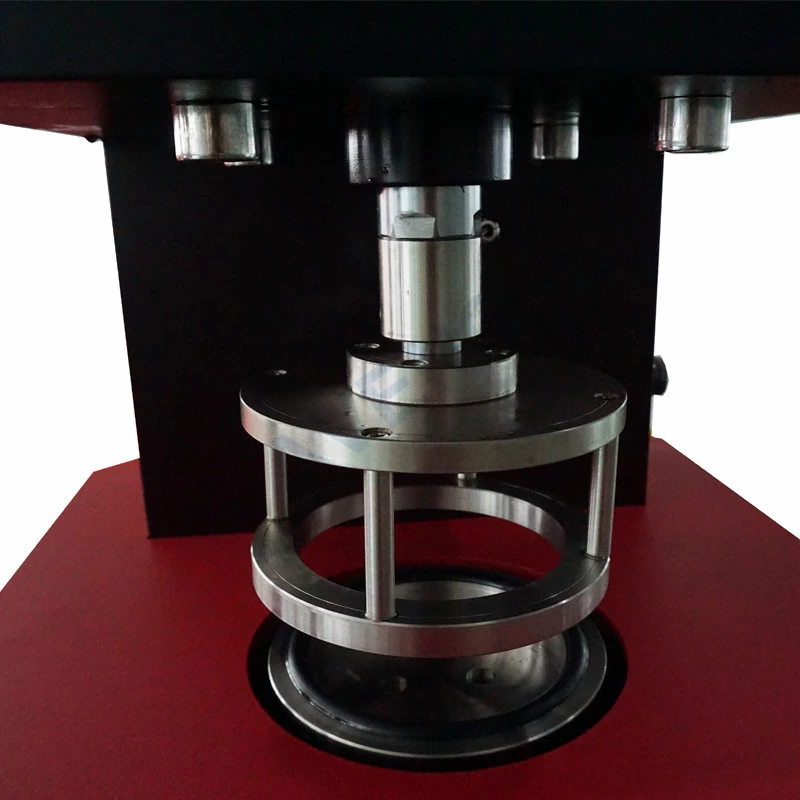

Pneumatic clamping sample makes the sample is evenly stressed and prevent damage to the sample.
-
Five test modes are optional: pressurization method, constant pressure timing method, constant pressure constant timing method, disturbance relaxation and water leakage method.
-
Built-in automatic rating function.
-
Built-in wireless wifi, wireless control of the instrument through the tablet. Built-in portable printer. It can be connect to a computer and automatically draw real-time test data curves for easy observation.
Standards Of Hydrostatic Head Pressure Tester
GB/T 4744, AATCC 127, ISO 811, BS EN 20811, BS 3321, 3424-26, JIS L 1092A/B, FZ/T 01004.
Key Specification Of Hydrostatic Head Pressure Tester
|
Model
|
AG17B-1
|
AG17B-2
|
AG17B-3
|
|
Test range
|
200KPa
|
500KPa
|
1000KPa
|
|
Testing method
|
Pressurization method;
Constant pressure timing
method;
Constant pressure
constant timing method;
Disturbance relaxation ;
Water leakage method.
|
|
Pressure display resolution
|
1 / 10000
|
|
Sensor test accurary
|
≤1% (5%-100% within
single sensor full scale range)
|
|
Experimental area
|
100cm2 7.8cm2 (optional)
|
|
Pressurization rate
|
0.1KPa ~ 10KPa / min
(infinitely adjustable)
|
|
Display mote
|
Color touch screen
|
|
Power supply
|
AC 220V, 50/60Hz
|
|
Dimensions
|
55x 43x63cm
|
|
Weight
|
60kg
|
Accessories Of Hydrostatic Head Pressure Tester
|
Standard
Accessories
|
100cm2 griper
|
1set
|
|
Calibration
plate
|
1set
|
|
Rubber ring
|
2pcs
|
|
English
operate software
|
1set
|
|
Cable connect
with PC
|
1pc
|
|
Power line
|
1pc
|
|
Option
Accessories
|
Table-top
Computer
|
|
|
Other size of
griper
|
|
Related products

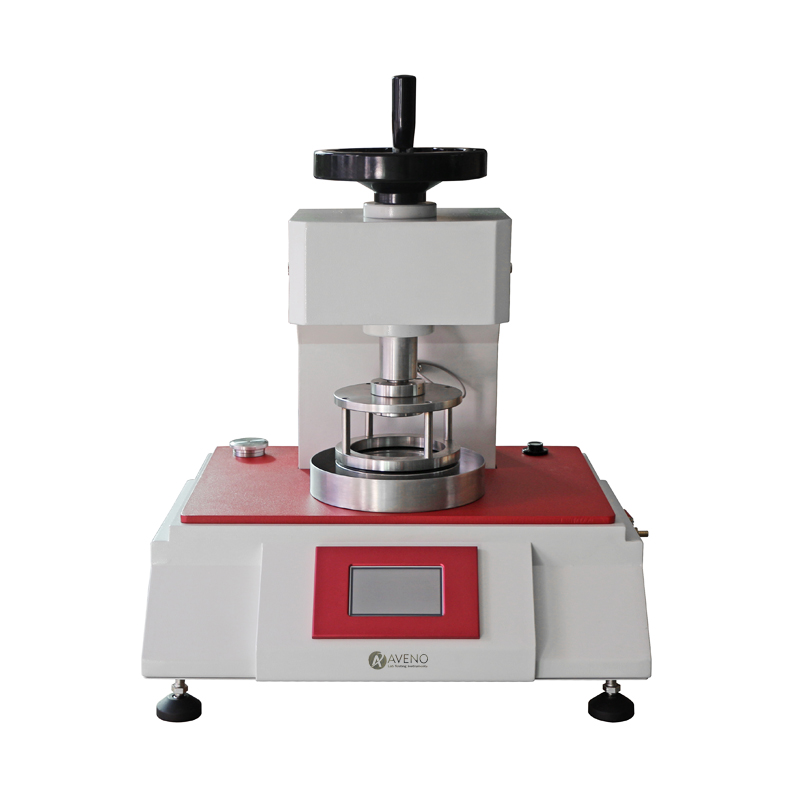

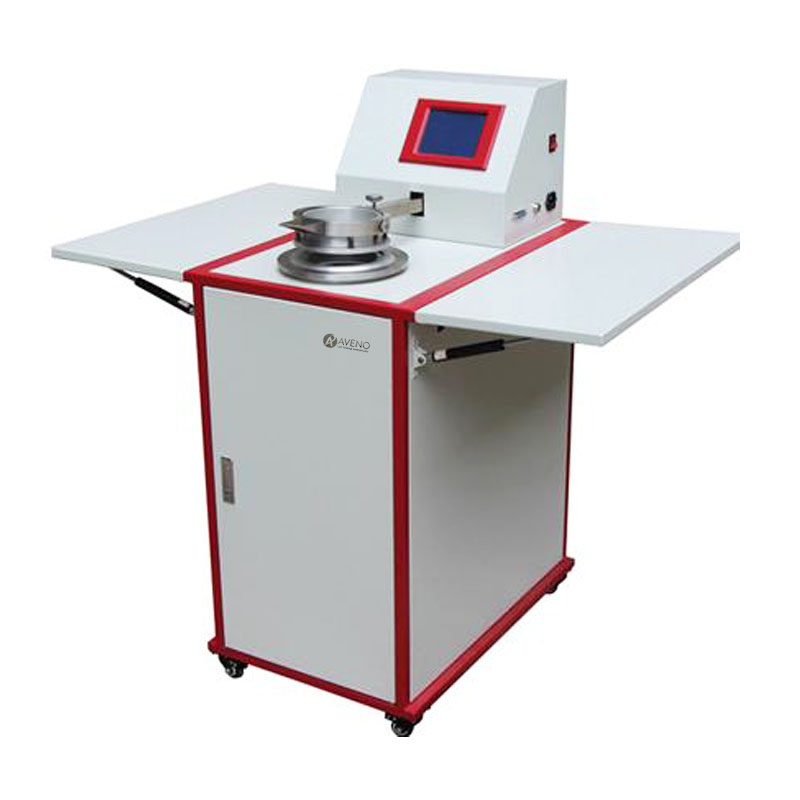

Hydrostatic Head Pressure Tester Digital Air Permeability Tester Bursting Strength Tester
