1.Executive snapshot

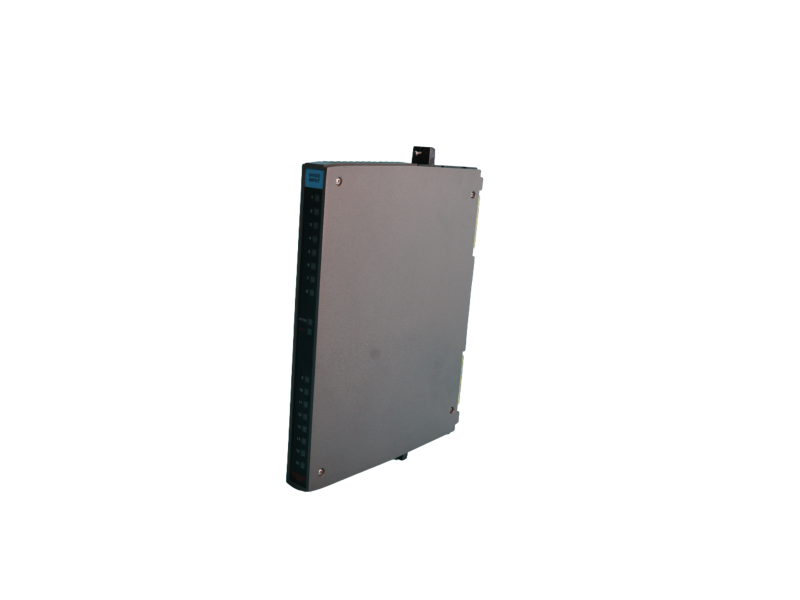

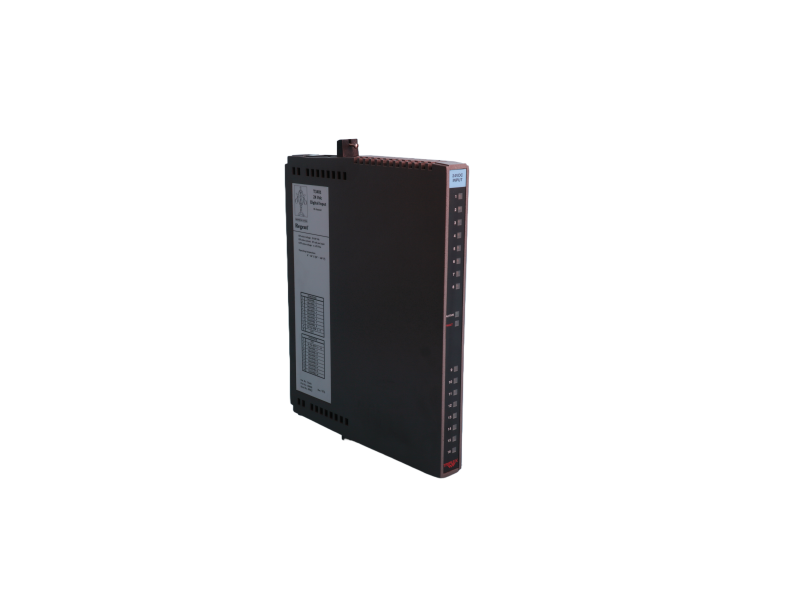

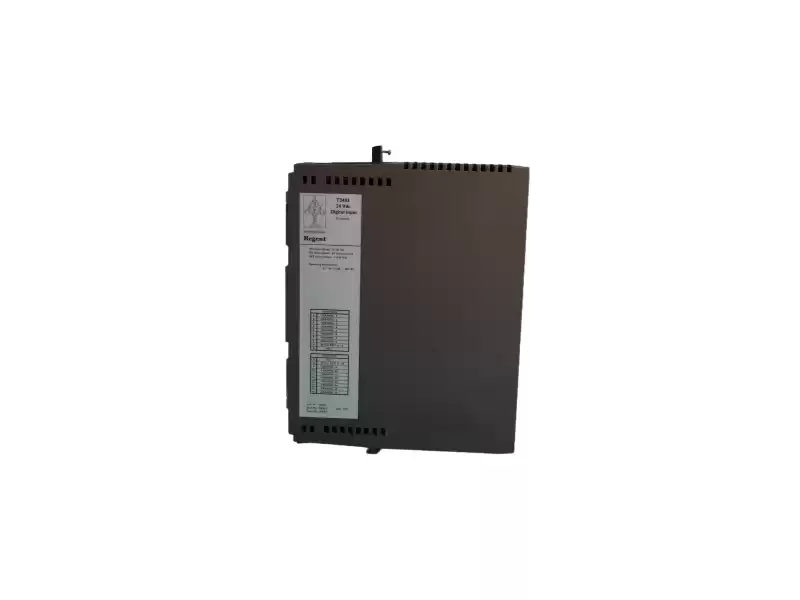

The T3401 is a 24-channel, triple-modular-redundant (TMR) digital input module that plugs straight into any ICS TRIPLEX 3003 or ICS Plus rack. Every I/O point is voted 3-of-3, giving you SIL 3 / PLe without external marshalling. One module = 24 safety devices, 0 single-points-of-failure.
2.Core specifications (25 °C, nominal 24 Vdc)
|
Parameter
|
ICS TRIPLEX T3401
|
|
Function
|
24 DI, TMR, IEC 61508 SIL 3
|
|
Input voltage range
|
16 – 32 Vdc (ON ≥ 14 V, OFF ≤ 5 V)
|
|
Input current
|
3.2 mA @ 24 V per channel
|
|
Scan / refresh
|
1 ms (all 24 ch.)
|
|
Isolation
|
250 Vrms channel-to-bus, 1500 Vrms channel-to-ground
|
|
Power draw
|
4.2 W typical, 6.0 W max
|
|
Connector
|
High-density spring-cage, pluggable
|
|
MTBF (Telcordia)
|
1 350 000 h
|
|
Temperature
|
–40 … +70 °C operational
|
|
Humidity
|
5 … 95 % RH non-condensing
|
|
Certifications
|
CE, UL, cUL, ATEX, IECEx, ABS, DNV
|
3.Mechanical & rack fit
|
Item
|
Value
|
|
Width
|
1 slot (30 mm)
|
|
Weight
|
0.42 kg
|
|
Hot-swap
|
Yes – insertion under power
|
|
Compatible racks
|
3003, ICS Plus, T9300 series
|
|
Max modules per rack
|
64 (1536 safety DI)
|
Why engineers pick T3401
1. Triple voters on-chip – no external redundancy wiring
2. Built-in line-monitoring for NAMUR, dry contacts or proximity switches
3. Automatic discrepancy alarm < 5 ms
4. Firmware flashable online via TriStation 1131 v4.9+
5. May be mixed with T3402 (SOE) or T3431 (pulse-input) in same rack
