ICS TRIPLEX T3411F – The 40-ms SIL 3 Heart of Your Next Safety Loop
Xiamen-based PLC Autocontroller has spent 20 years turning “mission-critical” into “mission-accomplished”.

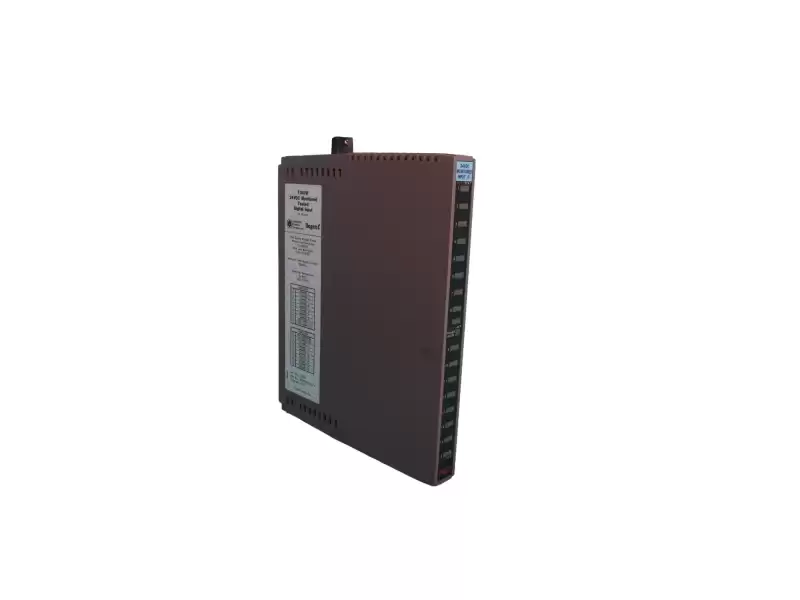

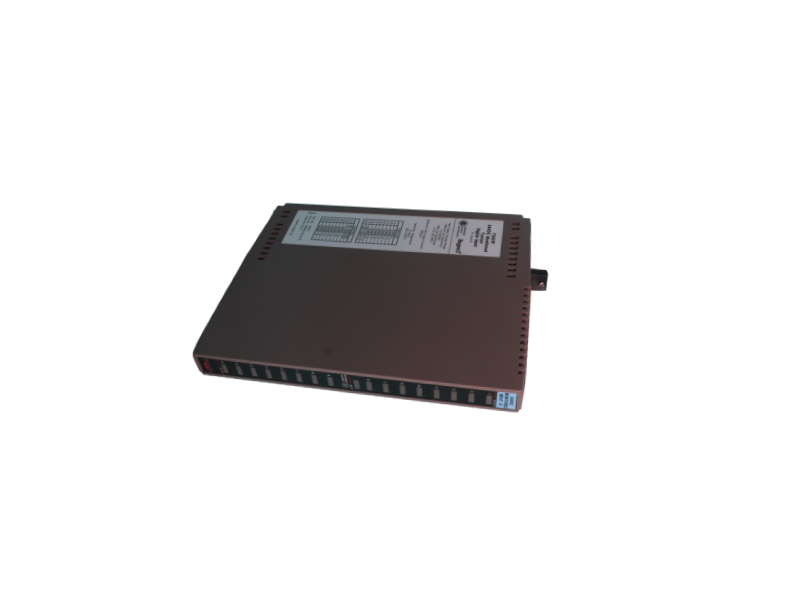

Today we spotlight the ICS TRIPLEX T3411F Digital Input FTA (Fault-Tolerant Assembly) – the panel-mounted, hot-swappable, triple-modular-redundant interface that converts 16 hazardous-area contacts into TÜV-certified SIL 3 logic in just 40 ms.
What the T3411F really does
• Receives 16 dry-contact or NAMUR signals
• Provides 3-way TMR (Triple Modular Redundant) voting on each channel
• Delivers open-wire, short-circuit and line-fault diagnostics to the T940 processor
• Allows online replacement without dropping the safety function (HFT = 1)
• Survives 2 kV surge and 15 g vibration – certified for offshore skids
Table 1 – T3411F at a glance
|
Parameter
|
Value / Specification
|
|
Part number
|
T3411F (ICS Triplex, Schneider Electric)
|
|
Safety integrity level
|
SIL 3 / Cat. 4 PL e
|
|
Redundancy
|
TMR, 2oo3 voted
|
|
Input type
|
Dry contact / NAMUR 2-wire
|
|
Channels / module
|
16
|
|
Scan / voting time
|
≤ 40 ms
|
|
Field power
|
24 V dc (20–30 V), 120 mA max per channel
|
|
Isolation
|
500 V dc channel-to-bus
|
|
Diagnostics
|
Open wire, short, overload, temperature
|
|
Hot-swap
|
Yes, automatic re-sync
|
|
Operating temp.
|
–40 … +70 °C
|
|
Hazardous location
|
Class I Div 2 / ATEX Zone 2
|
|
Mechanical
|
267 x 132 x 52 mm, 1.1 kg
|
|
MTBF / SIL claim
|
> 300 yr (MIL-HDBK-217F GB, 25 °C)
|
