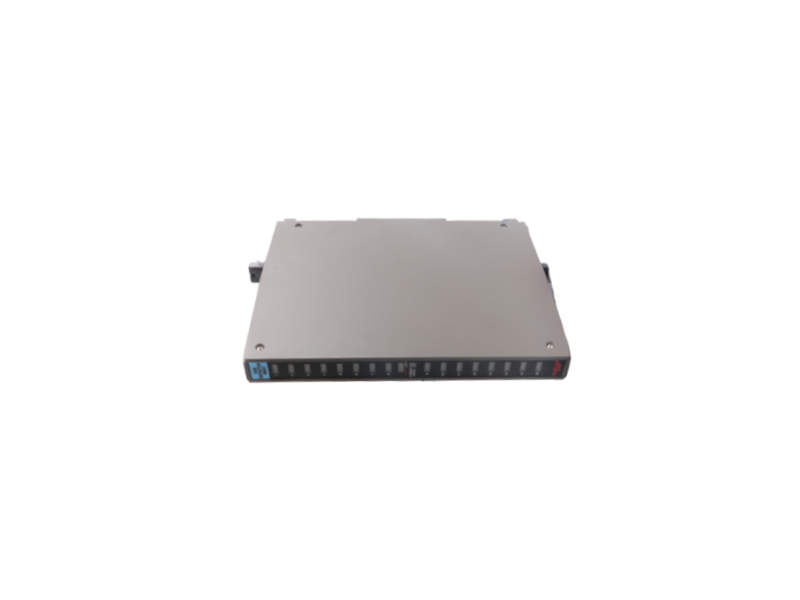

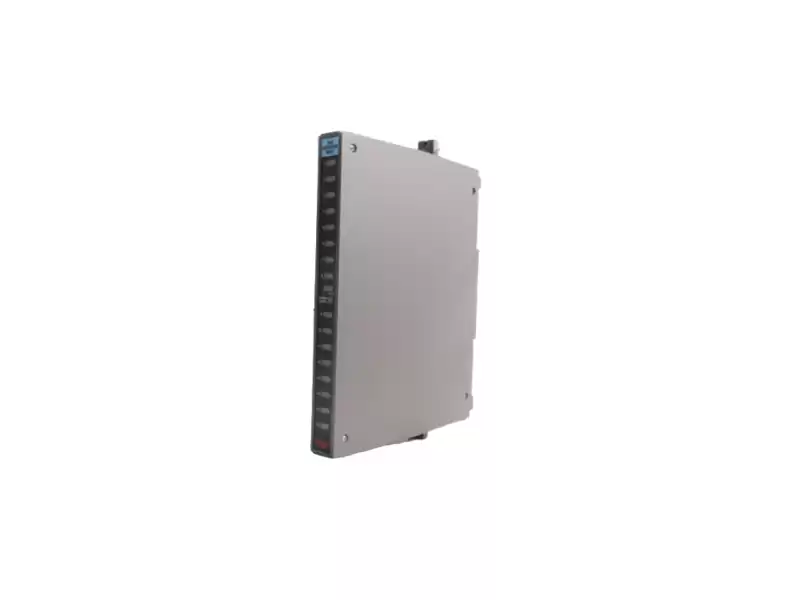

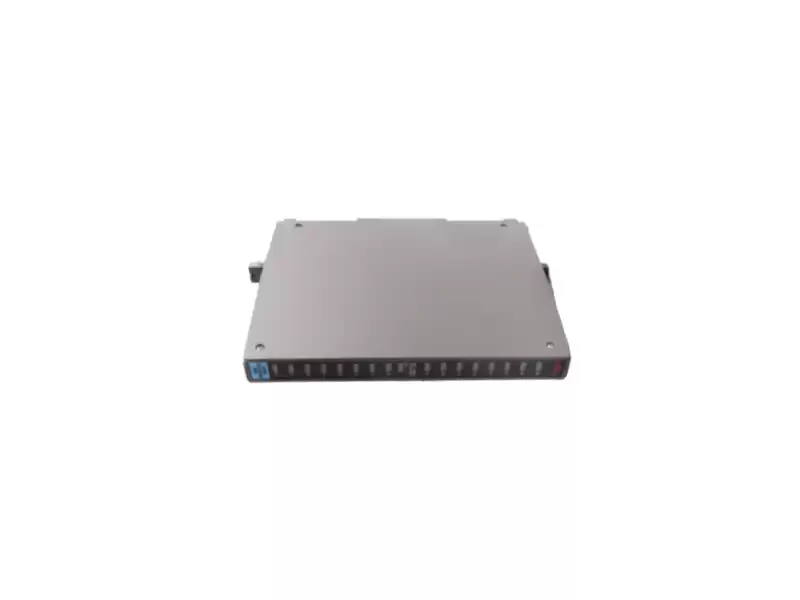

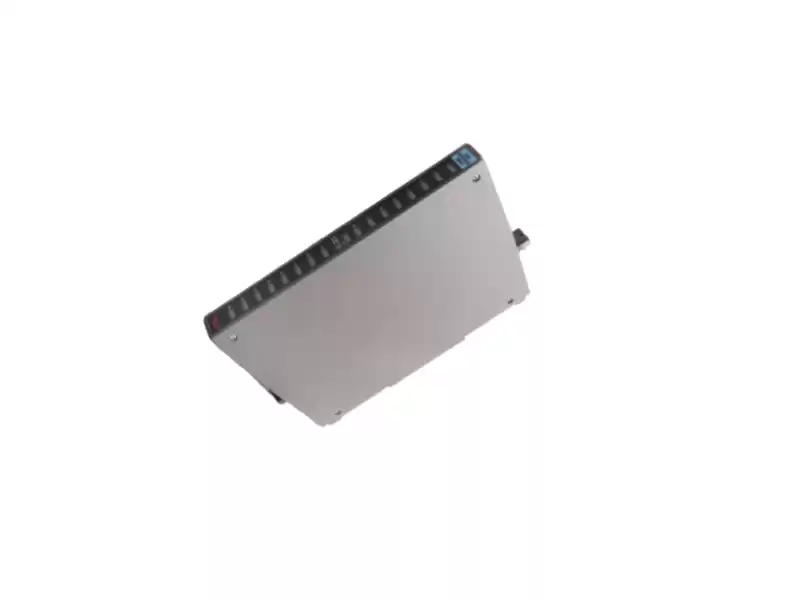

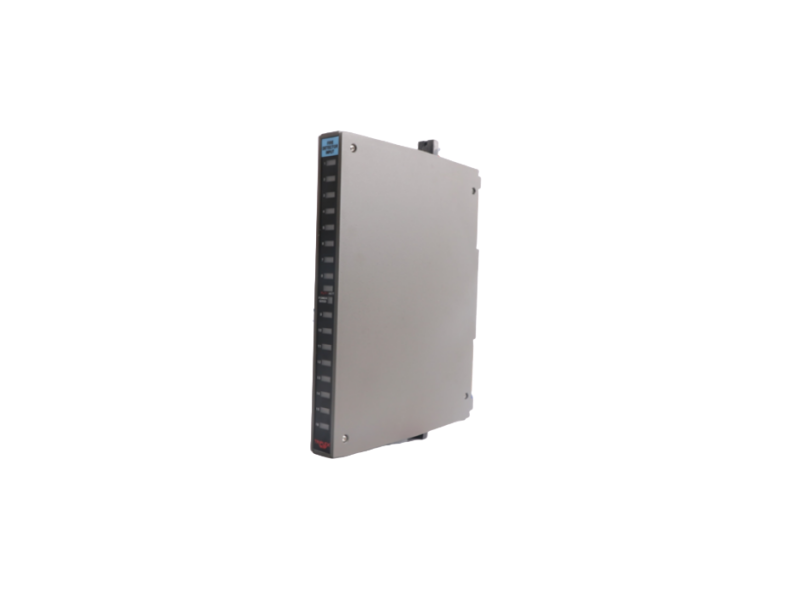

What the T3419 really is
Think of it as the bullet-proof “last metre” between your field devices and the Triconex® main rack. Every channel is triple-modular-redundant (TMR) inside the FTA itself – so a single wire fault can’t propagate to the controller. Hot-swappable, HART-transparent and certified for –40 °C … +70 °C offshore airlocks.
Key technical snapshot
|
Parameter
|
Value
|
|
Channels
|
32 differential, grouped 16×2
|
|
Input type
|
4–20 mA, 0–20 mA, HART v7
|
|
Intrinsic safety
|
Entity IS (when used with T8231 isolator)
|
|
Accuracy
|
±0.05 % FSR @ 25 °C
|
|
Resolution
|
16-bit plus sign
|
|
Common-mode rejection
|
120 dB @ 50 Hz
|
|
Isolation
|
250 V rms channel-to-bus
|
|
Power from rack
|
5 V dc 1.2 A typical
|
|
MTBF (Telcordia)
|
1 380 000 h
|
|
Certifications
|
CE, UL, cUL, ATEX II 3 G Ex nA IIC T4 Gc
|
|
Weight
|
1.8 kg
|
|
Termination
|
Pluggable cage-clamp, 0.34–2.5 mm²
|
Service & Support
At PLC Autocontroller, we offer comprehensive services for the ICS TRIPLEX T3419 module, including:
1. Installation & Commissioning: Expert setup and integration into your existing systems.
2. Maintenance & Troubleshooting: Regular maintenance and prompt troubleshooting to minimize downtime.
3. Spare Parts Supply: Genuine replacement parts to ensure optimal performance.
With over 20 years of experience in automation sales, we are committed to providing high-quality products and services to meet your industrial needs.
