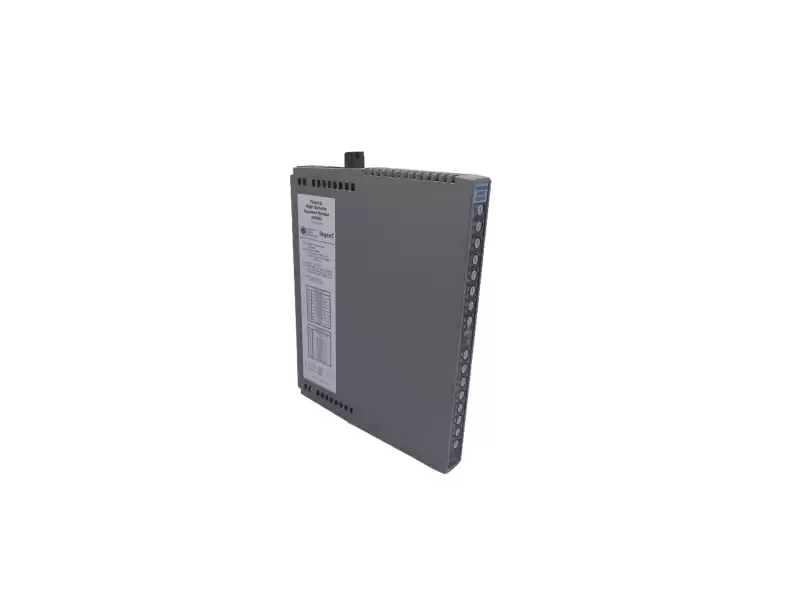

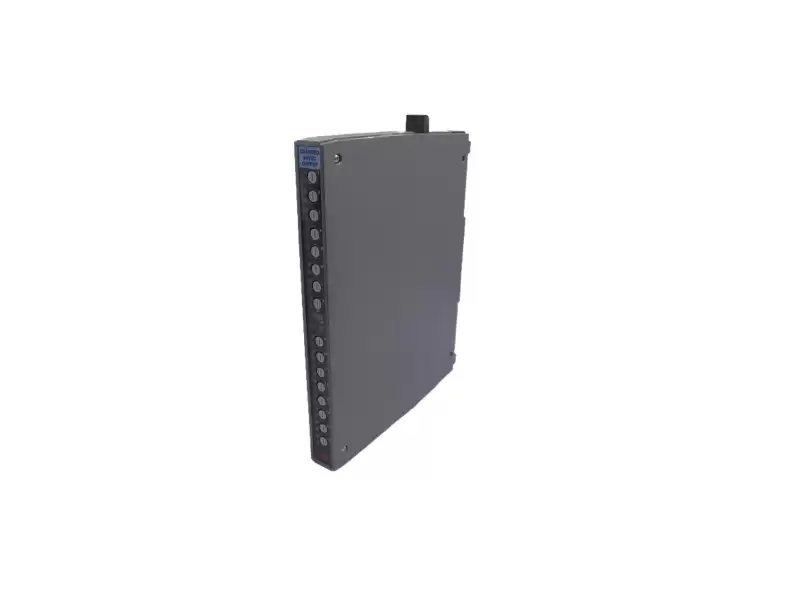

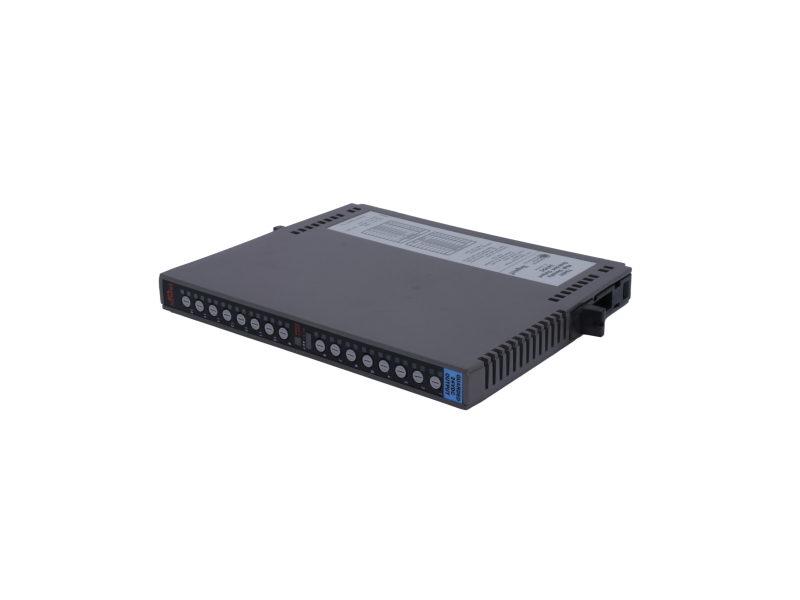

While the T3480 sources current, the T3481 does the opposite: it sinks 4-20 mA from externally-powered field devices, giving you galvanic isolation between each loop and the Tricon back-plane. Built for SIL-3 reverse-acting control valves, VFD speed references and solenoid-driver cards that already carry their own 24 V or 48 V bulk supply, the T3481 lets you mix high-side and low-side commons on the same marshalling panel without risking sneak circuits.
Core concept in one line
Think of T3481 as 16 identical, triple-voted precision current-sinks that can live on either the positive or the negative leg of a loop—your cable schedule decides, not the board.
Highlights you won’t find on Google
• Each channel is a “floating” 60 V-rated MOSFET array; you can wire it high-side (sink on return) or low-side (sink on supply) simply by flipping the plug-in jumper.
• On-board 2oo3 Hall-effect current sensors measure real loop current, not DAC set-point—detects a jammed valve positioner even if the cable looks healthy.
• Built-in soft-clamp diode matrix absorbs inductive kick from large solenoids; no external free-wheel diode needed up to 1 H load inductance.
• Daisy-chain 24–60 V field bus: one pair feeds multiple loops, cutting 30 % copper versus conventional single-supply wiring.
Quick-spec
|
Parameter
|
Value
|
|
Function
|
16-ch isolated current sink
|
|
Sink range
|
0–22 mA (4–20 mA default)
|
|
Loop voltage
|
12–60 V dc (field supplied)
|
|
Load (resistive)
|
0–3 kΩ @ 60 V
|
|
Accuracy
|
±0.06 % FSR
|
|
Resolution
|
13-bit monotonic
|
|
CMRR/IMRR
|
150 dB (50 Hz), 140 dB (DC)
|
|
Update time
|
1 ms all channels
|
|
Isolation
|
650 V rms ch-to-ch, ch-to-bus
|
|
Inductive energy
|
Absorbs 1 J without crowbar
|
|
Diagnostic pulse
|
0.2 mA, 100 µs, HART-transparent
|
|
Rack power
|
5 V dc 1.0 A, 3.3 V 0.3 A
|
|
MTBF (Telcordia)
|
1.14 million h
|
|
Temperature
|
–40 … +70 °C
|
|
Weight
|
1.9 kg
|
|
Termination
|
Quick-plug 3.81 mm, 26–12 AWG
|
Typical wiring recipes
① Reverse-acting valve: +24 V → valve → T3481 CHx → 0 V. Jumper set to “low-side sink”.
② VFD reference: VFD 10 V source → T3481 CHx → return. Jumper set to “high-side sink”; board floats at +10 V, Tricon remains earth-free.
③ Mix 24 V and 48 V loops on the same FTA—just keep the daisy-chain within 60 V max; the Hall sensor doesn’t care.
