Introduction

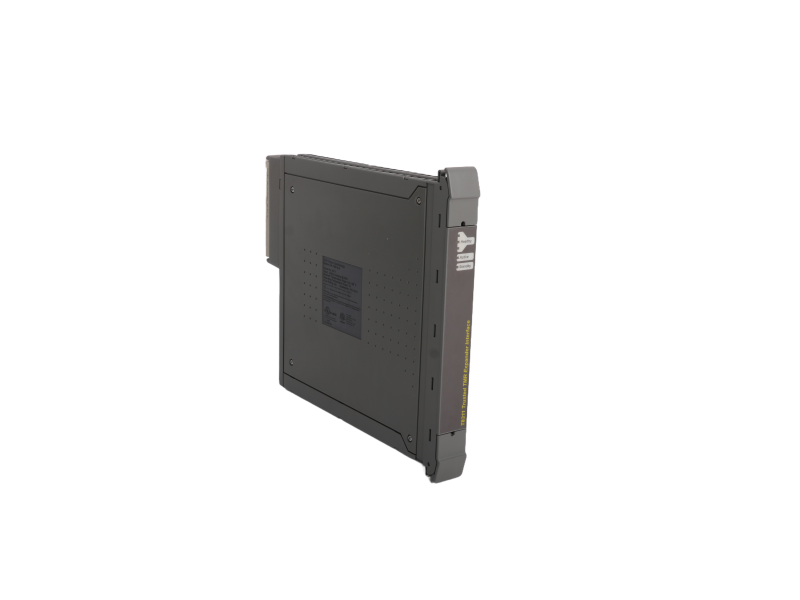

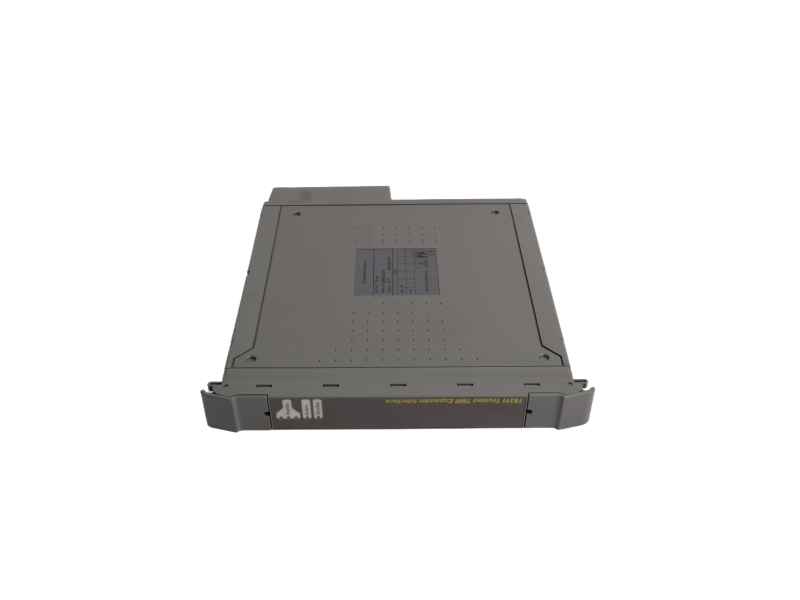

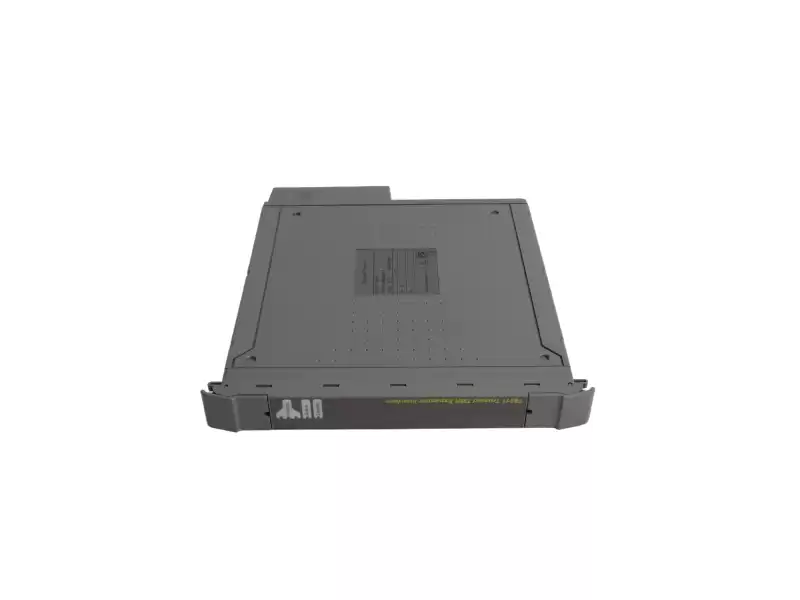

The ICS TRIPLEX T8311 Trusted TMR Expander Interface is the go-to solution when your safety-critical system needs more I/O headroom without compromising fault-tolerance. Designed for the T8300 chassis, the module extends Triple-Modular-Redundant (TMR) architecture up to 30 m on copper or 10 km over fibre, giving plants the freedom to distribute I/O racks exactly where they are needed. With 20 years of automation sourcing experience, PLC Autocontroller in Xiamen keeps the T8311 on the shelf and ready for same-day dispatch to any continent.
Key Advantages at a Glance
1. SIL 3 certified (IEC 61508) for the most demanding emergency-shutdown and fire-&-gas schemes
2. Hot-swap capability lets you add or replace expander nodes while the process stays live
3. 250 Mbps expander bus eliminates data bottlenecks, even when hundreds of additional I/O channels are added
4. On-board diagnostics via front-panel LEDs – no laptop required for first-line troubleshooting
Core Technical Data
|
Category
|
Value
|
|
Operating voltage
|
20 … 32 V DC
|
|
Power dissipation / heat
|
≤ 40 W
|
|
Dimensions (H × W × D)
|
266 mm × 31 mm × 303 mm
|
|
Weight
|
1.14 kg
|
|
Operating temperature
|
5 °C … +60 °C
|
|
Non-operating temperature
|
25 °C … +70 °C
|
|
Relative humidity
|
5 … 95 % RH non-condensing
|
|
Expander-bus speed
|
250 Mbps
|
|
Max. copper distance
|
30 m (TC-301 cable)
|
|
Max. fibre distance
|
10 km (with fibre converters)
|
|
Module clock
|
50 MHz
|
|
Compatible chassis
|
ICS TRIPLEX T8300 series
|
|
Safety integrity
|
SIL 3 (IEC 61508)
|
Typical Application Spots
Off-shore wellhead platforms – distributing additional analogue cards inside hazardous-area cabinets 2 km from the main CPU
Refinery fired-heater units – SIL-rated expander node for flame scanners and fuel-trip valves
Nuclear balance-of-plant – redundant I/O for cooling-pump vibration monitors
