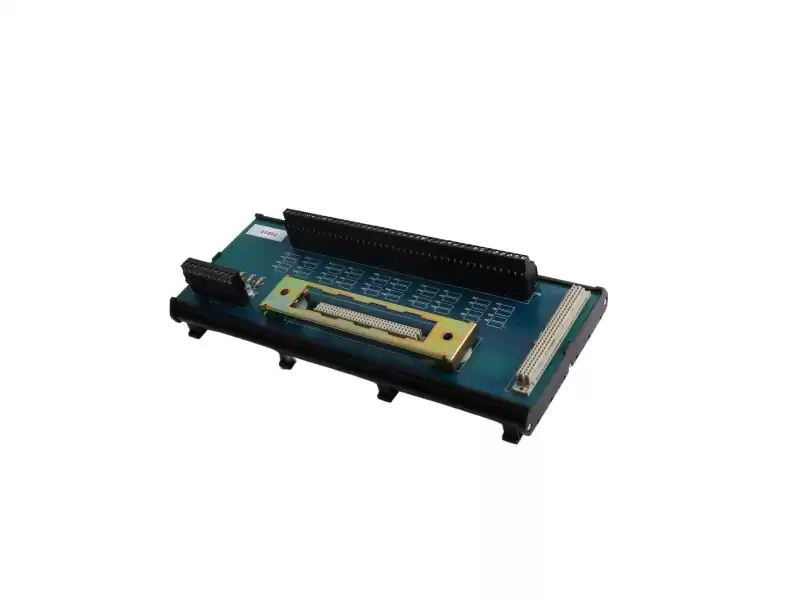

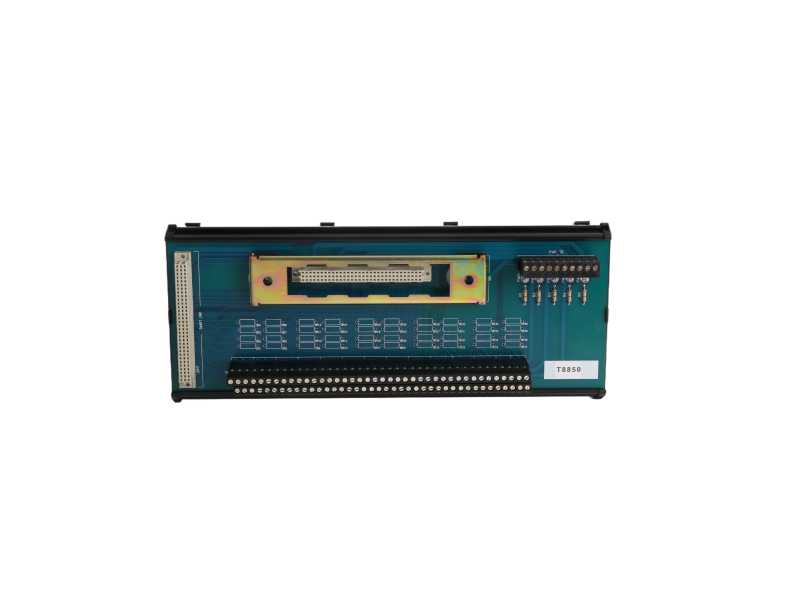

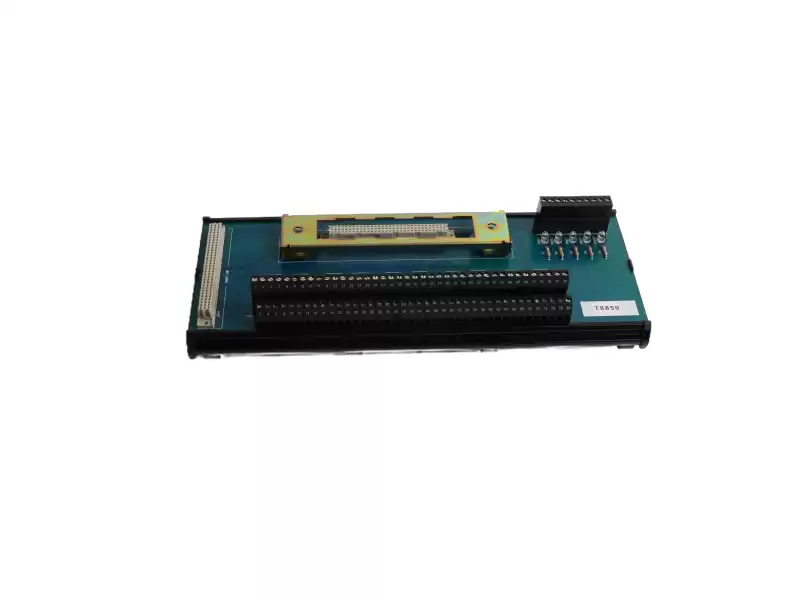

1.Why T8850 is Different Selectable mode – one part number covers both 4-20 mA analog loops and 24 Vdc digital loads, cutting spare-part inventory by 50 %.
Five isolated groups of 8 channels let you mix safe-area and hazardous-area devices on the same termination assembly.
On-board LED per group confirms field-power integrity at a glance; no handheld meter needed during loop checks.
2.Key Specifications
|
Specification
|
Details
|
|
Channel Capacity
|
40 (5 × 8 isolated groups)
|
|
Signal Type
|
Analog 0-20 mA / 4-20 mA OR Digital 24 Vdc
|
|
Accuracy
|
±0.1 % F.S. (analog mode)
|
|
Update Time
|
5 ms max (all 40 channels)
|
|
Field Connector
|
Removable 3-way, 12–28 AWG
|
|
Operating Temperature
|
20…+70 °C
|
|
Dimensions
|
110 × 360 × 68 mm (DIN-rail)
|
|
Weight
|
0.95 kg
|
|
Power Dissipation
|
18 W (field) + 22 W (system)
|
3.Typical Applications Emergency-shutdown systems (ESD) | Burner-management (BMS)
Sub-sea topside control | LNG loading arms
Nuclear auxiliary systems | High-speed packaging lines
