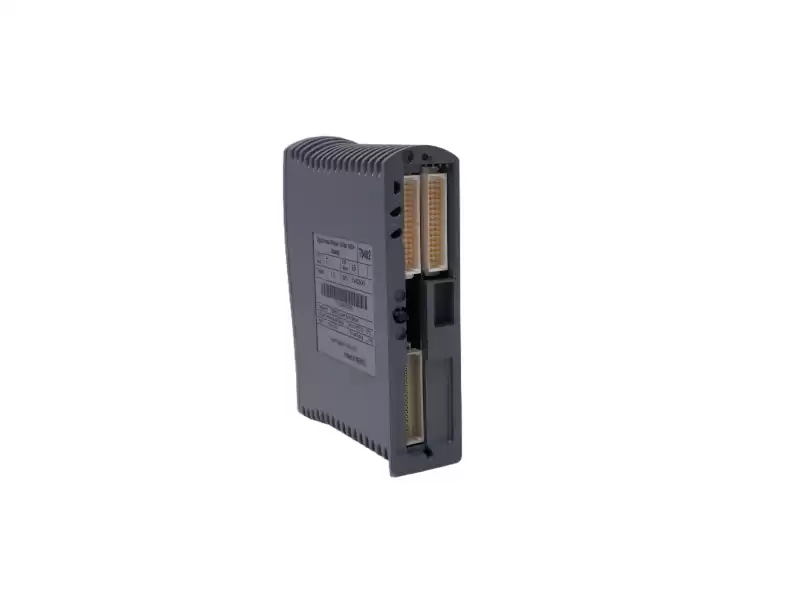

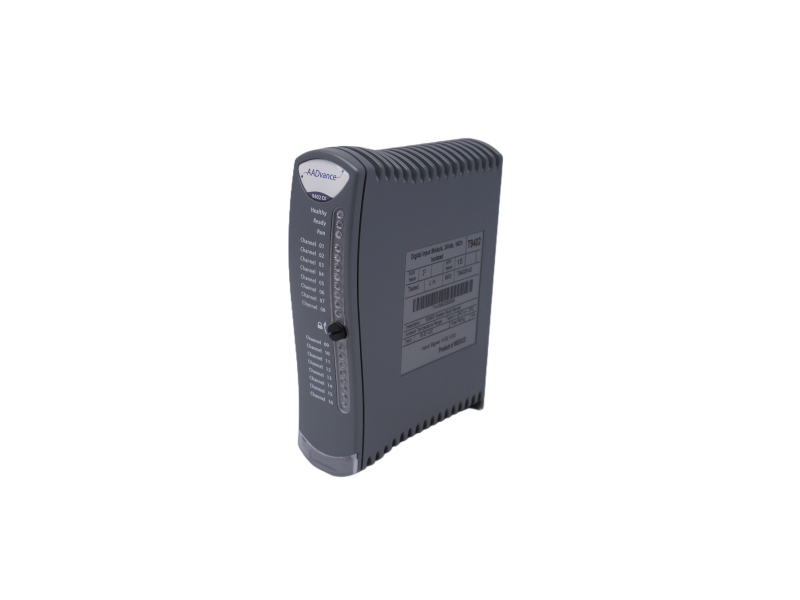

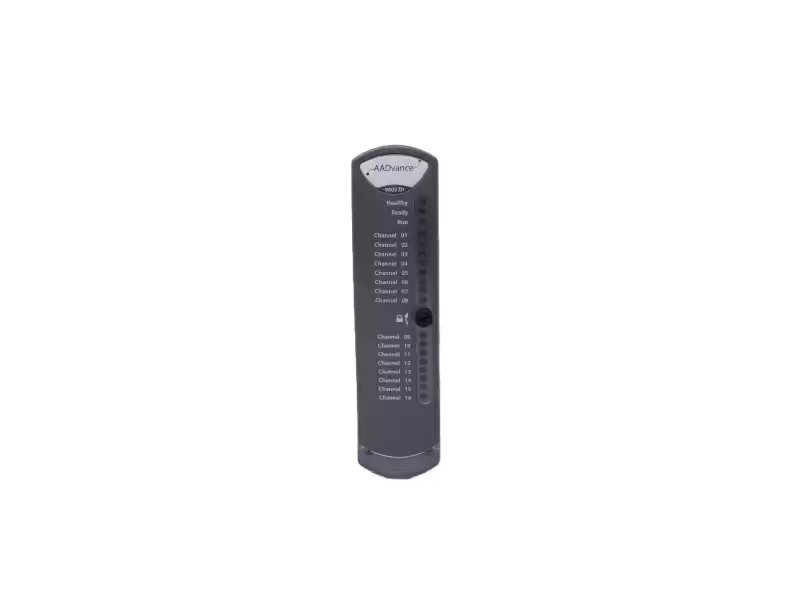

T9402 is a 16-channel, 24 VDC isolated digital input module for the AADvance® safety platform. It converts field switches, proximity sensors and push-buttons into SIL 3-certified data that keep your process running and safe. Every channel is opto-isolated, responds in 250 µs and is noise-hardened for onshore, offshore and hazardous-area cabinets.
Key highlights
· 16 × 24 VDC inputs, 0…32 VDC operating range
· SIL 3 / IEC 61508 & IEC 61511 certified, TÜV approved
· Triple-modular redundancy ready (simplex / dual / triple)
· Hot-swappable, 19-inch rack mount, –40…+70 °C
1. Quick-Scan Specification
|
T9402 Digital Input Module
|
Value
|
|
Part Number
|
T9402
|
|
Channels
|
16, opto-isolated
|
|
Nominal / Range
|
24 VDC (0…32 V)
|
|
Input current
|
6.5 mA typ. per channel
|
|
Response time
|
< 250 µs
|
|
Power (module)
|
4 W (max)
|
|
Scan time SIL mode
|
0.924 ms simplex / 1.676 ms dual / 2.453 ms triple
|
|
Isolation
|
Channel-to-bus 500 VAC
|
|
Temperature
|
–40…+70 °C operational
|
|
Dimensions
|
110 × 180 × 45 mm
|
|
Weight
|
0.5 kg
|
|
Certifications
|
CE, SIL 3, TÜV, ATEX Zone 2
|
2. AADvance Scan-Time Comparison (ms)
|
Module
|
Simplex
|
Dual
|
Triple
|
|
T9402 DI 24 VDC
|
0.924
|
1.676
|
2.453
|
|
T9432 AI 24 VDC
|
1.170
|
1.965
|
2.656
|
|
T9451 DO 24 VDC
|
1.174
|
2.202
|
—
|
3. Why PLC Autocontroller?
100 % brand-new & factory-sealed – ICS TRIPLEX original box
12-month warranty, integrity-assured supply chain
Large Xiamen stock – same-day dispatch on receipt of payment
Global door-to-door by DHL / FedEx / UPS / TNT
24 / 7 quotation & order support – mail us anytime
Sales contact
ab@mooreplc.com
+86-18106909650 (WhatsApp)
WeChat ID: dcsfcs
Attn: Sales Manager May
4. Brands We Cover Daily
Foxboro | GE | Siemens | Moore | Emerson | Ovation | Bently Nevada | ABB | ICS-TRIPLEX | TRICONEX | Honeywell | Westinghouse | Epro | Yokogawa | Allen-Bradley | Schneider | HIMA | Woodhead | Woodward
Need other AADvance modules? Ask for T9431, T9432, T9451, T9481 or spare rack kits – all in stock.
