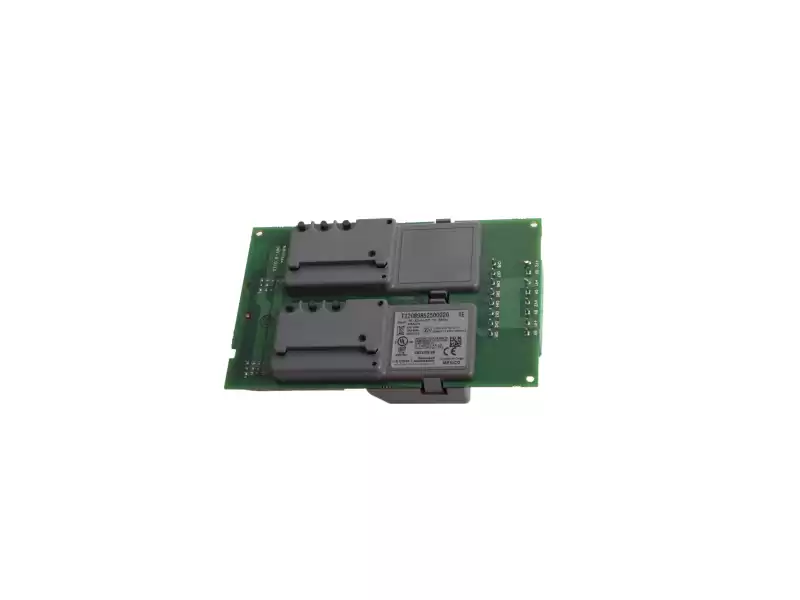

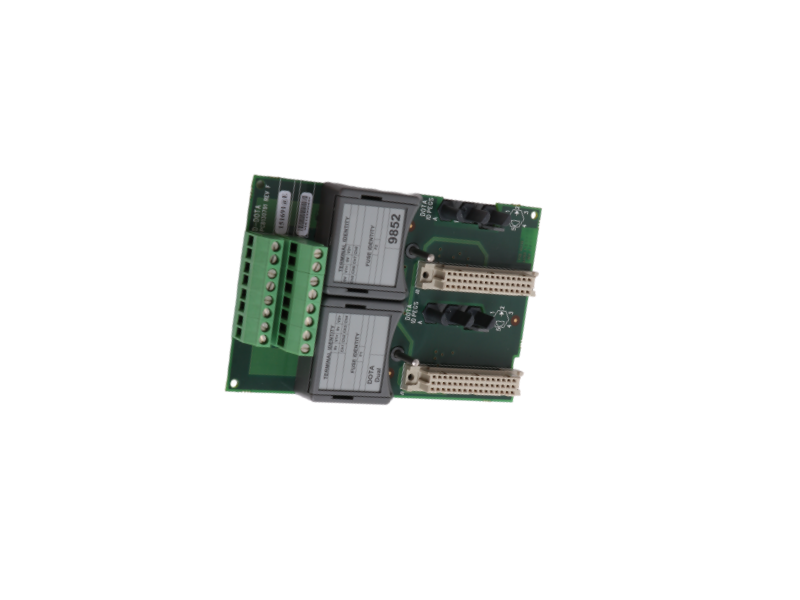

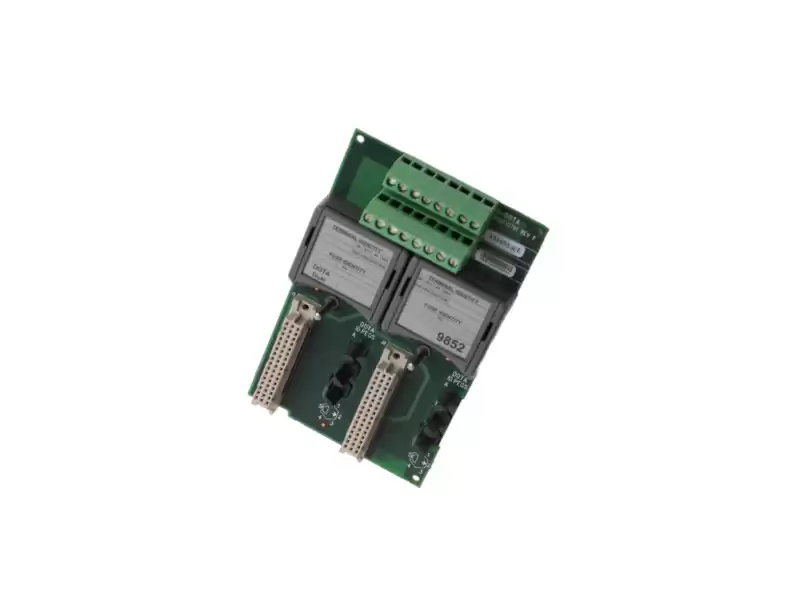

“Dual 8-channel” slim terminal – built for space-tight, sectional-powered SIL systems
u Quick Profile
1. Model: T9852
2. Role: 8 ch × 2 independent segments digital-output termination block
3. Edge: two field supplies can be 24 V or 48 V, fuses replaceable on-line without unwiring; 132 × 84 mm footprint saves 30 % cabinet depth versus T9851
4. Use: sectional ESD in chemical plants, dual-source isolation on offshore platforms, dual-path conveyor controls in automated warehouses – anywhere “zone redundancy” is preferred over point redundancy
u Key Data (25 °C typical)
|
Item
|
Value
|
|
Channels
|
8 × 2 (16 pts, dual common)
|
|
Rated voltage
|
24 Vdc (18-32 V) or 48 Vdc (36-56 V)
|
|
Current per ch
|
2 A max, electronic limit 2.5 A
|
|
Protection
|
2 A pluggable fuse/ch, reverse-polarity, short-circuit & over-temp
|
|
Isolation
|
field-system 500 Vdc; seg A-seg B 300 Vdc
|
|
Indication
|
bi-colour RED/GREEN LED per ch (ON, FAULT, open-load)
|
|
Response time
|
< 1 ms (resistive load)
|
|
Weight
|
260 g
|
|
Dimensions
|
132 × 84 × 28 mm
|
|
Certifications
|
SIL 3 / IEC 61508, ATEX nA, CE, RoHS
|
u T9852 vs T9851 – spot the difference
|
Dimension
|
T9852
|
T9851
|
|
Channel style
|
8×2 dual-common (16 pts)
|
32 pts single-common
|
|
Current/pt
|
2 A
|
0.5 A
|
|
Field supply
|
two segments, 24 V or 48 V
|
one segment 24 V
|
|
Fuse access
|
front replaceable 2 A
|
internal 1 A
|
|
Board size
|
132 × 84 mm
|
210 × 98 mm
|
|
Best fit
|
zoned control, dual-source
|
high-density central DO
|
u Hot-selling ICS TRIPLEX models (stocked)
1. T8403C Trusted TMR Digital Input – high-integrity safety loops
2. T8461C 40-ch DO module (TMR) – pair with T9852 for “dense+zone” mix
3. T9481 8-ch Analogue Output – companion for continuous valves
4. T8311 Processor (Trusted) – 3-2-0 redundancy core
5. T9802 16-ch DI terminal (dual) – same width, clean row layout
6. T9110 Processor Base – starter backplane for new nodes
7. T9300-02 2 m expansion cable – flexible I/O positioning
