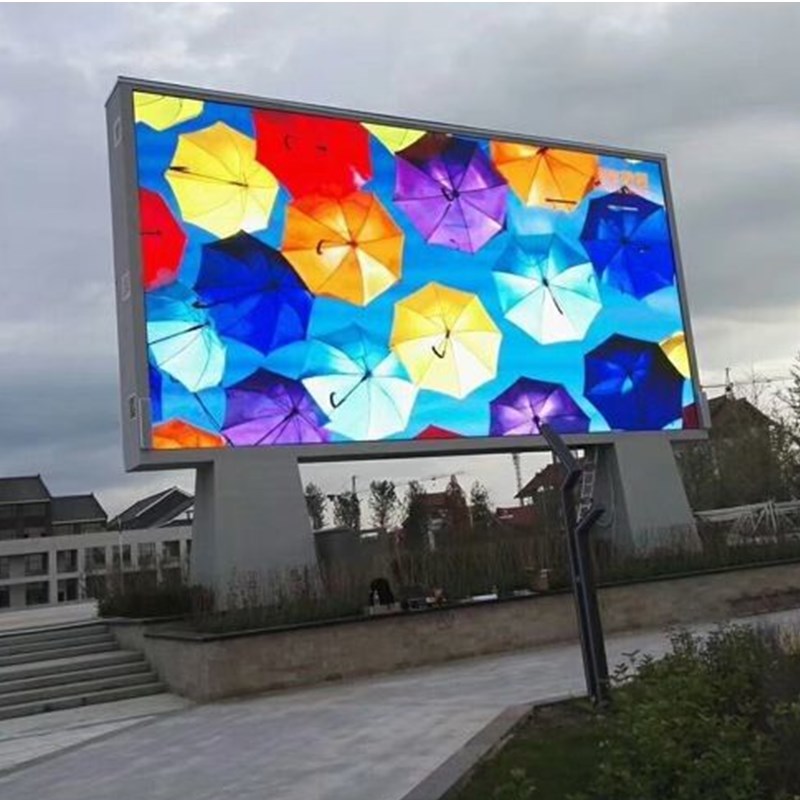

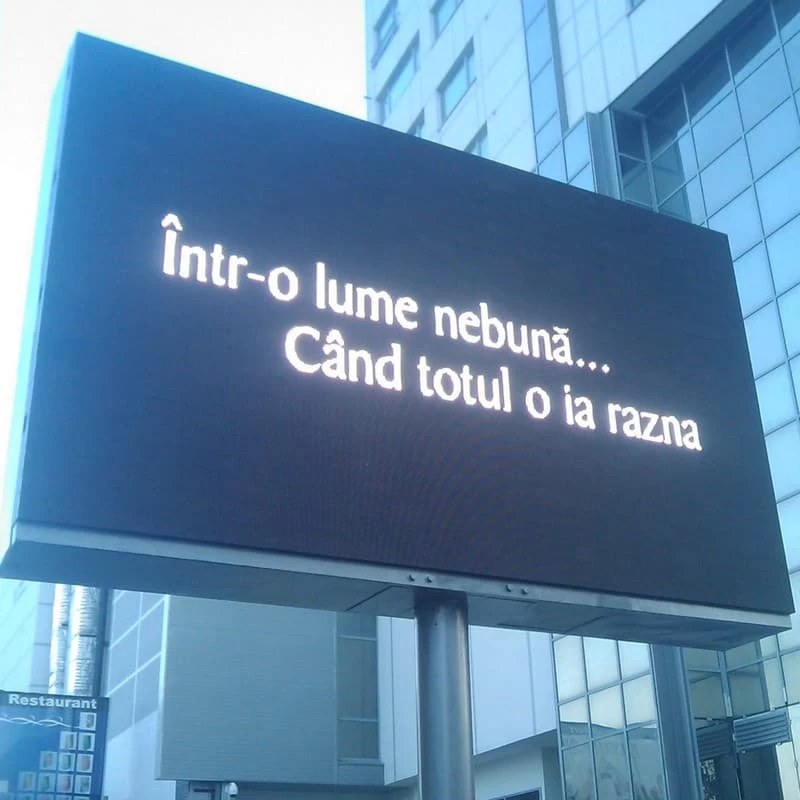

Outdoor Led Display Billboard Features:
Outdoor Led video wall cabinet size can be customized and used in any outdoor place.
Outside led signs is high performance metal plate cabinet,concise cable layout.
Advertising display screen is Energy saving and noiseless power supply,
excellent heat dissipation to ensure good stability and life span.

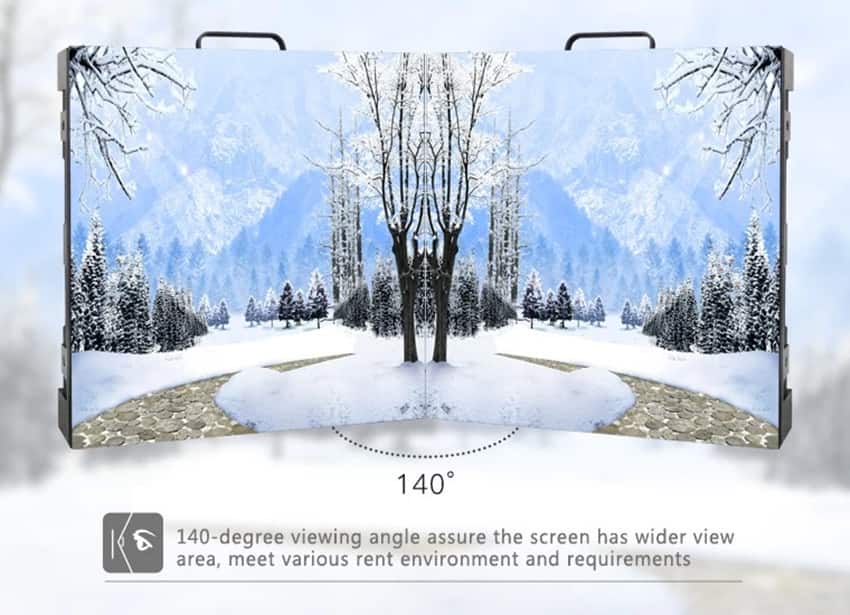

Large outdoor video screens Viewing angle reach to 140 degree,flatness between cabinet units < 0.2mm.
Outdoor led advertising signs is Constant current drive, lumiance decrease < 5% per year.
|
Outdoor Fixed Installation LED Display
|
|
LED Module
|
Pixel Pitch (mm)
|
P4
|
P5
|
P6
|
P8
|
P10
|
P10
|
P16
|
|
Pixel configuration
|
SMD1921
|
SMD2727
|
SMD3535
|
SMD3535
|
SMD 3535
|
DIP 346
|
DIP 346
|
|
LED lamp
|
Nation Star /King light
|
|
IC
|
5020 /5124 /5153 /2037 /2038 /2038S /2053
|
|
Scan
|
1/8 S
|
1/8 S
|
1/8 S
|
1/4 S
|
1/2 S
|
1/4 S
|
Static
|
|
Module size
|
256*128mm
|
160*160mm
|
192*192mm
|
256*128mm
|
320*160mm
|
160*160mm
|
256*256mm
|
|
Module resolution (pixel）
|
64*32 pixel
|
32*32 pixel
|
32*32 pixel
|
32*16 pixel
|
32*16 pixel
|
16*16 pixel
|
16*16 pixel
|
|
Pixel density (dots/m2)
|
62,500
|
40,000
|
27,777
|
15,625
|
10,000
|
10,000
|
3,906
|
|

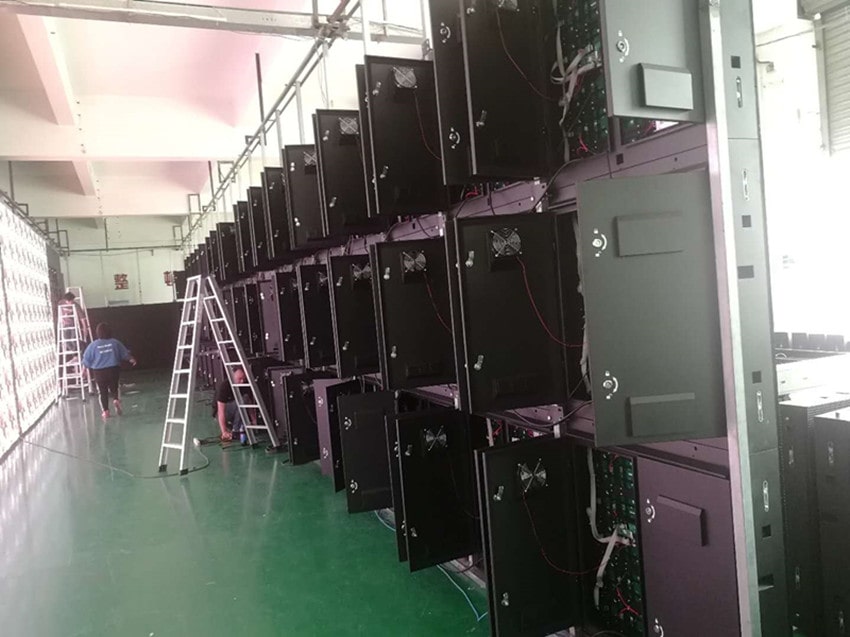

LED Cabinet
|
Cabinet size (W*H)
|
768*768mm /800*800mm /960*800m /960*960mm /1024*768mm/
1024*1024mm
|
|
Cabinet material
|
Iron /Aluminum
|
|
Cabinet weight (KG)
|
Iron :
40kg/m2 Aluminum : 35 kg/m2
|
|
Controller
|
Controller card
|
Nova Star /Linsn /Colorlight
|
|
Control Method
|
Synchronization /Asynchronization control
|
|
LED Screen
|
Normal Display Area (W*H)
|
6*5 m
|
|
Normal Display Pixel (W*H)
|
1536*1152
|
1152*960
|
960*800
|
768*640
|
576*480
|
576*480
|
384*320
|
|
Parameter
|
Brightness(cd/m2)
|
5500-6500cd/m2
|
7000-8000 cd/m2
|
|
Best viewing distance
|
4-50m
|
5-50m
|
6-50m
|
8-100m
|
8-100m
|
8-100m
|
10-150m
|
|
Viewing angle
|
140° W ; 140 °H
|
|
IP grade
|
front IP65 ,back IP 54
|
|
Life span
|
96,360 hours
|
|
Working Voltage
|
AC 220V/110V±10%
|
|
Input Power Frequency
|
50/60Hz
|
|
Defect Rate
|
≤0.0001
|
|
Maintenance mode
|
front/back
|
|
Average power consumption
|
400 W / m2
|
350 - 400 W / m2
|
|
Max power consumption
|
800 W / m2
|
1000 W / m2
|
|
Operating Temperature
|
–30℃~+60℃ 10%~95%RH
|
|
Signal Input
|
HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc.
|
|
Control Distance
|
120 m (no repeating); Optical fiber transmission: 500m-
10km
|
|
Systems Operating Platform
|
WINDOWS(WIN2000/ WINXP/WIN7/WIN8/WIN10)
|
Our Outdoor Digital Advertising Media Smart City Terminal Transportation LED Panel Screen Advantage :

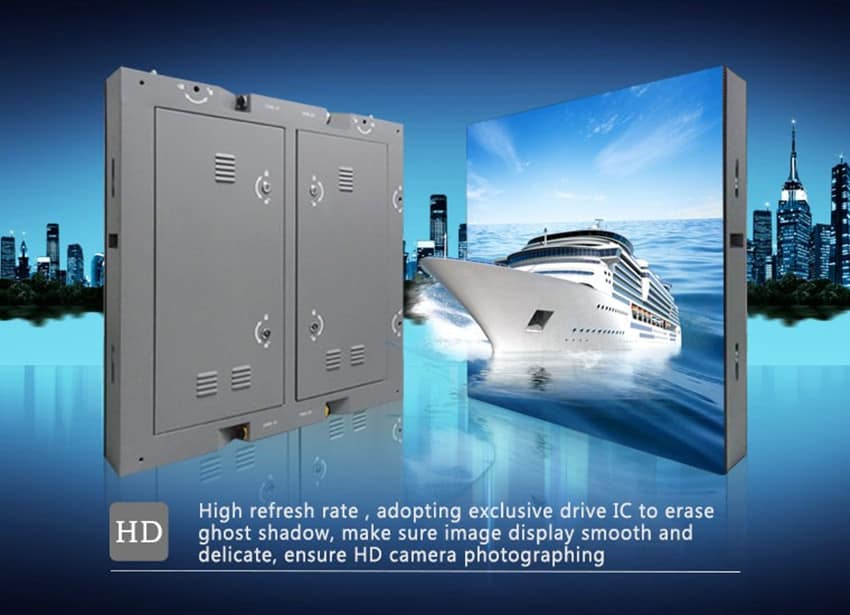

1.LED pole advertising screen Cabinet structure is with light weight and standardization: adopting high strength metal process, achieving high precision, light weight and other outstanding features;Led board panel is uniform image picture with high refresh frequency and gray level to realize the vivid effect.
2.Led display stand High bearing strength and fast installation through the connecting plate. With flexible installation, such as embedded installation, post mounting,etc. outdoor led advertising screen would not occur the extrusion and deformation phenomenon between the modules when the pixel pitch high brightness outdoor message display system transportation traffic digital signs led screen is working under the high and low temperatures.
3.The Led video wall display achieve low heat, low noise and low radiation: through the good structure design, ensure the video wall screen Low decibel value and stable performance when led display board project works in the normal temperature; Passed CE,RoHS,FCC ,SGS ,TUV .
4.Outdoor electronic signs is high voltage thermal pull out plug in application: Outdoor led video display boards will not strike fire during pull out the plug process, and fully accomplish the phenomenon such as waterproof, anti-interference, corrosion resistance,etc.
