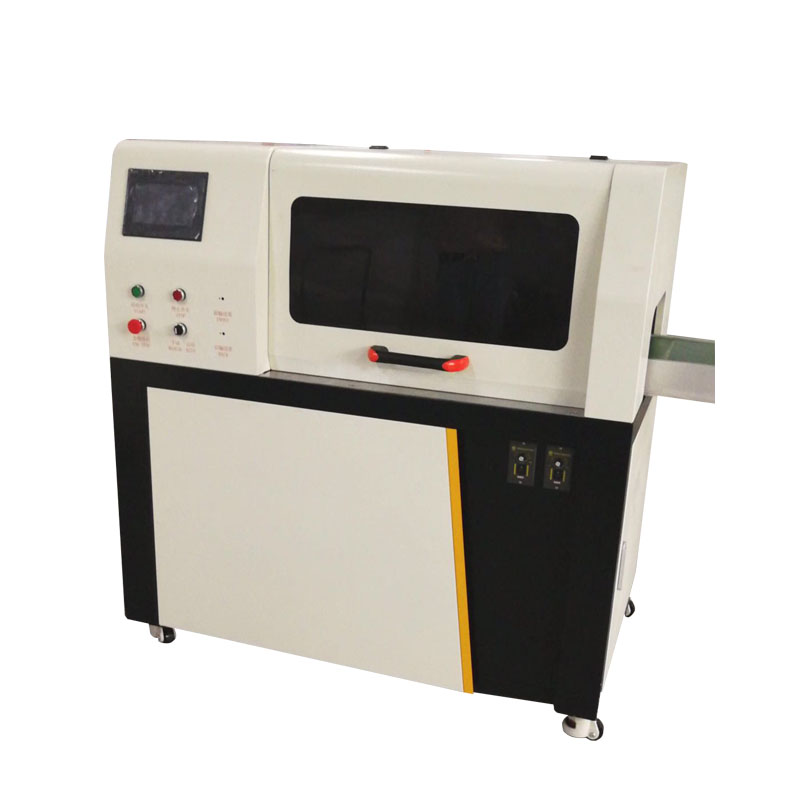

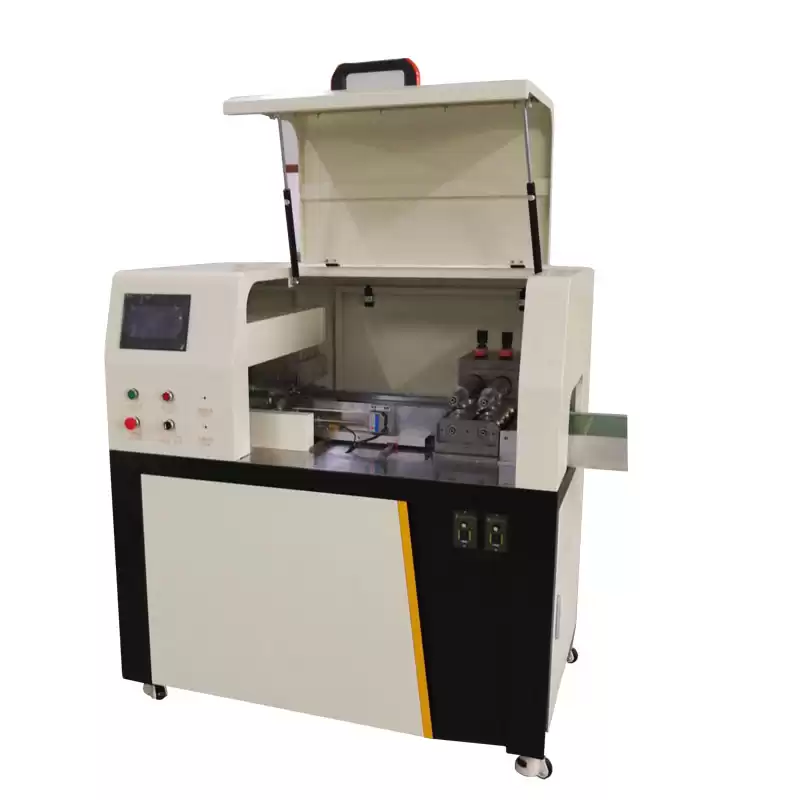

Inline Multi Group PCB Cutting Machine For V-cut Boards
Inline Multi Group PCB Cutting Machine Description:
This is a double directions depaneling with horizontal and vertical boards to realize inline depaneling for “#” shape panels at one time. High automation, the PCB cutting machine can connect PCB loader and unloader, can be achieved without
human, save labor. Touch screen operation, enabling quick product changing, PLC data storage capacity is 100 programs. One direction of
depaneling is also workable, could set horizontal and vertical depaneling by touch
screen, more intelligent. Dust cleaner is optional.
Inline Multi Group PCB Cutting Machine ;Features:
Workable for ;"#"shape depaneling.
Horizontal and vertical ;depaneling is optional.
Blade set can be quickly changed.
Could connect PCB loader and PCB unloader to ;realize fully automated production ;to save ;labor.
Simple ;operation, ;workers can operate it ;after training.
Unique new ;blade ;design, ;lifetime ;should be increased by 1.5-2 times.
Safety: ;Sensor is used to ensure safe production.
Inline Multi Group PCB Cutting Machine ;Specification:
|
Blade dimension
|
Circular blade:¢80 ¢60mm
Linear Blade: 356×43.5×6mm
|
|
PCB width
|
300mm(could be customized)
|
|
Driven mode
|
Stepping / Servo ;motor(optional)
|
|
V-cut angel
|
>40°
|
|
Cutting speed
|
300-500/s
|
|
Blade material
|
High speed steel
|
|
Air pressure
|
0.5-0.8Mpa
|
|
Voltage
|
220/110V
|
|
Dimension
|
1250(1560)mm×800mm×1295mm
|
|
Packaging weight
|
300kgs
|
Our Certificate:
Company Profile:
2008, Dongguan factory established, and start producing standard v-cut PCB separators and hot bar soldering machines.
2010, Our products are widely sold in local market.
2012, Start producing customized v-cut depaneling and PCB router.
2014, ;Expand our sales team for providing better service to more customers.
2015, Start manufacturing laser depaneling machines.
2017, Start manufacturing ;soldering robot and screwdriver machines.
2018, HK company established.
2019, Huizhou factory established, due to expansion.
2020, Business expansion again, products covering PCB depaneling, PCB soldering, screwdriver system, etc. ;
2021, Our machines cover all Chinese market and also popular in America, Europe, South Asia, East Asia, etc.
Our Service:
1. Guarantee for 12 months.
2. Maintenance for whole life.
3. We ;will ;provide ;the ;consumable ;parts ;at ;an ;resonable price.
4. 24 ;hours x 7days online ;service, ;free ;technical ;support.
5. Machine ;has ;been tested before ;delivery.
6. We ;have ;manual ;instruction ;and Guiding ;Videos for installation, ;operation ;and machine's ;using ;and ;maintenance.
7. Oversea on-site installation and trainning is available.
8. Vacuum & wooden case packaging is provided free of charge for sea shipment.
