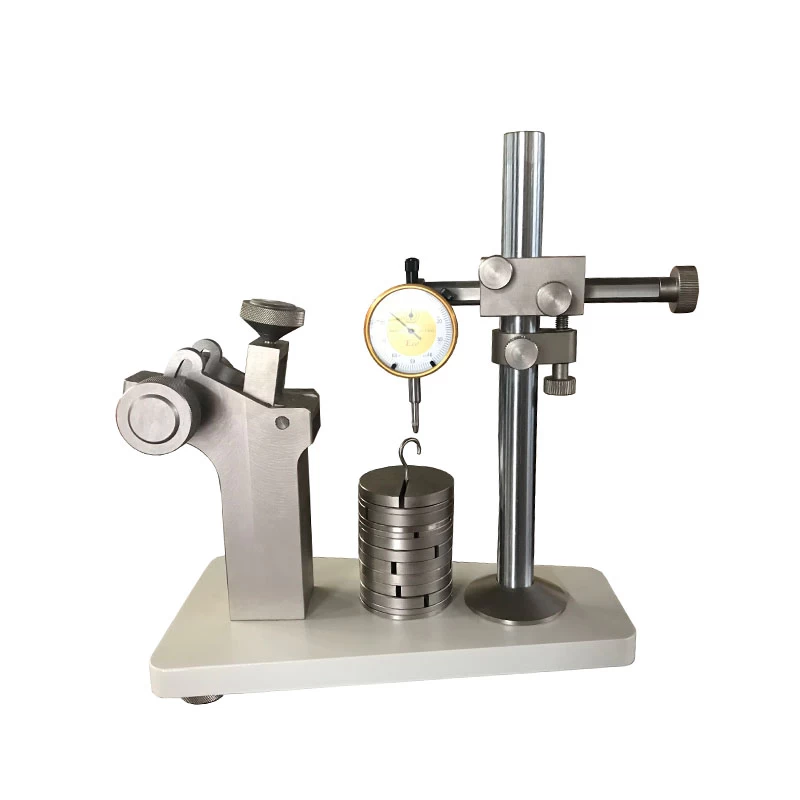

AF34-Insole Backpart Stiffness Tester
Application Of Insole Backpart Stiffness Tester
Insole Steel Shanks Stiffness Tester is used to determine the Insole backpart stiffness of shoes, the test principle is fixed the end, and add the load on the front end, cause bending deformation, then measuring the deflection of the backpart, account the stiffness.
Standards Of Insole Backpart Stiffness Tester
BS-5131 4.18, QB T1812, QB T1813, QB T 1813-2000, GB 28011-2011(7.5), GB T 3903.34-2008, ISO 18896
Key Specification Of Insole Backpart Stiffness Tester
|
Model
|
AF34 Insole
Backpart Stiffness Tester
|
|

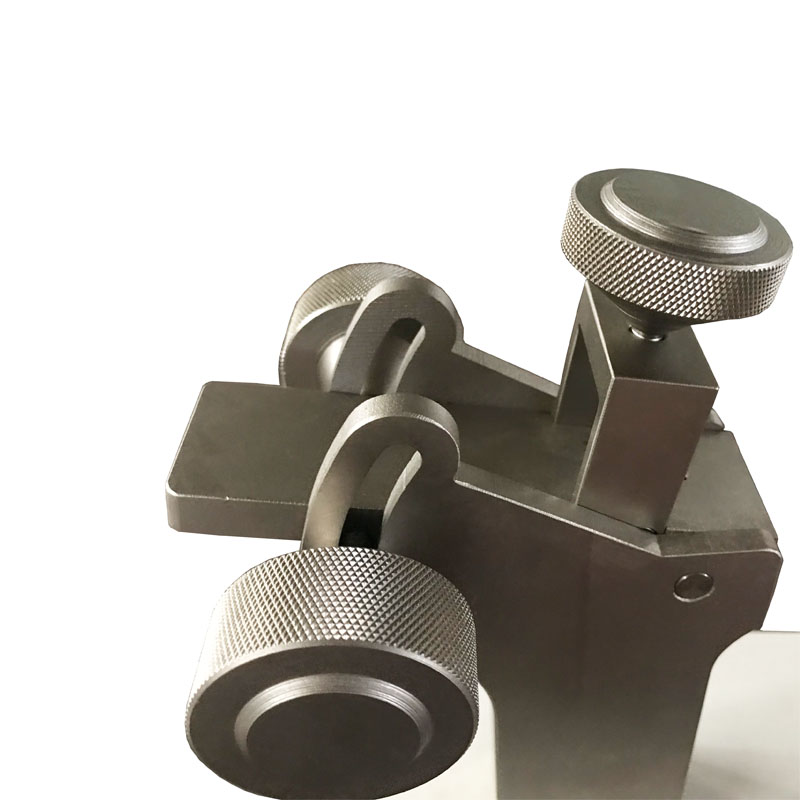

Adjustable
angle of back-end fixture
|
≤30°
|
|
Special
measuring Length
|
60±0.02mm
|
|
Splint thickness of front fixture
|
12mm
|
|
Splint
thickness of back-end fixture
|
32 mm
|
|

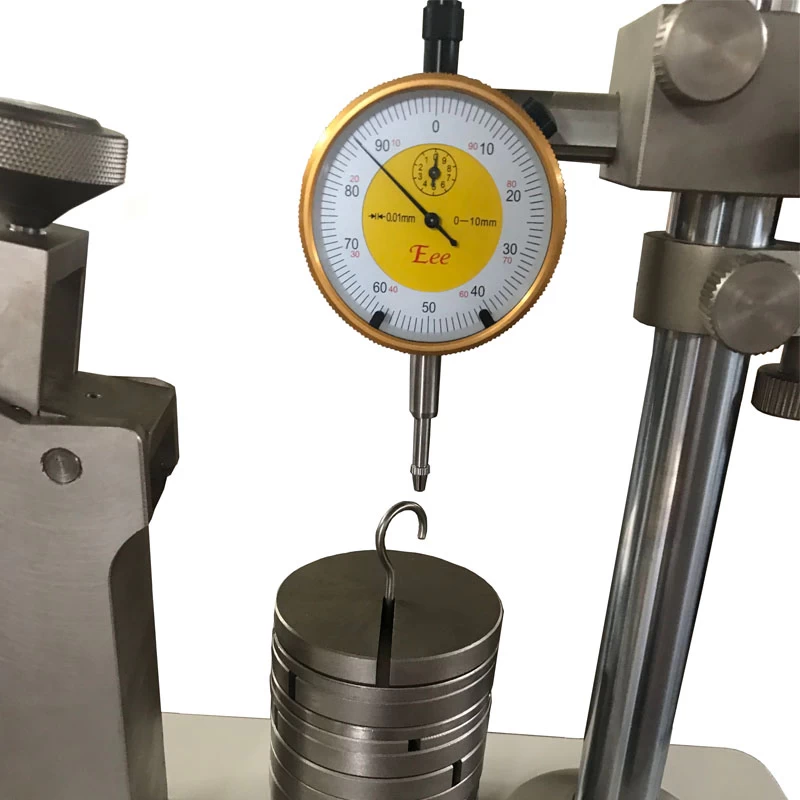

Dial
indicator
|
0.01～10 mm(minimum scale
0.01mm)
|
|
Dimension
|
30×16×40 cm
|
|
Weight
|
12kg
|
