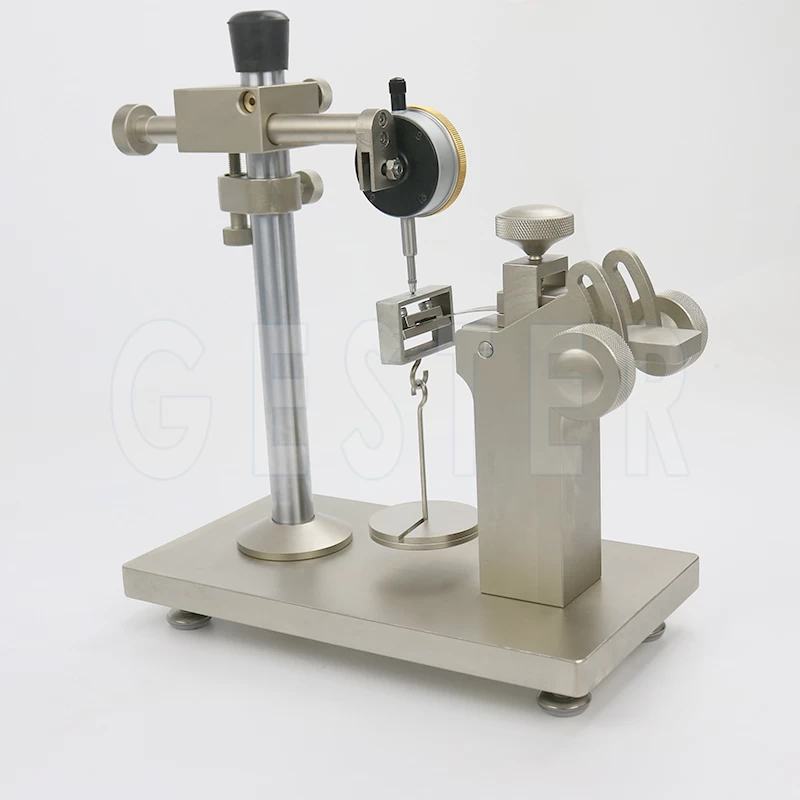

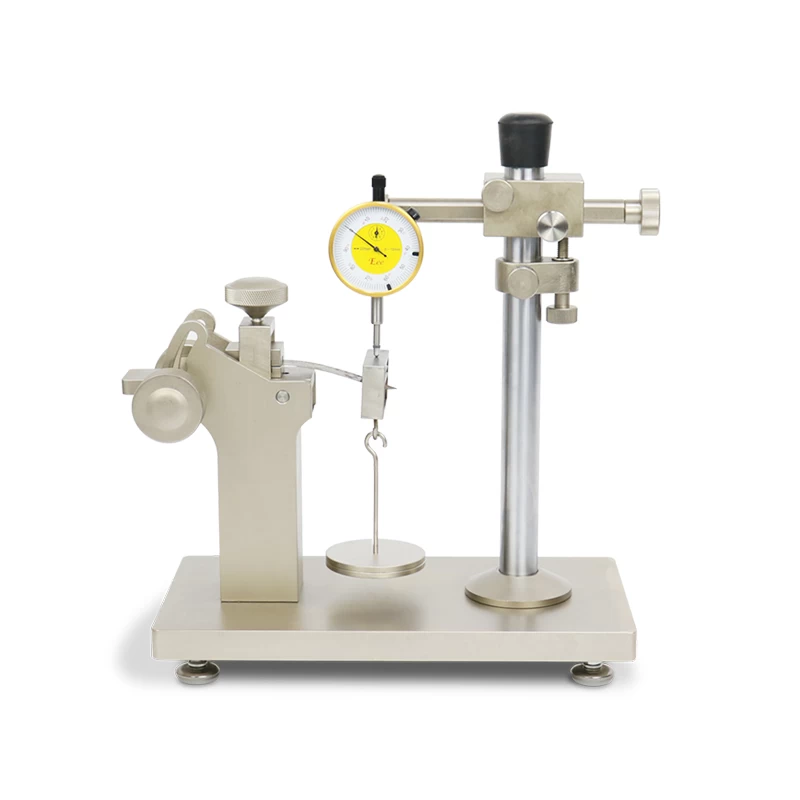

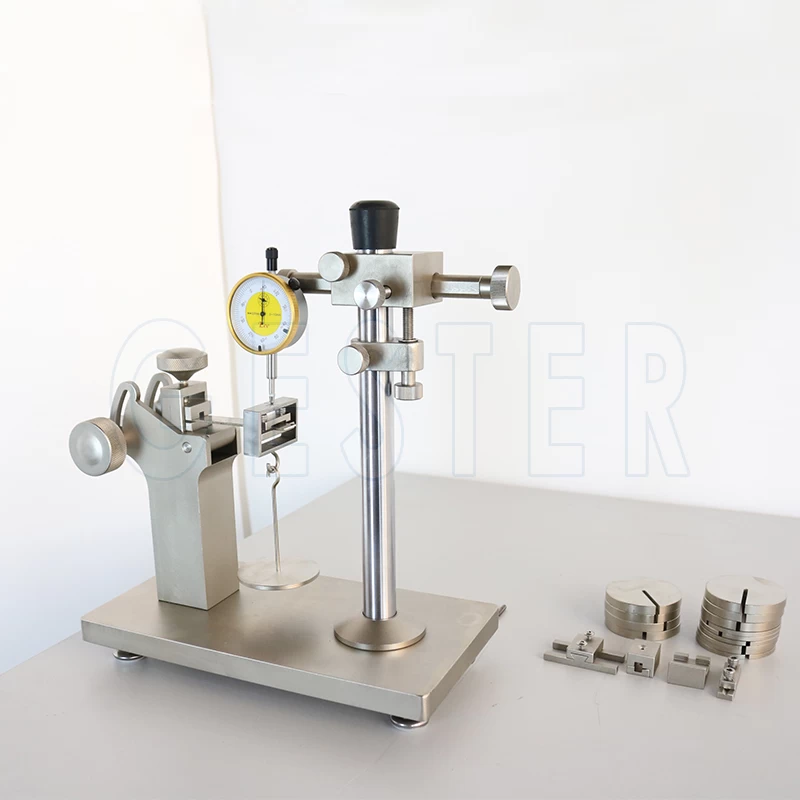

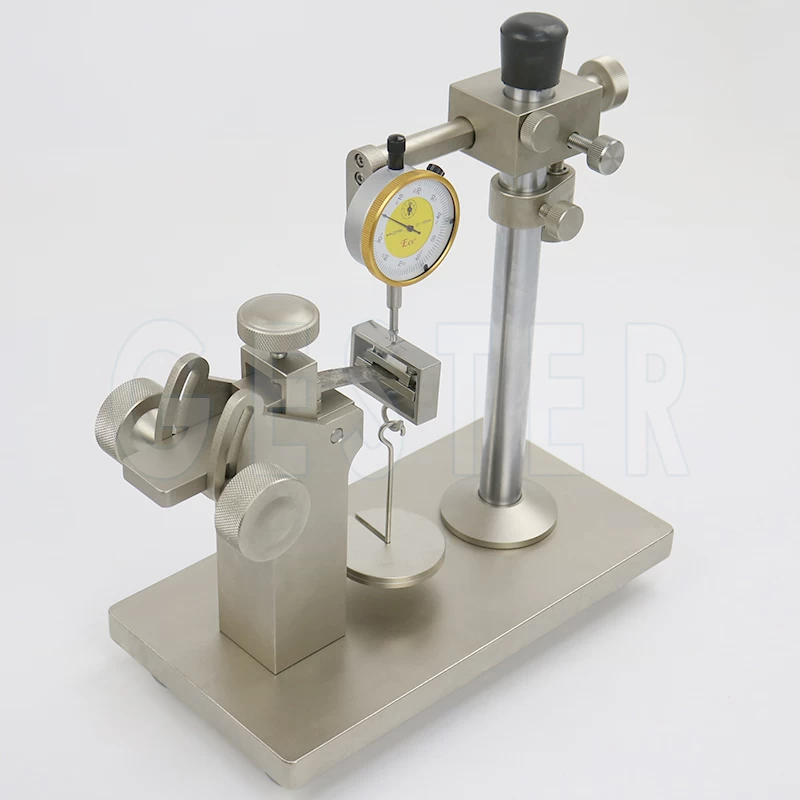

Insole Backpart Stiffness Tester GT-KB45
Product Introduction
|
Application:
This Insole Backpart Stiffness Tester is used to measure the stiffness in the longitudinal direction of steel shanks used for the reinforcement within footwear and it applicable to steel shanks for all styles of footwear.
Standards:
SATRA TM 58, BS-5131-4.18, ISO 18896
|

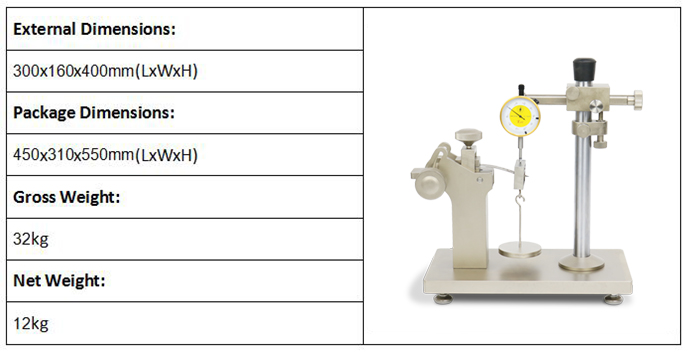

Dimensions

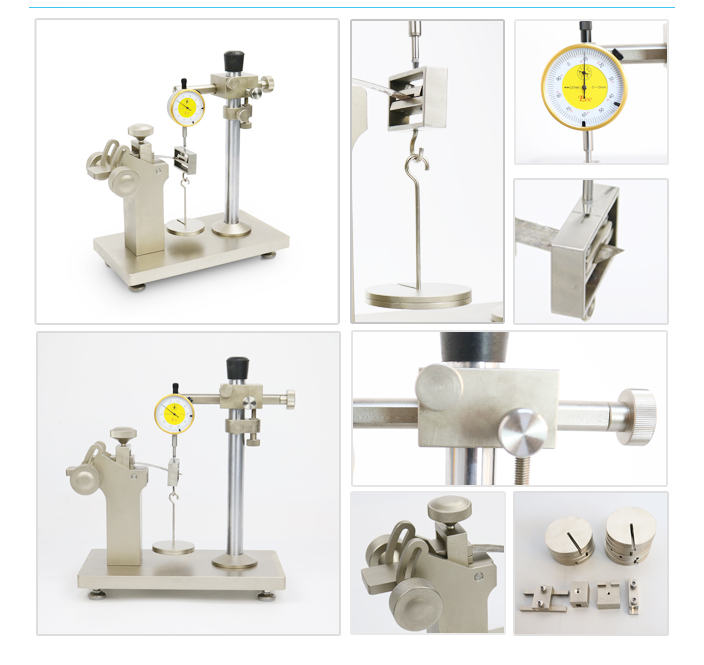

Feature
It tests the specimen by simulating a personal walking in a normal way so as to determine the
resistance of the specimen to flex. Users can set the number of tests themselves, and it will stop
automatically when the number of tests has been reached. More than one specimen can be tested
once in order to enhance work efficiency.
Key Specifications
Model
|
GT-KB45
|
Adjustable angle of back holders
|
≦30degree
|
Specified measuring length
|
60±0.02mm
|
Thickness of front clamp
|
12mm
|

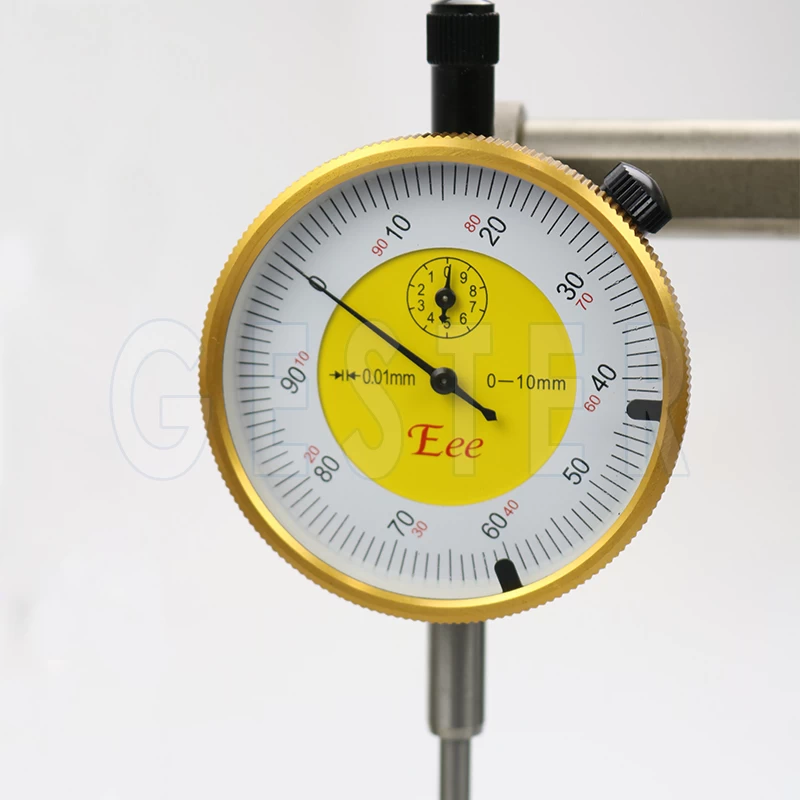

Dial gauge
|
0~10mm(Min. graduation 0.01mm)
|
Dimensions（W×D×H）
|
30 cm ´ 16 cm ´ 40 cm
|
Weight
|
12kg
|
Standards
|
SATRA TM 58, BS-5131-4.18,
ISO 18896,
QB/T1812, QB/T1813,
GB/T 3903.34
|

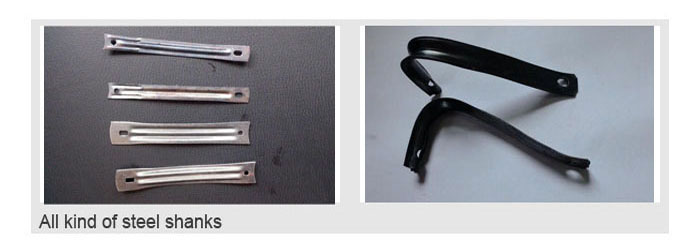

Application Industry
All the material blow can be tested on the Insole Backpart Stiffness Tester
