The Ultimate Integration of Virtual Simulation and Physical Control
Core Capabilities
1. Virtual-to-Real Synchronization System

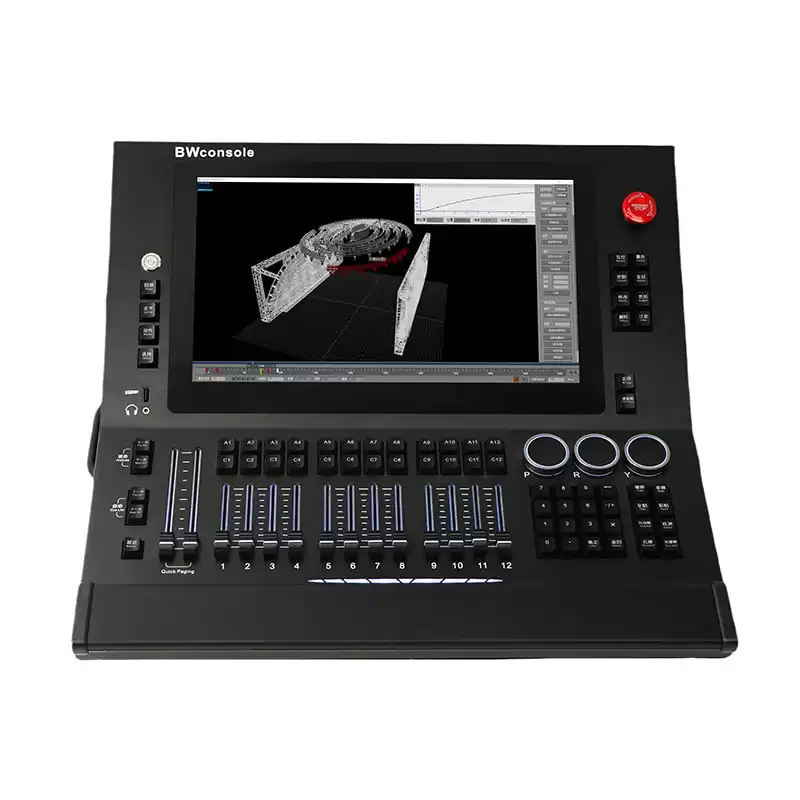

Pando 3D Simulation Engine
-
1:1 digital twin creation for all stage machinery (hoists, lifts, turntables, flying systems)
-
Real-time motion trajectory visualization with collision detection (90% risk prevention)
-
Seamless EtherCAT motor mapping: Validate in simulation → Execute on physical equipment
Key Benefits
✔ Eliminates costly on-site trial-and-error
✔ "What You See Is What You Get" programming
✔ 5x faster show programming than traditional methods

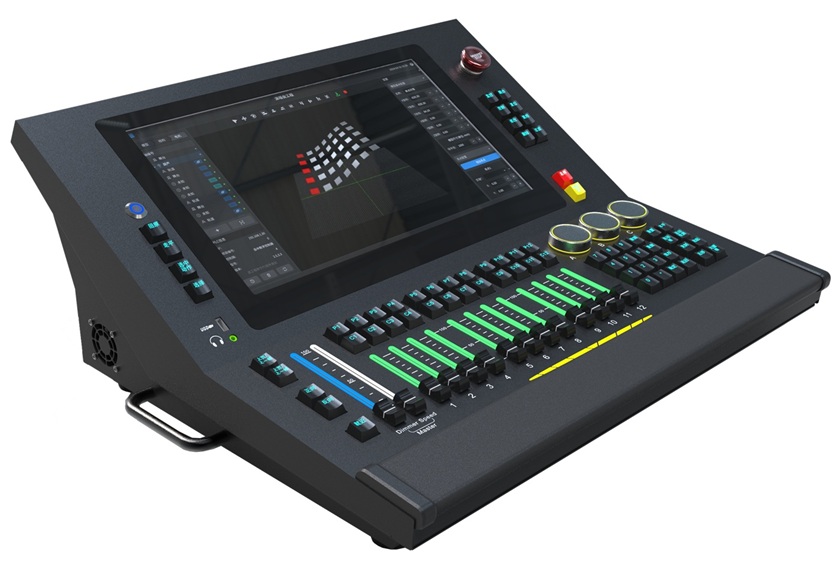

2. Full-Scene Visual Programming
| Feature |
Technical Advantage |
| Drag-and-drop timeline |
Intuitive cue sequencing without coding |
| DMX512/ArtNet triggers |
Perfect sync with lighting/media systems |

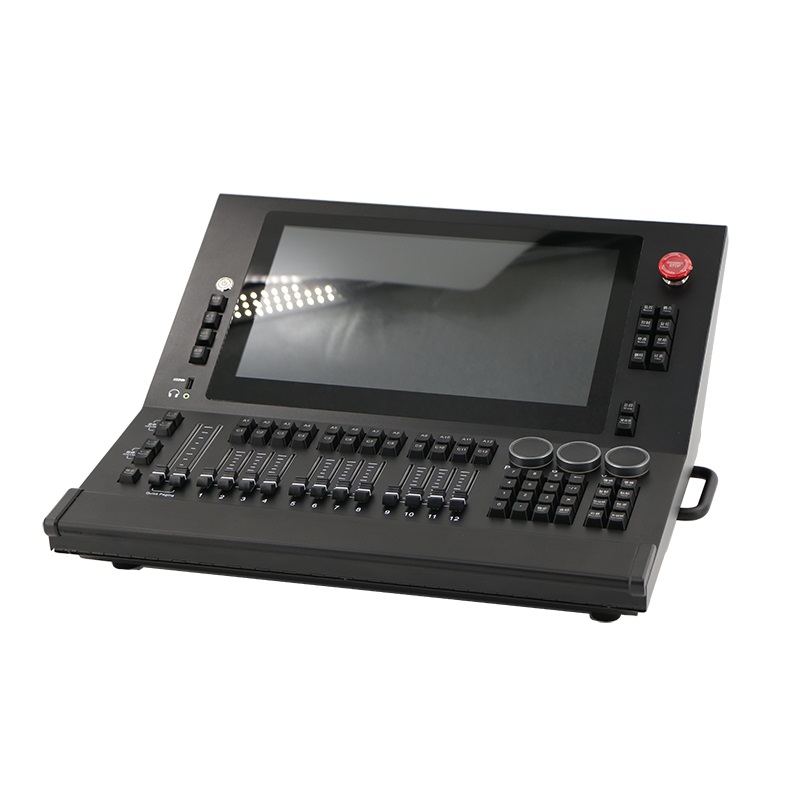

| Touchscreen interface |
21.5" 1080P panel for on-site adjustments |
| Cloud-based scene library |
Save/recall 360+ motion presets per project |
Unique Capability
• Wireless Multi-Device Control - Operate via console, tablet, or laptop during debugging
3. Safety Specifications
-
256-axis synchronous monitoring (1mm positioning accuracy)
-
Dual-redundant emergency stop circuits
-
ISO 13849-1 PLD certified safety functions
Technical Specifications
Hardware
-
Processor: Intel i5-8700 Linux OS
-
Memory: 4GB RAM + 32GB SSD
-
Interfaces: 2×DMX512, 1×EtherCAT, 2×USB 3.0
Performance
-
Controls: 256 motors (128 in loop topology)
-
Response Time: <0.1ms axis synchronization
-
Motion Accuracy: 1mm positional / 0.1s temporal
System Architecture
| Category |
Specification |
| Control Capacity |
• 256 motors max (128 in ring topology) |
| Precision |
• 1mm positional accuracy
• 0.1s temporal resolution |
| Data Management |
• Cloud-based project storage
• 360 static + 360 dynamic motion presets/project |

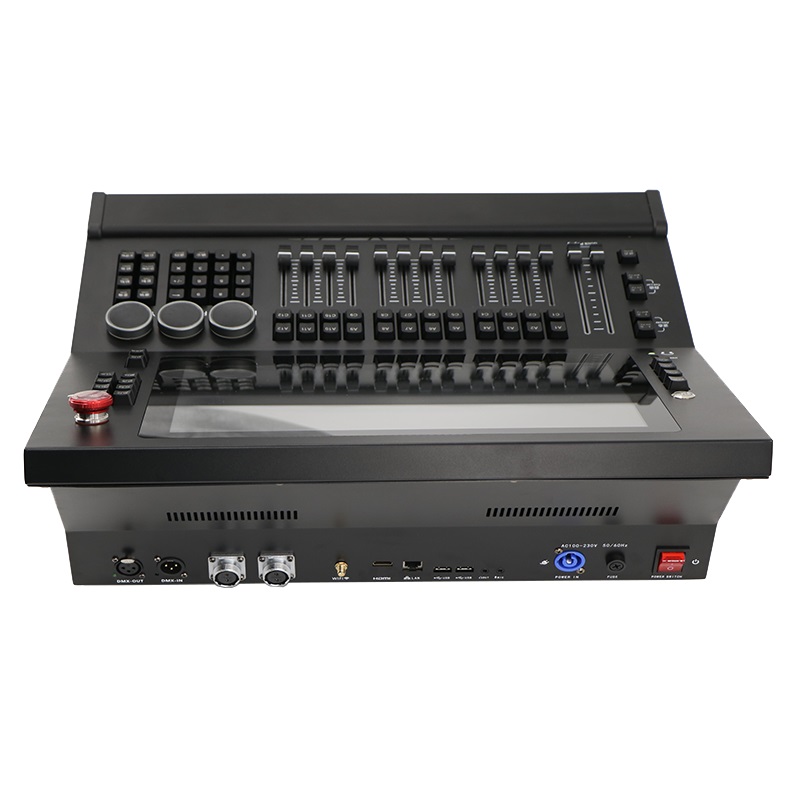

Interfaces:
-

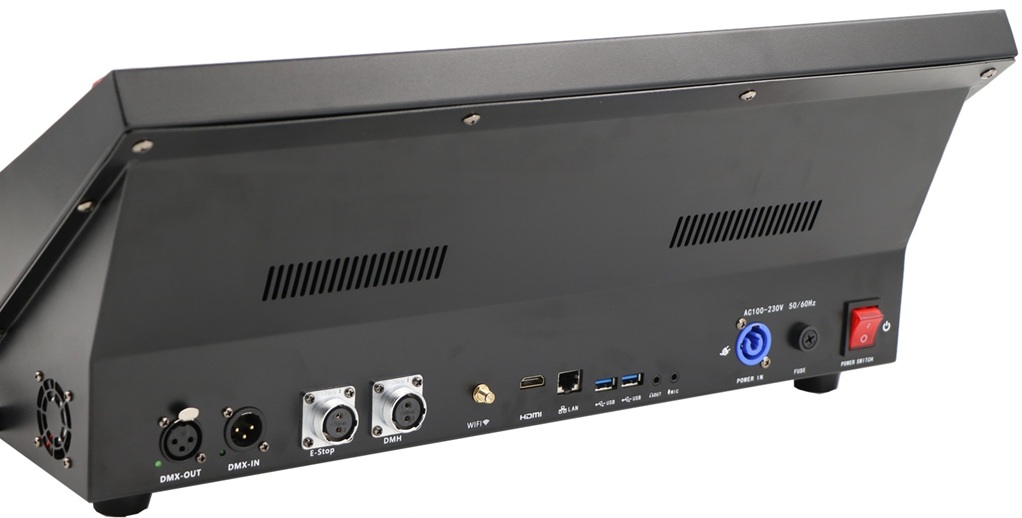

Control: 2×DMX512, 1×EtherCAT (1000BASE-T)
-
Safety: 1×E-STOP, 1×DMH (Dual-Mode Hard-stop)
-
Peripheral: 2×USB 3.0, 1×HDMI
Software Environment
| Feature |
Capability |
| OS Platform |
Linux Real-Time OS (Xenomai kernel) |
| 3D Modeling |
• obj format file import
• Drag-and-drop scene builder |
| Motor Configuration |
Virtual-physical motor mapping with auto-topology detection |
| Programming Methods |
• Timeline keyframing
• Cue
• Absolute/relative positioning |
Safety Systems
Emergency Stop Options:
-
Built-in Cat.0 (hard power cutoff)
-
External footswitch (optional)
-
Software-initiated Cat.1 (controlled stop)
Monitoring:
-
Real-time motor telemetry (position/speed/load)
-
Thermal sensors with auto-derating
-
Network heartbeat detection
Physical Specifications
-
Dimensions: 4U rack-mountable (19")
-
Operating Temp: -10°C to 50°C
-
Certifications: CE, SIL2, GB5226.1-2019
Language Support
-
English/Chinese UI
-
Localized documentation
Industry Applications:
🎤 Concerts & Music Festivals
Challenge: Fast-paced programming under tight deadlines
BW Solution:
-
5-minute virtual rehearsal for flying speaker arrays
-
Real-time load monitoring for moving LED walls
-
DMX-sync for pyro/special effects timing
🎭 Theatrical Productions
Challenge: Safe actor flying with complex scene changes
BW Solution:
-
Millimeter-precise wire trajectory planning
-
Automated multi-scene transition sequencing
-
Collision detection for moving set pieces
🎢 Theme Park Spectaculars
Challenge: Coordinating large-scale dynamic elements
BW Solution:
-
Water screen/animatronic synchronization
-
Weatherproof control for outdoor installations
-
24/7 reliability for continuous operation
🏫 Education & Training
Challenge: Hands-on learning without equipment risks
BW Solution:
-
Virtual stage machinery lab
-
Student permission tiers for safe learning
-
Exportable training scenarios
