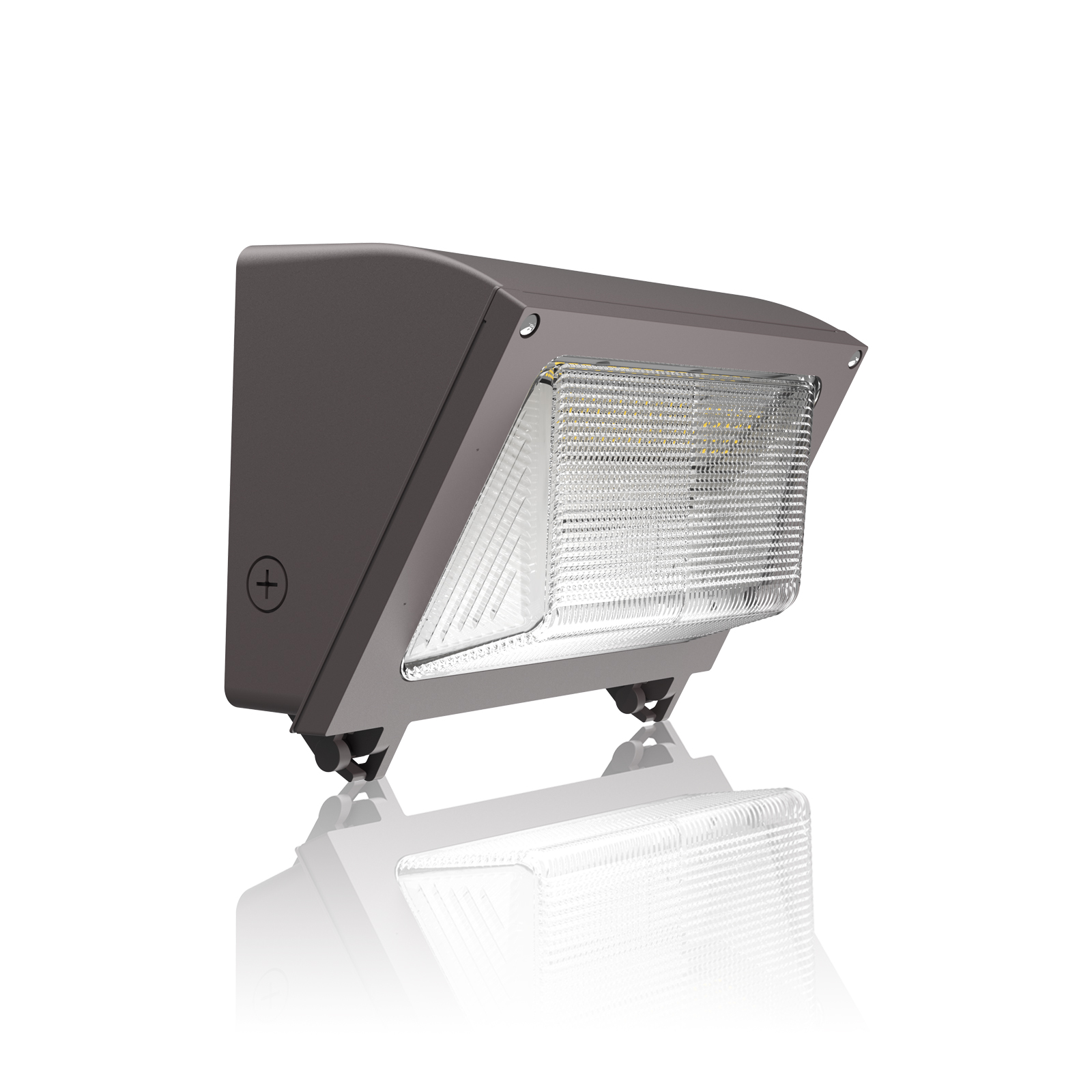

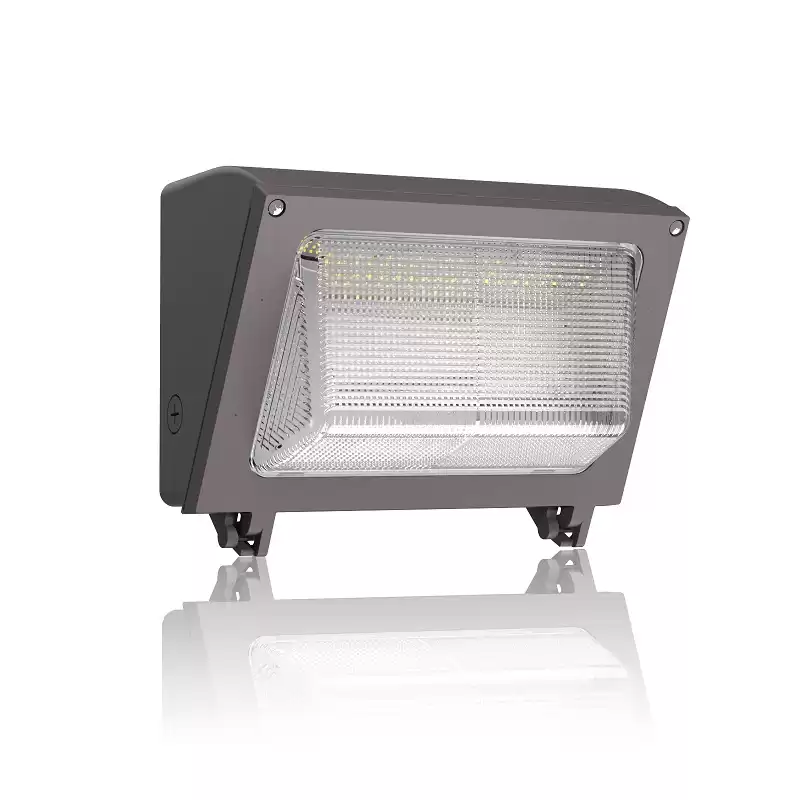

DESCRIPTION:
It is a safety isolated driver classic wall pack, 120-277VAC/120-347VAC, making sure have more optional for different countries and applications. Due to the power supply and the optical part are separated, the thermal performance is pretty good. For application, building facade, commercial, industrial, retail, hospitality buildings that demand long service life and low maintenance. It can be installed sensors fast without tools when needed, which can be used in conjunction with MORSTAR Bluetooth APP to control fixtures.
FEATURES:
• Easy installation
• Long Lifespan. Premium 2835 LED chips lasting over 50,000 hours.
• ETL/cETL/DLC premium certificate
• Dimmable. Compatible with 0-10V dimming switches or lights controls.
• Save up to 85% ENERGY
• Strong housing and Anti-yellow glass.
CONSTRUCTION:
• IK08 borosilicate prismatic glass
• Durable die-cast aluminum housing
• light weight, and low transportation cost
RECOMMENDED USE:
•Building facade commercial, industrial, retail, hospitality buildings that demand long service and low maintenance.
Working temp:-22°F to 104°F (-30°C to +40°C). Storage temp.:-40°F to 158°F (-40°C to +70°C)
WARRANTY:
7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -22°F to 104°F.

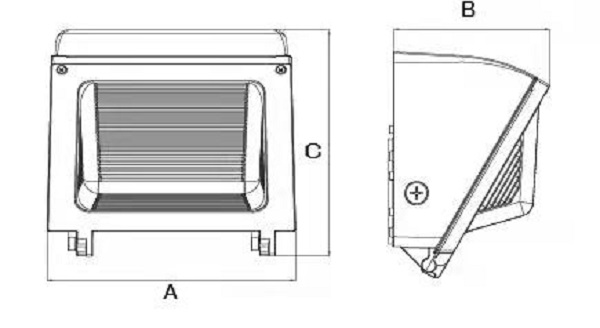

DIMENSION DRAWING:
|
MODEL
|
A (INCH)
|
B (INCH)
|
C (INCH)
|
|
30W
|
10.27″
|
6.42″
|
9.32″
|
|
40W
|
10.27″
|
6.43″
|
9.33″
|
|
50W
|
10.27″
|
6.44″
|
9.34″
|
|
60W
|
10.27″
|
6.45″
|
9.35″
|
|
80W
|
10.27″
|
6.46″
|
9.36″
|
|
100W
|
12.05″
|
6.42″
|
9.32″
|
|
120W
|
12.05″
|
6.42″
|
9.32″
|
SPECIFICATION:
|
ITEM
|
SPECIFICATION
|
Normal Type
|
|
GENERAL
PERFORMANCE
|
Power Consumption
|
30W
|
40W
|
50W
|
60W
|
80W
|
100W
|
120W
|
|
Equivalent Wattage
|
100W MH
|
150W MH
|
150W MH
|
200W MH
|
250W MH
|
250W MH
|
400W MH
|
|
Lumens Delivered
|
3750lm
|
5000lm
|
6250lm
|
7500lm
|
10000lm
|
12500lm
|
15000lm
|
|
Efficacy
|
125LM/W (±10%)
|
|
CRI
|
Ra>80
|
|
Color Temperature
|
4000K/5000K/5700K
|
|
L70 Lumen maintenance
|
50,000hrs
|
|
ELECTRICAL
|
Power Factor
|
≥0.90
|
|
Input Voltage
|
120-277VAC/120-347VAC
|
|
Dimming
|
0-10V
|
|
PHYSICAL
|
Mounting
|
wall-mounted
|
|
Operating Temperature
|
-22°F to 104°F
|
|
Humidity
|
Operating Humidity: RH<90%
|
|
QUALIFICATION
|
Qualifications
|
ETL/cETL DLC Premium
|
|
Material Usage
|
RoHS compliant; no mercury
|
|
Environment
|
Outdoor IP65
|
|
Warranty
|
7 Years Warranty
|

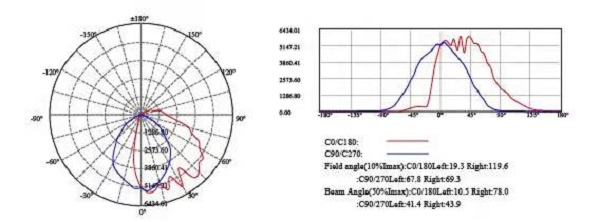

LUMINOUS INTENSITY DISTRIBUTION CURVE:
FAQ：
1. How can smart lamps save money?
A:*. Smart bulbs are usually LED lamps, which are approximately 75% more efficient than incandescent lamps. If you haven’t upgraded to LED lights, just screw in the new bulb and you will see the savings.
*. When there is no one in the room, use the motion sensor to turn off the smart light switch and bulb.
*. When people are away or not, you can use the geolocation on the phone to turn off the lights. The lights are turned on and off according to the schedule.
2.Can smart lamps provide security in usage scenarios?
A: The answer is no doubt. Use motion sensors and contraction sensors to automate your lights, so you don’t need to look around for switches in the dark.
3.What are the options for smart bulbs?
A: Smart bulbs are available in a variety of sizes and colors. Whether it is your home or other commercial places, almost all types of light bulbs can be replaced with smart light bulbs.
4.Can smart lamps be dimmed?
A: You can set different lighting scenes according to your different usage needs. For example, you can adjust the color of the light according to the morning and evening of the time or the change of the season.
