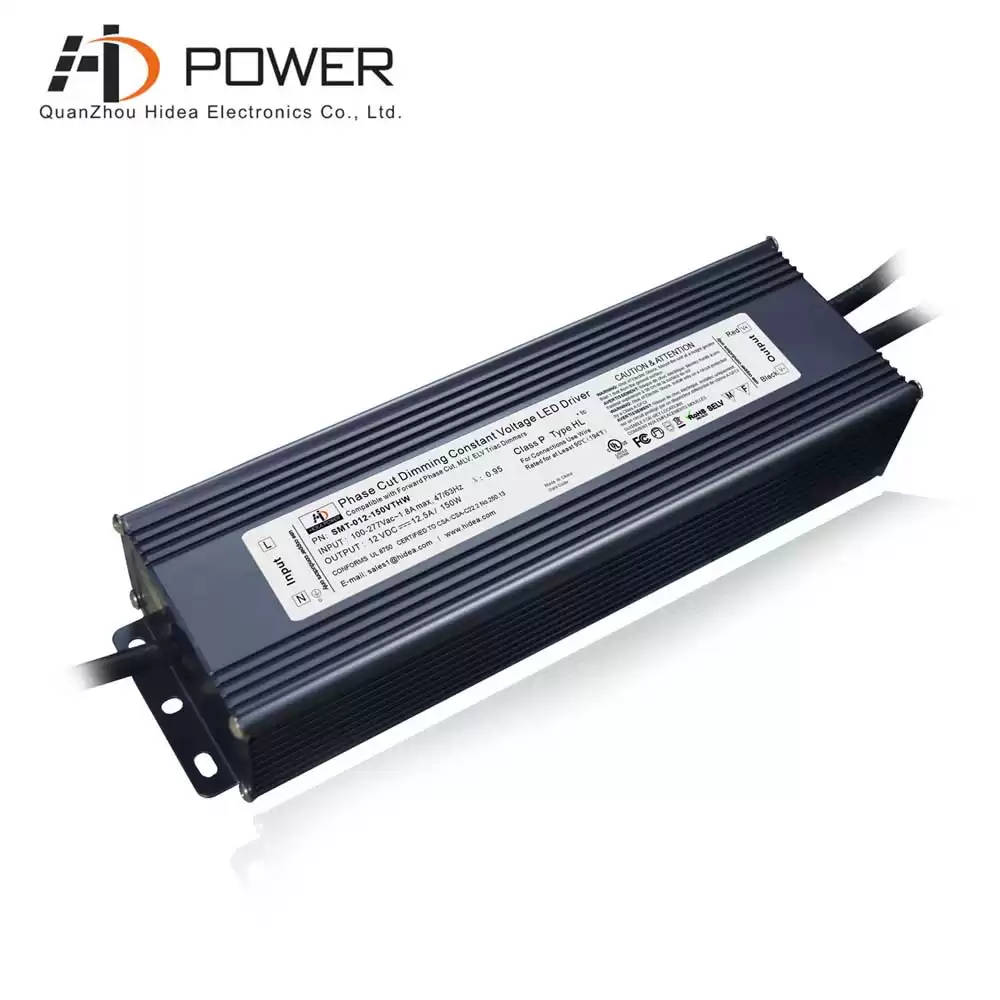

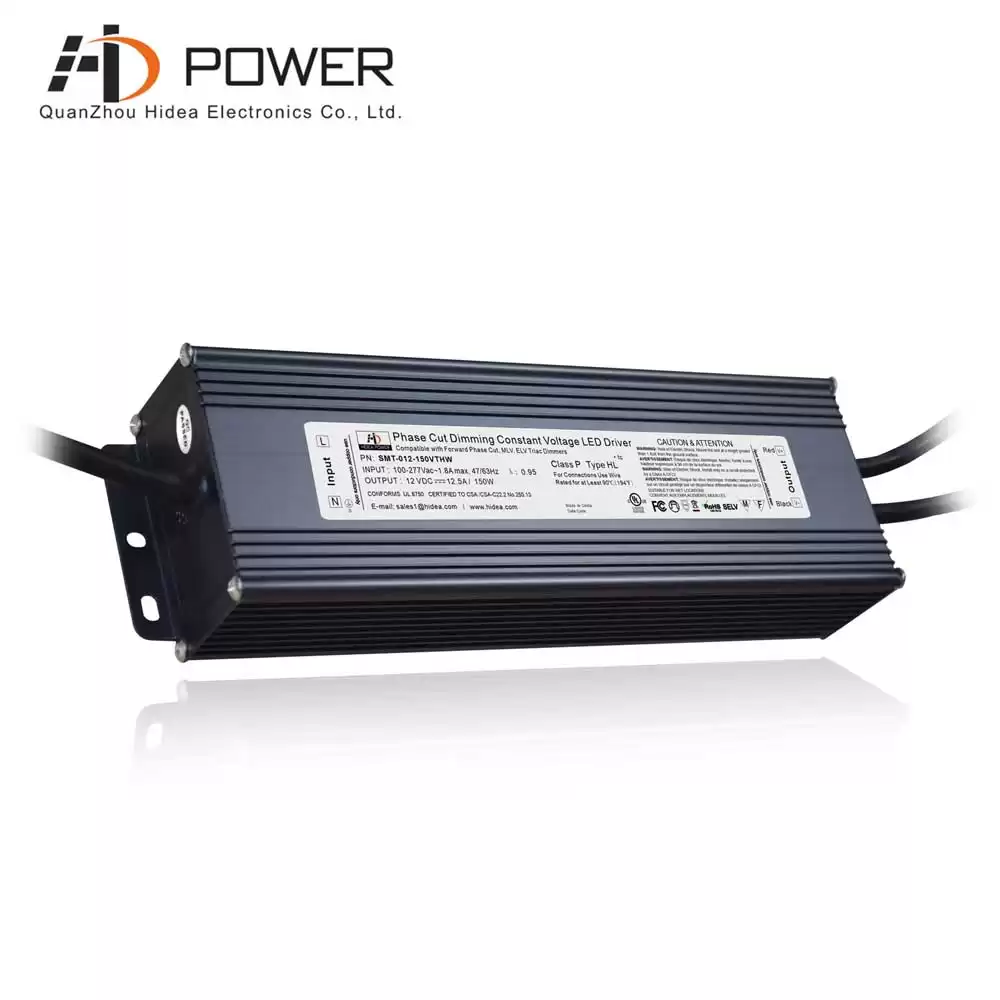

ip67 waterproof 150w 24v constant voltage triac dimming led driver for outdoor
This 150W triac dimmable constant voltage led driver is designed with an aluminum shell, waterproof grade ip67, Work with leading edge and trailing edge TRIAC dimmers, the dimming range is between 0-100%, suitable for outdoor commercial lighting and home lighting installation, 7 years warranty
Specification
|
Model
|
SMT-012-150VTHW
|
SMT-024-150VTHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated current
|
12.5A
|
6.25A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Rated power
|
150W
|
150W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ.) @full load
|
<20%
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.95@277VAC
|
0.97@120VAC 0.94@277VAC
|
|
Full Load Efficiency(Typ.)
|
>85%
|
>85%
|
|
AC Current(Typ.)
|
1.8A/110VAC
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.6ms
|
|
Leakage current
|
﹤0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net Weight
|
1.5Kg
|
|
Size
|
256*78*47mm (L*W*H)
|
|
packing
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|

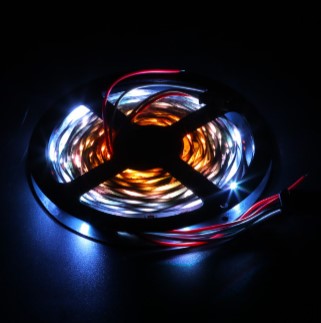

Compatible Light Type
hideapowertech triac dimmable led driver is UL certified, mainly sold in North America, with a 7-year warranty, and can be well connected with most triac dimmers on the market
