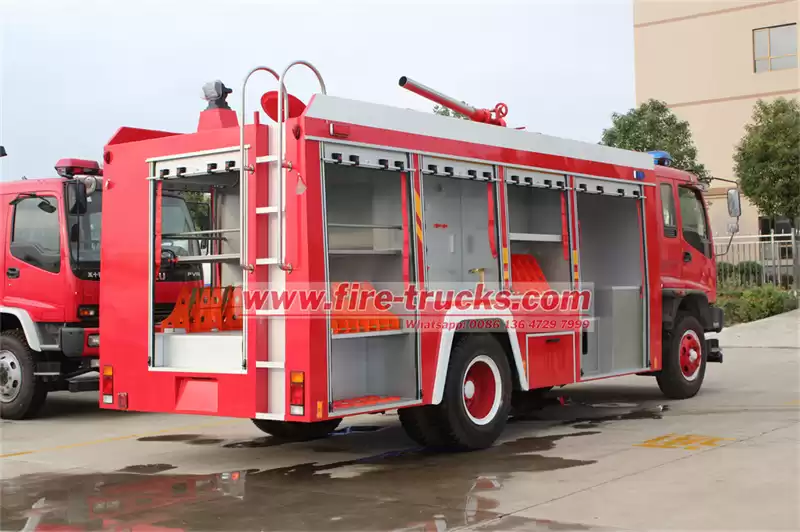

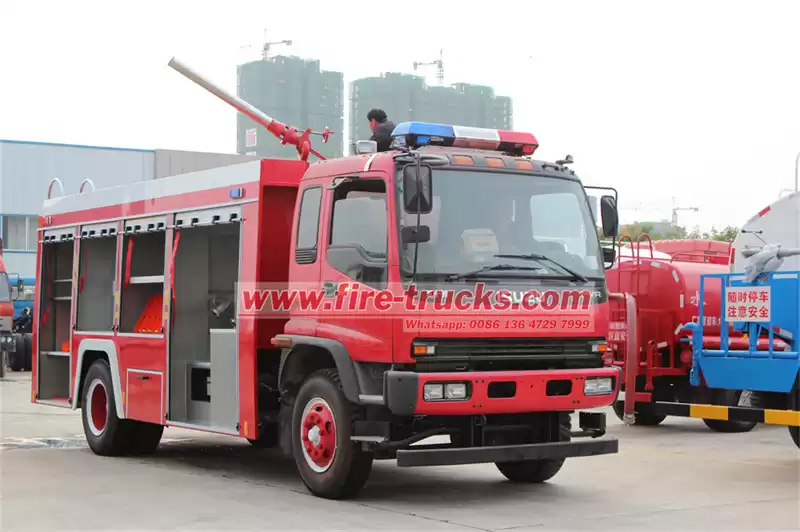

Isuzu 240HP off road fire fighting truck

The Isuzu off-road FVR fire fighting truck is built on the sturdy ISUZU FVR all-drive chassis. It combines excellent power and environmentally friendly emissions. It has all-wheel drive capabilities and can challenge all kinds of difficult roads. It is equipped with a 6000-liters large-capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs.

  • Fire PumpCB10/40, 1600L/min
  • Fire MonitorPS8/48, 48L /s
  • Engine Model6HK1-TCG61
  • Engine Power240HP
  • Axle drive4x4
  • Wheelbase4500mm
  • Work capacity 6000L Water
  • Tanker StructureHigh quality Q235A carbon steel
  • Truck ModelPST52206QXF
  • RemarkOff-road system, Stainless Steel avaiable
Facebook Twitter Pinterest LinkedIn 分享

The Isuzu off-road FVR fire fighting truck is built on the sturdy ISUZU FVR all-drive chassis. It combines excellent power and environmentally friendly emissions. It has all-wheel drive capabilities and can challenge all kinds of difficult roads. It is equipped with a 6000-liter large-capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs. This Isuzu all-wheels fire water truck provides a solid guarantee for fire safety and demonstrates excellent performance and flexibility. The Isuzu FVR fire fighting truck's double-row cab provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with heating and cooling air conditioning to ensure that the driver can stay comfortable in any weather conditions. In addition, the design of the cab also takes into account the convenience and safety of driving.

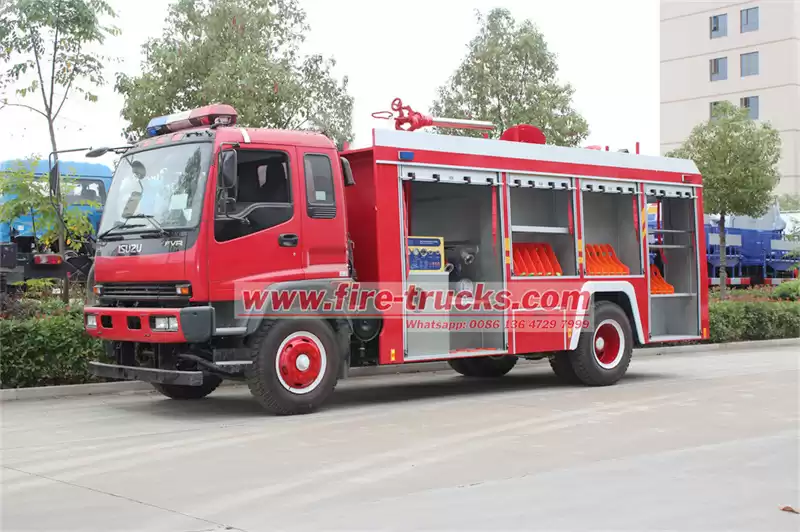

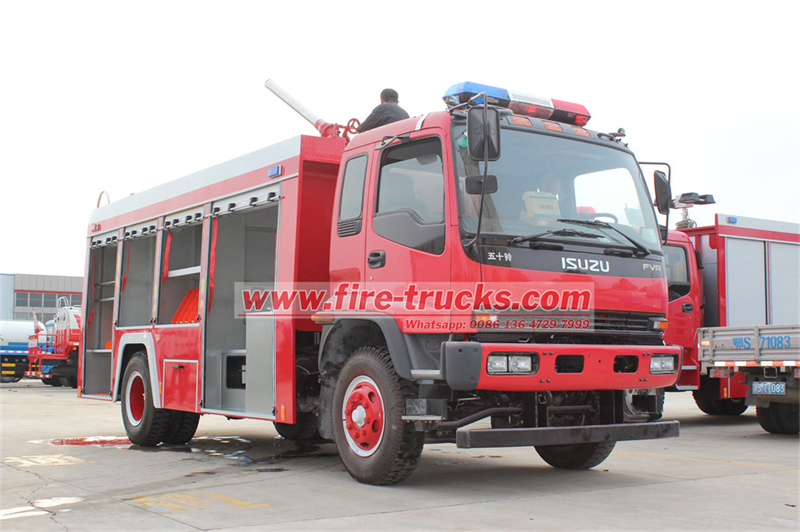

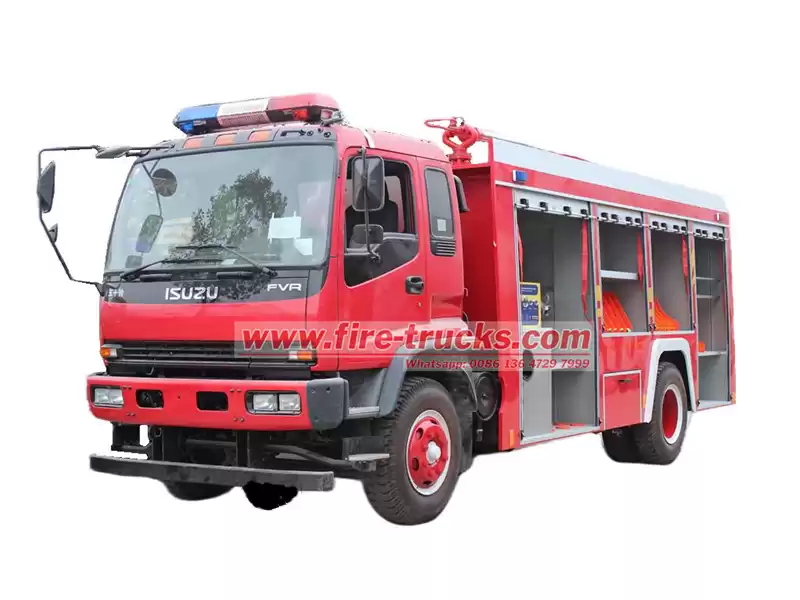

ISUZU FVR 4x4 fire fighting truck



● China best off-road water fire truck factory

● More than 500 workers, large and advanced production

● Be designed according to your requirements

● Promptly delivery. any order is welcome

● 24 month quality guarantee term



Specification:

ISUZU FVR 4x4 fire fighting truck



ISUZU FVR 4x4 fire truck

General

Vehicle Brand

Powerstar

Chassis Brand

ISUZU

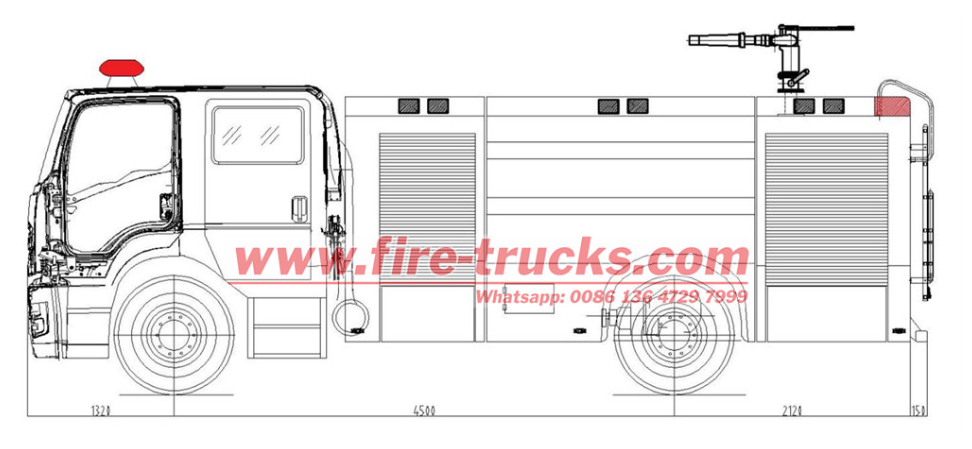

Overall Dimension

8300*2280*2750mm

GWW/ Kerb Weight

22,300kg/9,220kg

Painting

Red color

Cab

Cab Capacity

2+4 persons allowed

Air Conditioner

 air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU engine ,6HK1-TCG61

Engine type

Inline 6-cylinder, turbocharged, inter-cooled diesel engine

Power

240 HP

Displacement

5.19L

Emission Standard

Euro 6

Chassis

Drive Type

4X4,left hand drive

Transmission

Fast 8-speed forward, 2 reverse

Wheelbase/No.of axle

4500 mm/2

Tyre Specification

295/80R22.5

Tyre Number

6 tyres and 1 spare tyre

Max Speed

95 km/h

Fuel tank capacity

200L

PTO

Full power sandwich type























Superstructure

Water Tank Capacity

6,000 Litres

Tank Material

carbon steel

Standardized Sub-frame

Material

High-strength rectangular tube made of special steel

Structure

Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear

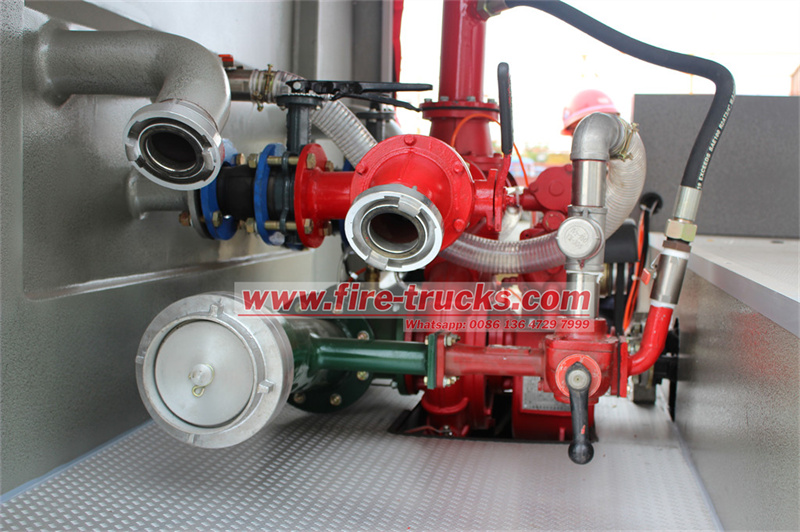

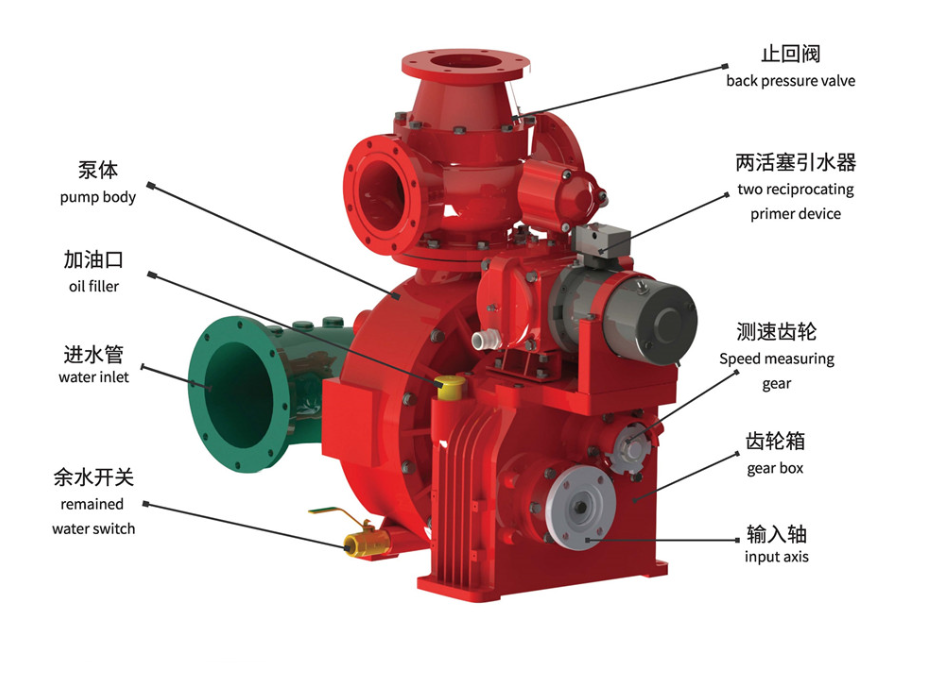

Fire Pump

Brand

China TOP brand

Drive mode

 PTO

Priming Manner

Automatic

Pressure range

1.6-2.5 MPa

Flow rate

45L / s

Suction Height

9m

Fire Cannon

Flow speed

45L /s

Range

65 m

Superstructure Electric Appliance

Warning Light and Siren

Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.

Strobe Light

Mounted on the both sides of the compartment

External Lighting

LED lights are mounted on the both sides of the compartment

Roof Lighting

LED lights are mounted on the inside of the roof

Side Indicator Light

Inline yellow warning light is mounted on the side of the compartment and pedals

All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars...

Optional

** Back alarm and Camera can be equipped

** Standard carbon steel, stainless steel optional

** USA or Germany fire pump can be optional





What standards are required to make high-quality ISUZU 4x4 fire truck?

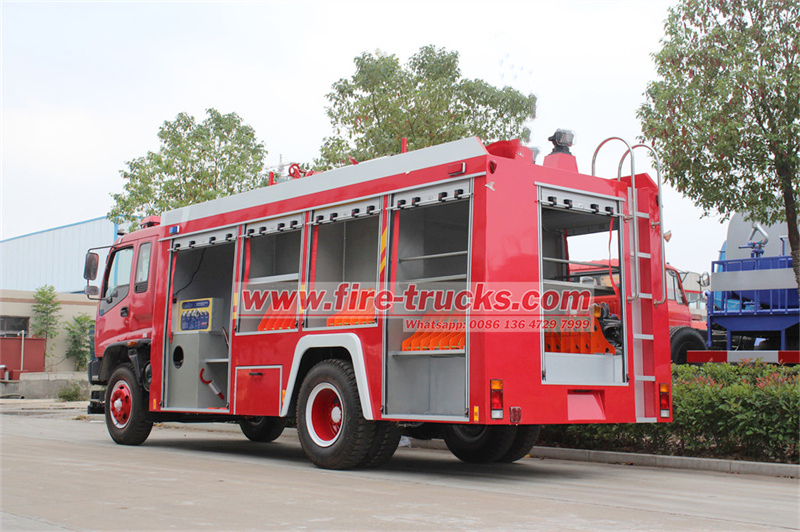

ISUZU FVR 4x4 fire truck

1. Strengthening process of chassis and all-wheel drive system

♦High-precision welding and reinforcement: Robot welding technology is used to reinforce the key load-bearing parts of the FVR all-wheel drive chassis (such as beams and suspension brackets) in multiple layers to ensure torsional strength and durability under rugged road conditions.

♦Precision assembly of four-wheel drive system: core components such as transfer cases, differential locks, and drive shafts must pass dynamic balance tests and match full-time four-wheel drive logic to ensure traction distribution on complex roads.

♦Anti-corrosion treatment: The chassis is electrophoresis coated + multi-layer anti-rust sprayed, and passes the salt spray test to cope with the corrosive environment where fire trucks are frequently exposed to water and chemical agents.

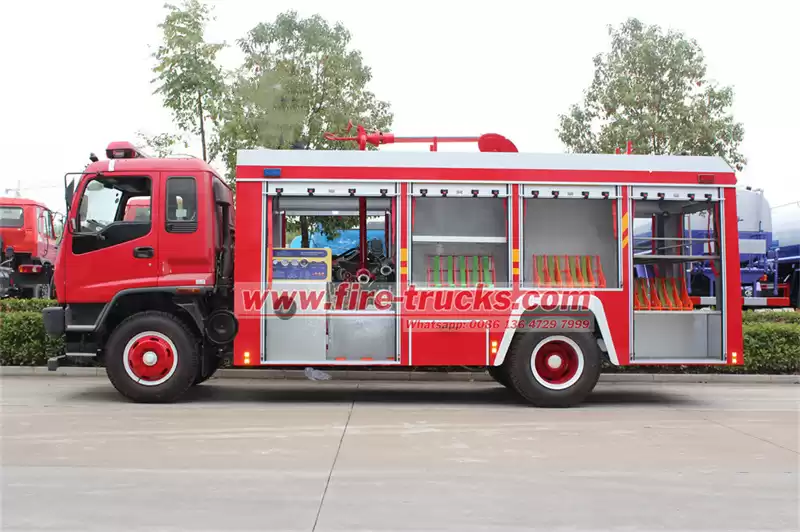

ISUZU FVR 4x4 fire truck

2. Integration of special upper structure and functional components

♦ Manufacturing of large-capacity water tanks:

Material selection: Use high-quality stainless steel or high-strength composite materials, with antibacterial coating on the inner wall and anti-collision frame on the outer wall.

Dynamic stability design: The center of gravity distribution under full load should be simulated during installation, and the hydraulic damping bracket should be combined to reduce the impact of water sway during driving on the control of the ISUZU 4x4 fire truck.

♦ Fire pump system matching:

High-pressure pipeline integration: Use aviation-grade aluminum alloy pipelines, laser welding of interfaces to ensure sealing, and the pump pressure must pass the ISO 9001 certified test bench for 72 hours of continuous full-load testing.

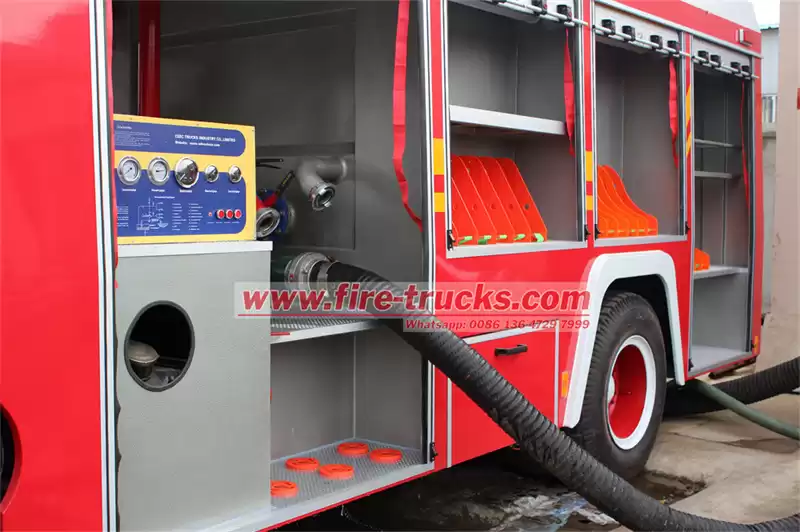

Intelligent control integration: The control panel must support multi-language real-time switching, and the electrical circuit adopts a redundant design and has an IP67 waterproof rating.

ISUZU FVR 4x4 fire truck
  1. 3.Flexible manufacturing system for customized production
  2.
  3. ♦ Modular production line design:
  4. Adopt AGV logistics + digital assembly system, support rapid switching of water tank capacity (3000-8000L), pump type (medium pressure/high pressure), cloud control platform and other configurations.
  5. ♦Full life cycle test:
  6. Each Isuzu off-road fire truck needs to complete a 3,000-kilometer comprehensive road test (including 40% off-road sections), simulated fire scene high-temperature spray test, and pass the certification of a third-party organization (such as TÜV).

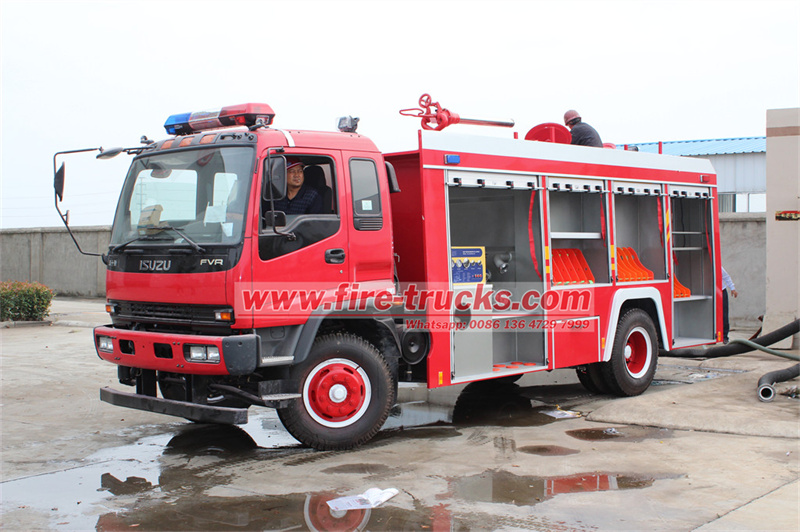

ISUZU FVR 4x4 fire truck

4. Intelligent and data traceability management

♦Digital process control:

Key components (such as pumps, valves, and sensors) are implanted with RFID chips to achieve full-cycle data traceability from production to service to maintenance. The AR-assisted assembly system is used to ensure zero-error installation of complex pipelines.

♦Remote operation and maintenance support:

Pre-installed Internet of Vehicles terminals monitor vehicle status in real time and provide fault warnings, and support OTA upgrades of fire pump control algorithms.

Advantage:

  • ISUZU FVR fire fighting truck

    High-efficiency Power and Environmental Protection:

    Equipped with ISUZU brand 6HK1-TCG61 diesel engine, it not only provides powerful power up to 240 horsepower, but also meets the EU 6 emission standards, achieving a perfect combination of power and environmental protection.

  • ISUZU FVR fire fighting truck

    Excellent Driving And Handling:

    With 4X2 left-hand drive layout and FAST 8-speed forward and 2-speed reverse manual transmission, equipped with hydraulic steering system, the fire truck can show excellent driving and handling performance on urban roads or complex terrain.

  • ISUZU FVR fire fighting truck
    Large capacity and multi-functional fire fighting equipment:

    With a large capacity design of 6000 liters water tank, combined with CB10/40 high-efficiency fire pump and PL32 fire cannon, the ISUZU FVR 4X4 fire truck can cope with various types of fires and achieve fast and effective firefighting and rescue.

  • ISUZU FVR fire fighting truck

    Advanced safety braking system:

    It adopts multiple braking systems such as compressed air braking, spring energy storage parking brake and engine exhaust auxiliary braking to ensure safe and reliable parking in various emergency situations.
