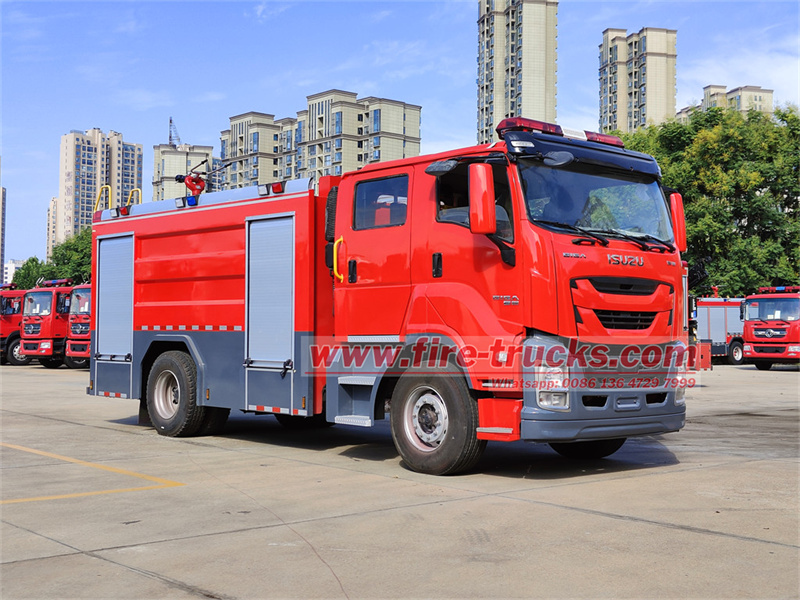

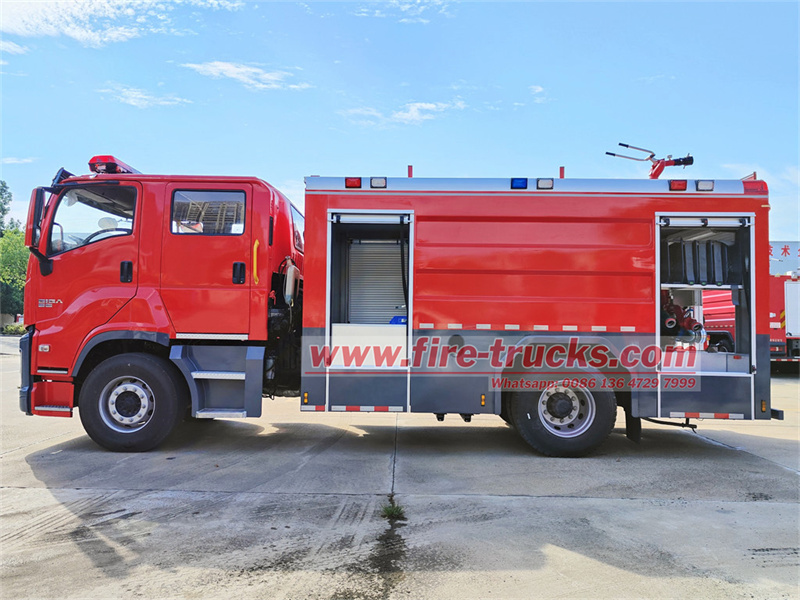

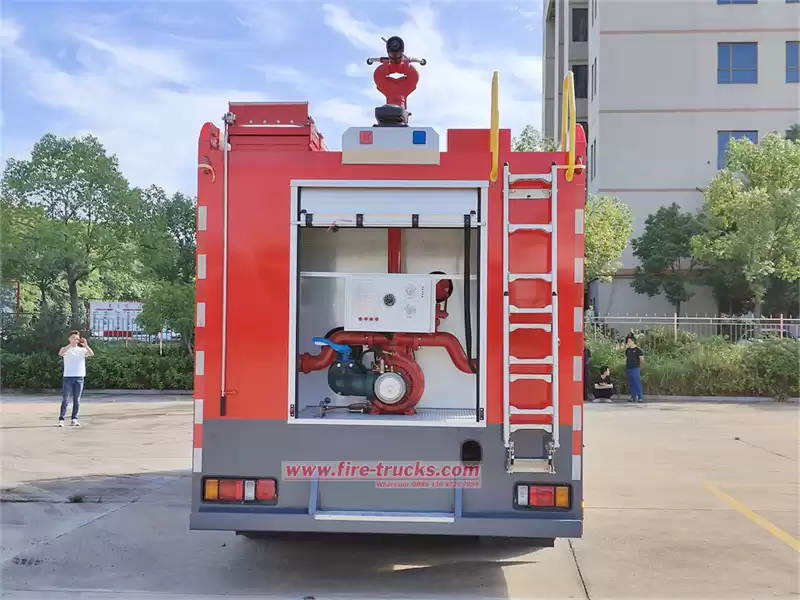

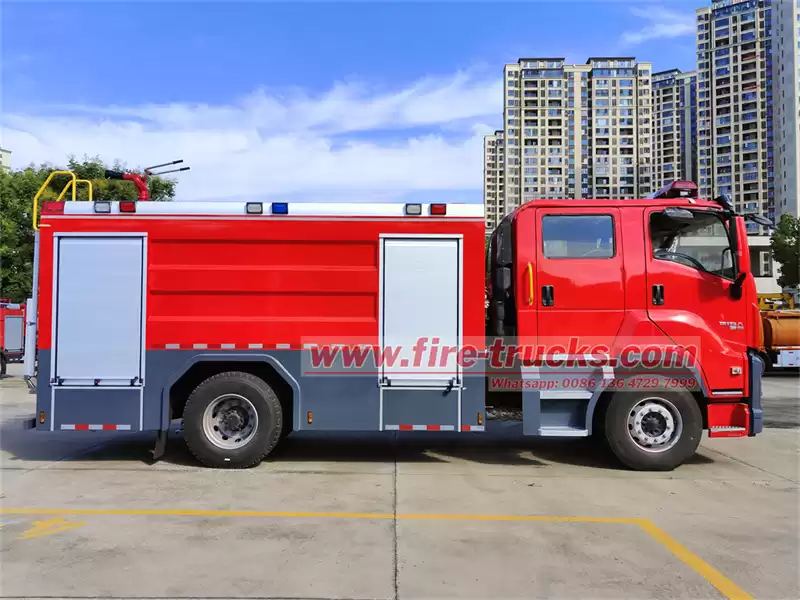

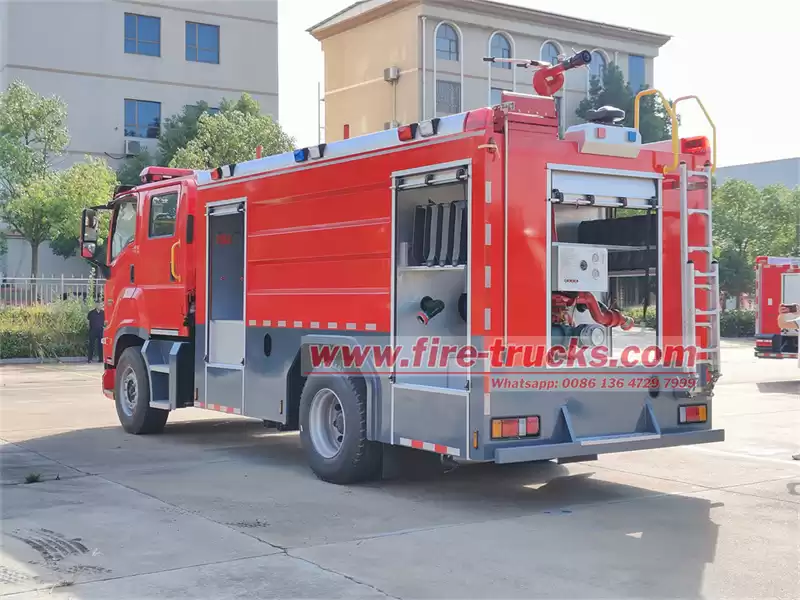

Isuzu GIGA 380HP off road fire pump truck

The Isuzu off-road GIGA fire fighting truck is built on the sturdy ISUZU GIGA all-drive chassis. It combines excellent power and environmentally friendly emissions. It has all-wheel drive capabilities and can challenge all kinds of difficult roads. It is equipped with a 8000-liter large-capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs.

  • Fire MonitorPL62, Flow Rate 62 L/S
  • Fire PumpCB10/60, 1600L/min
  • Engine Model6UZ1-TCG61
  • Engine Power380HP
  • Axle drive4x4
  • Wheelbase4600mm
  • Work capacity 8000L Water
  • Tanker StructureHigh quality Q235A carbon steel
  • Truck ModelPST52506QXF
  • RemarkOff-road system, Stainless Steel avaiable
Facebook Twitter Pinterest LinkedIn 分享

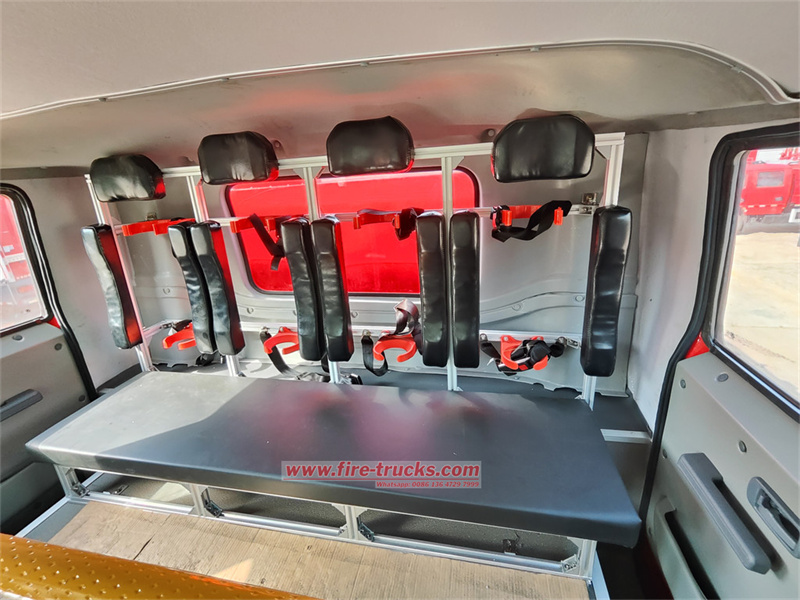

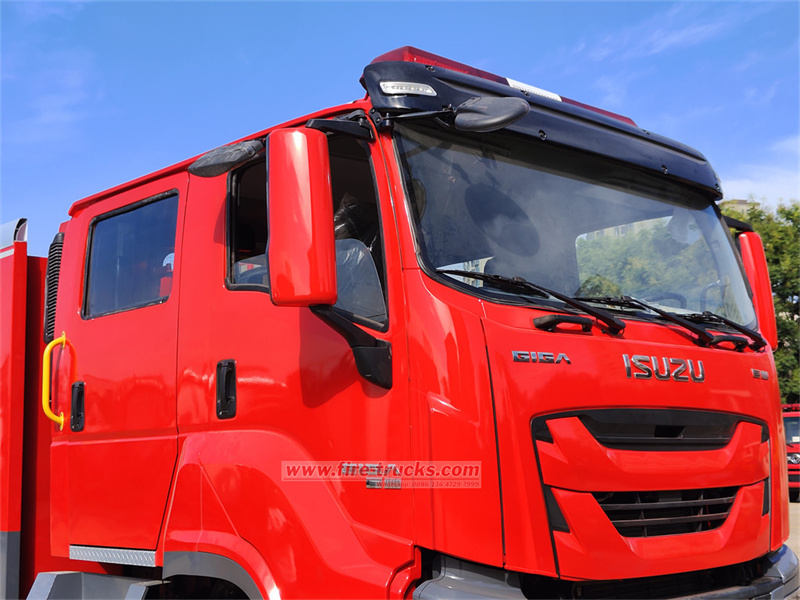

The Isuzu off-road GIGA fire fighting truck is built on the sturdy ISUZU GIGA all-drive chassis. It combines excellent power and environmentally friendly emissions. It has all-wheel drive capabilities and can challenge all kinds of difficult roads. It is equipped with a 8000-liter large-capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs. This Isuzu all-wheels fire water truck provides a solid guarantee for fire safety and demonstrates excellent performance and flexibility. The Isuzu GIGA fire fighting truck's double-row cab provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with heating and cooling air conditioning to ensure that the driver can stay comfortable in any weather conditions. In addition, the design of the cab also takes into account the convenience and safety of driving.

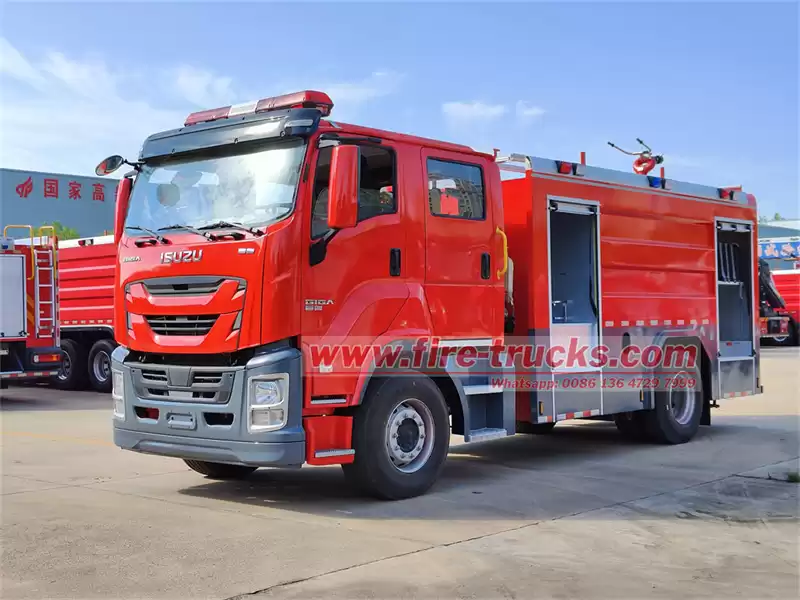

ISUZU GIGA 4X4 fire fighting truck



● China best off-road water fire truck factory

● More than 500 workers, large and advanced production

● Be designed according to your requirements

● Promptly delivery. any order is welcome

● 24 month quality guarantee term



Specification:

ISUZU GIGA 380HP fire fighting truck



ISUZU GIGA 4x4 fire truck

General

Vehicle Brand

Powerstar

Chassis Brand

ISUZU

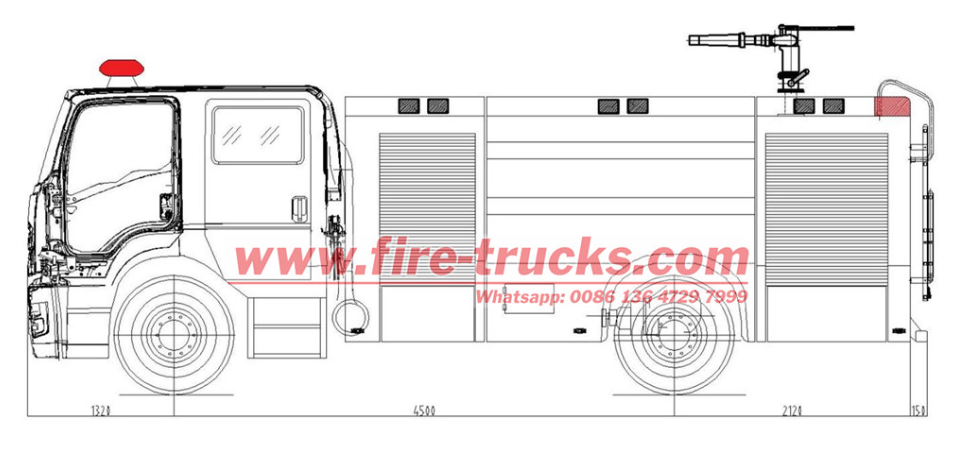

Overall Dimension

8300*2280*2750mm

GWW/ Kerb Weight

25,000kg/9,220kg

Painting

Red color

Cab

Cab Capacity

2+4 persons allowed

Air Conditioner

 air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU engine ,6UZ1-TCG61

Engine type

Inline 6-cylinder, turbocharged, inter-cooled diesel engine

Power

380 HP

Displacement

9.839L

Emission Standard

Euro 6

Chassis

Drive Type

4X4,left hand drive

Transmission

Fast 12-speed forward, 2 reverse

Wheelbase/No.of axle

4500 mm/2

Tyre Specification

295/80R22.5

Tyre Number

6 tyres and 1 spare tyre

Max Speed

95 km/h

Fuel tank capacity

200L

PTO

Full power sandwich type























Superstructure

Water Tank Capacity

8,000 Litres

Tank Material

stainless steel

Standardized Sub-frame

Material

High-strength rectangular tube made of special steel

Structure

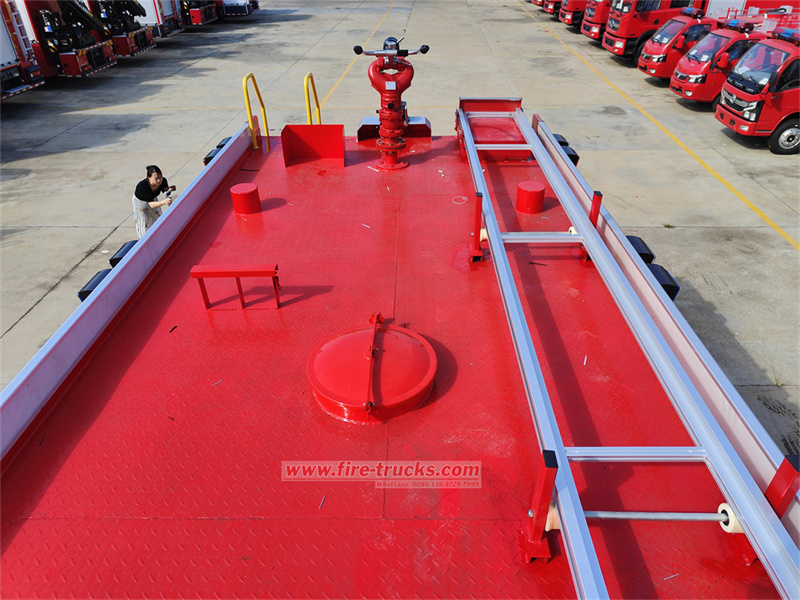

Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear

Fire Pump

Brand

China TOP Brand

Drive mode

 PTO

Priming Manner

Automatic

Pressure range

1.6-2.5 MPa

Flow rate

60L / s

Suction Height

9m

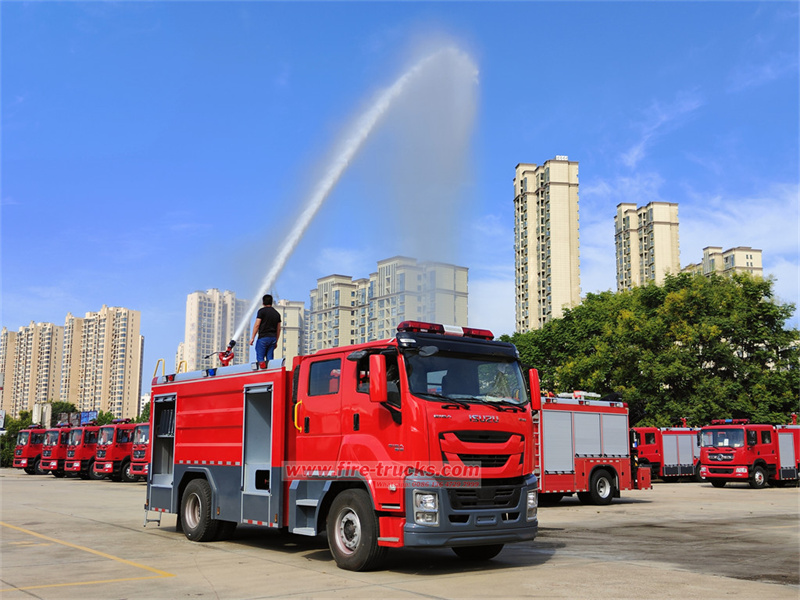

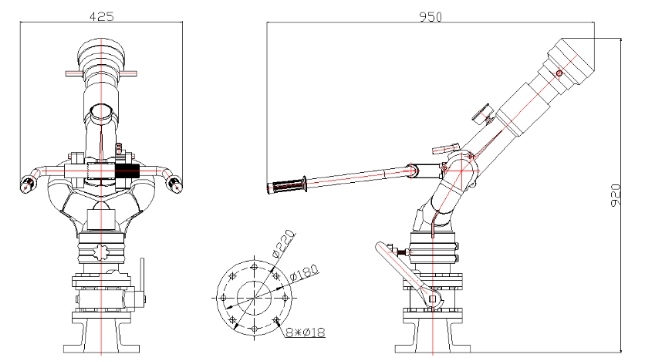

Fire Cannon

Flow speed

60L /s

Range

65 m

Superstructure Electric Appliance

Warning Light and Siren

Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.

Strobe Light

Mounted on the both sides of the compartment

External Lighting

LED lights are mounted on the both sides of the compartment

Roof Lighting

LED lights are mounted on the inside of the roof

Side Indicator Light

Inline yellow warning light is mounted on the side of the compartment and pedals

All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars...

Optional

** Back alarm and Camera can be equipped

** Standard carbon steel, stainless steel optional

** USA or Germany fire pump can be optional



Feature:

  • ISUZU GIGA 4x4 fire truck

    Powerful Power System:

    • Equipped with a high-power engine(6UZ1) to ensure rapid response under complex road conditions.

    • Isuzu All-wheel drive system improves passability on rugged or slippery roads.

  • ISUZU GIGA fire fighting truck

    Efficient Firefighting Equipment:

    • Large-capacity water tank to meet long-term firefighting needs.

    • High-pressure water pump to provide strong water flow and range.

  • ISUZU GIGA 4x4 fire truck

    Strong Body Structure:

    • Adopt high-strength materials to improve impact resistance and fire resistance.

    • Roll cage and seat belts to ensure passenger safety.

  • ISUZU GIGA 4x4 fire truck

    Multifunctional Rescue Equipment:

    • Equipped with hydraulic shears, expanders and other demolition tools for rescuing trapped people.

    • Lighting equipment, such as liftable lighting, ensures operation at night or in low-light environments.

  • ISUZU GIGA 4x4 fire truck

    Humanized Design:

    • Comfortable cab to reduce fatigue from long-term operation.

    • Easy-to-operate equipment layout to improve emergency response speed.



ISUZU GIGA 4x4 fire truck

 ISUZU GIGA 4x4 fire truck

ISUZU GIGA 4x4 fire truck

Performance advantage:

ISUZU GIGA 4x4 fire truck

1. Firefighting efficiency: Tactical advantages of high flow and long range

♦ Large-capacity water storage system:

The 6000L stainless steel water tank (optional 316L stainless steel) adopts a double-layer explosion-proof structure design with a pressure resistance of 1.2MPa. With the self-circulating antifreeze system (-30℃ working condition), it can support continuous spraying time of up to 100 seconds (single water source mode).

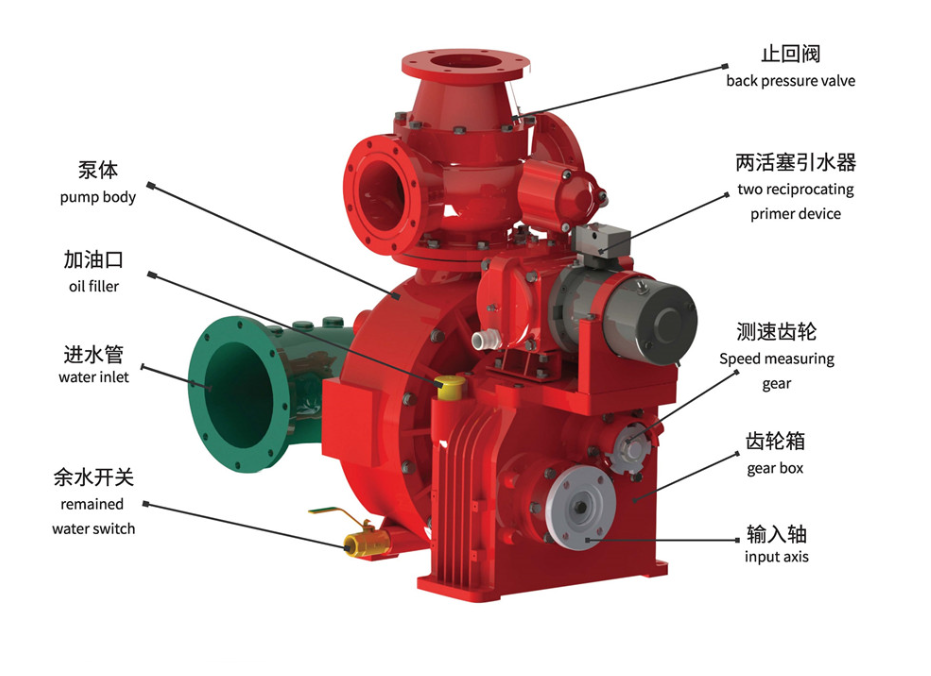

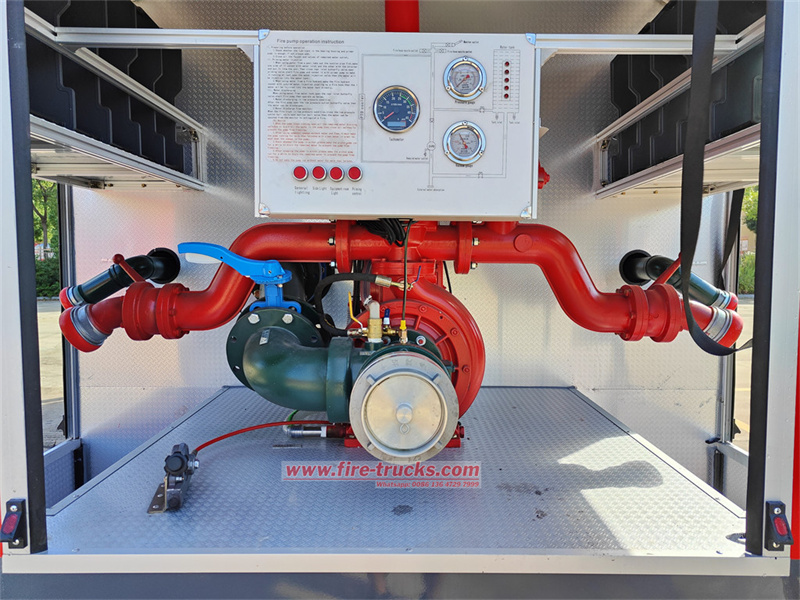

♦ Efficient pump system:

Standard CB10/60 mid-mounted centrifugal pump (60L/s@1.0MPa), optional Hale HPX or Rosenbauer NH30 pump group (flow rate increased to 60L/s), water cannon range of 65m (DC)/38m (spray), foam mixing ratio 3%-6% adjustable, to achieve rapid suppression of Class A/B fires.

ISUZU GIGA 4x4 fire truck

2.Comprehensive application scenario advantages

♦ Urban firefighting: compact wheelbase (4600mm) supports 9m turning radius, suitable for narrow streets.

♦ Industrial fire: foam system is compatible with AFFF/AR-AFFF, which can cope with fires in petrochemical facilities.

♦ Field rescue: all-wheel drive system + wading hose (800mm depth) to achieve multi-terrain coverage.
