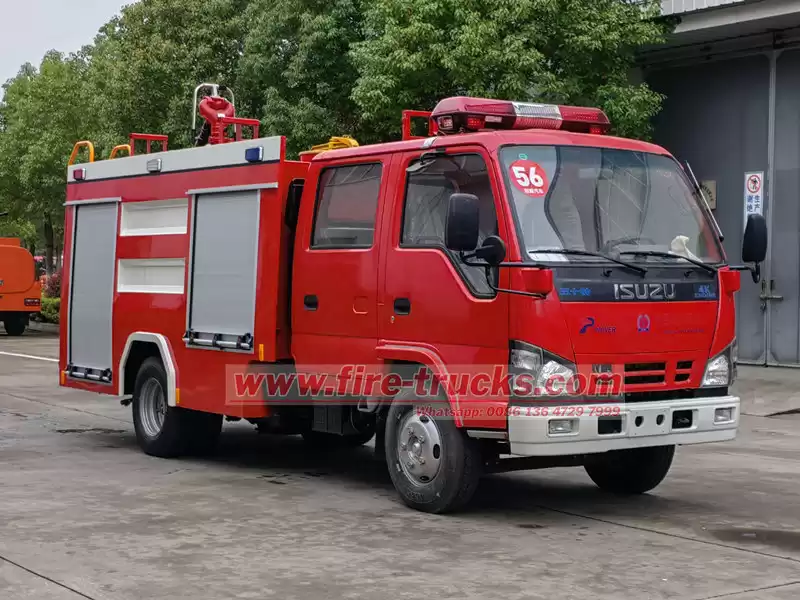

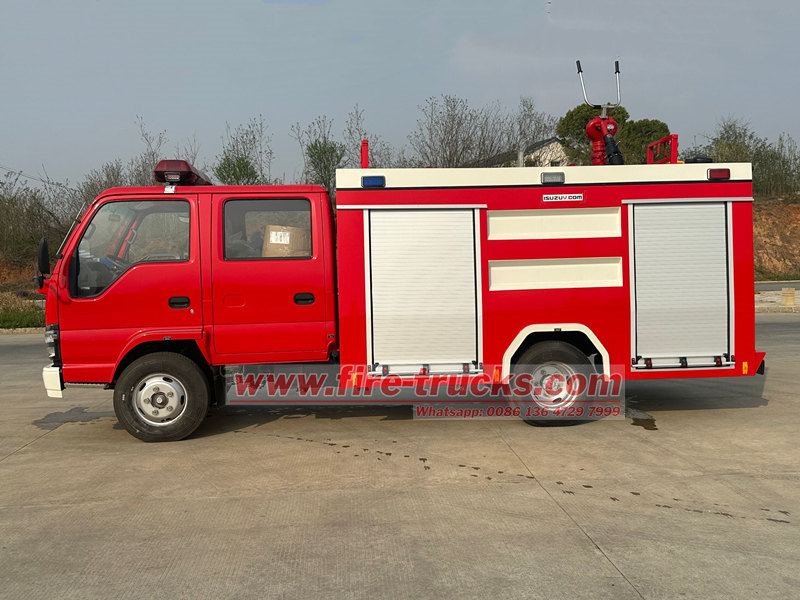

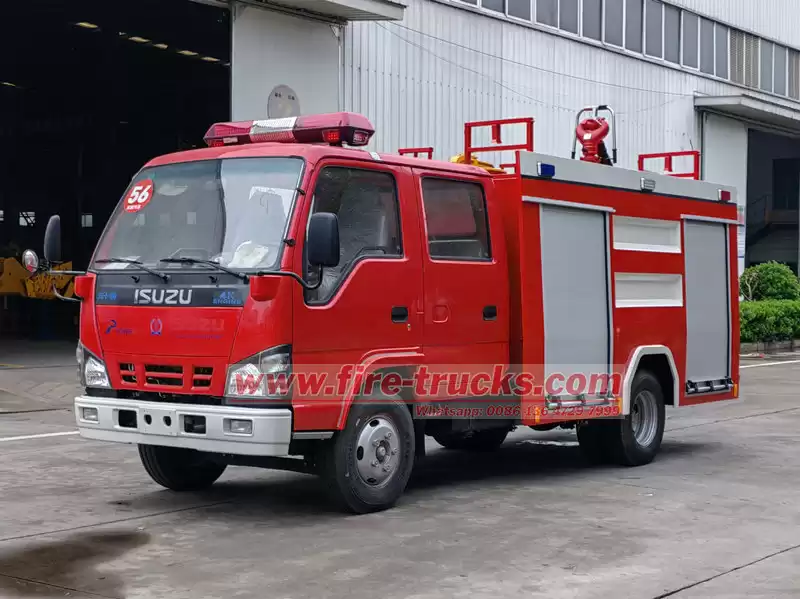

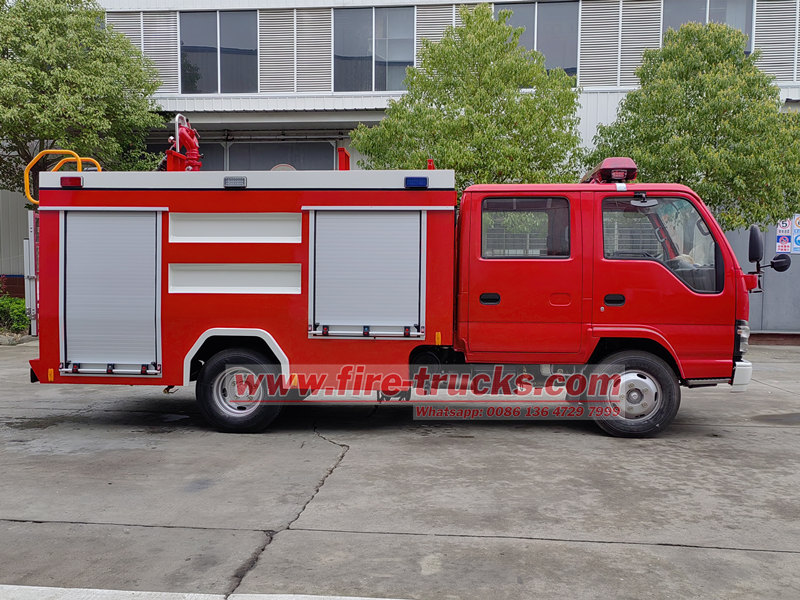

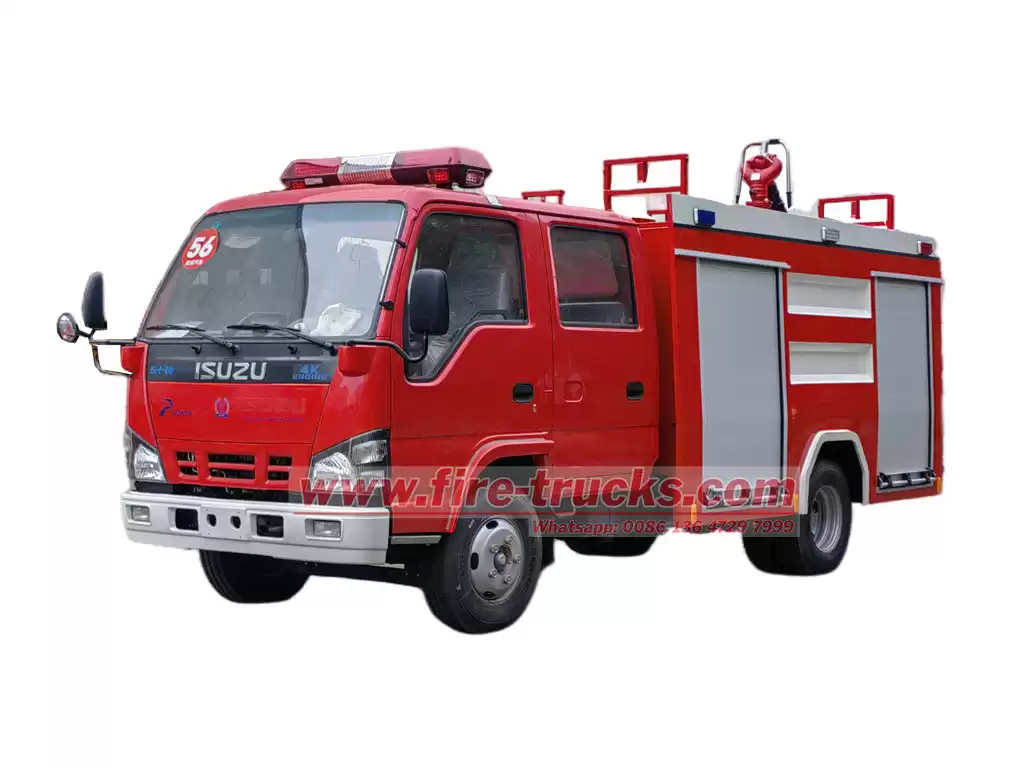

The ISUZU 600P foam fire truck is a lightweight professional firefighting vehicle built on the ISUZU QL1070 chassis, equipped with a 120-horsepower Euro VI diesel engine and a top speed of 90 km/h. It features a 2000L water tank and a 1000L foam tank constructed from stainless steel, along with a CB10/30 fire pump delivering 30L/s flow and a PL24 fire monitor with a 45-meter range for rapid fire suppression. With compact dimensions of 6350×2250×2880mm and a 3360mm wheelbase, it offers excellent maneuverability and accessibility, making it ideal for urban narrow roads and industrial areas—an optimal choice for initial fire response.
The ISUZU mini foam fire truck is a medium-sized firefighting vehicle modified from the ISUZU QL1070 chassis, integrating both water tank and foam firefighting capabilities. Designed for urban firefighting, industrial zone rescue, and rapid emergency response, it measures 6350×2250×2880mm with a gross weight of 7.3 tons and a rated load capacity of 3 tons, balancing mobility and functionality. Powered by a 4KH1CN6LB diesel engine delivering 120 horsepower and a top speed of 90 km/h, it ensures swift arrival at fire scenes. The 4x2 drive model and 3360mm wheelbase provide agile handling, making it suitable for navigating narrow streets.
The superstructure of this ISUZU light fire engine truck is meticulously engineered to maximize functionality within a compact space. The tank system is constructed from high-quality stainless steel, offering exceptional corrosion resistance for long-term durability. It includes a 2000L water tank and a 1000L foam tank, which can operate independently or in combination, providing versatile solutions for extinguishing various types of fires.

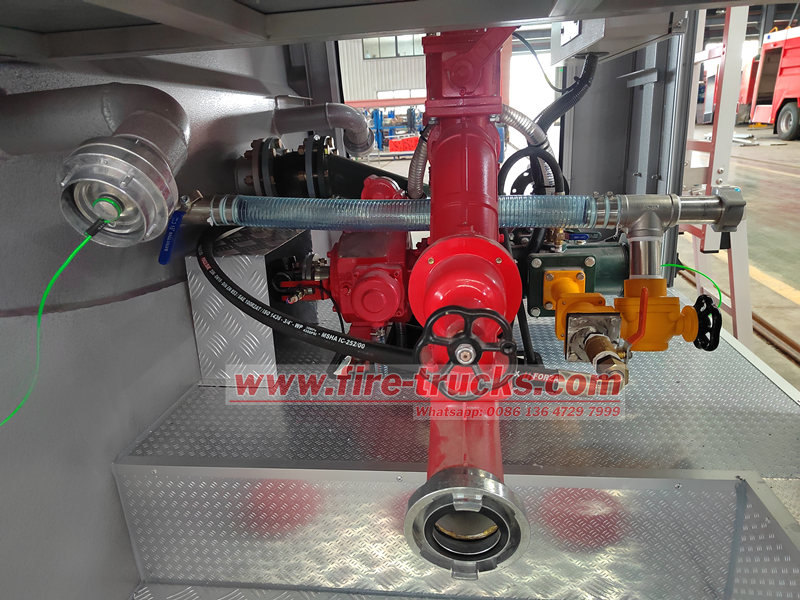

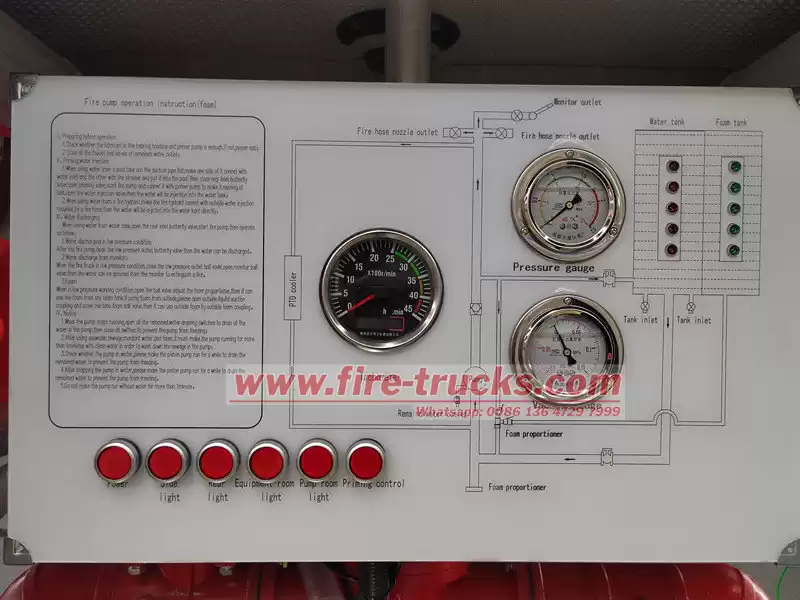

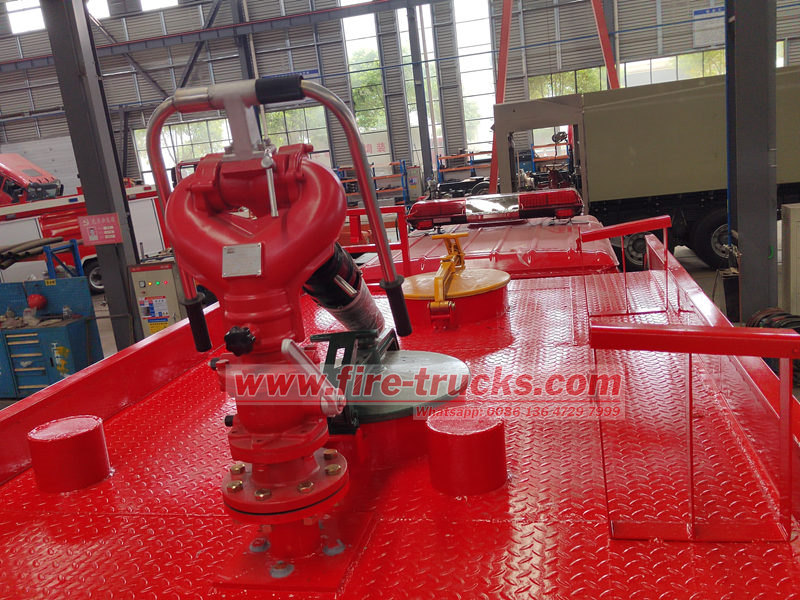

The fire pump system, a core component of the ISUZU NKR mini firefighting truck, features a reliable CB10/30 normal-pressure fire pump. With a maximum flow rate of 30L/s and a suction lift of 7 meters, it ensures rapid water supply for firefighting operations. Notably, the pump can complete water intake within 50 seconds, significantly improving response efficiency for initial fires. The pump room is user-friendly, with all controls centralized on an intuitive panel for easy operation, even for beginners. The roof-mounted PL24 fire monitor delivers a water range of ≥45 meters and a foam range of ≥40 meters, with 360° rotation for comprehensive fire coverage.

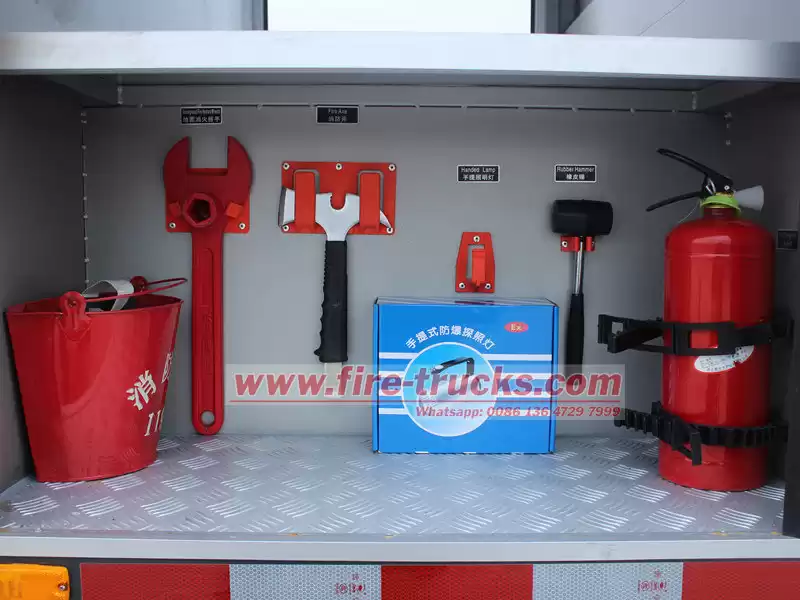

For equipment storage, the designer has optimized the side spaces of the vehicle with multiple compartments. These compartments securely store essential firefighting gear such as hoses, foam guns, and fire axes, all fastened to ensure safety during transit. Each compartment is rust-proofed and features quick-access mechanisms, allowing firefighters to retrieve equipment swiftly in emergencies—a testament to ISUZU mini tanker fire truck's human-centric design philosophy.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu fire fighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
Product Specifications
|
Chassis brand
|
ISUZU
|
|
Chassis model
|
QL1070
|
|
Overall dimension(L*W*H)
|
6350x2250x2880mm
|
|
Total weight
|
7,300 kg
|
|
Rated Loading capacity
|
3,000 kg
|
|
Number of seats
|
2+3
|
|
Chassis
|
Drive model
|
4x2 left hand drive
|
|
Axle loading (front/rear)
|
2500/4800 kg
|
|
Wheelbase
|
3360 mm
|
|
Front/rear suspension
|
1015/1845 mm
|
|
Approach/departure angle
|
17/13 (°)
|
|
Spring number
|
8/6+5
|
|
Tyre size & number
|
7.00R16, 6 pcs with one spare tyre
|
|
Max speed
|
90 km/h
|
|
Engine
|
Manufacturer
|
ISUZU
|
|
Model
|
4KH1CN6LB
|
|
Engine Type
|
Diesel
|
|
Horse power
|
88kw/120hp
|
|
Displacement
|
2999 ml
|
|
Emission
|
Euro 6
|
|
Tank
|
Water tank capacity
|
2000 liters
|
|
Foam tank capacity
|
1000 liters
|
|
Material
|
Stainless steel
|
|
Fire pump
|
Model
|
CB10/30, Normal pressure pump
|
|
Pressure
|
≥1.0 Mpa
|
|
Max suction height
|
7 m
|
|
Flow
|
30 (L/S)
|
|
Rated speed
|
2800 (r/min)
|
|
Time of drawing water
|
≤50 (s)
|
|
Fire monitor
|
Model
|
PL24
|
|
Water range
|
≥45 m
|
|
Foam range
|
≥40 m
|
|
Flow
|
24 (L/S)
|
|
Rated Working pressure
|
1 Mpa
|
|
Rotation angle
|
360 (°)
|
Product Structure
The main frame structure of ISUZU NKR mini firefighting truck is constructed with high-quality square steel tube welding, with exterior cladding made of carbon steel plate welding. The roof features anti-slip design for safe walking.

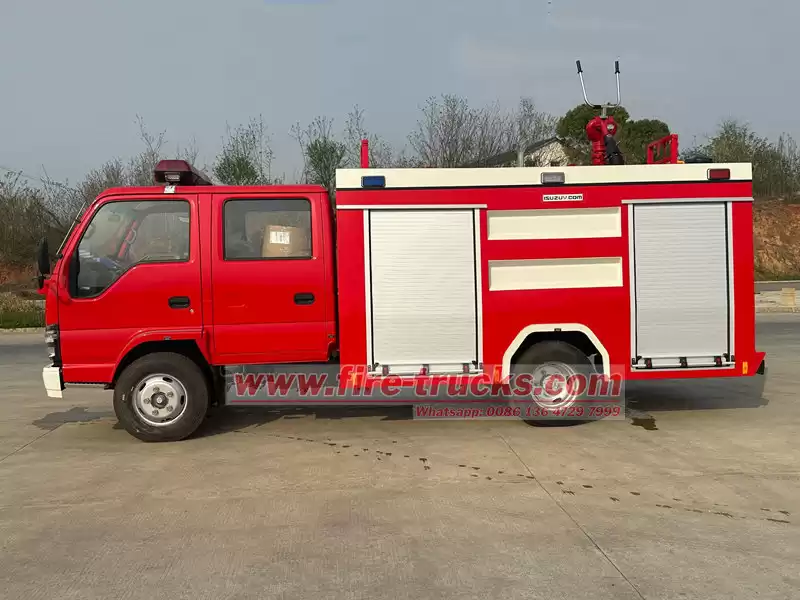

The equipment compartment is located behind the crew cabin, equipped with aluminum alloy roller shutters on both sides and interior lighting. Storage boxes are arranged inside the compartment according to operational requirements.

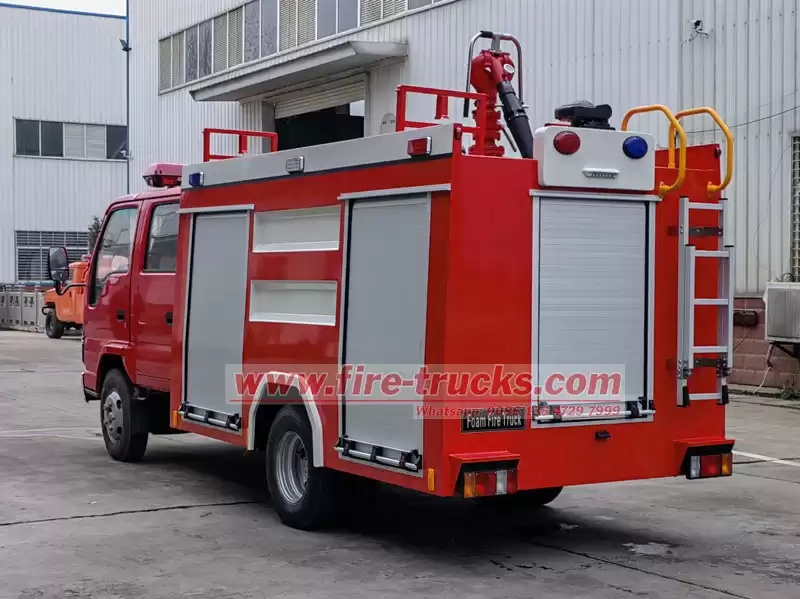

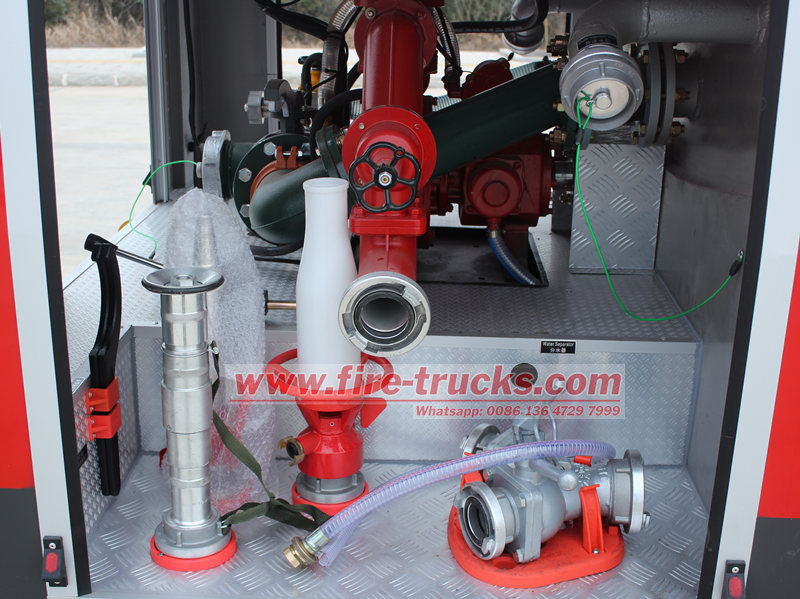

The pump room is positioned at the rear of the vehicle, surrounded by aluminum alloy roller shutters on both sides and the rear, with interior lighting. Common equipment can be stored on both sides of the pump compartment.

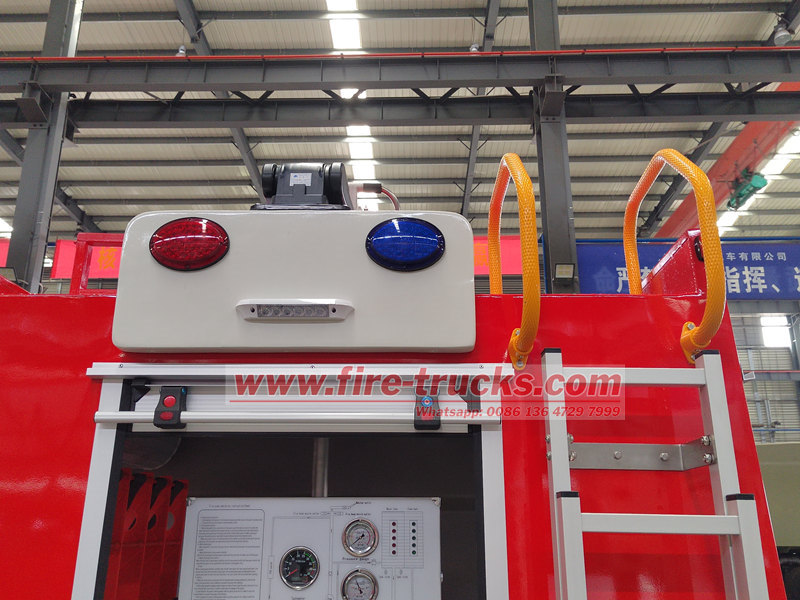

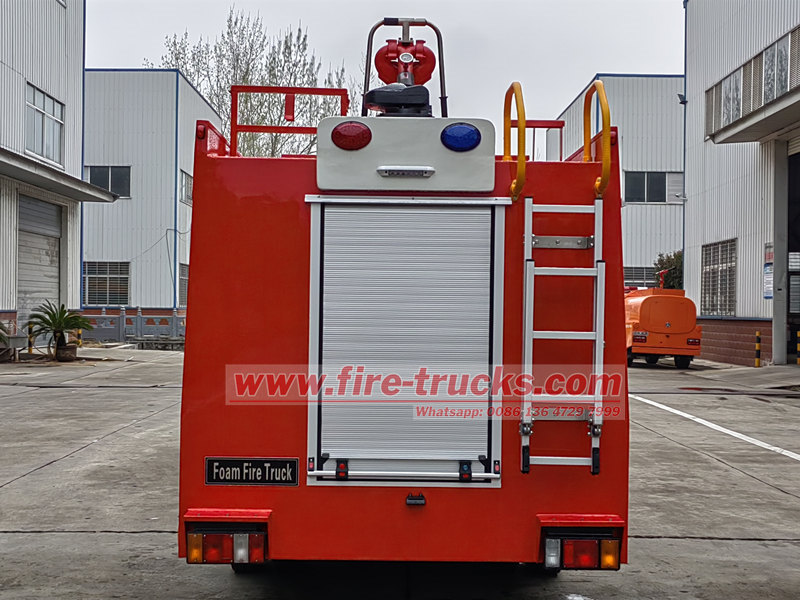

The rear ladder adopts a two-section folding aluminum alloy design, with deployment height not exceeding 450mm from the ground when in use. The boarding handles feature anti-slip grooved round steel pipes with powder-coated surfaces.
