Applications:

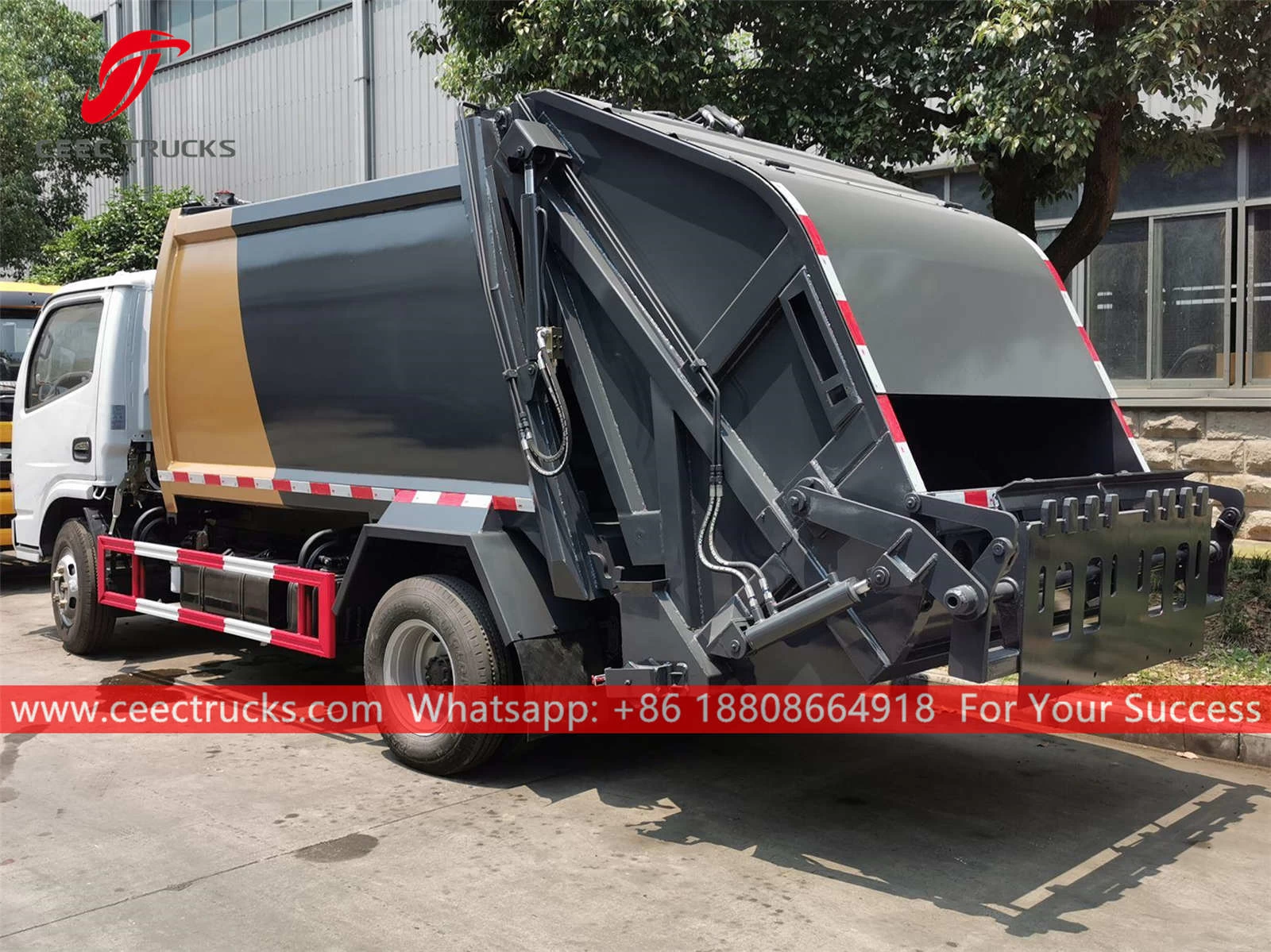

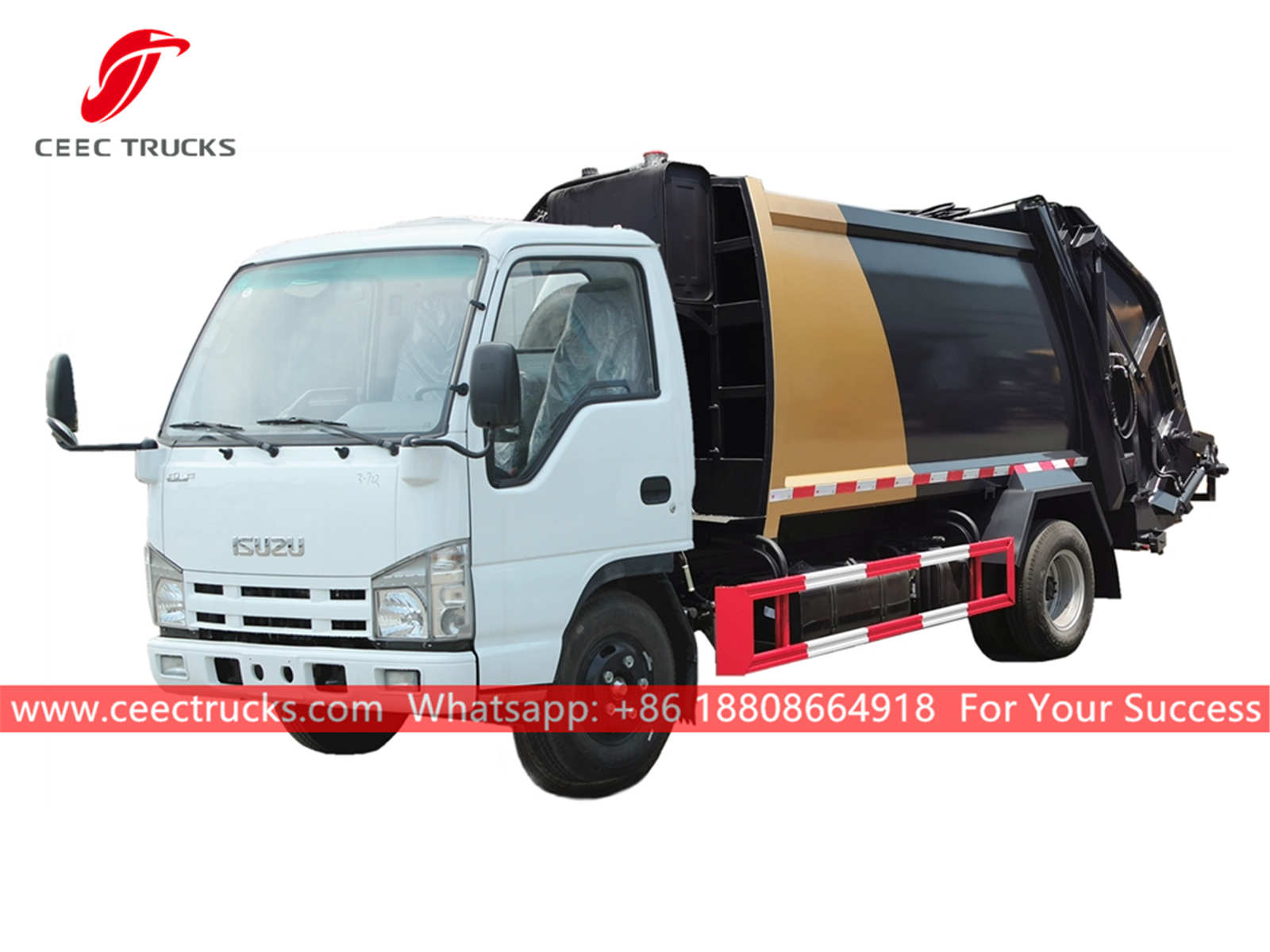

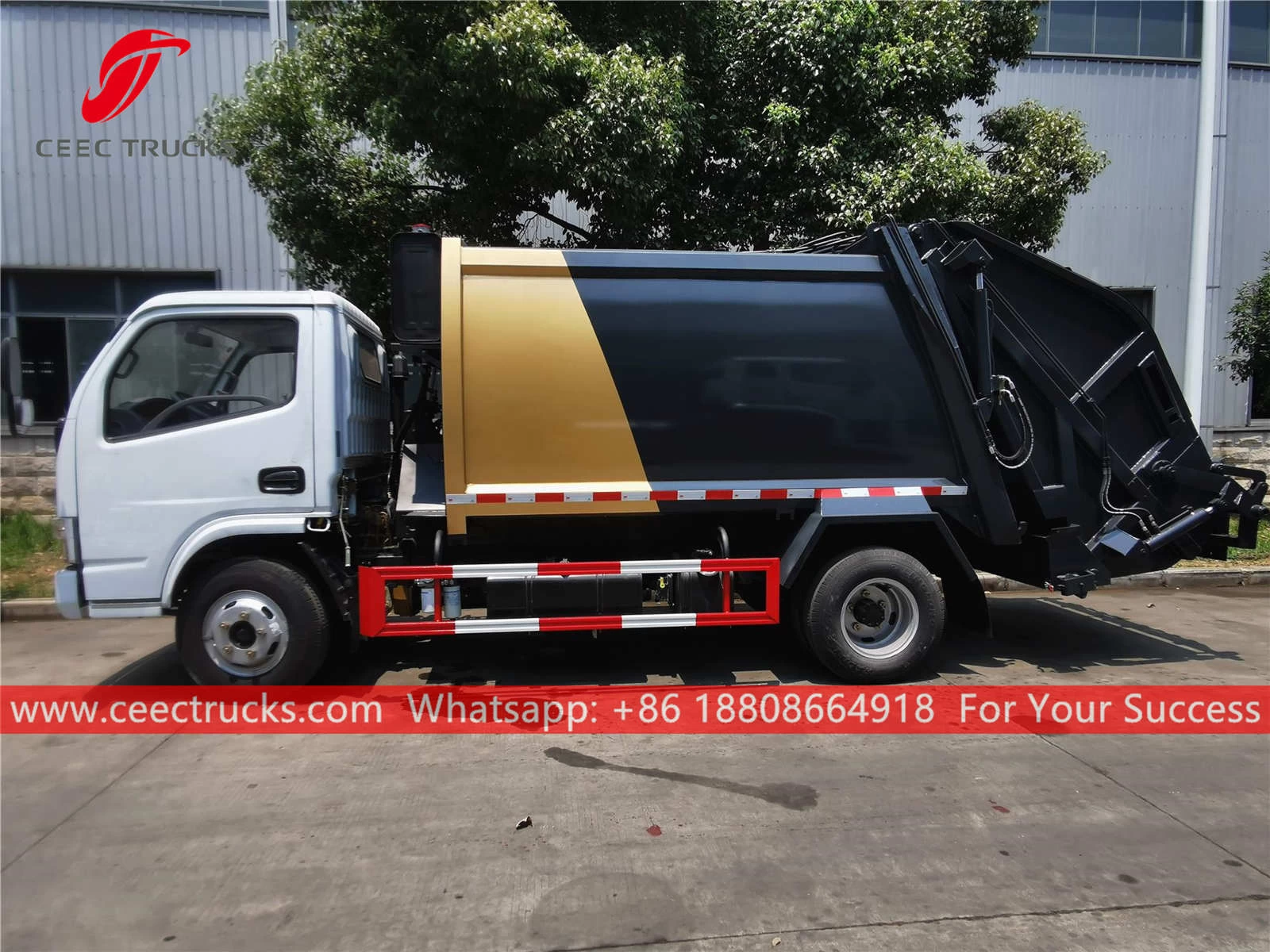

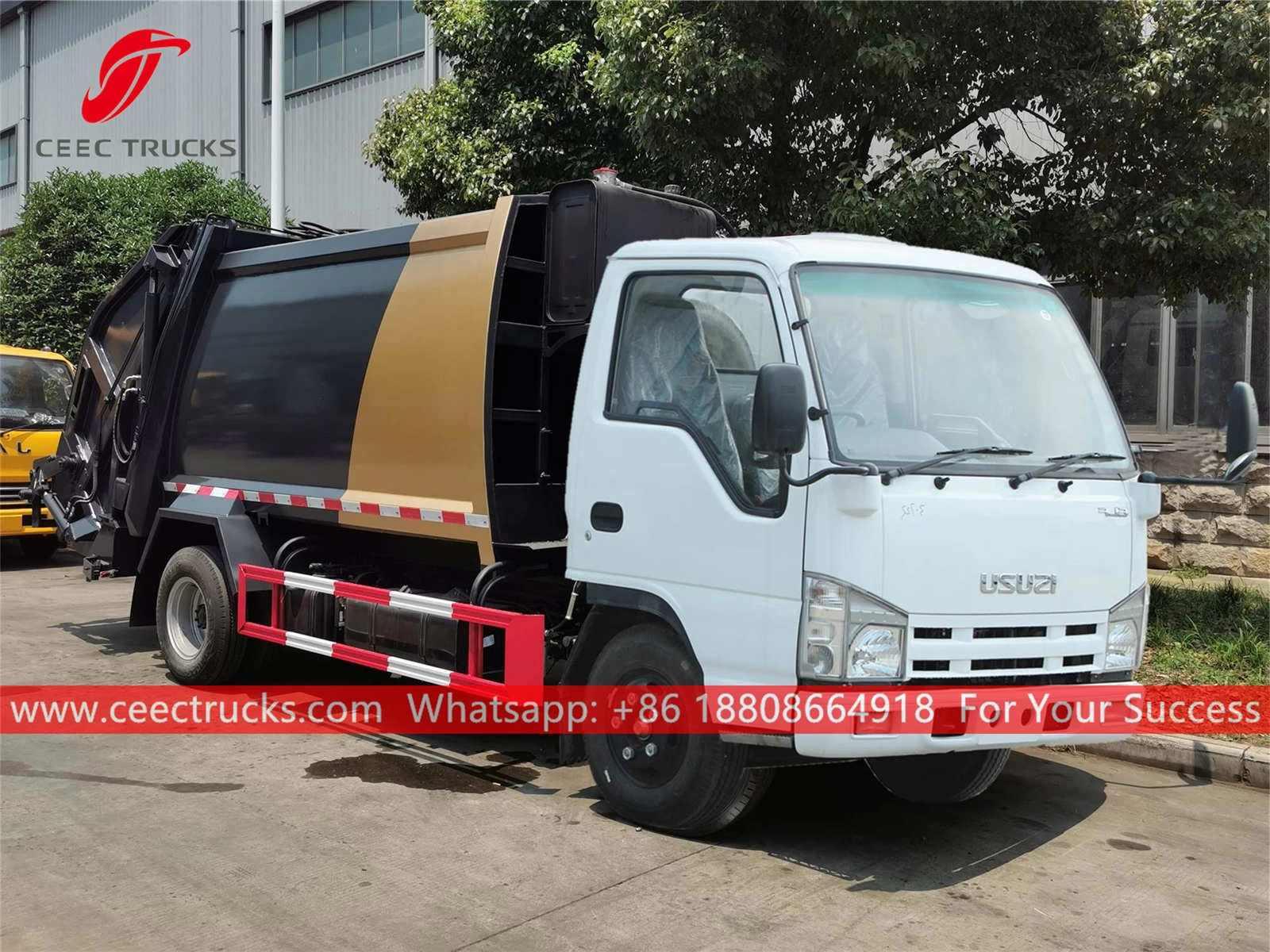

ISUZU Compression Refuse Truck (also called garbage compactor truck, ISUZU rear loader manufacturer, high quality rubbish compact truck, back-loading compression garbage truck, Chinese refuse collector, compressed trash truck) is designed
for daily rubbish transport in such living areas as all kinds of
cities, large station, port and wharf, airport, and densely-populated
areas like industrial and mineral enterprises and military units.
CEEC TRUCKS garbage compression truck reduces back-and-forth transport times and prevents
rubbish and stinks from spreading and avoids second-time pollution
produced by polluted water.
The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
Specifications:
|

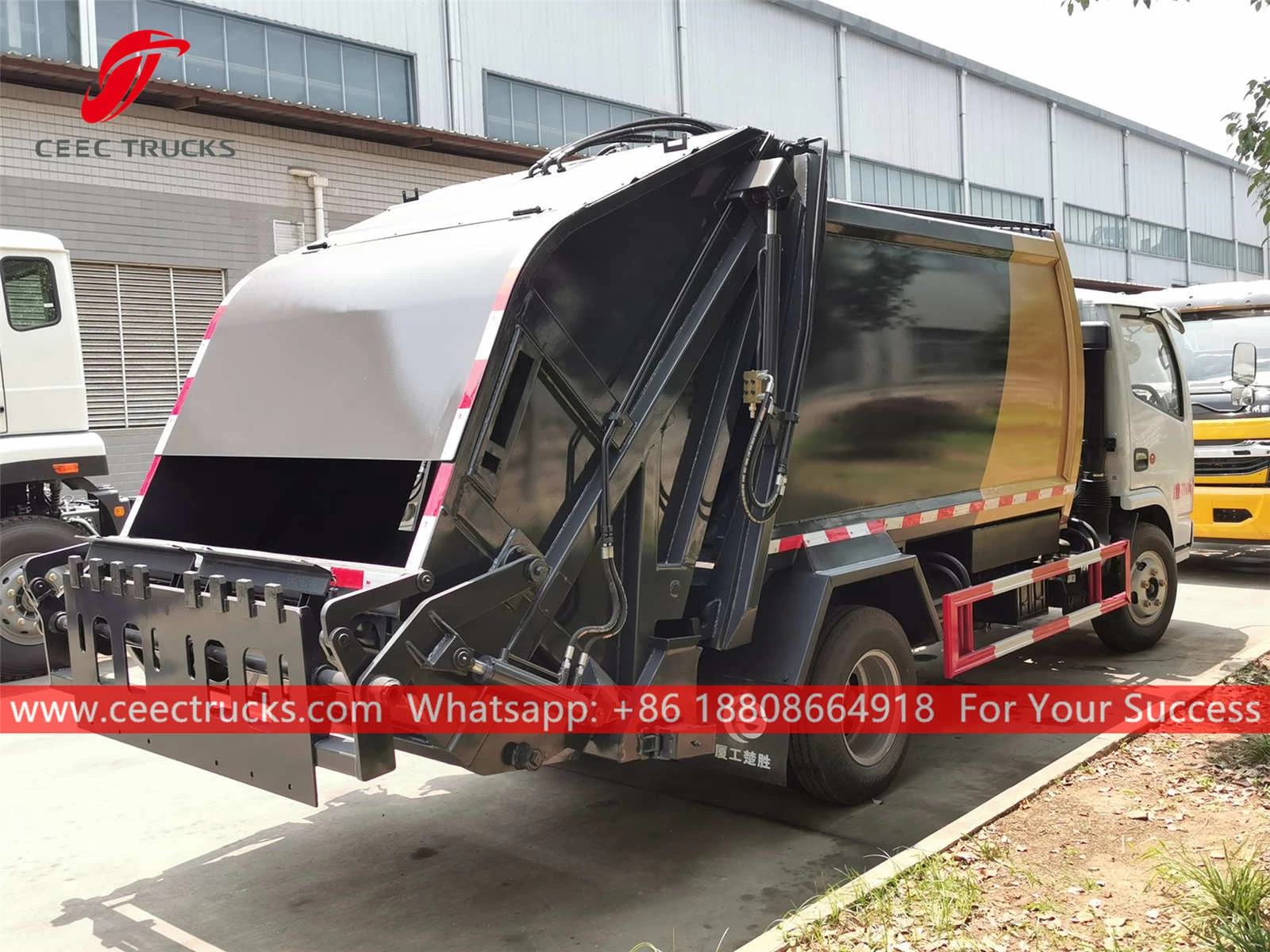

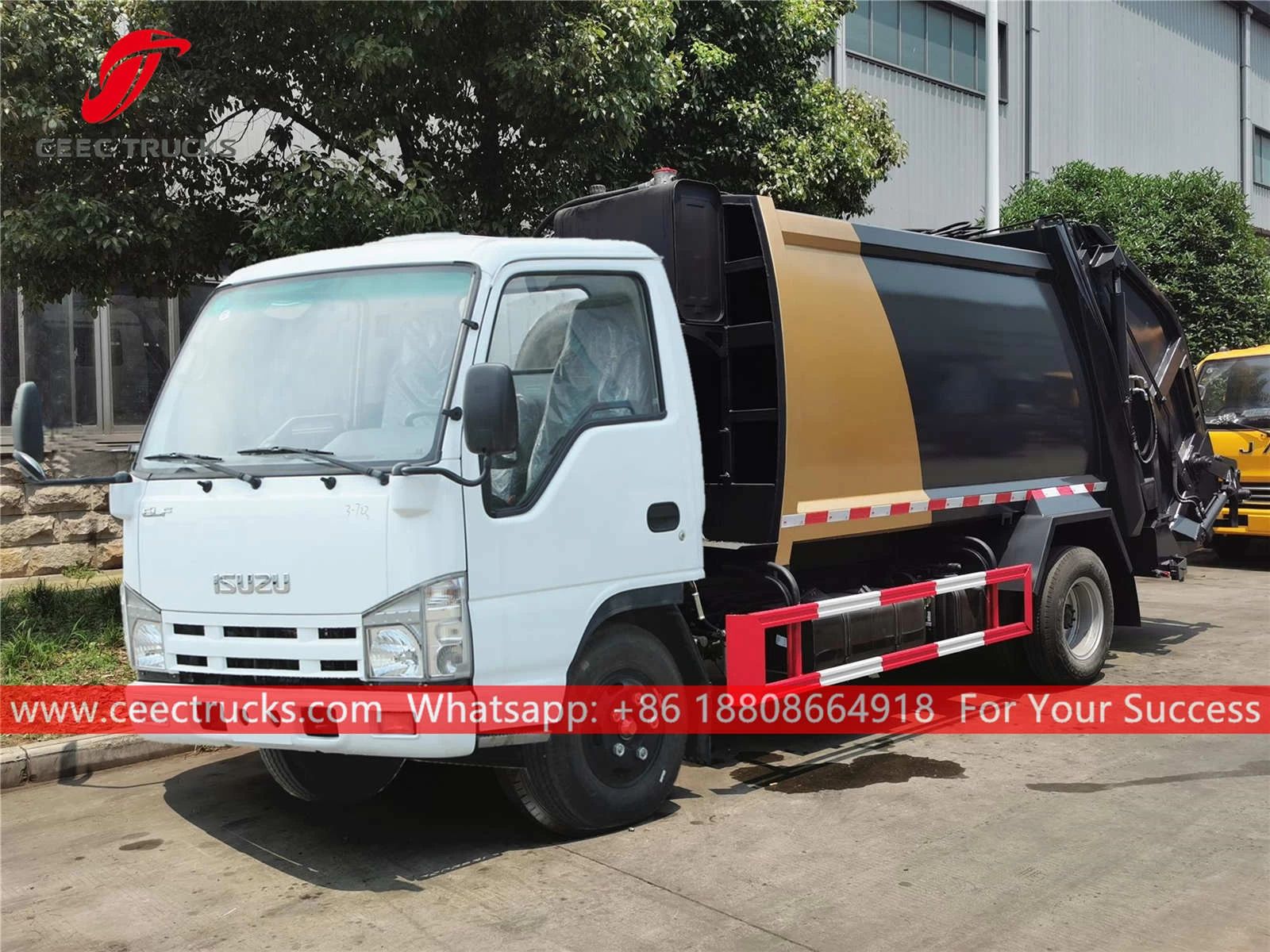

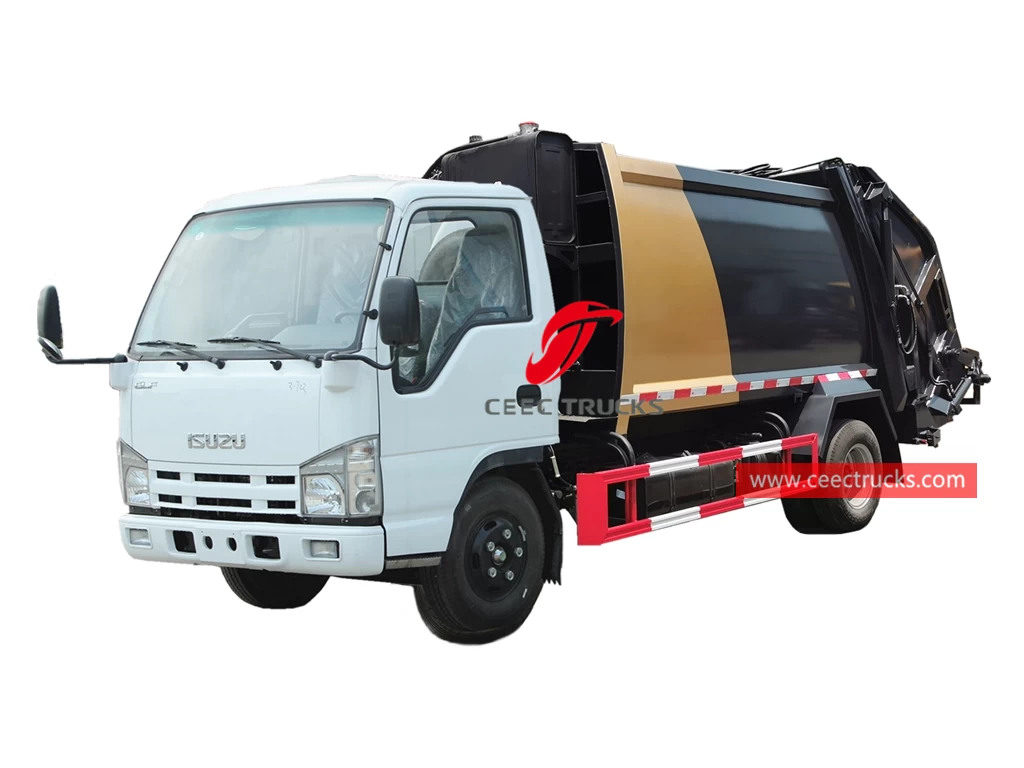

ISUZU Waste compactor truck (5 cbm)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
ISUZU
|
|
Overall Dimension
|
6650 * 2190 * 2350 mm
|
|
GVW / Kerb Weight
|
7,300kg / 3,920kg
|
|
Cab
|
Cab Capacity
|
2 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
Power
|
98 HP (72 KW)
|
|
Displacement
|
2770 ml
|
|
Emission Standard
|
Euro 5
|
|
Chassis
|
Drive Type
|
4X2, (left hand drive)
|
|
Transmission
|
ISUZU MSB 5 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
3360mm / 2
|
|
Tire Specification
|
7.00R16
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Body capacity
|
5 cbm
|
|

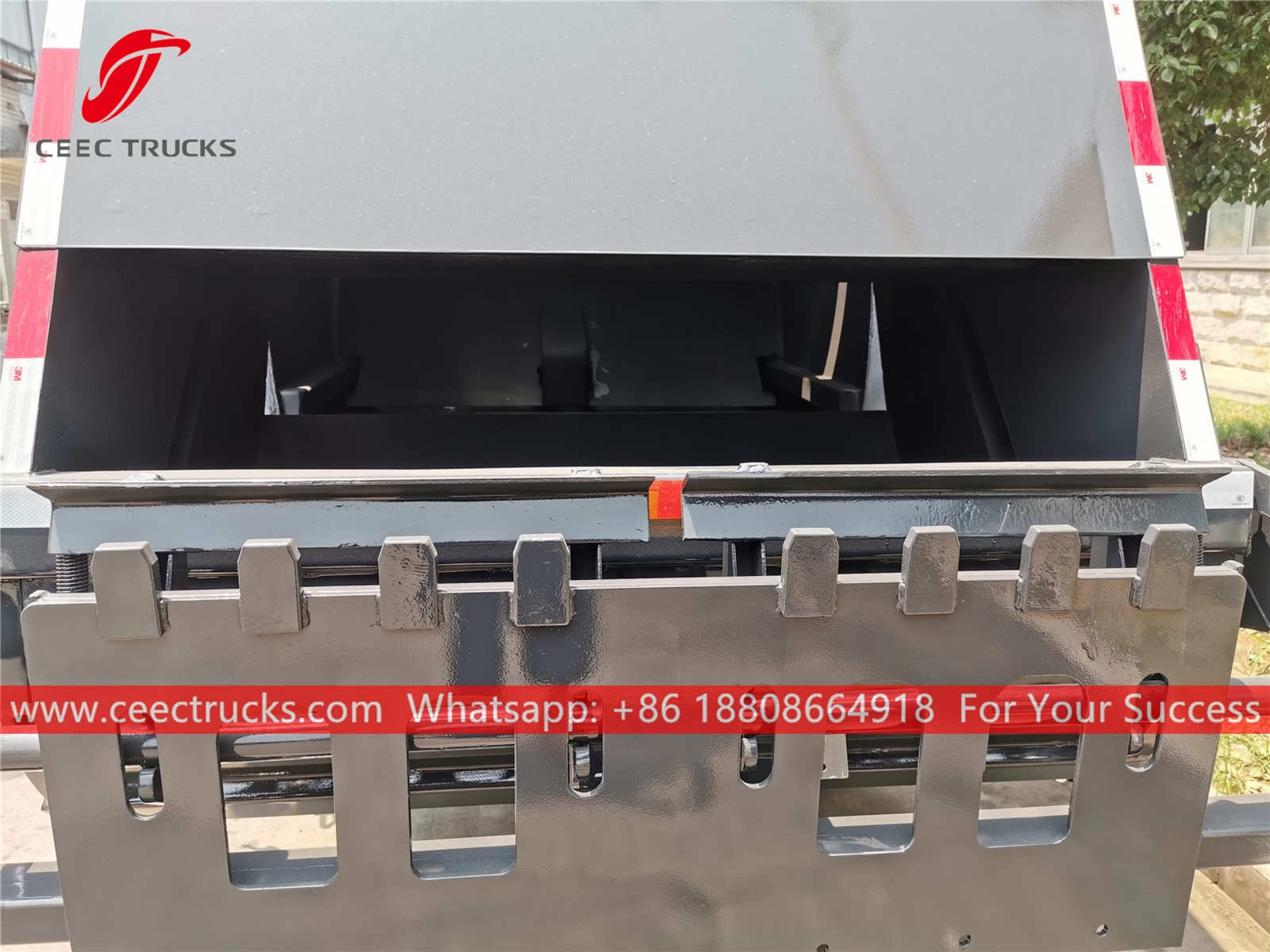

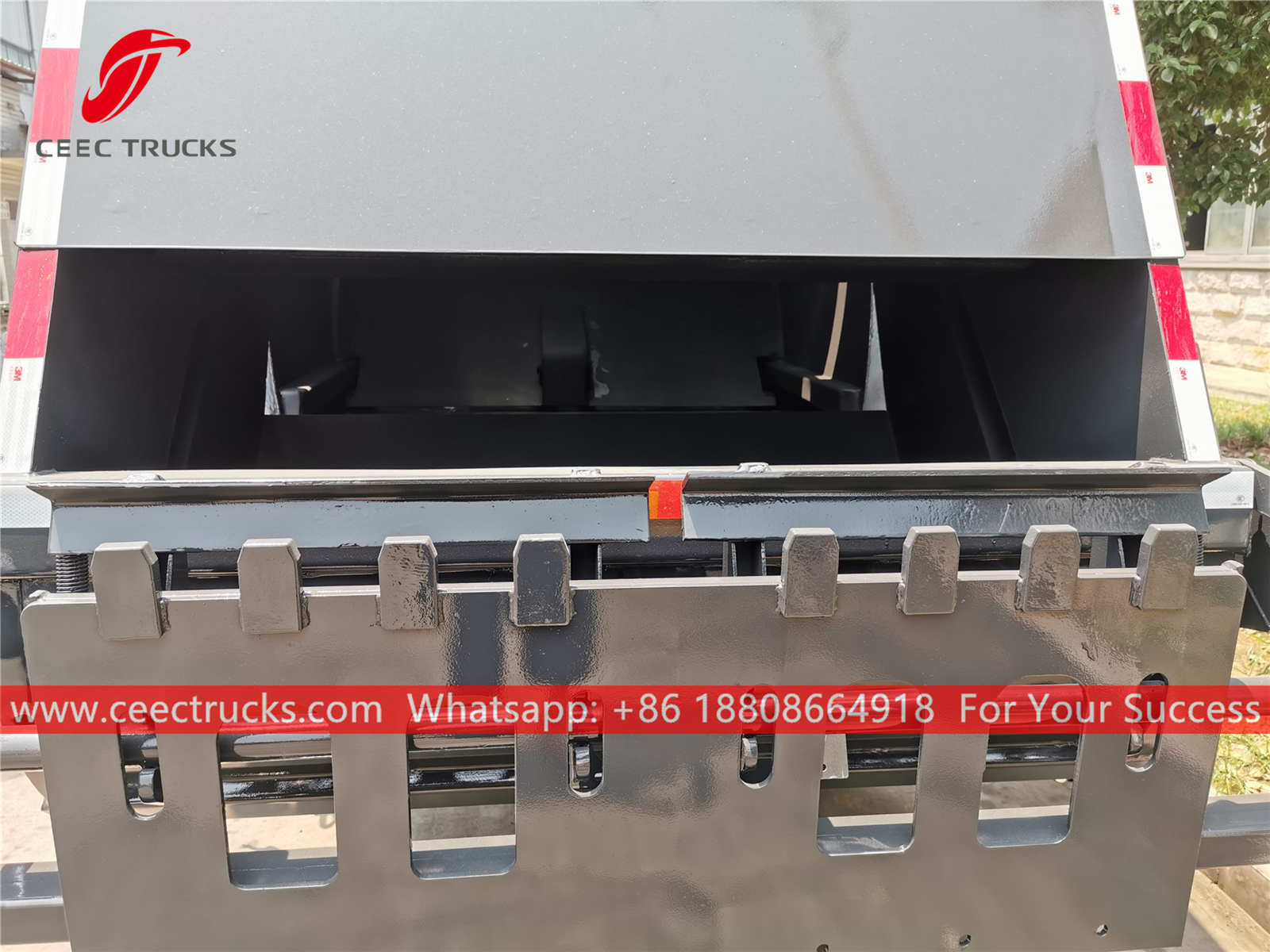

Fill Hopper capacity
|
1.2 cbm
|
|
Sewage tank
|
200 liters
|
|
Filling work cycly time
|
20~25 s
|
|
Discharge model
|
Horizontal Ejection
|
|
Control system
|

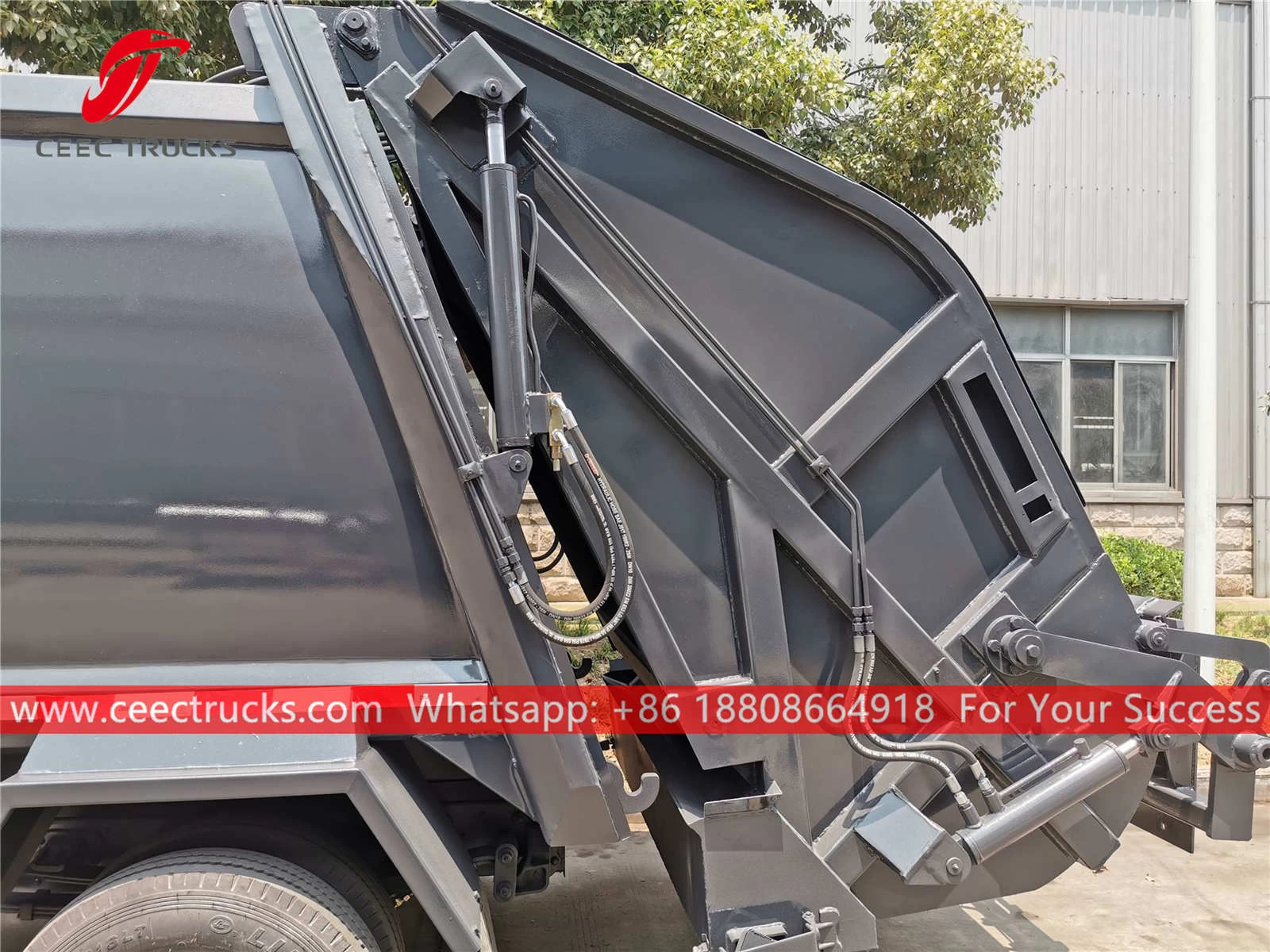

Electrically Hydraulic control
Manual hydraulic control
|
|
Control panel
|
English or Your language
|
|

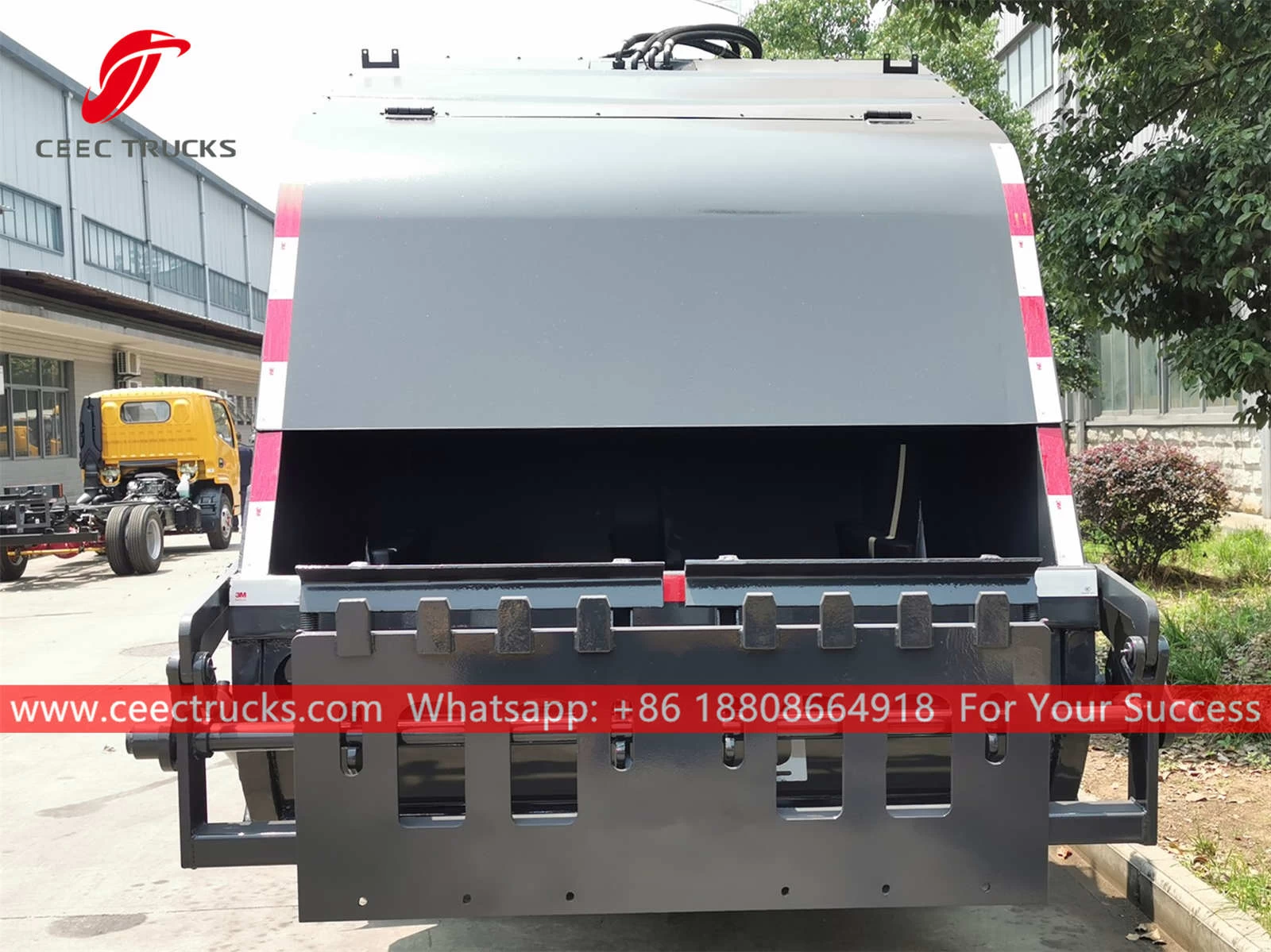

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,
handrail, fire extinguisher, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Italy mulit-valve can be choose.
** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.
|
(High technology back-loading waste truck manufacturer, best quality waste compactor vehicles)
Key words: Back load garbage compression truck, rear loader trash truck, refuse collection truck
