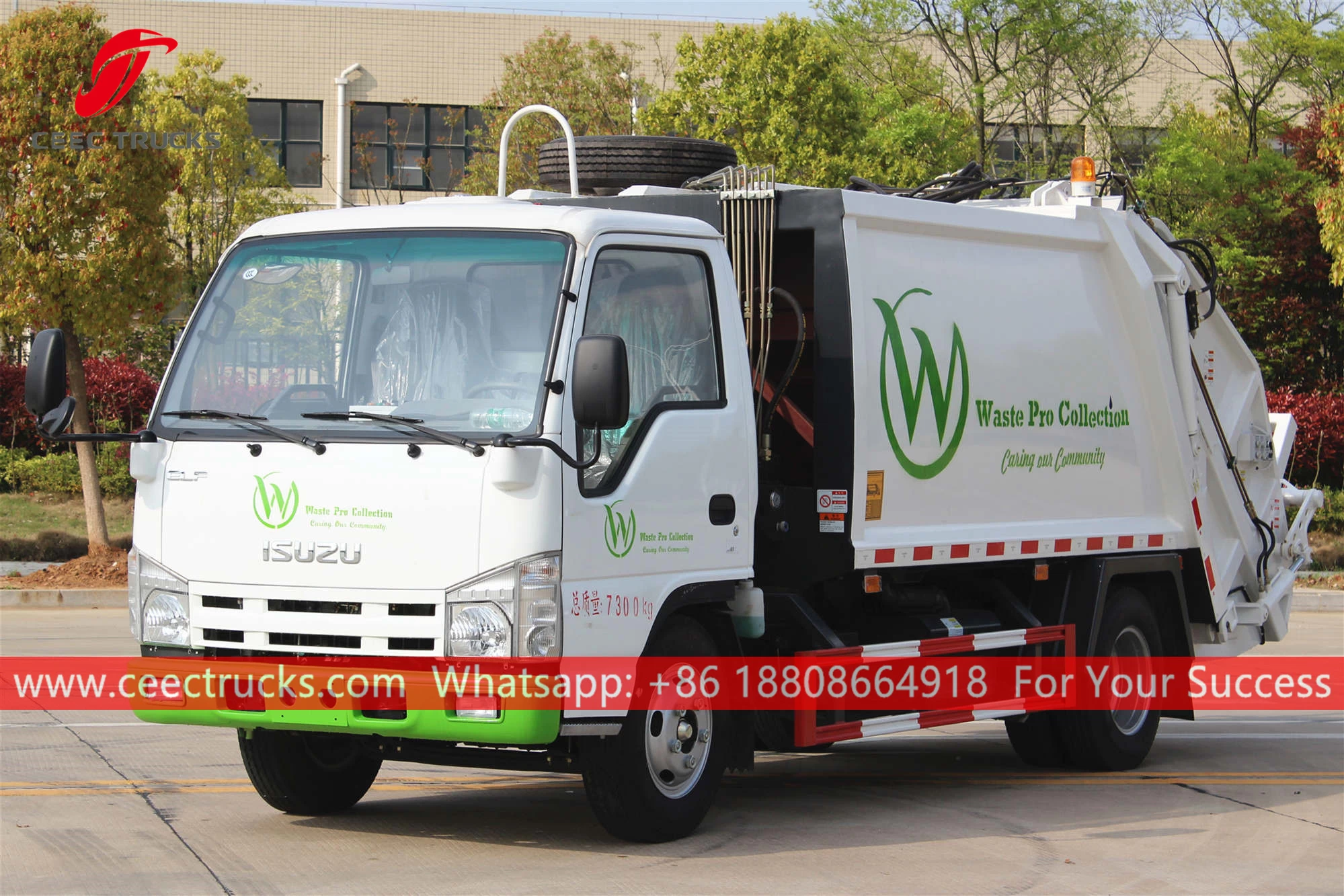

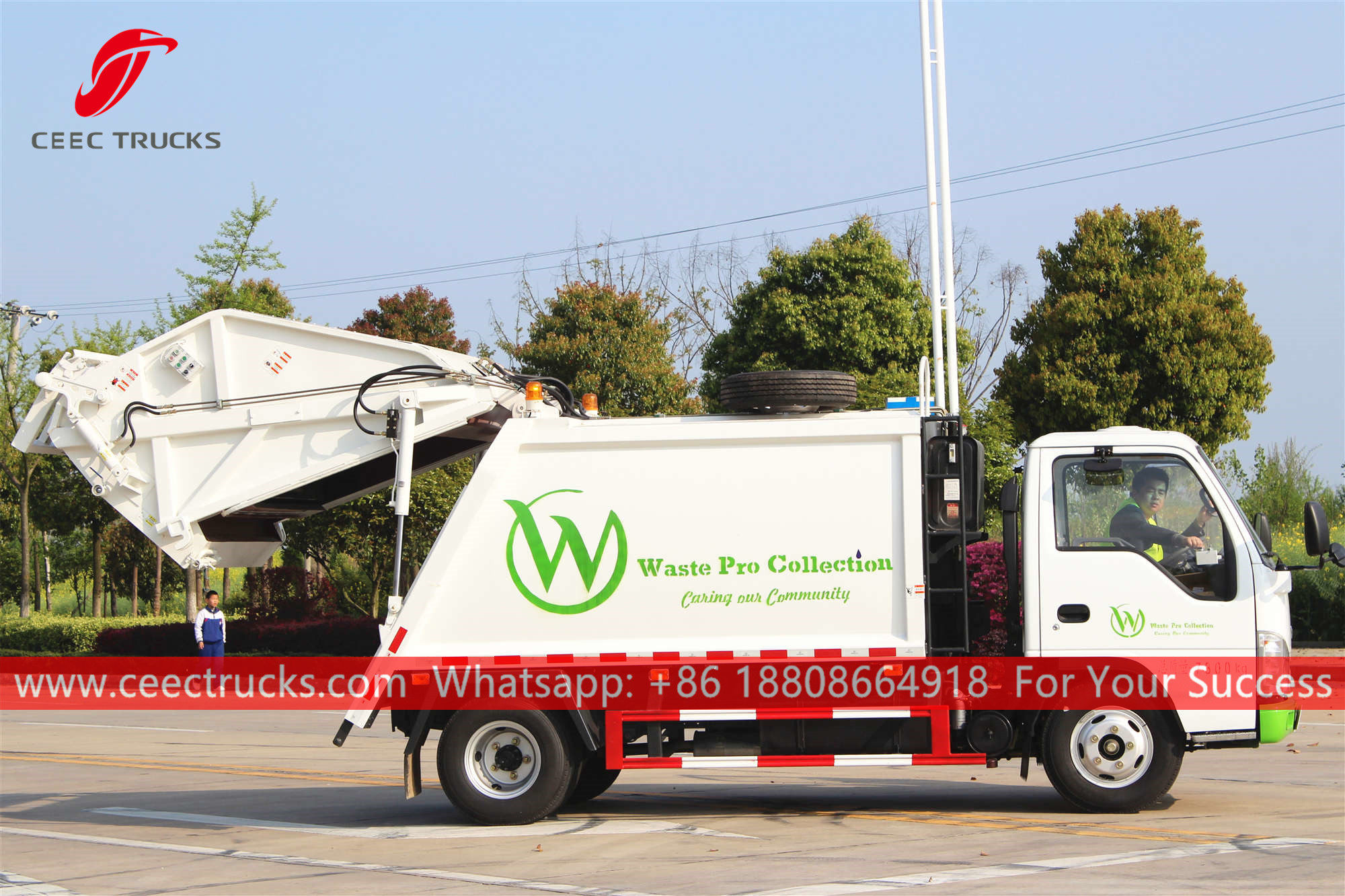

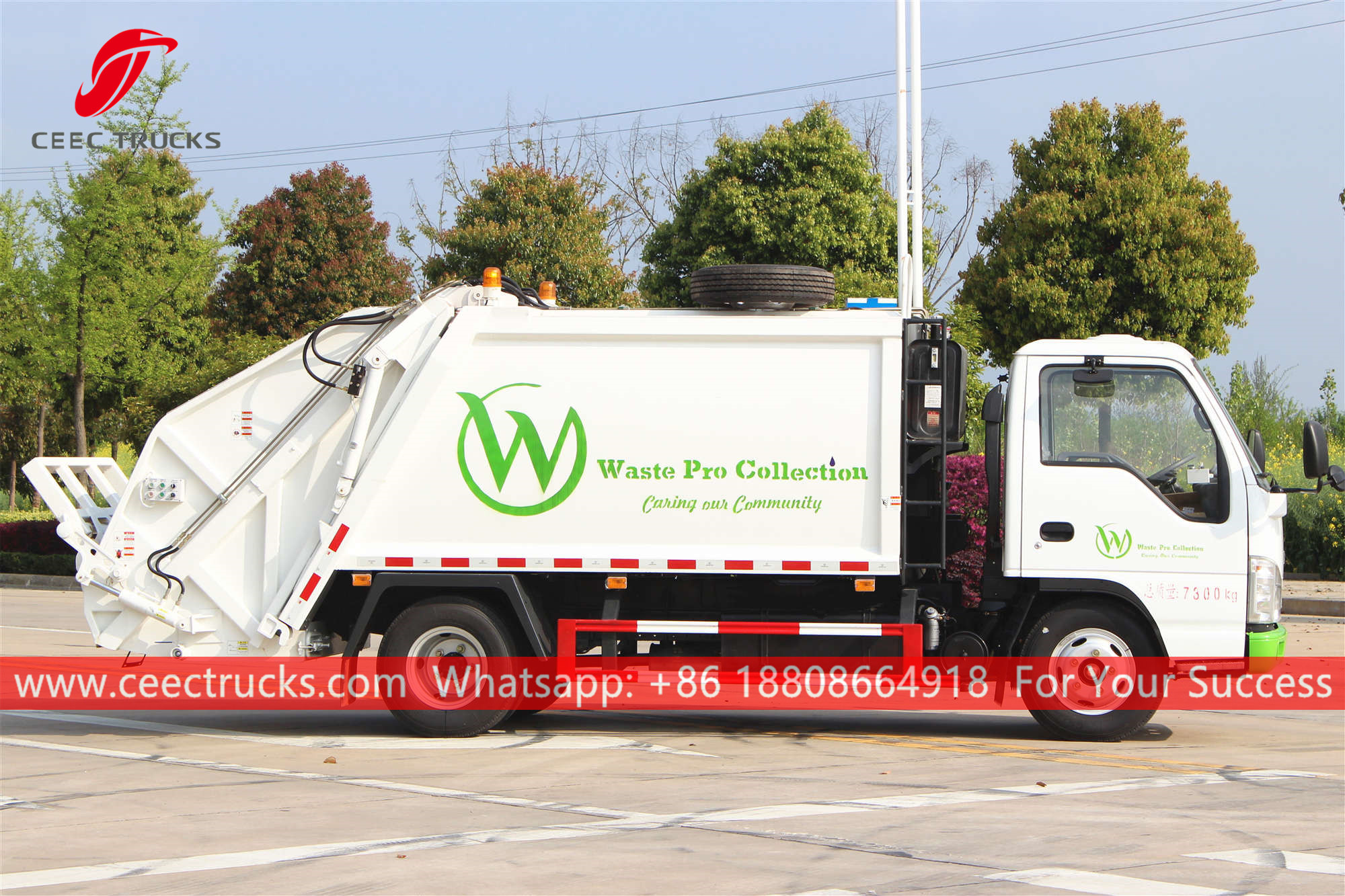

ISUZU 5CBM Waste compact truck

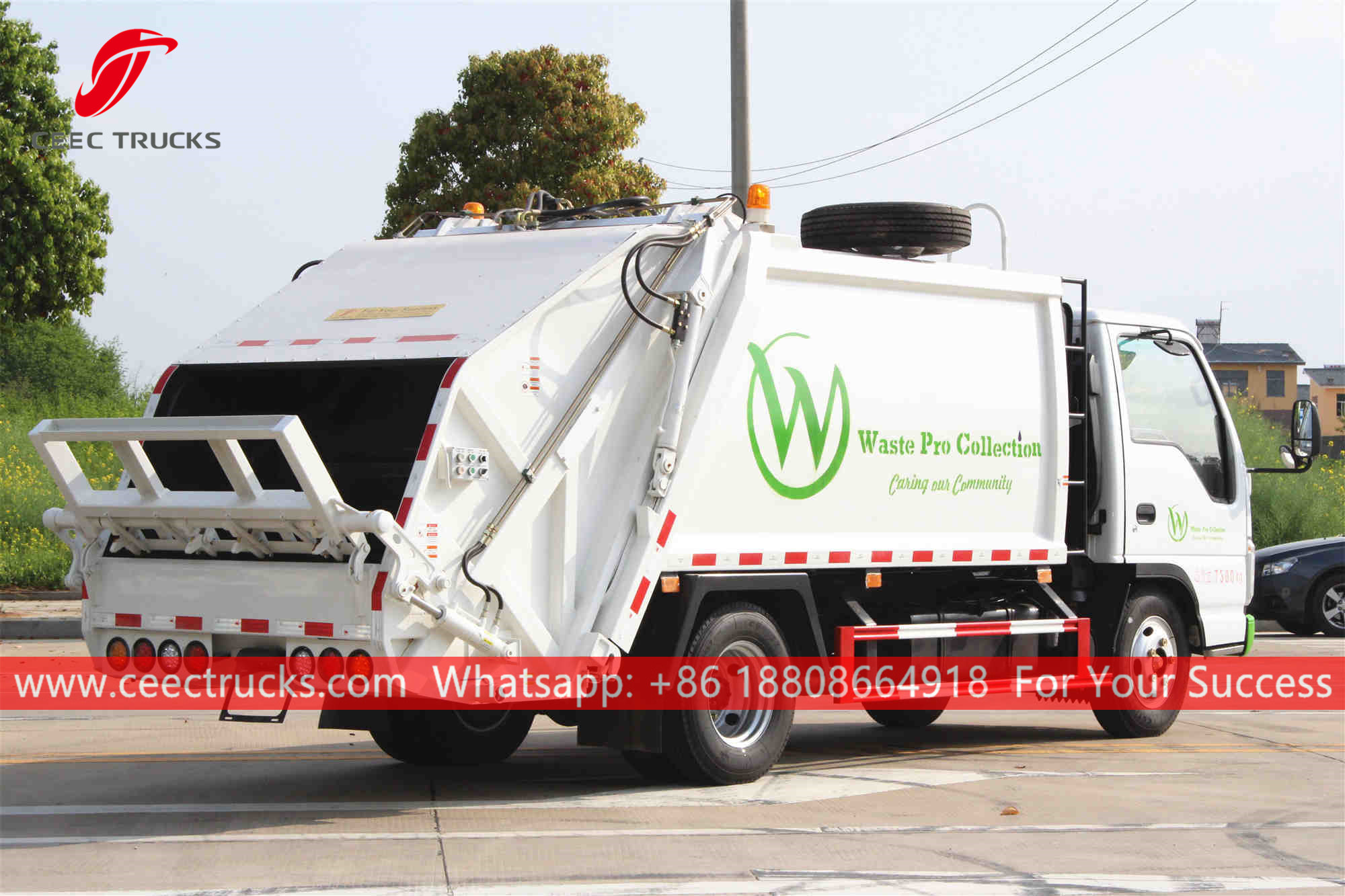

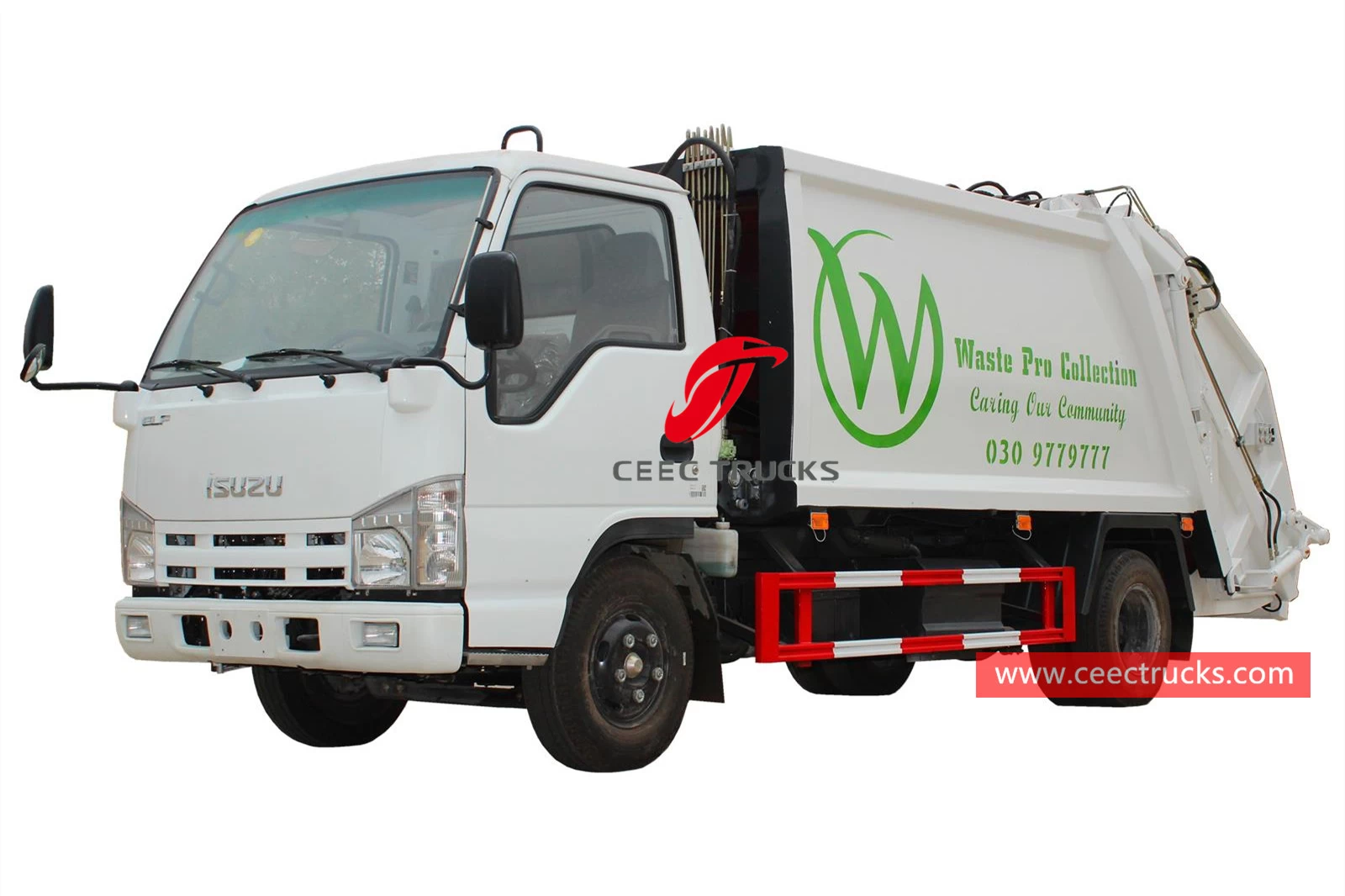

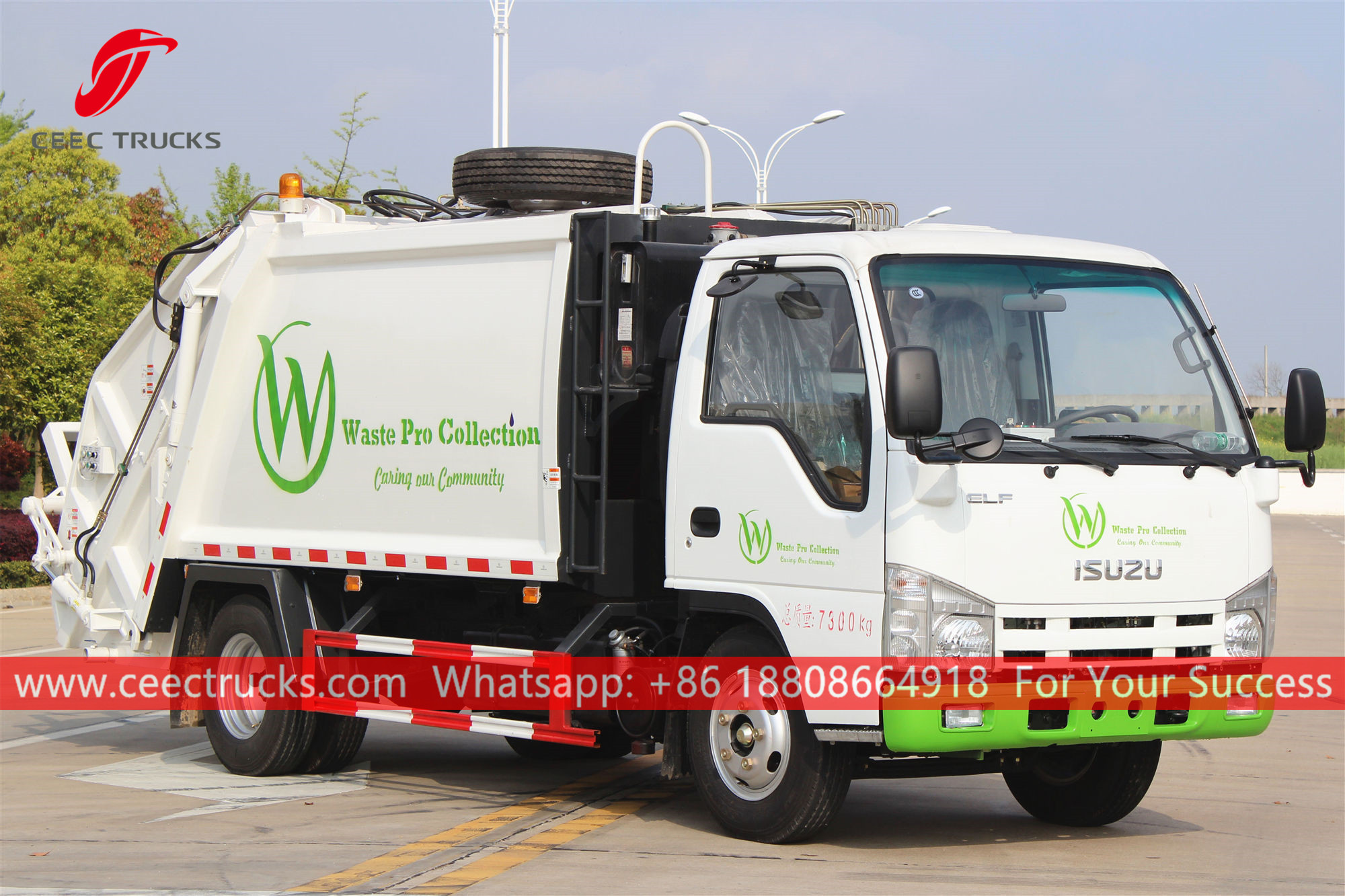

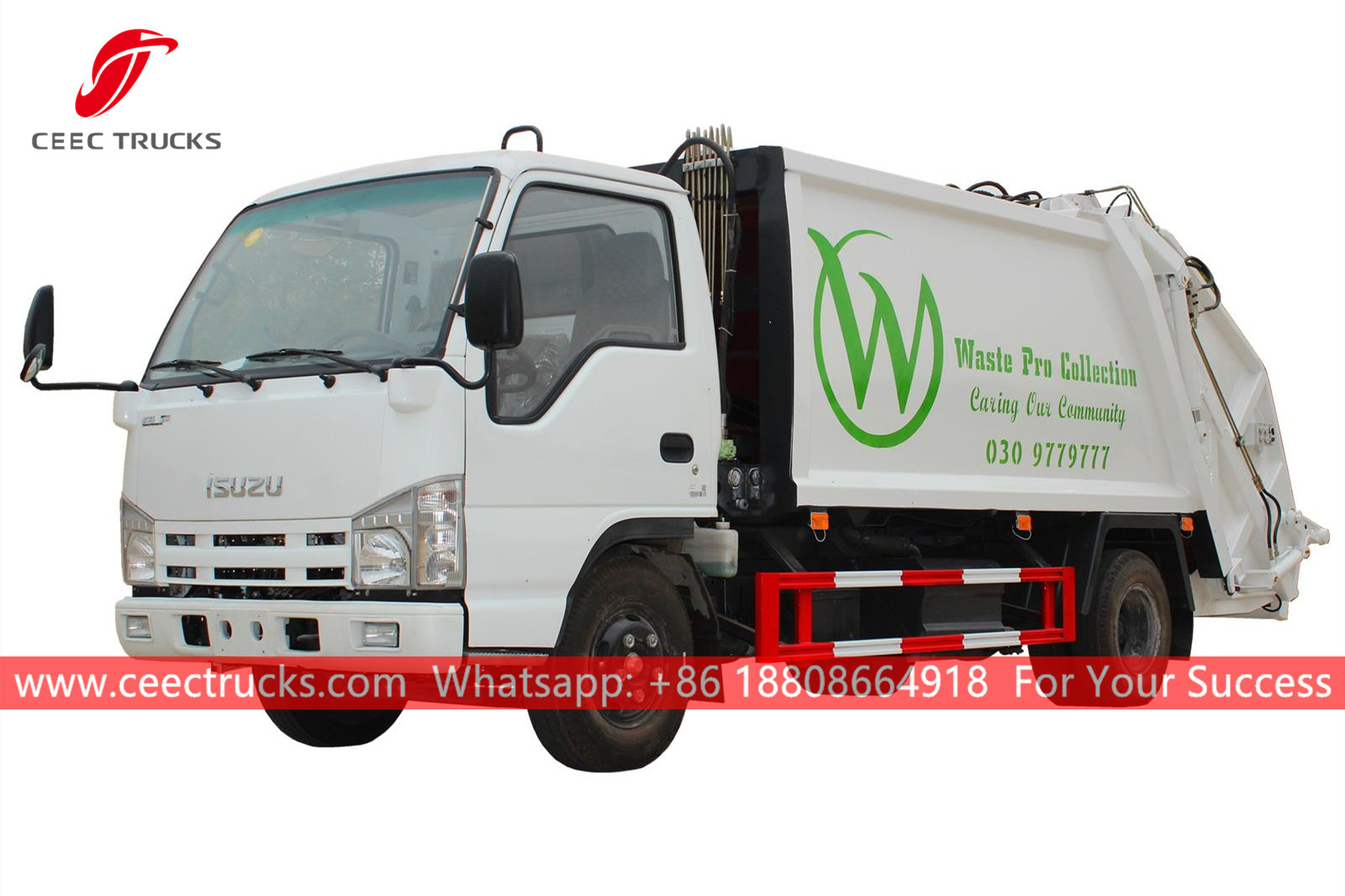

ISUZU 5m3 rear-loader garbage truck, the truck chassis use ISUZU 98HP diesel engine, MSB 5-shift transmission gear. PLC control box for easy operation. All painting and logos based on customers' requirement.




ISUZU 5CBM Waste compressing truck

 Applications:



ISUZU Waste Truck with compactor (also called garbage compactor truck, ISUZU 4*2 rear-loader, brand new compressing rubbish vehicle, hot sale refuse compactor, China garbage compressor truck, refuse disposal truck manufacturer) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.



CEEC TRUCKS compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.



The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:



---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

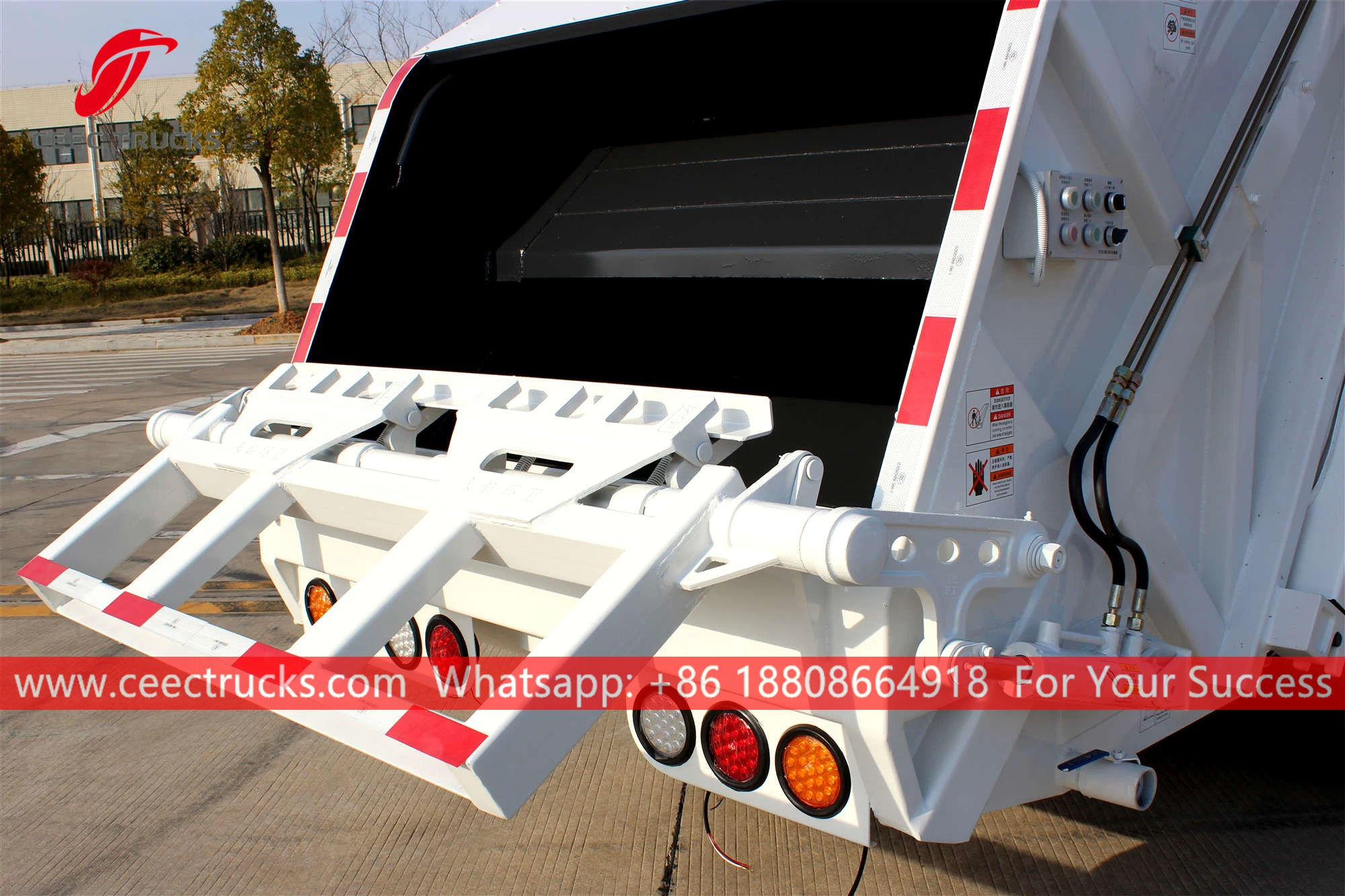

---- Various types of refuse container lifter are available.



 Specifications:



ISUZU trash compressor truck (5 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

6230 * 2100 * 2500 mm

GVW / Kerb Weight

7,600kg / 3,920kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

98 HP (73 KW)

Displacement

2999 ml

Emission Standard

Euro 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

ISUZU MSB 5 speed levers with 1 reverse

Wheelbase/No. of axle

3360mm / 2

Tire Specification

7.00R16

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

5 cbm

Fill Hopper capacity

1.2 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

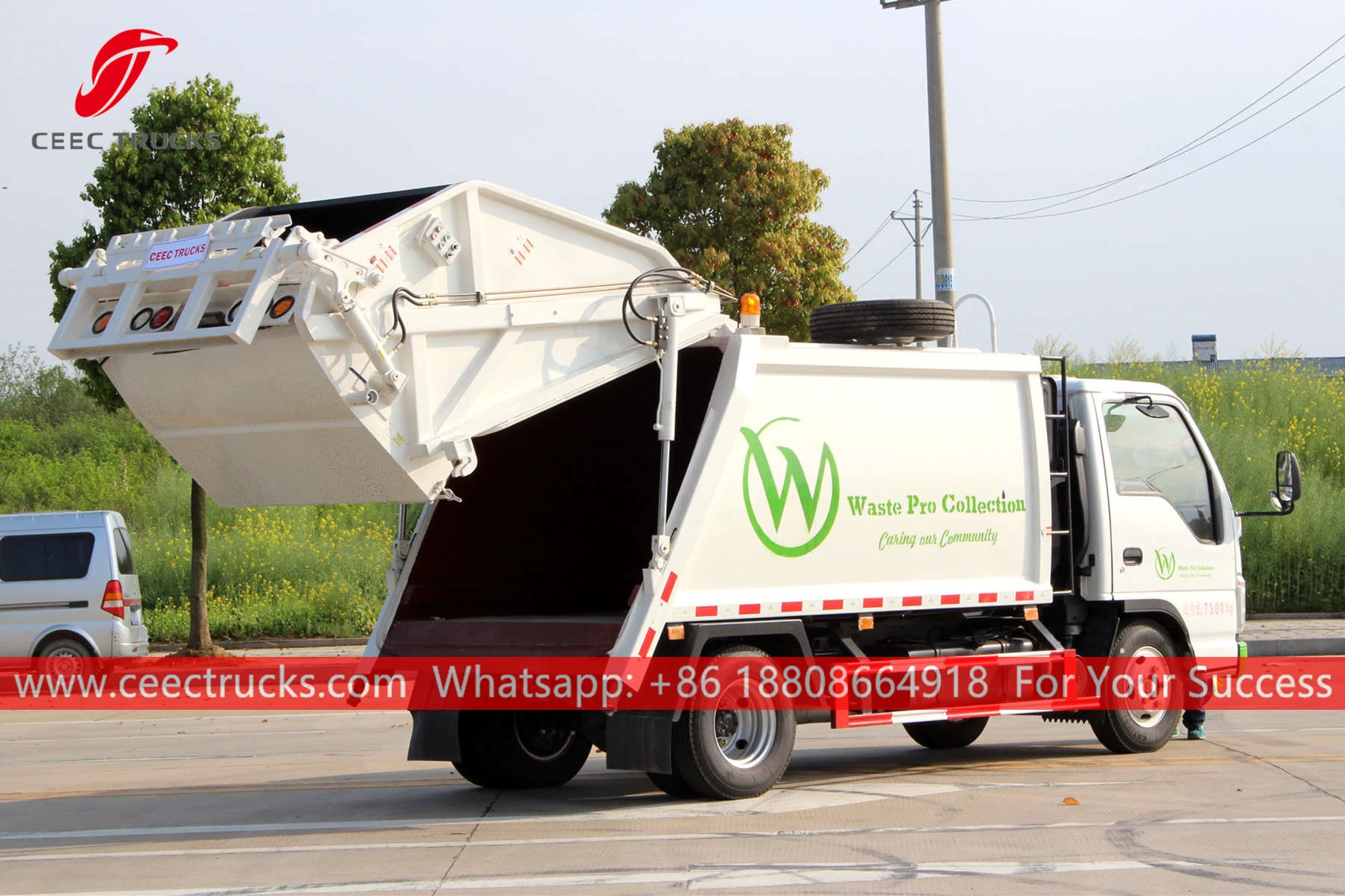

Discharge model

Horizontal Ejection

Control system

Electrically Hydraulic control

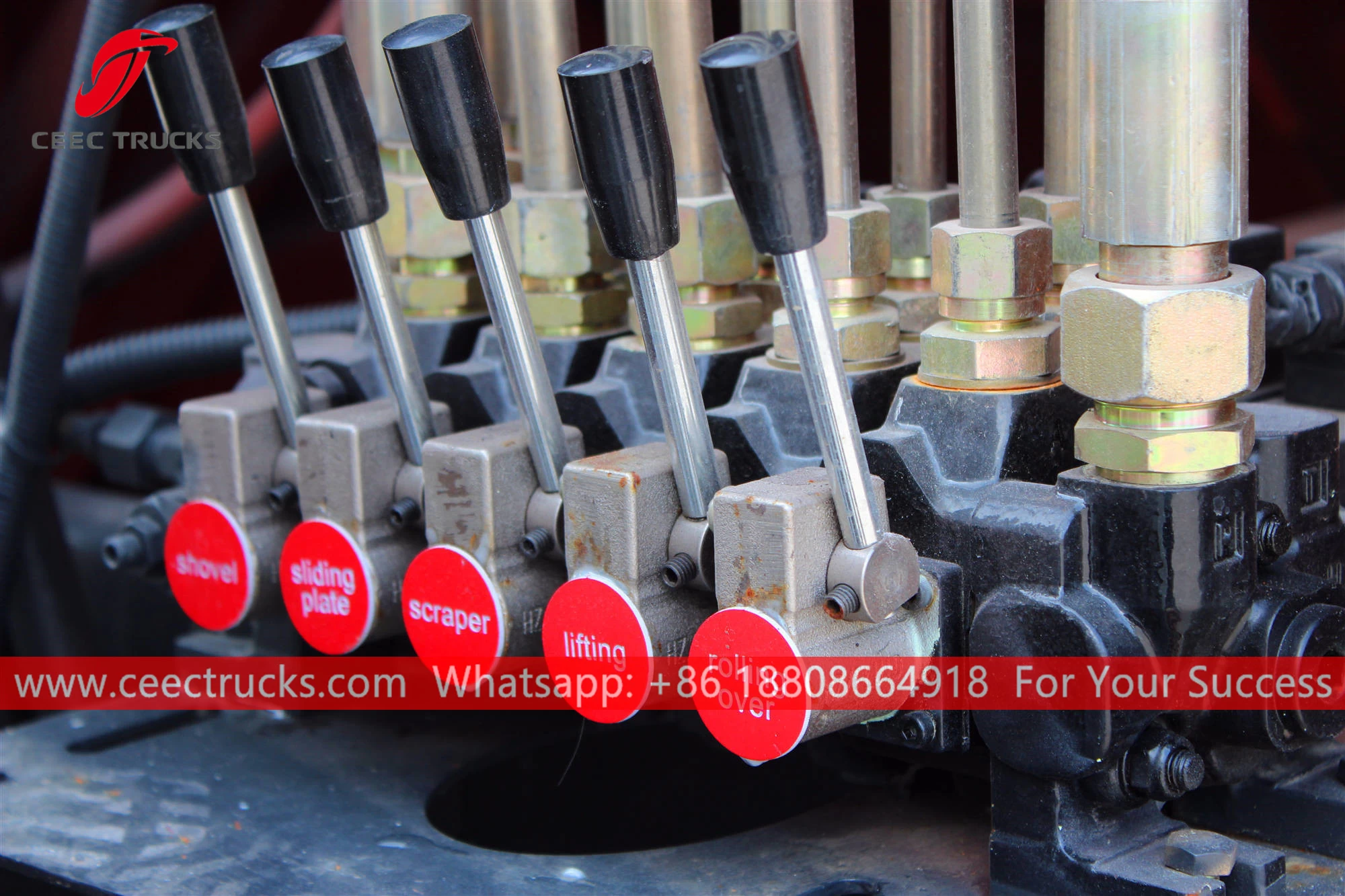

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.

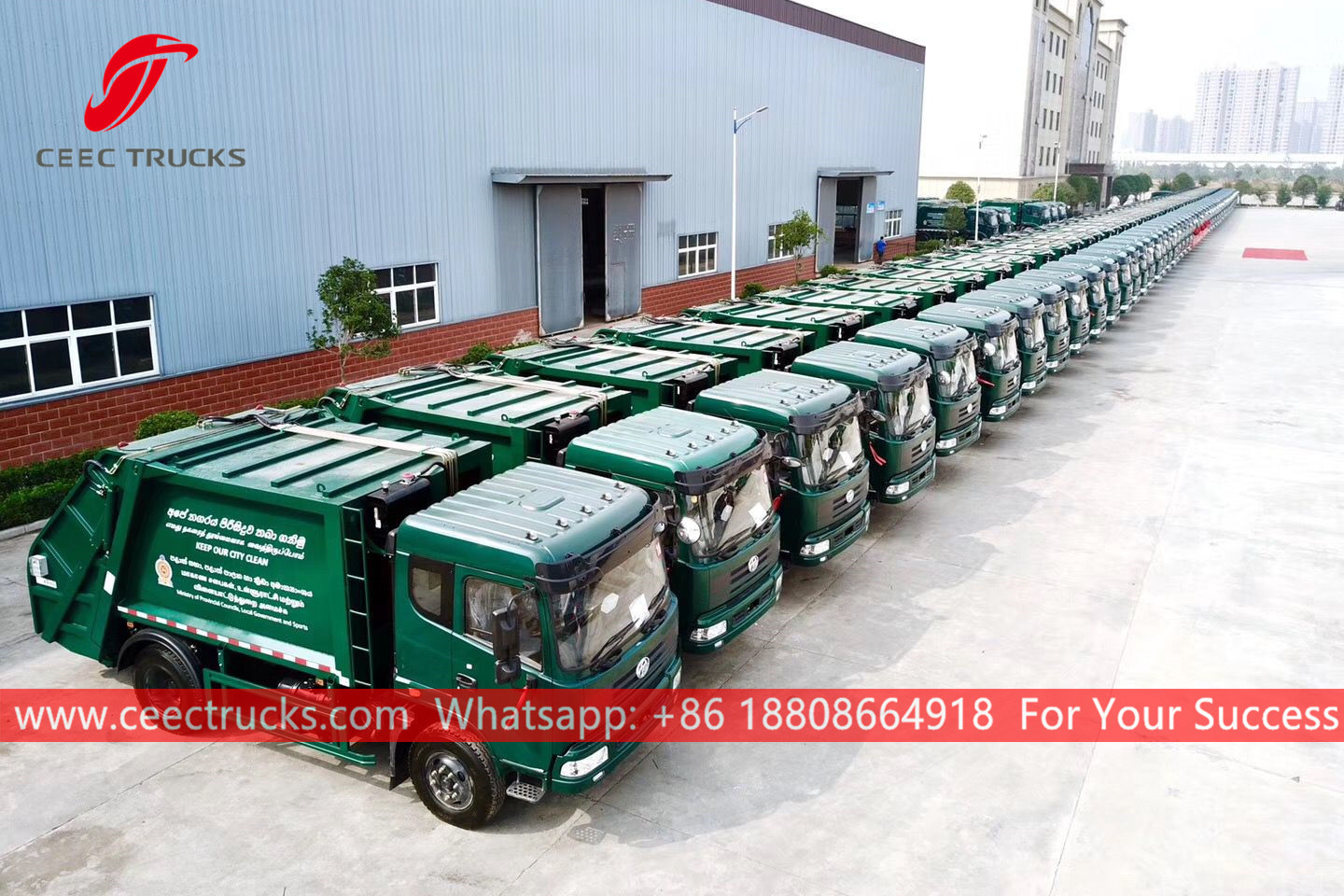

50 units rear loaders were exported

(50 units refuse compression trucks were delivered to customer)



Key words: Good quality rear loader garbage collector, Hydraulic Waste Compactor, garbage disposal truck
