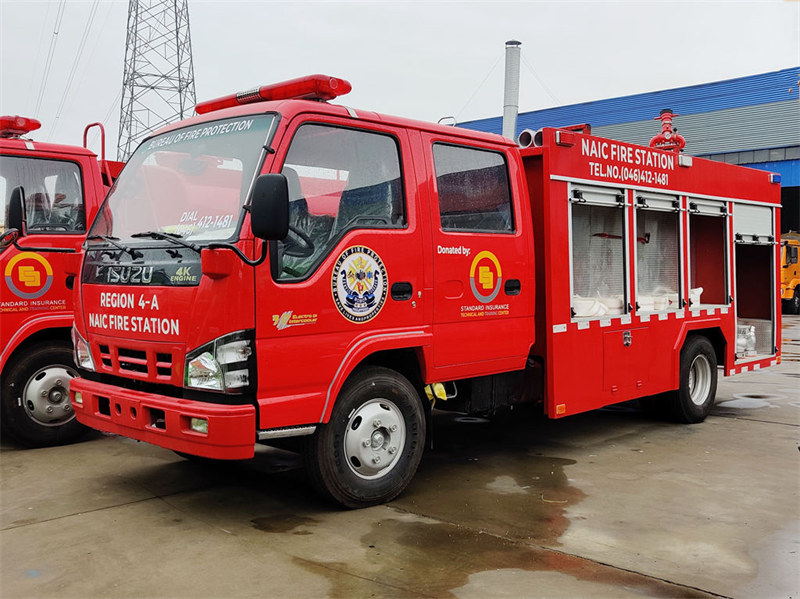

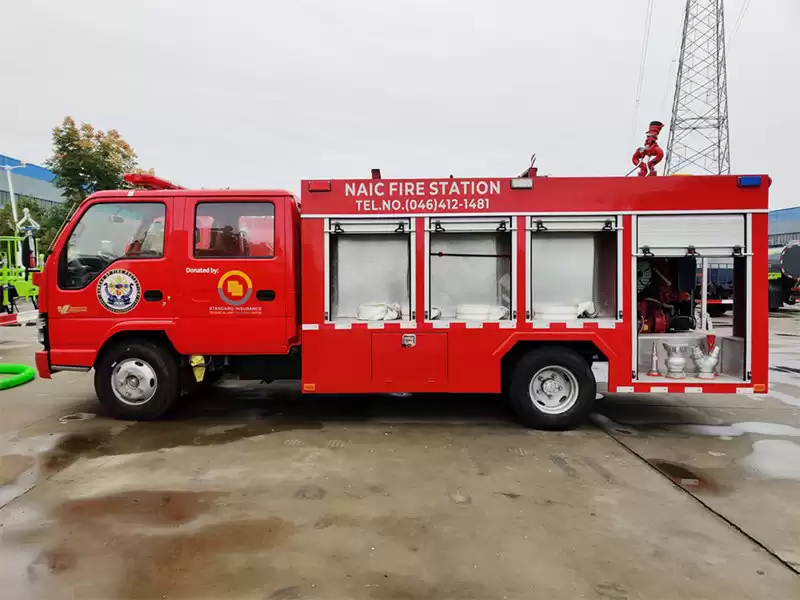

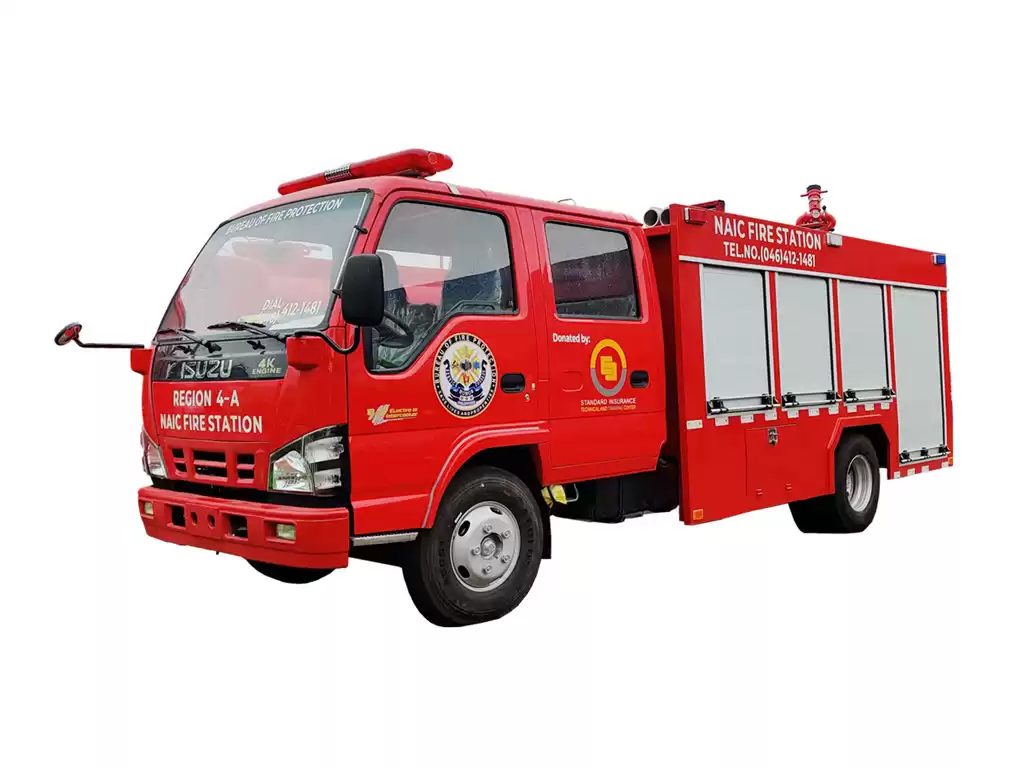

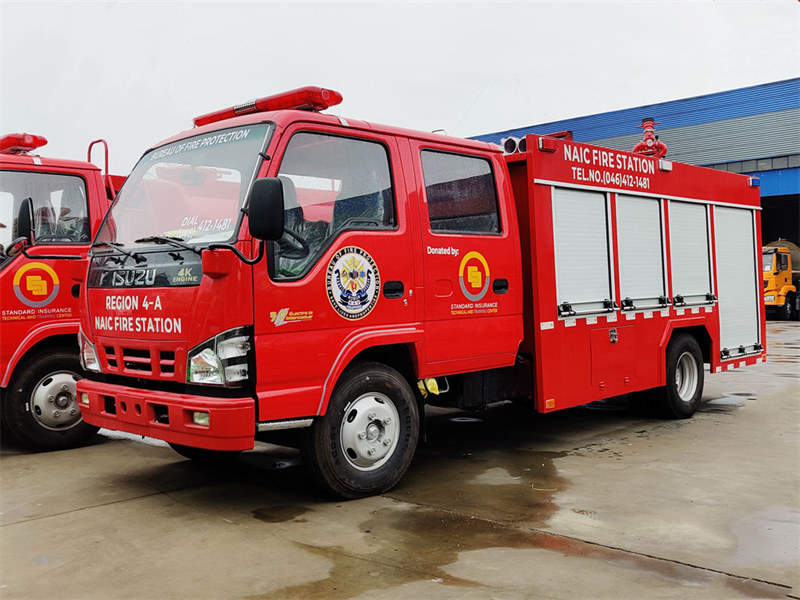

The ISUZU 600P light-duty tanker fire truck is a compact firefighting apparatus built on the ISUZU NKR light commercial vehicle chassis, with overall dimensions of 6220×1960×2840mm and a gross weight of 7300kg. The model adopts an original double-row cab design, accommodating 5 firefighters (2 front + 3 rear), while its flat-head structure ensures excellent visibility, particularly suited for fire operations in narrow urban streets. Powered by a 4KH1CB6LB diesel engine compliant with Euro 6 emission standards, its 120HP output paired with a 5-speed manual transmission guarantees rapid response to emergency scenes.
The centerpiece of this ISUZU small fire tender truck is its 3000L stainless steel water tank. The tank features a quick-opening/closing manhole cover, overflow device, liquid level gauge, and manually controlled drain outlet for easy maintenance and rapid water replenishment. The CB10/30 normal-pressure fire pump delivers a rated flow of 30L/s at 1.0MPa working pressure, with a maximum suction depth of 7m, ensuring stable operation across diverse water sources. The PS8/20W fire monitor achieves a range exceeding 50m, with 360° horizontal rotation and -35° to +70° elevation angles, providing firefighters with flexible fire control capabilities.

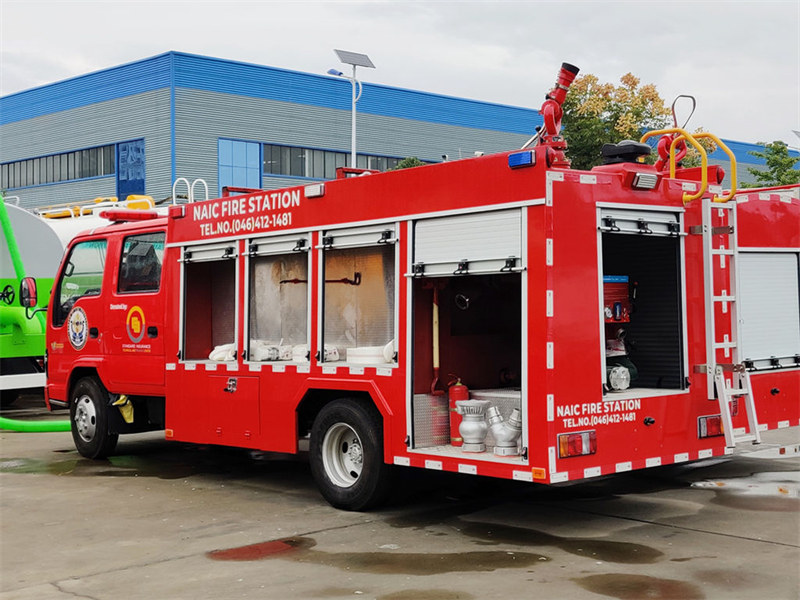

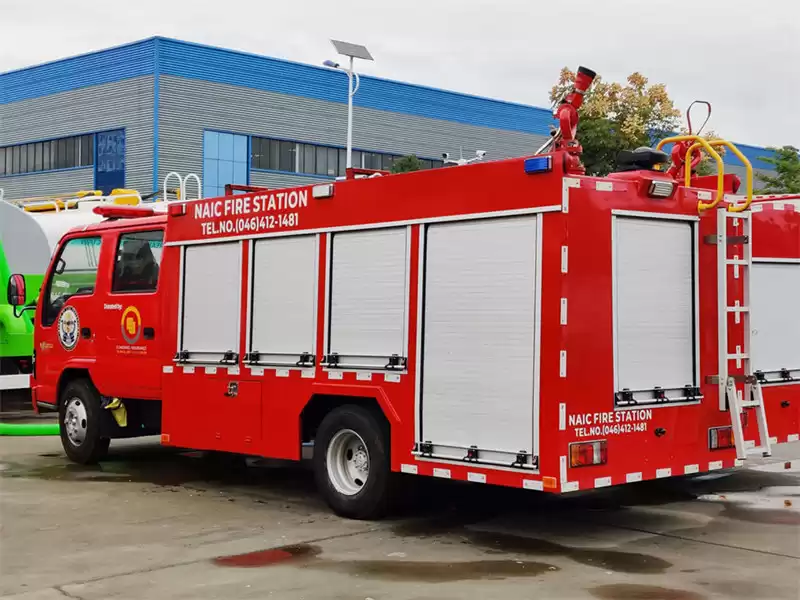

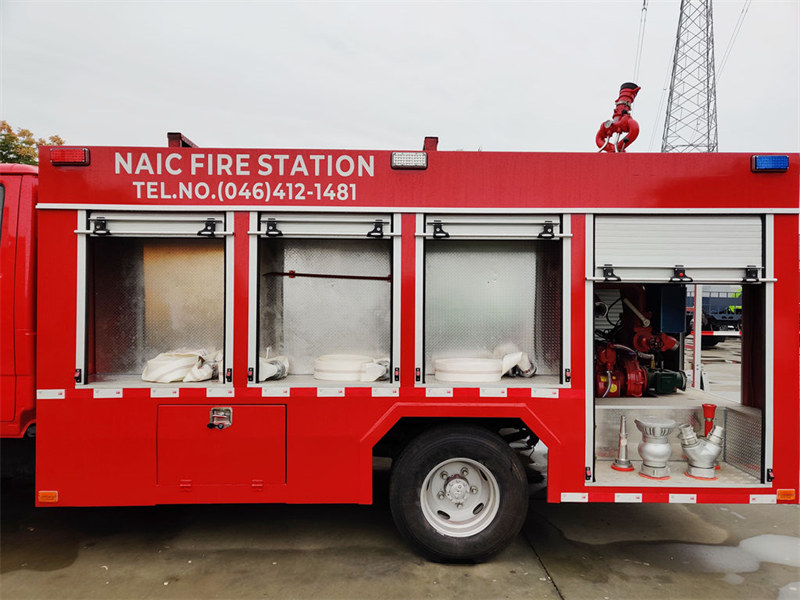

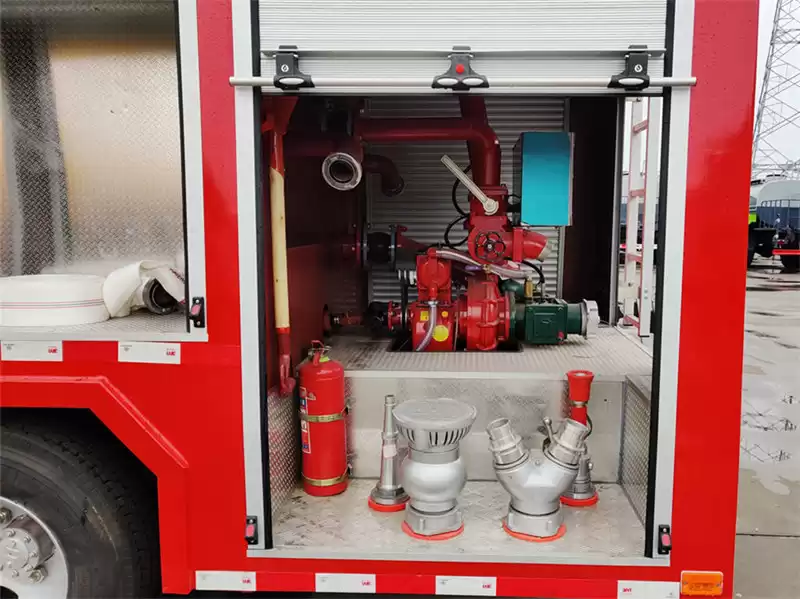

The ISUZU 600P pumper fire truck's equipment compartments utilize high-quality aluminum roll-up doors, balancing lightweight construction with durability. Professional configurations include a sandwich PTO, pipeline system, equipment cabin, and pump room, while flip-down steps and lighting systems enhance nighttime operational convenience. The well-organized layout ensures easy access to all firefighting gear, meeting national standards for light-duty fire truck equipment.
Product Specifications
|
Vehicle parameters
|
|
Overall dimension
|
6220*1960*2840(mm)
|
|
GVW
|
7300kg
|
|
Curb weight
|
4200kg
|
|
Chassis brand
|
ISUZU
|
|
Traction type
|
4*2, left hand drive
|
|
Chassis parameters
|
|
Chassis model
|
ISUZU 600P
|
|

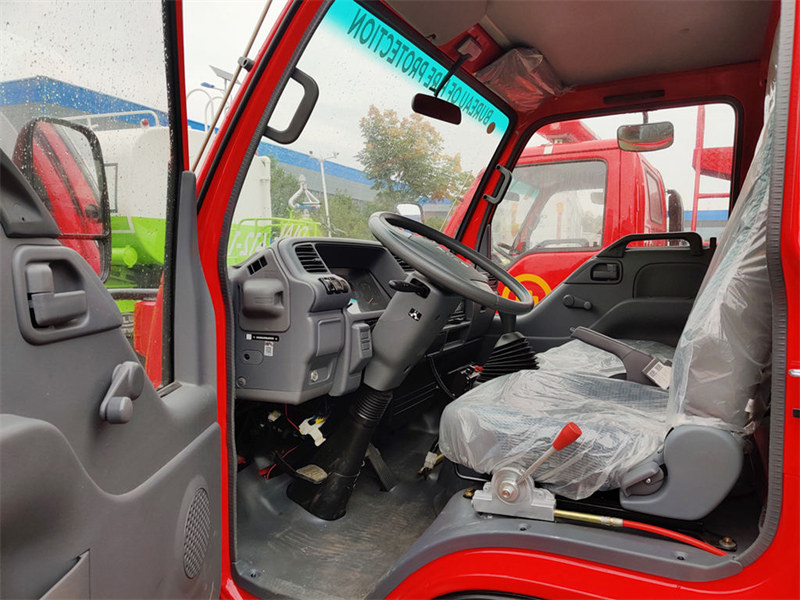

Cab
|
Structure: flat-head, double-row seat four-door passenger compartment.
Seat setting: 2 people in the front row and 3 people in the back row.
|
|
Wheelbase
|
3360mm
|
|
Tire specification
|
7.00R16
|
|
Tire quantity
|
6+1
|
|
Engine
|
Engine model
|
4KH1CB6LB
|
|
Emission standard
|
Euro 6
|
|
Displacement
|
2999ml
|
|
Output power
|
88 kW
|
|
Horsepower
|
120 hp
|
|
Max. torque
|
290 N.m
|
|
Gear box
|
Model
|
ISUZU - MSB
|
|
Number of gears
|
5 forward gears& 1 reverse
|
|
Brake system
|
Type
|
Drum
|
|
Service brake
|
Dual-circuit compressed air brake
|
|
Park brake
|
Power spring brake acting on rear wheel
|
|
Auxiliary brake
|
WEVB
|
|
Axle
|
Front
|
2.5T
|
|
Rear
|
4.8T
|
|
Suspension
|
Front
|
8- Leaf spring with shock absorber
|
|
Rear
|
6+5-Leaf spring
|
|
Fuel tanker
|
Type
|
Steel fuel tanker
|
|
Capacity
|
100L
|
|
Superstructure parameters
|
|
Water Tanker
|
Capacity
|
3000 liters
|
|
Material
|
Stainless steel
|
|
Standard configuration
|
1 set manhole with quick lock and open device;
1 set overflow device;
1 set fluid level gauge;
1 set drain outlet with manual controlled.
|
|

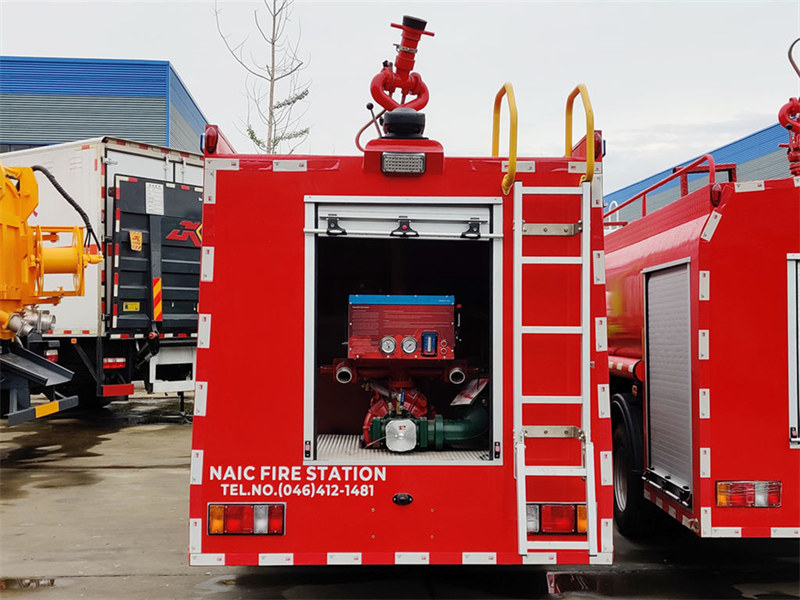

Fire pump
|
Model
|
CB10/30, normal pressure pump
|
|
Flow
|
30L/S
|
|
Pressure
|
1.0Mpa
|
|
Suction depth
|
7m
|
|

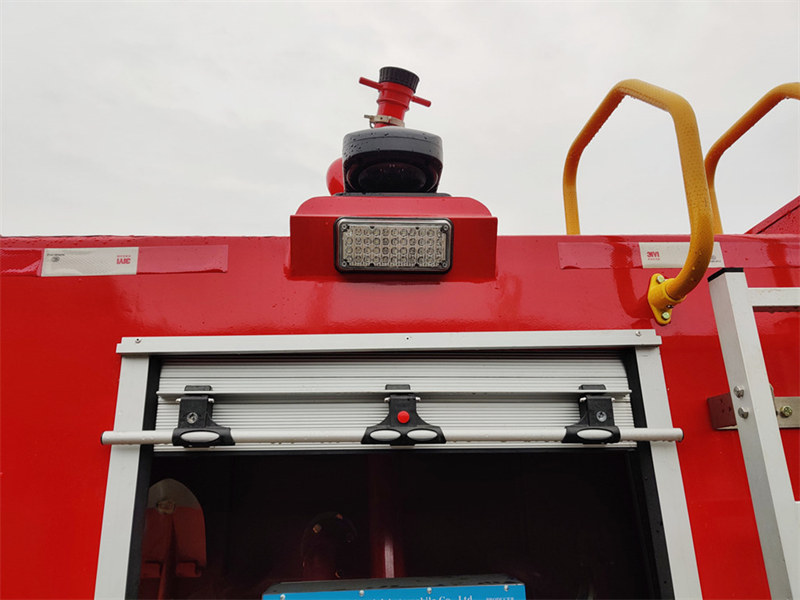

Fire monitor
|
Model
|
PS8/20W
|
|
Flow
|
20L/S
|
|
Pressure
|
0.8Mpa
|
|
Range
|
≥50m
|
|
Rotation angle
|
Horizontal 360°
Pitch -35°~70°
|
|
Other configuration
|
Equipped with sandwich PTO, pipeline system;
Equipped with equipment room and pump room;
Equipped with flip pedal and lighting system.
Basic firefighting equipment.
|

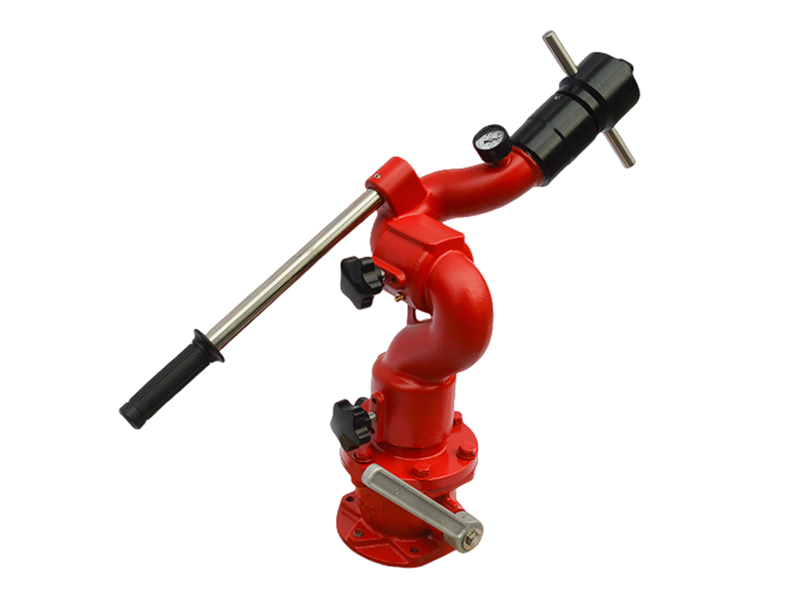

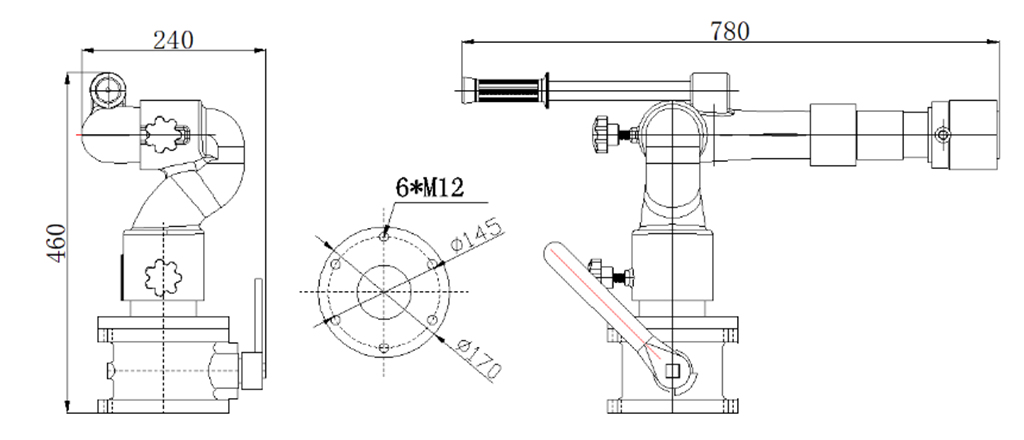

Features of the ISUZU NKR Fire Truck's Fire Monitor:
• Comprehensive functionality
• Simple and innovative structure
• Stable performance with easy maintenance
• Low inlet pressure requirement
• Dual spray patterns (fog/jet)
• Lightweight design
• Equipped with automatic drain valve
• Horizontal and elevation locking mechanisms
• Material: Precision-cast aluminum alloy
