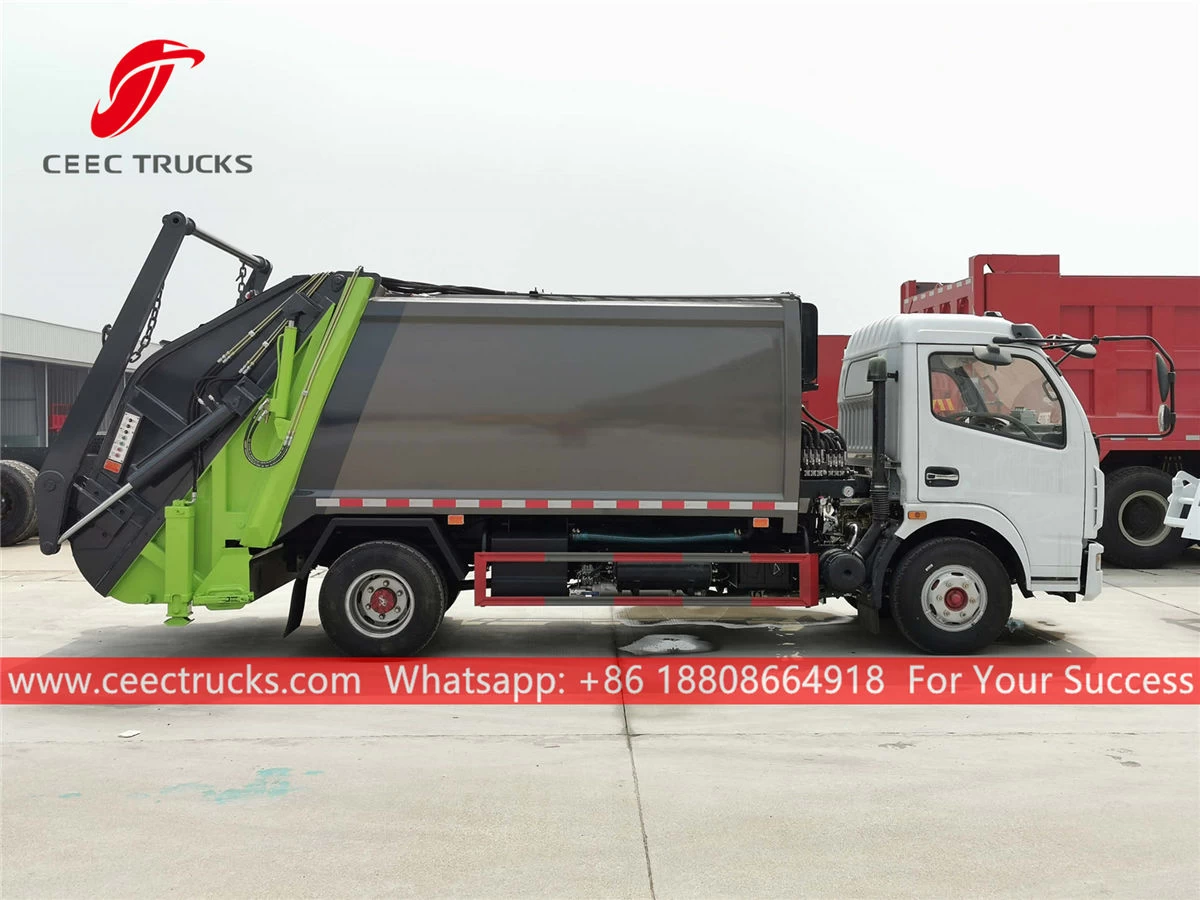

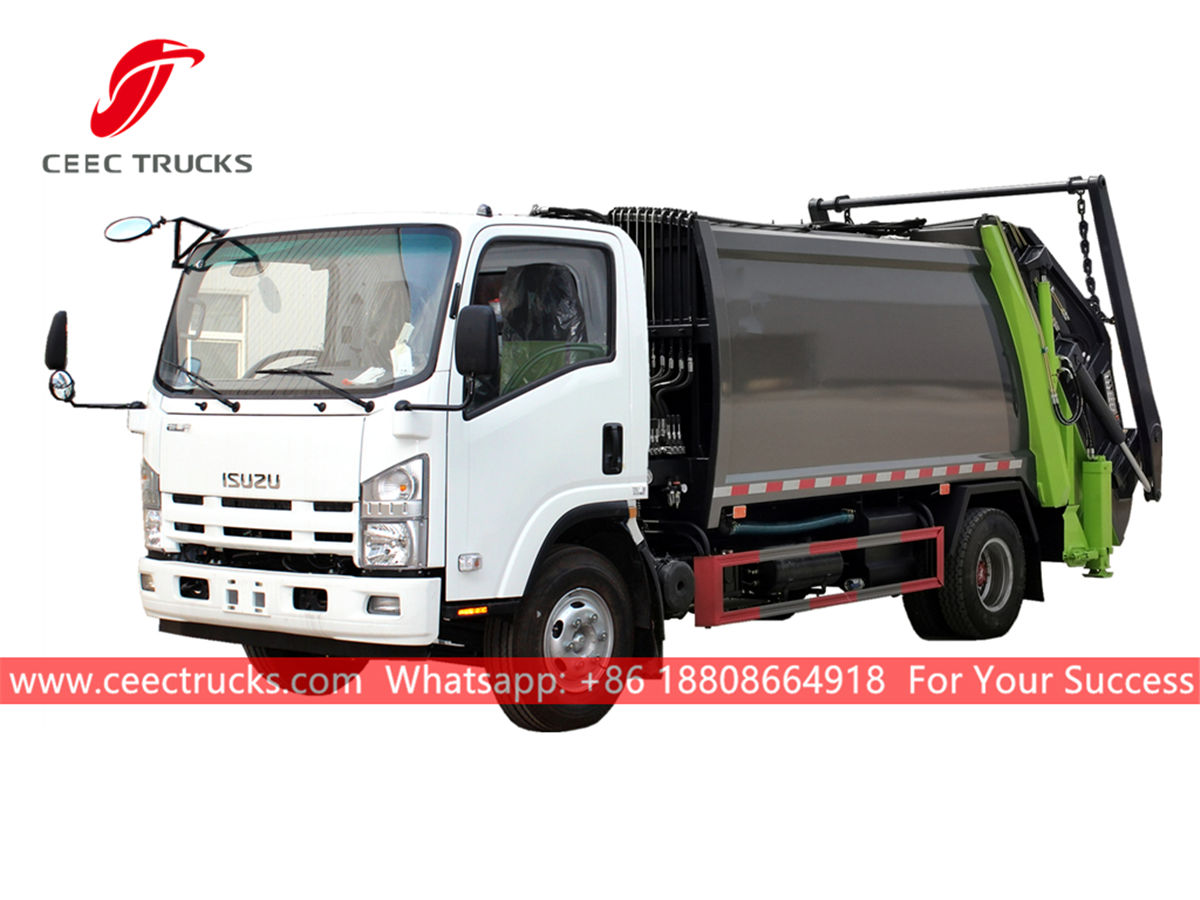

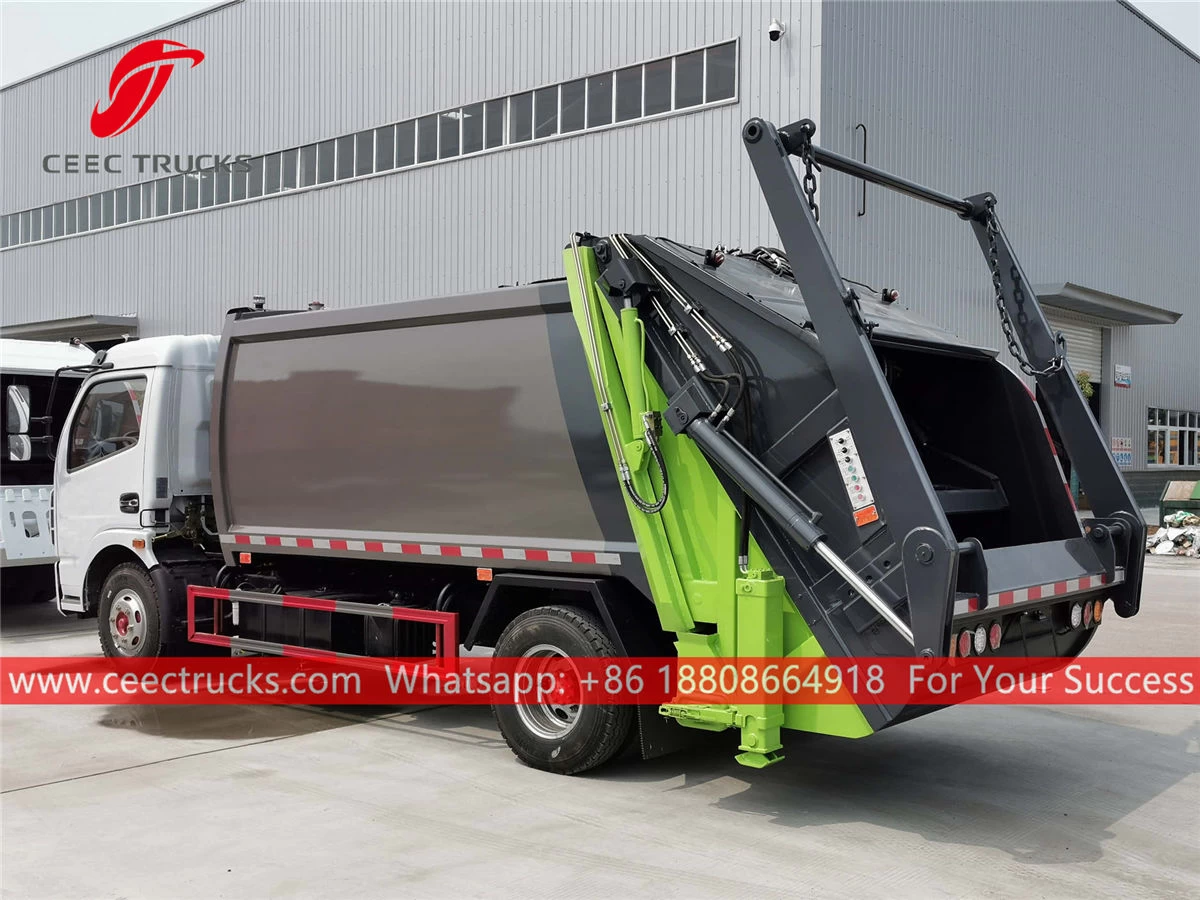

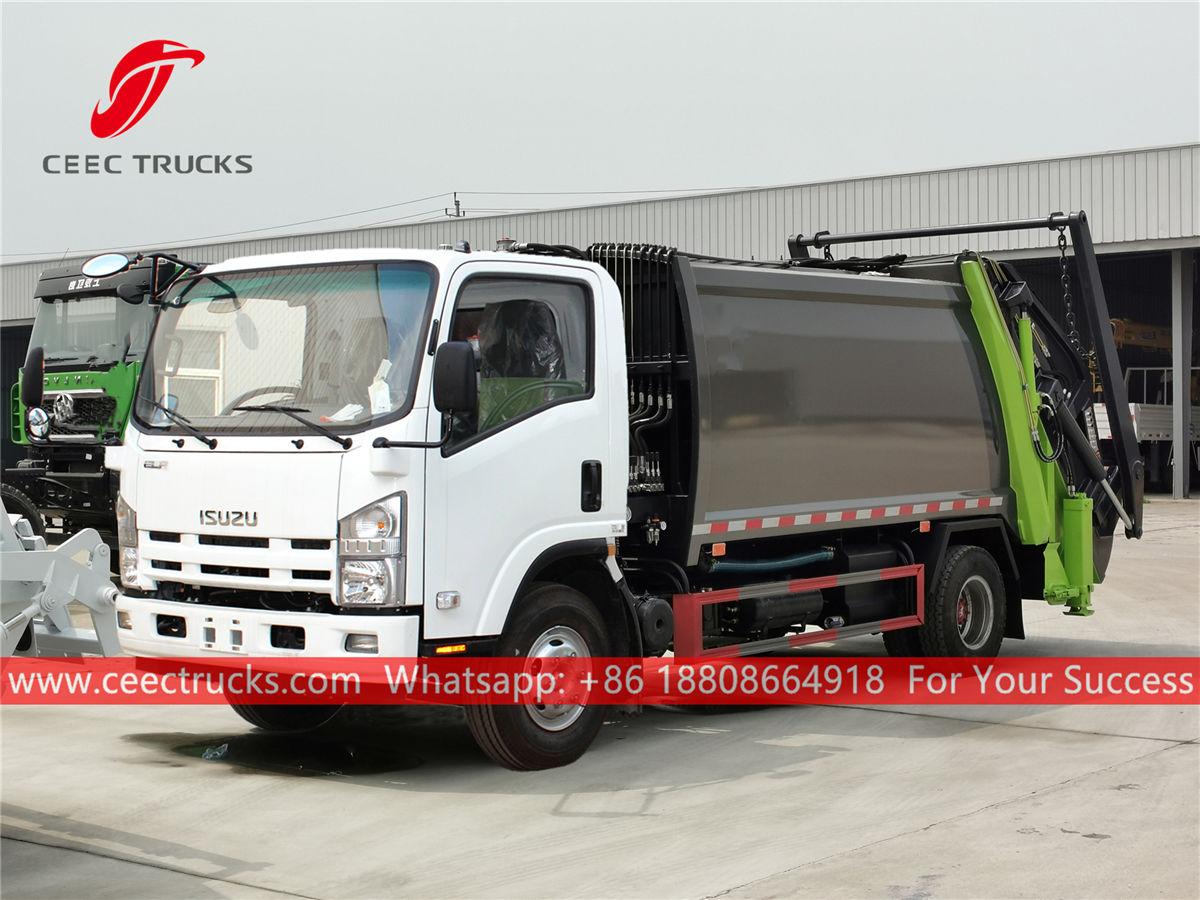

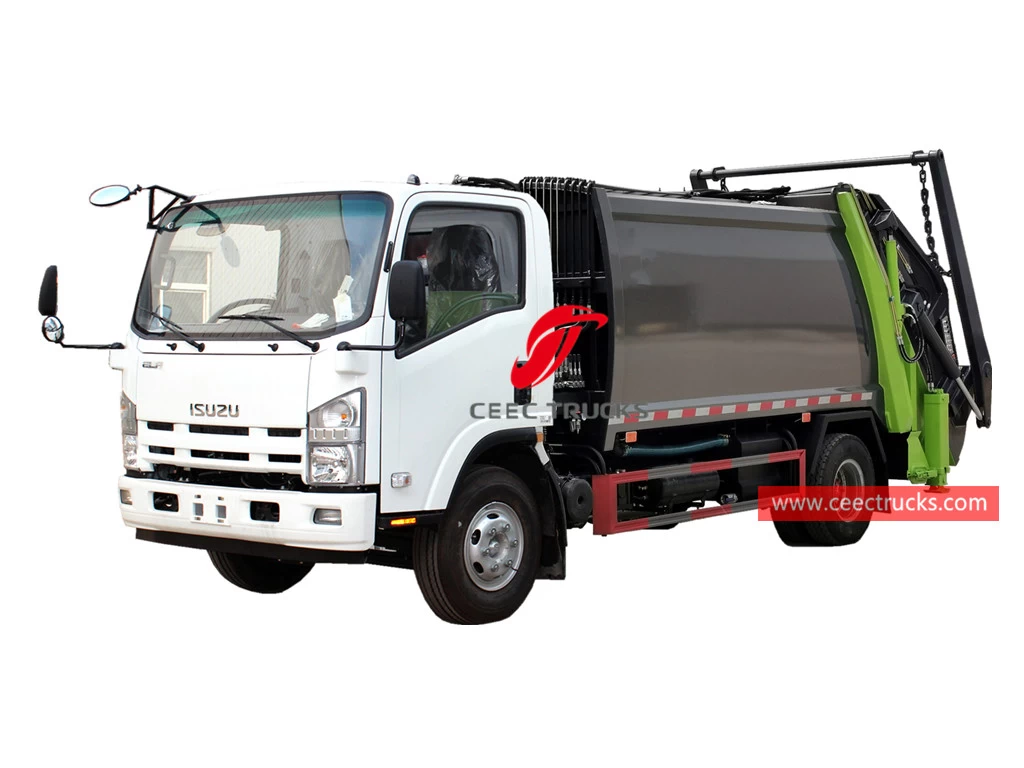

ISUZU 8CBM Garbage compactor vehicle

ISUZU 8cbm waste compressing truck, the truck chassis use ISUZU 190HP diesel engine, ISUZU MLD 6-shift transmission gear. PLC control box for easy operation. All painting and logos based on client's requirement.



ISUZU Waste compactor

 Applications:



ISUZU 8CBM Rear Loader refuse truck  (also called ISUZU  garbage compactor, rear loader rubbish vehicle, waste collection truck, back-loading compressing trash truck, rubbish collector truck, compression garbage truck manufacturer) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.



CEEC TRUCKS compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.



The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:



---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

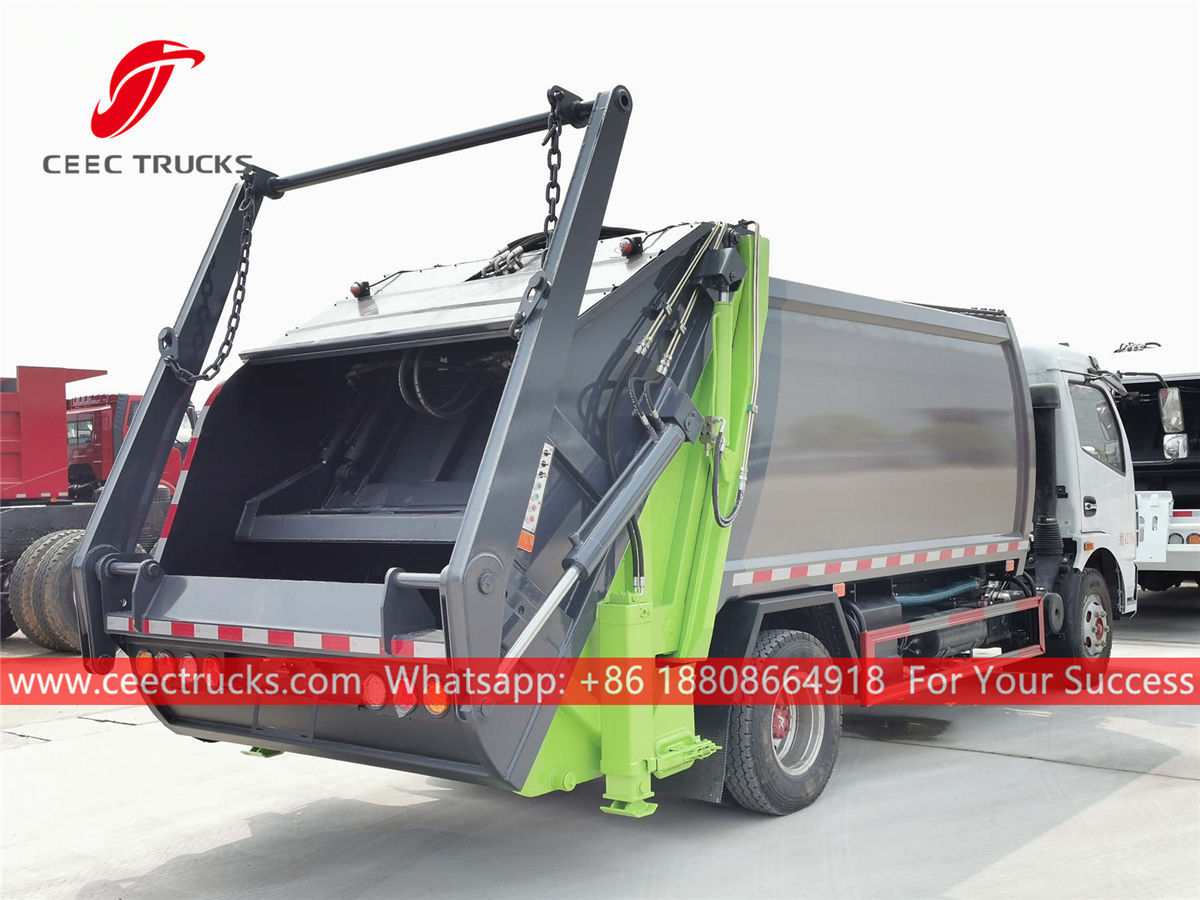

---- Various types of refuse container lifter are available.



 Specifications:



ISUZU Refuse compactor truck (8 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

7720 * 2300 * 2850 mm

GVW / Kerb Weight

11,995kg / 7,300kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

190 HP (141 KW)

Displacement

3815 ml

Emission Standard

Euro 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

ISUZU MLD 6 speed levers with 1 reverse

Wheelbase/No. of axle

3815 mm / 2

Tire Specification

8.25-16

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

8 cbm

Fill Hopper capacity

1.2 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

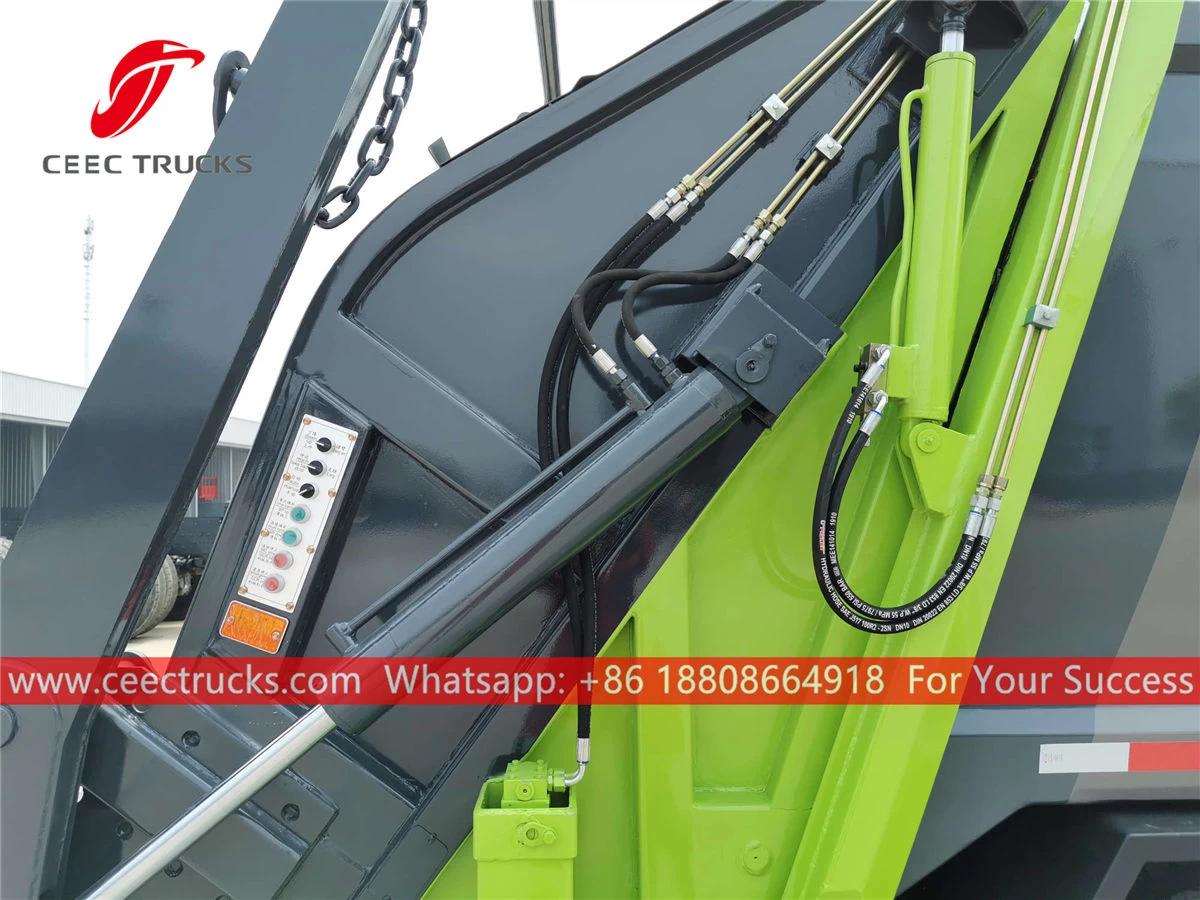

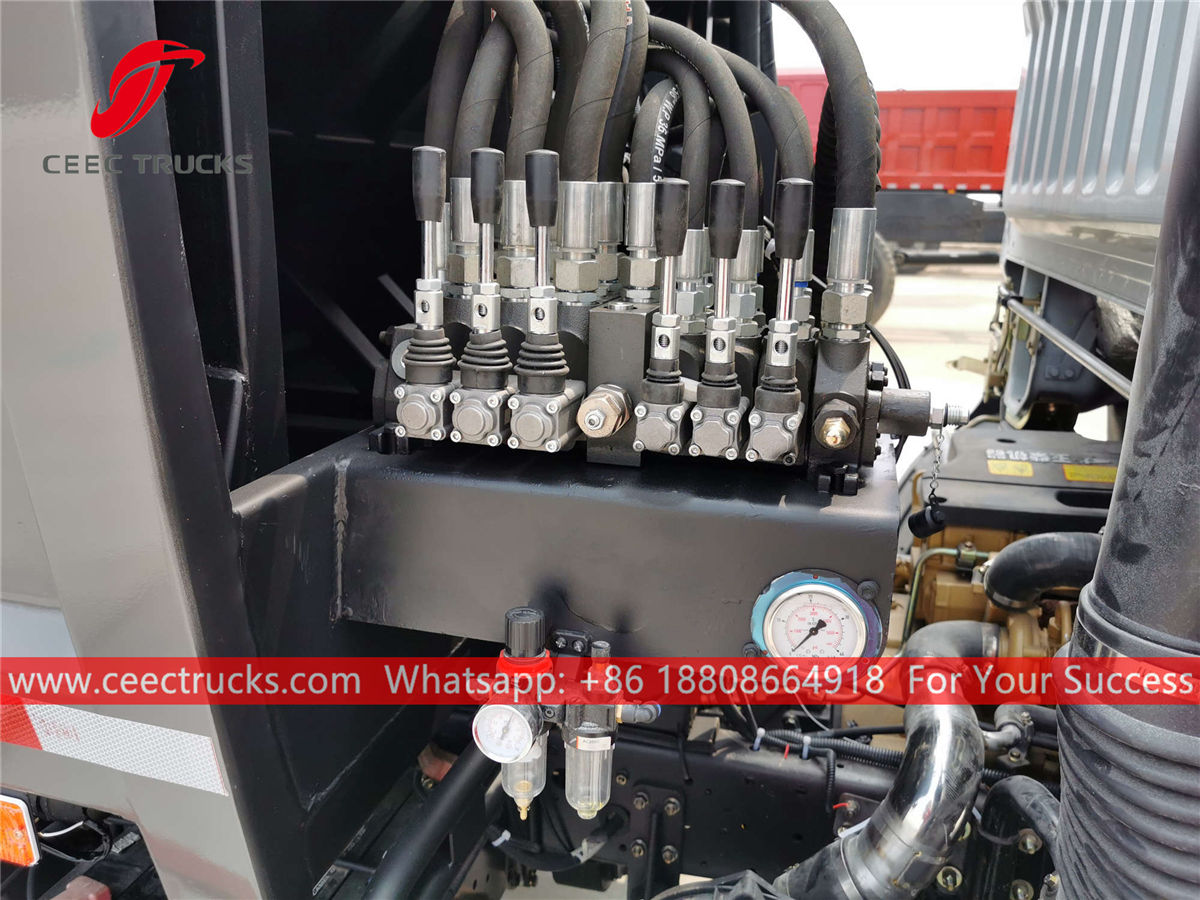

Control system

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.
