In fire emergency rescue operations, a vehicle's mobility, fire-extinguishing efficiency, and reliability are decisive factors for mission success. The ISUZU FTR Foam Fire Truck, designed as a medium-duty mainstay for urban and industrial firefighting, combines Isuzu's superior chassis technology, high-capacity fire suppression systems, and intelligent operation features, making it the ideal choice for fire departments, petrochemical facilities, airports, and large industrial zones. Whether responding to urban fires or tackling specialized blazes in chemical plants or oil depots, it delivers powerful firefighting capabilities and stable operational performance.
Powered by the 4HK1-TCG60 engine, the ISUZU FTR Tanker Fire Truck generates 205 HP and a peak torque of 647 N·m, paired with a FAST 8-speed transmission for smooth and efficient power delivery. With a top speed of 95 km/h, it ensures rapid arrival at fire scenes. Its 4x2 drive mode and 295/80R22.5 tires provide agile mobility on urban roads while maintaining adaptability to complex terrains like construction sites and industrial zones. The 18-ton GVW (Gross Vehicle Weight) design, coupled with an air brake system, ensures excellent braking performance even under full load, guaranteeing safety during high-speed operations.
The ISUZU FTR Pumper Fire Truck features a 6,000 liters carbon steel water tank and a 2,000 liters stainless steel foam tank, enabling extended firefighting operations while effectively handling specialized fires involving oils and chemicals. The water tank incorporates anti-sloshing baffles to minimize liquid movement during transit, while the foam tank is equipped with a quick pressure-release valve and a DN50 overflow port for safe filling and discharge. Both tanks include level indicators and manual drain valves for easy maintenance and emergency operations.
The ISUZU fire engine truck is outfitted with a CB10/40 fire pump, delivering a 40 L/s flow rate. At 1.0 MPa pressure, it can complete water suction from a 7-meter depth in under 50 seconds, ensuring rapid water supply. The PL8/32 fire monitor offers 360° horizontal rotation and -30° to 80° elevation adjustment, with a water jet range ≥65 meters and foam jet range ≥55 meters, enabling precise targeting of distant fire sources. The modular pipeline system includes a 125 mm intake, 80 mm high-pressure outlets, and 65 mm mid-pressure interfaces, accommodating diverse firefighting tactics—especially effective in combined foam-water operations.
● 24 months long guarantee time assurance
● OEM customized service, print your company logo
● China leading Isuzu fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● Professional sales team helps you to choose suitable truck
Product Specifications
|
ISUZU FTR tanker fire truck specifications
|
|
Dimensions
|
Length/mm
|
8150
|
|
Width/mm
|
2550
|
|
Height/mm
|
3350
|
|
Wheelbase/mm
|
3.950/4500
|
|
Front/Rear Thread/mm
|
1835/1640
|
|
Approach/Departure Angle/°
|
20/13
|
|
Front/Rear Overhang/mm
|
1180/1715
|
|
Chassis
|
Brand
|
ISUZU
|
|
Driven Mode
|
4x2, LHD
|
|
Gross Vehicle Weight
|
18000 kg
|
|
Curb Weight
|
8600 kg
|
|
Front Axle Load/kg
|
6500
|
|
Rear Axle Load/kg
|
11500
|
|
Braking System
|
Air Brake
|
|
Tyre
|
295/80R22.5
|
|
Gear Box
|
FAST, 8 forwards& 1 reverse
|
|
Max Speed/ km/h
|
95
|
|

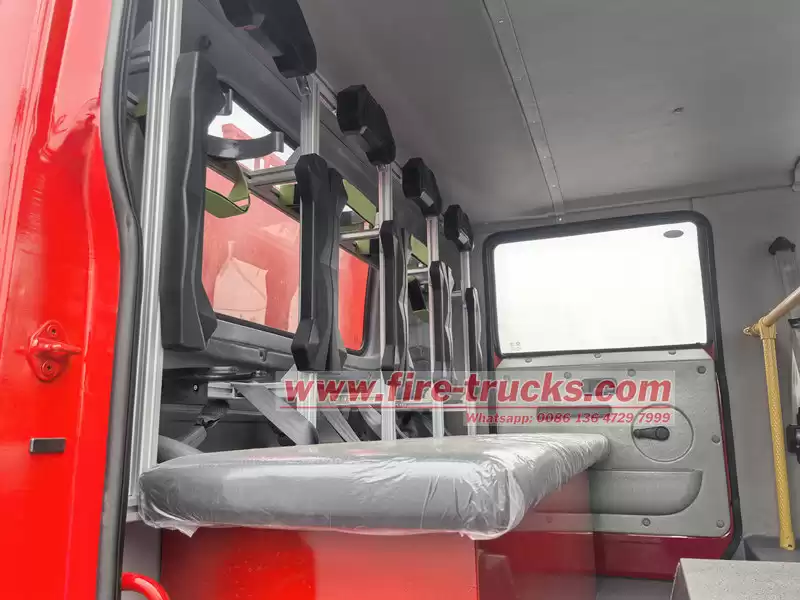

Cab
|
2+4 passengers
|
|
Engine
|
Model
|
4HK1-TCG60
|
|
Power
|
205HP (151KW)
|
|
Displacement/L
|
5.19
|
|
Max Torque
|
647N·m
|
|
Rated Speed
|
2600 rpm
|
|
Speed at Max Torque/rpm
|
1600
|
|
Fire Fighting System
|
|
Fire Pump
|
Model
|
CB10/40
|
|
Flow/ L/s
|
40
|
|
Pressure/MPa
|
1.0
|
|
Water Suction Time/s
|
Less than 50s (when height is 7m)
|
|
Installation Mode
|
Rear-mounted
|
|

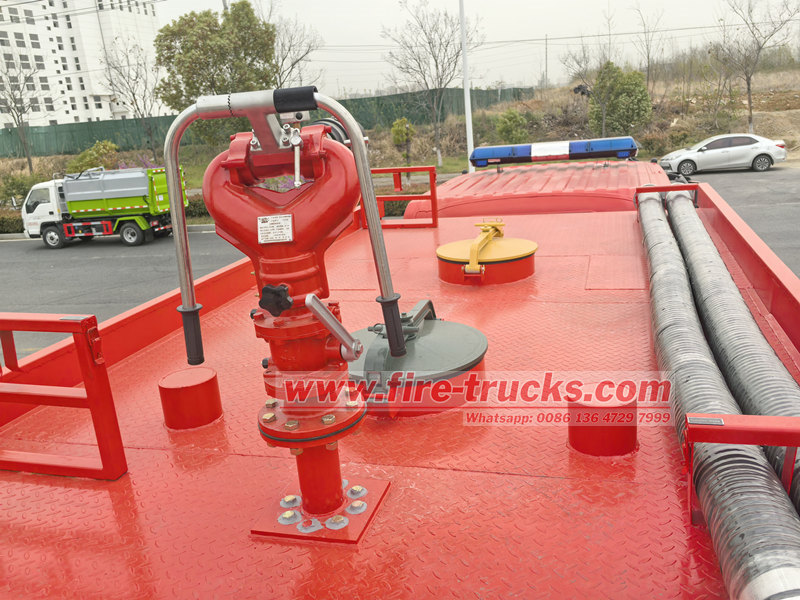

Fire Monitor
|
Model
|
PL8/32
|
|
Working pressure range
|
0.8~1.0 Mpa
|
|
Flow
|
32 L/s
|
|
Range
|
Water: ≥65；Foam ≥55mm
|
|
Horizontal Rotating Angle
|
360(°)
|
|
Pitching Rotating Angle
|
-30~80(°)
|
|
Operation Mode
|
Manual
|
|

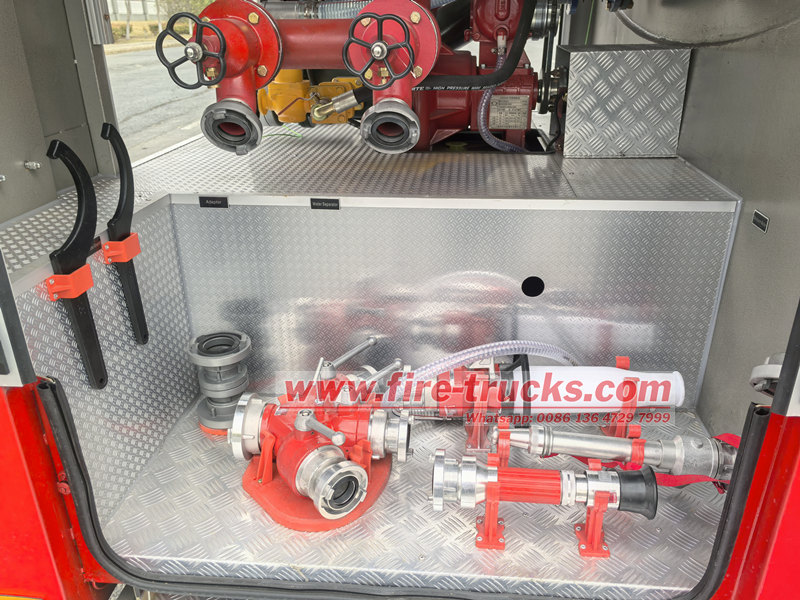

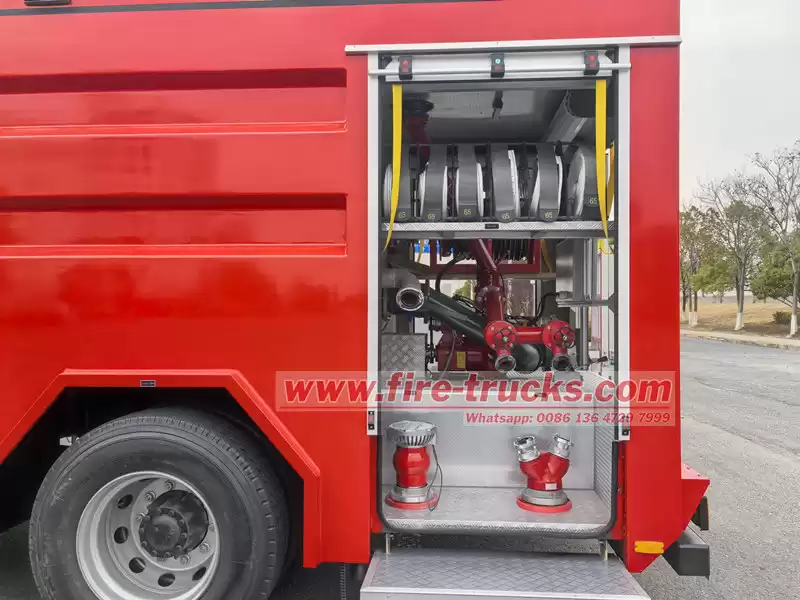

Pipeline Systems
|
Internal Inflow Pipe
|
One pc φ125mm pipe with one pc φ125mm flygate
|
|
External Inflow Pipe
|
Installed behind the pump, φ125mm, with 4 pcs 2m water suction pipes
|
|
Water Outlet Pipe
|
-Installed behind the pump, 2 pcsφ80mm constant pressure ball valves and 2 pcs φ65mm medium pressure ball valves
-One pc φ80mm gun pipe with φ80mm flexible joints, controlled by a φ80mm ball valve
|
|
Water Injection Pipe
|
-One pc φ50mm internal water injection pipe
-One pc φ65mm external water injection pipe
|
|
Cooling Water Pipe
|
Equipped with stainless steel ball valve
|
|
Drain Pipe
|
In the lowest position of the pipe
|
|
Water Tank
|
Loading Capacity/kg
|
6000
|
|
Material
|
Carbon Steel
|
|
Thickness
|
Baseboard and Endplate: 4mm
Side plate and top plate: 3mm
|
|
Structure
|
Welded Type, Anti-swing Plate Inside
-One Manhole, with fast lock & unlock device
-One Overflow Device
-One Level Indication Device
-One Drain Hole, controlled by manual valve
|
|
Foam Tank
|
Structure
|
Connected
|
|
Capacity/kg
|
2000
|
|
Material
|
Stainless steel
|
|
Other Details
|
-One Manhole, with fast lock & unlock and
pressure-release device
-One Overflow Device: DN50mm
-One Drain Hole with ball valve: DN40
|
|
Lighting System
|
-Above the driving room are lightbar & 12V/60W fire scene light
-Above both sides of the vehicle are two flash lights
-100W alarm light
-Switches of all the lights, alarms and pumps on the control panel.
|
Advantages of ISUZU FTR Foam Tender Fire Truck
1. Outstanding Power Performance
The ISUZU FTR fire truck is equipped with an Isuzu 4HK1-TCG60 engine, delivering 205 HP of robust power paired with an 8-speed transmission, achieving a top speed of 95 km/h. Its 4x2 drive mode combined with 295/80R22.5 large-size tires ensures rapid response across various terrains, enabling prompt arrival at fire scenes.
2. Professional Fire Suppression System
The ISUZU FTR foam tender features a CB10/40 high-flow fire pump, providing a 40 L/s flow rate, along with a PL8/32 fire monitor that delivers a water jet range exceeding 65 meters and a foam jet range of 55 meters. The fire monitor offers 360° full-range rotation, allowing precise coverage of diverse fire sources to meet various extinguishing needs.
3. Extra-Large Liquid Capacity
Designed with a 6,000 kg water tank + 2,000 kg foam tank, it ensures extended operational endurance. The tanks are constructed with high-quality carbon steel and stainless steel, featuring anti-sloshing baffles and liquid level indicators for enhanced safety and reliability.
4. Ergonomic Operation Design

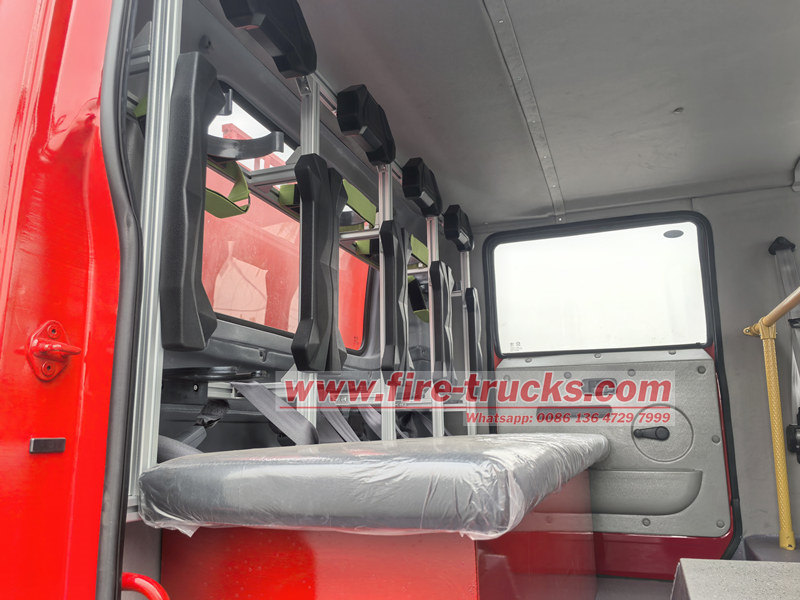

The cab adopts a 2+4 seating layout, and the integrated control panel ensures user-friendly operation. Equipped with multiple professional lighting and warning systems, it guarantees safe all-weather operations. The vehicle's human-centric design significantly improves rescue efficiency.

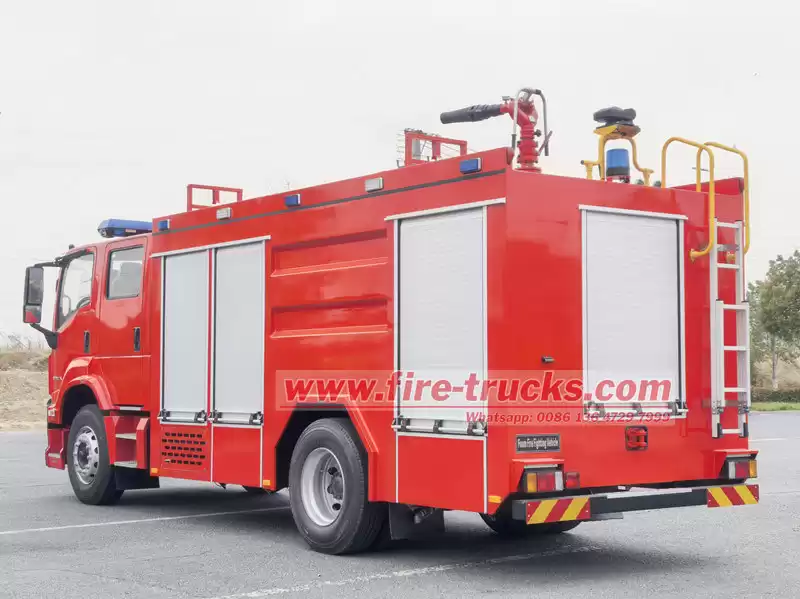

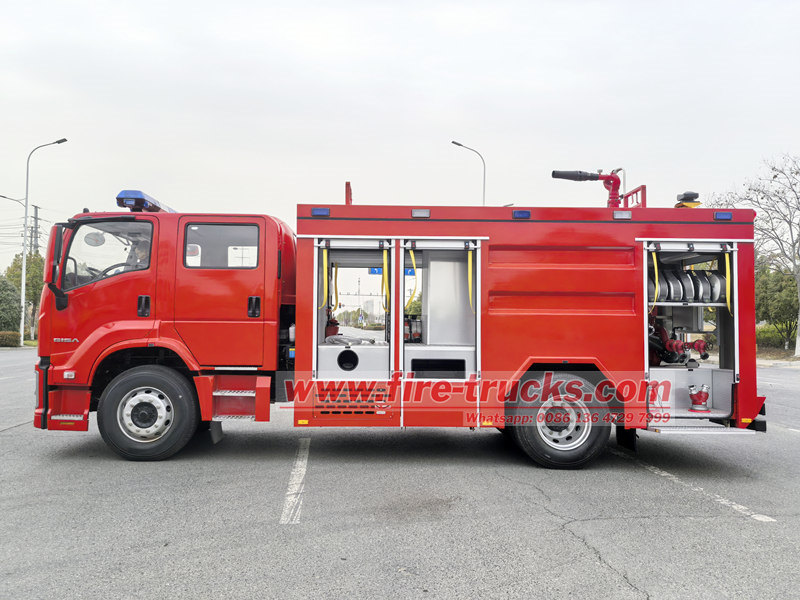

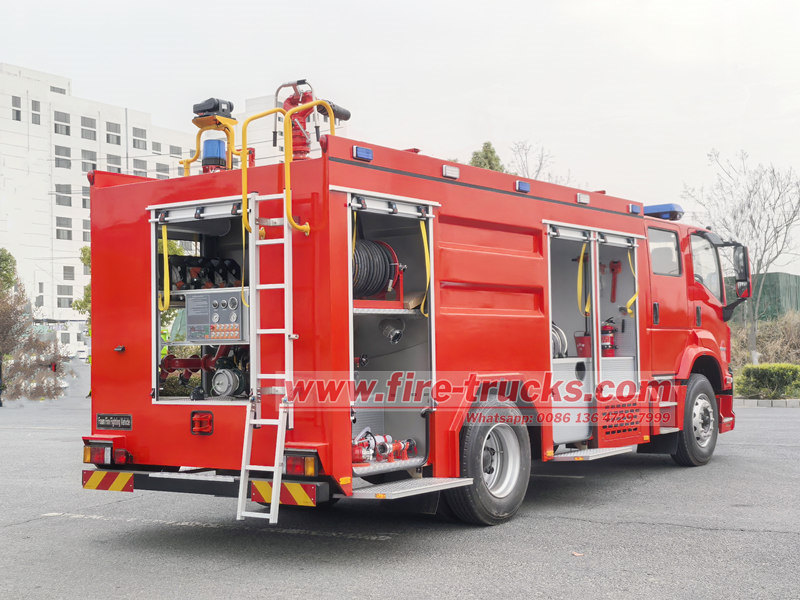

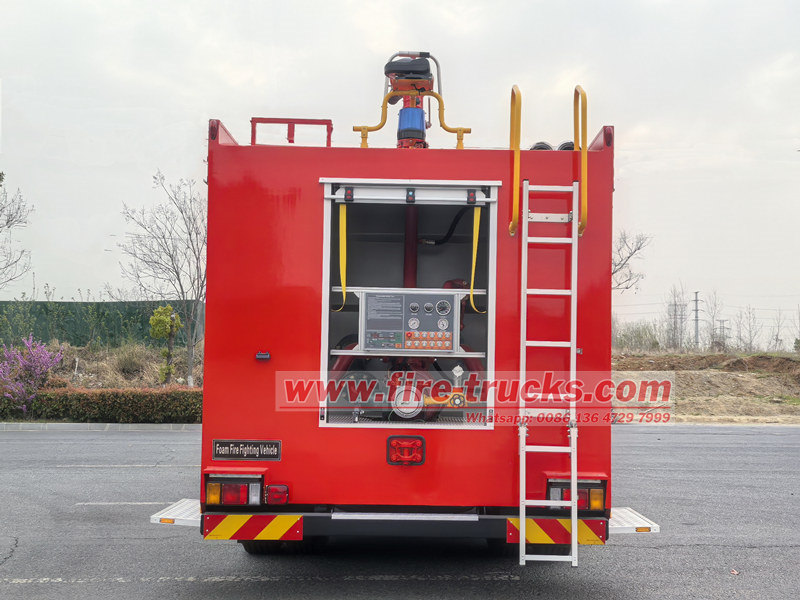

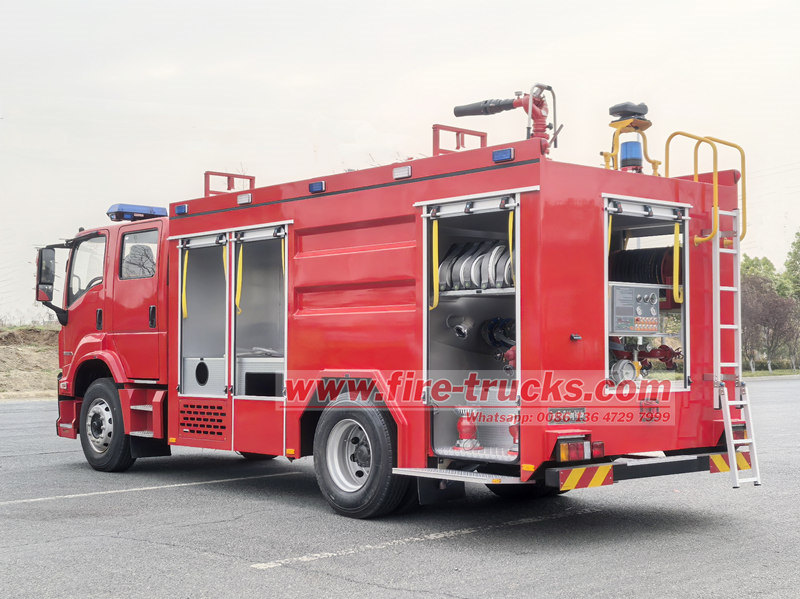

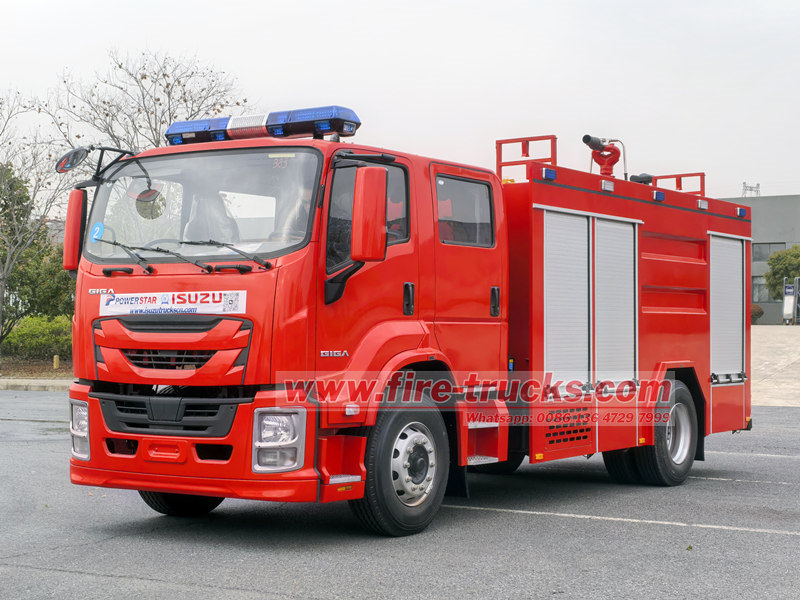

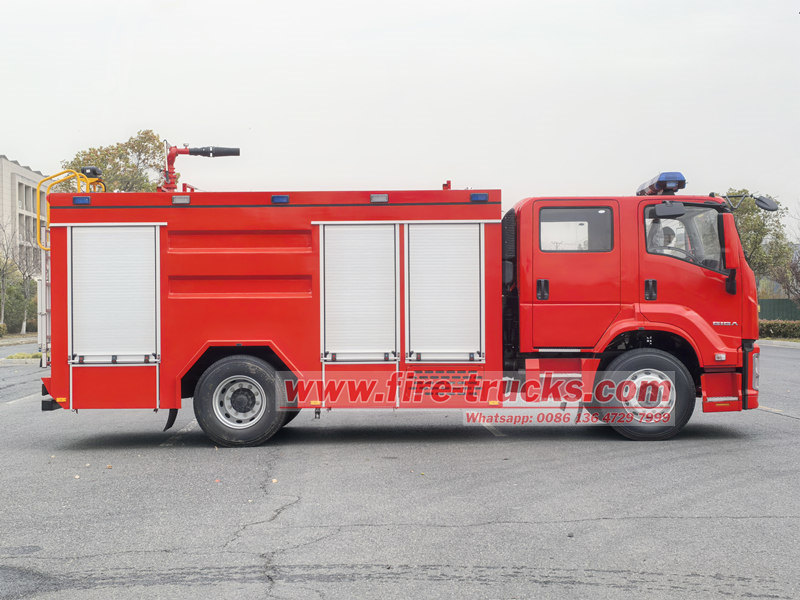

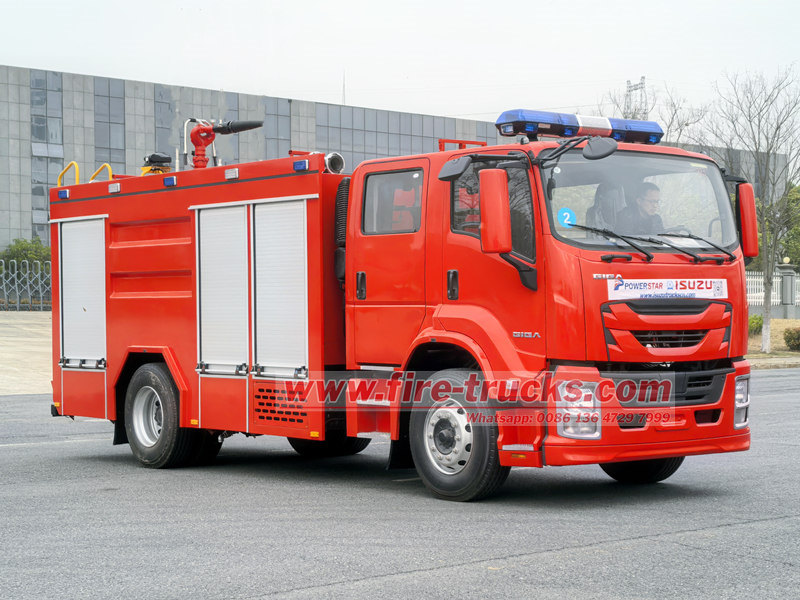

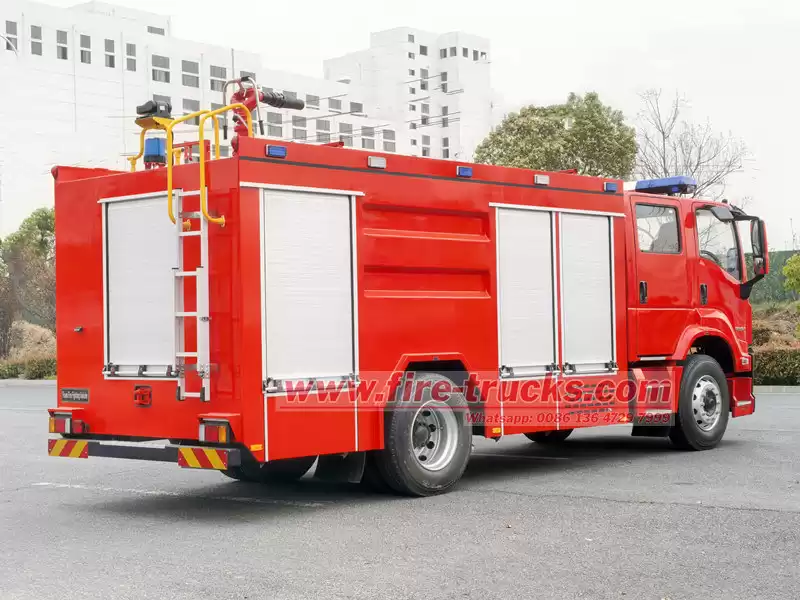

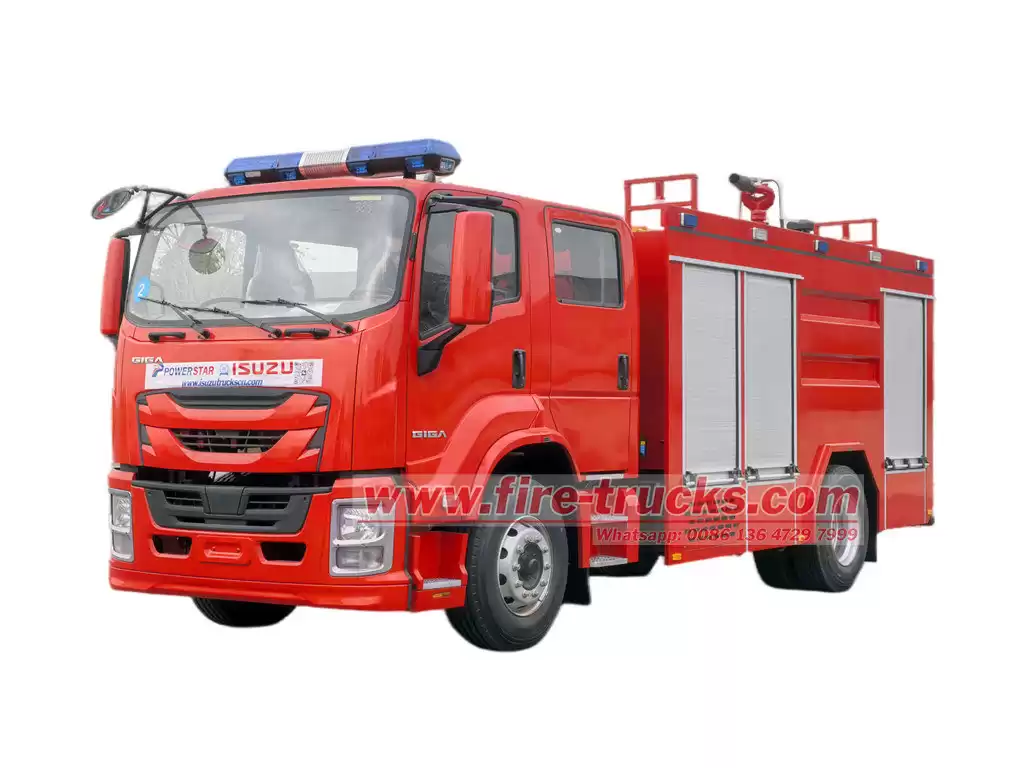

Product Details
