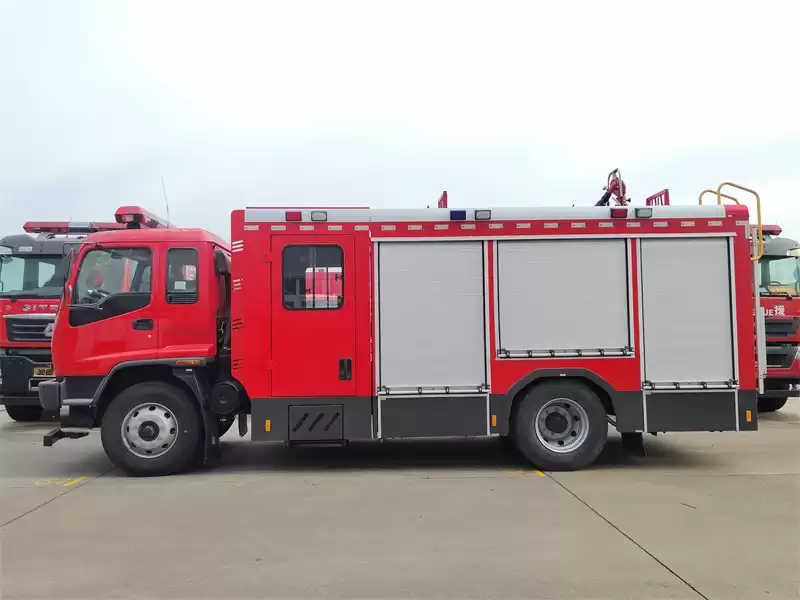

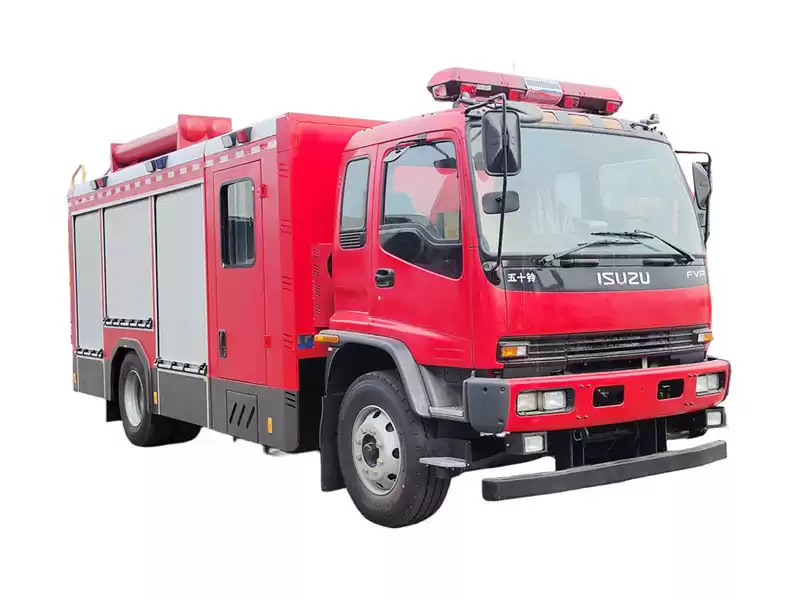

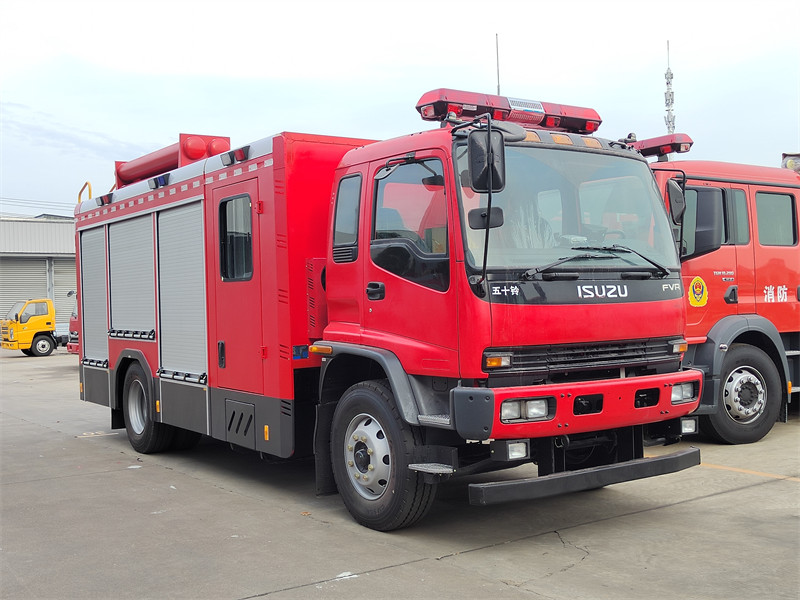

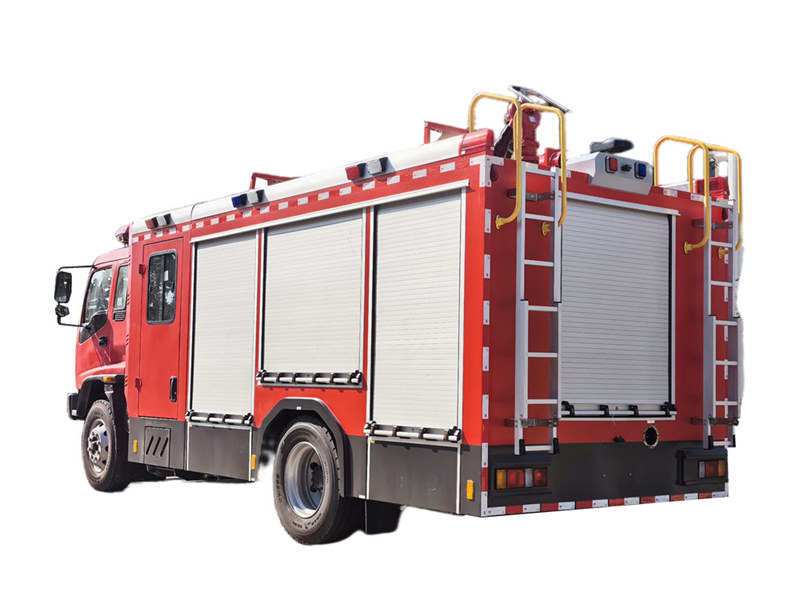

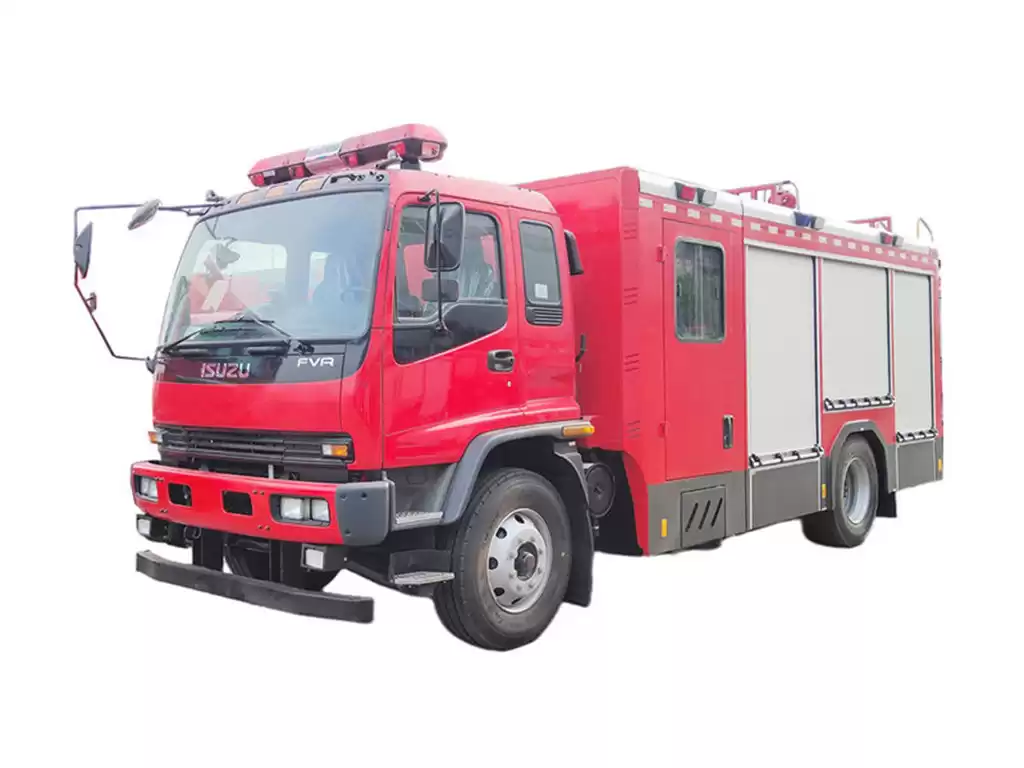

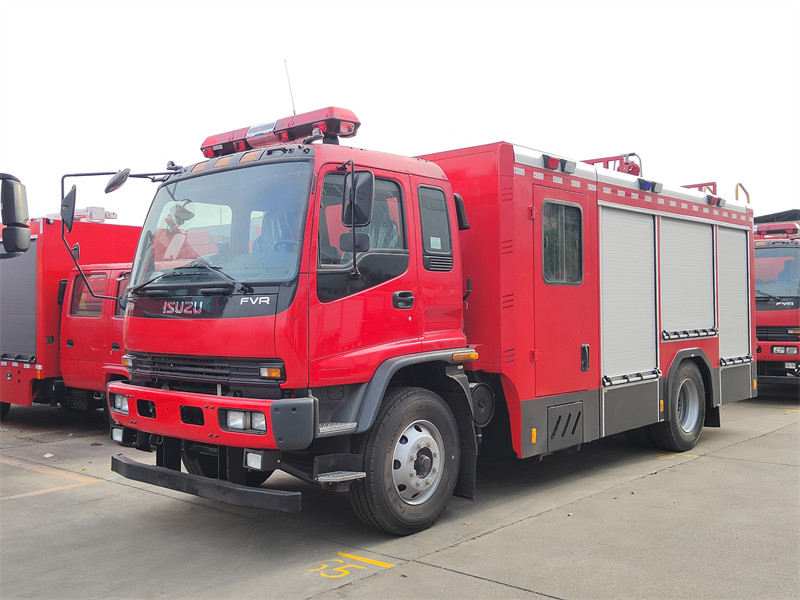

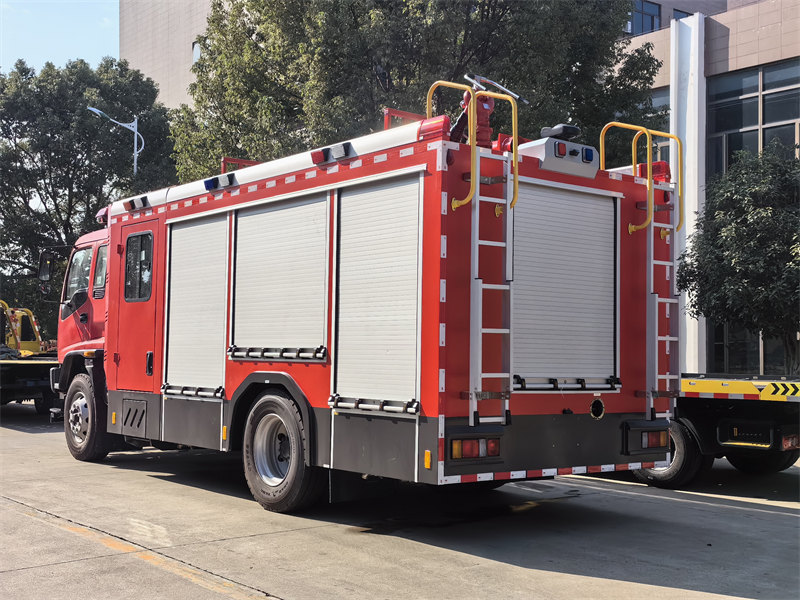

The ISUZU FVR tanker fire truck is a high-performance firefighting solution that combines superior extinguishing capabilities with exceptional mobility, making it a reliable asset in modern fire rescue operations. Built on the ISUZU FVR chassis, it is powered by a 6HK1-TCG61 six-cylinder diesel engine with a maximum output of 177 kW, mated to a FAST 8-speed manual transmission, ensuring ample power for demanding firefighting tasks. With overall dimensions of 8,600 × 2,550 × 3,600 mm, its well-optimized layout maximizes interior space while maintaining excellent maneuverability across diverse terrains.

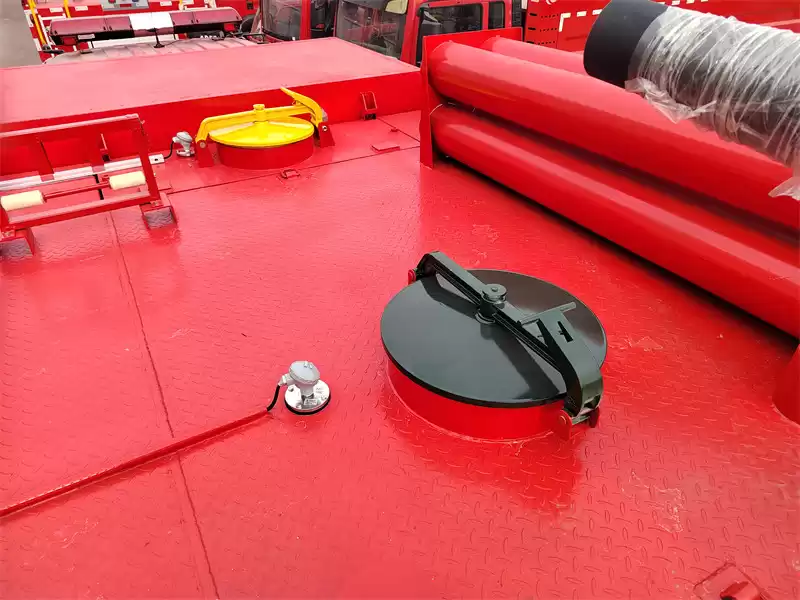

The superstructure of this ISUZU FVR pumper fire truck adopts a modular design, featuring a 6,000L carbon steel water tank treated with epoxy primer and coal tar epoxy coatings for extended durability. The 2,000L stainless steel foam tank is specially engineered for chemical foam agents, meeting stringent corrosion-resistance standards in the firefighting industry. This dual-tank configuration allows the vehicle to tackle multiple fire scenarios simultaneously, significantly enhancing operational efficiency.

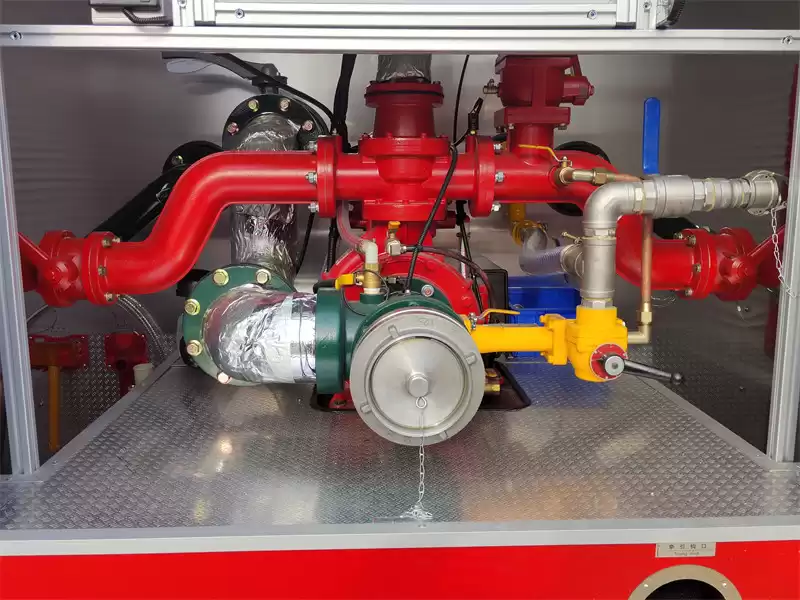

The ISUZU FVR fire engine truck excels in fire suppression performance, equipped with a CB10/40 normal-pressure fire pump delivering a rated flow of 40L/S and a maximum suction lift of 7 meters. It can prime water in ≤50 seconds, ensuring rapid and stable high-pressure water supply to fire scenes. The roof-mounted PL8/32 fire monitor offers 360-degree rotation, projecting water over 60 meters and foam over 55 meters, with a flow rate of 32L/S and an adjustable working pressure range of 0.8–1.0 MPa. This enables firefighters to combat high-risk fires safely from a distance.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
Product Specifications
|
Chassis Specifications
|
|
Main specification
|
Vehicle name
|
ISUZU FVR pumper fire truck
|
|
Chassis brand
|
ISUZU
|
|
Chassis model
|
FVR
|
|
GVW
|
18000 kg
|
|
Overall dimension(L*W*H)
|
8600x2550x3600mm
|
|
Max. driving speed
|
95 km/h
|
|
Specific Power
|
9.83 kW/T
|
|

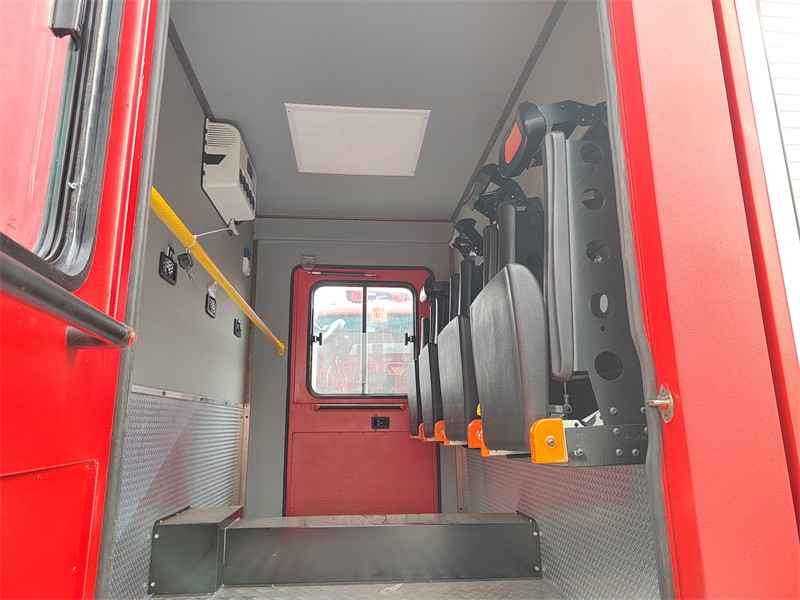

Cabin
|

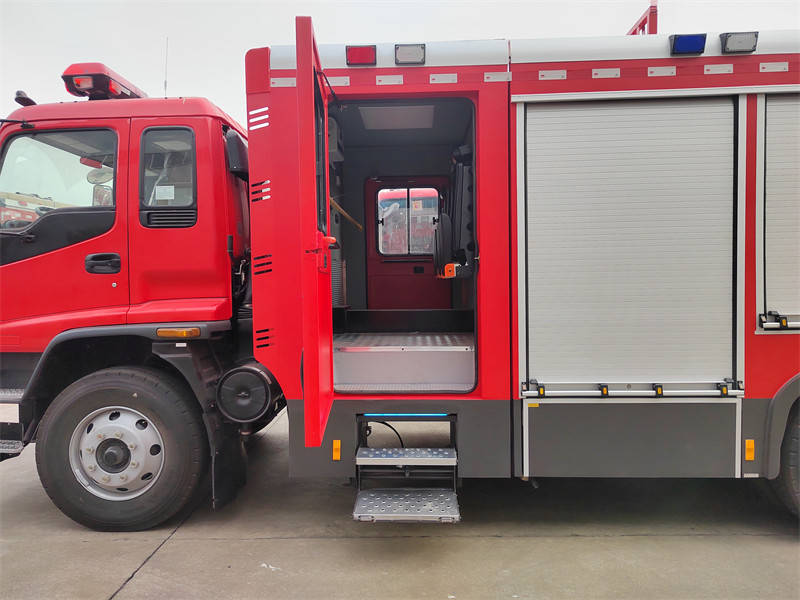

Double cabin, two rows, 2+4 seats, with Air conditioner, electronic windows, central lock
|
|
Chassis
|
Drive model
|
4x2, left hand drive
|
|
Front axle loading
|
6500 kg
|
|
Rear axle loading
|
11,500 kg
|
|
Wheel Base
|
4500 mm
|
|
Tyre size & number
|
295/80R22.5, 10 pcs with one spare tyre
|
|
Gearbox
|
FAST 8-speed, manual
|
|
Engine
|
Brand
|
ISUZU
|
|
Model
|
6HK1-TCG61
|
|
Number of cylinders
|
6
|
|
Fuel type
|
Diesel
|
|
Max. output power
|
177 kW
|
|
Max. hose power
|
241 HP
|
|
Displacement
|
7790 ml
|
|
Emission standard
|
Euro 6
|
|
Superstructure Specifications
|
|
Water tank
|
Capacity
|
6000 liters
|
|
Material
|
Carbon steel
|
|
Foam tank
|
Capacity
|
2000 liters
|
|
Material
|
Stainless steel
|
|
Fire pump
|
Model
|
/
|
CB10/40, Normal pressure pump
|
|
Rated pressure
|
MPa
|
1.0
|
|
Max suction height
|
m
|
7
|
|
Rated flow
|
L/S
|
40
|
|
Time of drawing water (s)
|
s
|
≤50
|
|
Fire monitor
|
Model
|
/
|
PL8/32
|
|
Rated working pressure
|
MPa
|
0.8
|
|
Working pressure range
|
MPa
|
0.8~1.0
|
|
Range
|
Water (m)
|
≥60
|
|
Foam (m)
|
≥55
|
|
Flow
|
L/S
|
32
|
|
Rotation angle
|
(°)
|
360
|
Product Features
1. Large Liquid Capacity for Diverse Fire Scenarios
The ISUZU FVR fire engine is equipped with a 6,000L water tank and a 2,000L foam tank, ensuring extended firefighting endurance for large-scale urban or industrial fires.
2. Superior Maneuverability for Challenging Environments
Its 4×2 rear-wheel drive and FAST 8-speed manual transmission provide smooth shifting and powerful traction. Enhanced with electronic stability control (ESC) and anti-lock braking (ABS), it maintains stability on rough terrain and in adverse weather, ensuring rapid response.

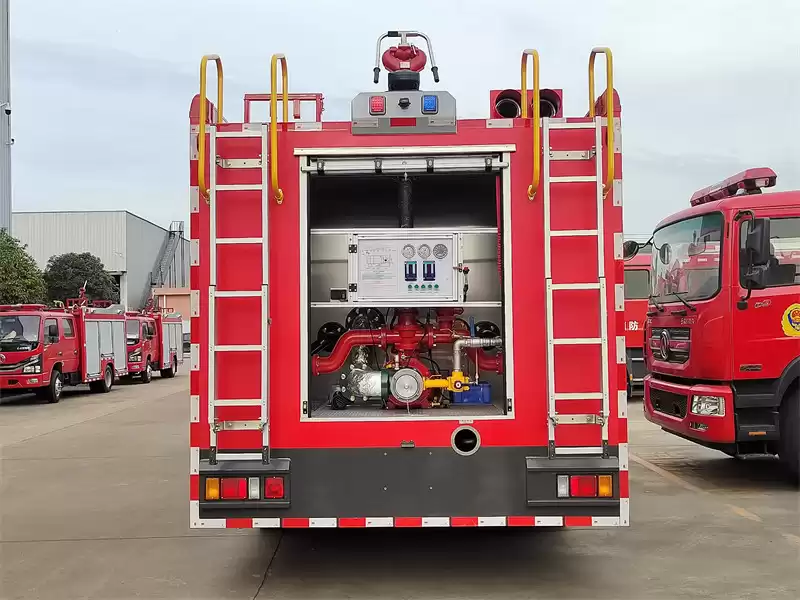

3. High-Efficiency Fire Pump for Reliable Water Supply
The CB10/40 fire pump delivers a rated flow of 40L/S with a 7-meter suction lift, enabling fast and stable water supply for long-distance or high-pressure firefighting operations.

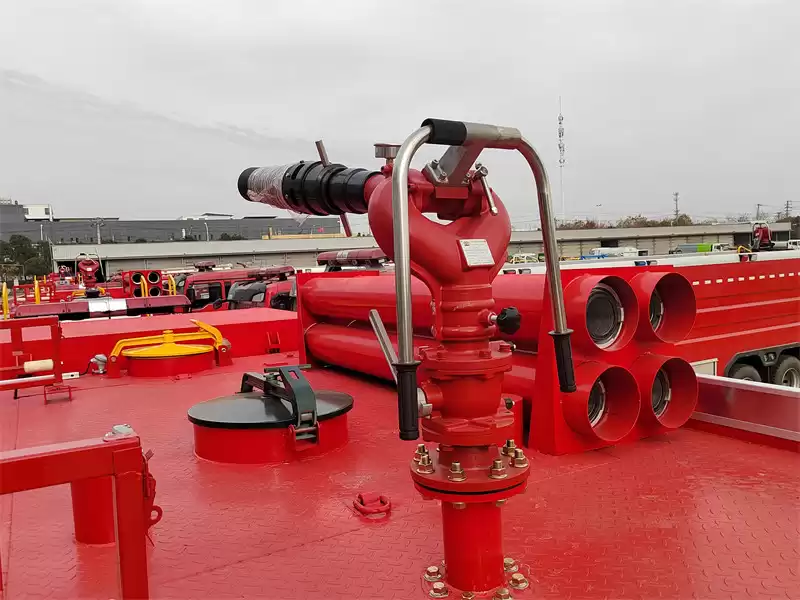

4. Long-Range Fire Monitor for Precision Firefighting
The PL8/32 monitor achieves a water range of ≥60 meters and foam range of ≥55 meters, with full 360-degree rotation for flexible targeting of high-rise or ground-level fires.
5. Easy Maintenance for Reduced Operational Costs
Designed with modular and standardized components, the ISUZU FVR tender fire truck simplifies part replacement and upkeep, lowering long-term maintenance expenses.
