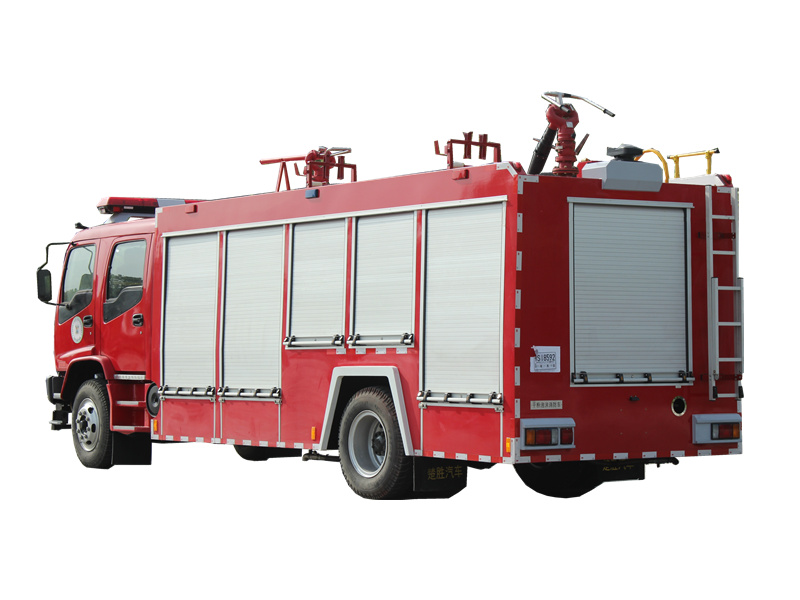

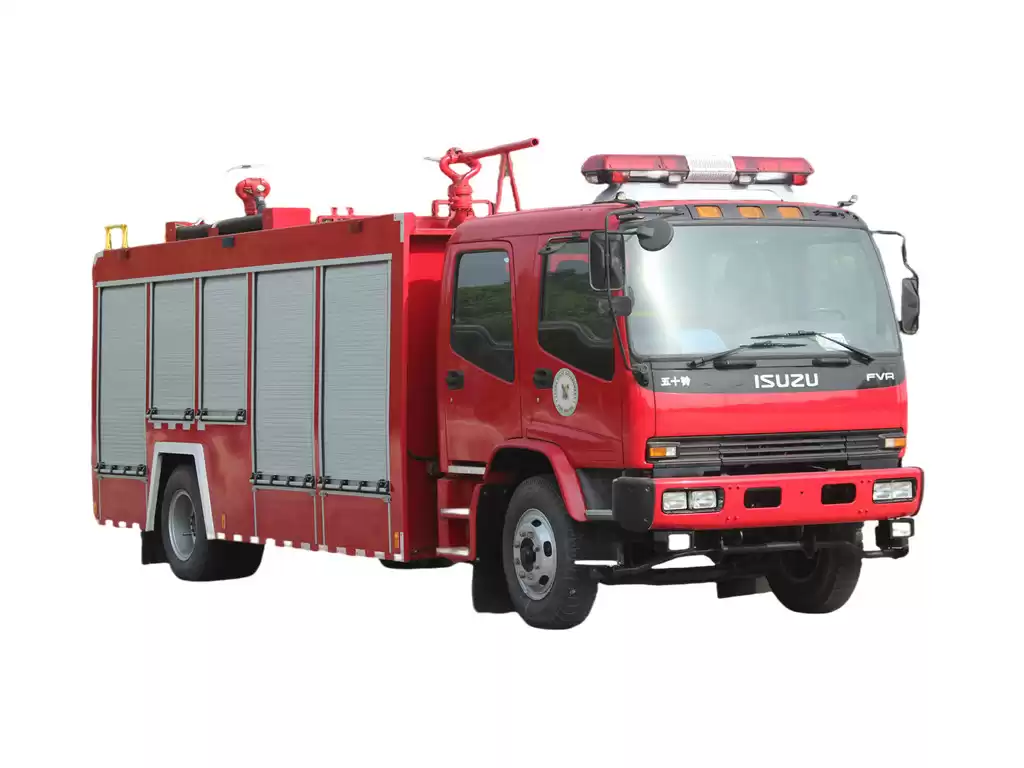

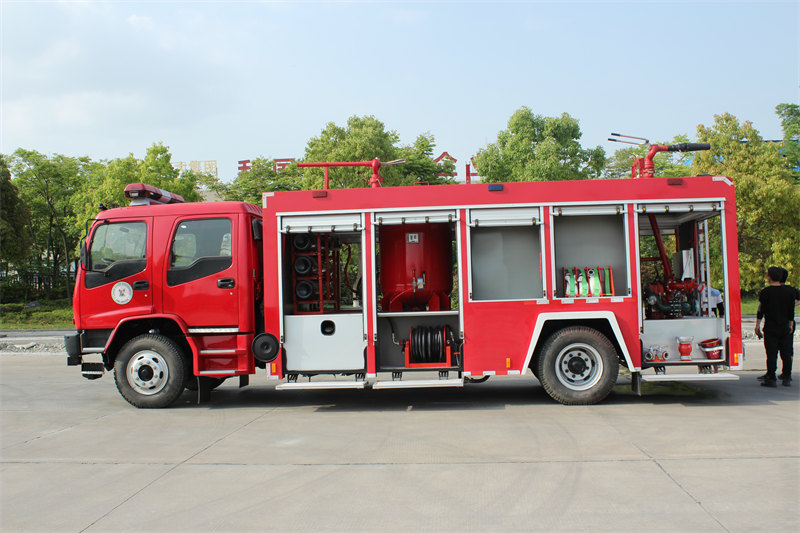

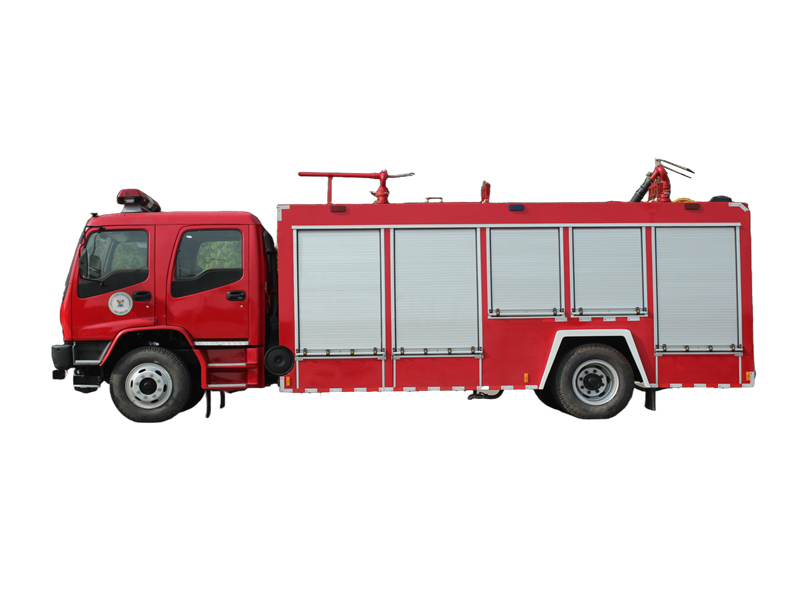

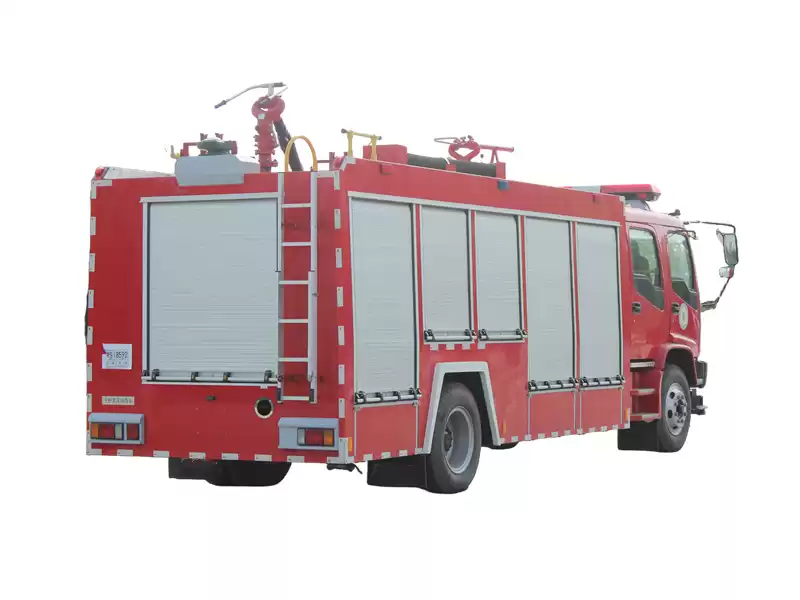

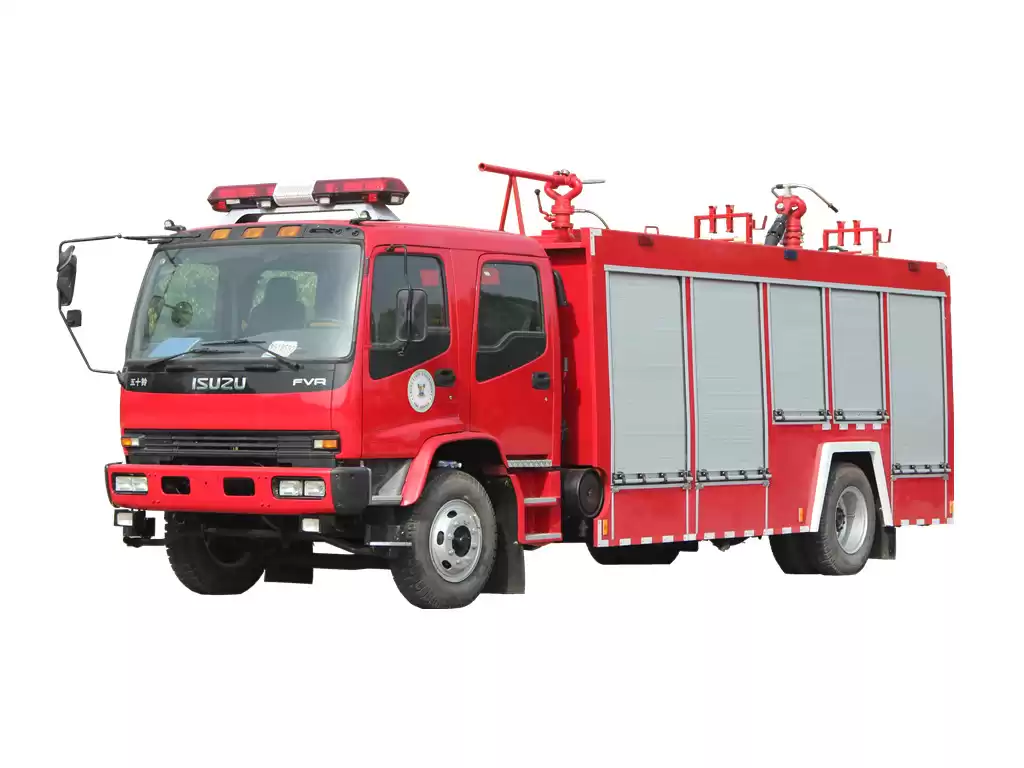

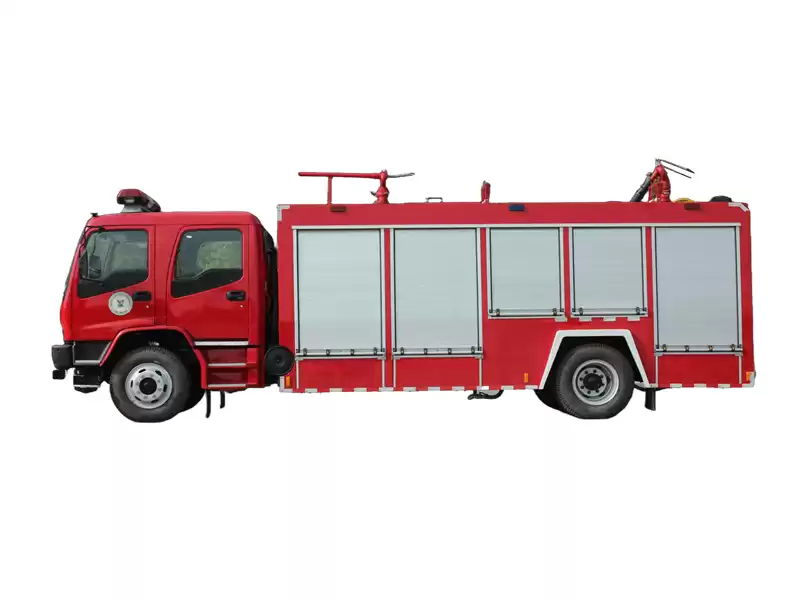

The ISUZU FVR Dry Powder Fire Truck is a professional firefighting vehicle designed to handle various fire scenarios. With overall dimensions of 8800×2550×3580 mm, it features a spacious body and moderate height, ensuring ample loading capacity while maintaining maneuverability on narrow streets. The vehicle's gross vehicle weight (GVW) is 18,000 kg, with a curb weight of 10,200 kg and a rated load capacity of 7,800 kg. This configuration allows the vehicle to carry sufficient water, foam, and dry powder extinguishing agents, meeting the demands of prolonged and high-intensity firefighting operations.
The upper body of the ISUZU FVR Dry Powder Firefighting Truck is its core feature. The vehicle is equipped with a 4,000-liter water tank made of carbon steel, offering high corrosion resistance and strength for long-term storage of firefighting water. Additionally, the vehicle includes a 2,000-liter foam tank and a 1,000-liter dry powder tank, constructed from stainless steel and specialized materials, respectively, ensuring the purity and efficiency of the extinguishing agents.

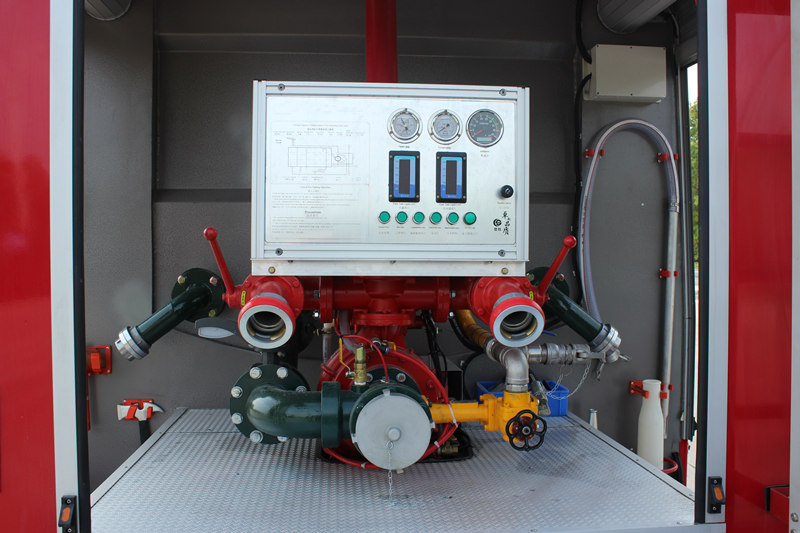

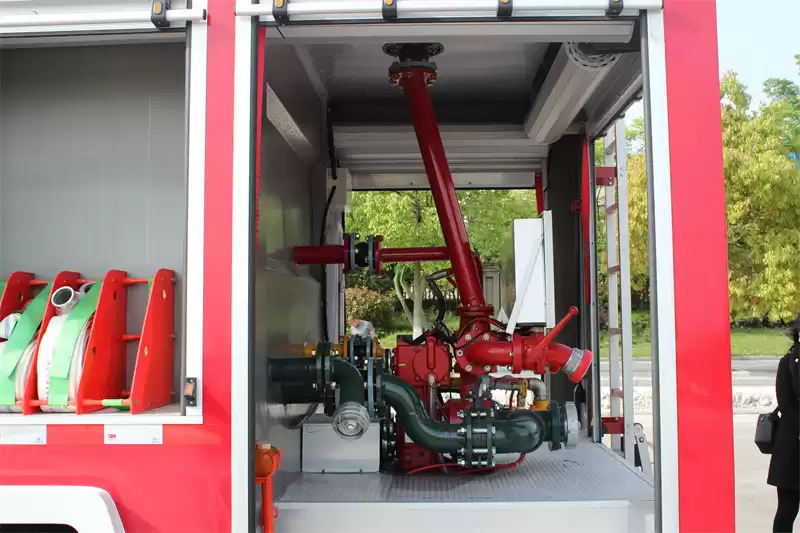

The ISUZU FVR tanker fire truck is equipped with a CB10/40 fire pump, delivering a flow rate of 40 L/s, a rated speed of 3,135 rpm, and a maximum suction depth of 7 meters. This configuration enables the fire pump to quickly deliver large volumes of water or foam to the fire scene, rapidly controlling the fire. Furthermore, the vehicle is fitted with a PL32 dual-purpose water and foam monitor, with a range of ≥60 meters for water and ≥48 meters for foam, a rated working pressure of 0.8 MPa, a pitch angle of -45° to +70°, and a horizontal rotation angle of 0° to 360°, meeting the firefighting needs of various complex fire scenarios.

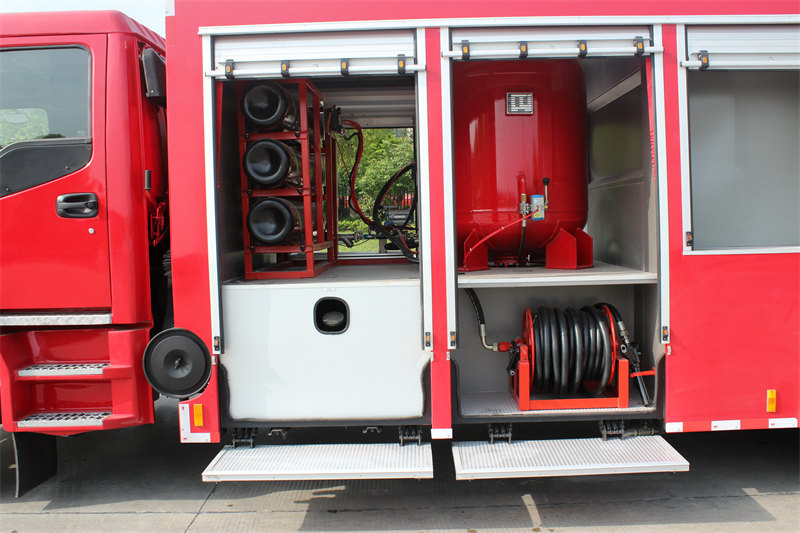

The dry powder firefighting system of the ISUZU FVR Dry Powder Fire Engine also excels. The vehicle is equipped with a PF5-15/30 dry powder monitor, offering an effective injection rate of 30 kg/s and a range of ≥35 meters. Additionally, it includes a 30-meter-long dry powder hose reel with a DN25 diameter and a dry powder gun, enabling firefighters to quickly extinguish fires at close range.
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Prompt delivery, any order is welcome.
● 24 month quality guarantee term
● Build strict QC team to guarantee the quality
Product Specifications
|
ISUZU FVR dry powder fire engine specifications
|
|
Overall dimension (L x W x H)
|
8800×2550×3580 mm
|
|
GVW(Kg)
|
18000 (Kg)
|
|
Curb weight
|
10200 (Kg)
|
|
Rated load weight
|
7800 (Kg)
|
|
Chassis Specifications
|
|
Cabin
|
Crew cab, 2+4 seats, air conditioner
|
|
Drive type
|
4x2
|
|
Wheelbase
|
4500 mm
|
|
Engine
|
Brand
|
ISUZU
|
|
Model
|
6HK1-TCL
|
|
Maximum power
|
240 hp (177kW)
|
|
Rated speed
|
2400 rpm
|
|
Max. torque
|
760 N.m
|
|
Displacement
|
7780 cc
|
|
Type
|
Diesel, 6 cylinders in-line, turbocharged inter-cooled
|
|
Gear box
|
MLD, Manual, 6 forwards and 1 reverse
|
|
Tyres
|
295/80R22.5, 6+1 pieces
|
|
Upper body specifications
|
|
Tank
|
Water Tank Capacity
|
4000 liters (carbon steel)
|
|
Foam Tank Capacity
|
2000 liters (stainless steel)
|
|
Dry Powder Tank Capacity
|
1000 liters
|
|
Fire pump
|
Model
|
CB10/40
|
|
Flow
|
40 L/s
|
|
Rated speed
|
3135 rpm
|
|
Max. suction depth
|
7
|
|
Fire monitor
|
Model
|
PL32
|
|
Flow
|
32 L/s
|
|
Range
|
Water range: ≥60m, foam range: ≥48m
|
|
Rated working pressure
|
0.8 Mpa
|
|
Pitch rotation
|
-45～+70°
|
|
Horizontal rotation
|
0～360°
|
|
Dry powder monitor and hose reel
|
Monitor model
|
PF5-15/30
|
|
Effective injection rate
|
30 kg/s
|
|
Range
|
≥35 m
|
|

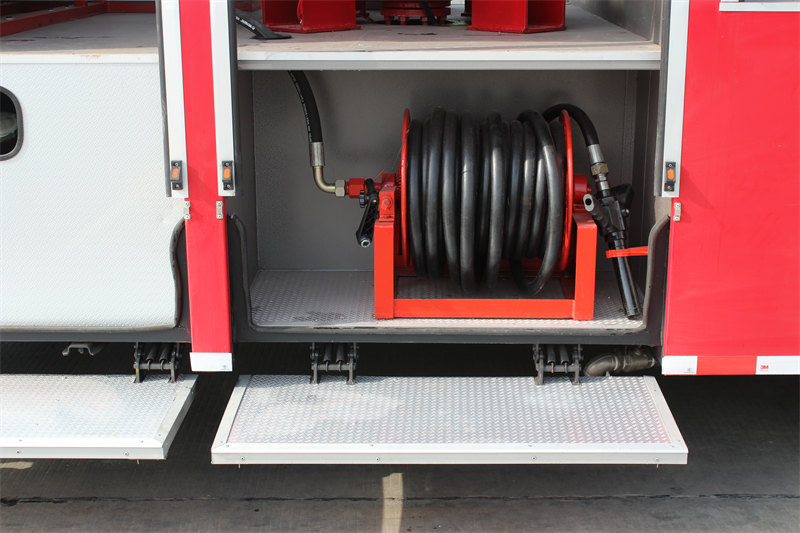

Hose reel
|
30m, DN25, with dry powder gun
|

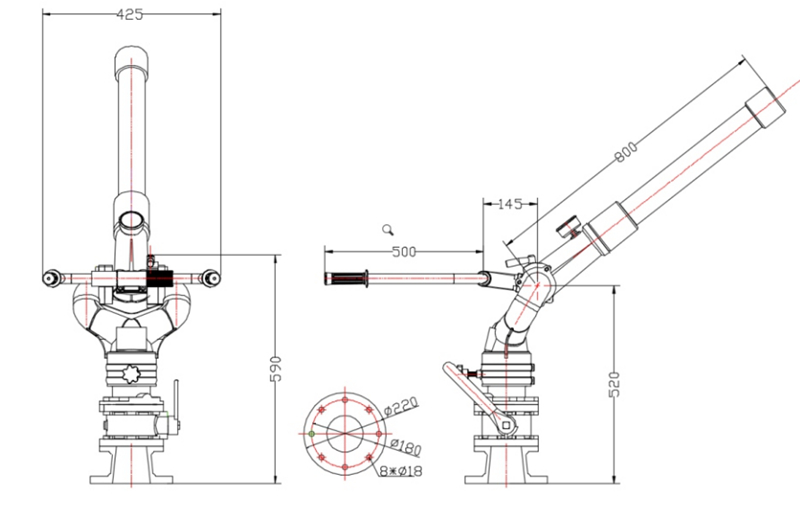

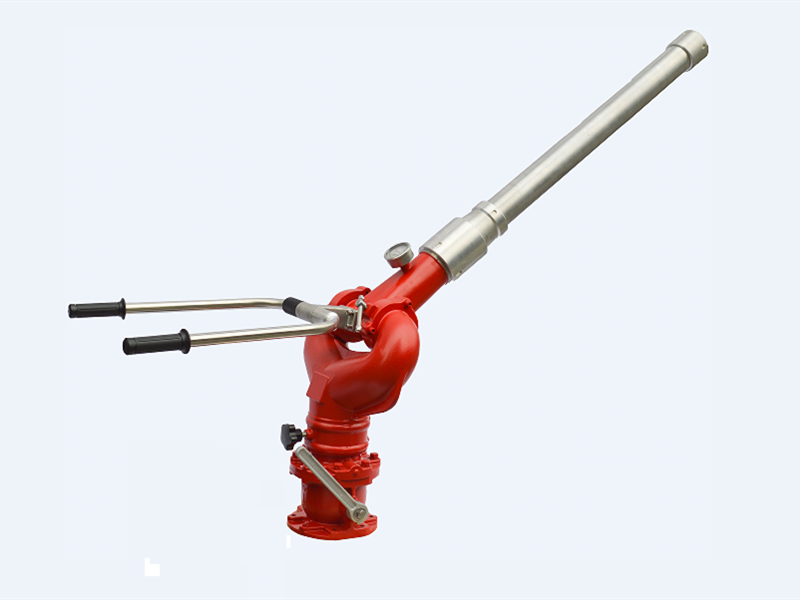

Features of the ISUZU FVR Fire Truck's Dry Powder Monitor
• Comprehensive functionality
• Simple and innovative structure
• Stable performance and easy maintenance
• Low inlet pressure
• Lightweight
• Equipped with an automatic drain valve and horizontal/pitch locking functions
• Material: Precision-cast aluminum alloy
• Monitor head: Aluminum alloy material
