In today's firefighting equipment sector, multi-functional combined fire trucks are becoming an industry trend. The ISUZU FTR powder-foam fire truck exemplifies this development as a practical solution integrating three extinguishing agents. It maintains the performance characteristics of professional firefighting vehicles while achieving excellent cost-effectiveness through rational configuration.
The ISUZU FTR pumper fire truck is built on an ISUZU FTR chassis, equipped with a 4HK1-TCG60 diesel engine delivering 205HP of power output coupled with a 6-speed manual transmission, enabling a maximum speed of 105km/h. This powertrain configuration ensures sufficient mobility while maintaining good fuel economy. With compact overall dimensions of 8200×2500×3370mm and a 4500mm wheelbase, its small turning radius makes it particularly suitable for rapid transit in urban road conditions.

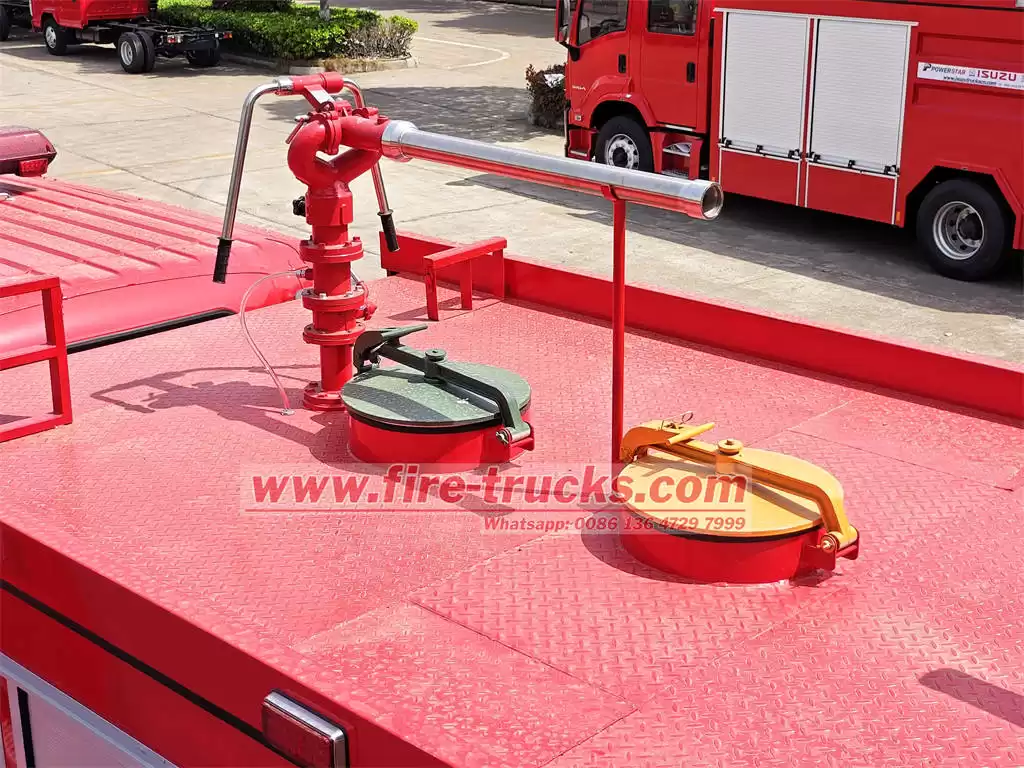

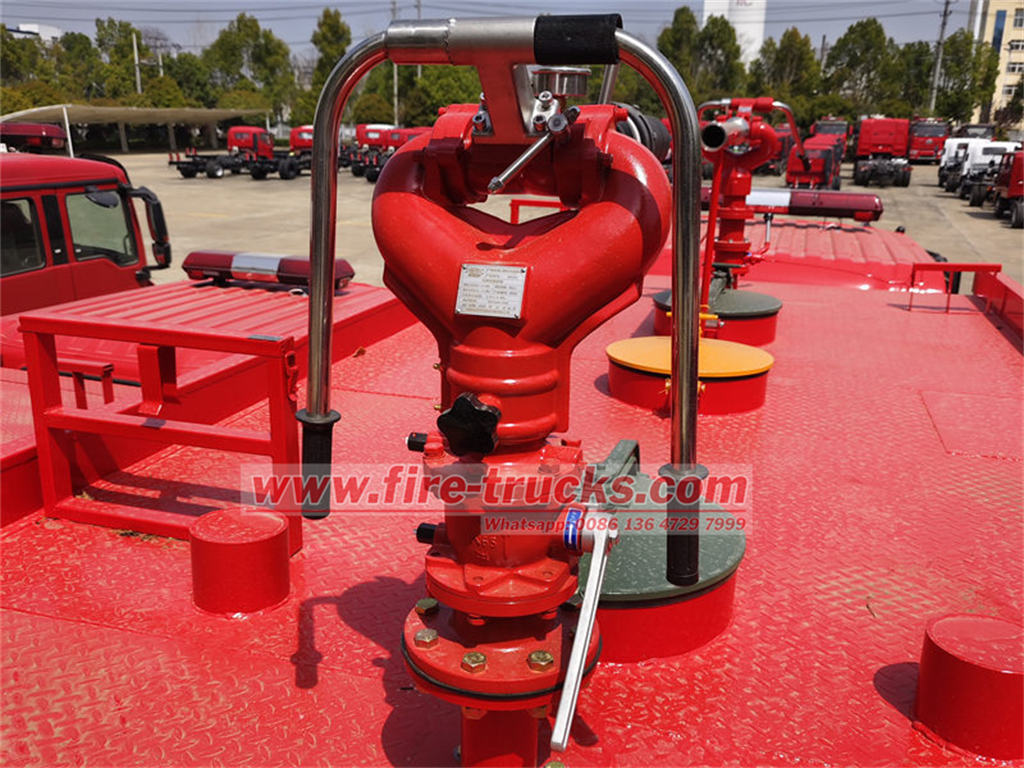

The fire suppression system forms the core of the ISUZU FTR fire tender truck. The 4000L water tank is constructed using standard carbon steel plate welding with internal transverse anti-sloshing baffles, ensuring both adequate capacity and driving stability. The 1000L foam tank utilizes stainless steel material for excellent corrosion resistance. Both tanks are equipped with standard manholes and level indicators for easy maintenance and inspection. The rear-mounted CB10/40 fire pump serves as a key component, featuring a proven three-cylinder plunger design with rated flow of 40L/s (at 1.0MPa working pressure). In actual tests, it achieves consistent water intake within 50 seconds at 7m suction depth, fully meeting firefighting operational requirements. The matching PL32 fire monitor allows manual operation with 360° horizontal rotation, delivering 65m water jet range and 50m foam range to cover most fire scenarios.
Particularly noteworthy of ISUZU FTR fire engine truck is the professional dry powder fire suppression system. The 1000kg dry powder tank works with six standard nitrogen cylinders to achieve 30kg/s discharge intensity through the PF5-15/30 dry powder monitor. The 30m long DN25 hose reel provides convenient close-range firefighting capability. This system proves especially effective for oil fires and electrical equipment fires.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu tanker fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
Product Specifications
|
ISUZU FTR dry powder fire truck parameters
|
|
Dimensions
|
Length (mm)
|
8200
|
|
Width (mm)
|
2500
|
|
Height (mm)
|
3370
|
|
Wheelbase (mm)
|
4500
|
|
Front/Rear wheel track (mm)
|
1960/1855
|
|
Approach/Departure Angle（°）
|
20/13
|
|
Front/Rear Overhang (mm)
|
1180/1715
|
|
Chassis
|
Brand
|
ISUZU
|
|
Driven Mode
|
4x2, Left Hand Drive Drive
|
|
Front Axle Load（kg）
|
6500
|
|
Rear Axle Load（kg）
|
11500
|
|
Braking System
|
Air Brake
|
|
Tyre
|
295/80R22.5, 6 pcs and one spare
|
|
Gear Box
|
MLD, 6 forwards and 1 reverse
|
|
Max Driving Speed (km/h)
|
105
|
|
Cab
|
ISUZU GIGA, 2+4 passengers
|
|
Engine
|
Model
|
4HK1-TCG60
|
|
Horsepower (HP)
|
205HP(151kw)
|
|
Displacement (L)
|
5.193
|
|
Max Torque
|
647 N·m
|
|
Speed at Max Torque （rpm）
|
2600
|
|
Fire Fighting System
|
|
Fire Pump
|
Model
|
CB10/40
|
|
Flow （L/s）
|
40
|
|
Pressure (MPa)
|
1.0
|
|
Water Suction Time (s)
|
Less than 50S (when depth is 7m)
|
|
Installation Mode
|
Rear-mounted
|
|
Fire Monitor
|
Model
|
PL32
|
|
Pressure (MPa)
|
1.0
|
|
Flow（L/s）
|
32
|
|
Range (m)
|
Water: More than 65
Foam: More than 50
|
|
Horizontal Rotating Angle（°）
|
360
|
|
Pitching Rotating Angle（°）
|
-30~70
|
|
Operation Mode
|
Manual
|
|
Pipeline Systems
|
Internal Inflow Pipe
|
One pc φ125mm pipe with one pc φ125mm flygate
|
|
External Inflow Pipe
|
Installed behind the pump, φ125mm, with 4 pcs 2m water suction pipes
|
|
Water Outlet Pipe
|
-Installed behind the pump, 2 pcsφ80mm constant pressure ball valves and 2 pcs φ65mm medium pressure ball valves
-One pc φ80mm gun pipe with φ80mm flexible joints, controlled by a φ80mm ball valve
|
|
Water Injection Pipe
|
-One pc φ50mm internal water injection pipe
-One pc φ65mm external water injection pipe
|
|
Cooling Water Pipe
|
Equipped with stainless steel ball valve
|
|
Drain Pipe
|
In the lowest position of the pipe
|
|
Water Tank
|
Capacity (L)
|
4000
|
|
Material
|
Carbon Steel Plate
|
|
Thickness
|
Baseboard and Endplate: 4mm
Side plate and top plate: 3mm
|
|
Structure
|
Welded Type, Anti-swing Plate Inside
-One Manhole, with fast lock & unlock device
-One Overflow Device
-One Level Indication Device
-One Drain Hole, controlled by manual valve
|
|
Foam Tank
|
Capacity (L)
|
1000
|
|
Material
|
Stainless steel
|
|
Other Detail
|
-One Manhole, with fast lock & unlock and
pressure-release device
-One Overflow Device: DN50mm
-One Drain Hole with ball valve: DN40
|
|
Powder System
|
Powder tank capacity
|
1000 kg
|
|
Powder monitor model
|
PF5～15/30
|
|
Spray intensity
|
30kg/s
|
|
Working pressure
|
1.4Mpa
|
|
Hose reel
|
30m, DN25, with powder gun
|
|
Number of nitrogen cylinders
|
6
|
|
Electrical System
|
-Above the driving room are lightbar & 12V/60W fire scene light
-Above both sides of the vehicle are two flash lights
-100W alarm light
-Switches of all the lights, alarms and pumps on the control panel.
|
Product Features
Key Features of ISUZU FTR Dry Powder Fire Truck:
1. Triple-Agent Fire Suppression System
Integrates dry powder (1000kg), foam (1000L), and water (4000L) extinguishing agents for individual or combined use. Dry powder rapidly suppresses initial flames, foam prevents re-ignition, and water provides continuous cooling - achieving 60% higher efficiency than single-agent systems.
2. Professional Firefighting Performance
Equipped with CB10/40 fire pump (40L/s flow rate) and PL32 monitor (65m water range/50m foam range). PF5 dry powder cannon delivers 30kg/s discharge rate with 30m hose reel, forming 3D firefighting network. ≤50 sec water suction time at 7m depth.
3. High-Efficiency Chassis
Built on ISUZU 4×2 chassis with 205HP engine + 6MT transmission. 105km/h max speed, 8.5m turning radius. 295/80R22.5 all-terrain tires ensure rapid response in complex road conditions.
4. Intelligent Control System
Features digital control panel with real-time pressure/flow/level monitoring. Electro-pneumatic valves reduce operation effort by 50%. Pump room includes emergency stop device for fail-safe operation.
5. High-Reliability Design
4mm carbon steel water tank with anti-slosh structure. Stainless steel foam tank. Dry powder system with 6 nitrogen cylinders ensures continuous discharge. 2000-hour maintenance interval for critical components. Operational in -30℃ to 60℃ environments.

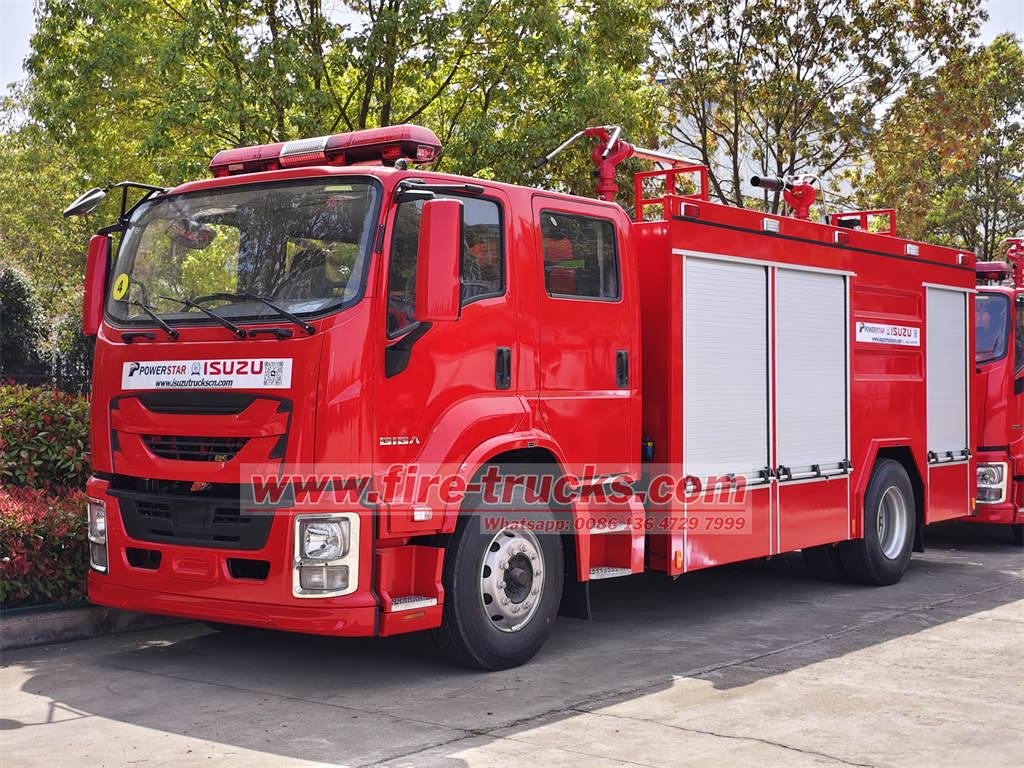

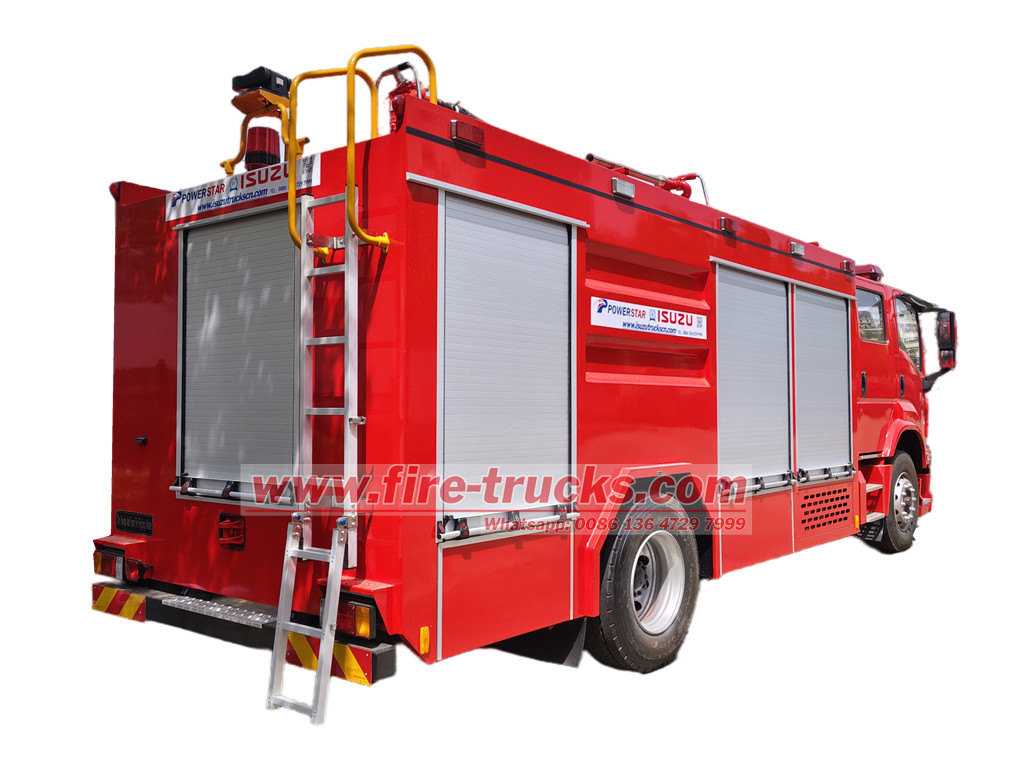

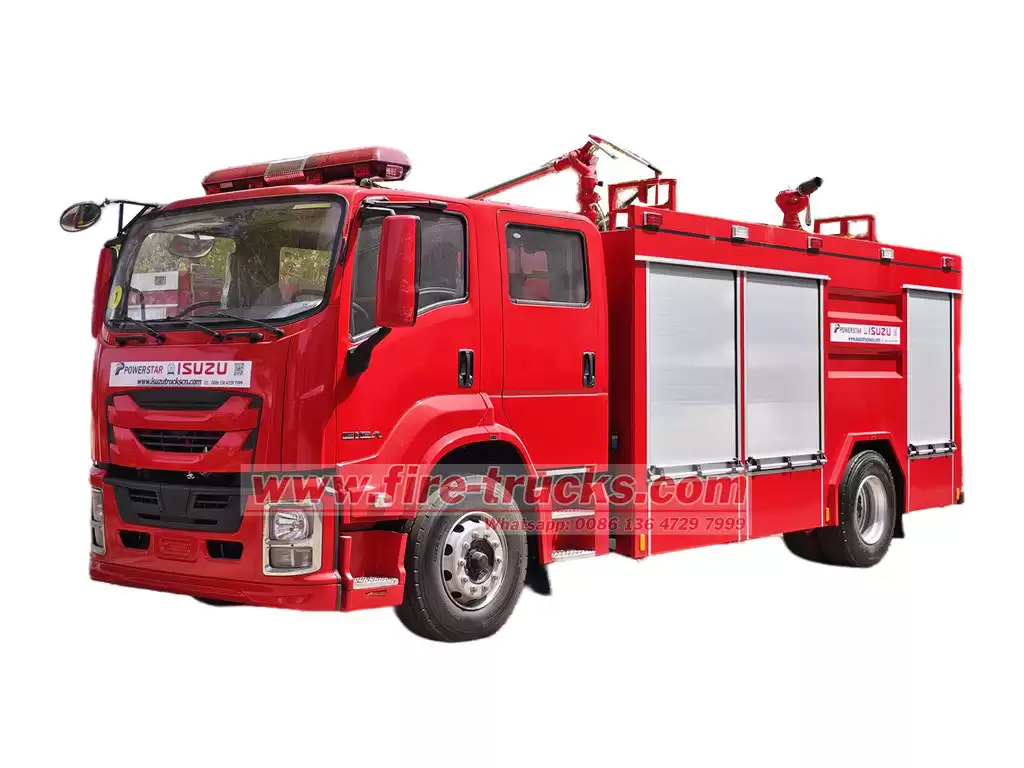

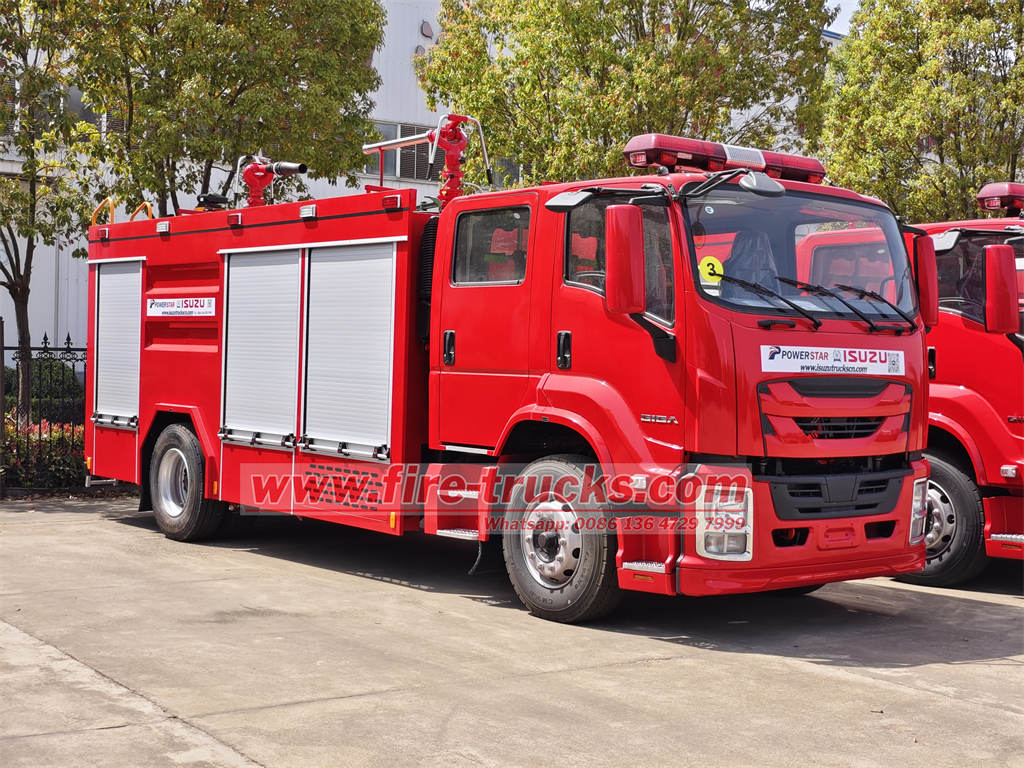

Product Pictures
