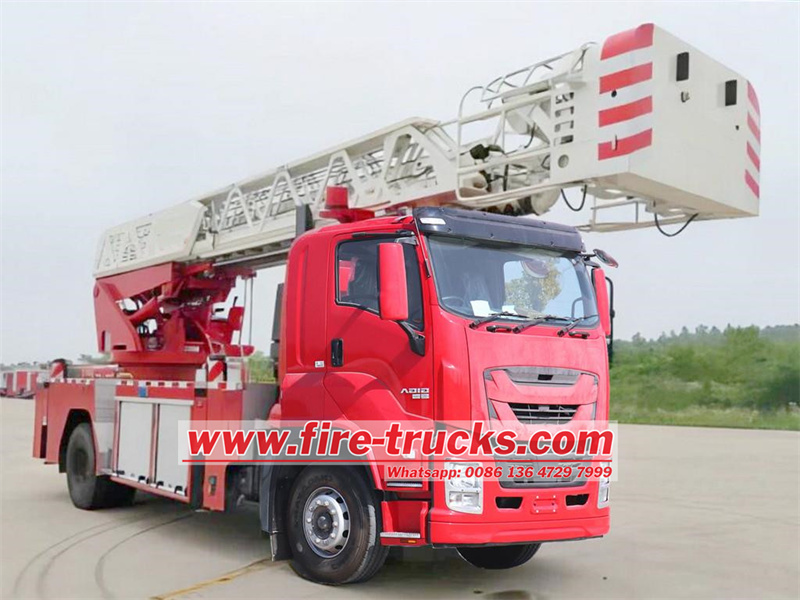

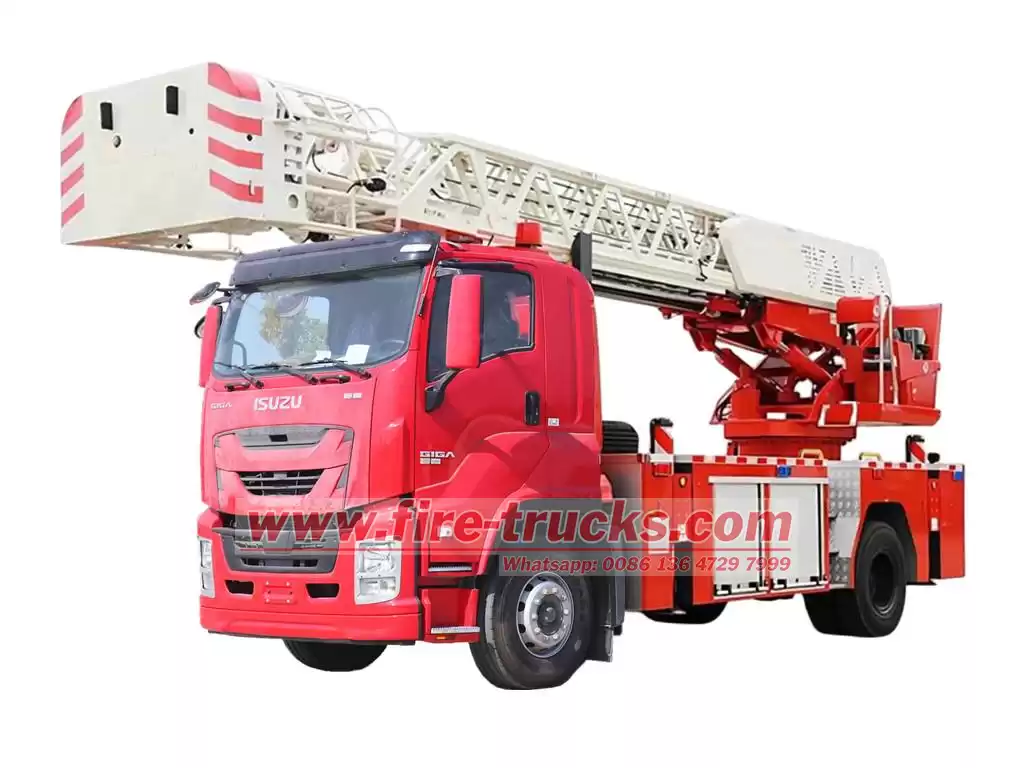

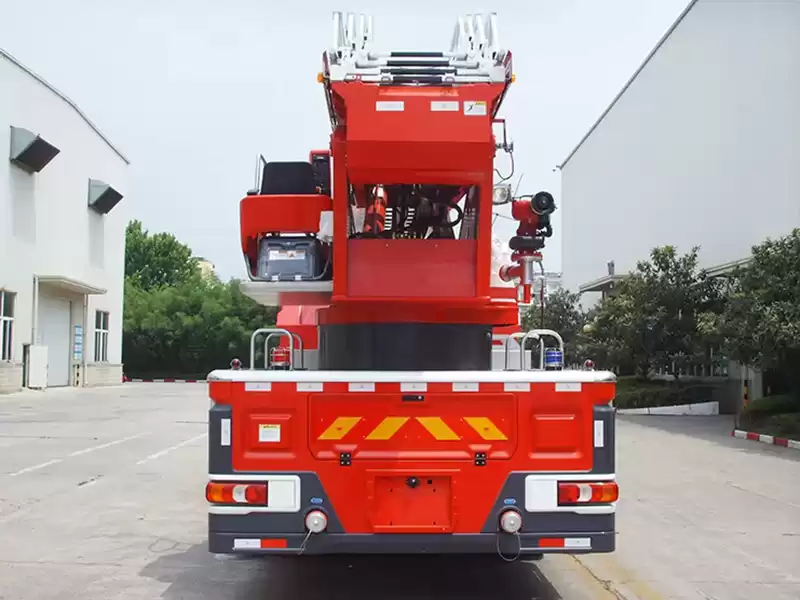

Newly designed PT5220GXFYT32 model high altitude aerial ladder fire truck is based on the existing mature technology of our company, and produced based on original Japanese ISUZU GIGA 4x2 truck chassis, equipped with super powerful diesel engine 6WG1-TCG61, with 460HP and emission can be 15681cc. Isuzu Ladder Fire Truck is focuses on the design, development and manufacturing technology of upper structure ladders, leveling control technology of turntables, double helix twin-rotation winding and telescoping technology, multi-state operating curve control technologies, and independent work platform leveling control technologies, etc. , is urban fire control main battle vehicle integrating the functions of rescue in the air and fire-fighting. With features of flexible, strong adaptive capacity of site, quick rescue speed and high technical security, ISUZU 32m aerial ladder platform truck is widely used for fire-fighting and rescue operation of mid-rise buildings in cities and towns, mines, oil field and factories, it is the necessary equipment to put out fires in mid-rise buildings, rescue person in distress and property.
Efficient rescue capabilities

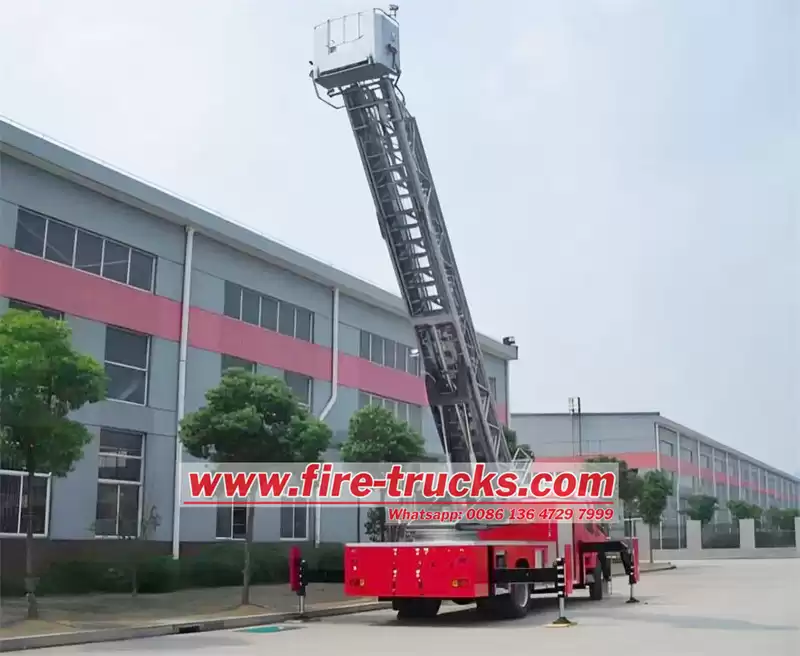

The Isuzu GIGA ladder fire truck working bucket load is 450kg (3~6 people), it only takes 30s for the vehicle to enter the combat state, and it only takes 60s for the ladder frame to extend to the highest and fastest; The ladder frame can achieve 360° continuous rotation; Strong wind resistance, up to 6 wind speed (125m/min).
Powerful fire extinguishing system
Isuzu ladder fire fighting truck is optional to be fully equipped with pumps, cannons, water tanks, B foam systems and telescopic water pipes, which have the characteristics of large flow, small loss and convenient operation, and can effectively deal with all kinds of solid and liquid fires. Also the Isuzu ladder fire truck can only equipped with customized 32m ladder and multiple working with Isuzu water tanker fire truck or Isuzu foam tanker fire truck.
Intelligent control system
Intelligent control system based on CAN BUS communication, high-precision sensors, advanced logic algorithms, humanized interactive interface, and fully automatic electronic control operation make the operation of the whole vehicle simple and reliable.
01, Truck chassis:
|
Model
|
Parameters
|
others
|
|
Chassis
|
ISUZU GIGA
|
Fire application
|
|
GVW
|
22000kg
|
|
|
Engine Model
|
6UZ1-TCG61
|
ISUZU
|
|
Engine Power
|
380 HP
|
|
|
Wheelbase
|
4600 mm
|
|
|
Driving Type
|
4x2/ 6 wheels
|
Left hand
|
|
Transmission
|
FAST 12-shift
|
Manual
|
|
Emission Standard
|
9839 ml
|
Euro 6
|
|
02, Fire Fighting System:
|
|
Fire Fighting Gun
|
PLKD48 electronically controlled fire monitor
Flow: 48L/s, working pressure≤0.8MPa；Firing range≥60m Gun head swinging range: Pitch angel: -45°～+60°
rotation angle: -85°～+60°
|
|
Water line control
|
Water line control modes: manual
|
|
Fire-fighting pipeline
|
Superstructure: Aluminum alloy tube
|
|
Base: stainless steel telescopic water pipe + stainless steel knitted metal
corrugated hose + rubber hose
|
|
Fire coupling configuration
|
Interface
|
Specifications
|
valve
|
Position
|
|
Pressure water
interface (in)
|
2×DN80
|
——
|
2 at the rear of
the vehicle body
|
|
Pressure water interface (out) of
working platform
|
DN65
|
Manual gate valve
|
Front end face of platform
|
|
Coupling type of water inlet/outlet: standard quipped with snap-type(quick), and can be replaced with the hermaphroditic type coupling
Snap-type coupling is advised in cold area.
|
|
03, Electrical Control System:
|
|
Operating platform
|
Console position of the upper vehicle: Left side of the turntable (with seat) and working platform. There is a line calling device between the two operating stations.
Type of whole vehicle control; Operation interface, computer control at rear.
Computer display screen: Color LCD display screen. It can display the amplitude of the boom, the work curve of the telescopic work, the orientation of the boom and the cab, and can also display the data such as the working height of the boom, the angle of the amplitude change, and the working radius, and the fault can be queried through the display screen.
|
|
Outrigger leveling
|
Automatic leveling and manual leveling
|
|
Warning light
|
Two round warning lights are installed on the top of the cab; Alarm is installed inside driver’s cab;
1 red strobe light and 1 blue strobe light on the left and right of the rear.
|
|
Lighting
|
Bracket lighting of the arm rest Lighting of platform
|
|
04, The Working Platform:
|
|
Dimension.
|
Approx. 2000×900×1200mm, Loading weight 350-450kg
|
|
The working platform
|
Aluminum profile welding frame structure, the lower bolts are connected to the steel brackets, and the bottom plate adopts a protective pattern plate; Rear door is side placed to facilitate the operator to enter the working platform;
|
|
Devices
|
Anemometer is installed on the work platform; Anemometer is installed on platform;
An ultrasonic wave anti-collision device is installed in front of and below the platform.
|
|
Firefighting and self- protection system
|
It has a working platform spray protection, working platform control, and manual ball valve;
Work platform is equipped with a DN65 outlet and manual gate valve;
|
05, The Truck Body:
|
Enclosure of vehicle body
|
Ladder: each one at both sides of vehicle body; 1 for each side of vehicle body
|
|
Vehicle body frame: Profile frame
|
|
Enclosure of vehicle body: Paste aluminum plate
|
|
Upper walking plate of vehicle body: Laying with oxidized non-slip aluminum alloy
|
|
Storage compartment/toolbox: Aluminum frame, with lock. Aluminum-alloy roller shutter door
|
|
Vehicle body color
|
The color of superstructure is bright white;
The exterior surface of cab, tank body and housing is fire red.
|
06, Other Configuration:
|
Standard configuration
|
Traffic monitoring system (integration of navigation, driving record, reversing camera, and reversing radar)
|
07, Technical Parameter
|
Items
|
Parameters
|
|
Size parameters
|
Boundary dimension
|
Length
|
mm
|
10600
|
|
Width
|
mm
|
2500
|
|
Height
|
mm
|
3900
|
|
Wheel base
|
mm
|
4600
|
|
Quality parameters
|
Weight
|
Total mass
|
kg
|
22000
|
|
First shaft
|
kg
|
9000
|
|
Second shaft
|
kg
|
13000
|
|
Chassis parameters
|
Model
|
ISUZU GIGA
|
|
Drive type
|
4×2
|
|
Manufacturer
|
POWERSTAR
|
|
Engine
|
Model
|
6WG1-TCG61
|
|
Power
|
460HP
|
07, Operation Performance
|
Item
|
Parameters
|
|
OutOperation performance
|
Rated working height m
|
32
|
|
Rated working range m
|
20~23（Rotational amplitude variable）
|
|
Working platform dimensions (length × width × height) m
|
2000×900×1200
|
|
Working platform rated load kg
|
350-450
|
|
Leg span (vertical × horizontal) m
|
5200×5400
|
|
Outrigger unfolding time
|
≤25s
|
|
Time for boom raising to rated height and rotating 90°
|
≤55s
|
|
Arm rest actuation time s
|
≤120
|
|
Spread time of outrigger s
|
≤30
|
|
Maximum slewing speed r/min
|
0.2～1.0
|
|
Maximum allowable slope °
|
3
|
|
Maximum allowable operating force of and
working platform
|
450
|
|
Firefighting gun
|
Water shooting
|
Model
|
PLKD48
|
|
Rated flow L/s
|
48
|
|
Rated pressure MPa
|
≤0.8
|
|
Rated firing range m
|
≥75
|
|
Swinging range of the head
|
Up and down °
|
-45～+60
|
|
Left and right °
|
-85～+60
|
|
Arm rest
|
Arm type
|
Material
|
Aluminum alloy material with telescopic ladder model
|
|
Working height
|
32m
|
|
Range of amplitude
|
Boom elevating range
|
Telescopic boom -12°~+75°
|
|
Slewing range
|
360° full-rotation
|
|
Max. slewing speed of turntable
|
0.5~1.5r/min
|
