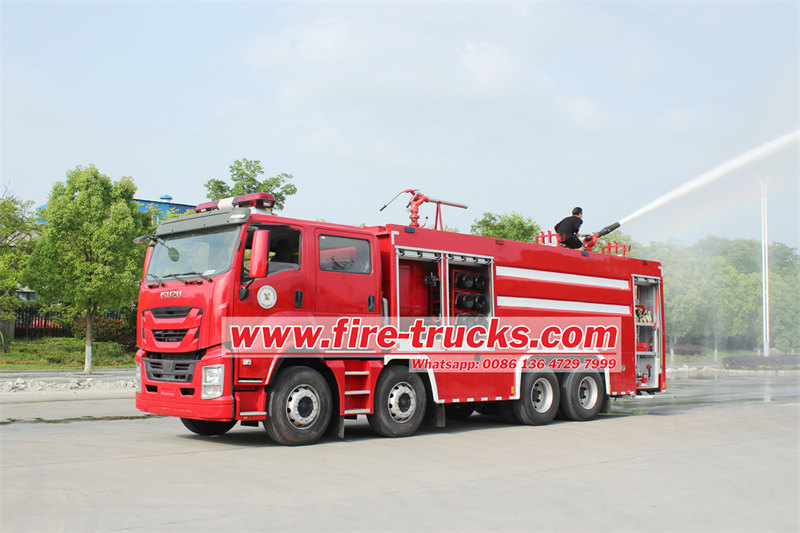

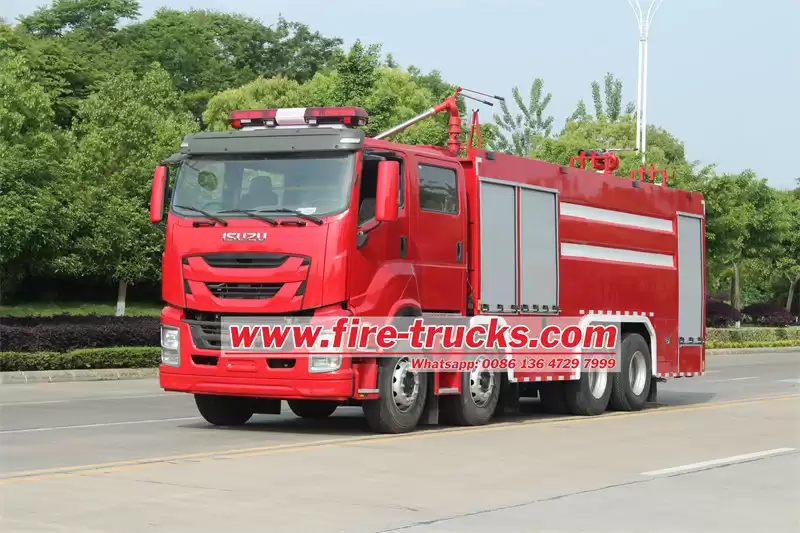

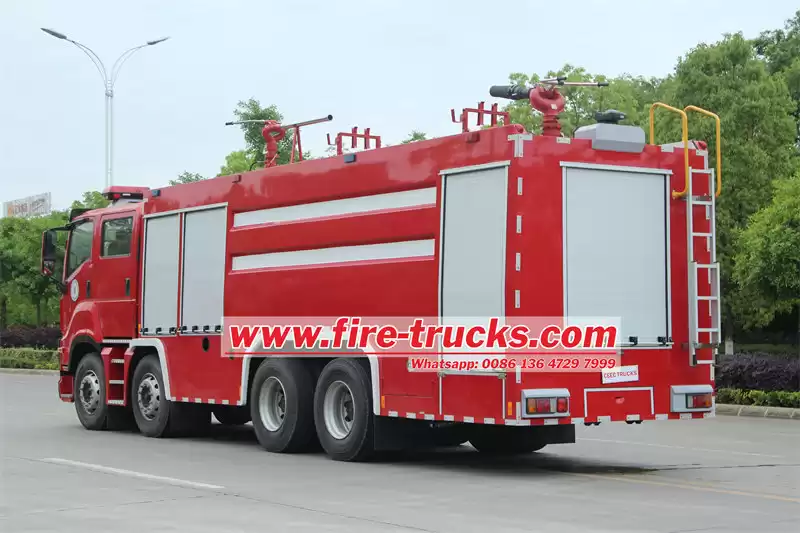

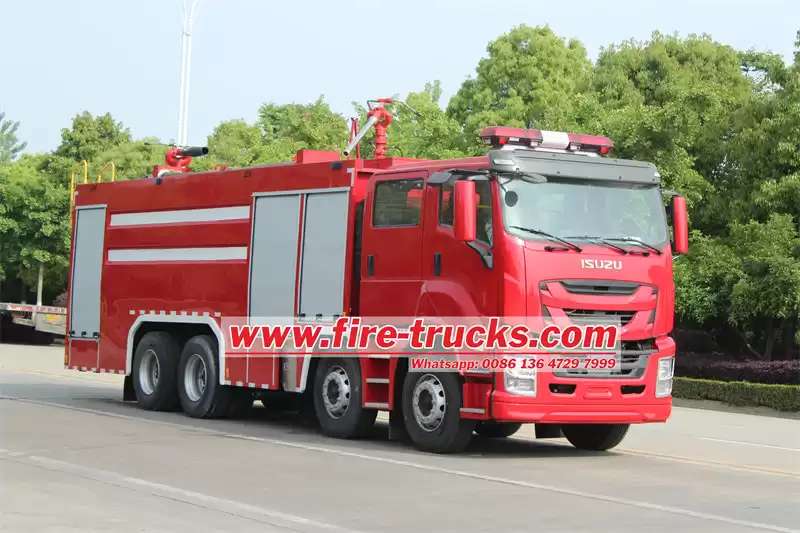

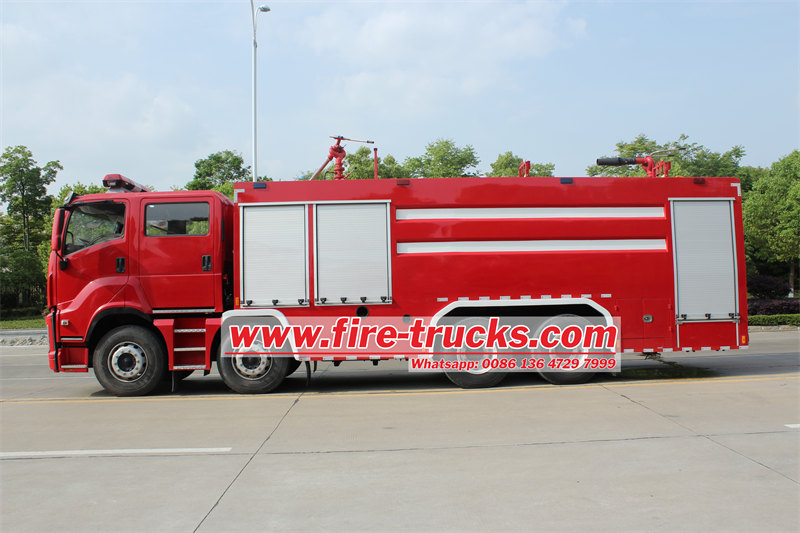

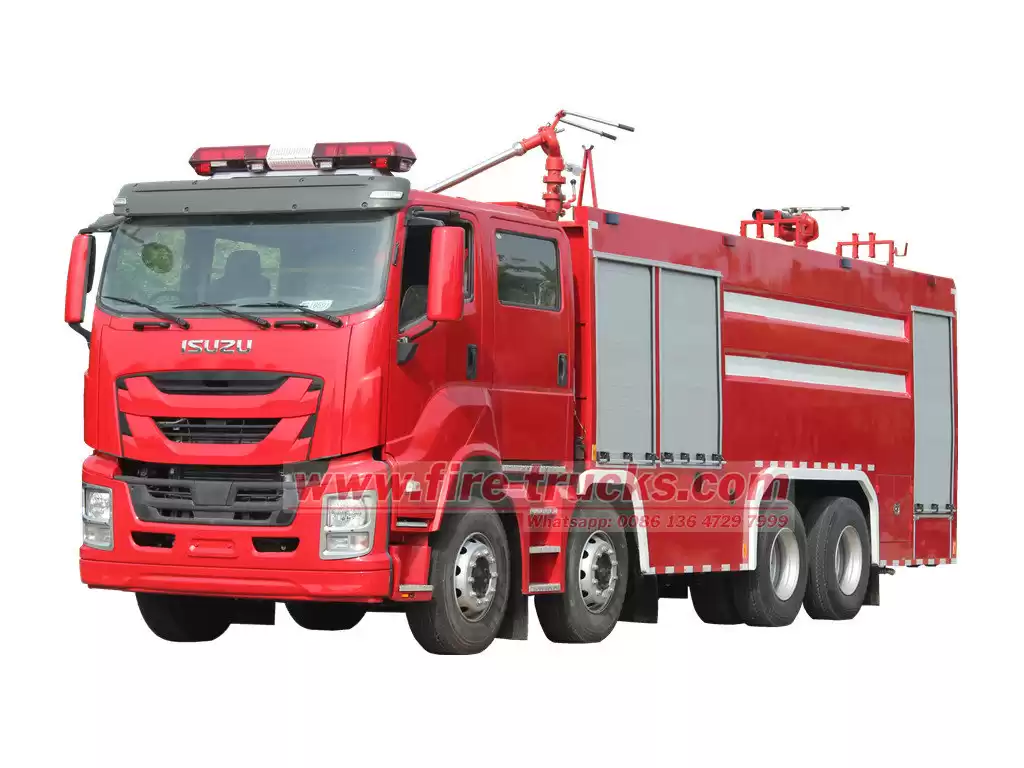

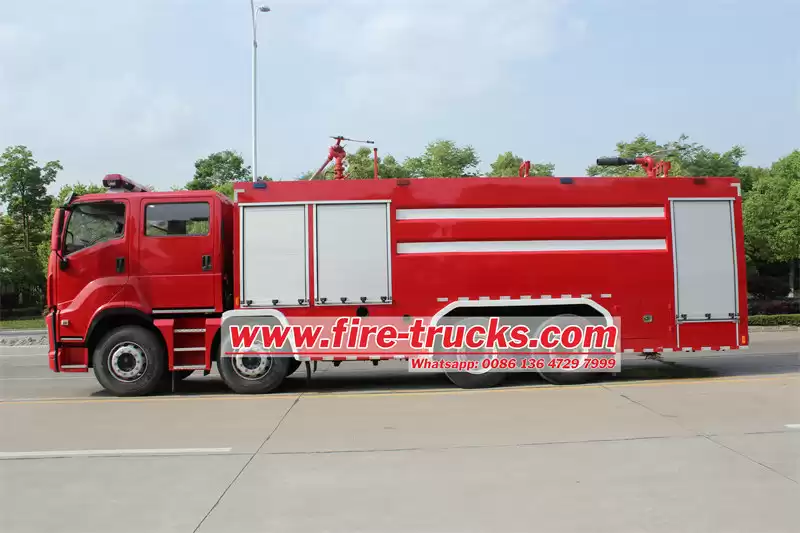

ISUZU GIGA 8x4 heavy fire tender truck

The ISUZU GIGA 8×4 Dry Powder Fire Truck is a professional firefighting vehicle designed to handle various complex fire scenarios. It incorporates ISUZU's advanced chassis technology and is equipped with a high-performance engine and transmission system, ensuring excellent driving performance and stability in all road conditions. Powered by the 6UZ1-TCG50 diesel engine, which features turbocharging and intercooling technology, it delivers a maximum output power of 279 KW (380 HP). Paired with a 12-forward and 2-reverse manual transmission, the vehicle offers robust power output and superior handling performance. This enables the fire truck to quickly reach fire scenes under various complex road conditions, saving valuable time for firefighting and rescue operations.

The core strength of the ISUZU GIGA 8×4 Fire Tender Truck lies in its multifunctional combined system. The vehicle is equipped with a 10,000-liter water tank (made of carbon steel), a 2,000-liter foam tank (made of stainless steel), and a 1,000-liter dry powder tank. It can swiftly switch between extinguishing agents based on different fire types, ensuring efficient firefighting. The material selection for the water and foam tanks not only guarantees the safe storage of extinguishing agents but also extends the vehicle's service life.

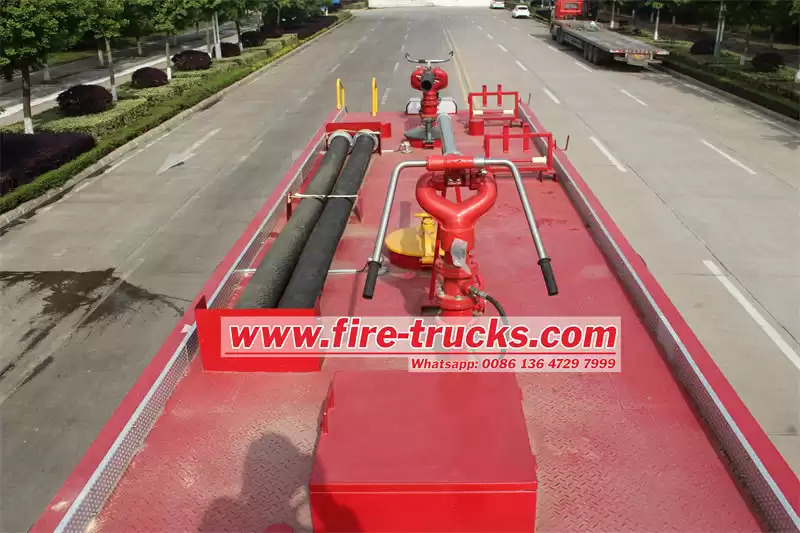

In terms of the firefighting system, the ISUZU 8×4 fire truck is equipped with a CB10/60 fire pump, which delivers a flow rate of up to 60L/s and an outlet pressure of 1.0 Mpa, enabling the rapid delivery of large quantities of extinguishing agents to the fire scene. Additionally, the fire pump has a suction depth of 7 meters, ensuring efficient water intake even in complex water source conditions. The vehicle also features a PL48 foam water monitor with a rated working pressure of 0.8 Mpa and a flow rate of 48L/s. It offers a pitch rotation range of -45° to +70° and a horizontal rotation range of 0° to 360°, providing full coverage with a range of ≥70 meters for water and ≥60 meters for foam, effectively controlling large-scale fires.

For oil fires and electrical fires, the ISUZU GIGA 12 wheeler fire engine is equipped with a PF40 dry powder monitor, which has a rated working pressure of 1.5 Mpa and an injection rate of up to 40kg/s. With a range of over 40 meters and a pitch angle range of -85° to +90°, it can quickly extinguish flammable liquid and gas fires, minimizing fire damage.

● 30 years experience in firefighting truck designing
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu road sweeper truck factory
● Be designed according to your requirements

Product Specifications

Application Scenarios and Advantages of the ISUZU GIGA 8×4 Dry Powder Fire Truck

Application Scenarios

1. Industrial Fires

This vehicle is particularly suitable for firefighting in industrial settings such as chemical plants, oil depots, and natural gas stations. Its dry powder extinguishing system can quickly suppress fires involving flammable liquids and gases, while the foam system effectively controls oil fires, preventing the spread of flames.

2. Urban Fires

In urban environments, such as high-rise buildings, commercial complexes, and residential areas, the ISUZU GIGA 8×4 Fire Truck's high-flow water cannon and long-range foam monitor can rapidly control fires, reducing property damage and casualties.

3. Special Fires

For special scenarios like tunnel fires, airport fires, and forest fires, the vehicle's multifunctional combined system and large-capacity extinguishing agent storage enable it to operate continuously in complex environments, ensuring efficient firefighting.

Advantages

1. Multifunctional Combined System

The ISUZU GIGA fire engine integrates water, foam, and dry powder extinguishing agents, allowing flexible switching based on fire types to meet diverse firefighting needs.

2. High-Efficiency Firefighting Capability

Equipped with a CB10/60 fire pump with a flow rate of up to 60L/s, a PL48 foam water monitor with a range exceeding 70 meters, and a PF40 dry powder monitor with an injection rate of 40kg/s, it ensures rapid fire control.

3. Extended Operational Capability

With a 10,000-liter water tank, a 2,000-liter foam tank, and a 1,000-liter dry powder tank, the ISUZU GIGA 12-wheeler fire truck provides ample extinguishing agent reserves, meeting the demands of prolonged firefighting operations.

4. Reliability and Adaptability

Constructed with high-quality materials and advanced manufacturing processes, the vehicle ensures stable performance in various harsh environments and adapts to complex road conditions and extreme weather.

Product Details

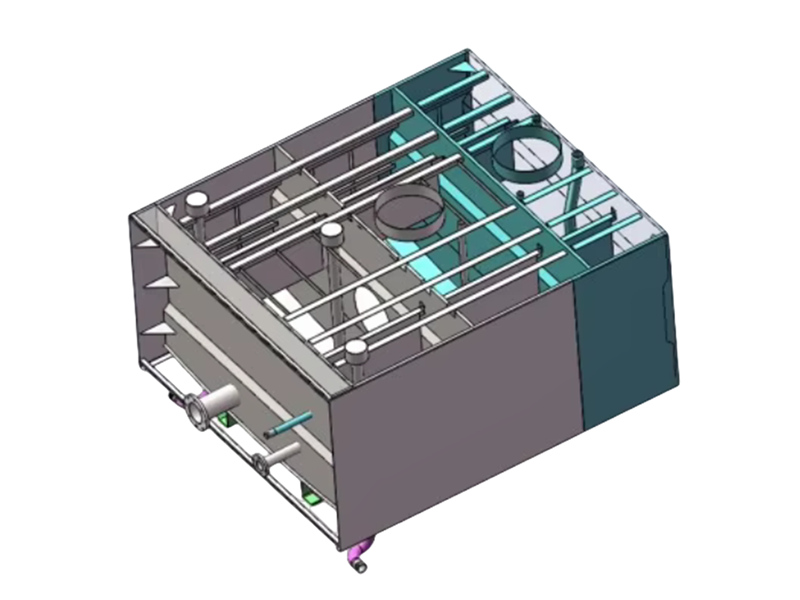

Water tank and foam tank

The water tank is made of high-quality carbon steel plate with internal corrosion protection. The foam tank is constructed from premium stainless steel plate. The base plate of the water tank is 5mm thick carbon steel plate, while the side plates and sealing plate are 4mm thick carbon steel plate, and the top plate is 3mm thick checkered carbon steel plate. For the foam tank, the base plate is 5mm thick stainless steel plate, the side plates and sealing plate are 4mm thick stainless steel plate, and the top plate is 3mm thick checkered stainless steel plate.

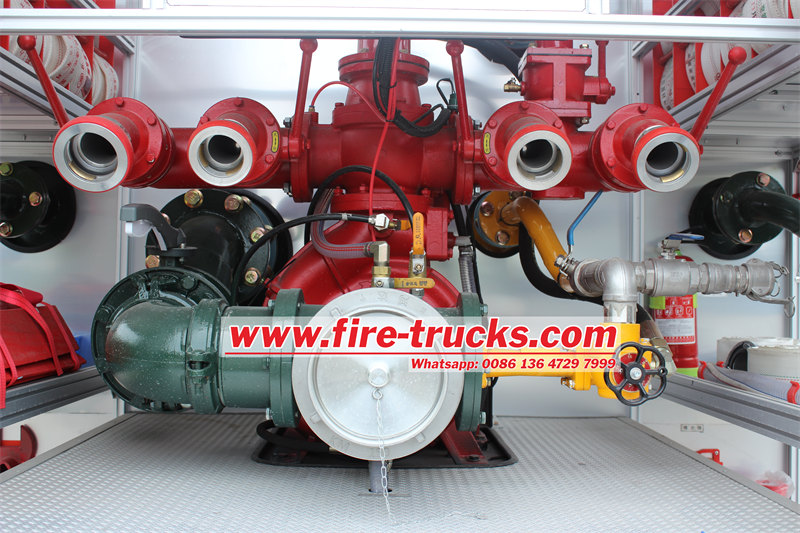

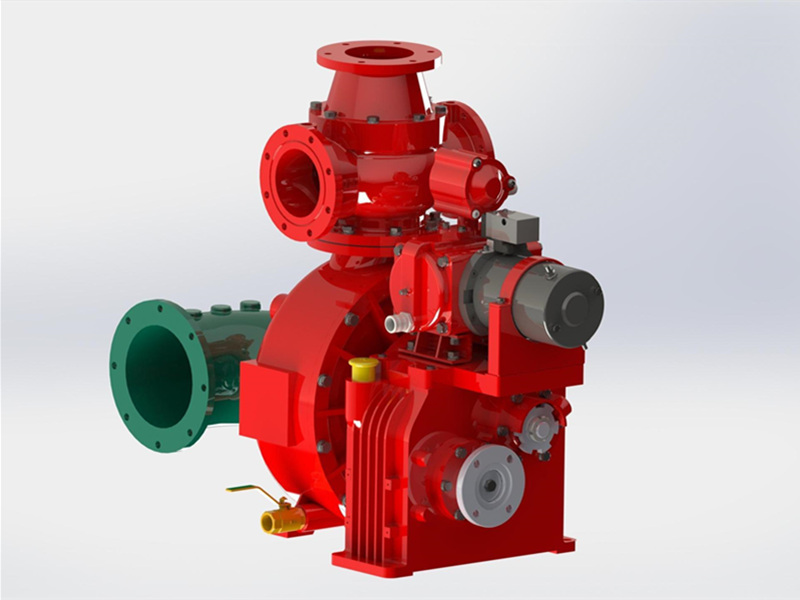

Fire pump

Model: CB10/60 atmospheric fire pump
Flow: 60L/s/1.0Mpa
Maximum suction depth: 7m
Priming time: ≤50s
Vacuum pump type: piston type
Installation mode: rear-mounted

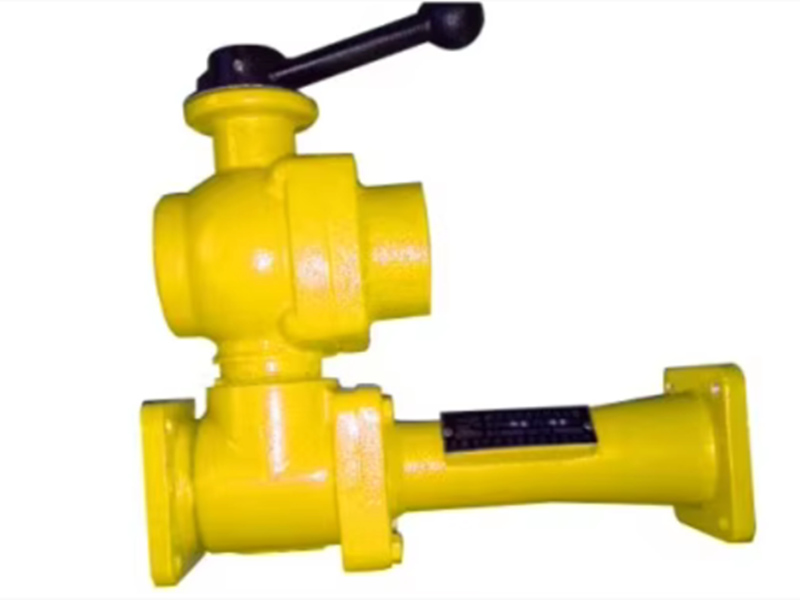

Foam proportioner

Model: PH64
Mixing ratio: 6%
Maximum mixed flow: 64L/s
Structure: ring pump type

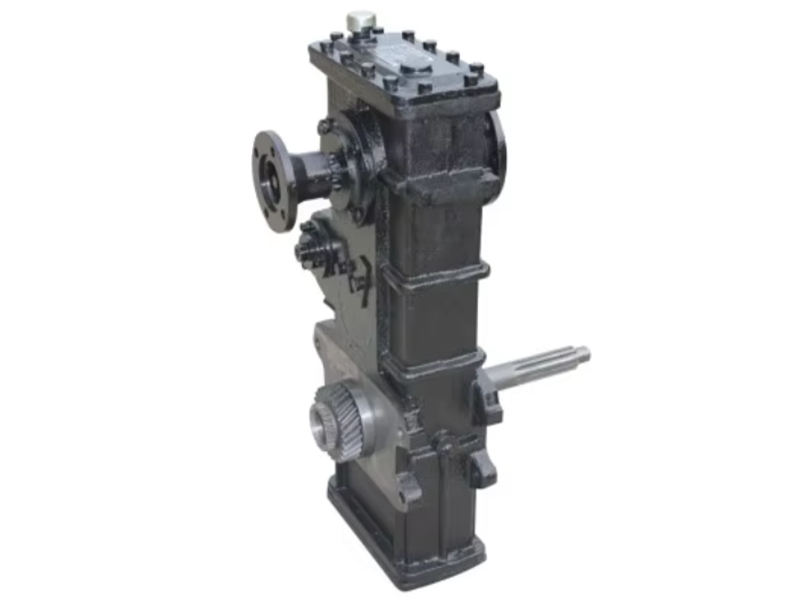

PTO

Type: Sandwich type (full power)
Operation: solenoid valve control (electric control)
Cooling method: forced adjustable water cooling
Lubrication method: splash lubrication
