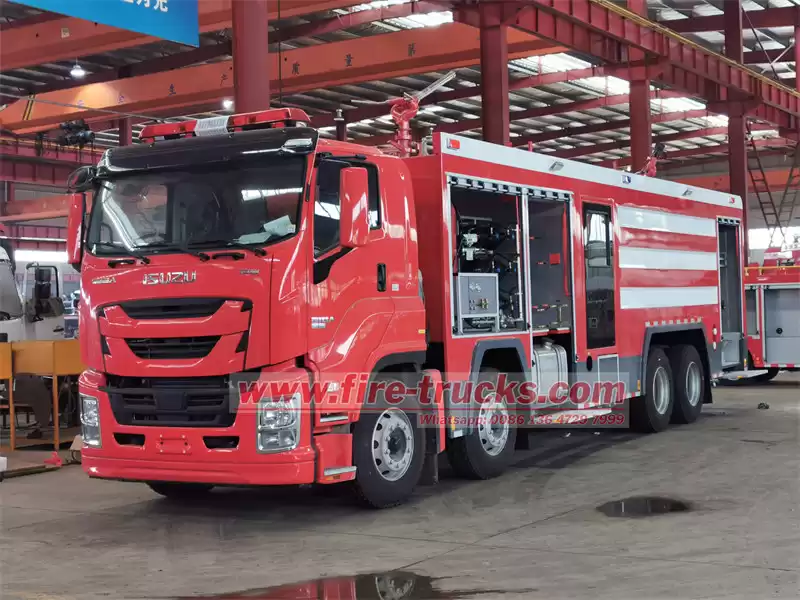

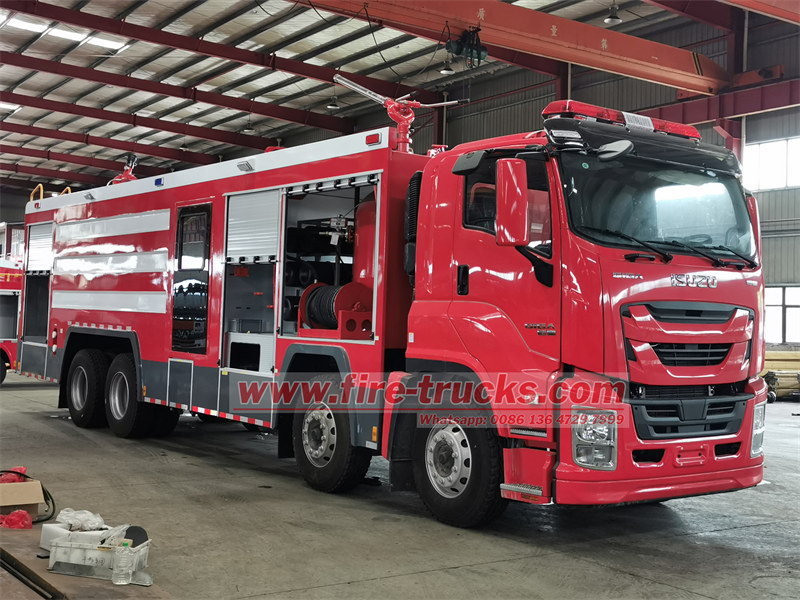

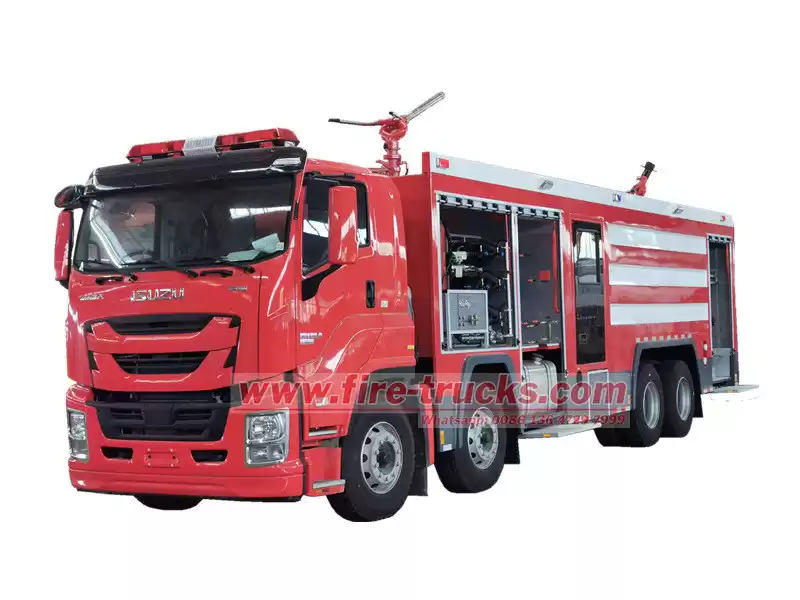

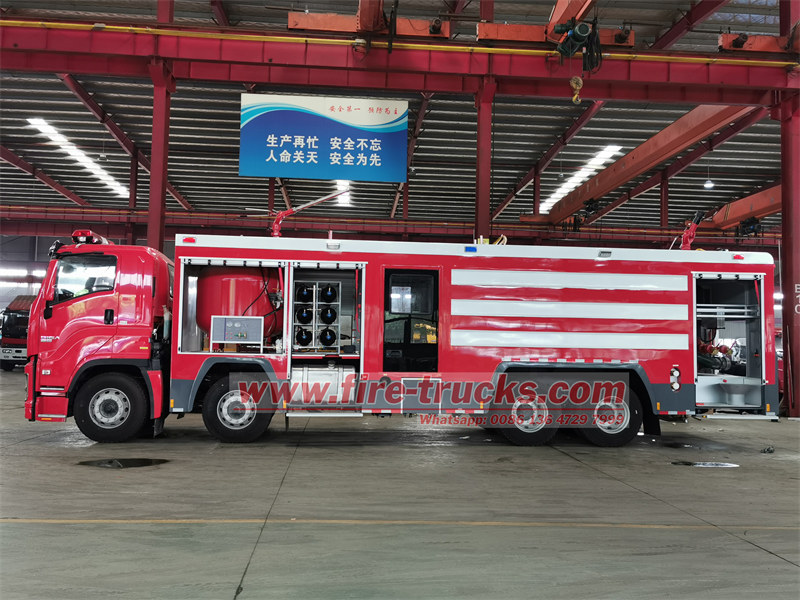

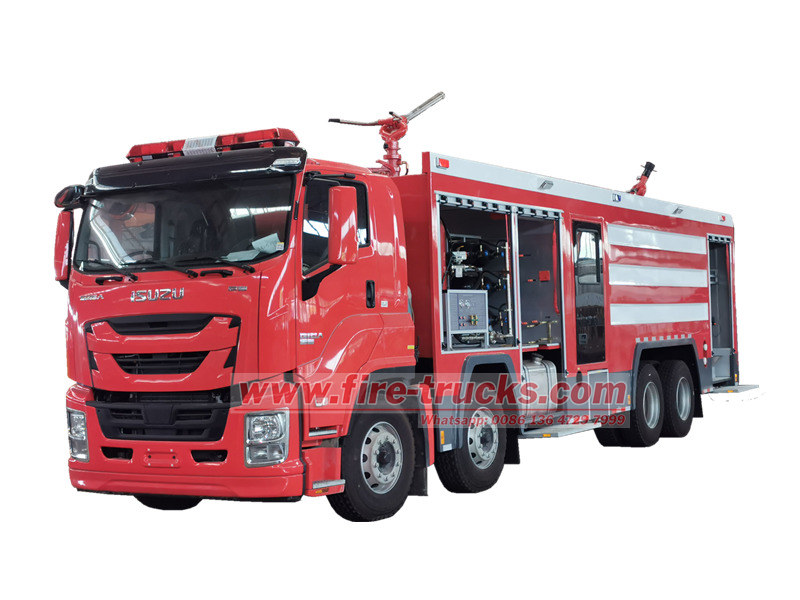

The ISUZU GIGA 8×4 Powder-Water-Foam Combined Fire Truck is a heavy-duty, multi-functional firefighting vehicle designed specifically for combating fires in high-risk areas such as petrochemical facilities and port terminals. Built on the original ISUZU GIGA 8×4 chassis, it measures 11,995 × 2,550 × 3,800 mm with a gross weight of 31,000 kg, demonstrating exceptional operational capability. Powered by a 6WG1-TCG60 diesel engine delivering 420 horsepower and paired with a 12-speed transmission, it reaches a top speed of 98 km/h, ensuring rapid deployment to fire scenes. The front axle supports 8 tons, while the rear axle handles 26 tons, combined with a 17° approach angle and a 13° departure angle, providing excellent terrain adaptability. The cab features a double-door, double-row design, accommodating six firefighters, and a flip-up structure for easy engine maintenance.

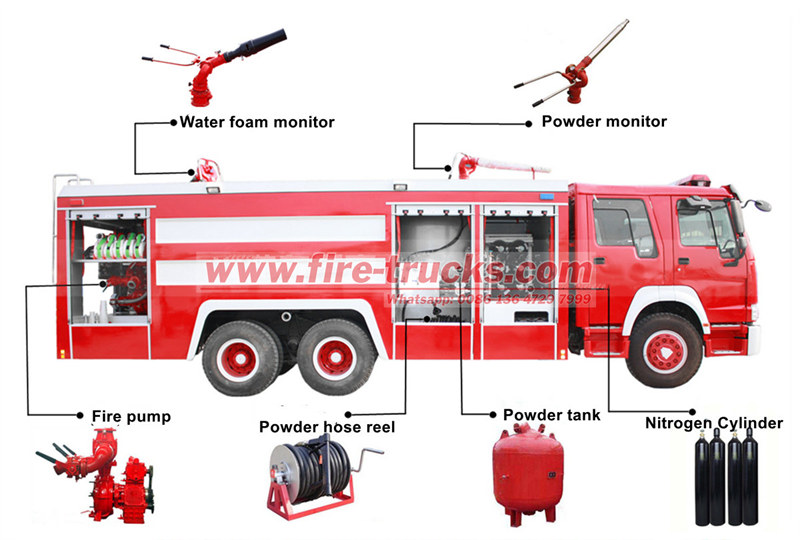

The superstructure system is the core advantage of the ISUZU GIGA Dry Powder Fire Truck, adopting a modular functional zoning design:

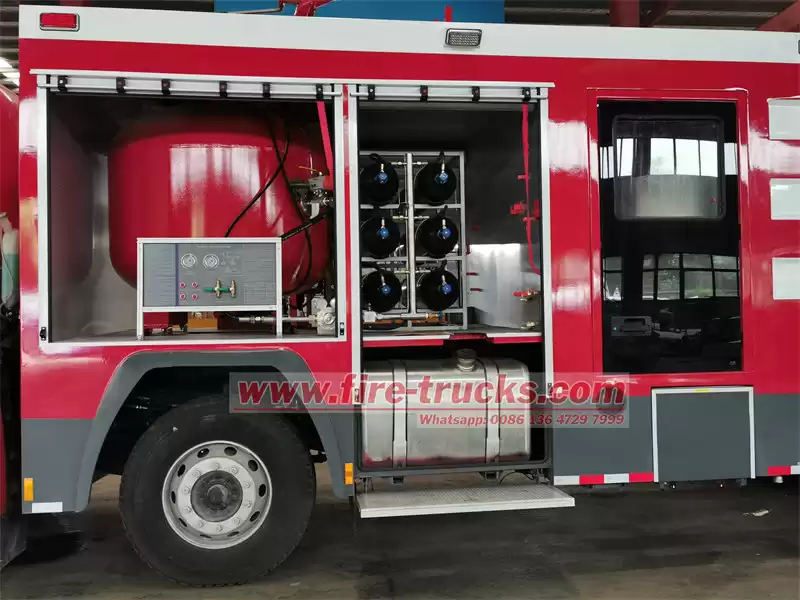

The fire extinguishing agent storage system consists of three major components: a 12,000-liter water tank made of 4mm thick Q235 carbon steel, reinforced to 5mm at the bottom; a 2,000-liter foam tank constructed from welded 304 stainless steel for superior corrosion resistance; and a 2,000-liter dry powder tank using Q345R special steel, with a design pressure of 1.6MPa and working pressure of 1.4MPa. The three extinguishing agents can be used independently or in combination, creating a multi-dimensional firefighting effect. All tanks are equipped with 500mm diameter quick-opening inspection ports for easy routine maintenance.
The ISUZU GIGA multipurpose fire truck's fire extinguishing system configuration is a professional benchmark:
• The CB10/100 fire pump delivers a water flow rate of 100L/s, with a priming time not exceeding 80 seconds under a 7-meter suction depth.
• The PL80W dual-purpose fire monitor achieves a range of ≥75 meters for water and ≥70 meters for foam, with 360° horizontal rotation and -30° to +70° elevation angles for full coverage.
• The PF30 dry powder cannon has a discharge rate of >30kg/s and an effective range exceeding 30 meters, particularly suitable for oil fires.
The three systems can operate independently or collaboratively, forming a "water cooling, foam covering, dry powder suppression" composite firefighting tactic.

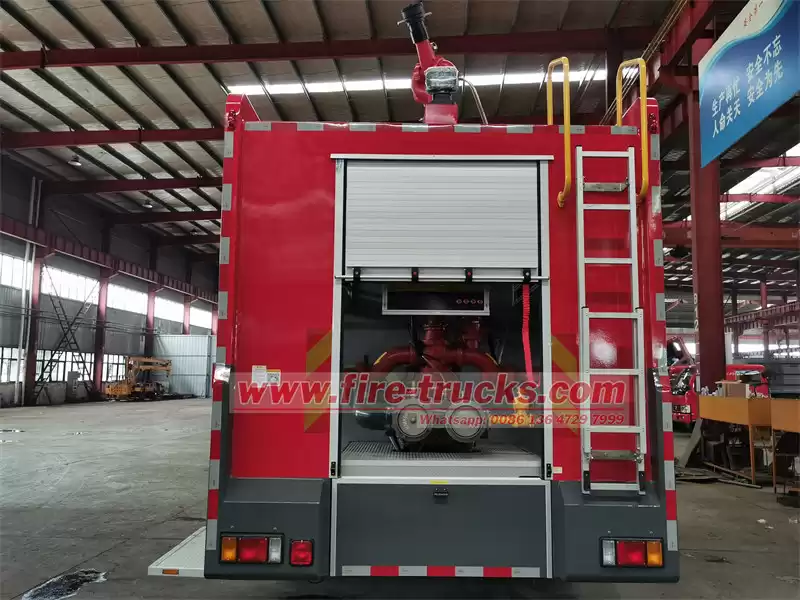

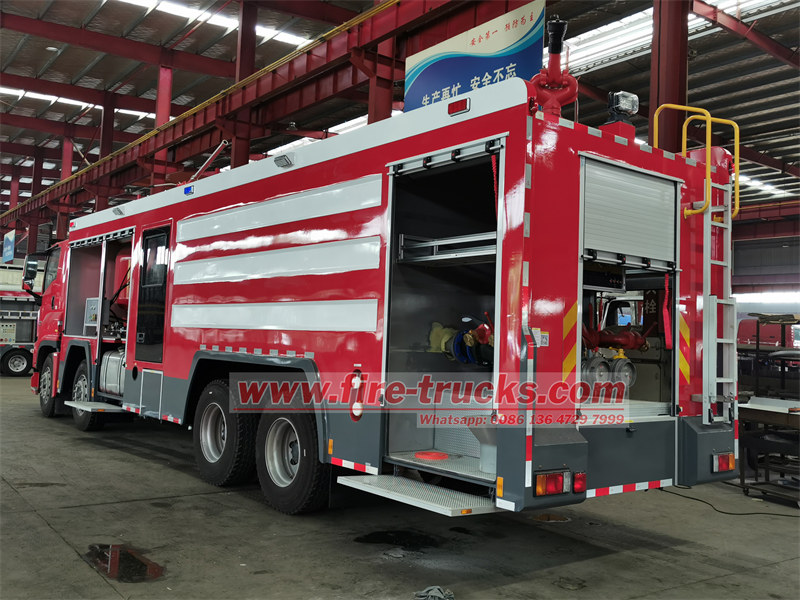

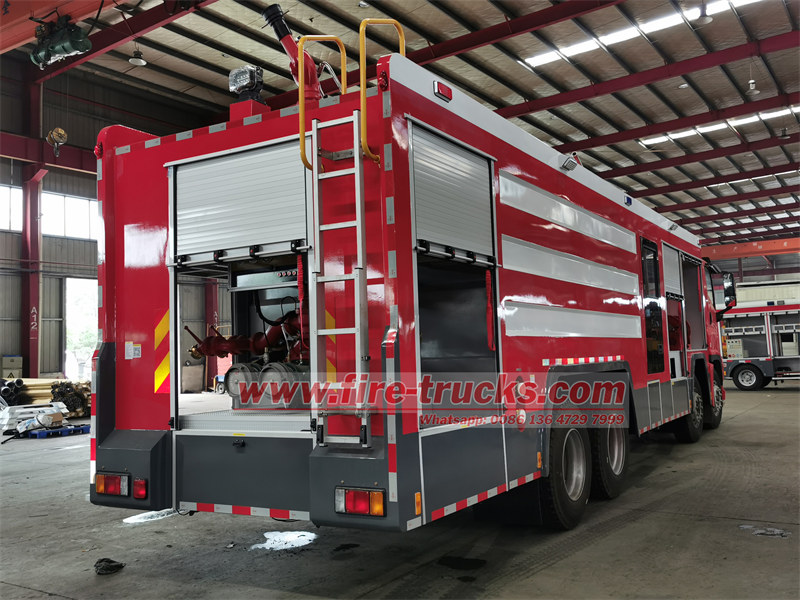

The equipment room of this ISUZU GIGA tanker fire truck embodies a user-friendly design philosophy. The aluminum alloy equipment compartments feature anti-corrosion treatment with adjustable tool racks inside. Each roller shutter door is fitted with flip-down steps, and a rear boarding ladder facilitates quick access to gear. An independent crew compartment located in the middle of the vehicle provides a safe preparation space for firefighters. The control panel integrates critical function indicators such as alarms and auxiliary power, with essential switches within easy reach.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
● Build strict QC team to guarantee the quality
Product Specifications
|
Vehicle basic specifications
|
|
Overall Dimension
|
11995x2550x3800mm
|
|
Tank Capacity
|
Water 12000L, foam 2000L, dry powder 2000L
|
|
Engine Output
|
420Hp
|
|
Max Speed
|
98km/h
|
|
Front / Rear Axle Load
|
8T / 26T
|
|
Approach / Departure Angle
|
17/ 13°
|
|
Allowable Cab Passengers
|
2+4
|
|
Chassis Specification
|
|
Model
|
ISUZU GIGA
|
|
Manufacture
|
lSUZU
|
|
Engine Model
|
6WG1-TCG60
|
|
Engine Output
|
420Hp
|
|
Displacement
|
15681ml
|
|
Emission
|
Euro 6
|
|
Wheel base
|
1850+4575+1370mm
|
|
GVW
|
31000kg
|
|
Transmission
|
FAST，12 forward and 2 reverse
|
|
Driving Cab
|
|
Form
|
2 door crew cab
|
|
Passenger
|
2
|
|
Steering Wheel
|
Left Hand Drive
|
|
Equipment
|
Control box for alarm and alarm lamp
PTO switch and indicator
Additional power source and air course indicator
Jacklight and strong flashing light indicator
|
|
Body
|
|
Equipment Room
|
Body is made by high quality steel with phosphate treatment. The inner plate and floor is made by anodized aluminum plate.
|
|

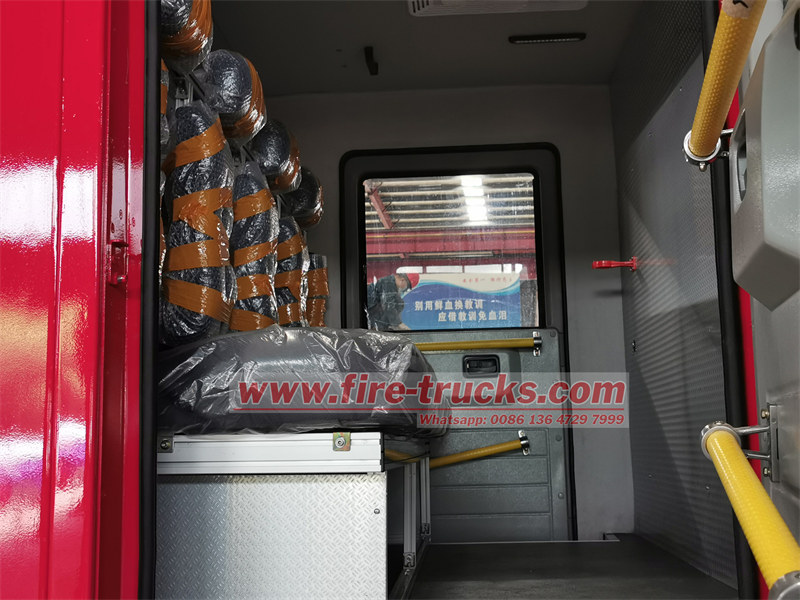

Crew room
|
Crew person room is in the middle of truck
|
|
Equipment room
|
Aluminum alloy structure
|
|
Pedal
|
Every shutter door has an overturn pedal.
Fender can be overturned to be used as pedal.
|
|
Ladder
|
on the backside body
|
|
Water and foam Tank
|
|
Tank capacity
|
Water: 12000L, foam: 2000L
|
|
Material
|
Water tank: Carbon steel with 4mm thickness, bottom is 5mm. Foam tank: Stainless steel 304 material.
|
|
Tank fixing
|
Fixed on chassis frame
|
|
Manhole
|
One manhole with diameter of 500 mm, with quick locking/opening device
|
|

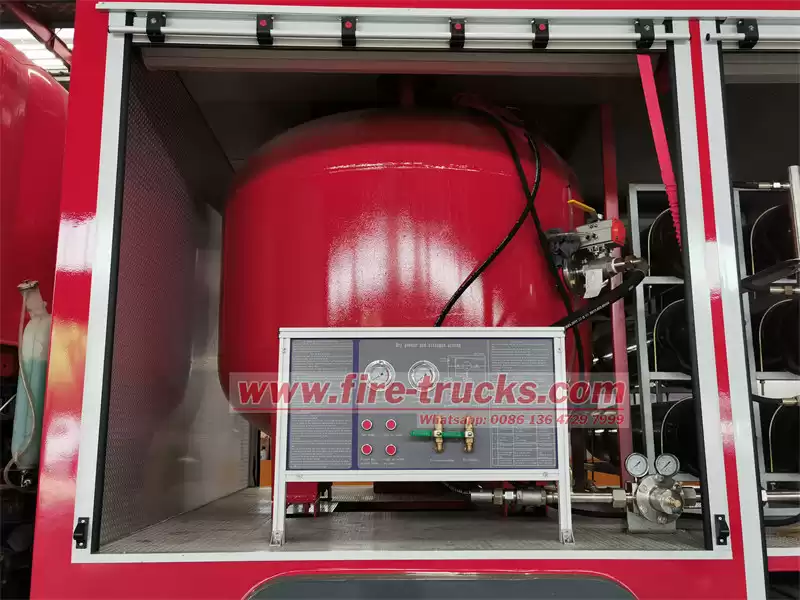

Dry Powder tank
|
|
Tank capacity
|
2000L
|
|
Material
|
Q345R
|
|
Designed pressure
|
1.6MPa
|
|
Working pressure
|
1.4MPa
|
|
Blasting pressure of safety valve
|
1.5MPa
|
|

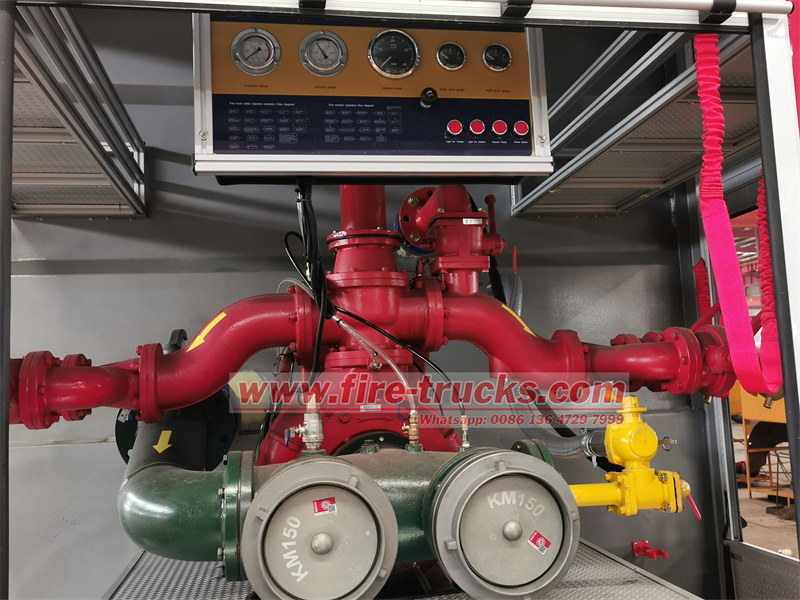

Fire Pump
|
|
Fire pump model
|
CB10/100
|
|
Water flow rate
|
100L/S, 1.0MPa
|
|
Maximum suction depth
|
7m
|
|
Diversion device
|
Self-contained slide pump
|
|
Diversion time
|
Maximum depth of suction < 80s
|
|
Fire Monitor (water & foam)
|
|
Fire monitor model
|
PL80W
|
|
Flow rate
|
80L/s, 1MPa
|
|
Covering range
|
water≥75m, foam≥70m
|
|
Rotating Angle
|
360°Horizontal Rotation
|
|
Max. Pitch / dip angle
|
pitch angle≤-30° dip angle≥+70°
|
|
Fire monitor (dry powder)
|
|
Fire monitor model
|
PF30
|
|
Opening pressure
|
1-1.4MPa
|
|
Jetting rate
|
>30kg/s
|
|
Covering range
|
>30m
|
Product Applications
The ISUZU GIGA Dry Powder Fire Truck is primarily suitable for extinguishing the following four types of fires:
1. Liquid Fires: Such as petroleum, diesel, gasoline, and other oil fires. Dry powder can rapidly interrupt the combustion chain reaction, while foam forms a covering layer to prevent reignition.
2. Gas Fires: For fires caused by leaks of liquefied gas, natural gas, and other flammable gases, dry powder can effectively suppress gaseous combustion.
3. Electrical Equipment Fires: The non-conductive properties of dry powder make it particularly suitable for fires involving live electrical equipment such as transformers and distribution cabinets (ensure voltage ≤1000V).
4. Chemical Material Fires: For polar solvent fires involving alcohols, esters, and similar substances, the combined use of foam and dry powder creates a dual extinguishing effect.
