The ISUZU firefighting truck, as a crucial member of special-purpose vehicles, is specifically designed for firefighting and emergency rescue operations. It not only rapidly transports firefighters and equipment but also integrates multiple professional fire suppression systems to effectively combat various fire hazards. The ISUZU GIGA foam fire truck, with its excellent chassis performance and modular design, stands out as an ideal solution for municipal firefighting and industrial protection.

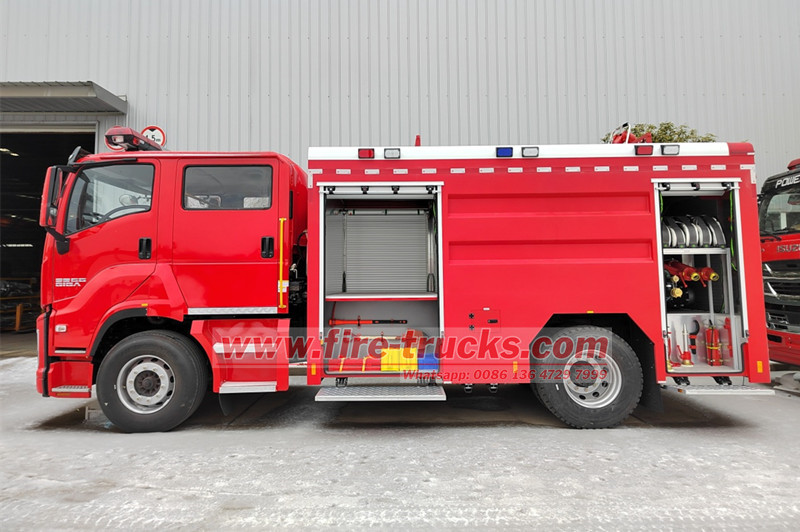

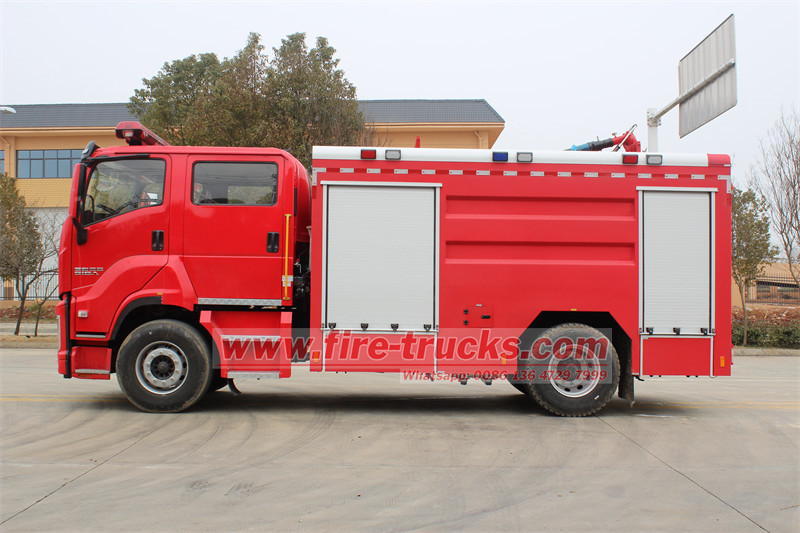

Built on the GIGA 4×2 chassis, this ISUZU fire engine truck is powered by a 6UZ1-TCG61 inline six-cylinder diesel engine with a displacement of 9.8 liters and a maximum output of 380HP, paired with a FAST 12-speed manual transmission for smooth and robust power delivery. The left-hand drive configuration, along with a double-row cabin accommodating multiple firefighters and an air conditioning system, ensures comfort during extended operations.

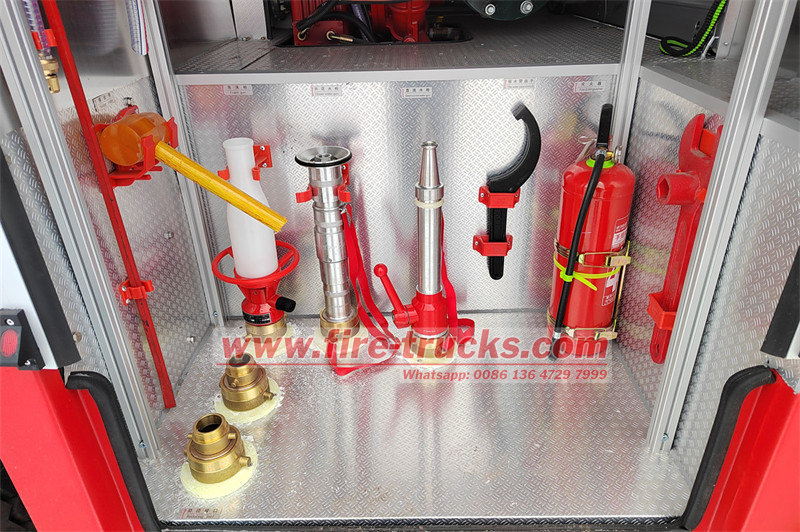

The ISUZU GIGA pumper fire truck features a comprehensive fire suppression system: large-capacity water and foam tanks for storing both water and firefighting foam; a high-pressure fire pump for rapid water supply setup; and a combination of fire monitors and hoses for long-range projection or precise firefighting. Additionally, the vehicle is equipped with rescue tools, emergency lighting, and first-aid medical equipment, enabling it to play a vital role in traffic accident rescues and natural disaster responses.
Core Firefighting Systems Include:

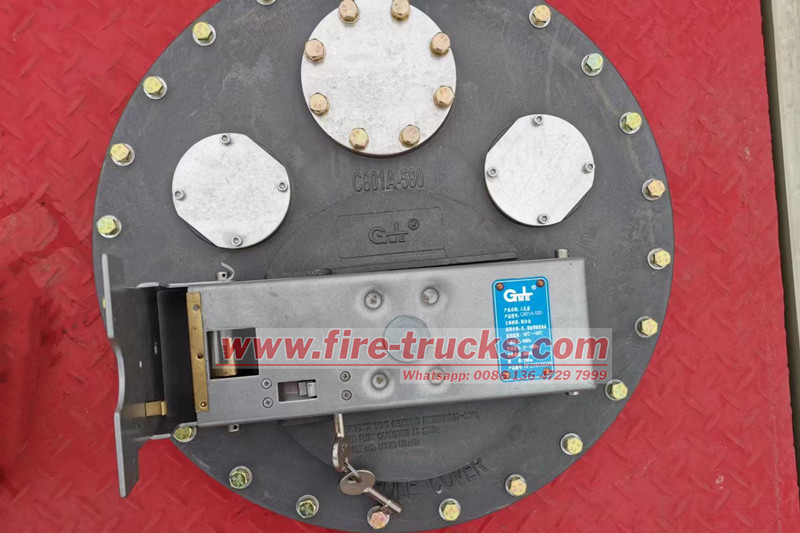

• Liquid Storage System: An 8,000-liter water tank and a 2,000-liter foam tank, both constructed from 304 stainless steel with internal baffle plates to ensure liquid stability during movement. Total liquid capacity reaches 10 cubic meters.

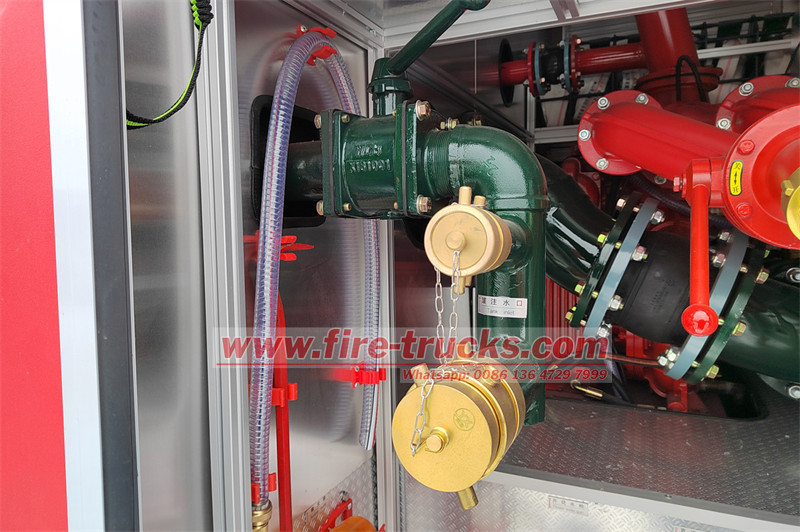

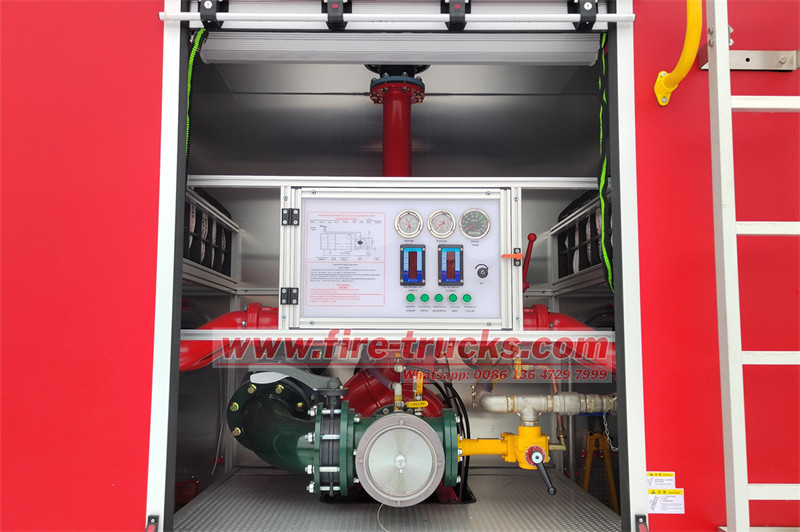

• Fire Pump System: The CB10/60 normal-pressure fire pump delivers a rated flow of 60L/s and a maximum working pressure of 1.0MPa, capable of priming water within 50 seconds at a suction lift of 7 meters. The pump room is equipped with a 125mm inlet and dual 75mm outlets to support multiple hose operations simultaneously.

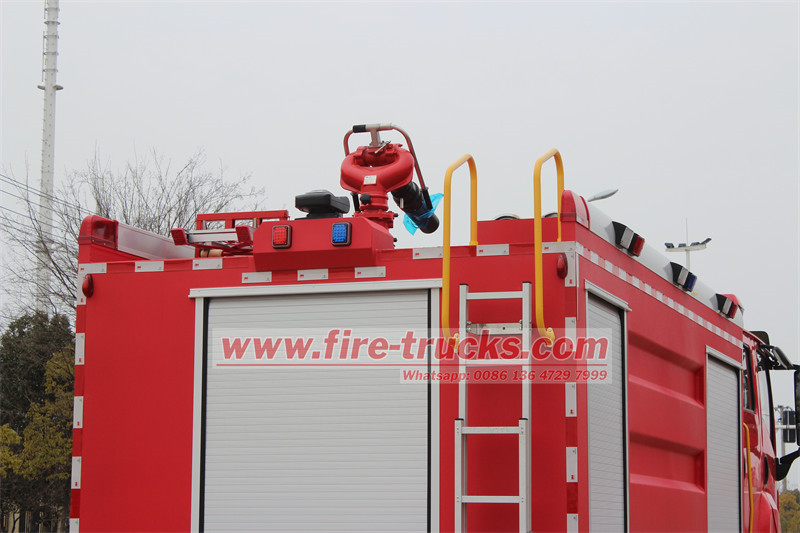

• Fire Monitor System: The roof-mounted PL8/48 fire monitor provides a rated flow of 32L/s, with a water range ≥70 meters and a foam range ≥60 meters. The monitor rotates 360 degrees horizontally and adjusts from -15° to +60° vertically for full coverage.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China leading Isuzu firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
Product Specifications
|
Chassis
|
Chassis brand
|
ISUZU
|
|
Model
|
ISUZU GIGA
|
|
Drive type
|
4x2 left hand drive
|
|
Cabin
|
Double row cab, with A/C, ABS
|
|
Total mass
|
22000 KG
|
|
Wheel Base
|
4600 mm
|
|
Front /rear suspension
|
1018/1850 mm
|
|
Approach/departure angle
|
24/12°
|
|
Spring No.
|
8/6+5
|
|
Tyre No.
|
6+1 pcs
|
|
Type & Size of Tyre
|
315/80R22.5 16PR
|
|
Axle No.
|
2
|
|
Steering wheel
|
left hand drive
|
|
Gear box
|
FAST 12 speed forward with 2 reverse, manual
|
|
Engine
|
Engine model
|
6UZ1-TCG61
|
|
Engine brand
|
ISUZU
|
|
Engine type
|
6 cylinders in line
|
|
Maximum power
|
380 HP
|
|
Displacement
|
9839 ml
|
|
Fuel type
|
Diesel
|
|
Emission Standard
|
Euro 6
|
|
Tanker
|
Water tank volume
|
8, 000 Liters
|
|
Material
|
Stainless steel
|
|
Foam tank volume
|
2,000 Liters
|
|
Material
|
Stainless steel
|
|
Fire pump
|
Model
|
CB10/60, normal pressure pump
|
|
Pressure
|
≥1.0 Mpa
|
|
Max suction height
|
7 m
|
|
Flow
|
60 L/s
|
|
Rated speed
|
3240 rpm
|
|
Time of water diversion
|
≤50 s
|
|
Input diameter
|
125 mm
|
|
Outlet diameter
|
2xΦ75
|
|
Fire monitor
|
Model
|
PL8/48
|
|
Range
|
Water ≥70 m
|
|
Foam ≥60 m
|
|
Flow
|
48 L/s
|
|
Rated Working pressure
|
1.0 Mpa
|
Product Features
1. Large-capacity water and foam tank: ISUZU GIGA fire engine is equipped with an ultra-large-capacity water tank and foam tank, which can store a large amount of water and foam to ensure long-term fire-fighting operations. This design gives the fire truck significant advantages when responding to large-scale fires.
2. High-efficiency fire pump: The vehicle is equipped with a high-performance fire pump, which can quickly pump water out of the water tank and extinguish the fire through high-pressure spray. This type of pump usually has a large pumping and spraying flow rate and can quickly control the fire.
3. Excellent mobility: Based on the ISUZU GIGA series chassis, this ISUZU tanker fire truck has good off-road capabilities and mobility, and can quickly reach the fire scene in complex environments.
4. Versatility: In addition to its main water tank function, ISUZU fire truck can also be equipped with a foam system or other fire extinguishing media as needed. This gives the vehicle wider applicability when responding to different types of fires.
5. Safe and reliable: ISUZU GIGA fire pumper truck is designed with operator safety in mind. The equipment on the vehicle has undergone strict quality inspection and safety testing to ensure that it can work stably and reliably in emergency situations.
6. Easy to maintain and operate: The vehicle’s operating system is designed to be simple and clear, allowing firefighters to quickly master how to use it.

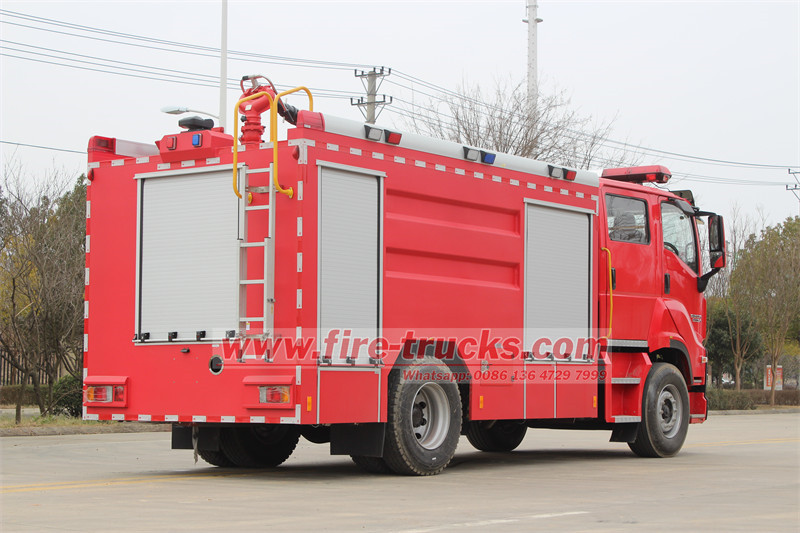

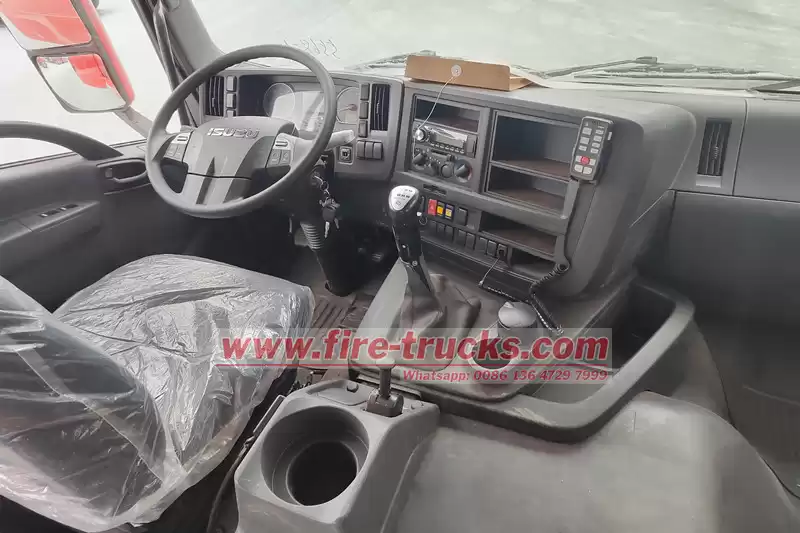

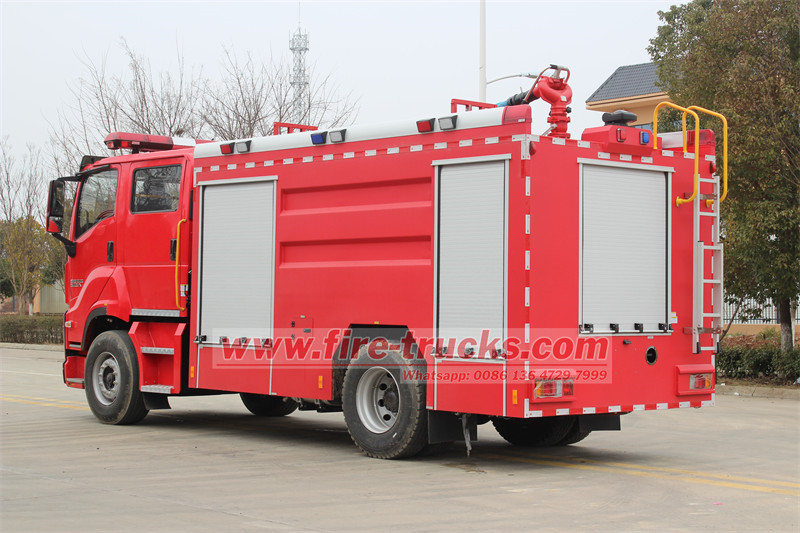

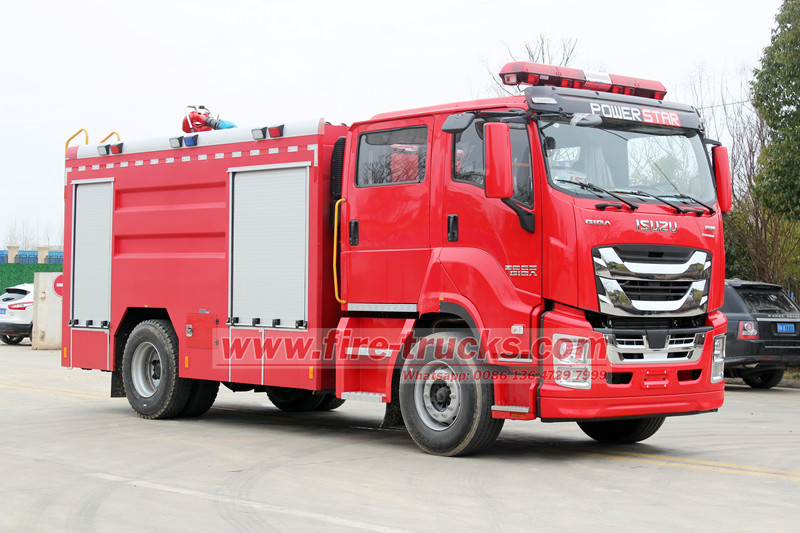

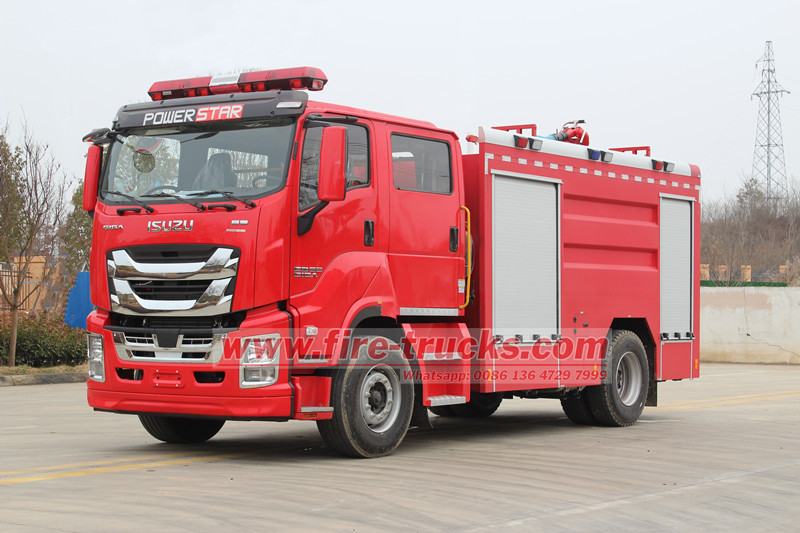

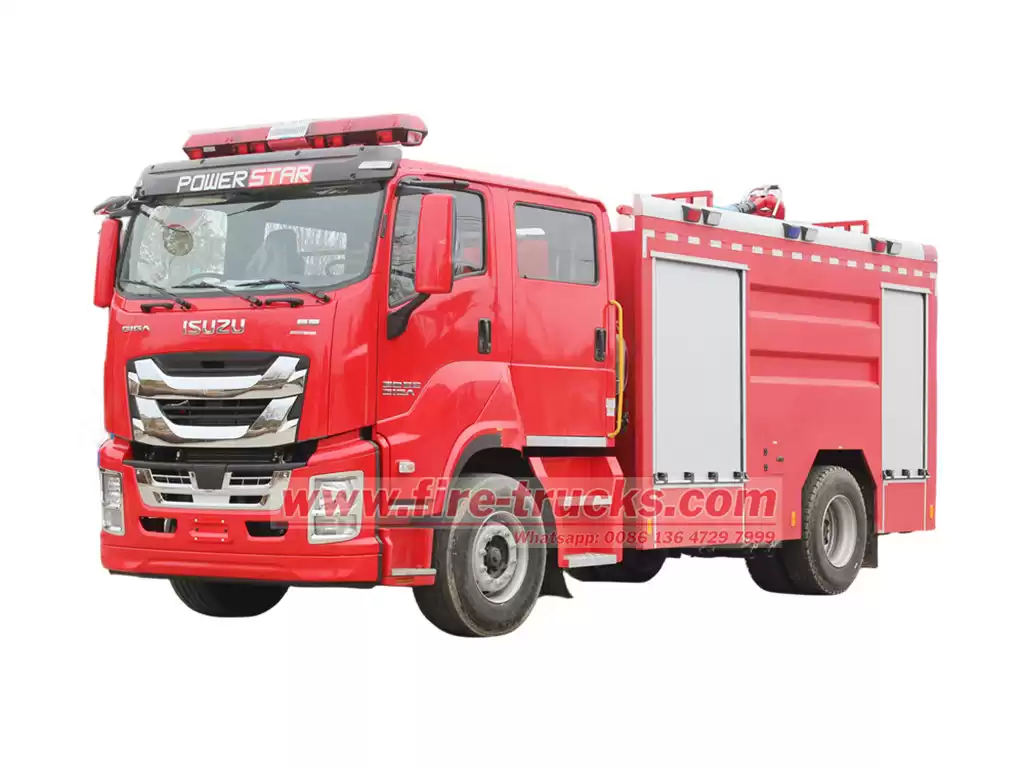

Detail Pictures
