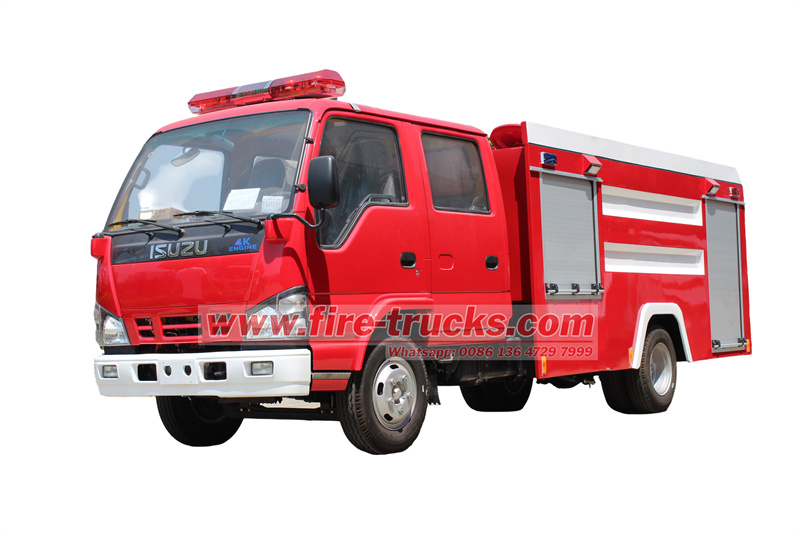

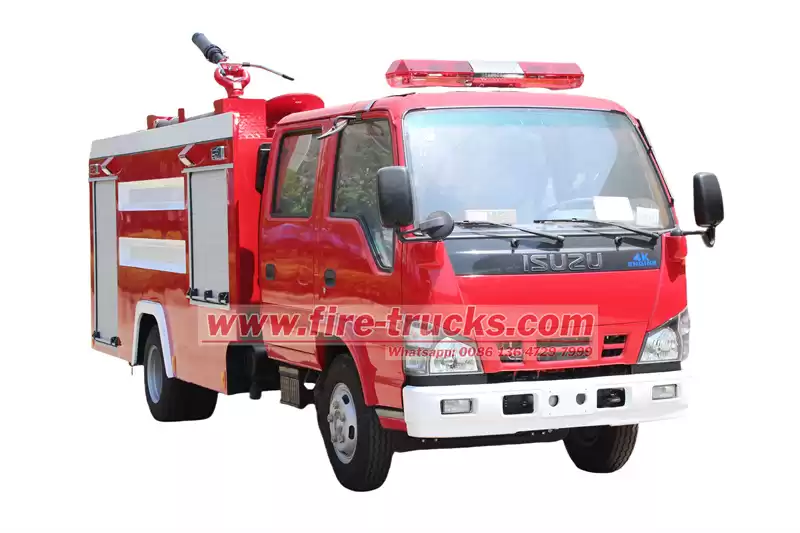

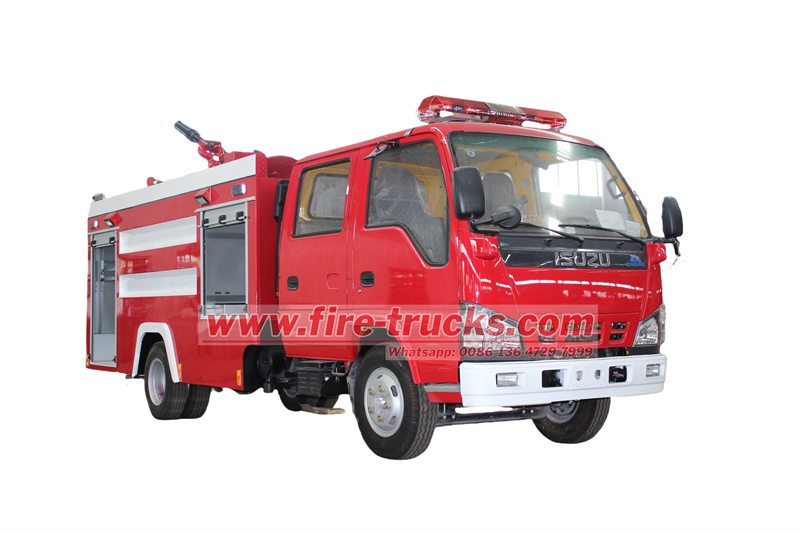

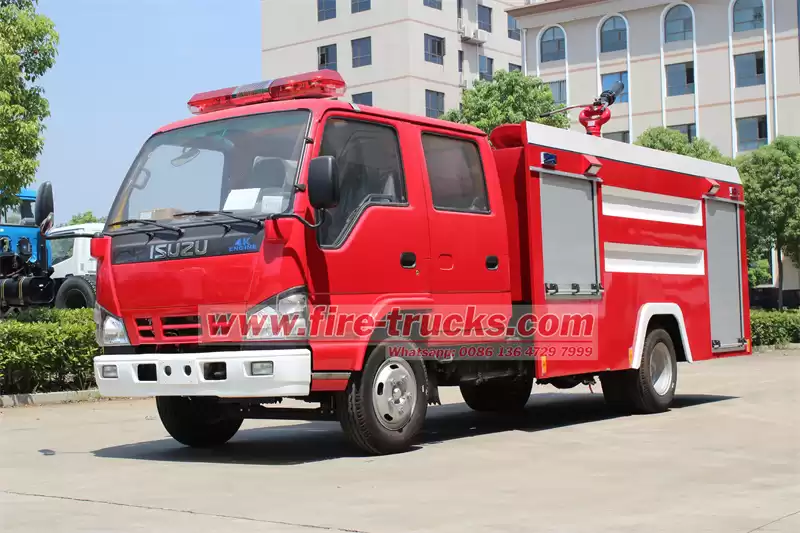

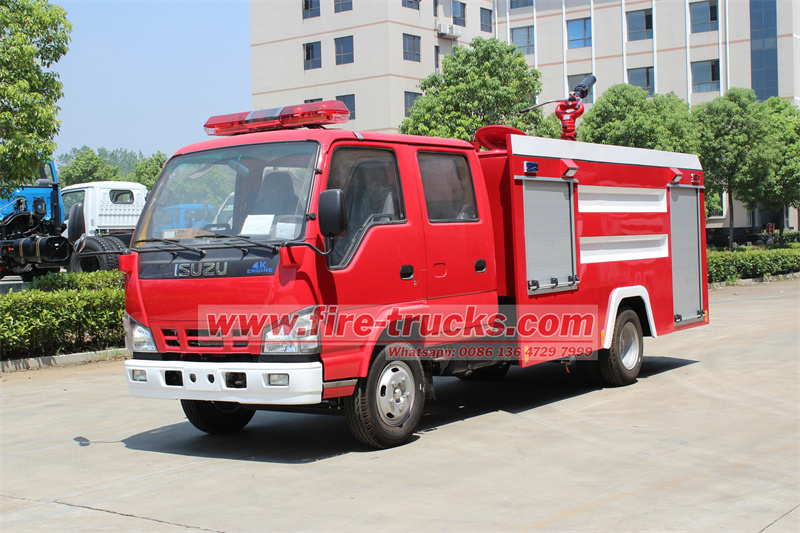

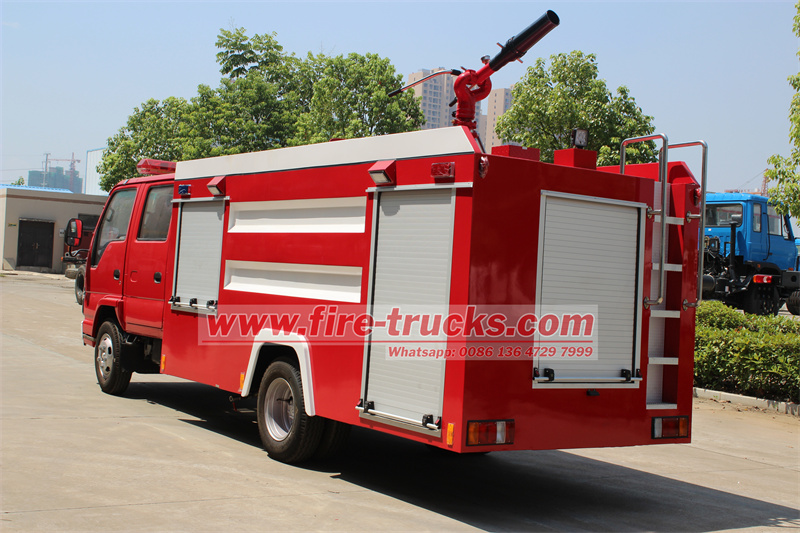

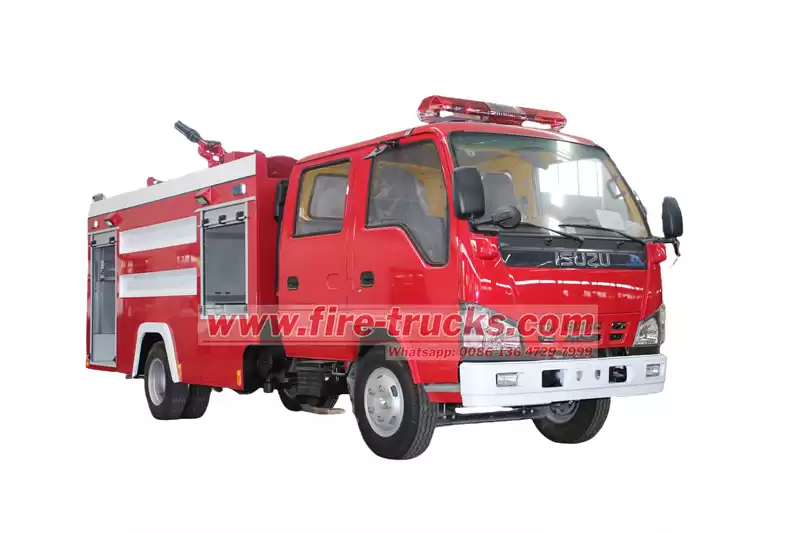

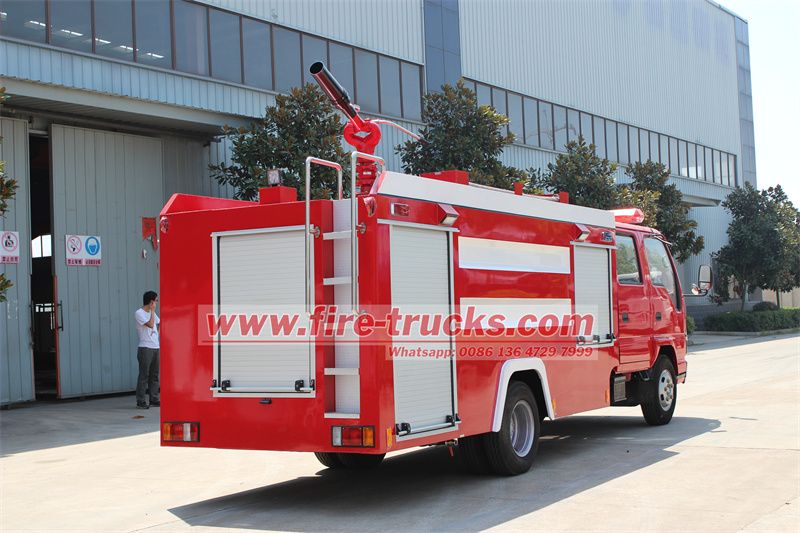

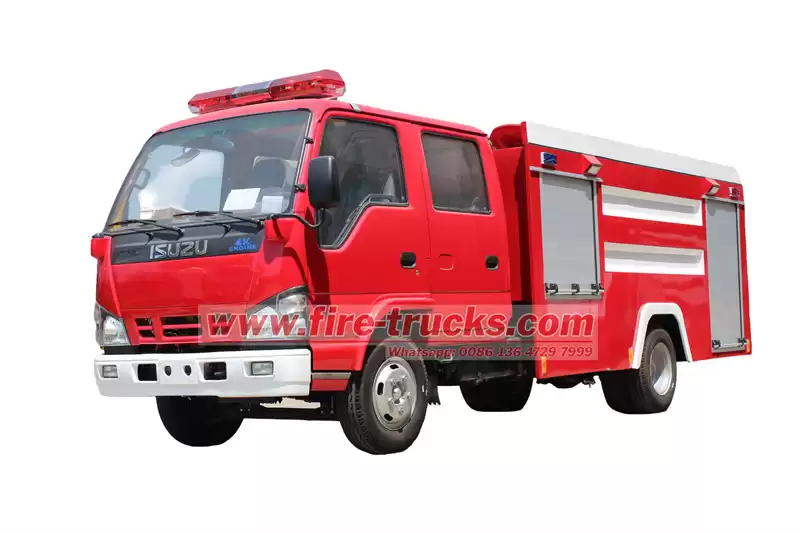

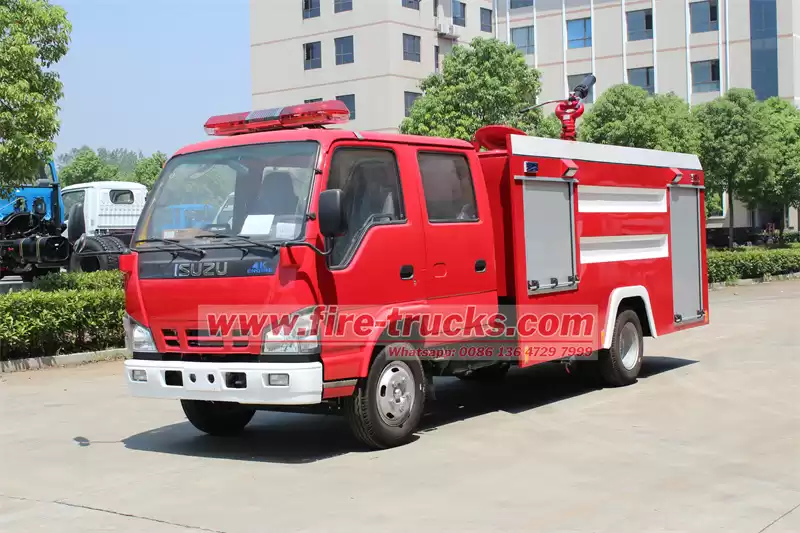

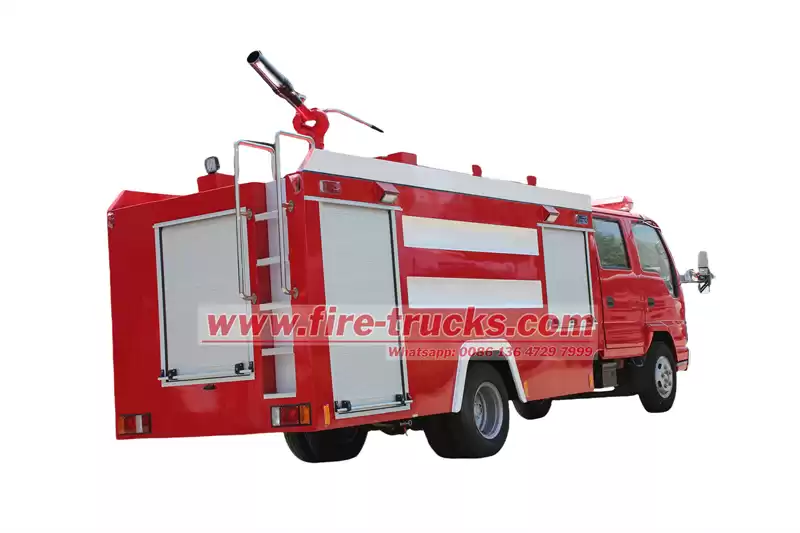

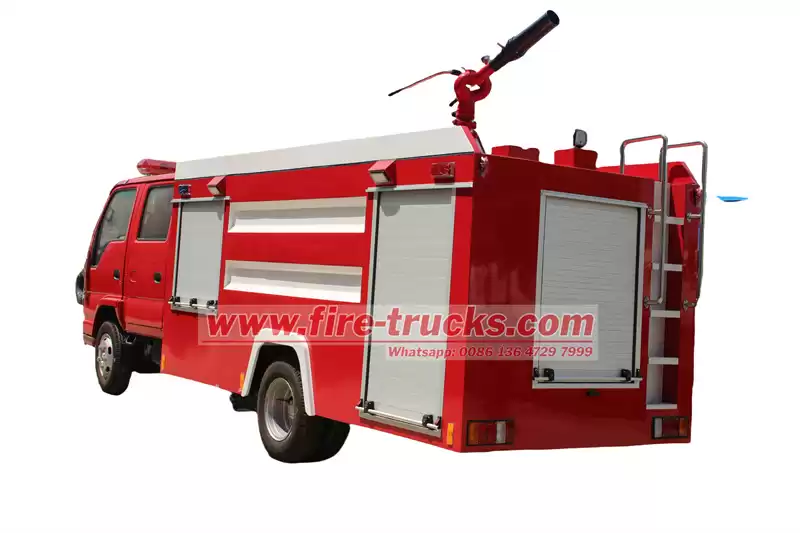

ISUZU NKR Light Emergency Fire Truck is a compact yet highly efficient emergency response vehicle designed for rapid deployment in urban and industrial settings. Equipped with a 1,500-2,000 L/min water pump and 2,000-3,000L water tank, ISUZU light emergency fire truck effectively tackles early-stage fires in commercial complexes, residential areas, and manufacturing plants. Its high-pressure mist system excels in electrical and chemical fire scenarios.
Primary Applications:
-
Technical Rescue Operations: A 360° rotating floodlight tower (8,000-10,000 lumens) and hydraulic rescue tools (15-ton spreaders/cutters) enable nighttime operations at accident sites. The 1.5m³ equipment compartment stores medical kits, gas detectors, and thermal imaging cameras for multi-hazard responses.
-
Disaster Relief Support: With 4WD configuration and 3,500kg GVW capacity, it delivers emergency supplies and mobile command post capabilities during floods or earthquakes. The integrated communication system maintains real-time coordination with emergency centers.
-
Community Safety Services: Serves as a mobile education platform for fire drills and safety demonstrations through its retractable awning and PA system, particularly effective in schools and high-density neighborhoods.
ISUZU NKR Light-Duty Emergency Fire Truck: Technical Specifications and Features
The ISUZU NKR light emergency fire truck is a compact yet robust firefighting solution designed for rapid response in urban and industrial environments. Built on ISUZU’s NKR series chassis, this vehicle balances agility with performance, making it ideal for navigating narrow streets and confined spaces.
1. Chassis and Powertrain
- Chassis Model: ISUZU NKR77/107 series, reinforced for firefighting operations.
- Engine: 4HL1 4-cylinder turbocharged diesel engine, compliant with Euro V emission standards, delivering 150 hp (110 kW) at 2,600 rpm and 375 Nm torque at 1,800 rpm.
- Transmission: 5-speed manual or optional 6-speed automatic.
- Fuel Capacity: 100 liters, ensuring extended operational range.
2. Dimensions and Mobility
- Overall Dimensions: 5,990 mm (L) × 2,100 mm (W) × 2,650 mm (H).
- Wheelbase: 3,500 mm, providing stability and maneuverability.
- Ground Clearance: 220 mm for off-road adaptability.
- Turning Radius: 6.5 meters, optimized for tight corners.
3. Firefighting Equipment
- Water Pump: High-pressure centrifugal pump (model KQZ80/100), delivering 2,000 L/min at 1.0 MPa, powered by a dedicated PTO system.
- Water Tank: 3,000-liter polyethylene tank with anti-corrosion lining; optional foam tank (500 L) with 3%–6% proportioning system.
- Hose Configuration: 120 meters of Ø65 mm reinforced fire hose, stored in side-mounted compartments; integrated 360° rotating monitor nozzle (flow rate: 1,500 L/min).
4. Auxiliary Systems
- Lighting: 4× 100W LED floodlights and strobe beacons for low-visibility operations.
- Power Supply: 5 kW diesel generator for auxiliary tools (e.g., hydraulic cutters).
- Storage: Aluminum-alloy compartments for SCBA gear, fire extinguishers, and rescue tools.
Product Specifications
|
Vehicle parameters
|
|
Overall dimension
|
6220*1960*2840(mm)
|
|
GVW
|
7300kg
|
|
Curb weight
|
4200kg
|
|
Chassis brand
|
ISUZU
|
|
Traction type
|
4*2, left hand drive
|
|
Chassis parameters
|
|
Chassis model
|
ISUZU 600P
|
|
Cab
|

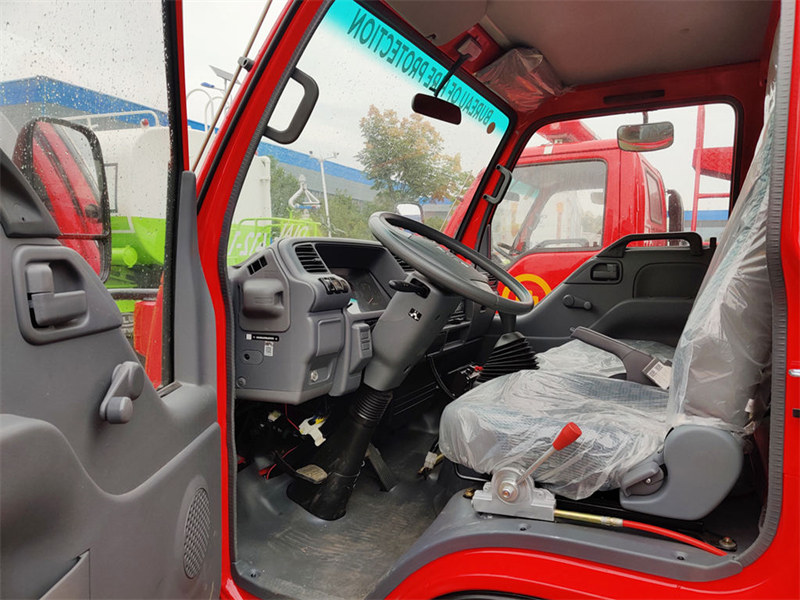

Structure: flat-head, double-row seat four-door passenger compartment.
Seat setting: 2 people in the front row and 3 people in the back row.
|
|
Wheelbase
|
3360mm
|
|
Tire specification
|
7.00R16
|
|
Tire quantity
|
6+1
|
|
Engine
|
Engine model
|
4KH1CB6LB
|
|
Emission standard
|
Euro 6
|
|
Displacement
|
2999ml
|
|
Output power
|
88 kW
|
|
Horsepower
|
120 hp
|
|
Max. torque
|
290 N.m
|
|
Gear box
|
Model
|
ISUZU - MSB
|
|
Number of gears
|
5 forward gears& 1 reverse
|
|
Brake system
|
Type
|
Drum
|
|
Service brake
|
Dual-circuit compressed air brake
|
|
Park brake
|
Power spring brake acting on rear wheel
|
|
Auxiliary brake
|
WEVB
|
|
Axle
|
Front
|
2.5T
|
|
Rear
|
4.8T
|
|
Suspension
|
Front
|
8- Leaf spring with shock absorber
|
|
Rear
|
6+5-Leaf spring
|
|
Fuel tanker
|
Type
|
Steel fuel tanker
|
|
Capacity
|
100L
|
|
Superstructure parameters
|
|
Water Tanker
|
Capacity
|
3000 liters
|
|
Material
|
Stainless steel
|
|
Standard configuration
|
1 set manhole with quick lock and open device;
1 set overflow device;
1 set fluid level gauge;
1 set drain outlet with manual controlled.
|
|

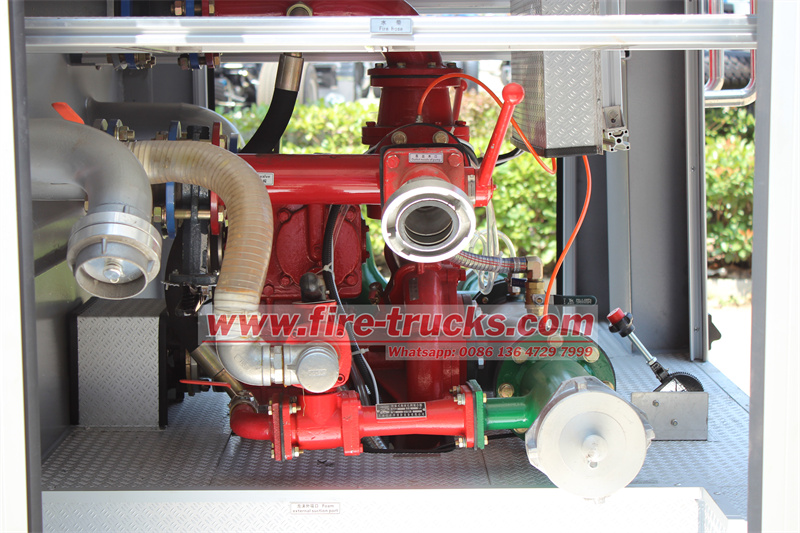

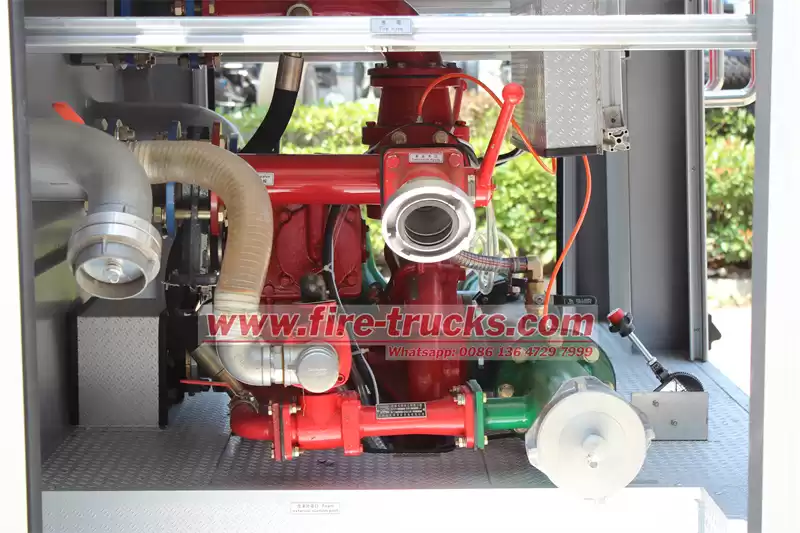

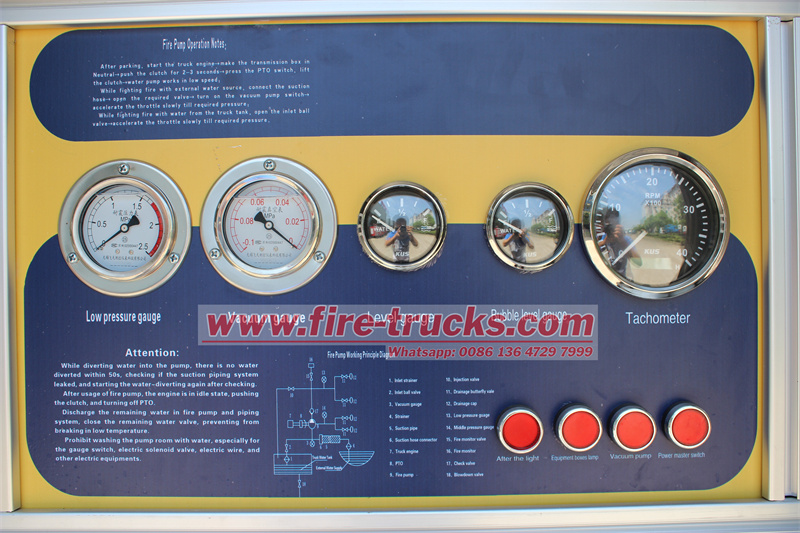

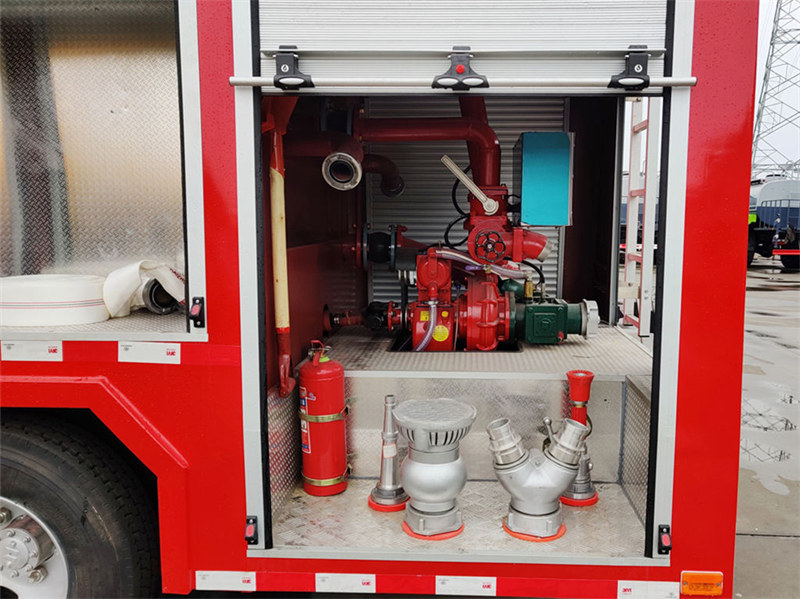

Fire pump
|
Model
|
CB10/30, normal pressure pump
|
|
Flow
|
30L/S
|
|
Pressure
|
1.0Mpa
|
|
Suction depth
|
7m
|
|

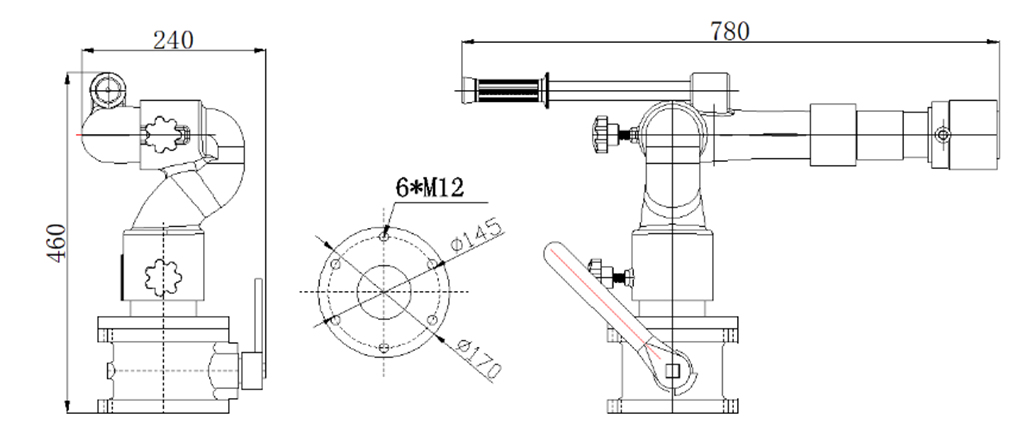

Fire monitor
|
Model
|
PS8/20W
|
|
Flow
|
20L/S
|
|
Pressure
|
0.8Mpa
|
|
Range
|
≥50m
|
|
Rotation angle
|
Horizontal 360°
Pitch -35°~70°
|
|
Other configuration
|
Equipped with sandwich PTO, pipeline system;

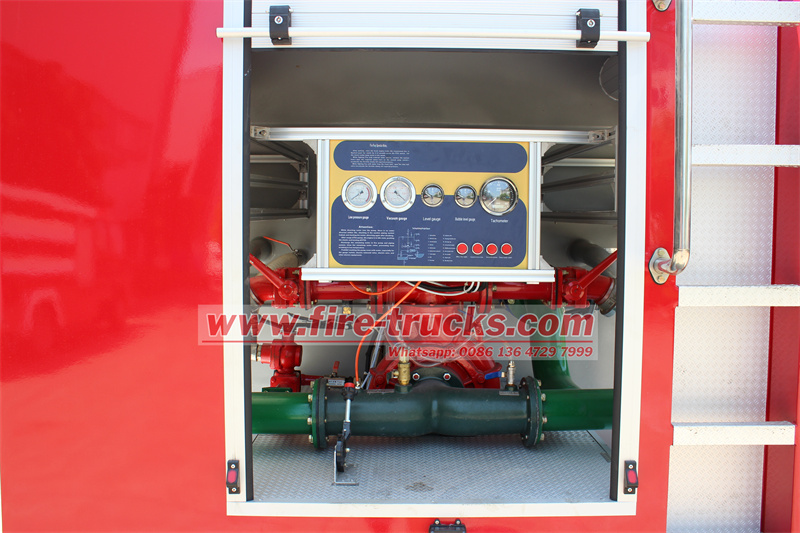

Equipped with equipment room and pump room;

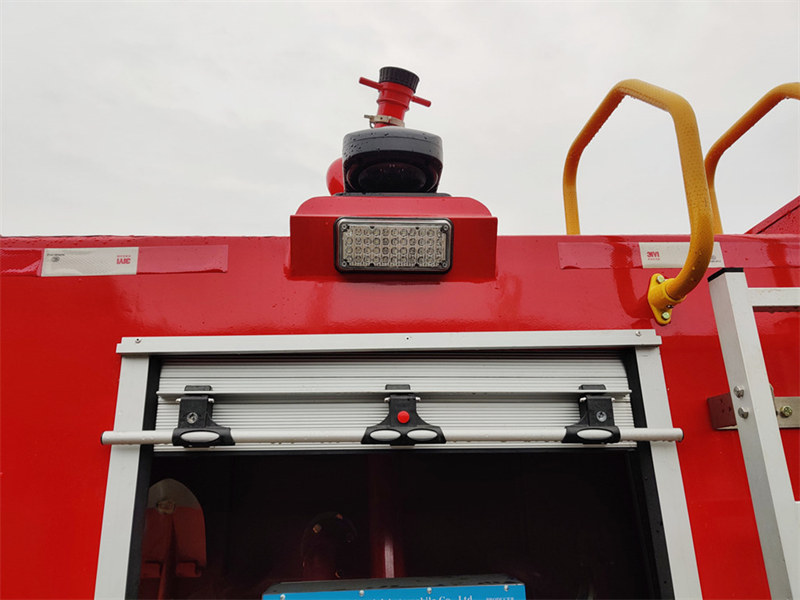

Equipped with flip pedal and lighting system.
Basic firefighting equipment.
|

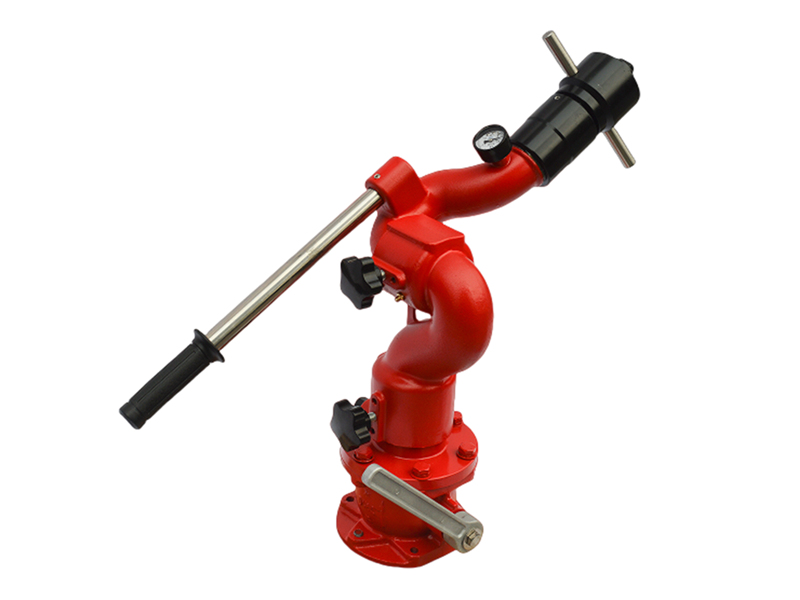

Features of the ISUZU NKR Fire Truck's Fire Monitor:
• Comprehensive functionality
• Simple and innovative structure
• Stable performance with easy maintenance
• Low inlet pressure requirement
• Dual spray patterns (fog/jet)
• Lightweight design
• Equipped with automatic drain valve
• Horizontal and elevation locking mechanisms
• Material: Precision-cast aluminum alloy
Product Details
