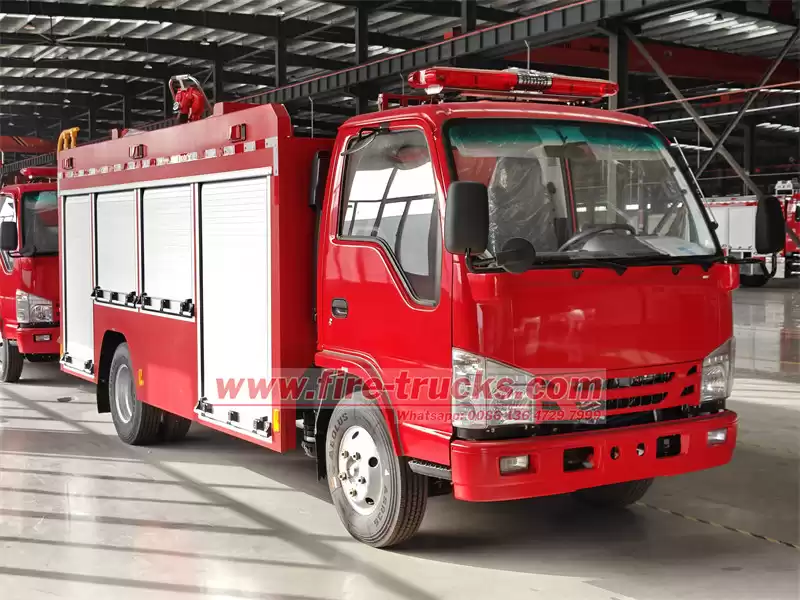

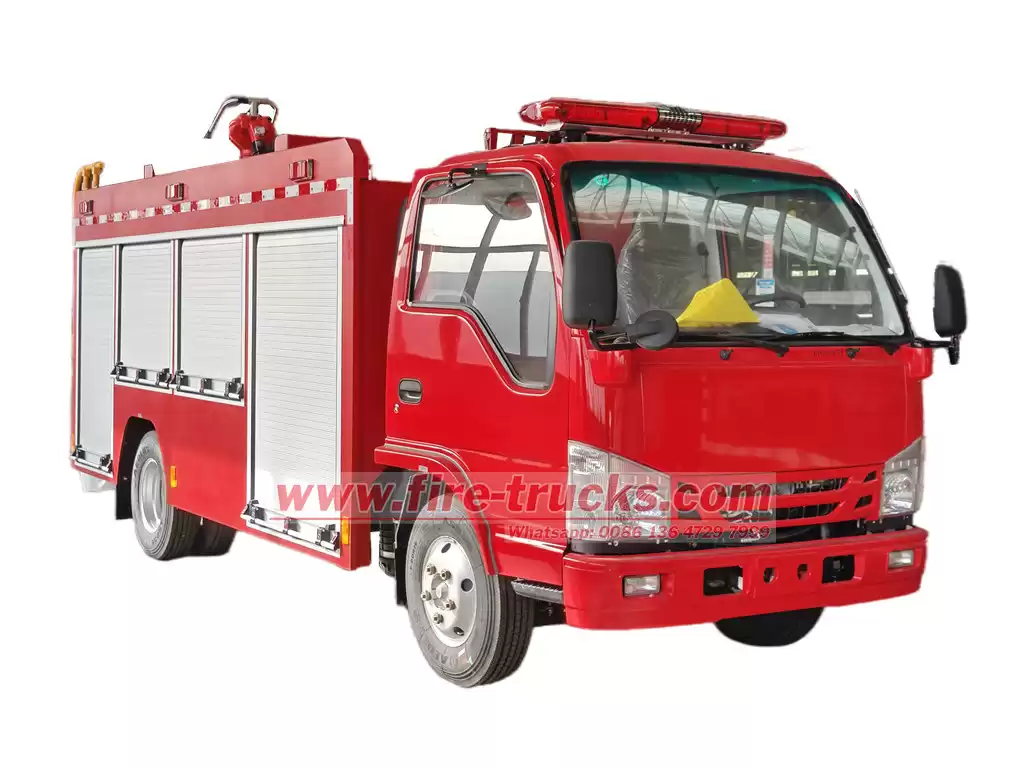

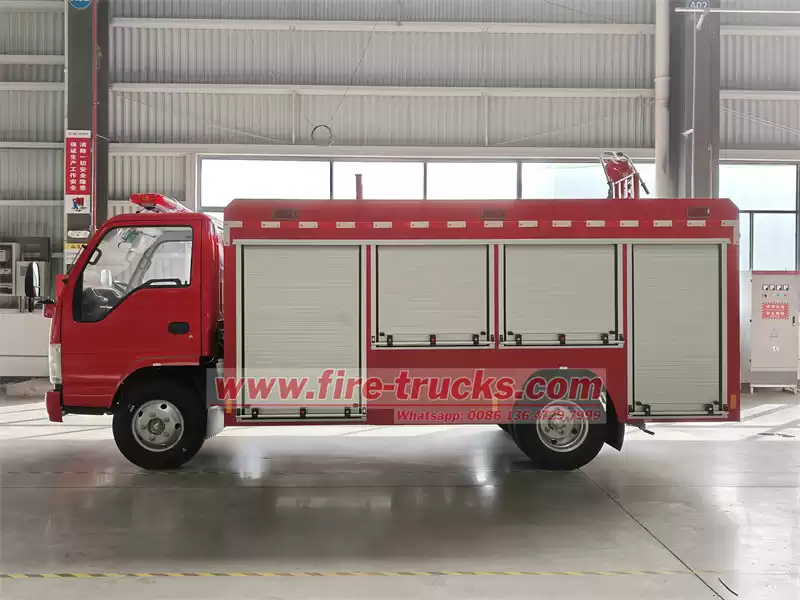

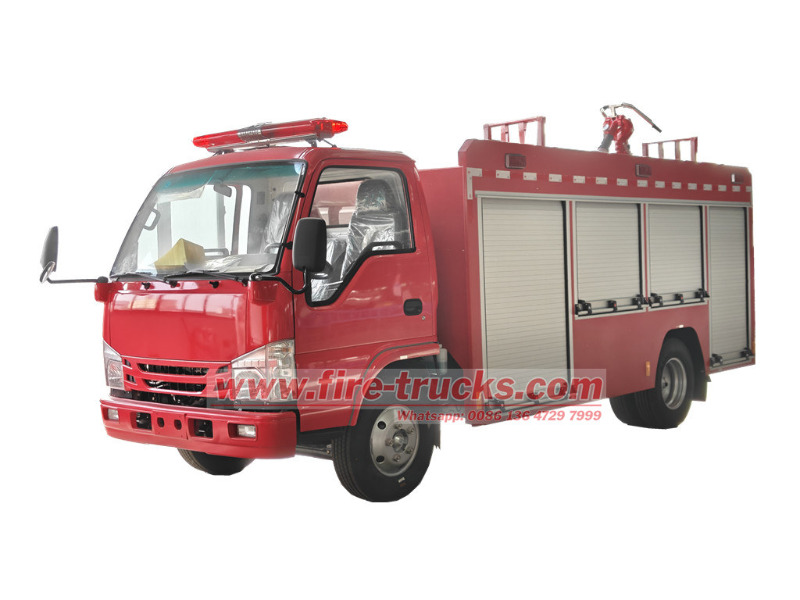

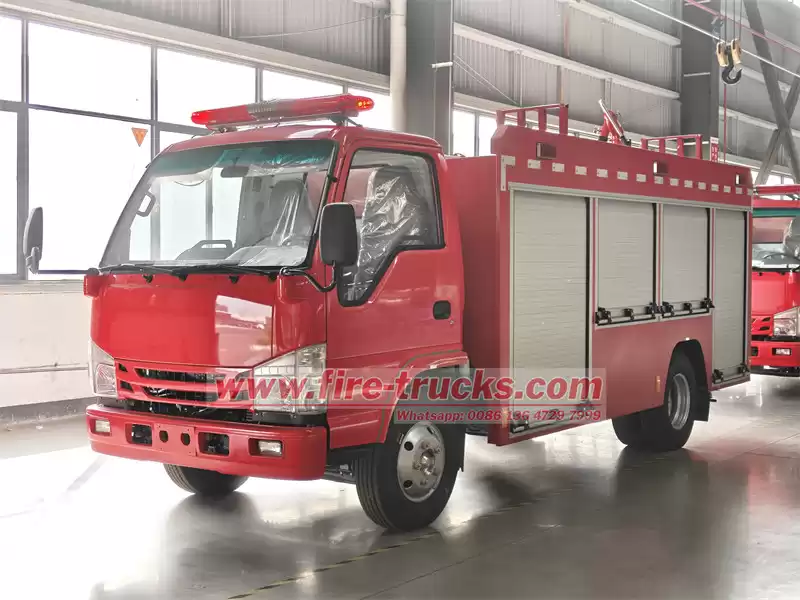

The ISUZU NKR Mini Water Tender Fire Truck is a highly efficient mini fire engine designed for narrow roads and urban firefighting needs. Built on the ISUZU NKR light-duty chassis, its compact dimensions and 3360mm wheelbase, along with short front and rear overhangs, ensure superior mobility with a tight turning radius. It easily navigates through old-town alleys, industrial parks, and rural roads. The single-row cab features air conditioning, power windows, and USB ports, balancing operational comfort and functionality.

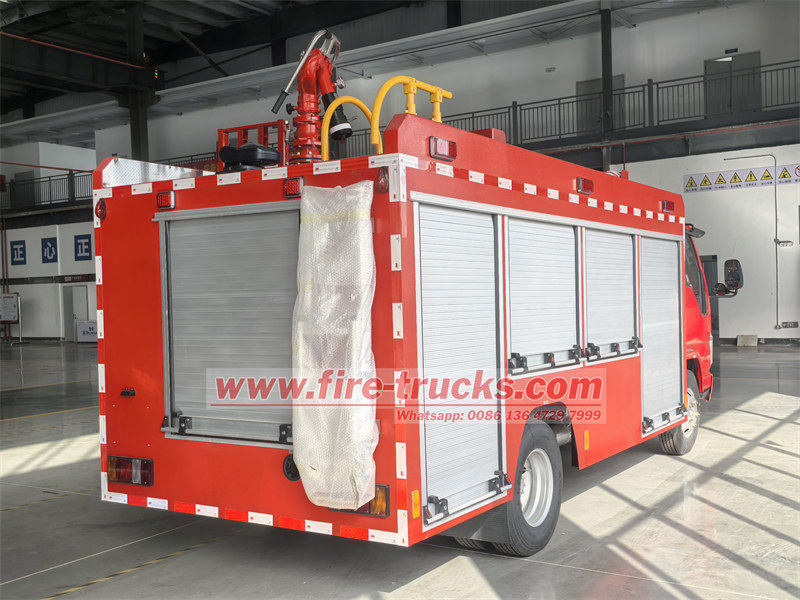

This ISUZU mini fire tender truck adopts a modular superstructure design for optimal space utilization. The 2000L water tank is constructed from 4mm carbon steel (stainless steel optional) with internal anti-sloshing baffles for stability during transit. The rear-mounted pump house contains a CB10/30 normal-pressure fire pump rated at 30L/s flow, capable of 7m suction lift and completing water intake within 50 seconds. The roof-mounted PS20 fire monitor delivers a ≥50m range, featuring 360° horizontal rotation, -35° to +70° elevation adjustment, and remote control for enhanced safety. Side-mounted equipment compartments store hoses and rescue tools, with side-opening doors for quick access.
With its compact design and versatile configuration, this ISUZU fire truck excels in handling initial fires in communities, schools, and warehouses. The 2000L tank and 30L/s pump enable independent small-fire suppression, while the PS20 monitor provides perimeter support for larger blazes. Its low operating costs and easy maintenance make it ideal for rural fire stations or corporate fire brigades.
In practice, the ISUZU NKR small pumper fire truck demonstrates broad applicability. In cities, it swiftly navigates congested streets for rapid initial response. Industrial parks benefit from its agility in maneuvering through complex factory roads. Rural areas utilize it as either a primary firefighting unit or backup support. Additionally, its mobility makes it perfect for patrol duties at airports, oil depots, and other high-risk sites, effectively compensating for fixed firefighting systems' limitations.
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
Product Specifications
|
ISUZU NKR single row fire truck specifications
|
|
Main specification
|
Chassis brand
|
ISUZU
|
|
|
Chassis model
|
NKR
|
|
Overall dimension(L*W*H)
|
5980×2000×2850mm
|
|
|
Water tank volume
|
2,000 LITRES
|
|
|
|
Cabin
|
Single cabin, with Air conditioner, electronic windows, USB,
|
|
|
Chassis
|
Drive model
|
4x2 left hand drive
|
|
|
Axle loading (front/rear)
|
2500kg/4800kg
|
|
|
Front/rear overhang
|
1015/1623mm
|
|
|
Wheelbase
|
3360mm
|
|
|
Approach/departure angle
|
24/13(°)
|
|
|
Tyre size & number
|
7.00R16 with one spare tyre
|
|
|
Transmission
|
ISUZU MSB, manual, 5 forwards and one reverse
|
|
|
Max speed
|
95km/h
|
|
|
Brake
|
Air brake, with ABS
|
|
|
Color
|
Red
|
|
|
Engine
|
Brand
|
ISUZU
|
|
|
Model
|
4KH1CN6LB
|
|
|
Engine Type
|
4-cylinder, in-line, water cooling, direct injection type, turbocharged, intercooling
|
|
|
Horse power
|
120 HP
|
|
|
Displacement
|
2999ml
|
|
|
Emission
|
Euro 6
|
|
|
Water tank
|
Water tank volume
|
2000 Liters
|
|
|
Tank material
|
Carbon steel (stainless steel is optional)
|
|
|
Water tank thickness
|
4 mm
|
|
|
|
Fire pump
|
Model
|
CB10/30, Normal pressure pump
|
|
Working pressure
|
1.0 Mpa
|
|
Max suction height
|
7 m
|
|
Flow
|
30 (L/S)
|
|
Rated speed
|
3000 (r/min)
|
|
Time of drawing water
|
≤50 (s)
|
|
Input
|
2 units, diameter: DN65
|
|
Outlet
|
1 unit, diameter: DN65
|
|
Fire monitor
|
Model
|
PS20
|
|
Flow
|
20 L/s
|
|
Range
|
≥50 m
|
|
Rated working pressure
|
0.8 Mpa
|
|
Depression/elevation angle
|
-35～+70 (°)
|
|
Horizontal rotation angle
|
360 (°)
|
Product Details

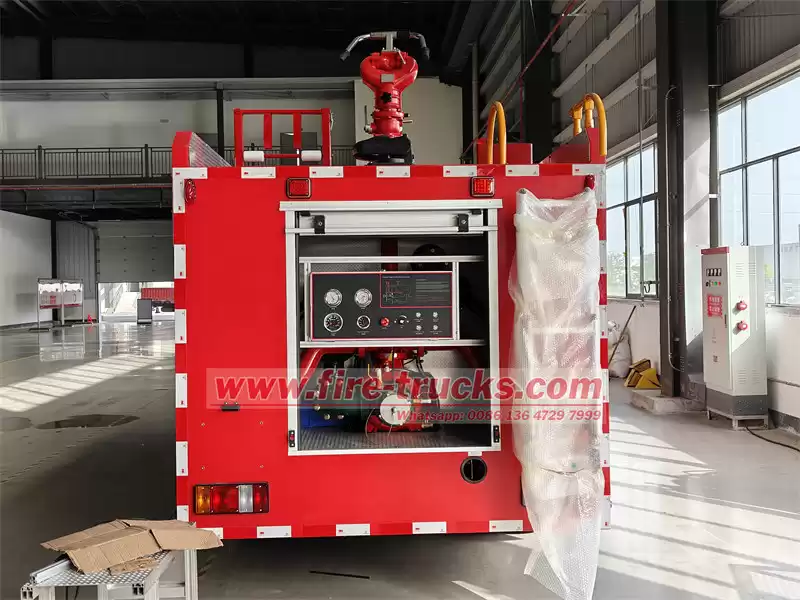

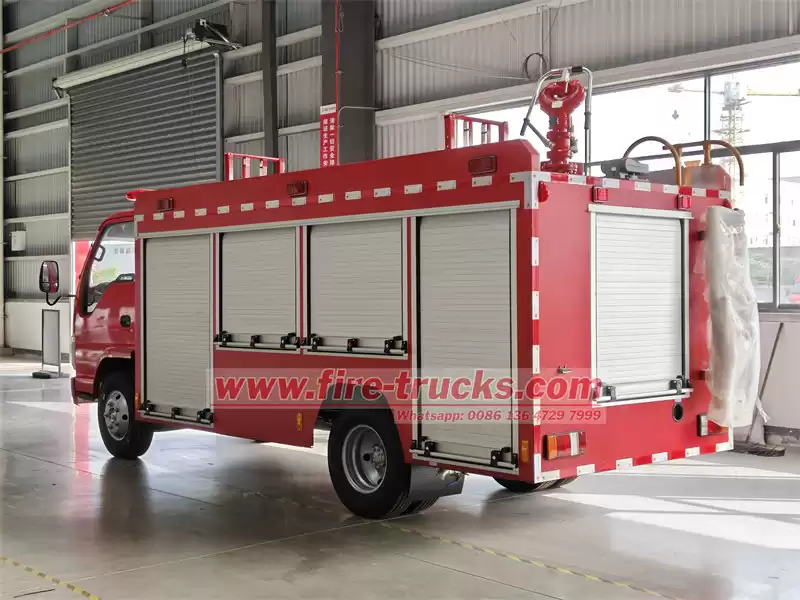

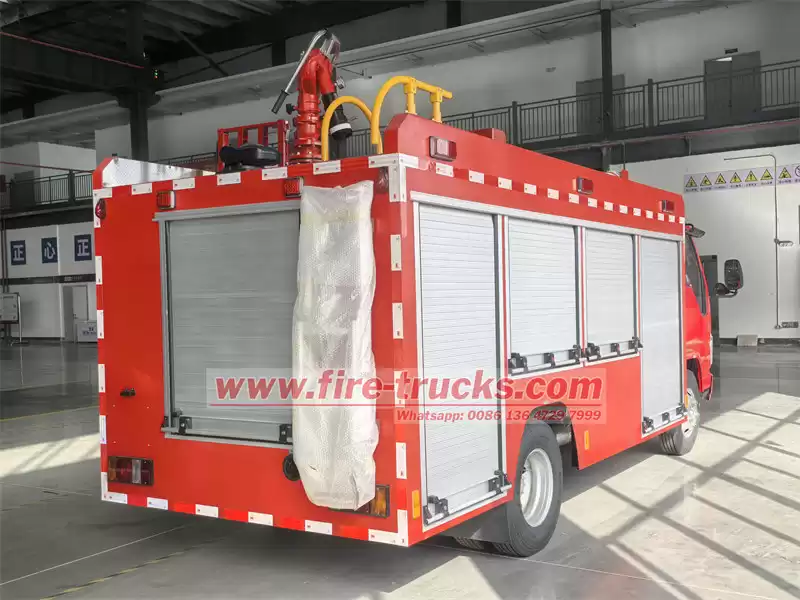

The pump room is located at the rear of the ISUZU mini fire engine truck, featuring aluminum alloy roller shutters on both sides and the rear for easy access. Equipped with interior lighting, the pump compartment also provides storage space on both sides for frequently used equipment.

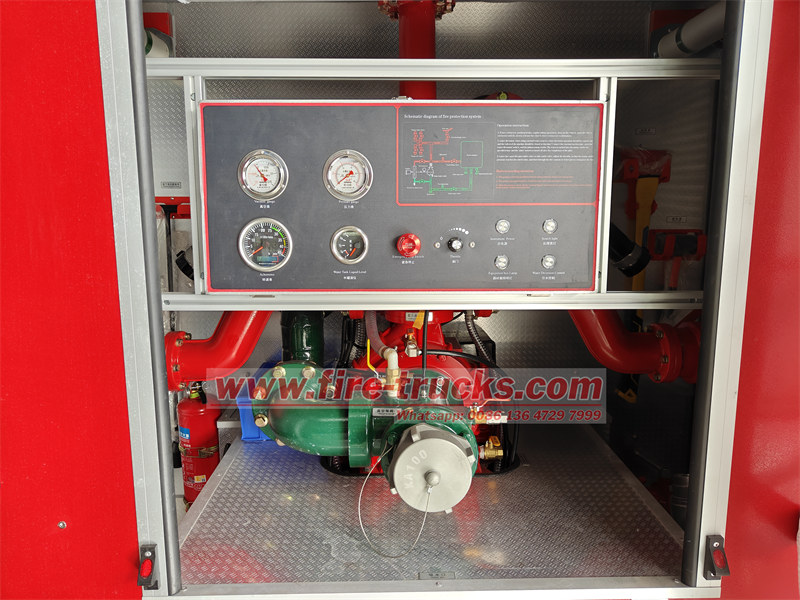

The Isuzu mini fire truck features an intelligent fire pump control panel with waterproof/dustproof design. It integrates pressure gauge, flow meter and RPM display, equipped with prominent one-touch start/stop button and rotary speed control knob. All controls are ergonomically arranged to ensure rapid and precise operation during emergencies.

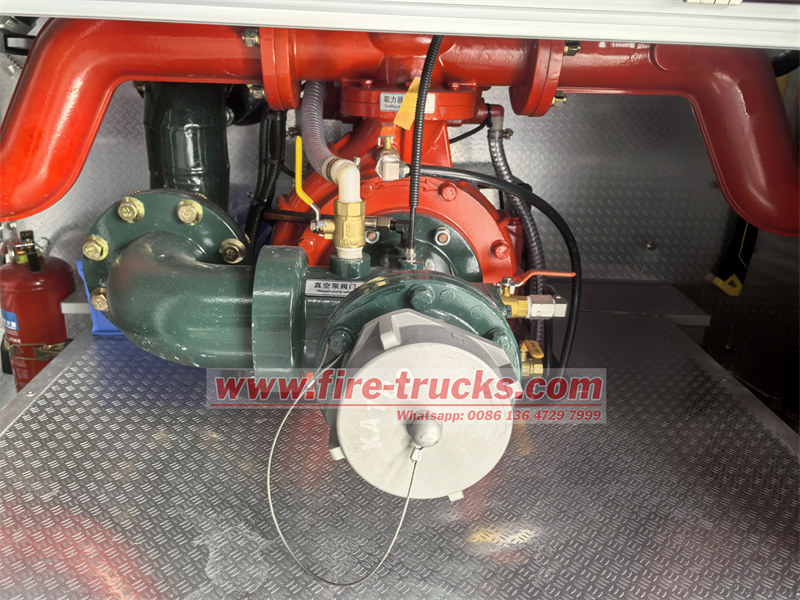

The pipeline system is made of high quality seamless steel pipe.

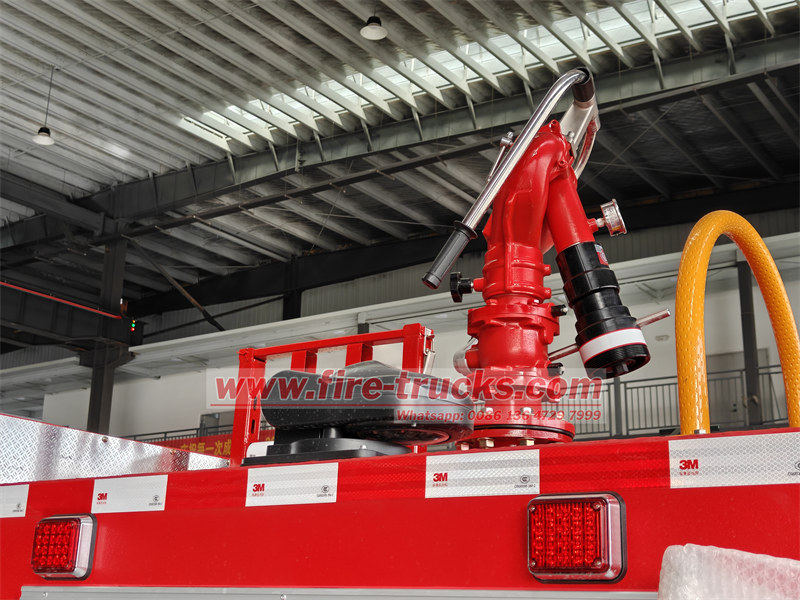

Equipped with China famous brand fire monitor, with water range ≥50 m.

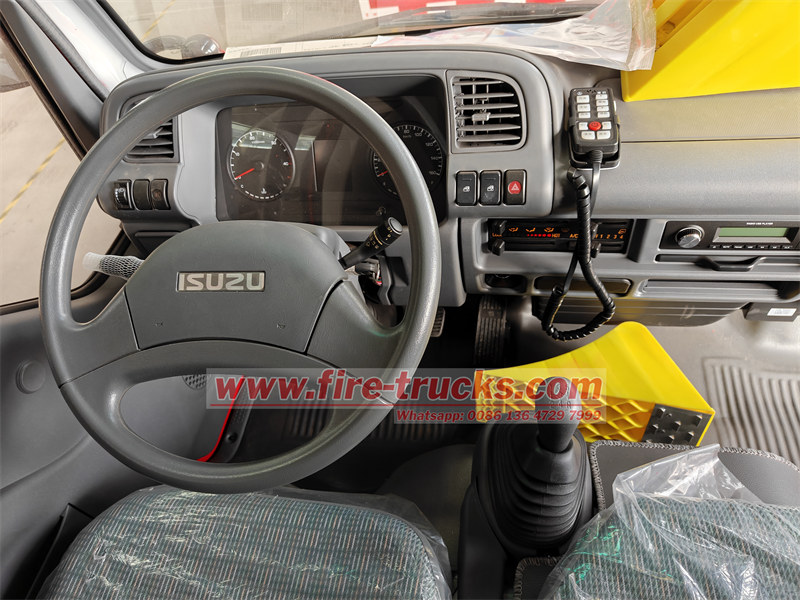

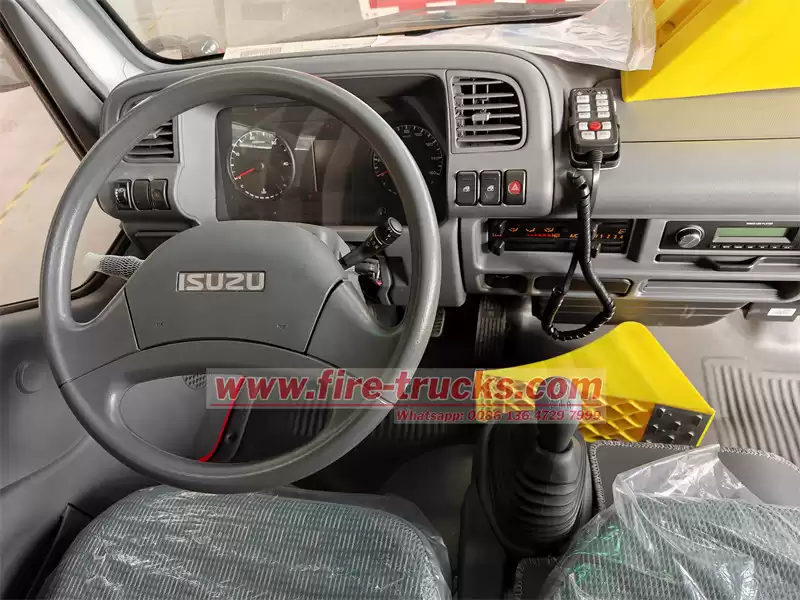

ISUZU ELF single row cabin, with A/C, central lock and power window.
