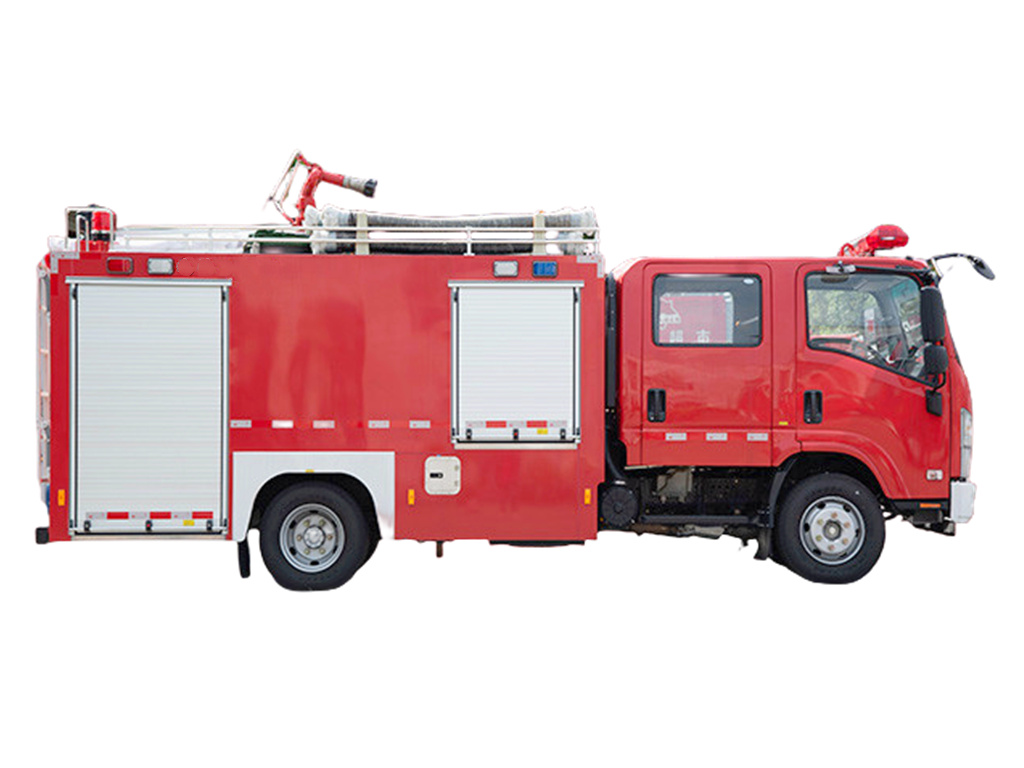

ISUZU 700P water tank fire truck is a special fire truck modified based on the Isuzu 700P series second-class chassis. It is mainly used to extinguish general solid material fires and is widely used in urban firefighting, industrial and mining enterprises, and emergency rescue. Japanese Isuzu NPR small fire truck is the emergency rescue fire truck which could be water fire truck, water and foam fire truck, CAFS fire truck, it could be equipped with different series of ISUZU truck chassis to reach different demand. Pumper fire truck is special purposed vehicle to carrying out the task of conflagration, but also with the usage of emergency rescue. Brand newly customized fire engine could be transport the firemen to the fire field and provide different kinds of rescue tools. The normal fire truck could be divided into: water tank fire truck, foam tank fire truck, pumping fire truck, fire rescue truck, ladder fire truck, aerial fire truck, etc.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu fire fighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
Isuzu ELF fire engine is a small firefighting vehicle modified from the ISUZU NPR ELF NQR truck chassis, the superstructure of this ISUZU light fire engine truck is meticulously engineered to maximize functionality within a compact space. Isuzu pumper fire truck includes 800gallons water tank, as for the fire pump system, a core component of the ISUZU NPR fire truck, features a reliable CB10/30 normal pressure fire pump with a maximum flow rate of 30L/s and a suction lift of 7 meters, it ensures rapid water supply for firefighting operations. The top-mounted PS30 fire monitor delivers a water range of ≥50 meters, with 360° rotation for comprehensive fire coverage. The pump room rear mounted with lighting system to make it working more convenient and friendly, with all controls centralized on an intuitive panel for easy operation, even for beginners.
| ISUZU NPR Fire Truck Parameters |
| Item |
Specifications |
Item |
Specifications |
| Name |
ISUZU brand new fire truck for sale |
| Gross Weight (kg) |
10550 |
Overall dimensions (mm) |
7150*2280*3140 |
| Payload Weight (kg) |
4250 |
Tank Volume(cbm/t) |
Water 800 gallons |
| Curb Weight (kg) |
6300 |
Wheelbase (mm) |
3815 |
| Isuzu Diesel Engine Parameter |
| Model |
Diesel 4HK1-TCG61 |
Brand |
ISUZU |
| Power/Displacement |
190HP/5193ML |
Emission Level |
Euro 6 |
| Isuzu NPR Truck Chassis Specification |
| Max speed (km/h) |
90 |
Front Track (mm) |
1680 |
| Cab |
2+3 |
Rear Track (mm) |
1650 |
| Leaf Spring |
8/10+6 |
Front/Rear Overhang (mm) |
1110/2050 |
| Number of Tyres |
6 |
Approach / Departure Angle(°) |
21/13 |
| Tyre Specification |
235/75R17.5-16PR |
Axle Load (kg) |
2700/7075 |
| Number of axles |
2 |
Brake |
ABS for safety |
| Isuzu fire tanker truck upper kit Special Function |
| Tank Capacity (L/T) |
Water 800 gallons
|
| Fire Monitor |
Model: PS30 rate of flow:30L/S/1MPa,water range:≥50m |
| Fire Pump |
1.Normal pressure model: CB10/30,rate of flow:30L/s, pressure:1.0MPa |
| 2.Water diversion time ≤35s (7m absorbing depth) water ring sandwich type full power PTO |
Isuzu fire truck, also known as Isuzu fire engine, Isuzu fire tender, which is a specially designed vehicle used to combat fires. These vehicles typically carry water, foam, dry powder, rescue equipment, and firefighters to fire scenes, and are essential for fire suppression and rescue operations. The primary purposes of Isuzu fire engine include transporting firefighters and water to an incident as well as carrying equipment for firefighting operations in a fire drill. Some fire engines have specialized functions, such as wildfire suppression and aircraft rescue and firefighting, and may also carry equipment for technical rescue.
Brand newly design fire fighting truck is build based on Japanese brand ISUZU NPR truck chassis, equipped with 4HK1-TCG61 model diesel engine with 190HP or 4HK1-TCG60 model diesel engine with 205HP, optional to be MLD 6 shift manual gearbox or AMT automatic gearbox. Normally truck engine is EURO 6 standard, but we POWERSTAR can be customized to remove DPF and ADBlue, then make truck working as EURO 3 or 4. Customized 4x2 model for good road condition requirement or 4x4 offroad model for tough road condition, which also named as Isuzu wildland fire truck.

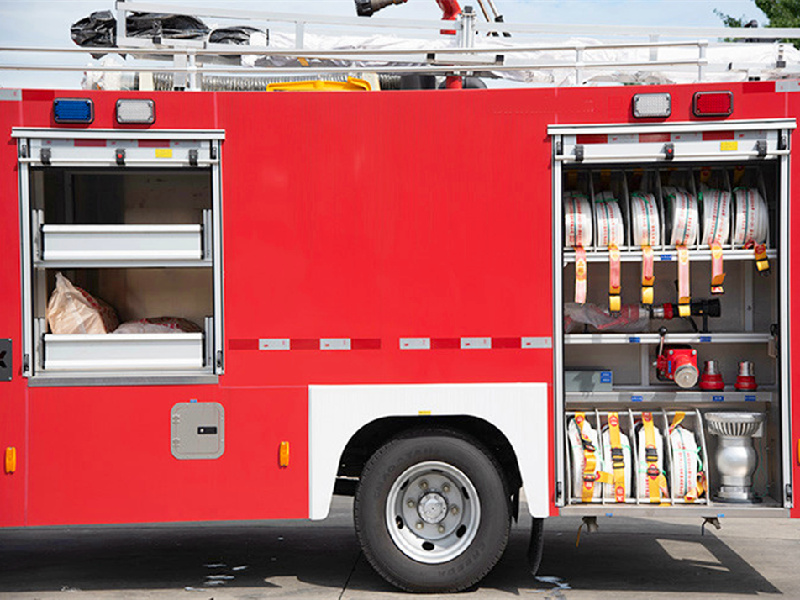

The equipment compartment is located behind the crew cabin, which on two sides of the fire truck tanker body, equipped with aluminum alloy roller shutters on both sides and interior lighting for night working. Storage boxes are arranged inside the compartment according to operational requirements. Also the pump room is positioned at the rear of the Isuzu fire tender truck, surrounded by aluminum alloy roller shutters on both sides and the rear, with interior lighting. And the English control panel for convenient operation.

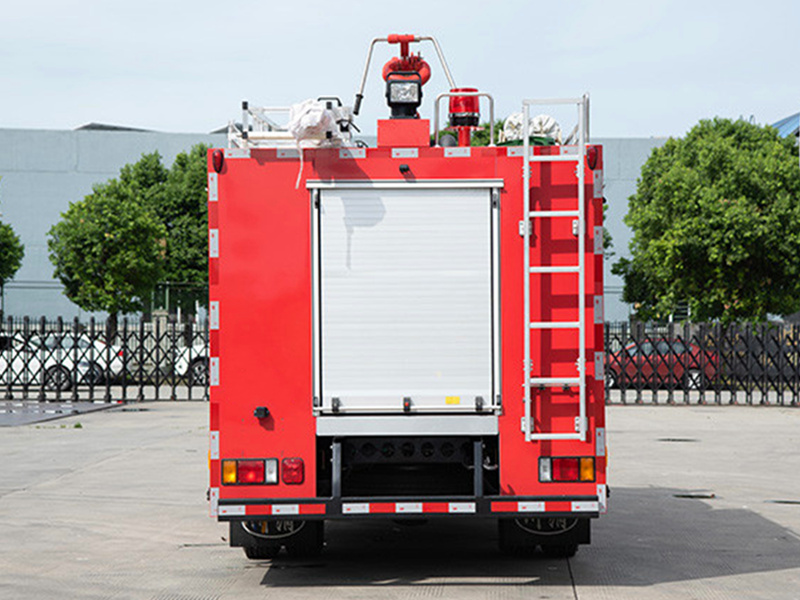

As for the back view of the Isuzu NPR fire fighting truck, which equipped with Aluminium alloy material ladder, which can climbing to the top of the fire engine for operation of the PS30 fire monitor. Also mounted with towing hook for normally safety rescue.
