Overview

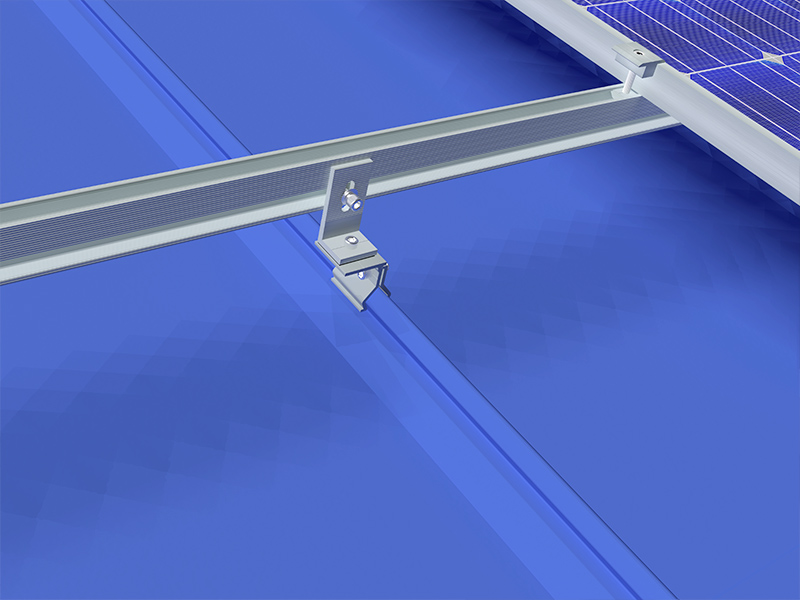

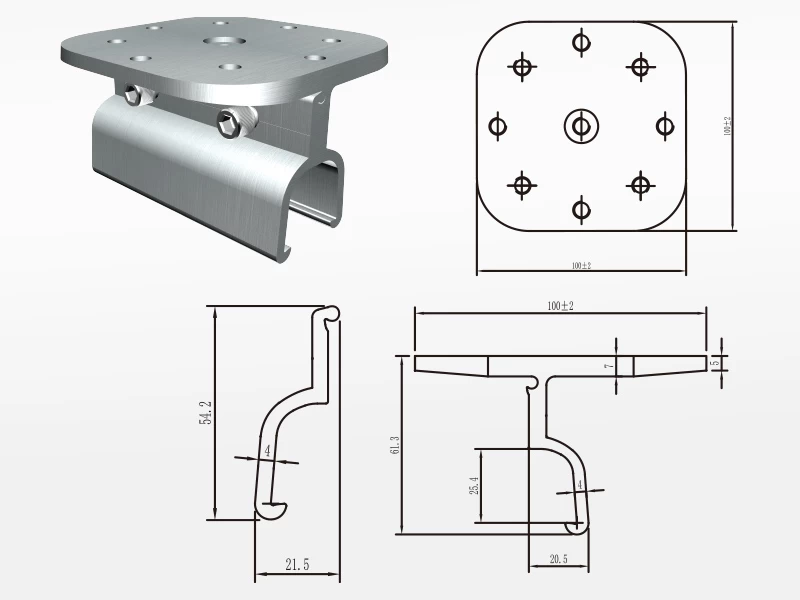

MRac Kliplok is mainly applied to Kliplok, and its material is Al6005-T5.
With its professional design, it can realize the perfect connection
between roof support and roof to meet customer installation
requirement. Professional solution and structure design can save your
installation time and cost. Moreover, Patented and unique design can
bring you a good installation experience.
Features
1.Applicable for different metal roofs
Design project by project, selecting configuration of mounting system components flexibly.
2.Save Installation Time and Cost
Save the installation time and cost by offering installation
manual and solution；
3.Compatible to Different Types of Solar Modules
Free and flexible to choose different types of solar modules.
|
Technical Parameter
|
|
Installation Site
|
MRac Kliplok
|
|
Roof Type
|
Pitched Roof
|
|
Tilt Angle
|
0-15°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
Installation Site
|
Pitched Roof
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Q235B(Hot-Dip Galvanized), Al6005-T5(Anodized)
|
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel & Hot Dip Galvanized
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Technology Certification
