KP-300H 3inch thermal kiosk printer module
Basis information:

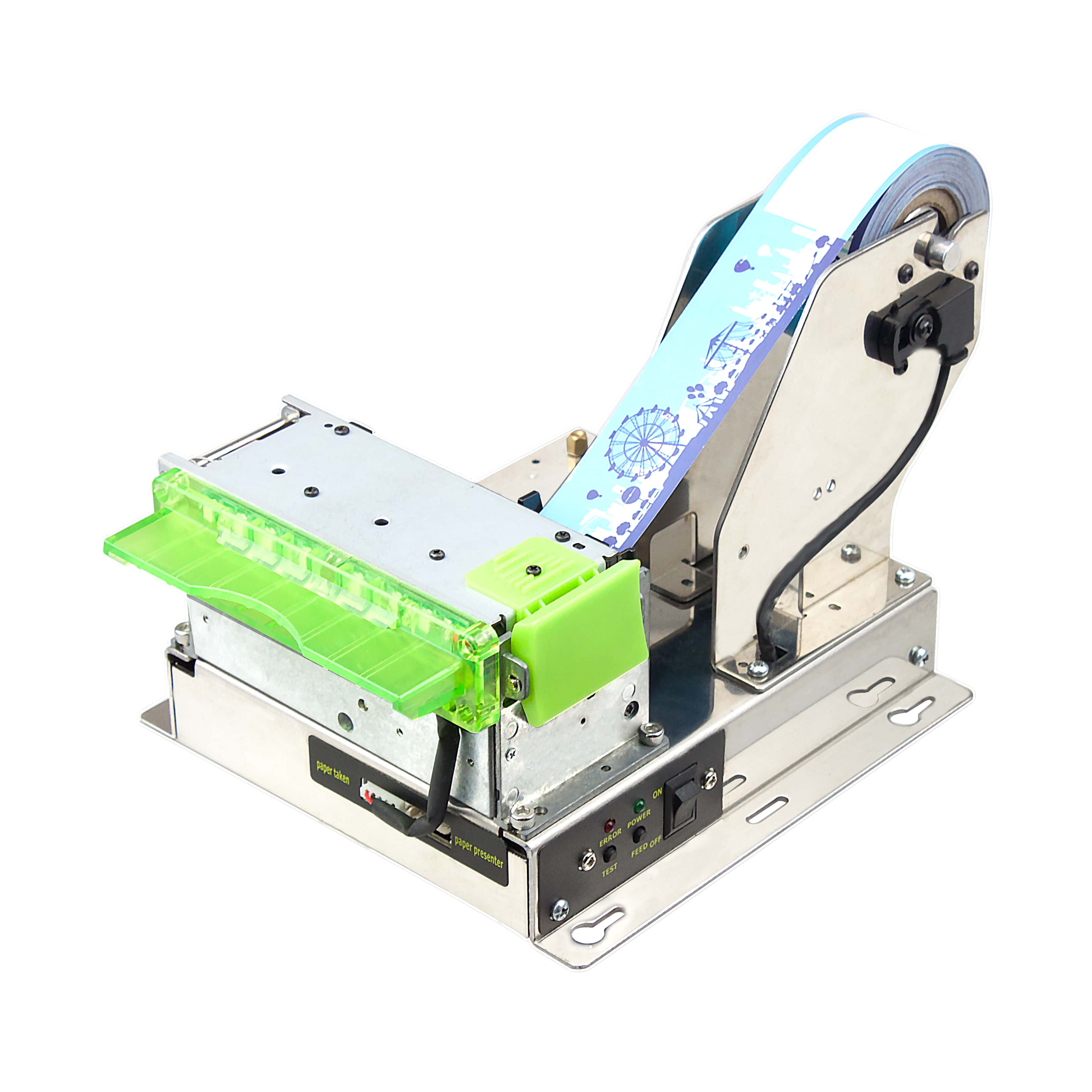

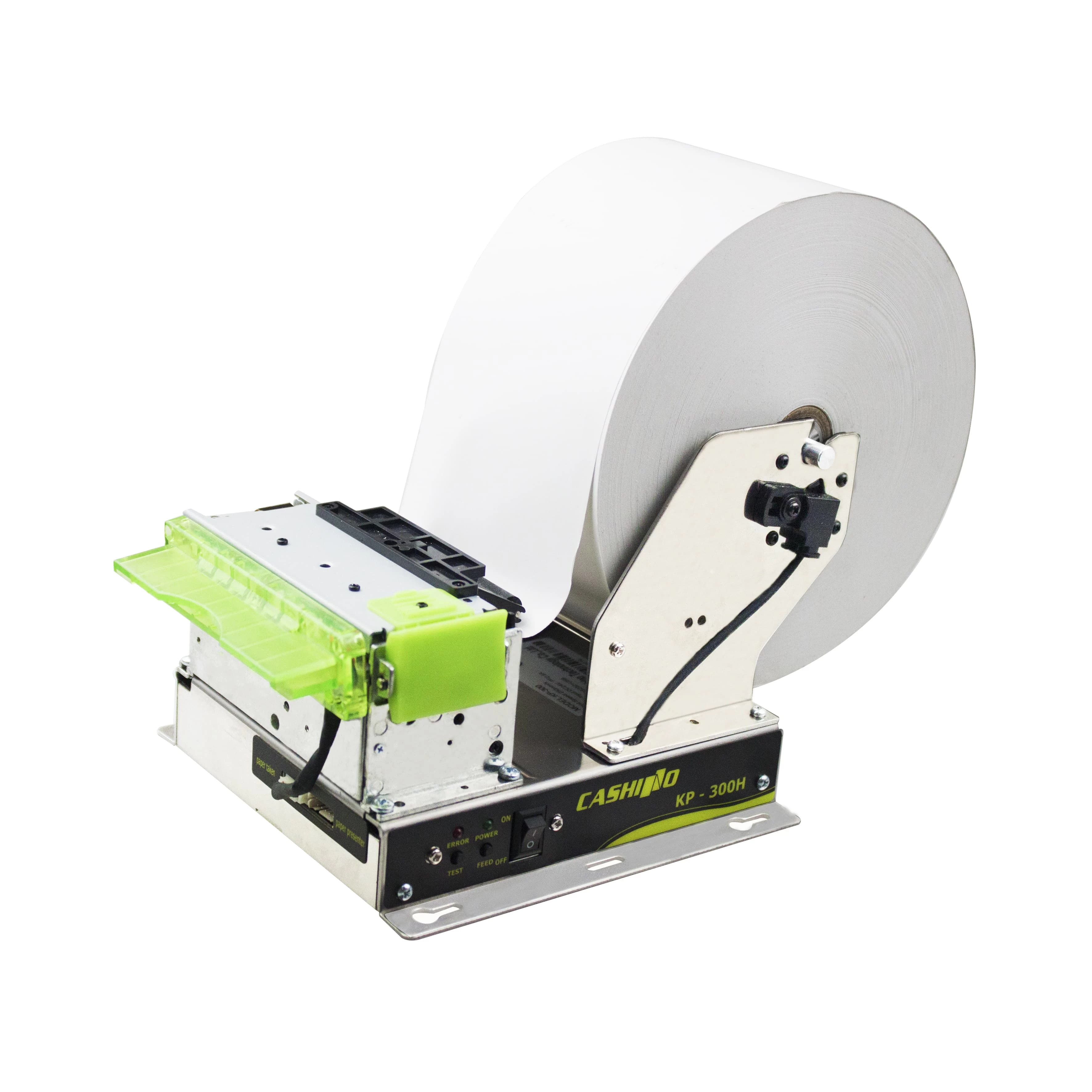

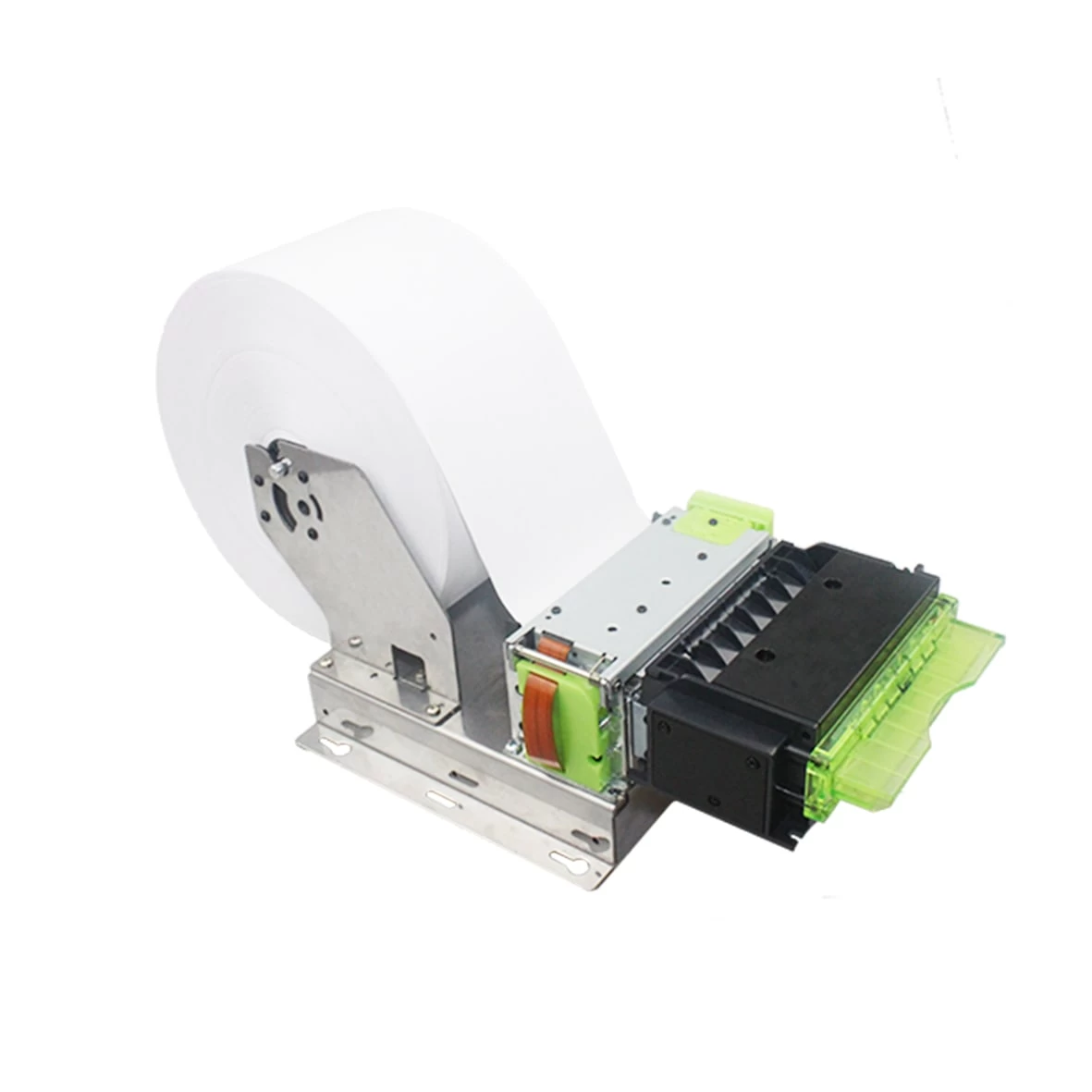

The thermal kiosk printer is a durable and compact kiosk printing machine. It comes fully equipped with all of the features for kiosk terminal: best-in-class components, autonomy and easy paper loading, extra large paper rolls, high printing speed for text, barcodes, logos and other graphics etc. These facilities makes the kiosk printing machine suitable for user-friendly applications like bank ATMs, gaming/lottery machines, info and multimedia kiosks and so on.
Feature:
1. Fully opening paper cover provides easy paper insert
2. Paper width: 58/60/80/82.5mm
3. High speed printing at 250mm/sec. (max.)
4. Paper roll diameter: 150mm (max.)
5. 200μm thick paper available (thickness from 55 to 200μm）
6. Interface: RS232+USB or RS232+USB+LAN
7. Auto feeding/ easy-paper loading
8. Auto cutter: full or partial cut
9. Paper near end sensor, paper end sensor, take out paper sensor
Specification:
| Model No. |
KP-300H |
| Print |
print mode |
Thermal line printing |
| print width max. |
72mm/80mm |
| print resolution |
203 dpi |
| print speed max. |
250mm/s (max) |
| Character |
Character set |
GBK(24x24); |
| ASCII:9x17,9x24,16x18,12x24 |
| Font |
Font A(12x24):32; |
| Font B(9x17):42; GBK:16 |
| Paper spec. |
Paper Type |
Thermal paper / Label paper |
| Paper Diameter |
250mm(Max.) |
| Paper Thickness |
0.055-0.09mm, 0.10-0.20mm |
| Paper Width |
58/60/80/82.5mm |
| Paper Diameter(O.D): |
Max.150mm, Max.80mm as optional |
| Roll Core Inner Diameter |
18mm(min) |
| Paper supply method |
Drop-in easy loading/ Automatic feed |
| Reliability |
TPH |
100km |
| Cutter |
0.055-0.09mm paper : 1million |
| 0.10-0.20mm paper: 0.5milion |
| Detection |
No paper detection |
| Paper near end detection |
| Paper presence |
| Black mark detection |
| Label gap detection |
| Barcode |
1D |
UPCA,UPC-E,JAN13(EAN13),JAN8(EAN8),CODE39,ITF,CODABAR,CODE128,CODE93 |
| 2D |
QR CODE |
| Command |
Compatible with ESC/POS command set |
| Driver/SDK |
Windows Driver, Linux Driver, Android SDK, Windows SDK |
| Interface |
USB+RS232/ USB+RS232+LAN(as optional) |
| Power adapter |
24VDC , 2A |
| Temperature |
Operating:-10°C~50°C |
| Storage:-20°C ~ 60°C |
| Humidity |
Operating:10%RH~80%RH |
| Storage:10%~90%RH |
| External dimensions |
w/o paper presenter |
141.1(W)x251(D)x180.5(H)mm |
| with paper presenter |
141.1(W)x312.4(D)x180.5(H)mm |
Applications:
1. Bank ATMs
2. Gaming/lottery machines
3. Car park payment machines
4. Info and multimedia kiosks
5. Currency change
6. Information stands
FAQ:
Q: Can I get samples for testing?
A: Yes, samples are available.
Q: What is the delivery date?
A: The delivery date for samples is within 3 days after payment received. Approximately 2 weeks for bulk order.
Q: How can I do the payment?
A: Via T/T, Paypal and Western Union.
Q: What is the warranty on my products?
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with reasonable price to the customer.
