Kwikstage Scaffolding Hop Up Bracket / Stage Board Bracket
|
Code
|
Description
|
Material
|
Weight(kg)
|
Weight(lbs)
|
|

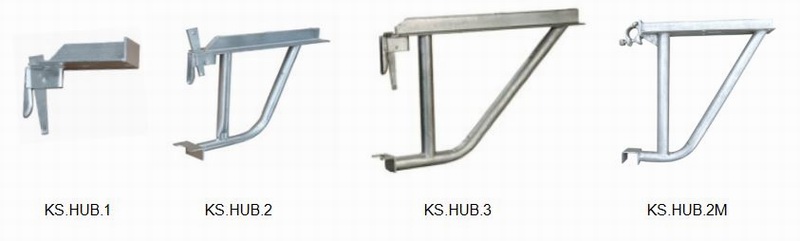

KS.HUB.1
|

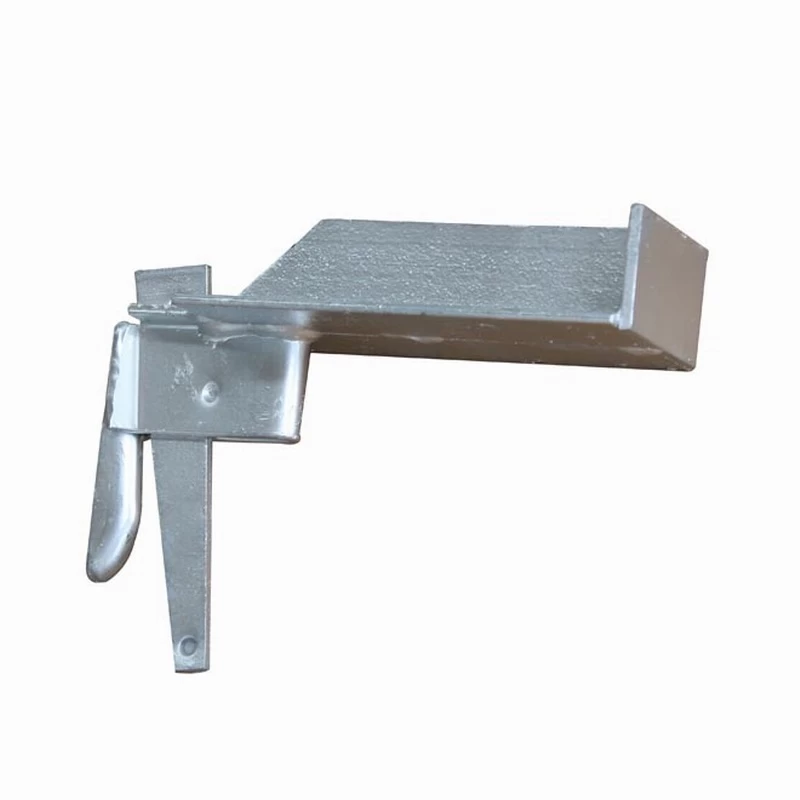

Hop Up Bracket 1 Board
|
Angle steel 50x5mm; Q235
|
2.62
|
5.78
|
|
KS.HUB.2
|

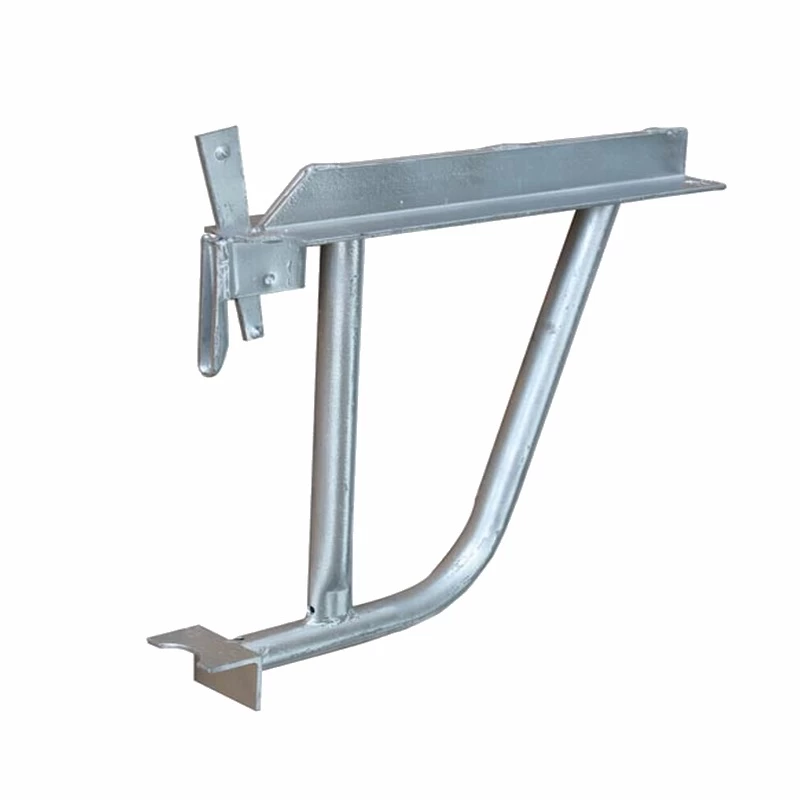

Hop Up Bracket 2 Board
|
5.72
|
12.61
|
|
KS.HUB.3
|

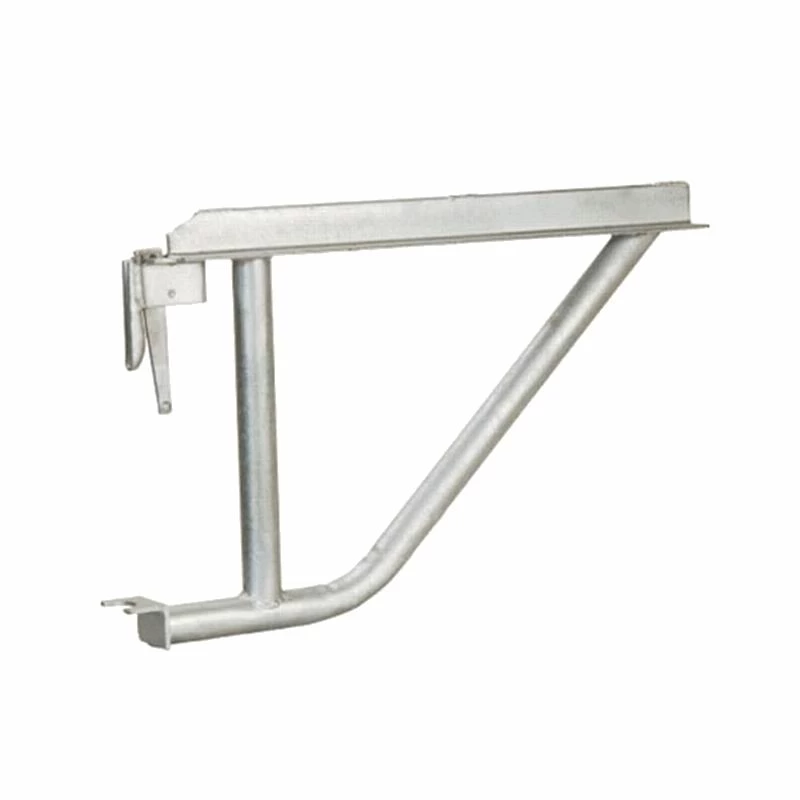

Hop Up Bracket 3 Board
|
9.46
|
20.86
|
|
KS.HUB.2M
|

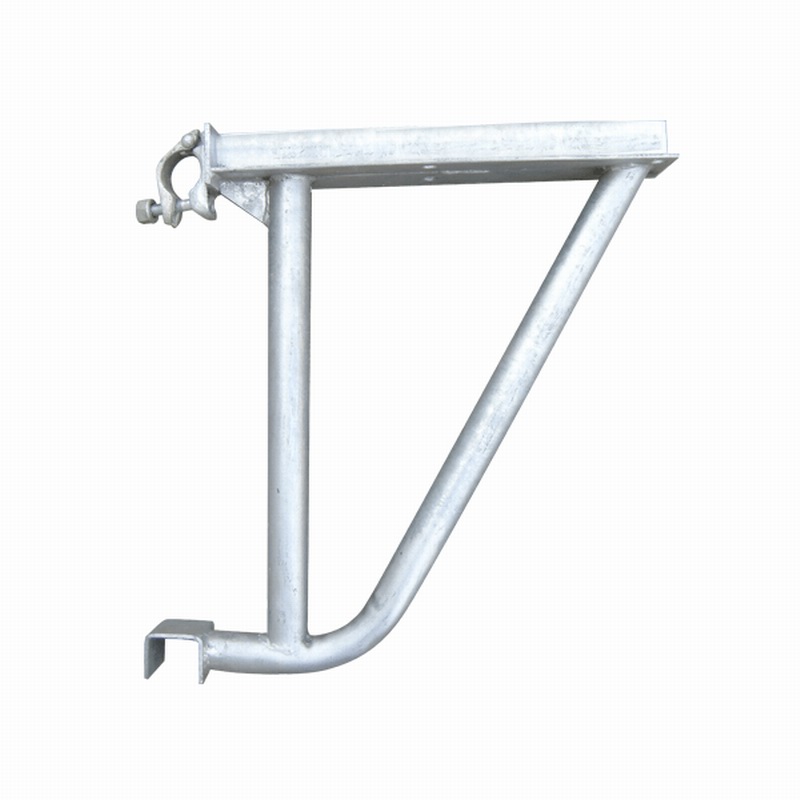

Mobile Hop Up Bracket 2 Board
|
7.20
|
15.88
|
Features:
Dimension: Angle Steel 50x5mm. 4mm thickness angle steel is also available by request.
Supporting tube can be circle tube or square tube.
Steel Grade: Q235
Wedge Pin: t=6mm
Surface Finishing: Hot dip Galvanized; Powder Coated, Painted
Quality Standard: AS/NZS 1576
Welding Process: CO2/Mixture Gas Shielding Welding

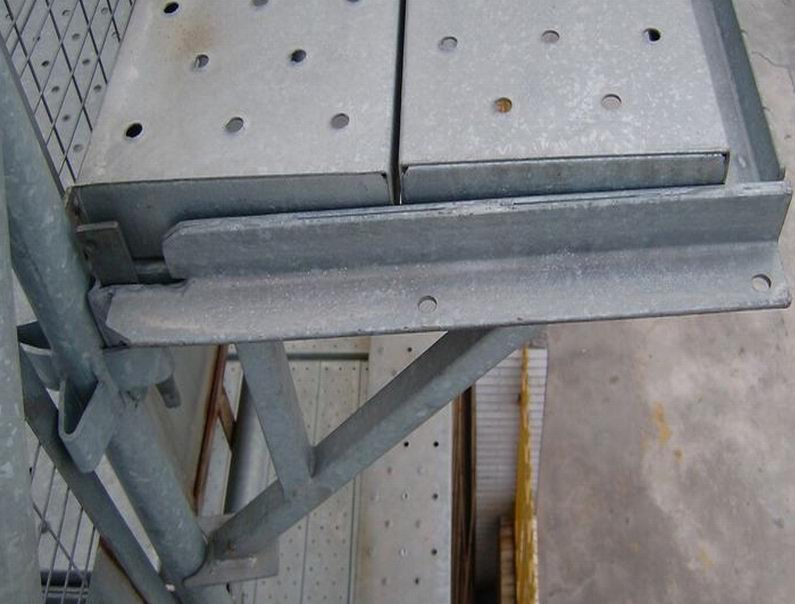

Causion: For 2 and 3 board hop up brackets, there must be installed tie bars to prevent the steel planks falling out!
