KXT-B Flexible Anti-pull Rubber Joint

KXT-B Flexible Anti-pull Rubber Joint,

For water,air,oil...



KXT-B Flexible Anti-pull Rubber Joint

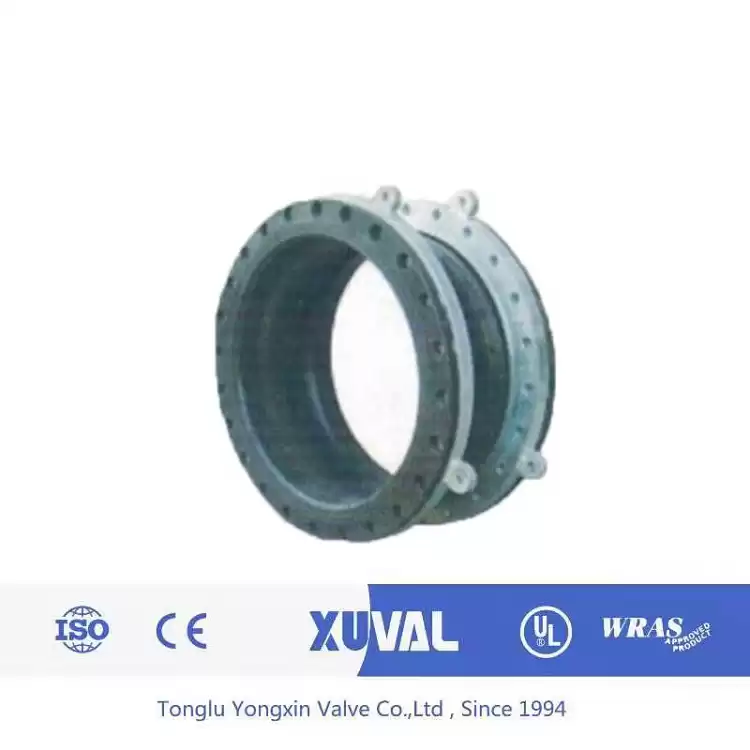

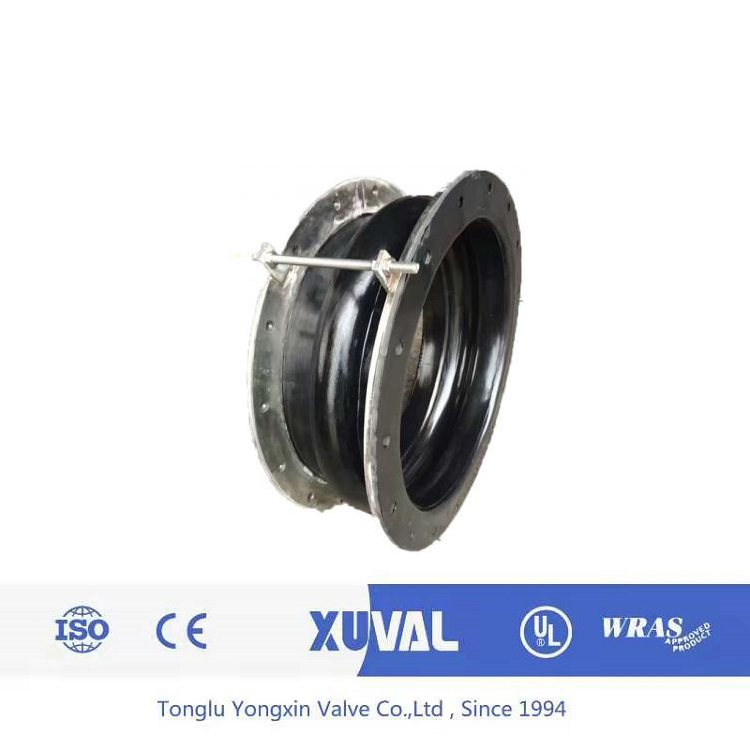

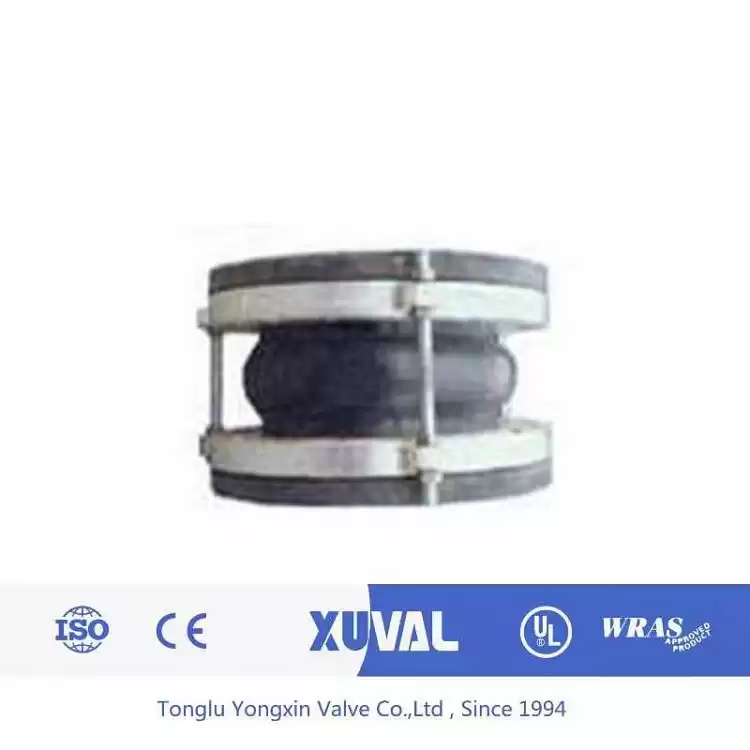

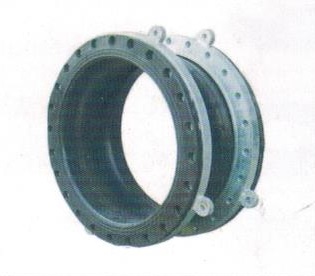

The rubber telescopic device is composed of rubber ball with inner rubber layer, multi-layer carbon fiber, polyamide fiber cord cloth and outer rubber layer. Both ends can rotate 360° flange.In order to avoid the explosion of the ball caused by the instantaneous increase of the equipment pressure, the ball is equipped with a booster ring outside the ball, and both ends of the flange are equipped with a finite position device, so as to prevent the increase of the pipe pressure from exceeding the limit of radial displacement, thus playing the role of protection equipment.


Technical parameters:

Model KXT-A1
KXT-A2
KXT-A3
Item
Mpa(kgf/cm²)Working pressure 1.0(10) 1.6(16) 2.5(25)
Mpa(kgf/cm²) Explosion pressure 2.0(20) 3.0(30) 4.5(45)
Kpa(mm/Hg) Vacuum 53.3(400) 86.7(650) 100(750)
℃ Applicable Temperature -15℃~115℃(-30℃~250℃ under special conditions)
Applicable media Air,compressed air,water,sea water,hot water,oil,acid,alkali,and so on

Flexible Anti-pull Rubber Joint


Main date:

Nominal Dimaneter

DN

Length(mm)
Axial displacement mm

Horizintal

displacement(mm)

Angular deflection

(a1+a2)

mm inch Extension Compression
32 1.25 95 6 9 9 15
40 1.5 95 6 10 9 15
50 2 105 7 10 10 15
65 2.5 115 7 13 11 15
80 3 135 8 15 12 15
100 4 150 10 19 13 15
125 5 165 12 19 13 15
150 6 180 12 20 14 15
200 8 210 16 25 22 15
250 10 230 16 25 22 15
300 12 245 16 25 22 15
350 14 255 16 25 22 15
400 16 255 16 25 22 15
450 18 255 16 25 22 15
500 20 255 6 25 22 15
600 24 260 6 25 22 15
700 28 260 16 25 22 15
800 32 260 16 25 22 15
900 36 260 6 25 22 15
1000 40 260 18 26 24 15
1200 48 260 18 26 24 15
1400 56 350 20 28 26 15
1600 64 350 25 35 30 10


Packing & Delivery :

Packing Details  : all by seaworthy plywood case and packed strongly by packing belt as below

Delivery Details : Generally it is 5-10 days if the goods are in stock. or15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45days.
